DTC P0336 CKP SENSOR
EC-1359
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Wiring DiagramEBS0121H
TBWA0570E
Page 1738 of 4179
EC-1360
[YD (WITHOUT EURO-OBD)]
DTC P0336 CKP SENSOR
Diagnostic ProcedureEBS0121I
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten engine ground screws. Refer to EC-1267, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
PBIB2020E
Page 1739 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual DTC P0336 CKP SENSOR
EC-1361
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

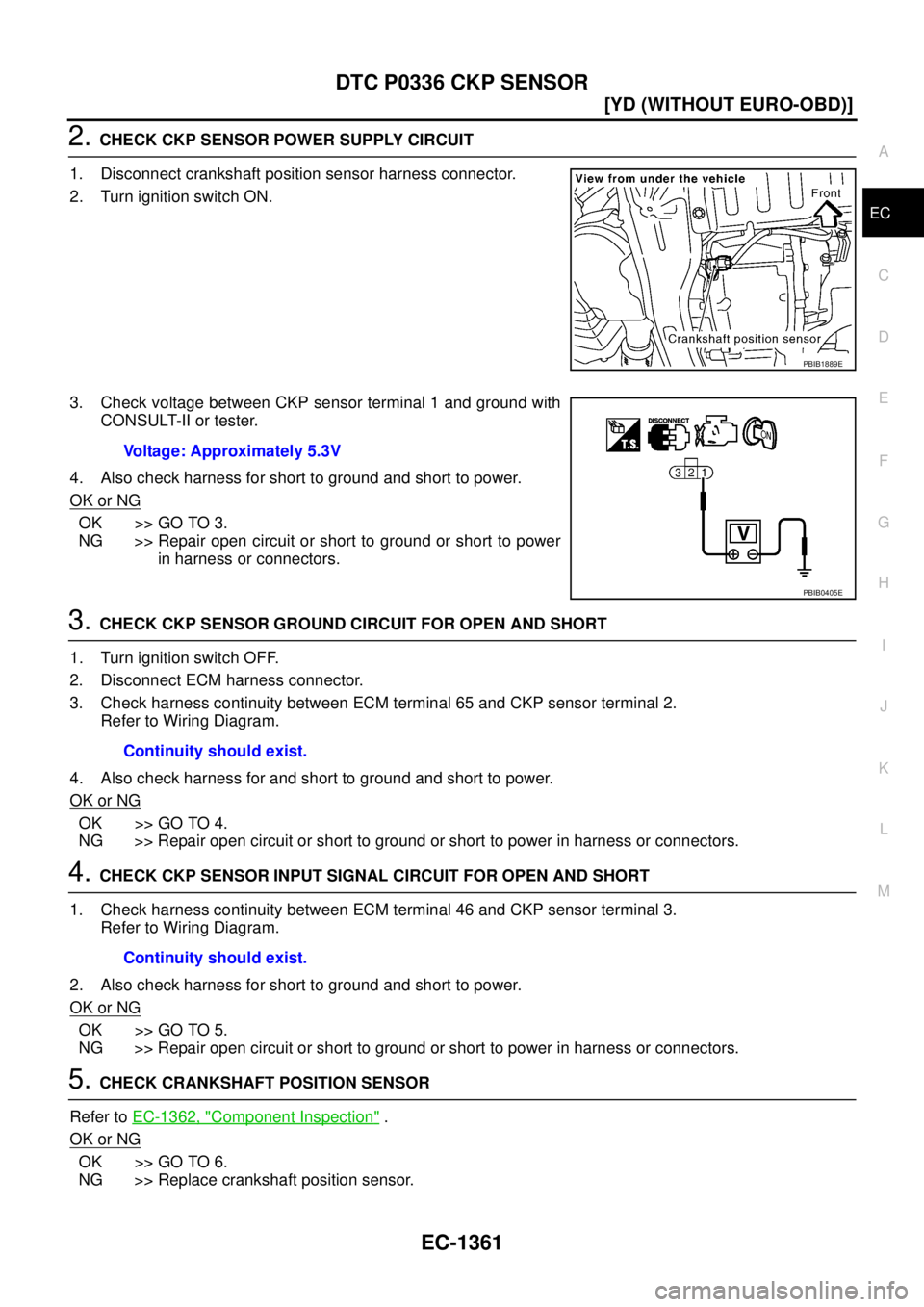

2. CHECK CKP SENSOR POWER SUPPLY CIRCUIT
1. Disconnect crankshaft position sensor harness connector.
2. Turn ignition s NISSAN X-TRAIL 2003 Service Repair Manual DTC P0336 CKP SENSOR
EC-1361
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
2. CHECK CKP SENSOR POWER SUPPLY CIRCUIT
1. Disconnect crankshaft position sensor harness connector.
2. Turn ignition s](/manual-img/5/57404/w960_57404-1738.png)
DTC P0336 CKP SENSOR
EC-1361
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
2. CHECK CKP SENSOR POWER SUPPLY CIRCUIT
1. Disconnect crankshaft position sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between CKP sensor terminal 1 and ground with
CONSULT-II or tester.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
3. CHECK CKP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 65 and CKP sensor terminal 2.
Refer to Wiring Diagram.
4. Also check harness for and short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK CKP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 46 and CKP sensor terminal 3.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK CRANKSHAFT POSITION SENSOR
Refer to EC-1362, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace crankshaft position sensor.
PBIB1889E
Voltage: Approximately 5.3V
PBIB0405E
Continuity should exist.
Continuity should exist.
Page 1740 of 4179
EC-1362
[YD (WITHOUT EURO-OBD)]
DTC P0336 CKP SENSOR
6. CHECK GEAR TOOTH
Visually check for chipping signal plate gear tooth.
OK or NG
OK >> GO TO 7.
NG >> Replace the signal plate.
7. CHECK INTERMITTENT INCIDENT
Refer to EC-1260, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END

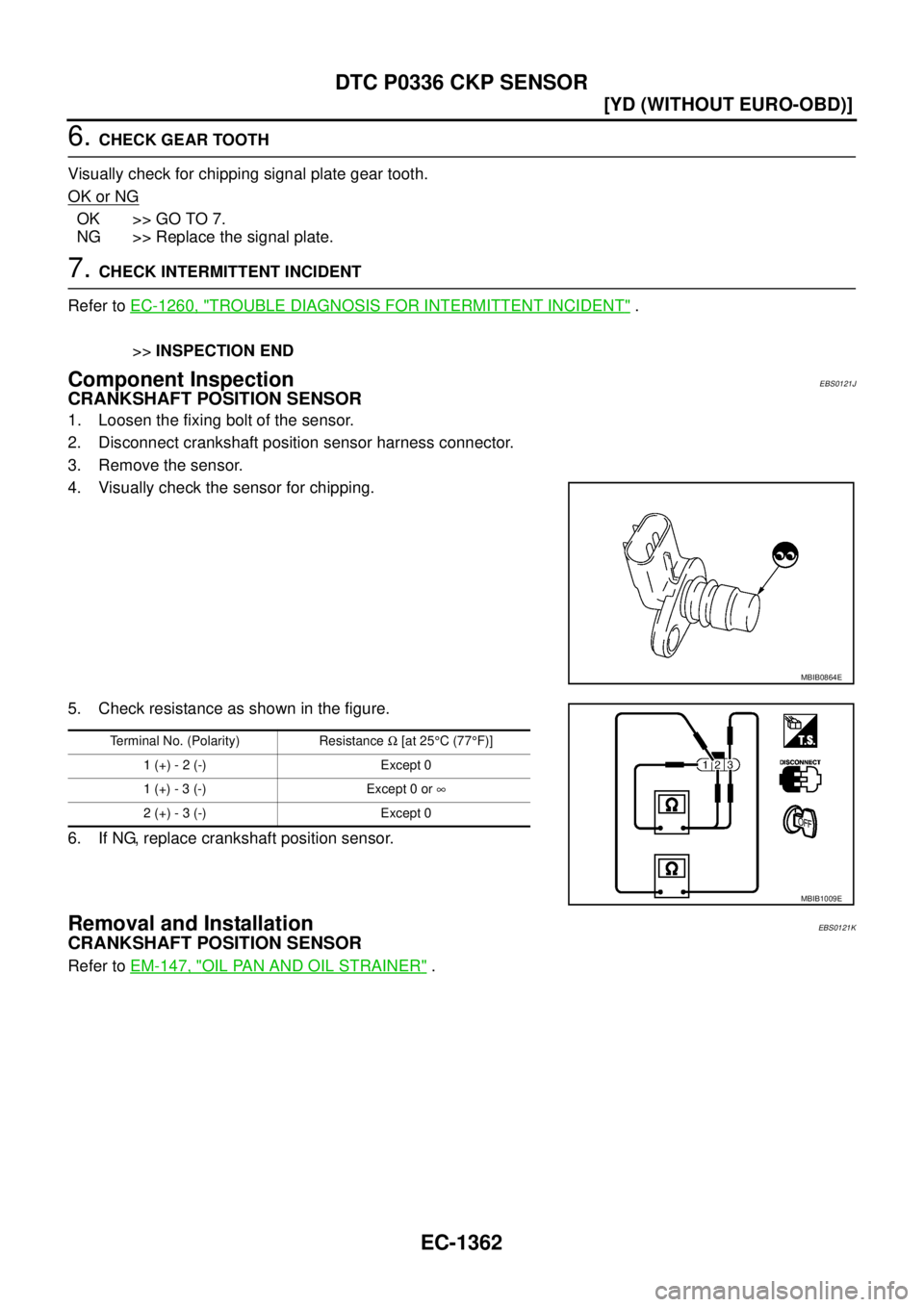

Component InspectionEBS0121J
CRANKSHAFT POSITION SENSOR
1. Loosen the fixing bolt of the sensor.
2. Disconnect crankshaft position sensor harness connector.
3. Remove the sensor.
4. Visually check the sensor for chipping.
5. Check resistance as shown in the figure.
6. If NG, replace crankshaft position sensor.
Removal and InstallationEBS0121K
CRANKSHAFT POSITION SENSOR
Refer to EM-147, "OIL PAN AND OIL STRAINER" .
MBIB0864E
Terminal No. (Polarity) Resistance Ω [at 25°C (77°F)]
1 (+) - 2 (-) Except 0
1 (+) - 3 (-) Except 0 or ∞
2 (+) - 3 (-) Except 0
MBIB1009E
Page 1741 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual DTC P0340 CMP SENSOR
EC-1363
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0340 CMP SENSORPFP:23731
DescriptionEBS0121L
The camshaft position sensor identifies a particular cylinder by
mean NISSAN X-TRAIL 2003 Service Repair Manual DTC P0340 CMP SENSOR
EC-1363
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0340 CMP SENSORPFP:23731
DescriptionEBS0121L
The camshaft position sensor identifies a particular cylinder by
mean](/manual-img/5/57404/w960_57404-1740.png)
DTC P0340 CMP SENSOR
EC-1363
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0340 CMP SENSORPFP:23731
DescriptionEBS0121L
The camshaft position sensor identifies a particular cylinder by
means of signals from the sensing plate (with five protrusions)
installed to the camshaft. The datum signal output is detected 90°
signal and sent to the ECM.

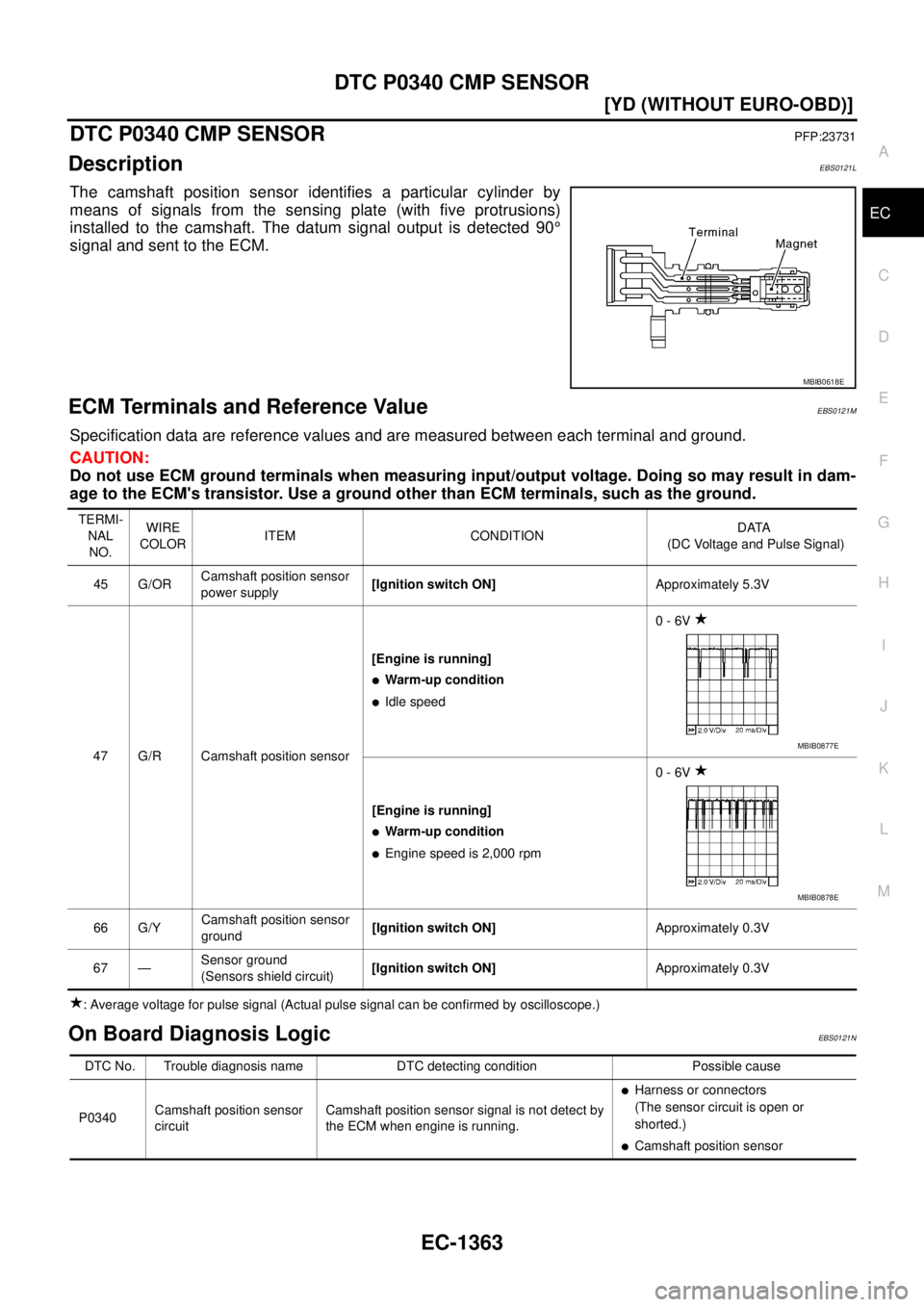

ECM Terminals and Reference ValueEBS0121M
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
On Board Diagnosis LogicEBS0121N
MBIB0618E
TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
45 G/ORCamshaft position sensor
power supply[Ignition switch ON]Approximately 5.3V
47 G/R Camshaft position sensor[Engine is running]
Warm-up condition
Idle speed0 - 6V
[Engine is running]
Warm-up condition
Engine speed is 2,000 rpm0 - 6V
66 G/YCamshaft position sensor
ground[Ignition switch ON]Approximately 0.3V
67 —Sensor ground
(Sensors shield circuit)[Ignition switch ON]Approximately 0.3V
MBIB0877E
MBIB0878E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0340Camshaft position sensor
circuitCamshaft position sensor signal is not detect by
the ECM when engine is running.
Harness or connectors
(The sensor circuit is open or
shorted.)
Camshaft position sensor
Page 1742 of 4179
EC-1364
[YD (WITHOUT EURO-OBD)]
DTC P0340 CMP SENSOR
DTC Confirmation ProcedureEBS0121O
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for at least 5 seconds.
If engine could not start, keep ignition switch at START position
for 5 seconds.
4. If 1st trip DTC is detected, go to EC-1366, "
Diagnostic Proce-
dure" .
SEF817Y
Page 1743 of 4179
DTC P0340 CMP SENSOR
EC-1365
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

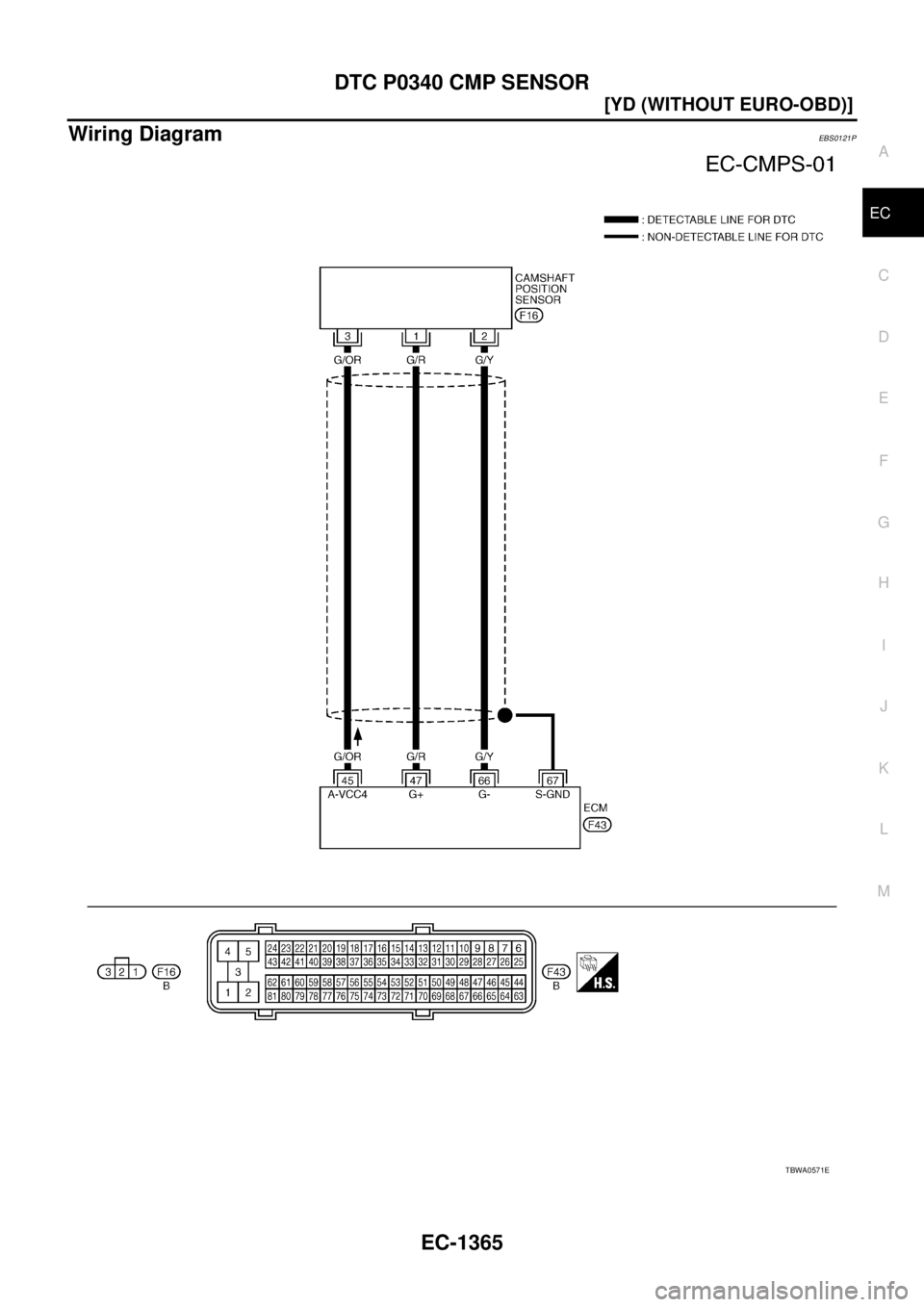

Wiring DiagramEBS0121P
