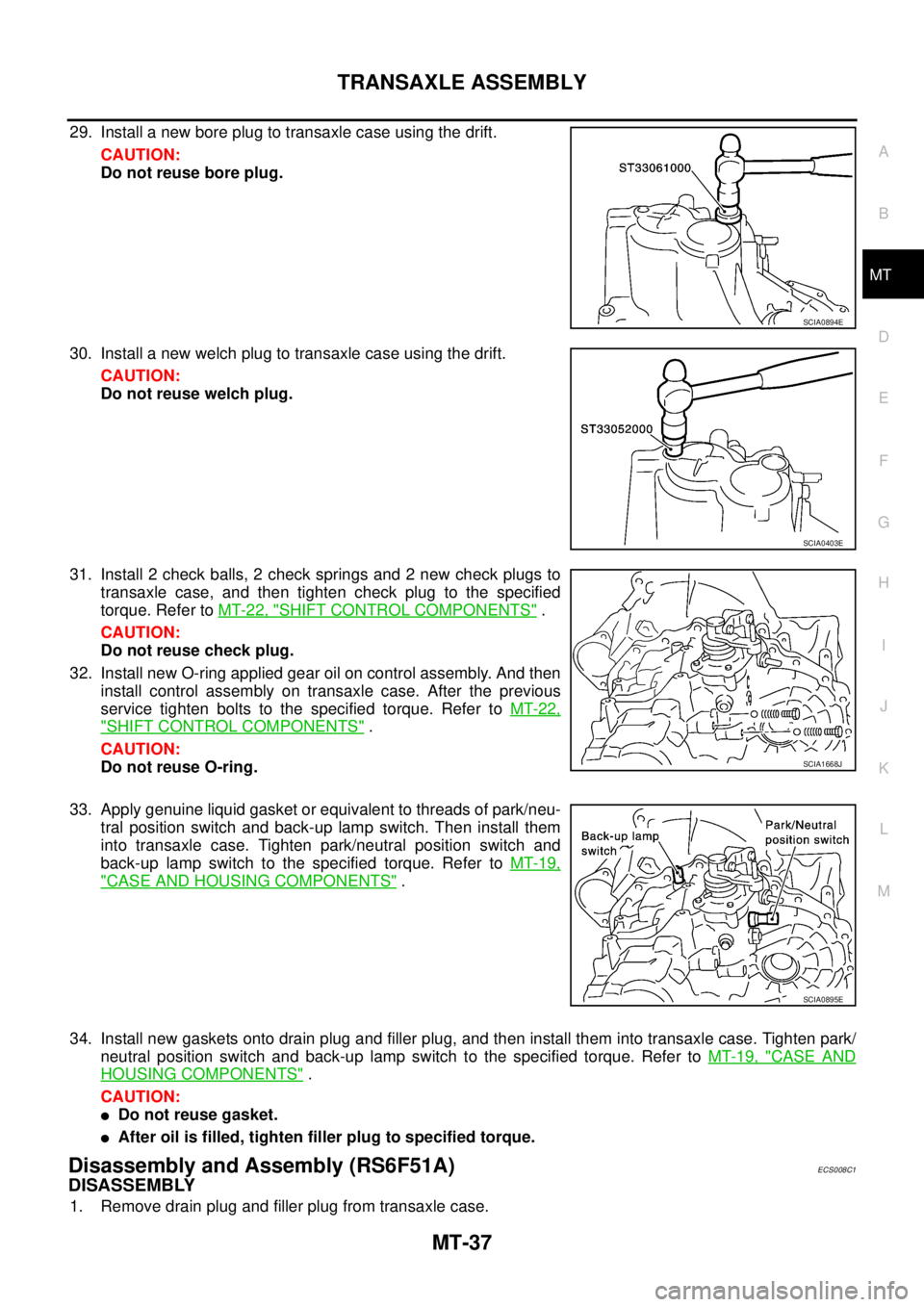

29. Install a new bore plug to transaxle case using the drift.
CAUTION:
Do not reuse bore plug.
30. Install a new welch plug to transaxle case using the drift.
CAUTION:
Do not reuse welch plug.
31. Install 2 check balls, 2 check springs and 2 new check plugs to
transaxle case, and then tighten check plug to the specified
torque. Refer to MT-22, "
SHIFT CONTROL COMPONENTS" .
CAUTION:
Do not reuse check plug.
32. Install new O-ring applied gear oil on control assembly. And then
install control assembly on transaxle case. After the previous
service tighten bolts to the specified torque. Refer to MT-22,
"SHIFT CONTROL COMPONENTS" .
CAUTION:
Do not reuse O-ring.
33. Apply genuine liquid gasket or equivalent to threads of park/neu-
tral position switch and back-up lamp switch. Then install them
into transaxle case. Tighten park/neutral position switch and
back-up lamp switch to the specified torque. Refer to MT-19,
"CASE AND HOUSING COMPONENTS" .
34. Install new gaskets onto drain plug and filler plug, and then install them into transaxle case. Tighten park/
neutral position switch and back-up lamp switch to the specified torque. Refer to MT-19, "
CASE AND
HOUSING COMPONENTS" .
CAUTION:
Do not reuse gasket.
After oil is filled, tighten filler plug to specified torque.
Disassembly and Assembly (RS6F51A)ECS008C1
DISASSEMBLY
1. Remove drain plug and filler plug from transaxle case.
SCIA0894E
SCIA0403E
SCIA1668J
SCIA0895E
Page 1970 of 4179

MT-38
TRANSAXLE ASSEMBLY
2. Remove park/neutral position switch and back-up lamp switch
from transaxle case.
3. Remove shift check and stopper bolt from transaxle case, and
then remove control assembly from transaxle case.
4. Remove check plugs (4 pieces), check springs (4 pieces), check
balls (4 pieces) and shift check sleeve (2 pieces) from transaxle
case.
5. Remove transaxle case mounting bolts.
6. Remove bore plug from transaxle case.
CAUTION:
Be careful not to damage transaxle case.
7. While spreading the snap ring of mainshaft rear bearing located
at bore plug hole, remove transaxle case from clutch housing.
8. Remove oil gutter, baffle plate from transaxle case.
9. Remove snap ring, mainshaft rear bearing adjusting shim and
input shaft rear bearing adjusting shim from transaxle case.
10. Remove differential side bearing outer race (transaxle case
side) from transaxle case using the puller, and then remove dif-
ferential side bearing adjusting shim from transaxle case.
11. Remove welch plug from transaxle case.
SCIA0389E
SCIA0959E
SCIA0983E
SCIA0897E
SCIA0402E
Page 1971 of 4179
TRANSAXLE ASSEMBLY
MT-39
D
E
F
G
H
I
J
K
L
MA
B
MT

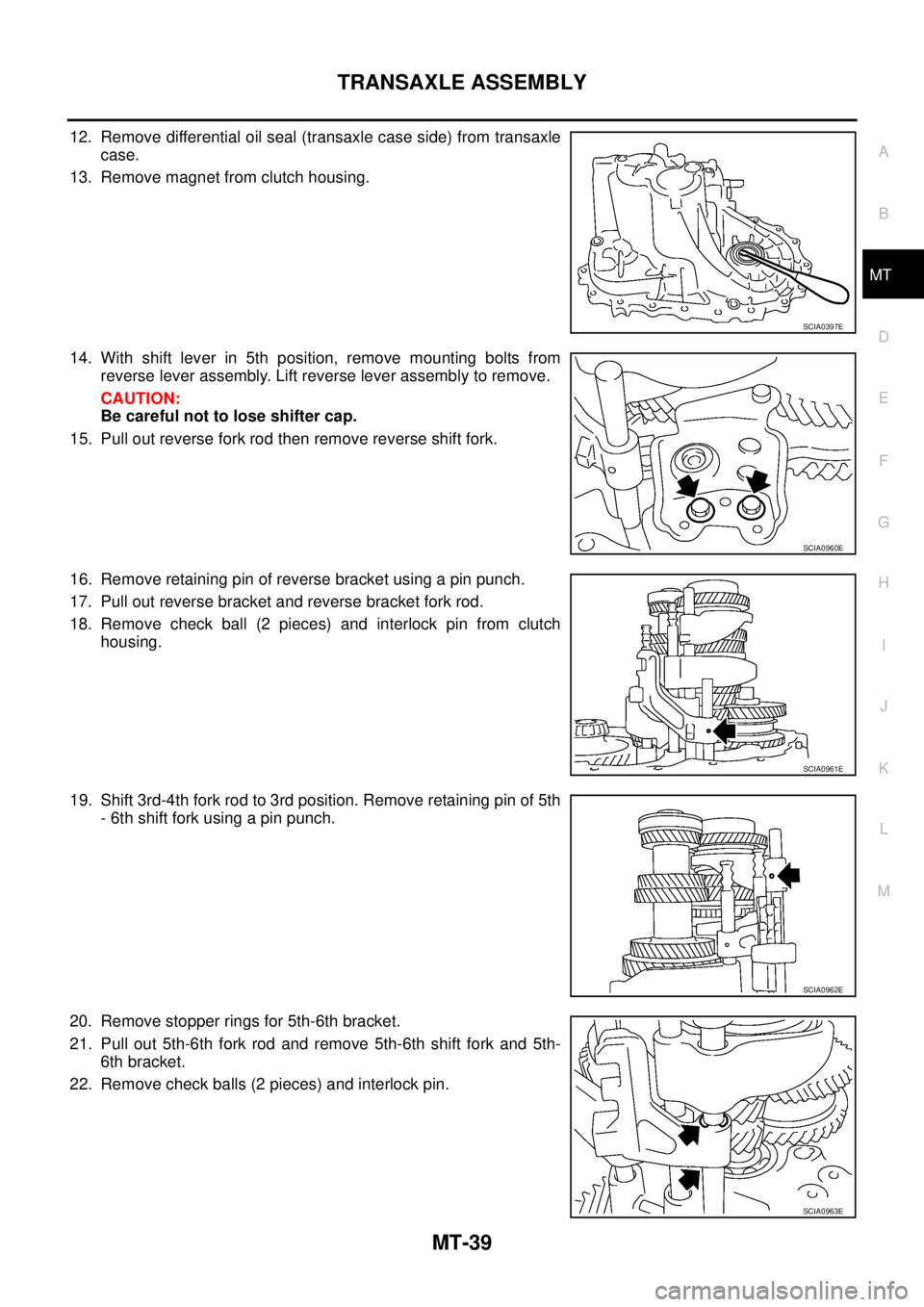

12. Remove differential oil seal (transaxle case side) from transaxle
case.
13. Remove magnet from clutch housing.
14. With shift lever in 5th position, remove mounting bolts from
reverse lever assembly. Lift reverse lever assembly to remove.
CAUTION:
Be careful not to lose shifter cap.
15. Pull out reverse fork rod then remove reverse shift fork.
16. Remove retaining pin of reverse bracket using a pin punch.
17. Pull out reverse bracket and reverse bracket fork rod.
18. Remove check ball (2 pieces) and interlock pin from clutch
housing.
19. Shift 3rd-4th fork rod to 3rd position. Remove retaining pin of 5th
- 6th shift fork using a pin punch.
20. Remove stopper rings for 5th-6th bracket.
21. Pull out 5th-6th fork rod and remove 5th-6th shift fork and 5th-
6th bracket.
22. Remove check balls (2 pieces) and interlock pin.
SCIA0397E
SCIA0960E
SCIA0961E
SCIA0962E
SCIA0963E
Page 1972 of 4179

MT-40
TRANSAXLE ASSEMBLY
23. Remove retaining pin of 3rd-4th bracket using a pin punch.
24. Remove stopper rings for 3rd-4th shift fork.
25. Pull out 3rd-4th fork rod and remove 3rd-4th shift fork and 3rd-
4th bracket.
26. Remove shift check sleeve from clutch housing.
27. Remove retaining pin of 1st-2nd shift fork using a pin punch.
28. Pull out 1st-2nd fork rod with 1st-2nd bracket.
29. Remove 1st-2nd shift fork.
30. Remove retaining pin of 1st-2nd bracket using a pin punch and
separate fork rod and 1st-2nd bracket.

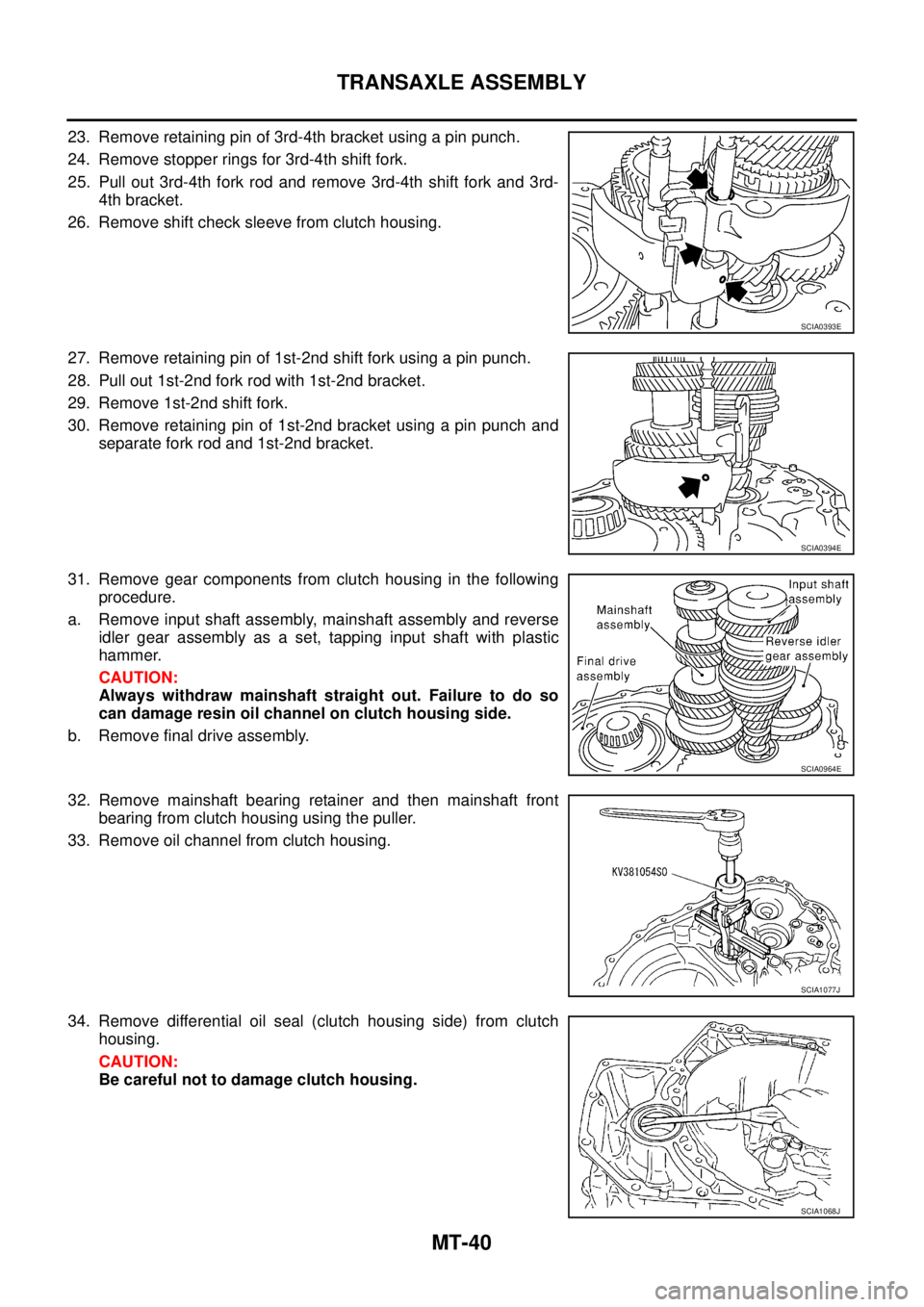

31. Remove gear components from clutch housing in the following
procedure.
a. Remove input shaft assembly, mainshaft assembly and reverse
idler gear assembly as a set, tapping input shaft with plastic
hammer.
CAUTION:
Always withdraw mainshaft straight out. Failure to do so
can damage resin oil channel on clutch housing side.
b. Remove final drive assembly.
32. Remove mainshaft bearing retainer and then mainshaft front
bearing from clutch housing using the puller.
33. Remove oil channel from clutch housing.
34. Remove differential oil seal (clutch housing side) from clutch
housing.
CAUTION:
Be careful not to damage clutch housing.
SCIA0393E
SCIA0394E
SCIA0964E
SCIA1077J
SCIA1068J
Page 1973 of 4179
TRANSAXLE ASSEMBLY
MT-41
D
E
F
G
H
I
J
K
L
MA
B
MT
35. Remove differential side bearing outer race (clutch housing
side) from clutch housing using the puller.
36. Remove input shaft oil seal from clutch housing.
CAUTION:
Be careful not to damage clutch housing.
ASSEMBLY

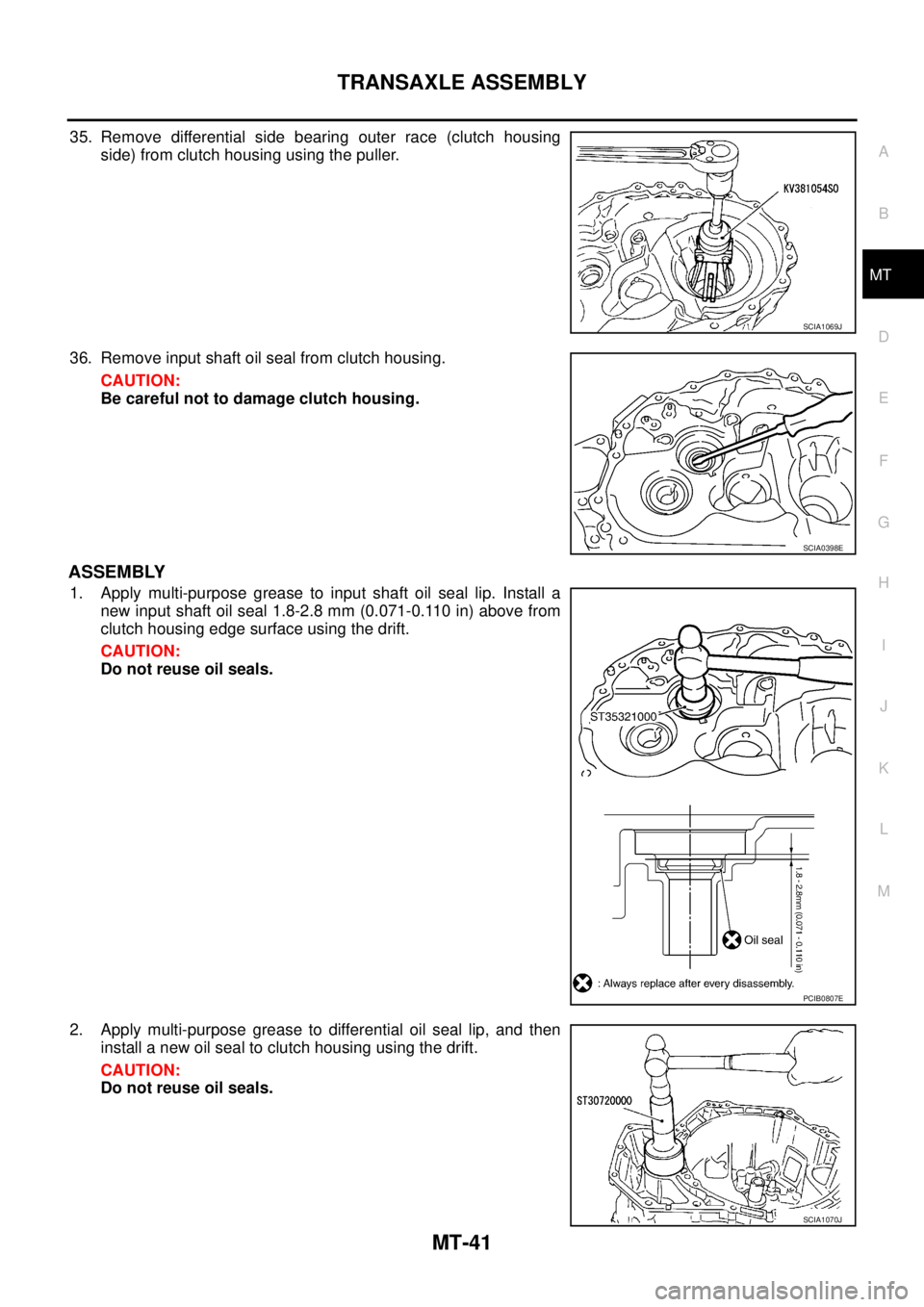

1. Apply multi-purpose grease to input shaft oil seal lip. Install a
new input shaft oil seal 1.8-2.8 mm (0.071-0.110 in) above from
clutch housing edge surface using the drift.
CAUTION:
Do not reuse oil seals.
2. Apply multi-purpose grease to differential oil seal lip, and then
install a new oil seal to clutch housing using the drift.
CAUTION:
Do not reuse oil seals.
SCIA1069J
SCIA0398E
PCIB0807E
SCIA1070J
Page 1974 of 4179
MT-42
TRANSAXLE ASSEMBLY

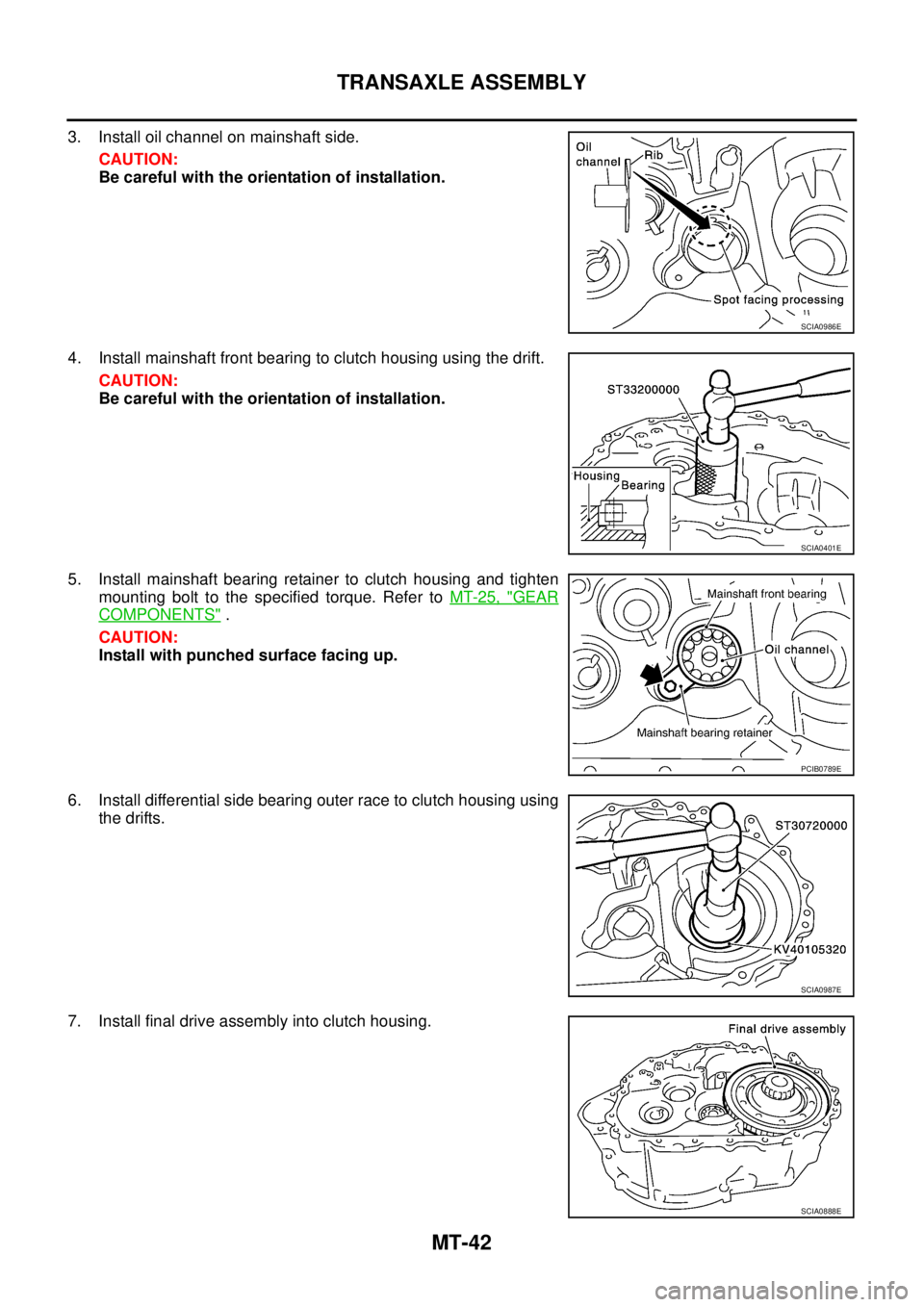

3. Install oil channel on mainshaft side.
CAUTION:
Be careful with the orientation of installation.
4. Install mainshaft front bearing to clutch housing using the drift.
CAUTION:
Be careful with the orientation of installation.
5. Install mainshaft bearing retainer to clutch housing and tighten
mounting bolt to the specified torque. Refer to MT-25, "
GEAR
COMPONENTS" .
CAUTION:
Install with punched surface facing up.
6. Install differential side bearing outer race to clutch housing using
the drifts.
7. Install final drive assembly into clutch housing.
SCIA0986E
SCIA0401E
PCIB0789E
SCIA0987E
SCIA0888E
Page 1975 of 4179

TRANSAXLE ASSEMBLY
MT-43
D
E
F
G
H
I
J
K
L
MA
B
MT

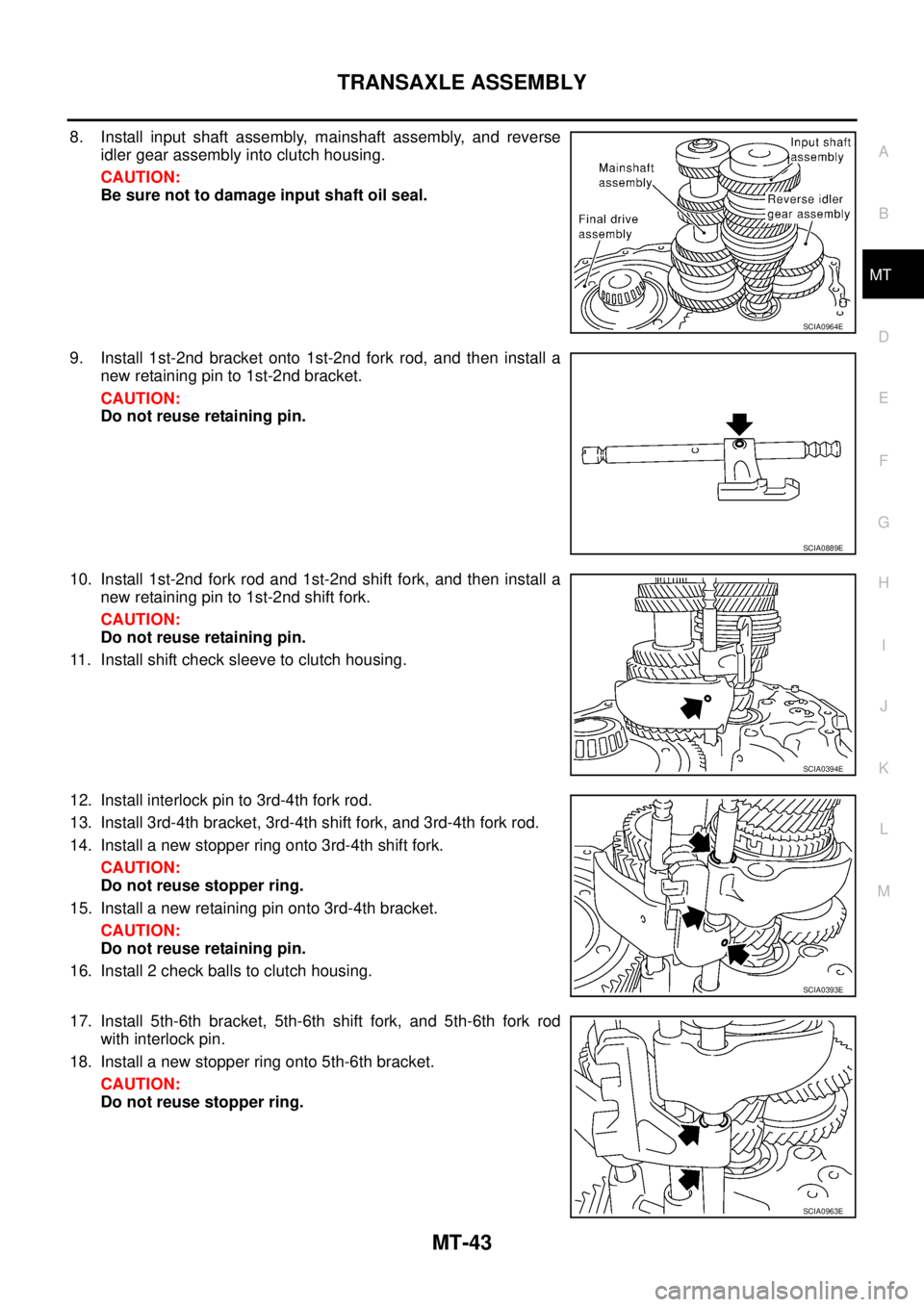

8. Install input shaft assembly, mainshaft assembly, and reverse
idler gear assembly into clutch housing.
CAUTION:
Be sure not to damage input shaft oil seal.
9. Install 1st-2nd bracket onto 1st-2nd fork rod, and then install a
new retaining pin to 1st-2nd bracket.
CAUTION:
Do not reuse retaining pin.
10. Install 1st-2nd fork rod and 1st-2nd shift fork, and then install a
new retaining pin to 1st-2nd shift fork.
CAUTION:
Do not reuse retaining pin.
11. Install shift check sleeve to clutch housing.
12. Install interlock pin to 3rd-4th fork rod.
13. Install 3rd-4th bracket, 3rd-4th shift fork, and 3rd-4th fork rod.
14. Install a new stopper ring onto 3rd-4th shift fork.
CAUTION:
Do not reuse stopper ring.
15. Install a new retaining pin onto 3rd-4th bracket.
CAUTION:
Do not reuse retaining pin.
16. Install 2 check balls to clutch housing.
17. Install 5th-6th bracket, 5th-6th shift fork, and 5th-6th fork rod
with interlock pin.
18. Install a new stopper ring onto 5th-6th bracket.
CAUTION:
Do not reuse stopper ring.
SCIA0964E
SCIA0889E
SCIA0394E
SCIA0393E
SCIA0963E
Page 1976 of 4179

MT-44
TRANSAXLE ASSEMBLY

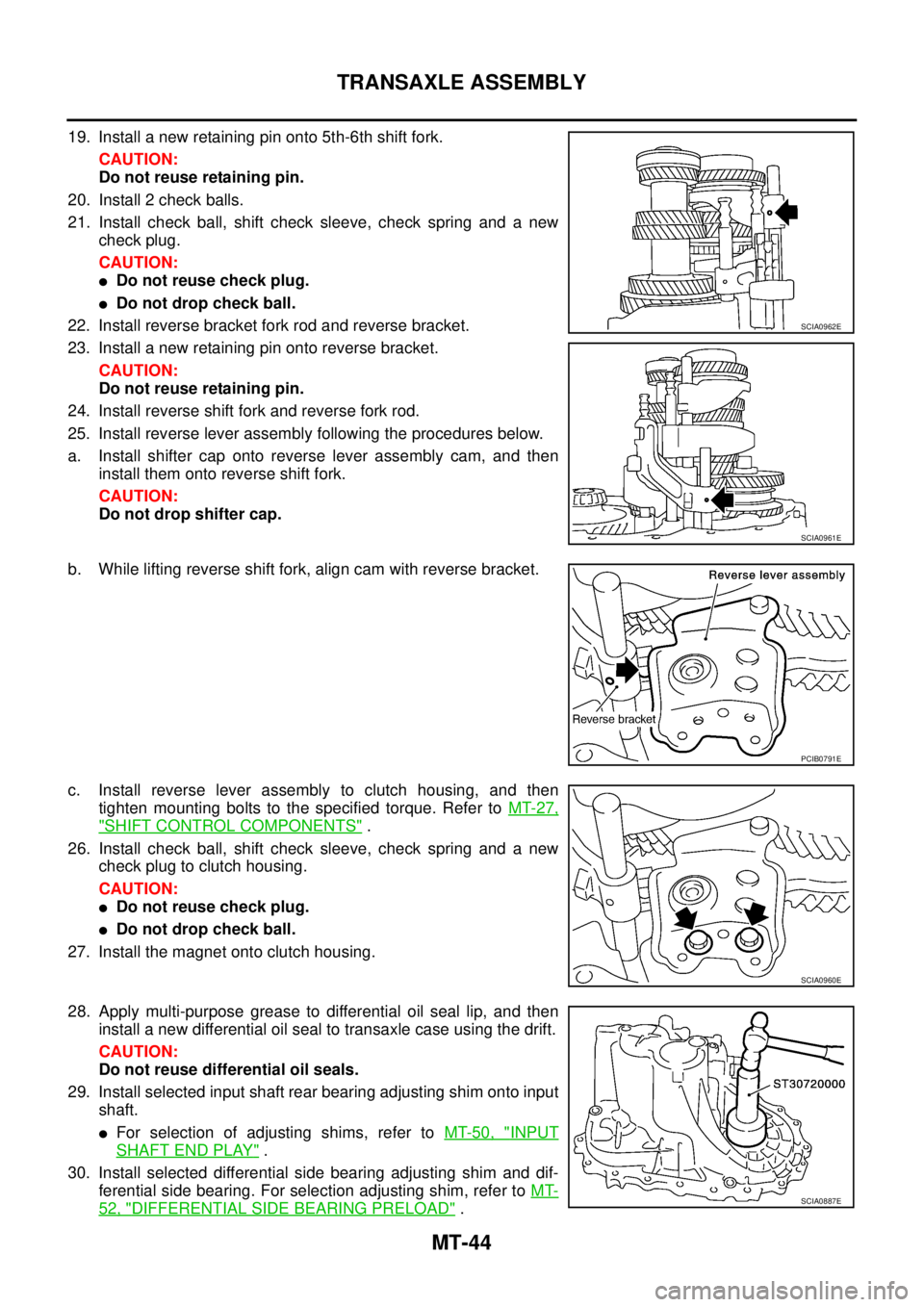

19. Install a new retaining pin onto 5th-6th shift fork.
CAUTION:
Do not reuse retaining pin.
20. Install 2 check balls.
21. Install check ball, shift check sleeve, check spring and a new
check plug.
CAUTION:
Do not reuse check plug.
Do not drop check ball.
22. Install reverse bracket fork rod and reverse bracket.
23. Install a new retaining pin onto reverse bracket.
CAUTION:
Do not reuse retaining pin.
24. Install reverse shift fork and reverse fork rod.
25. Install reverse lever assembly following the procedures below.
a. Install shifter cap onto reverse lever assembly cam, and then
install them onto reverse shift fork.
CAUTION:
Do not drop shifter cap.
b. While lifting reverse shift fork, align cam with reverse bracket.
c. Install reverse lever assembly to clutch housing, and then
tighten mounting bolts to the specified torque. Refer to MT-27,
"SHIFT CONTROL COMPONENTS" .
26. Install check ball, shift check sleeve, check spring and a new
check plug to clutch housing.
CAUTION:
Do not reuse check plug.
Do not drop check ball.
27. Install the magnet onto clutch housing.
28. Apply multi-purpose grease to differential oil seal lip, and then
install a new differential oil seal to transaxle case using the drift.
CAUTION:
Do not reuse differential oil seals.
29. Install selected input shaft rear bearing adjusting shim onto input
shaft.
For selection of adjusting shims, refer to MT-50, "INPUT
SHAFT END PLAY" .
30. Install selected differential side bearing adjusting shim and dif-
ferential side bearing. For selection adjusting shim, refer to MT-
52, "DIFFERENTIAL SIDE BEARING PRELOAD" .
SCIA0962E
SCIA0961E
PCIB0791E
SCIA0960E
SCIA0887E
