Page 2593 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual ALL MODE 4X4 SYSTEM TF-17 C E F G H I J K L MA B TF Engine speed signal T R R R Engine coolant temperature signal TR Accelerator pedal position signal T R R Output shaft revolution signal R T A/C c

Page 2594 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual TF-18 TROUBLE DIAGNOSIS TROUBLE DIAGNOSISPFP:00004 Fail-safe FunctionEDS001VE If any malfunction occurs in 4WD electrical system, and control unit detects the malfunction, 4WD warning lamp on combi

Page 2595 of 4179

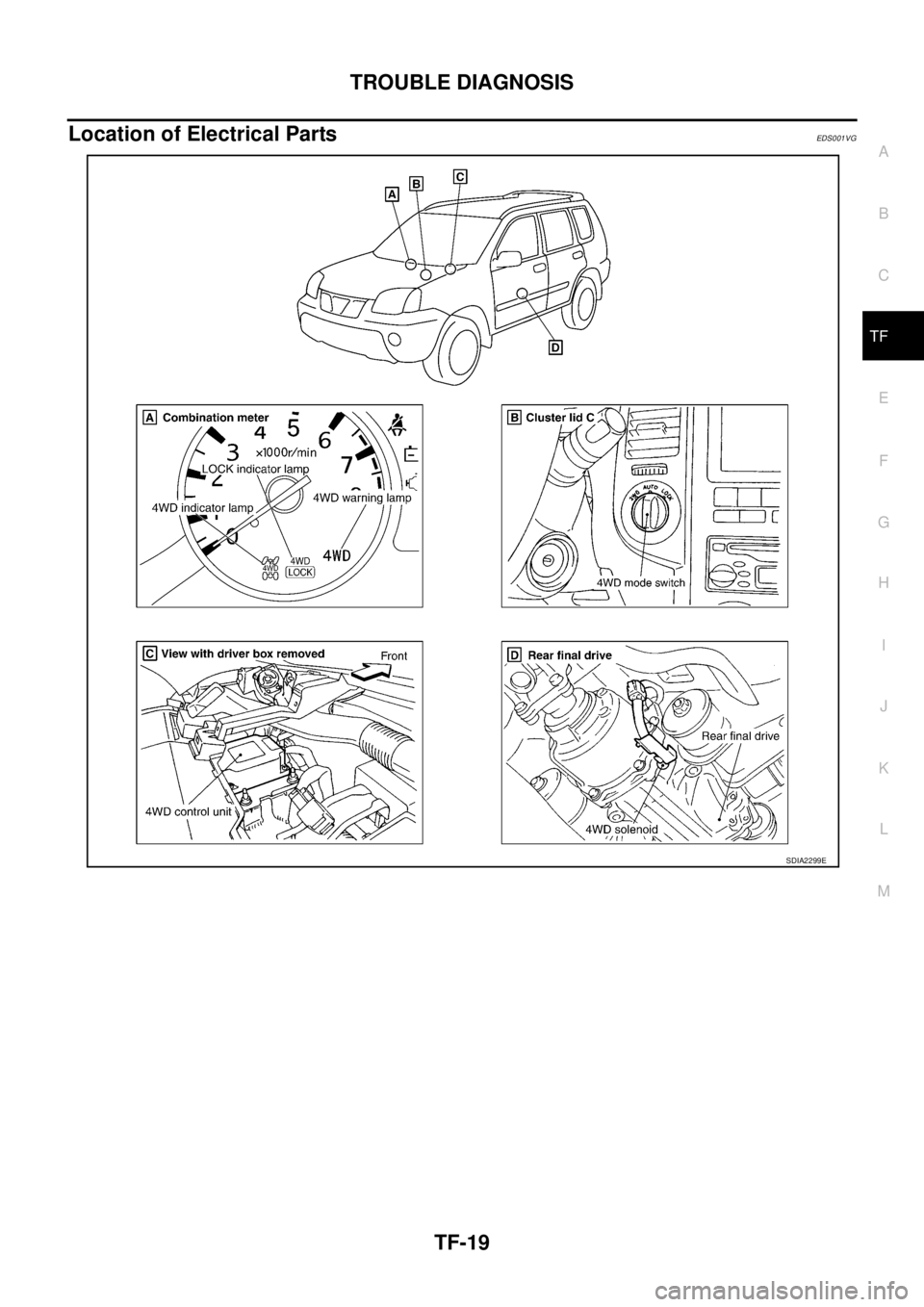

NISSAN X-TRAIL 2003 Service Repair Manual TROUBLE DIAGNOSIS TF-19 C E F G H I J K L MA B TF Location of Electrical PartsEDS001VG SDIA2299E

Page 2596 of 4179

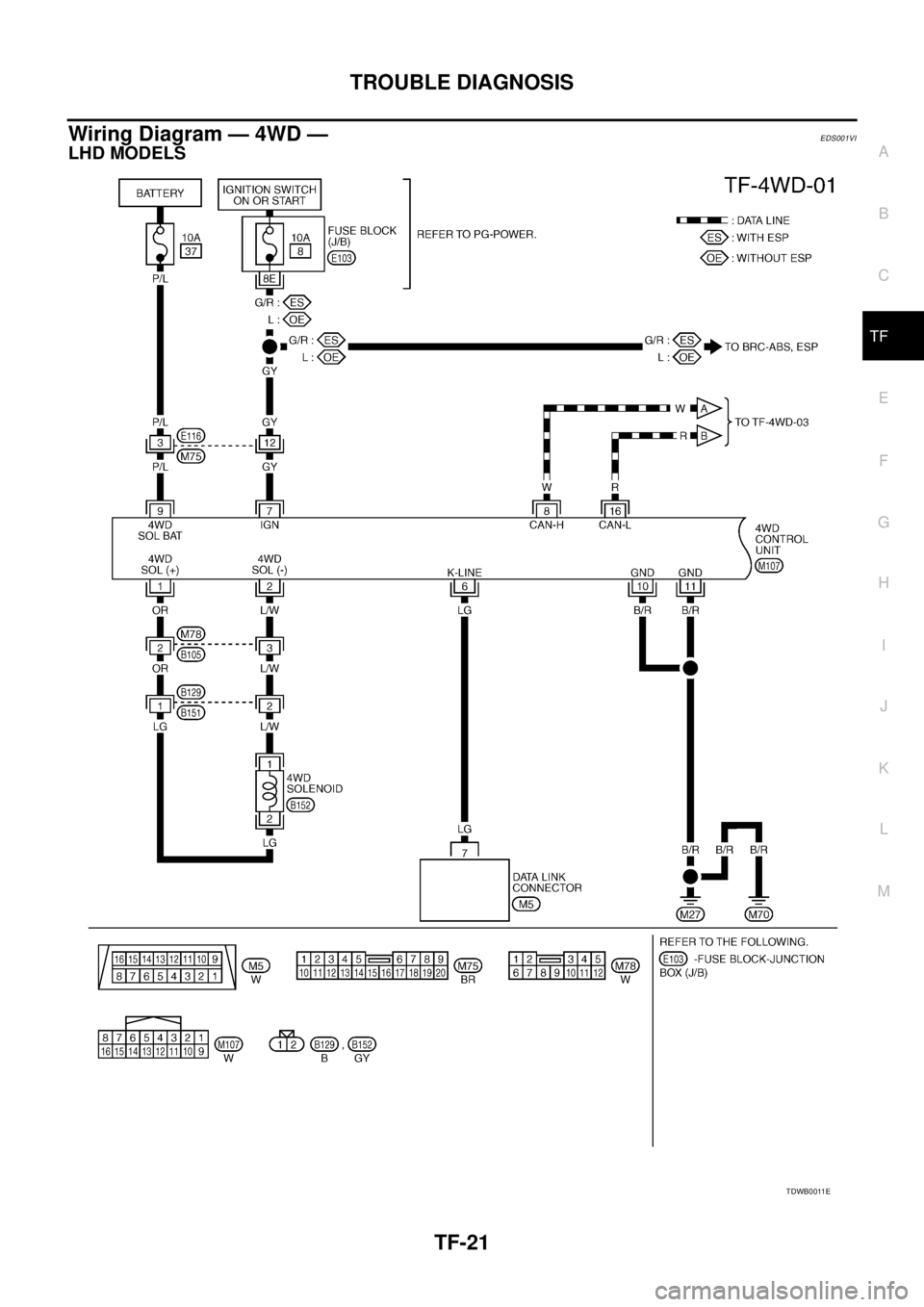

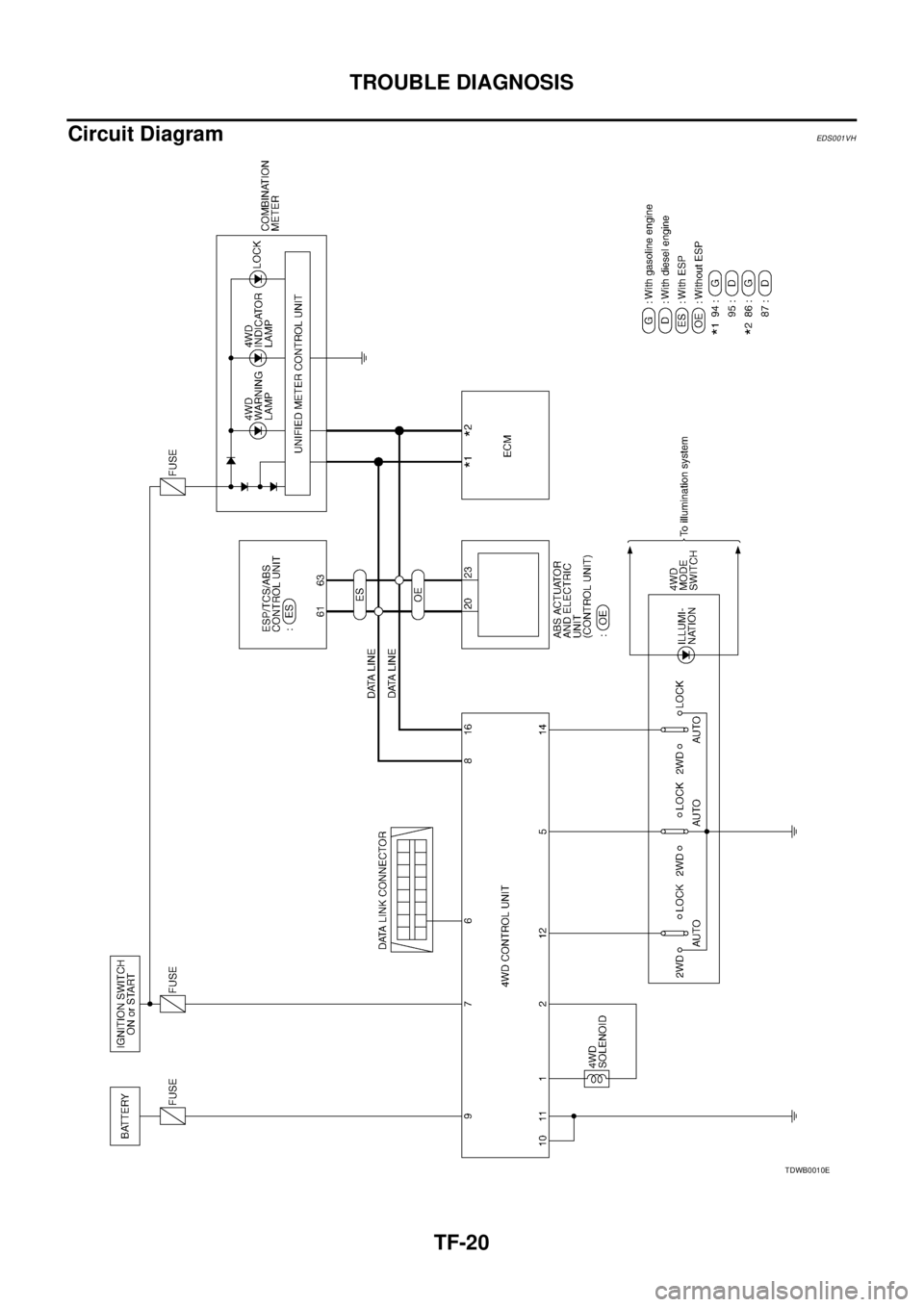

NISSAN X-TRAIL 2003 Service Repair Manual TF-20 TROUBLE DIAGNOSIS Circuit DiagramEDS001VH TDWB0010E

Page 2597 of 4179

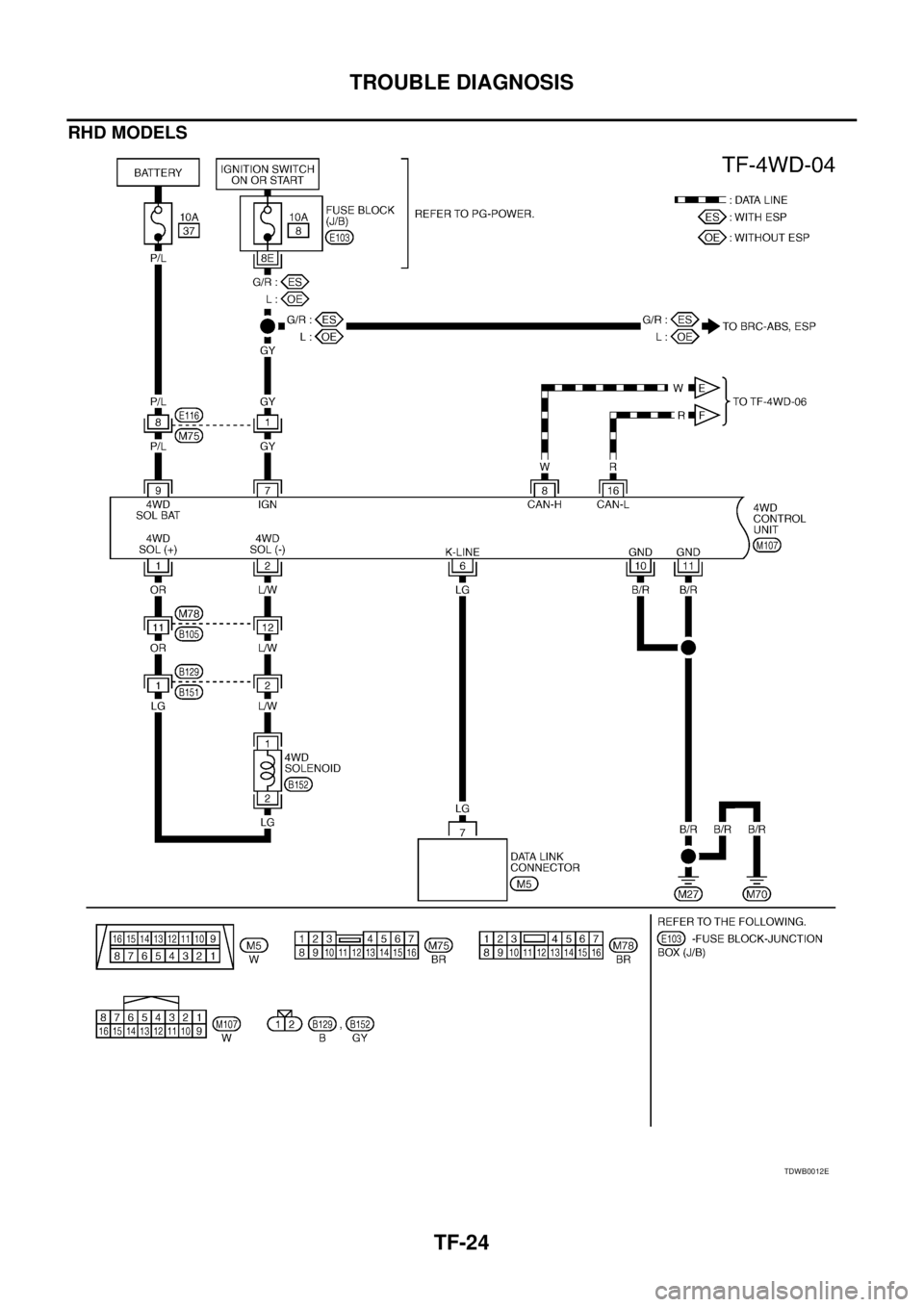

NISSAN X-TRAIL 2003 Service Repair Manual TROUBLE DIAGNOSIS TF-21 C E F G H I J K L MA B TF Wiring Diagram — 4WD —EDS001VI LHD MODELS TDWB0011E

Page 2598 of 4179

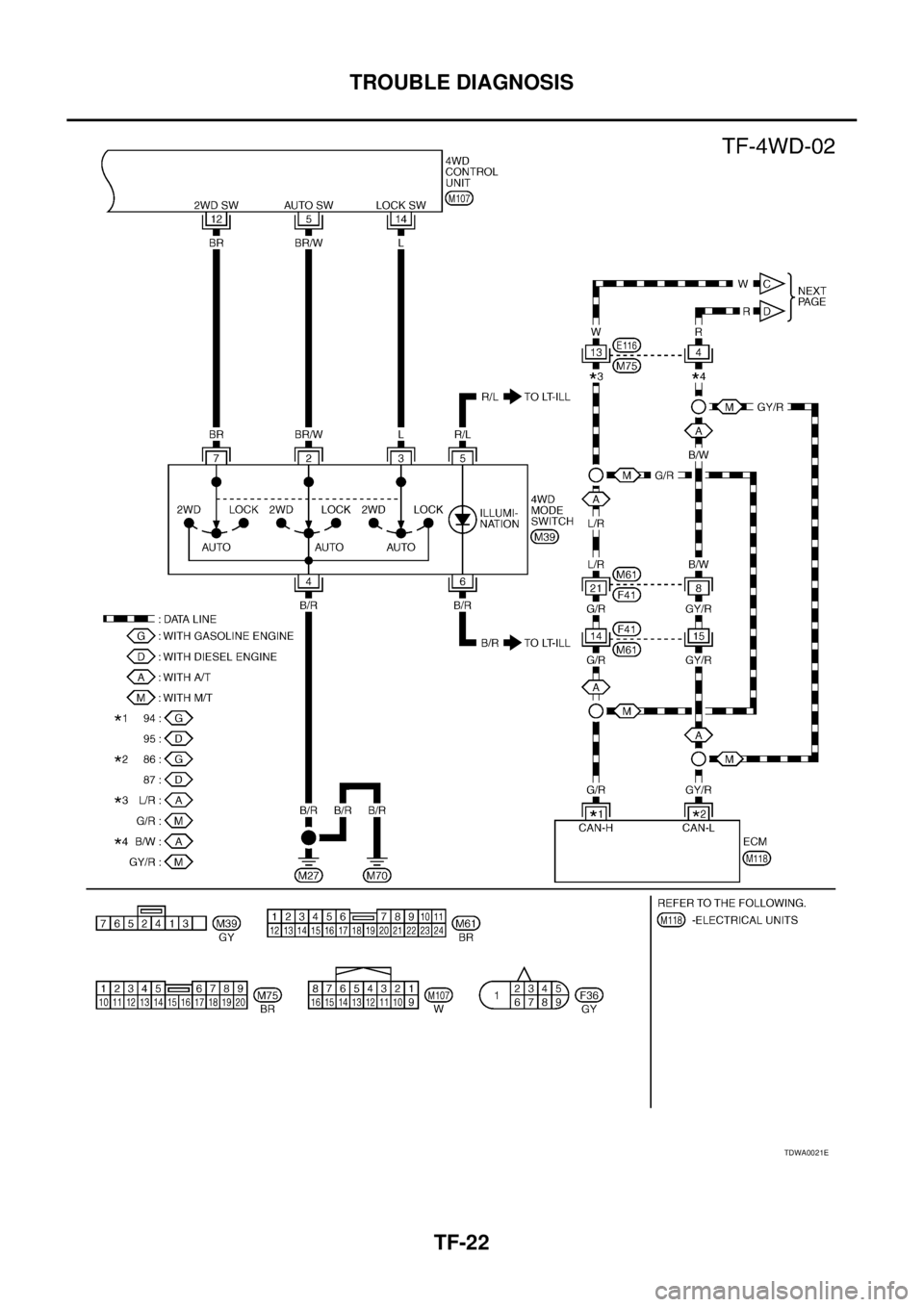

NISSAN X-TRAIL 2003 Service Repair Manual TF-22 TROUBLE DIAGNOSIS TDWA0021E

Page 2599 of 4179

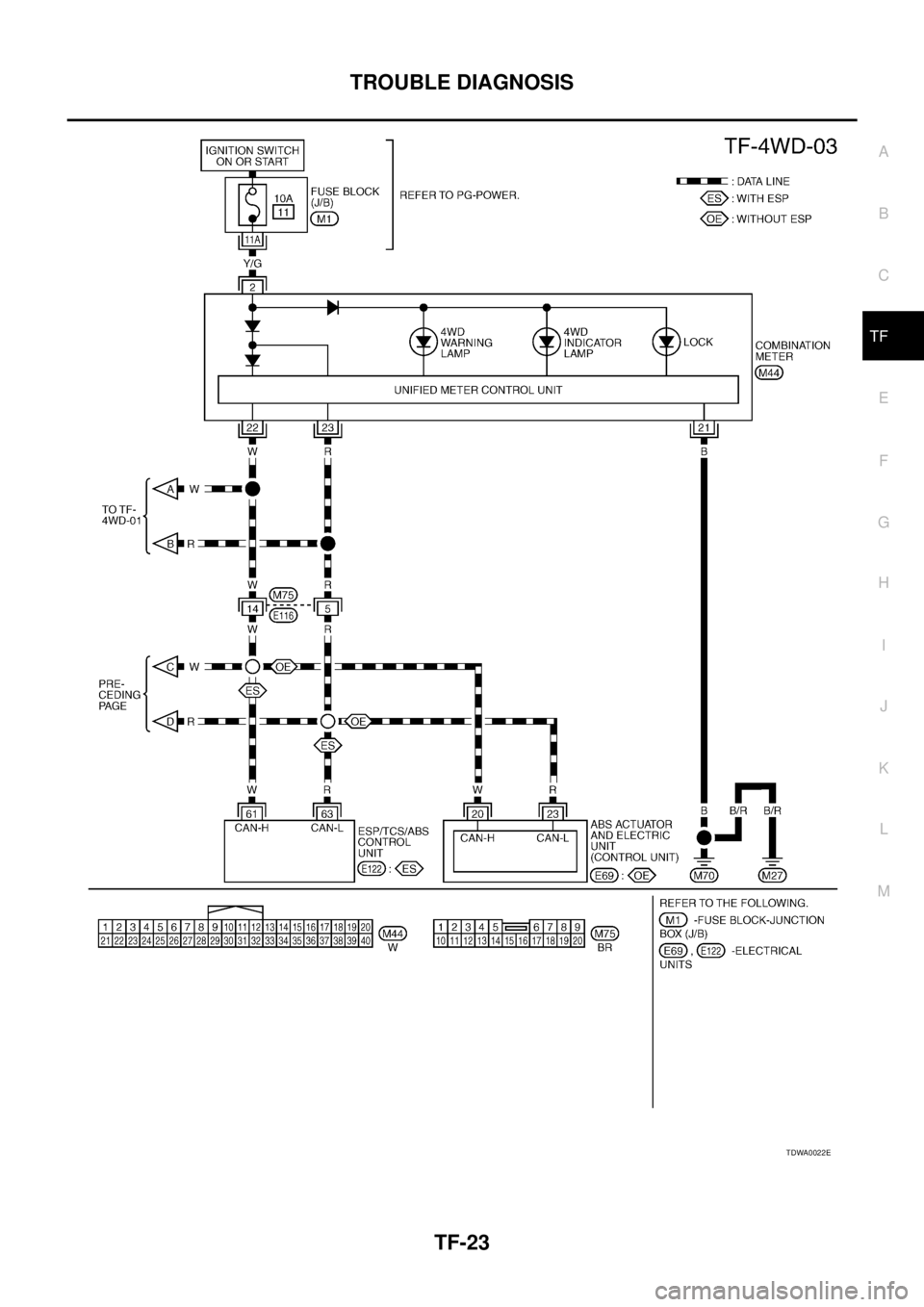

NISSAN X-TRAIL 2003 Service Repair Manual TROUBLE DIAGNOSIS TF-23 C E F G H I J K L MA B TF TDWA0022E

Page 2600 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual TF-24 TROUBLE DIAGNOSIS RHD MODELS TDWB0012E
