2003 NISSAN X-TRAIL Service Repair Manual

USB battery location lug pattern fuel cap change wheel rear entertainment

Load previous 8 pages

Page 3937 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual NAVIGATION SYSTEM
AV-47
C
D
E
F
G
H
I
J
L
MA
B
AV

Display With Pushed “ROUTE” Switch
Easy Mode
Expert Mode
The Function of Each Icon Is as Follows:
*: When destinations have been entered, rout

Page 3938 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual AV-48
NAVIGATION SYSTEM

Display With Pushed “SETTING” Switch
The Function of Each Icon Is as Follows:
Display with Pushed “INFO” Button
When the “INFO” button is pushed, the following i

Page 3939 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual NAVIGATION SYSTEM
AV-49
C
D
E
F
G
H
I
J
L
MA
B
AV

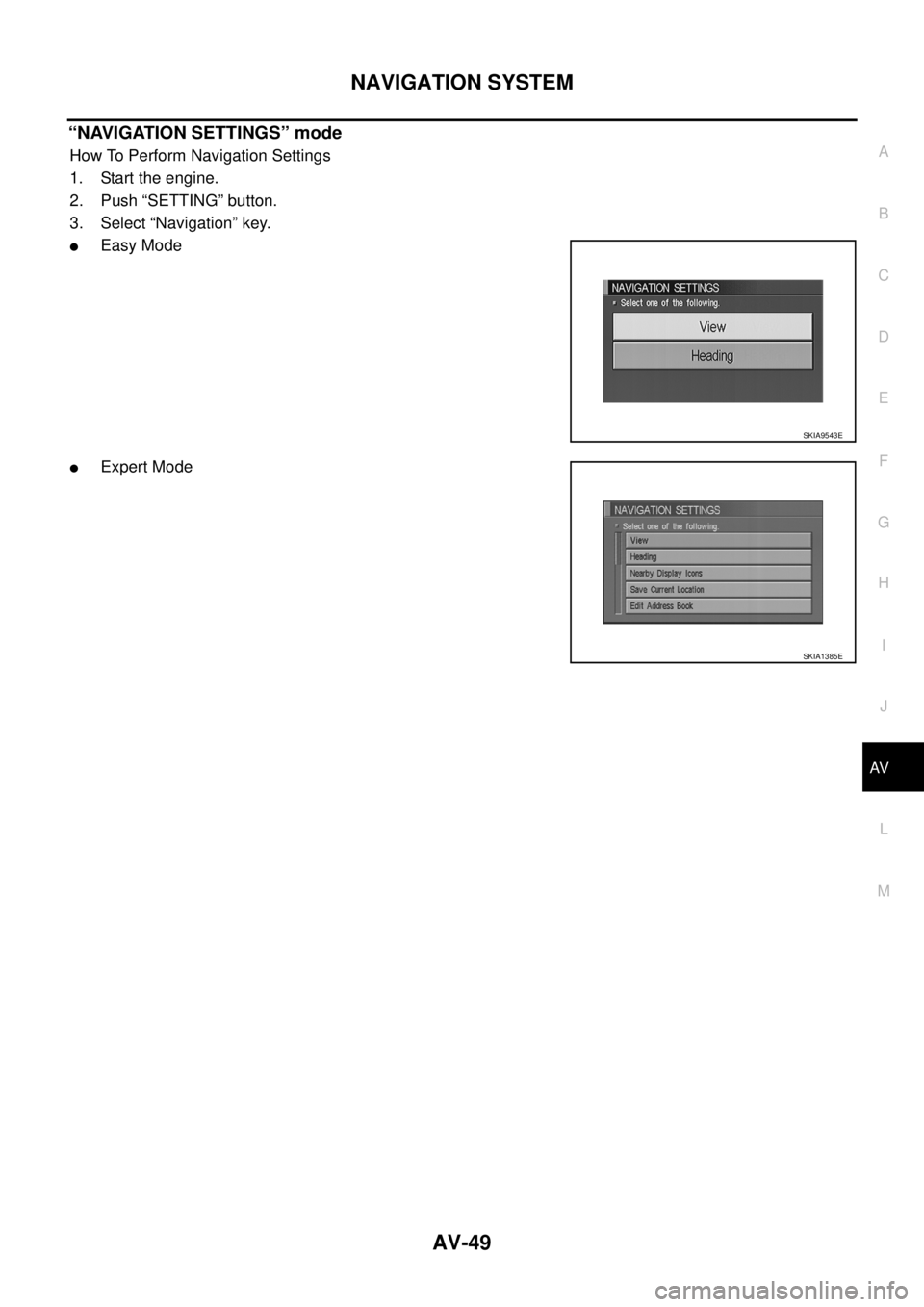

“NAVIGATION SETTINGS” mode
How To Perform Navigation Settings
1. Start the engine.
2. Push “SETTING” button.
3. Select “Navigation” key.

Page 3940 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual AV-50
NAVIGATION SYSTEM

Application Items
“VIEW” Mode
1. Select “BIRDVIEW® ” or “Plan view” icon.
To open the map screen display with BIRDVIEW® , select
“BIRDVIEW
® ”.
To open t

AV-50
NAVIGATION SYSTEM

Application Items
“VIEW” Mode
1. Select “BIRDVIEW® ” or “Plan view” icon.
To open the map screen display with BIRDVIEW® , select
“BIRDVIEW
® ”.
To open the map screen display with Plan View, select “Plan
View”.
“HEADING” Mode
To display the car heading up, select “Heading up”.
To display North up, select “North up”.
IconMODE
DescriptionRefer-
ence
page Easy Expert
View××Map display mode can be switched.AV- 5 0
Heading××Heading of the map display can be customized for either north head-
ing or the actual driving direction of the vehicle.AV- 5 0
Nearby Display Icons×Icons of facilities can be displayed.
Facilities to be displayed can be selected from the variety selections.AV- 5 1
Save Current Location×Current vehicle location can be registered in Address Book.AV- 5 1
Edit Address Book×Address Book can be edited.AV- 5 1
Clear Memory×Address Book, Previous destination or Avoid area can be deleted.AV- 5 1
Auto Re-route On / Off×On / Off of Auto Re-route can be switched.AV- 5 2
Quick Stop Customer Setting×One facility of your selection can be added to your Quick Stop.AV- 5 2
Set Average speed for Estimated
Journey Time×Average vehicle speed can be set to calibrate estimated journey
time for the destination.AV- 5 2
GPS Information×The GPS data includes longitude, latitude and altitude (distance
above sea level) of the present vehicle position, and current date
and time for the area in which the vehicle is being driven.
Also indicated are the GPS reception conditions and the GPS satel-
lite position.AV- 5 2
Avoid Area Setting×A particular area can be avoided when routing.AV- 5 3
Tracking On / Off×Tracking to the present vehicle position can be displayed.AV- 5 3
Adjust Current Location×Current location of position marker can be adjusted. Direction of
position marker also can be calibrated when heading direction of the
vehicle on the display is not matched with the actual direction.AV- 5 3
Switch beep On / Off×Button tone can be selected On / Off.AV- 5 4
SKIA0554E
SKIA0561E

Page 3941 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual NAVIGATION SYSTEM
AV-51
C
D
E
F
G
H
I
J
L
MA
B
AV

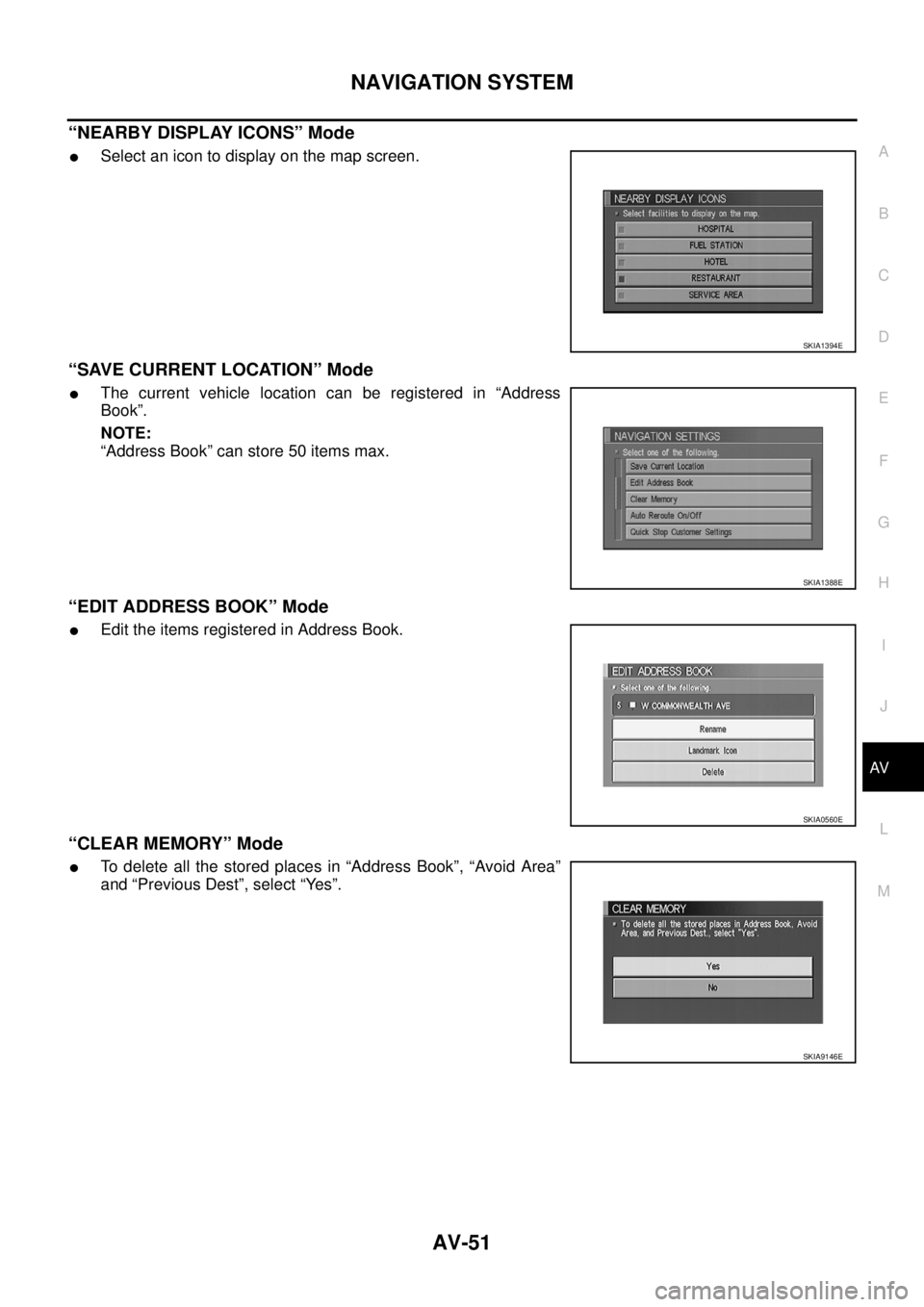

“NEARBY DISPLAY ICONS” Mode
Select an icon to display on the map screen.
“SAVE CURRENT LOCATION” Mode
The current vehicle location can be

Page 3942 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual AV-52
NAVIGATION SYSTEM

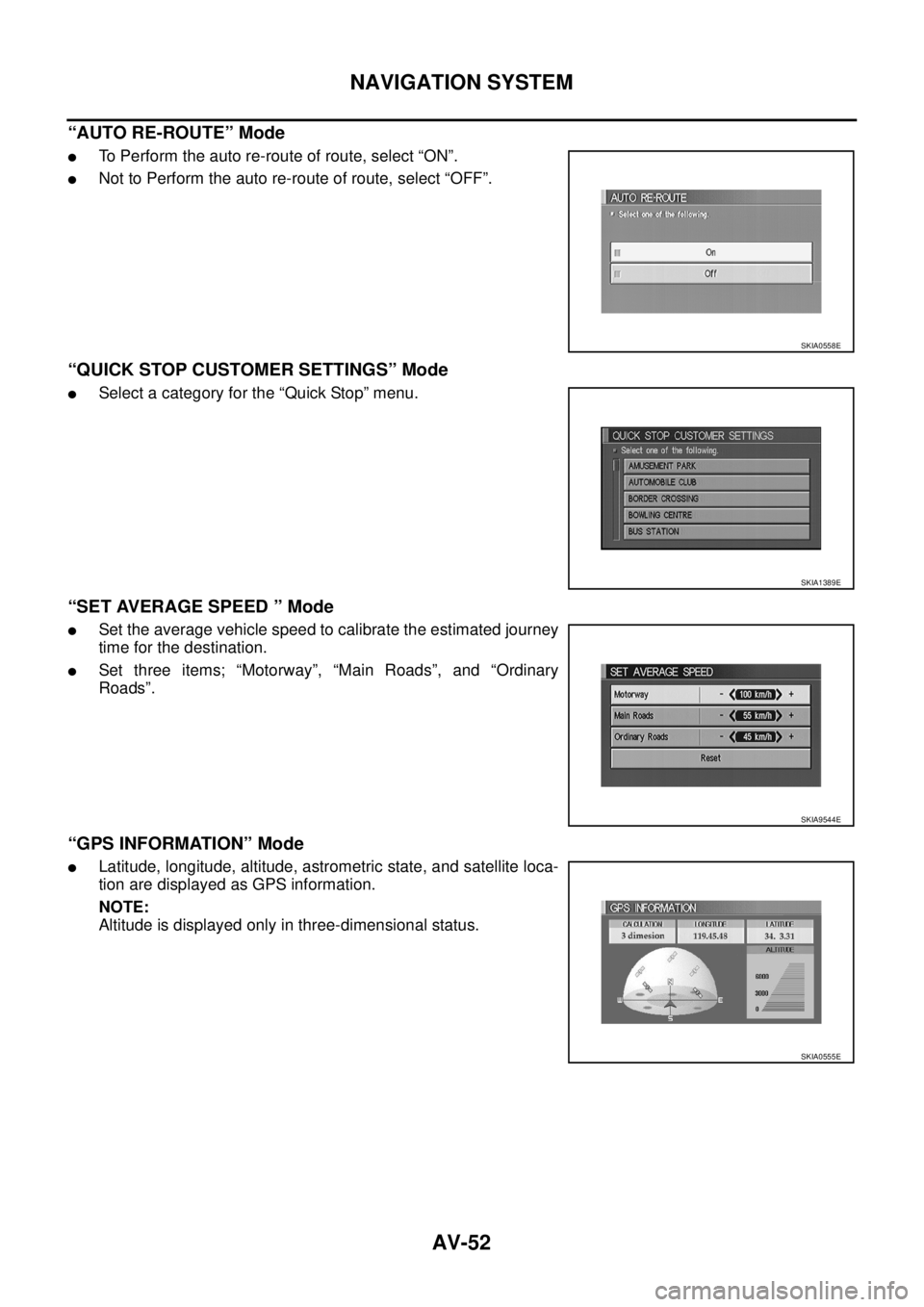

“AUTO RE-ROUTE” Mode
To Perform the auto re-route of route, select “ON”.
Not to Perform the auto re-route of route, select “OFF”.
“QUICK STOP CUSTOMER SETTING

Page 3943 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual NAVIGATION SYSTEM
AV-53
C
D
E
F
G
H
I
J
L
MA
B
AV

“AVOID AREA SETTINGS” Mode
Areas to avoid can be registered.
“TRACKING” Mode
To leave a trail in the map, select “On”.
To leave no tr

Page 3944 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual AV-54
NAVIGATION SYSTEM

“BUTTON TONE / BEEP RESPONSE” Mode
Select “Switch Beep”.
When Beep Setting is on (indicator light on), a beep will sound if
the button is pushed.
NOTE:
Items in exc
