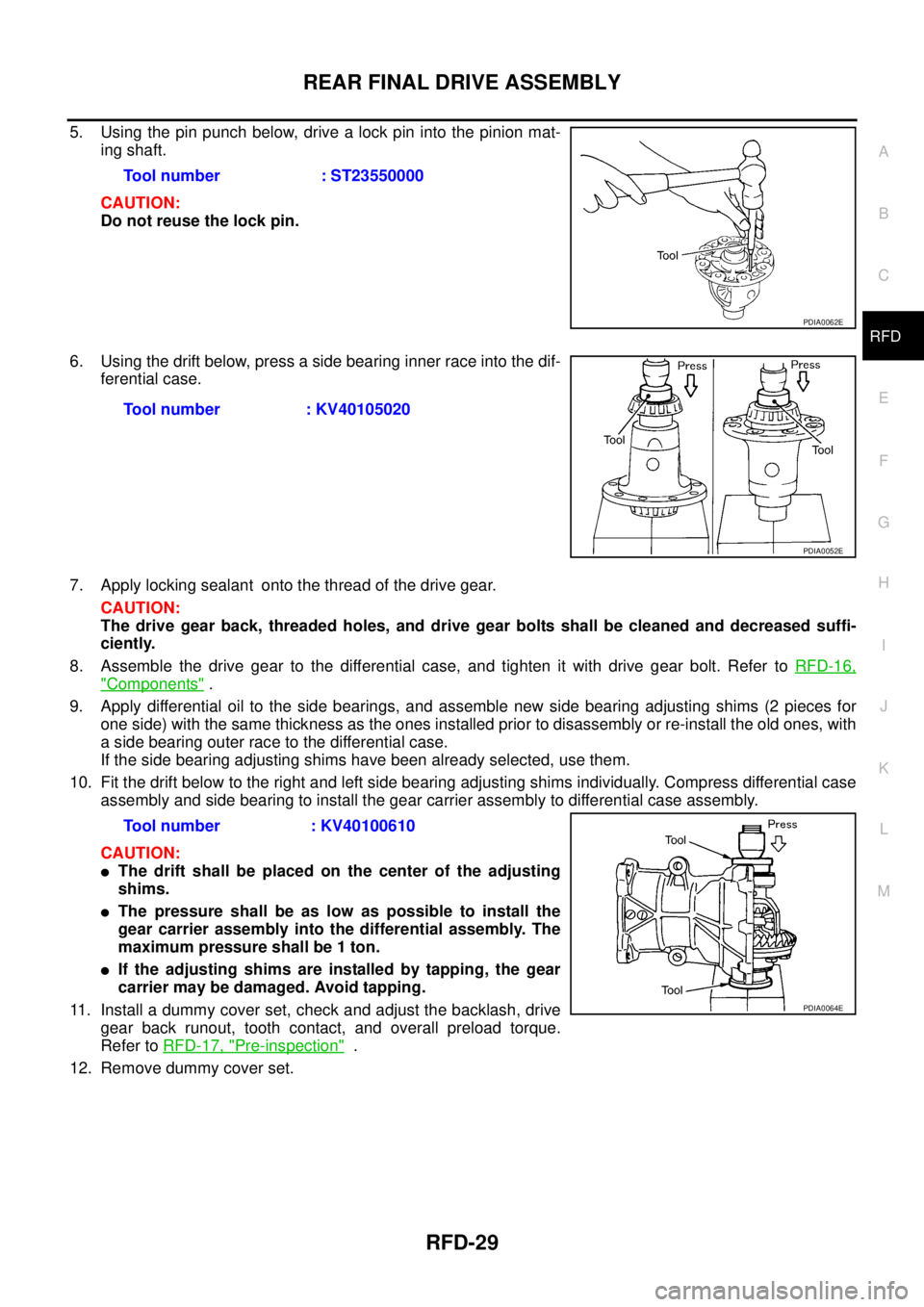

Page 2689 of 4179

REAR FINAL DRIVE ASSEMBLY
RFD-29
C
E
F
G
H
I
J
K
L
MA
B
RFD
5. Using the pin punch below, drive a lock pin into the pinion mat-
ing shaft.
CAUTION:
Do not reuse the lock pin.
6. Using the drift below, press a side bearing inner race into the dif-
ferential case.
7. Apply locking sealant onto the thread of the drive gear.
CAUTION:
The drive gear back, threaded holes, and drive gear bolts shall be cleaned and decreased suffi-
ciently.
8. Assemble the drive gear to the differential case, and tighten it with drive gear bolt. Refer to RFD-16,
"Components" .
9. Apply differential oil to the side bearings, and assemble new side bearing adjusting shims (2 pieces for
one side) with the same thickness as the ones installed prior to disassembly or re-install the old ones, with
a side bearing outer race to the differential case.
If the side bearing adjusting shims have been already selected, use them.
10. Fit the drift below to the right and left side bearing adjusting shims individually. Compress differential case
assembly and side bearing to install the gear carrier assembly to differential case assembly.
CAUTION:
The drift shall be placed on the center of the adjusting
shims.
The pressure shall be as low as possible to install the
gear carrier assembly into the differential assembly. The
maximum pressure shall be 1 ton.
If the adjusting shims are installed by tapping, the gear
carrier may be damaged. Avoid tapping.
11. Install a dummy cover set, check and adjust the backlash, drive
gear back runout, tooth contact, and overall preload torque.
Refer to RFD-17, "
Pre-inspection" .
12. Remove dummy cover set.Tool number : ST23550000
PDIA0062E
Tool number : KV40105020
PDIA0052E
Tool number : KV40100610
PDIA0064E

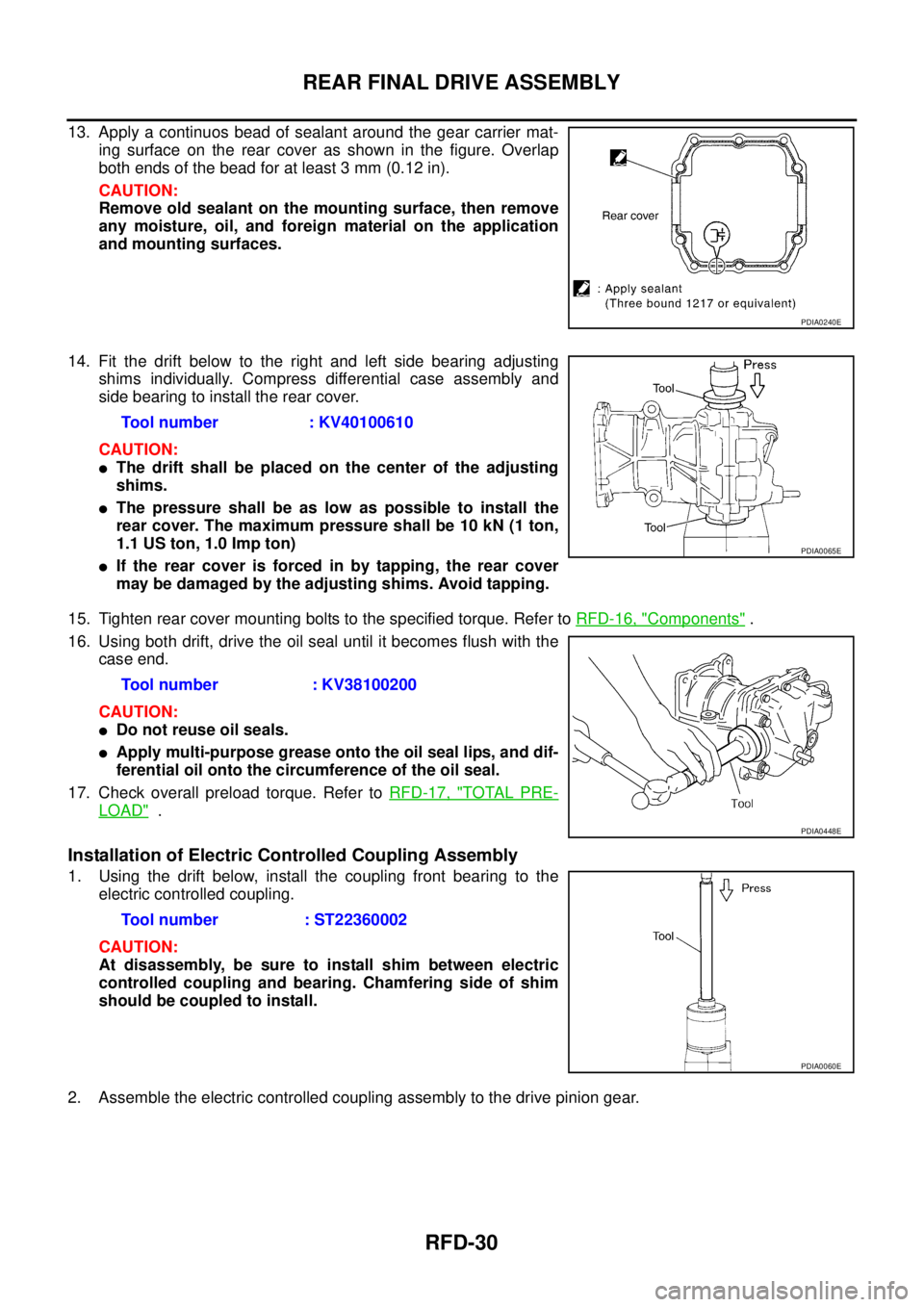

Page 2690 of 4179

RFD-30
REAR FINAL DRIVE ASSEMBLY
13. Apply a continuos bead of sealant around the gear carrier mat-
ing surface on the rear cover as shown in the figure. Overlap
both ends of the bead for at least 3 mm (0.12 in).
CAUTION:
Remove old sealant on the mounting surface, then remove
any moisture, oil, and foreign material on the application
and mounting surfaces.
14. Fit the drift below to the right and left side bearing adjusting
shims individually. Compress differential case assembly and
side bearing to install the rear cover.
CAUTION:
The drift shall be placed on the center of the adjusting
shims.
The pressure shall be as low as possible to install the
rear cover. The maximum pressure shall be 10 kN (1 ton,
1.1 US ton, 1.0 Imp ton)
If the rear cover is forced in by tapping, the rear cover
may be damaged by the adjusting shims. Avoid tapping.
15. Tighten rear cover mounting bolts to the specified torque. Refer to RFD-16, "
Components" .
16. Using both drift, drive the oil seal until it becomes flush with the
case end.
CAUTION:
Do not reuse oil seals.
Apply multi-purpose grease onto the oil seal lips, and dif-
ferential oil onto the circumference of the oil seal.
17. Check overall preload torque. Refer to RFD-17, "
TOTAL PRE-
LOAD" .
Installation of Electric Controlled Coupling Assembly
1. Using the drift below, install the coupling front bearing to the
electric controlled coupling.
CAUTION:
At disassembly, be sure to install shim between electric
controlled coupling and bearing. Chamfering side of shim
should be coupled to install.
2. Assemble the electric controlled coupling assembly to the drive pinion gear.
PDIA0240E
Tool number : KV40100610
PDIA0065E
Tool number : KV38100200
PDIA0448E
Tool number : ST22360002
PDIA0060E
Page 2691 of 4179

REAR FINAL DRIVE ASSEMBLY
RFD-31
C
E
F
G
H
I
J
K
L
MA
B
RFD
3. Using the drift below, drive an oil seal until it becomes flush with
the case end.
CAUTION:
Do not reuse oil seals.
Apply multi-purpose grease onto the oil seal lips, and dif-
ferential oil onto the circumference of the oil seal.
4. Apply a continuous bead sealant around the gear carrier mating
surface on the coupling cover as shown in the figure. Overlap
both ends of the bead for at least 3 mm (0.12 in).
CAUTION:
Remove old sealant on the mounting surface, then remove
any moisture, oil, and foreign material from the application
and mounting surfaces.
5. Assemble the coupling cover to the gear carrier assembly with
the arrow facing upward, temporarily tighten reamer bolts to the
positions shown in the figure.
6. Tighten the reamer bolts and coupling cover mounting bolts to
the specified torque.
7. Assemble the companion flange.
8. Using a flange wrench, tighten the companion flange nut to the
specified torque.
CAUTION:
Do not reuse the companion flange nut.
9. Check companion flange runout. Refer to RFD-19, "
COMPAN-
ION FLANGE RUNOUT" . Tool number A: KV38100200
B: ST27861000
PDIA0449E
PDIA0241E
SDIA0587E
Page 2692 of 4179

RFD-32
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
General SpecificationEDS001ZE
Drive Gear VibrationEDS001ZF
Side Gear Clearance AdjustmentEDS001ZG
THRUST WASHER FOR ADJUSTMENT OF SIDE GEAR BACK CLEARANCE
Drive Pinion Gear Preload AdjustmentEDS001ZH
DRIVE PINION GEAR PRELOAD ADJUSTING SHIM
Side Bearing Preload AdjustmentEDS001ZI
ADJUSTING SHIM FOR SIDE BEARING PRELOAD
Applied model QR20DE, QR25DE, YD22DDTi
Final drive modelR145
Drive gear pitch diameter 145
Gear ratio2.466
Number of teeth (Drive gear/Drive pinion) 37/15
Oil capacity (approx.)
0.55 (1 lamp pt.)
Number of pinion gears2
Drive pinion adjustment spacer type Collapsible
Ty p eR145
Vibration limit at drive gear back 0.05 mm (0.0020 in) or less
Type R145
Side gear back clearance 0.2 mm (0.008 in) or less. Every gear shall rotate smoothly with no abnormal feeling of drag.
Thrust washerThickness Part No. Thickness Part No.
0.74 mm (0.0291 in)
0.77 mm (0.0303 in)
0.80 mm (0.0315 in)38424 4N200
38424 4N201
38424 4N2020.83 mm (0.0327 in)
0.86 mm (0.0339 in)38424 4N203
38424 4N204
Adjustment of drive pinion gear Collapsible spacer
Drive pinion gear preload 0.69 - 1.17 N·m (0.07 - 0.11 kg-m,7 - 10 in-lb)
Adjusting shimThickness Part No. Thickness Part No.
1.70 mm (0.0669 in)
1.73 mm (0.0681 in)
1.76 mm (0.0693 in)
1.79 mm (0.0705 in)
1.82 mm (0.0717 in)
1.85 mm (0.0728 in)
1.88 mm (0.0740 in)
1.91 mm (0.0752 in)
1.94 mm (0.0764 in)
1.97 mm (0.0776 in)38154 4N200
38154 4N201
38154 4N202
38154 4N203
38154 4N204
38154 4N205
38154 4N206
38154 4N207
38154 4N208
38154 4N2092.00 mm (0.0787 in)
2.03 mm (0.0799 in)
2.06 mm (0.0811 in)
2.09 mm (0.0823 in)
2.12 mm (0.0835 in)
2.15 mm (0.0846 in)
2.18 mm (0.0858 in)
2.21 mm (0.0870 in)
2.24 mm (0.0882 in)38154 4N210
38154 4N211
38154 4N212
38154 4N213
38154 4N214
38154 4N215
38154 4N216
38154 4N217
38154 4N218
Adjustment of side bearing Adjusting shim
Side bearing preload 0.64 - 0.98 N·m (0.07 - 0.09 kg-m,6 - 8 in-lb)
Adjusting shimThickness Part No. Thickness Part No.
1.85 mm (0.0728 in)
1.90 mm (0.0748 in)
1.95 mm (0.0768 in)
2.00 mm (0.0787 in)38453 4N200
38453 4N201
38453 4N202
38453 4N2032.05 mm (0.0807 in)
2.10 mm (0.0827 in)
2.15 mm (0.0854 in)
2.20 mm (0.0866 in)38453 4N204
38453 4N205
38453 4N206
38453 4N207
Page 2693 of 4179
SERVICE DATA AND SPECIFICATIONS (SDS)
RFD-33
C
E
F
G
H
I
J
K
L
MA
B
RFD
To ta l P r e l o a dEDS001ZJ
Total preload with oil seal installed 1.33 - 2.15 N·m (0.14 - 0.21 kg-m,12 - 19 in-lb)
Drive gear backlash 0.10 - 0.15 mm (0.0039 - 0.0059 in)
Page 2694 of 4179
RFD-34
SERVICE DATA AND SPECIFICATIONS (SDS)
Page 2695 of 4179

FAX-1
FRONT AXLE
D DRIVELINE/AXLE
CONTENTS
C
E
F
G
H
I
J
K
L
M
SECTION
A
B
FA X
FRONT AXLE
PRECAUTIONS .......................................................... 2
Caution ..................................................................... 2
PREPARATION ........................................................... 3
Special Service Tools (SST) ..................................... 3
NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING ................................................ 6
NVH Troubleshooting Chart ..................................... 6
FRONT WHEEL HUB AND KNUCKLE ...................... 7
On-Vehicle Inspection .............................................. 7
FRONT WHEEL BEARINGS ................................ 7
Removal and Installation .......................................... 7
REMOVAL ............................................................. 7
INSPECTON AFTER REMOVAL .......................... 8
INSTALLATION ..................................................... 8
Disassembly and Assembly ..................................... 8
DISASSEMBLY ..................................................... 8
INSPECTION AFTER DISASSEMBLY ................. 9
ASSEMBLY ........................................................... 9FRONT DRIVE SHAFT ............................................. 11
Removal and Installation ........................................ 11
REMOVAL ........................................................... 11
INSPECTION AFTER REMOVAL ....................... 12
INSTALLATION ................................................... 12
Disassembly and Assembly .................................... 13
DISASSEMBLY ................................................... 13
INSPECTION AFTER DISASSEMBLY ................ 14
ASSEMBLY ......................................................... 15
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 19
Wheel Bearing ........................................................ 19
Drive Shaft .............................................................. 19
ZF100SS86, ZF100SS86F, ZF100SS86F+B ...... 19
Dynamic Damper .................................................... 19
Page 2696 of 4179

FAX-2
PRECAUTIONS
PRECAUTIONSPFP:00001
CautionEDS0005P
When installing rubber parts, final tightening must be carried out under unladen condition* with tires on
ground.
Oil will shorten the life of rubber bushes. Be sure to wipe off any spilled oil.
*: Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.
After installing removed suspension parts, check wheel alignment and adjust if necessary.
Observe the following precautions when disassembling and servicing drive shaft.
Perform work in a location which is as dust-free as possible.
Before disassembling and servicing, clean the outside of parts.
Prevention of the entry of foreign objects must be taken into account during disassembly of the service
location.
Disassembled parts must be carefully reassembled in the correct order. If work is interrupted, a clean
cover must be placed over parts.
Paper shop cloths must be used. Fabric shop cloths must not be used because of the danger of lint adher-
ing to parts.
Disassembled parts (except for rubber parts) should be cleaned with kerosene which shall be removed by
blowing with air or wiping with paper shop cloths.
