Page 2097 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual TROUBLE DIAGNOSIS — INTRODUCTION AT-61 [EURO-OBD] D E F G H I J K L MA B AT Work FlowECS004QP HOW TO PERFORM TROUBLE DIAGNOSES FOR QUICK AND ACCURATE REPAIR A good understanding of the malfunction

Page 2098 of 4179

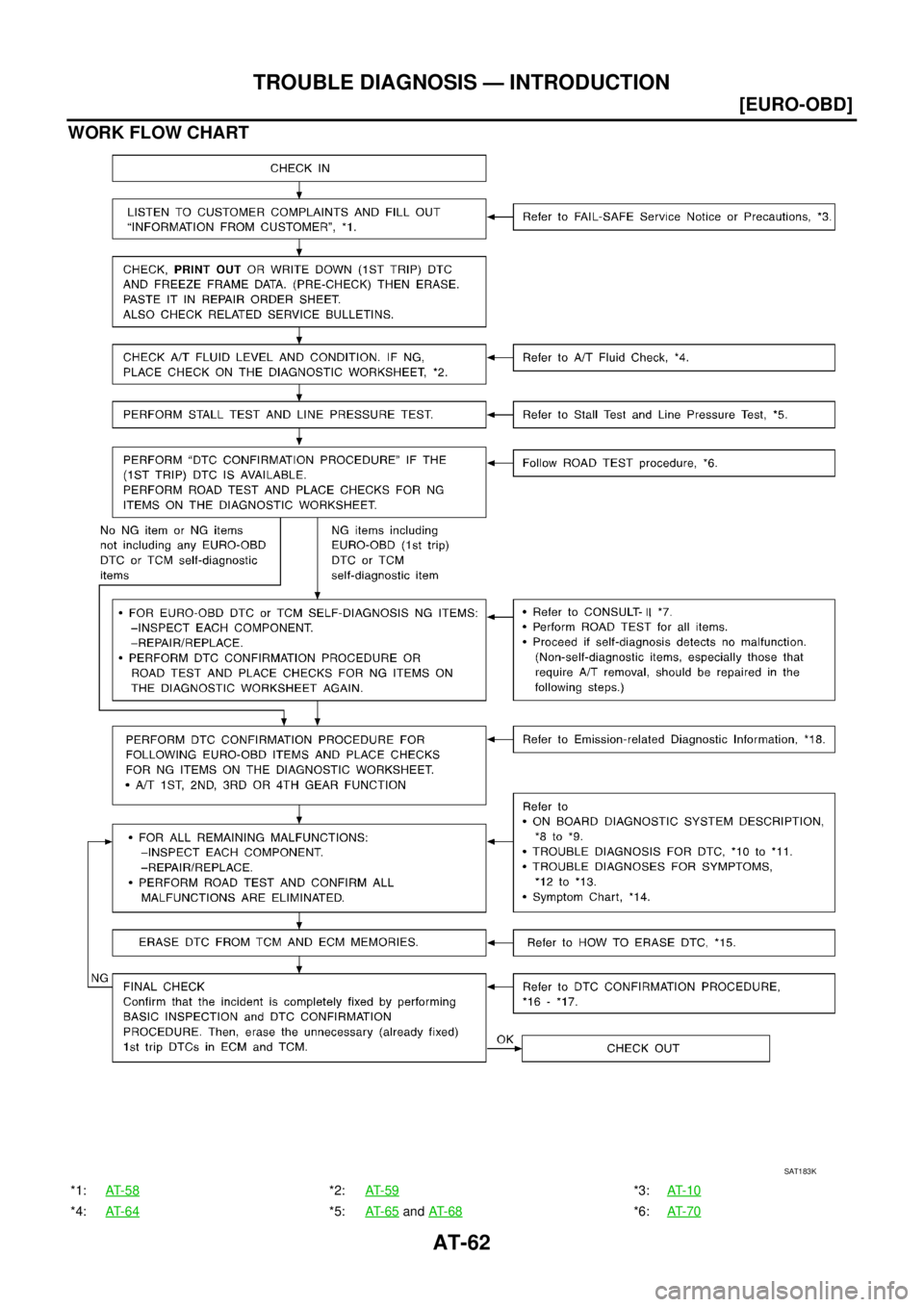

NISSAN X-TRAIL 2003 Service Repair Manual AT-62 [EURO-OBD] TROUBLE DIAGNOSIS — INTRODUCTION WORK FLOW CHART SAT183K *1:AT- 5 8*2:AT- 5 9*3:AT- 1 0 *4:AT- 6 4*5:AT- 6 5 and AT- 6 8*6:AT- 7 0

Page 2099 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual TROUBLE DIAGNOSIS — INTRODUCTION AT-63 [EURO-OBD] D E F G H I J K L MA B AT *7:AT- 4 4*8:AT- 4 0*9:AT- 5 2 *10:AT-100*11:AT- 1 9 2 and AT- 1 9 8 to AT- 2 0 0*12:AT- 2 0 4 *13:AT-235*14:AT- 8 5*15

Page 2100 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual AT-64 [EURO-OBD] TROUBLE DIAGNOSIS — BASIC INSPECTION TROUBLE DIAGNOSIS — BASIC INSPECTIONPFP:00000 A/T Fluid CheckECS004QQ FLUID LEAKAGE CHECK 1. Clean area suspected of leaking. — for exampl

Page 2101 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual TROUBLE DIAGNOSIS — BASIC INSPECTION AT-65 [EURO-OBD] D E F G H I J K L MA B AT Stall TestECS004QR STALL TEST PROCEDURE 1. Check A/T fluid and engine oil levels. If necessary, add. 2. Drive vehicl

Page 2102 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual AT-66 [EURO-OBD] TROUBLE DIAGNOSIS — BASIC INSPECTION 8. Move selector lever to N position. 9. Cool off ATF. Run engine at idle for at least one minute. 10. Repeat steps 5 through 9 with selector

Page 2103 of 4179

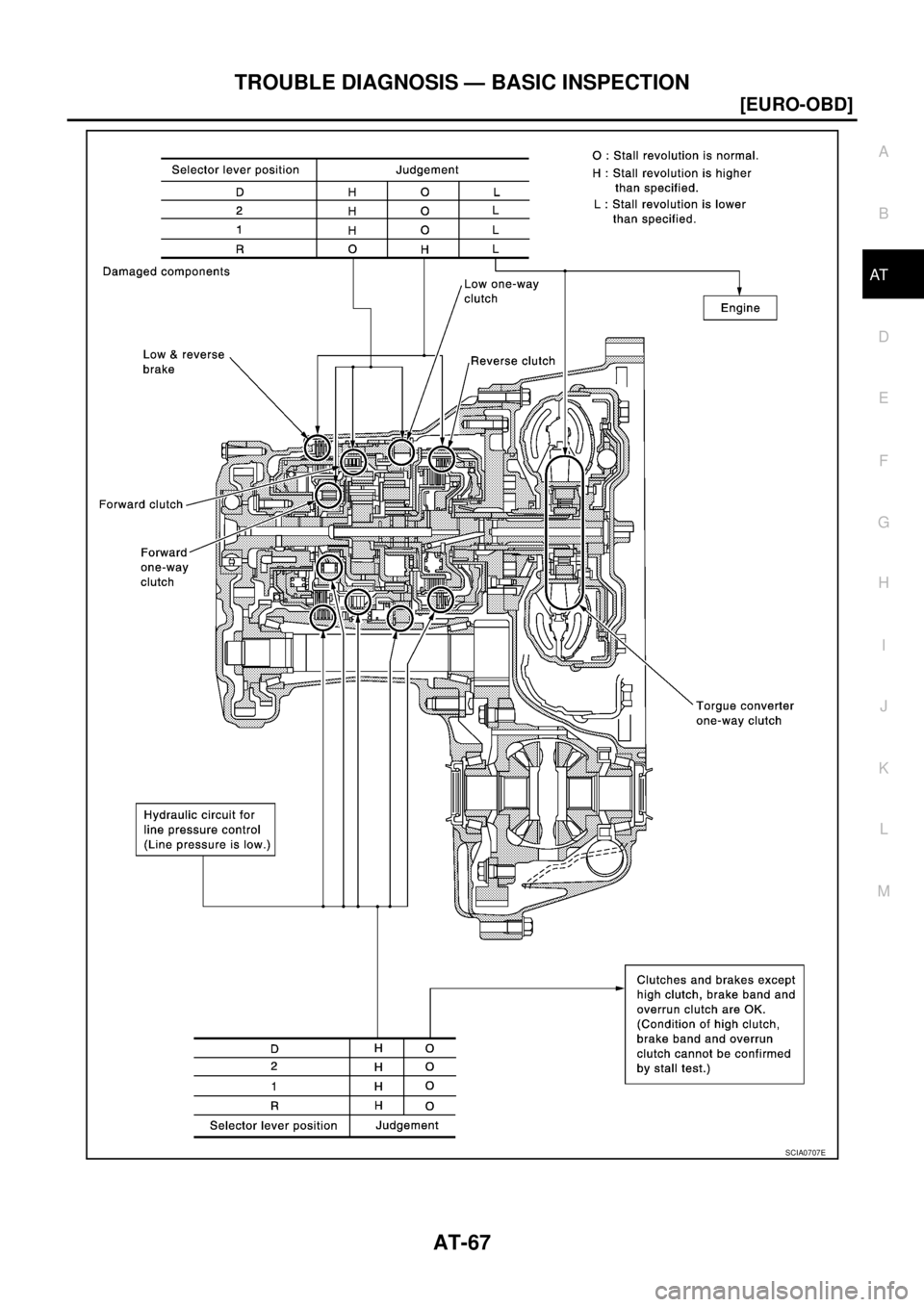

NISSAN X-TRAIL 2003 Service Repair Manual TROUBLE DIAGNOSIS — BASIC INSPECTION AT-67 [EURO-OBD] D E F G H I J K L MA B AT SCIA0707E

Page 2104 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual AT-68 [EURO-OBD] TROUBLE DIAGNOSIS — BASIC INSPECTION Line Pressure TestECS004QS LINE PRESSURE TEST PORTS Location of line pressure test ports are shown in the illustration. Always replace pressu
