Page 1017 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0335 CKP SENSOR (POS)
EC-639
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

WITHOUT CONSULT-II
1. Crank engine for at least 2 seconds and run it for at least 5 seconds at idle speed.
2. Tur

Page 1018 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-640
[QR (WITHOUT EURO-OBD)]
DTC P0335 CKP SENSOR (POS)

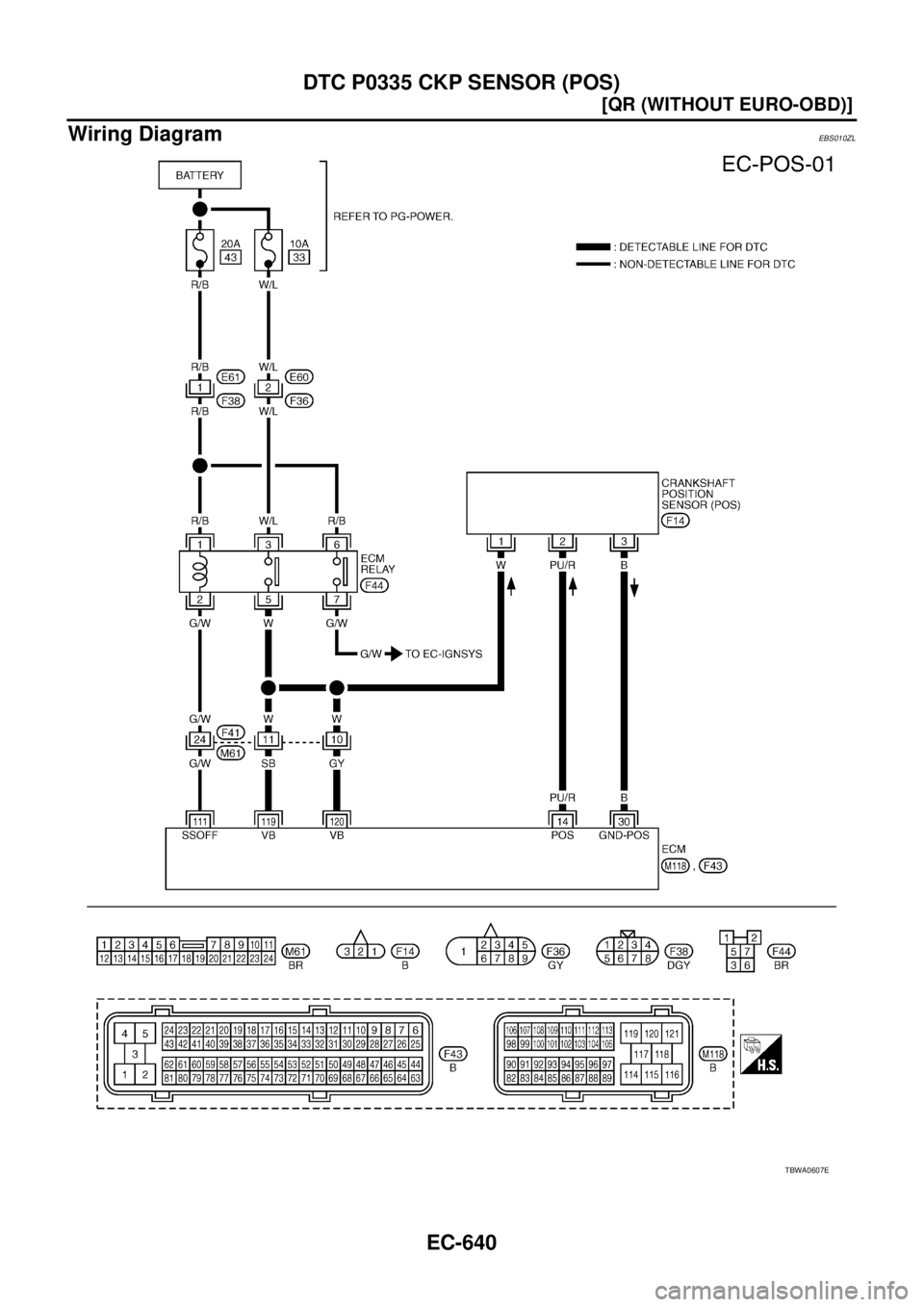

Wiring DiagramEBS010ZL
TBWA0607E

Page 1019 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0335 CKP SENSOR (POS)
EC-641
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

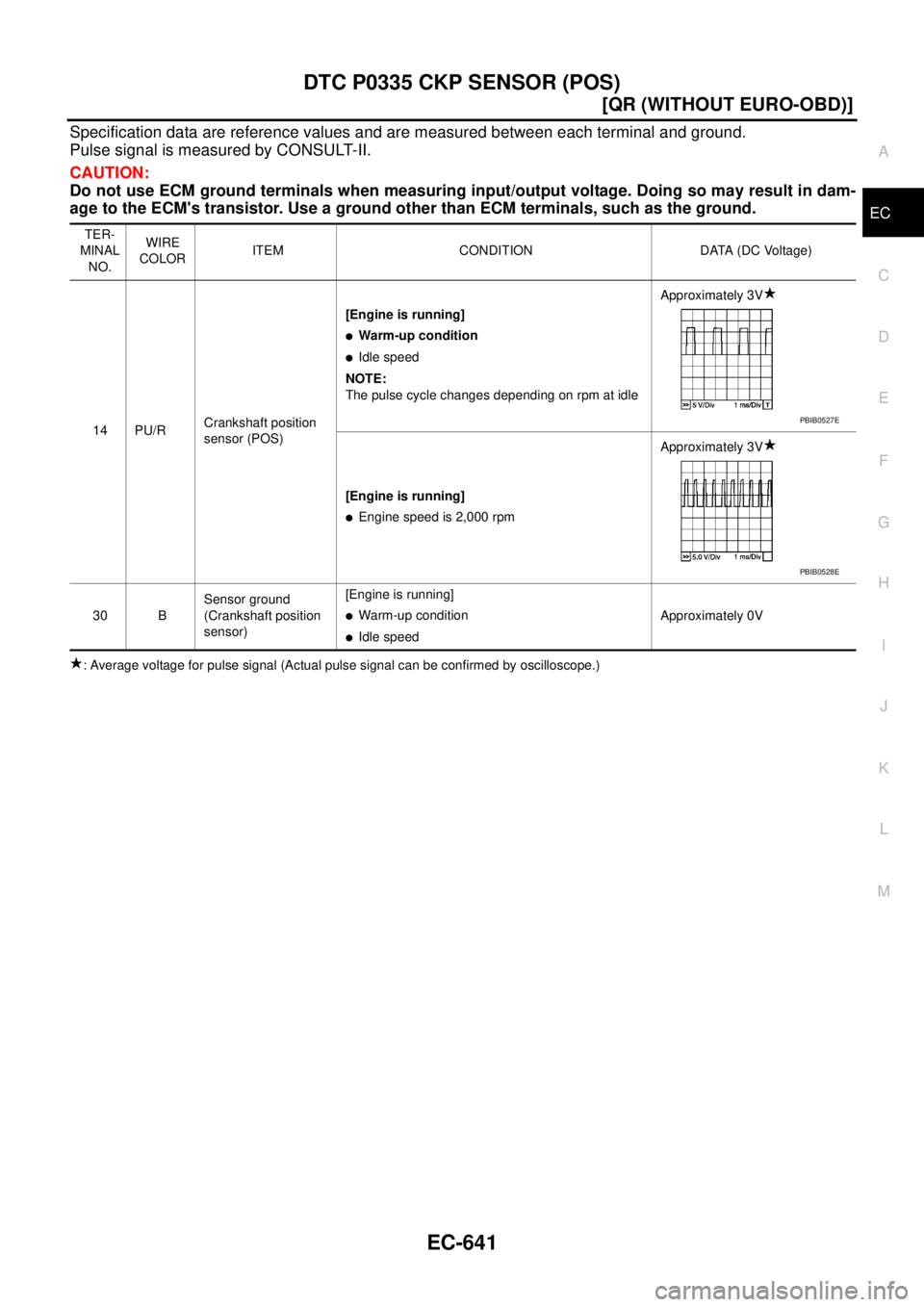

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measure

Page 1020 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-642
[QR (WITHOUT EURO-OBD)]
DTC P0335 CKP SENSOR (POS)

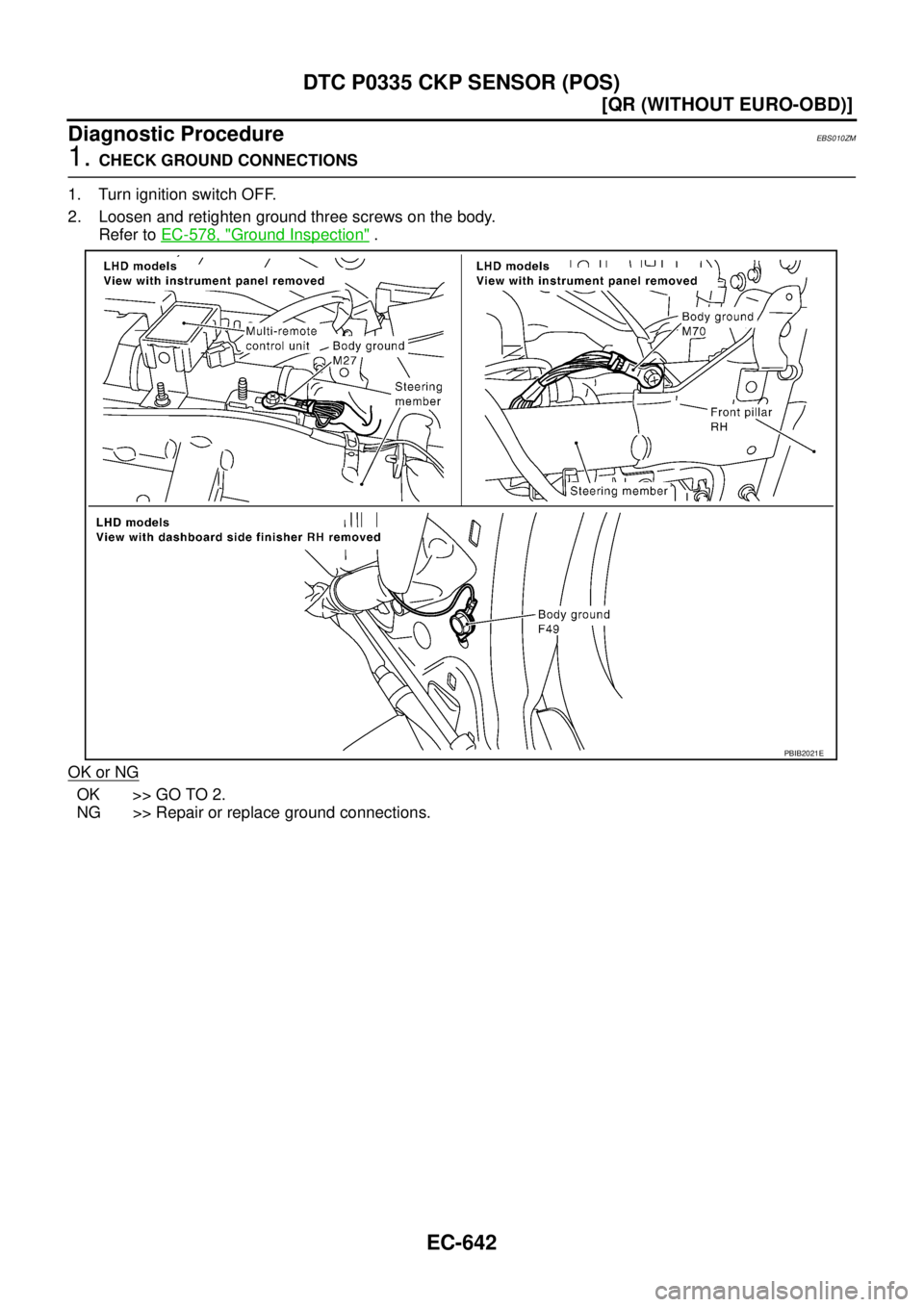

Diagnostic ProcedureEBS010ZM
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground three screws on the bod

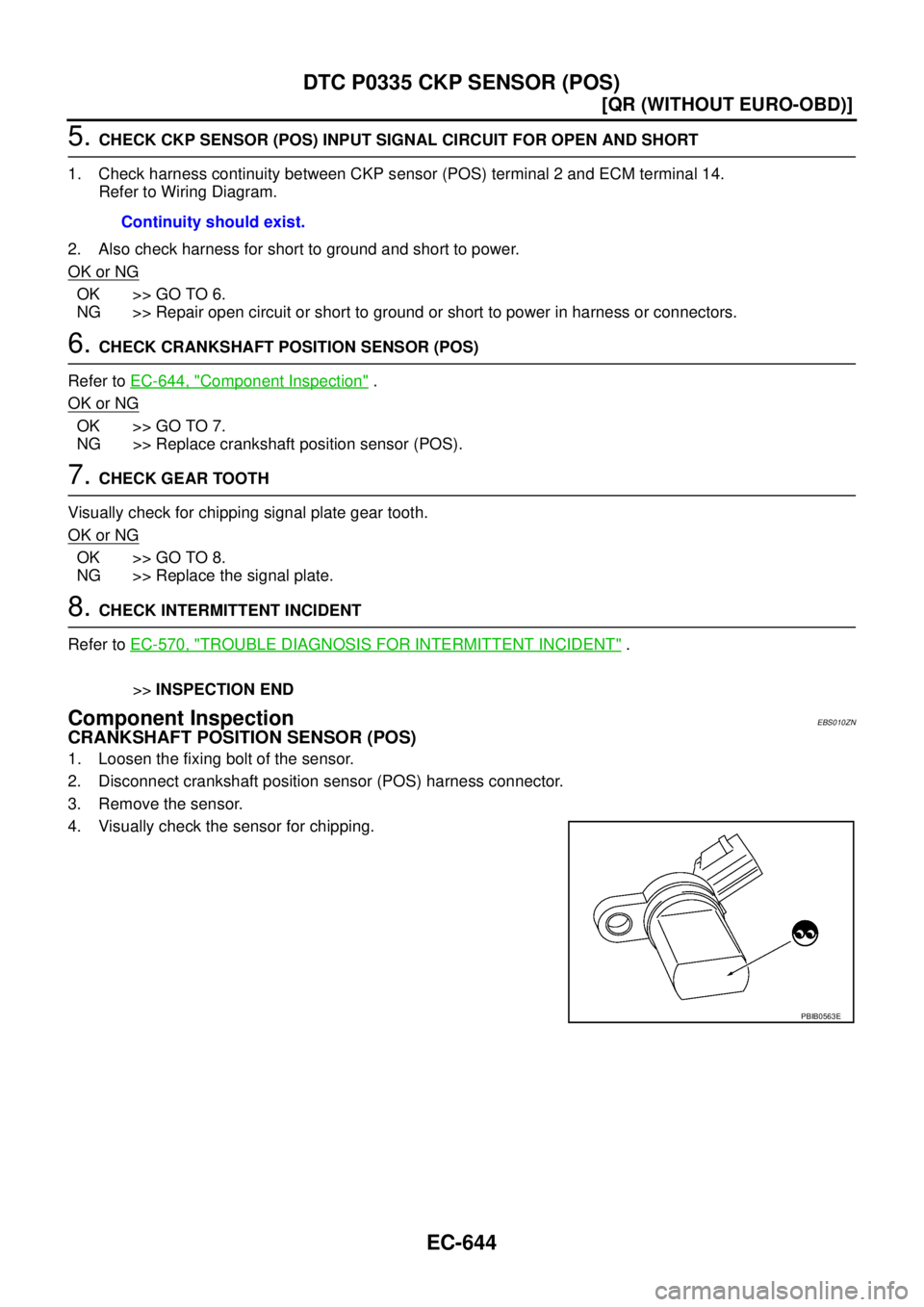

Page 1021 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0335 CKP SENSOR (POS)
EC-643
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

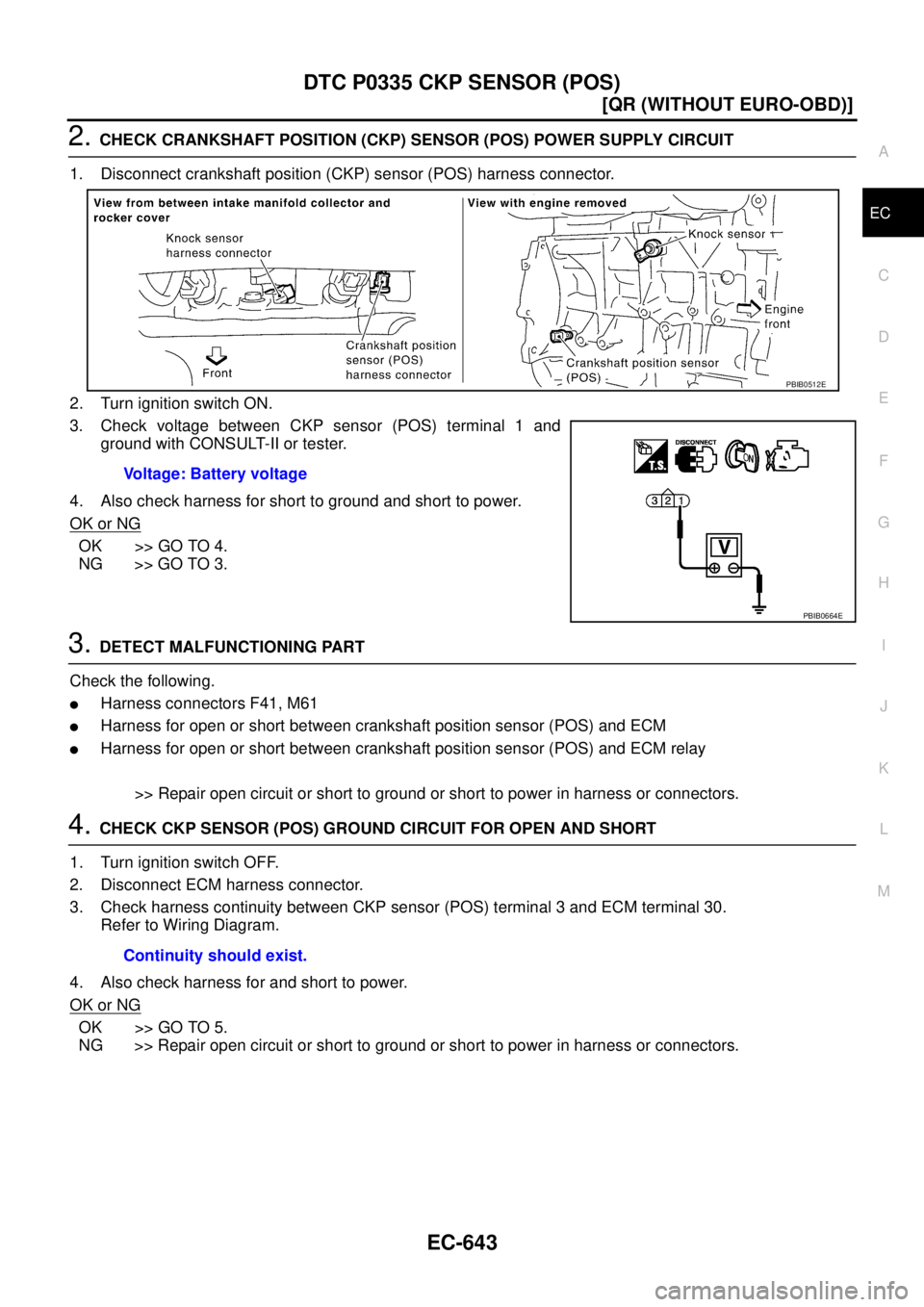

2. CHECK CRANKSHAFT POSITION (CKP) SENSOR (POS) POWER SUPPLY CIRCUIT
1. Disconnect crankshaft position (CKP) senso

Page 1022 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-644
[QR (WITHOUT EURO-OBD)]
DTC P0335 CKP SENSOR (POS)

5. CHECK CKP SENSOR (POS) INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between CKP sensor (POS) terminal 2 and ECM te

Page 1023 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0335 CKP SENSOR (POS)
EC-645
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

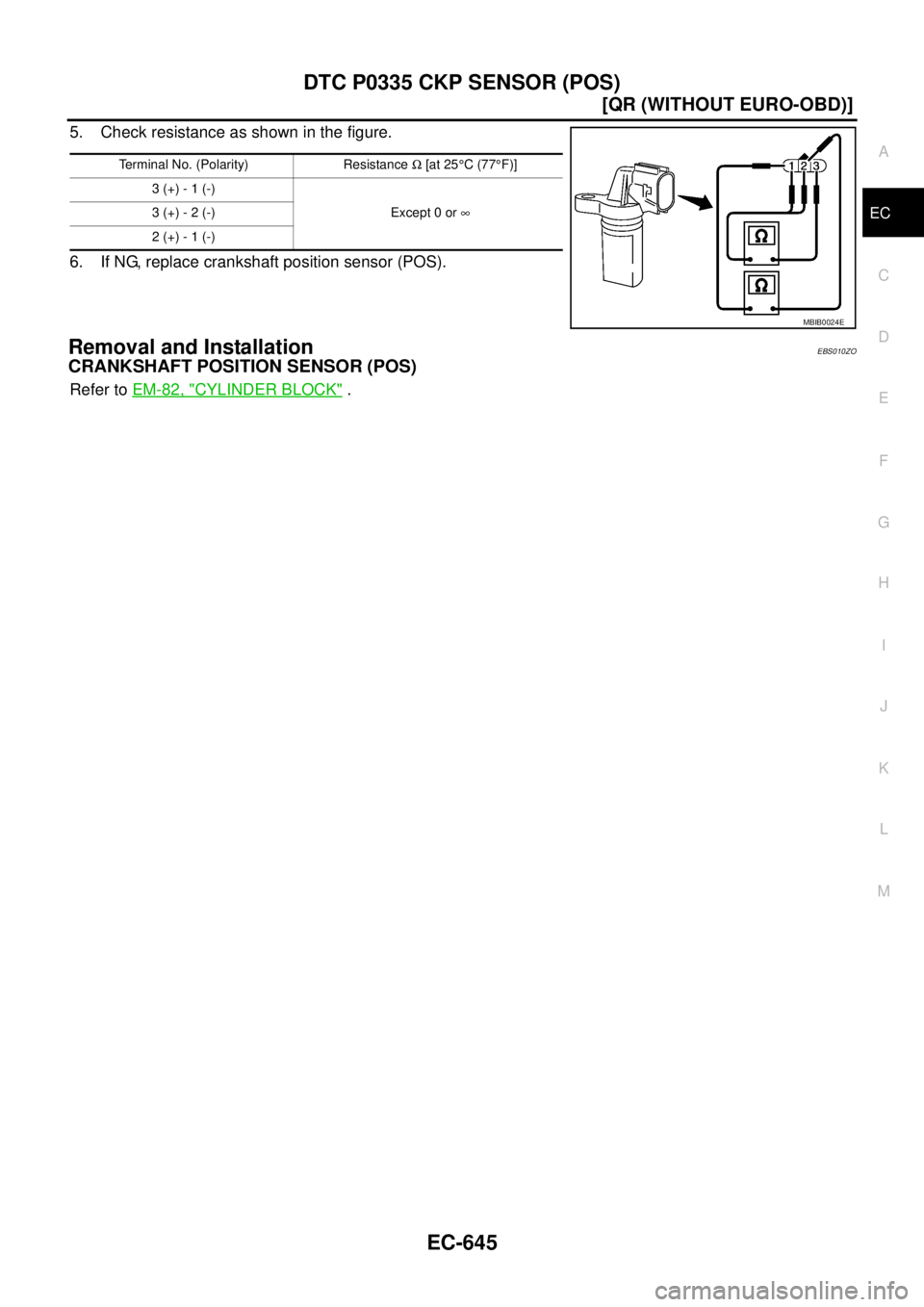

5. Check resistance as shown in the figure.
6. If NG, replace crankshaft position sensor (POS).
Removal and Instal

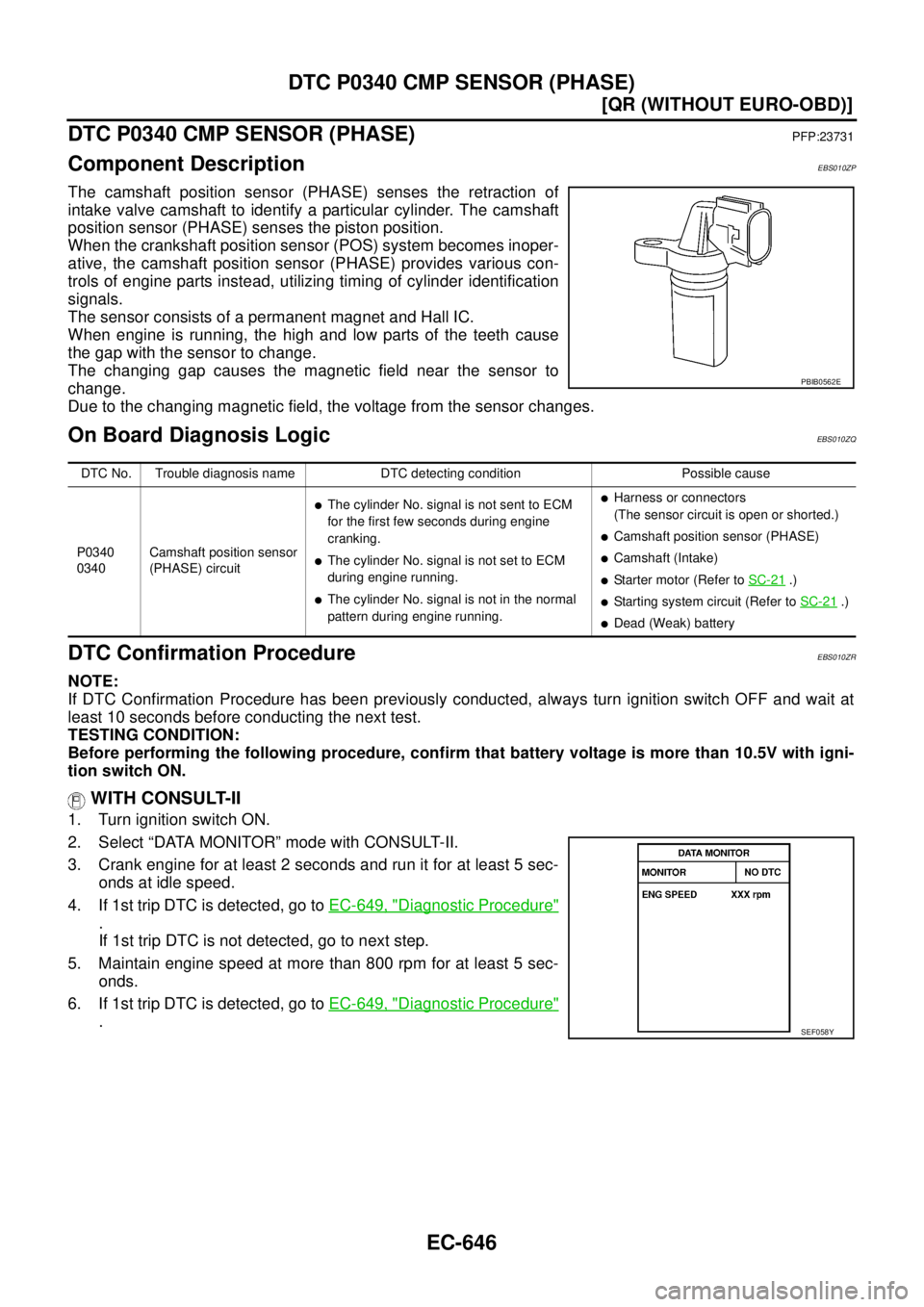

Page 1024 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-646
[QR (WITHOUT EURO-OBD)]
DTC P0340 CMP SENSOR (PHASE)

DTC P0340 CMP SENSOR (PHASE)PFP:23731
Component DescriptionEBS010ZP
The camshaft position sensor (PHASE) senses the retraction of
intake v

EC-646
[QR (WITHOUT EURO-OBD)]
DTC P0340 CMP SENSOR (PHASE)

DTC P0340 CMP SENSOR (PHASE)PFP:23731
Component DescriptionEBS010ZP
The camshaft position sensor (PHASE) senses the retraction of
intake valve camshaft to identify a particular cylinder. The camshaft
position sensor (PHASE) senses the piston position.
When the crankshaft position sensor (POS) system becomes inoper-
ative, the camshaft position sensor (PHASE) provides various con-
trols of engine parts instead, utilizing timing of cylinder identification
signals.
The sensor consists of a permanent magnet and Hall IC.
When engine is running, the high and low parts of the teeth cause
the gap with the sensor to change.
The changing gap causes the magnetic field near the sensor to
change.
Due to the changing magnetic field, the voltage from the sensor changes.
On Board Diagnosis LogicEBS010ZQ
DTC Confirmation ProcedureEBS010ZR
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5V with igni-
tion switch ON.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Crank engine for at least 2 seconds and run it for at least 5 sec-
onds at idle speed.
4. If 1st trip DTC is detected, go to EC-649, "
Diagnostic Procedure"
.
If 1st trip DTC is not detected, go to next step.
5. Maintain engine speed at more than 800 rpm for at least 5 sec-
onds.
6. If 1st trip DTC is detected, go to EC-649, "
Diagnostic Procedure"
.
PBIB0562E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0340
0340Camshaft position sensor
(PHASE) circuit
The cylinder No. signal is not sent to ECM
for the first few seconds during engine
cranking.
The cylinder No. signal is not set to ECM
during engine running.
The cylinder No. signal is not in the normal
pattern during engine running.
Harness or connectors
(The sensor circuit is open or shorted.)
Camshaft position sensor (PHASE)
Camshaft (Intake)
Starter motor (Refer to SC-21 .)
Starting system circuit (Refer to SC-21 .)
Dead (Weak) battery
SEF058Y
