Page 2185 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE AT-149 [EURO-OBD] D E F G H I J K L MA B AT WITH GST Follow the procedure “WITH CONSULT-II”. WITHOUT CONSULT-II 1. Start engine. 2. Drive vehic

Page 2186 of 4179

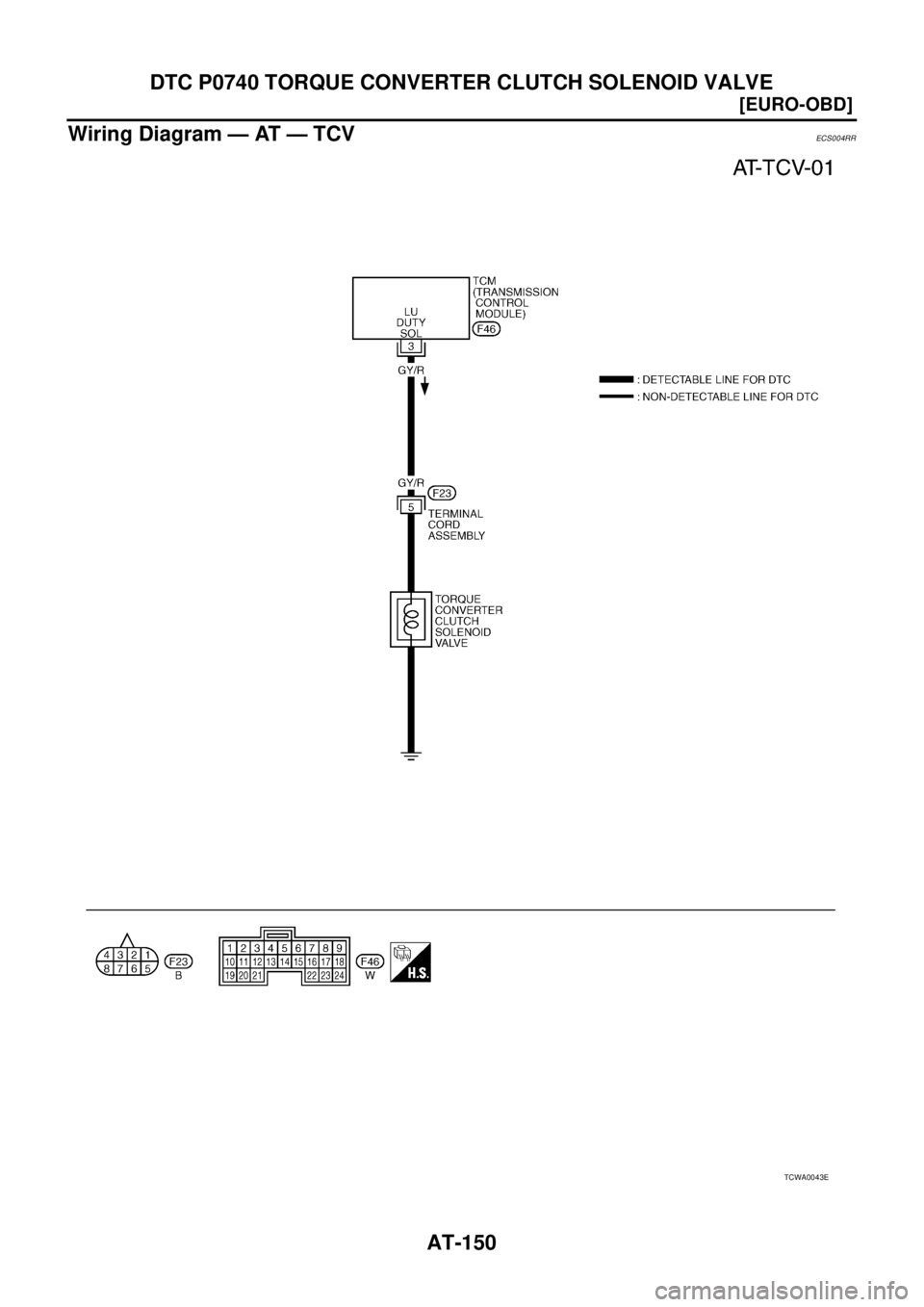

NISSAN X-TRAIL 2003 Service Repair Manual AT-150 [EURO-OBD] DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE Wiring Diagram — AT — TCVECS004RR TCWA0043E

Page 2187 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE AT-151 [EURO-OBD] D E F G H I J K L MA B AT TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL Diagnostic ProcedureECS004RS 1. CHECK INPUT

Page 2188 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual AT-152 [EURO-OBD] DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE 2. CHECK TORQUE CONVERTER CLUTCH SOLENOID VALVE CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect TCM connector. 3. Check resistan

Page 2189 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE AT-153 [EURO-OBD] D E F G H I J K L MA B AT 6. CHECK TCM 1. Check TCM input/output signal. Refer to AT- 9 4 , " TCM Terminals and Reference Value" .

Page 2190 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual AT-154 [EURO-OBD] DTC P0745 LINE PRESSURE SOLENOID VALVE DTC P0745 LINE PRESSURE SOLENOID VALVEPFP:31940 DescriptionECS004RU The line pressure solenoid valve regulates the oil pump discharge pressur

Page 2191 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0745 LINE PRESSURE SOLENOID VALVE AT-155 [EURO-OBD] D E F G H I J K L MA B AT 2. Depress accelerator pedal completely and wait at least 5 sec- onds. 3. If check result is NG, go to AT- 1 5 7 ,

Page 2192 of 4179

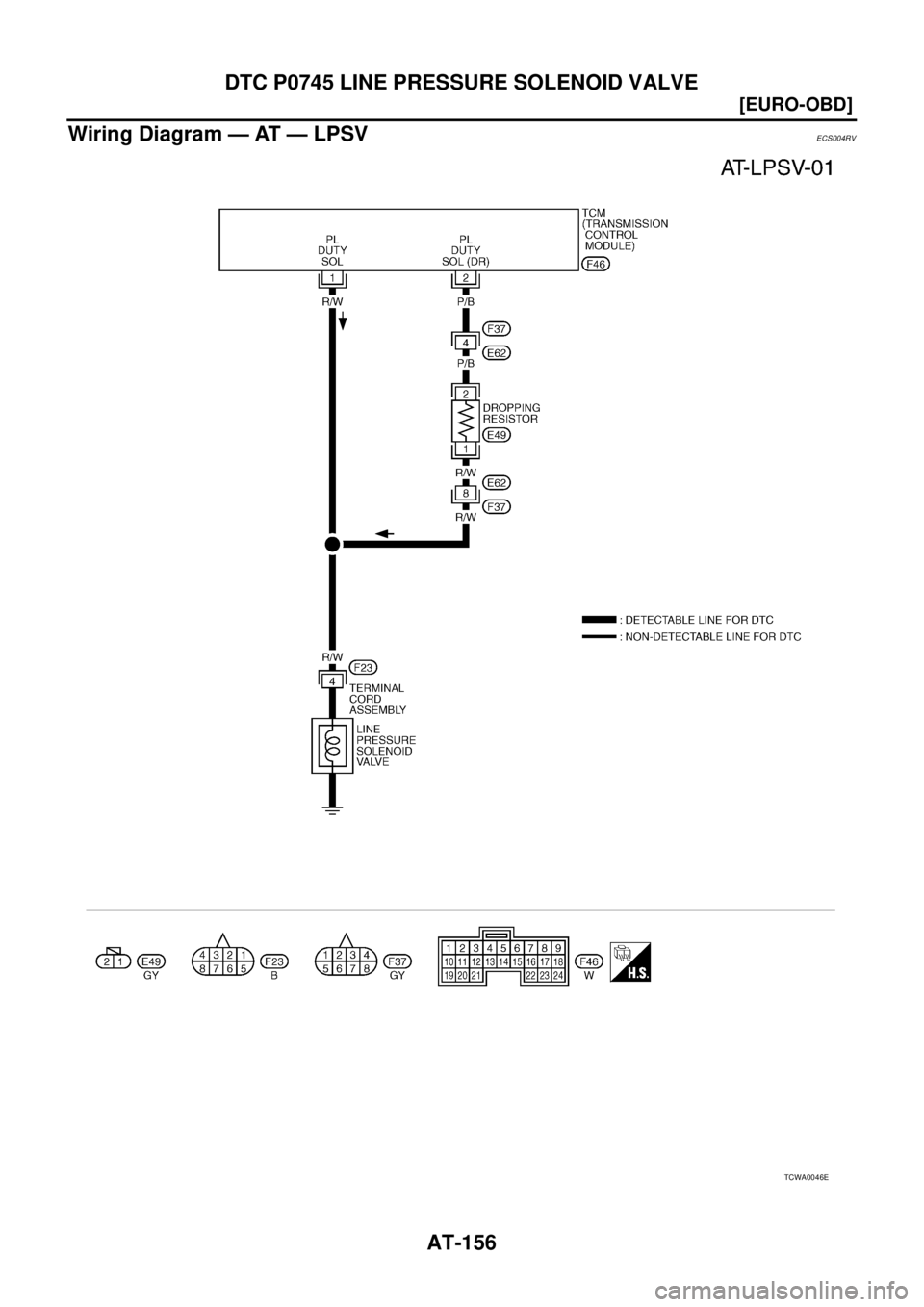

NISSAN X-TRAIL 2003 Service Repair Manual AT-156 [EURO-OBD] DTC P0745 LINE PRESSURE SOLENOID VALVE Wiring Diagram — AT — LPSVECS004RV TCWA0046E
