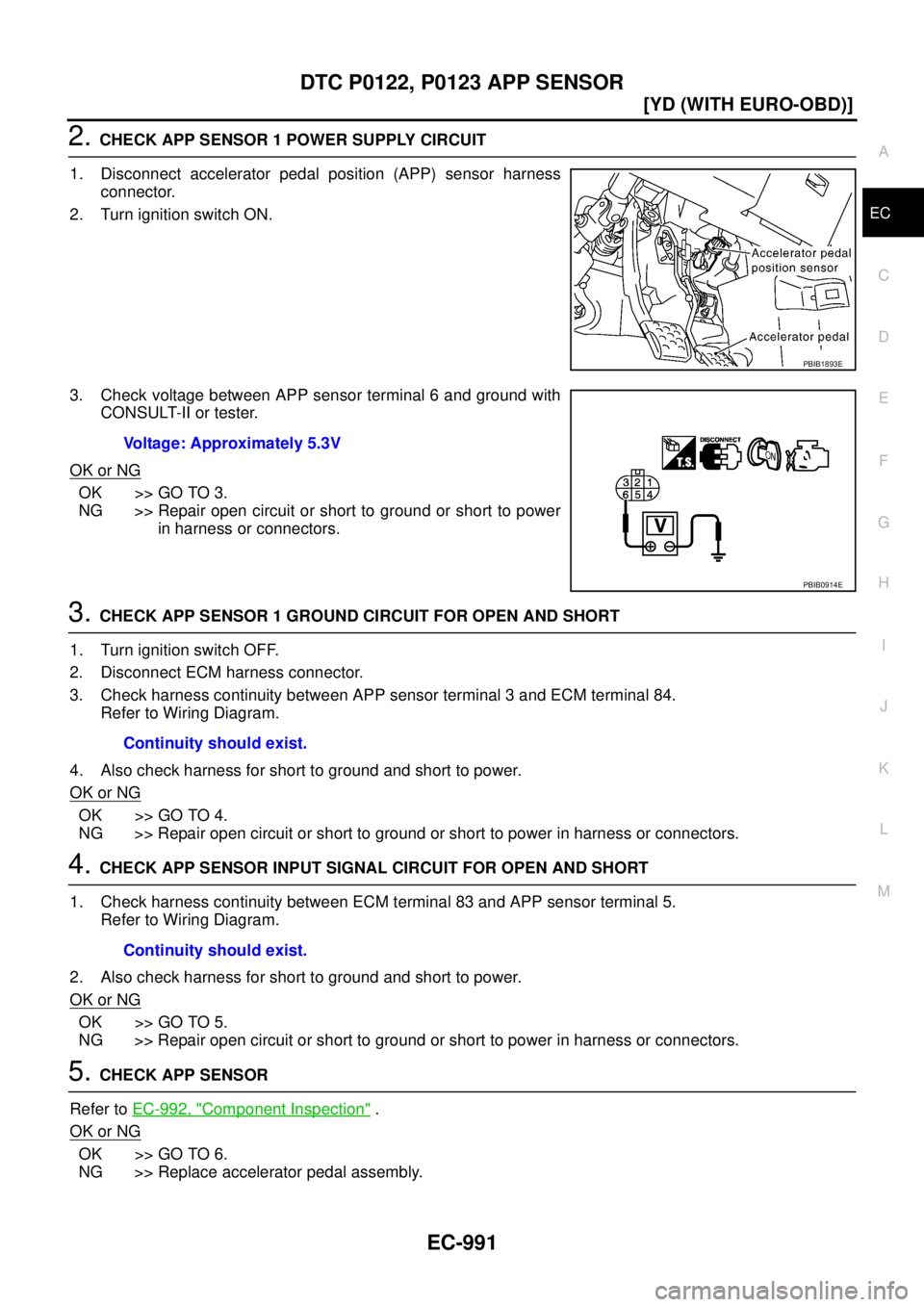

DTC P0122, P0123 APP SENSOR
EC-991
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
2. CHECK APP SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor harness
connector.
2. Turn ignition switch ON.
3. Check voltage between APP sensor terminal 6 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
3. CHECK APP SENSOR 1 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between APP sensor terminal 3 and ECM terminal 84.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK APP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 83 and APP sensor terminal 5.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK APP SENSOR
Refer to EC-992, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace accelerator pedal assembly.
PBIB1893E
Voltage: Approximately 5.3V
PBIB0914E
Continuity should exist.
Continuity should exist.
Page 1370 of 4179

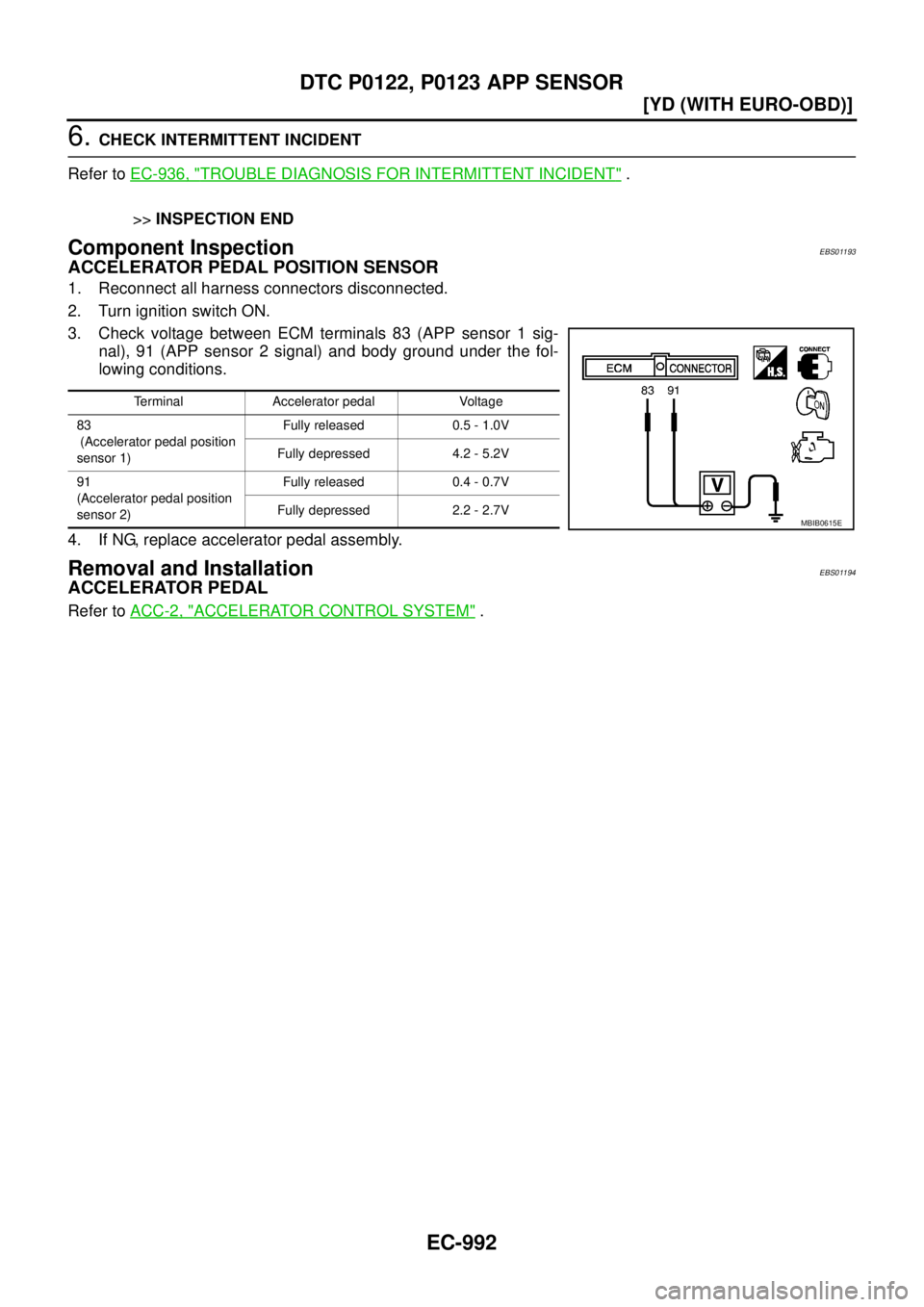

EC-992
[YD (WITH EURO-OBD)]
DTC P0122, P0123 APP SENSOR
6. CHECK INTERMITTENT INCIDENT
Refer to EC-936, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS01193
ACCELERATOR PEDAL POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Turn ignition switch ON.
3. Check voltage between ECM terminals 83 (APP sensor 1 sig-
nal), 91 (APP sensor 2 signal) and body ground under the fol-
lowing conditions.
4. If NG, replace accelerator pedal assembly.
Removal and InstallationEBS01194
ACCELERATOR PEDAL
Refer to ACC-2, "ACCELERATOR CONTROL SYSTEM" .
Terminal Accelerator pedal Voltage
83
(Accelerator pedal position
sensor 1)Fully released 0.5 - 1.0V
Fully depressed 4.2 - 5.2V
91
(Accelerator pedal position
sensor 2)Fully released 0.4 - 0.7V
Fully depressed 2.2 - 2.7V
MBIB0615E
Page 1371 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual DTC P0182, P0183 FUEL PUMP TEMPERATURE SENSOR
EC-993
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0182, P0183 FUEL PUMP TEMPERATURE SENSORPFP:16700
DescriptionEBS01195
Fuel pump temperature s NISSAN X-TRAIL 2003 Service Repair Manual DTC P0182, P0183 FUEL PUMP TEMPERATURE SENSOR
EC-993
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0182, P0183 FUEL PUMP TEMPERATURE SENSORPFP:16700
DescriptionEBS01195
Fuel pump temperature s](/manual-img/5/57404/w960_57404-1370.png)

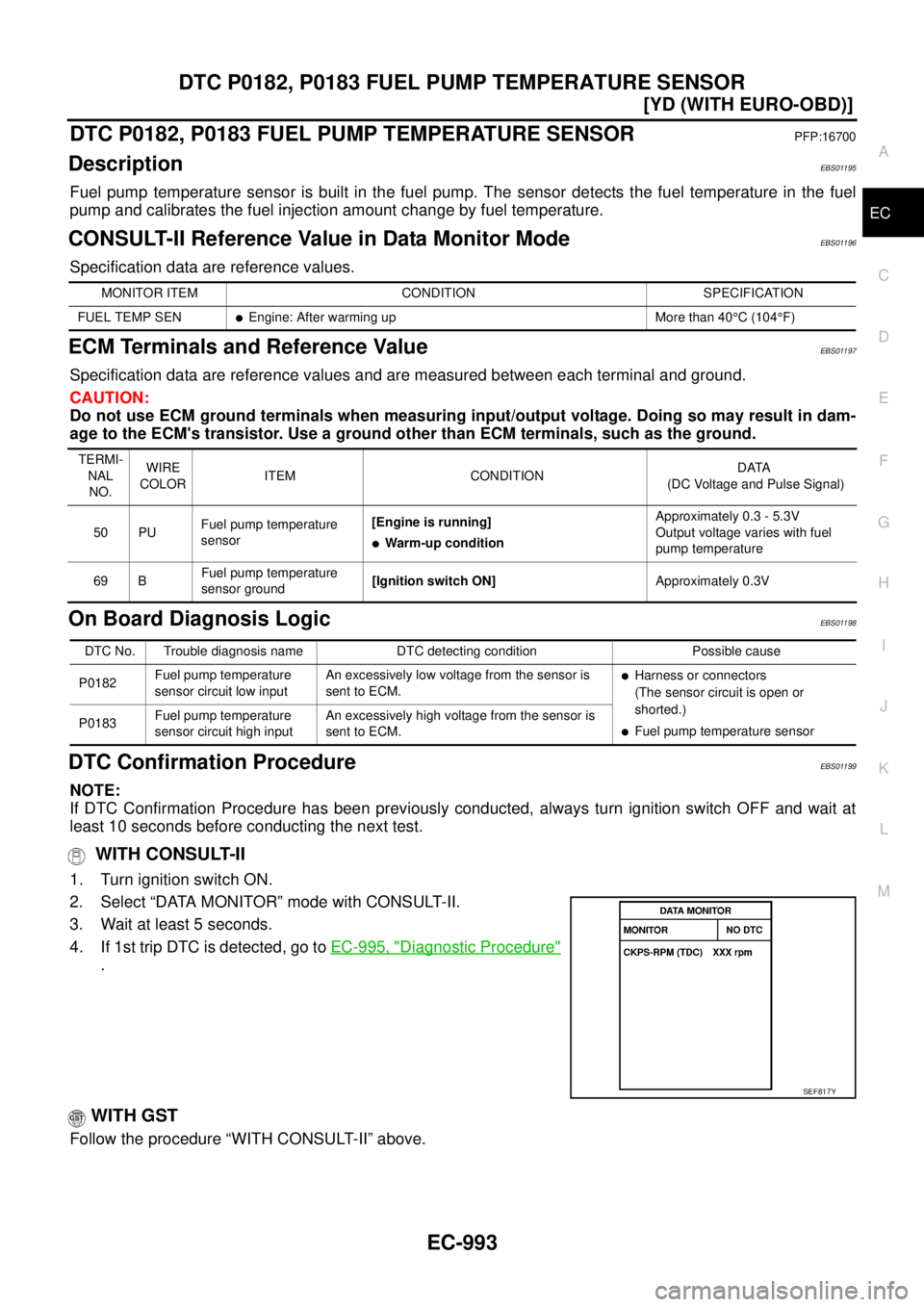

DTC P0182, P0183 FUEL PUMP TEMPERATURE SENSOR
EC-993
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0182, P0183 FUEL PUMP TEMPERATURE SENSORPFP:16700
DescriptionEBS01195
Fuel pump temperature sensor is built in the fuel pump. The sensor detects the fuel temperature in the fuel
pump and calibrates the fuel injection amount change by fuel temperature.
CONSULT-II Reference Value in Data Monitor ModeEBS01196
Specification data are reference values.
ECM Terminals and Reference ValueEBS01197
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
On Board Diagnosis LogicEBS01198
DTC Confirmation ProcedureEBS01199
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 5 seconds.
4. If 1st trip DTC is detected, go to EC-995, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
MONITOR ITEM CONDITION SPECIFICATION
FUEL TEMP SEN
Engine: After warming up More than 40°C (104°F)
TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
50 PUFuel pump temperature
sensor[Engine is running]
Warm-up conditionApproximately 0.3 - 5.3V
Output voltage varies with fuel
pump temperature
69 BFuel pump temperature
sensor ground[Ignition switch ON]Approximately 0.3V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0182Fuel pump temperature
sensor circuit low inputAn excessively low voltage from the sensor is
sent to ECM.
Harness or connectors
(The sensor circuit is open or
shorted.)
Fuel pump temperature sensor P0183Fuel pump temperature
sensor circuit high inputAn excessively high voltage from the sensor is
sent to ECM.
SEF817Y
Page 1372 of 4179
EC-994
[YD (WITH EURO-OBD)]
DTC P0182, P0183 FUEL PUMP TEMPERATURE SENSOR

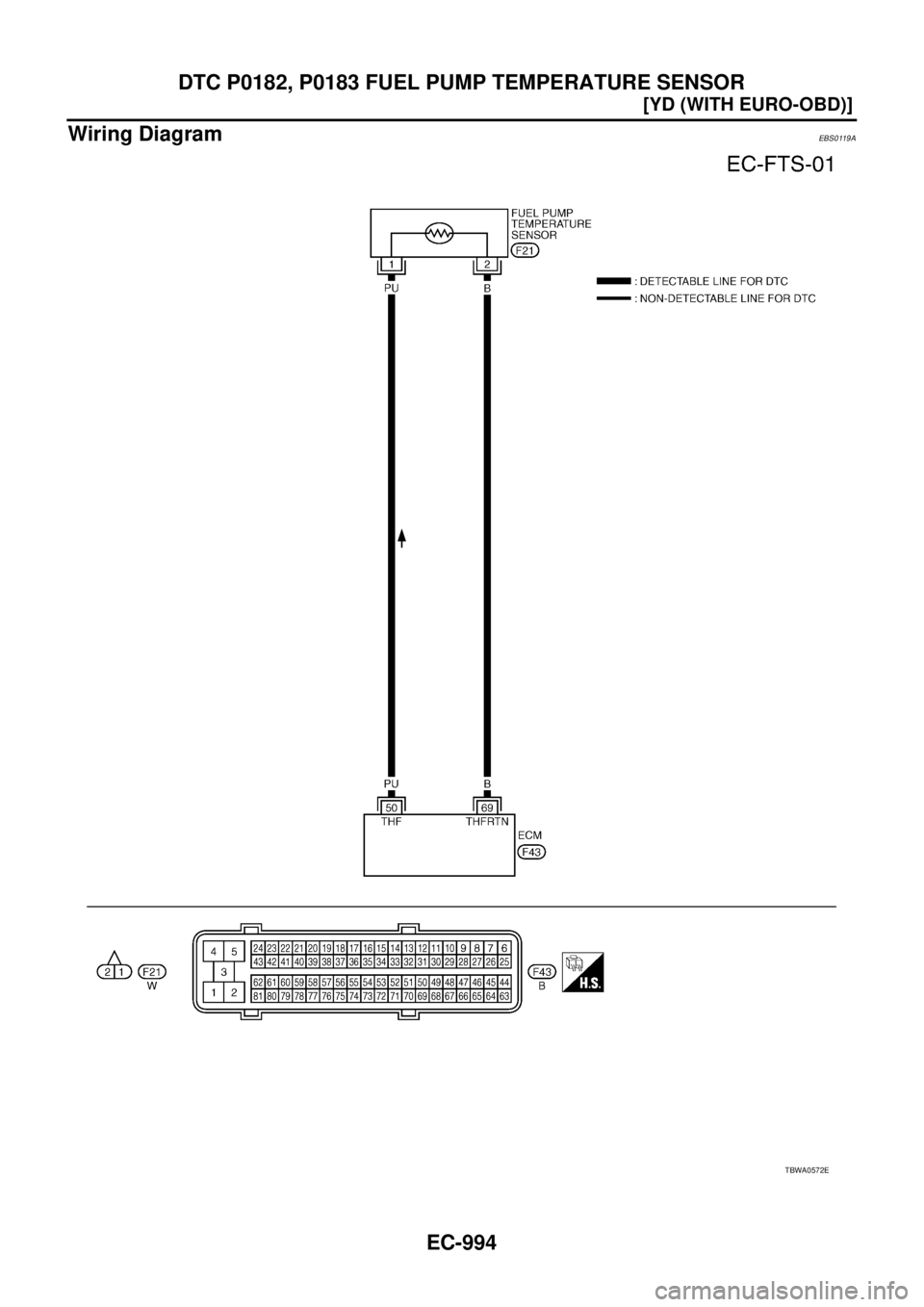

Wiring DiagramEBS0119A
TBWA0572E
Page 1373 of 4179
DTC P0182, P0183 FUEL PUMP TEMPERATURE SENSOR
EC-995
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

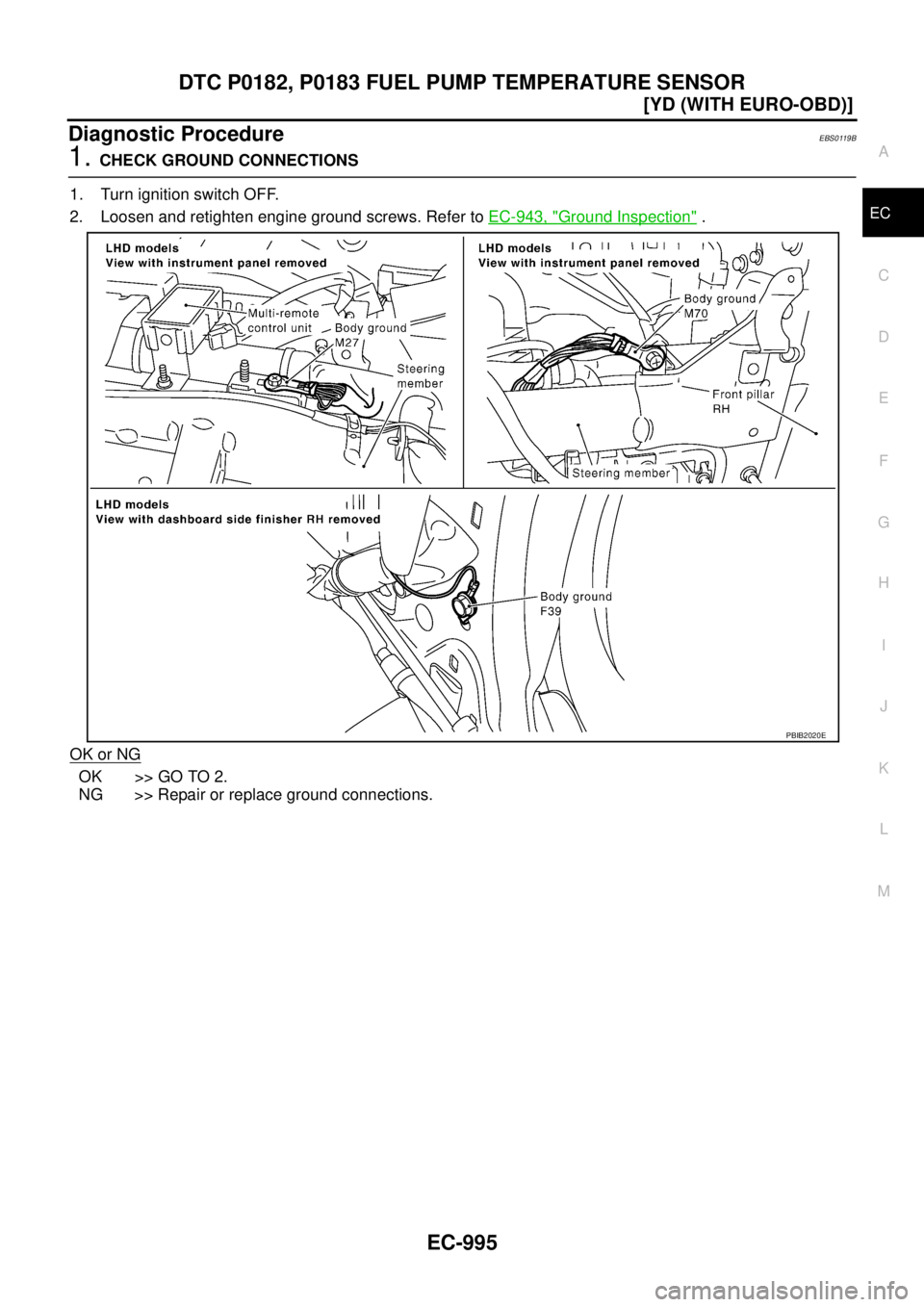

Diagnostic ProcedureEBS0119B
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten engine ground screws. Refer to EC-943, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
PBIB2020E
Page 1374 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual EC-996
[YD (WITH EURO-OBD)]
DTC P0182, P0183 FUEL PUMP TEMPERATURE SENSOR
2. CHECK FUEL PUMP TEMPERATURE SENSOR POWER SUPPLY CIRCUIT
1. Disconnect fuel pump temperature sensor harness connector.
2. NISSAN X-TRAIL 2003 Service Repair Manual EC-996
[YD (WITH EURO-OBD)]
DTC P0182, P0183 FUEL PUMP TEMPERATURE SENSOR
2. CHECK FUEL PUMP TEMPERATURE SENSOR POWER SUPPLY CIRCUIT
1. Disconnect fuel pump temperature sensor harness connector.
2.](/manual-img/5/57404/w960_57404-1373.png)

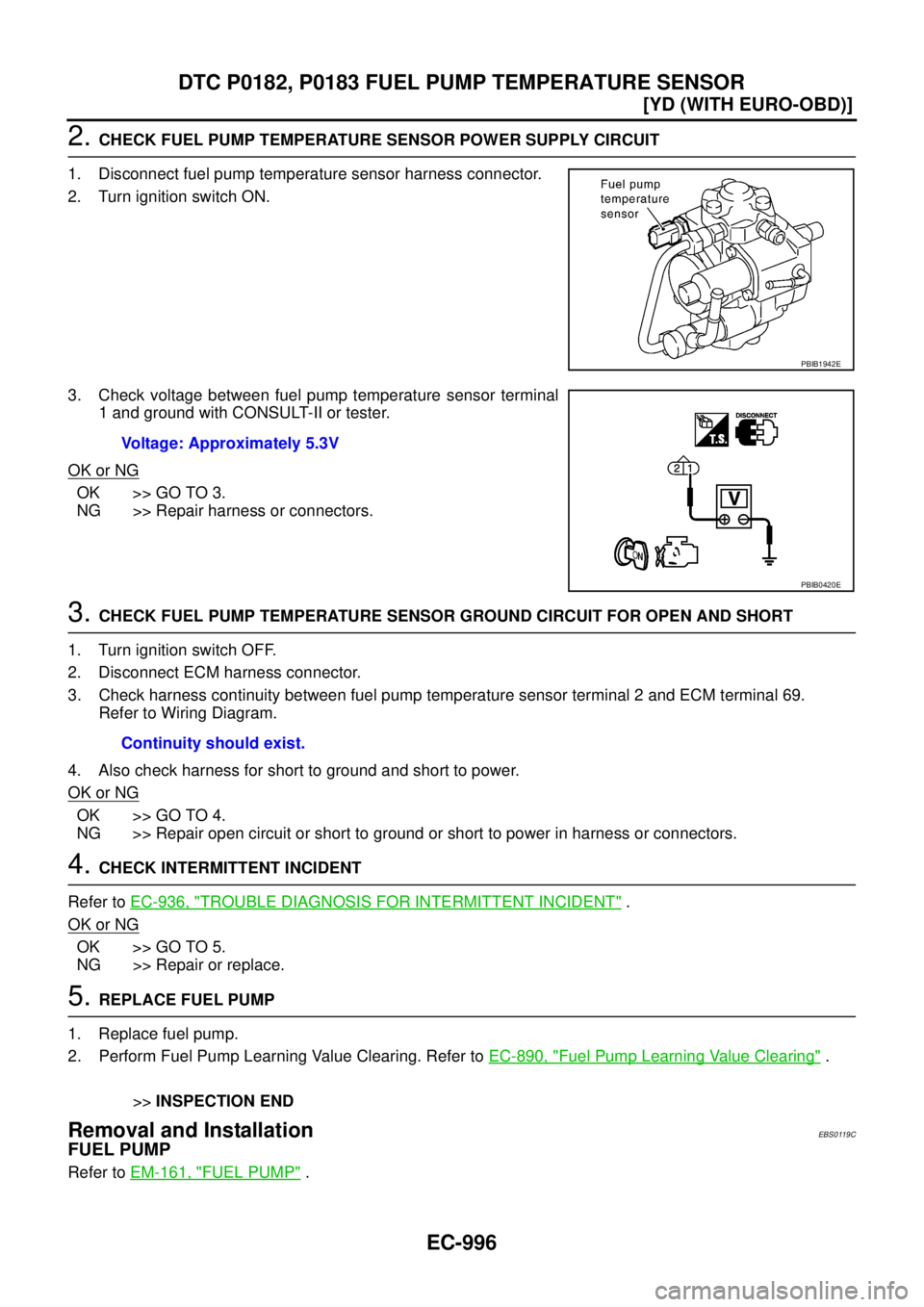

EC-996
[YD (WITH EURO-OBD)]
DTC P0182, P0183 FUEL PUMP TEMPERATURE SENSOR
2. CHECK FUEL PUMP TEMPERATURE SENSOR POWER SUPPLY CIRCUIT
1. Disconnect fuel pump temperature sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between fuel pump temperature sensor terminal
1 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connectors.
3. CHECK FUEL PUMP TEMPERATURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between fuel pump temperature sensor terminal 2 and ECM terminal 69.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK INTERMITTENT INCIDENT
Refer to EC-936, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace.
5. REPLACE FUEL PUMP
1. Replace fuel pump.
2. Perform Fuel Pump Learning Value Clearing. Refer to EC-890, "
Fuel Pump Learning Value Clearing" .
>>INSPECTION END
Removal and InstallationEBS0119C
FUEL PUMP
Refer to EM-161, "FUEL PUMP" .
PBIB1942E
Voltage: Approximately 5.3V
PBIB0420E
Continuity should exist.
Page 1375 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual DTC P0192, P0193 FRP SENSOR
EC-997
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0192, P0193 FRP SENSORPFP:16638
DescriptionEBS0119D
The fuel rail pressure (FRP) sensor is placed to the fuel r NISSAN X-TRAIL 2003 Service Repair Manual DTC P0192, P0193 FRP SENSOR
EC-997
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0192, P0193 FRP SENSORPFP:16638
DescriptionEBS0119D
The fuel rail pressure (FRP) sensor is placed to the fuel r](/manual-img/5/57404/w960_57404-1374.png)
DTC P0192, P0193 FRP SENSOR
EC-997
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0192, P0193 FRP SENSORPFP:16638
DescriptionEBS0119D
The fuel rail pressure (FRP) sensor is placed to the fuel rail. It measures the fuel pressure in the fuel rail. The
sensor sends voltage signal to the ECM. As the pressure increases, the voltage rises.
The ECM controls the fuel pressure in the fuel rail by the inlet throttling device. The ECM uses the signal from
fuel rail pressure sensor as a feedback signal.
CONSULT-II Reference Value in Data Monitor ModeEBS0119E
Specification data are reference values.
ECM Terminals and Reference ValueEBS0119F
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
On Board Diagnosis LogicEBS0119G
MONITOR CONDITION SPECIFICATOIN
ACT CR PRESS
Engine: After warming up
Air conditioner switch: OFF
Shift lever: Neutral position
No-loadIdle 20 - 30 MPa
2,000 rpm 45 - 55 MPa
TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
48
49Y/R
RFuel rail pressure sensor[Engine is running]
Warm-up condition
Idle speed1.7 - 2.0V
[Engine is running]
Warm-up condition
Engine speed is 2,000 rpm2.0 - 2.3V
63 WFuel rail pressure sensor
power supply[Ignition switch ON]Approximately 5.3V
67 —Sensor ground
(Sensors shield circuit)[Ignition switch ON]Approximately 0.3V
68 BFuel rail pressure sensor
ground[Ignition switch ON]Approximately 0.3V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0192Fuel rail pressure sensor
circuit low inputAn excessively low voltage from the sensor is
sent to ECM.
Harness or connectors
(The sensor circuit is open or
shorted.)
Fuel rail temperature sensor P0193Fuel rail temperature sen-
sor circuit high inputAn excessively high voltage from the sensor is
sent to ECM.
Page 1376 of 4179
EC-998
[YD (WITH EURO-OBD)]
DTC P0192, P0193 FRP SENSOR
DTC Confirmation ProcedureEBS0119H
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 5 seconds.
4. If 1st trip DTC is detected, go to EC-1000, "
Diagnostic Proce-
dure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
SEF817Y
