NISSAN X-TRAIL 2003 Service Repair Manual POWER SUPPLY ROUTING PG-7 C D E F G H I J L MA B PG ACCESSORY POWER SUPPLY - IGNITION SW. IN “ACC” OR “ON” TKWB0327E

Page 4010 of 4179

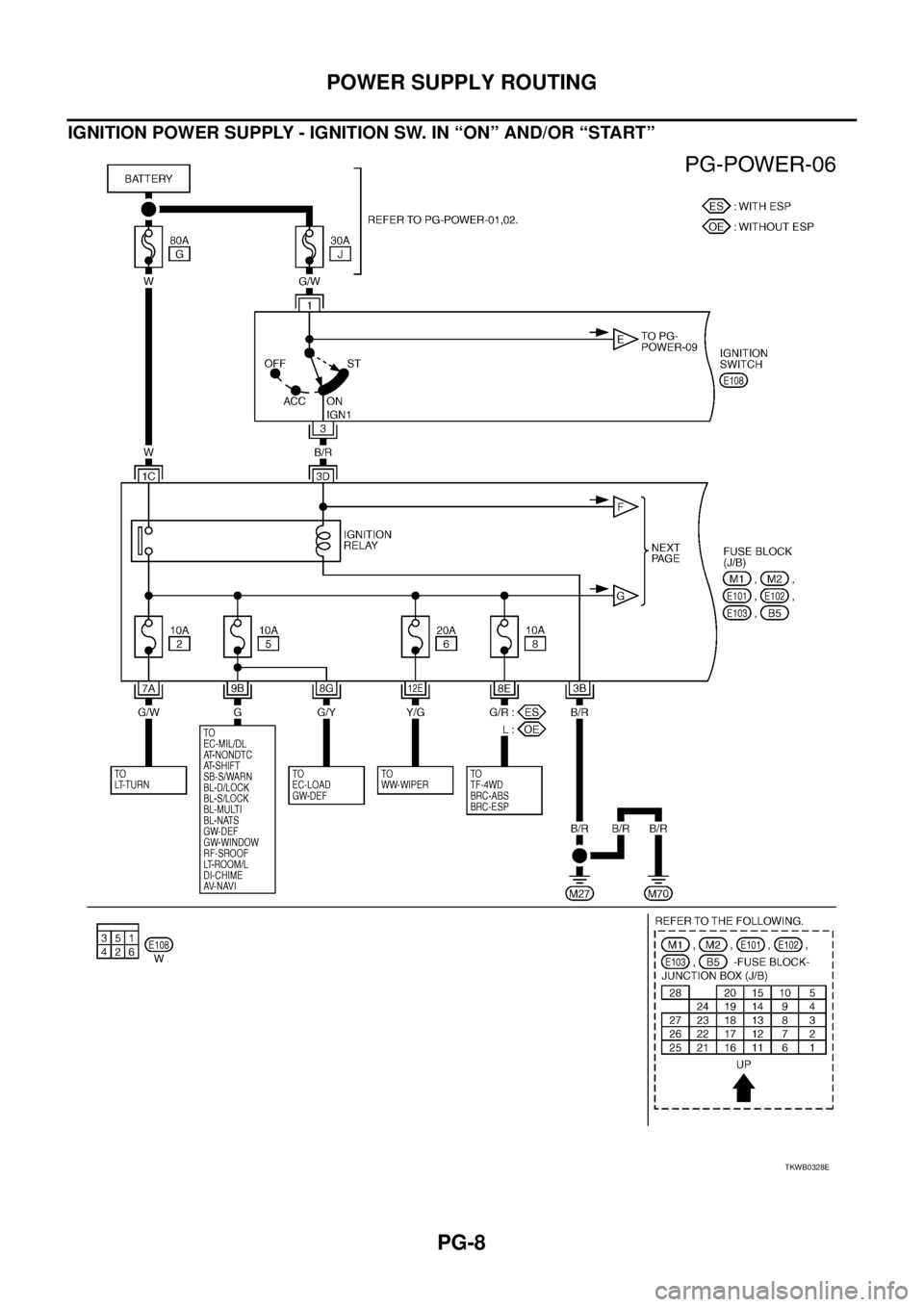

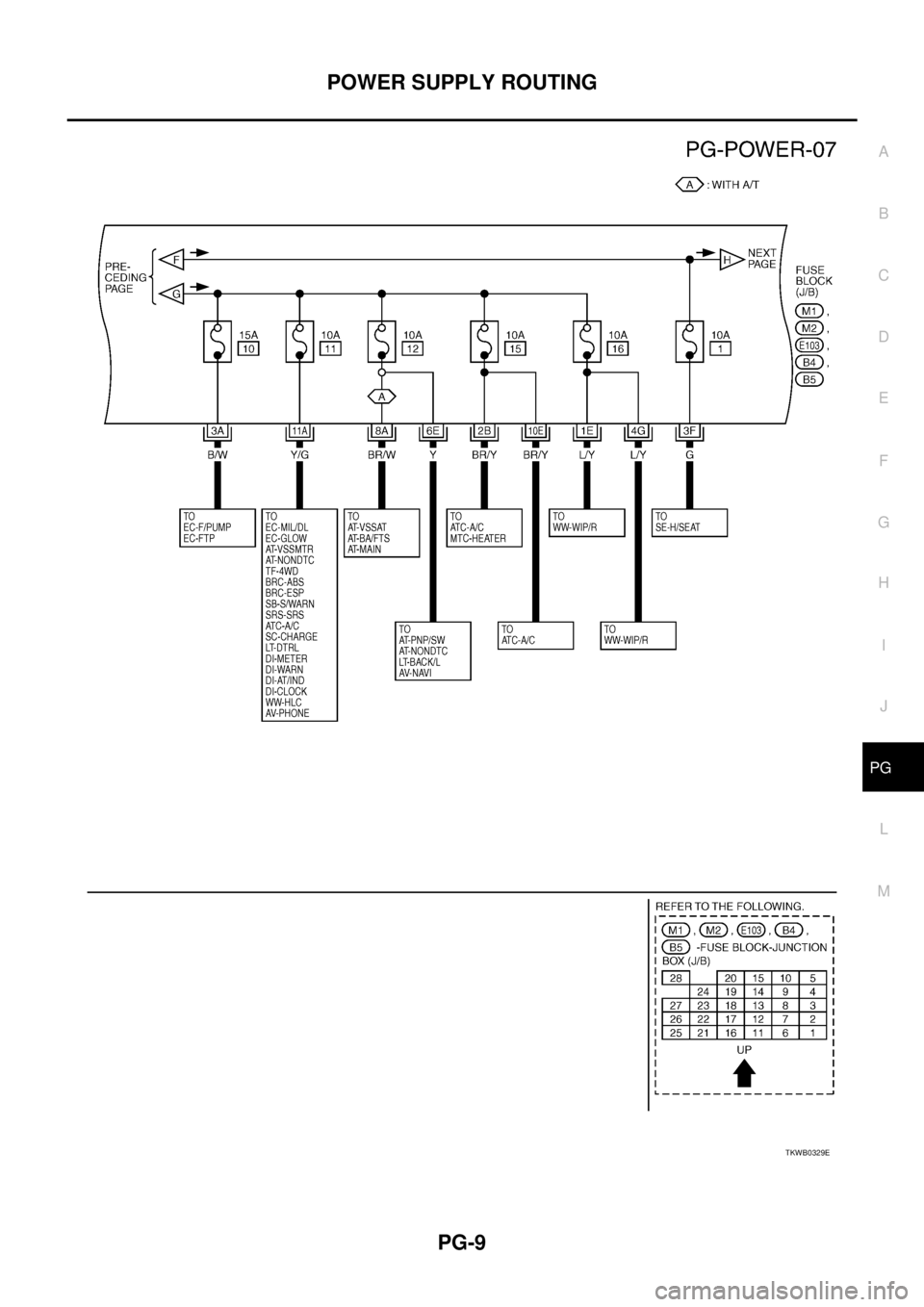

NISSAN X-TRAIL 2003 Service Repair Manual PG-8 POWER SUPPLY ROUTING IGNITION POWER SUPPLY - IGNITION SW. IN “ON” AND/OR “START” TKWB0328E

Page 4011 of 4179

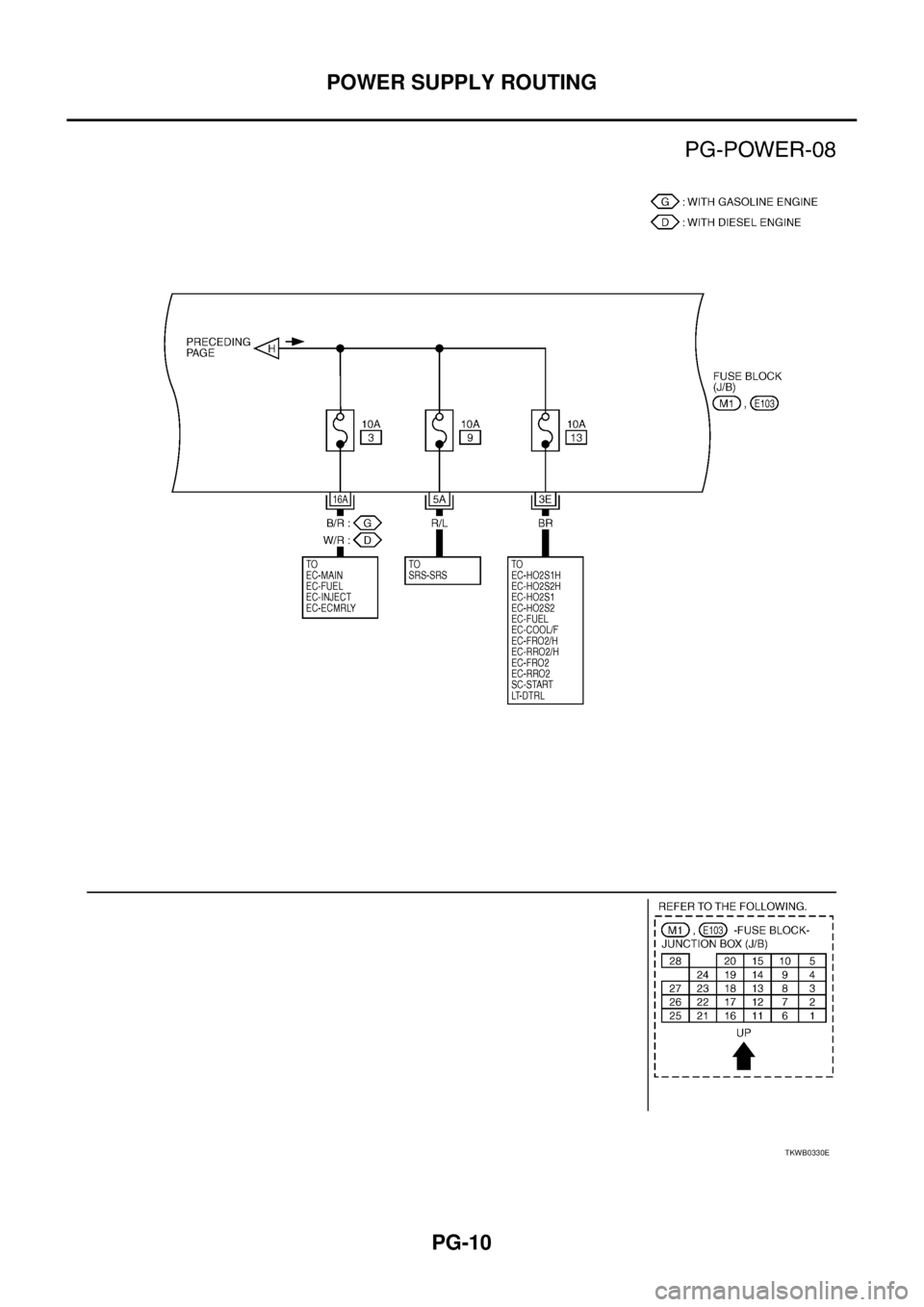

NISSAN X-TRAIL 2003 Service Repair Manual POWER SUPPLY ROUTING PG-9 C D E F G H I J L MA B PG TKWB0329E

Page 4012 of 4179

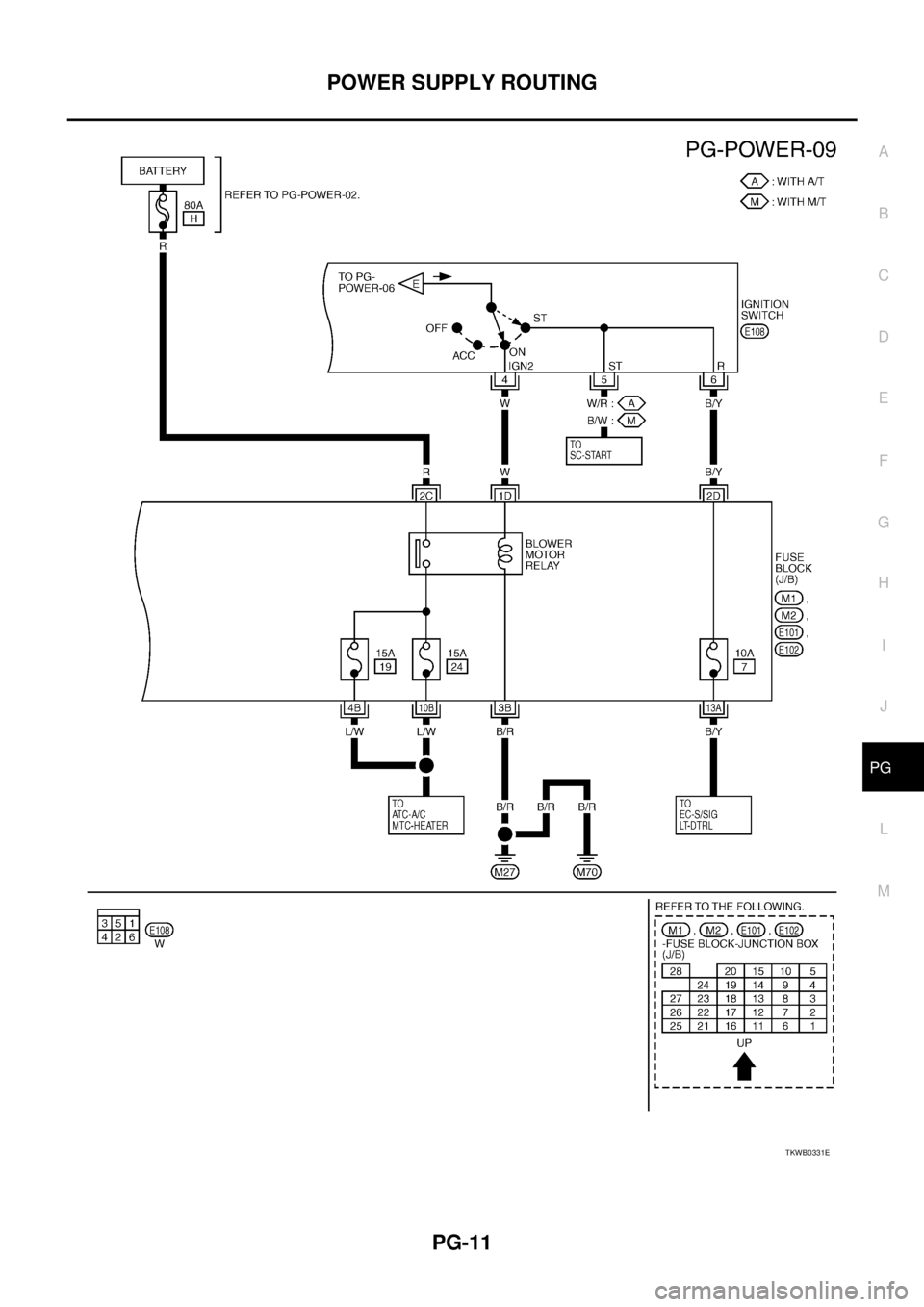

NISSAN X-TRAIL 2003 Service Repair Manual PG-10 POWER SUPPLY ROUTING TKWB0330E

Page 4013 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual POWER SUPPLY ROUTING PG-11 C D E F G H I J L MA B PG TKWB0331E

Page 4014 of 4179

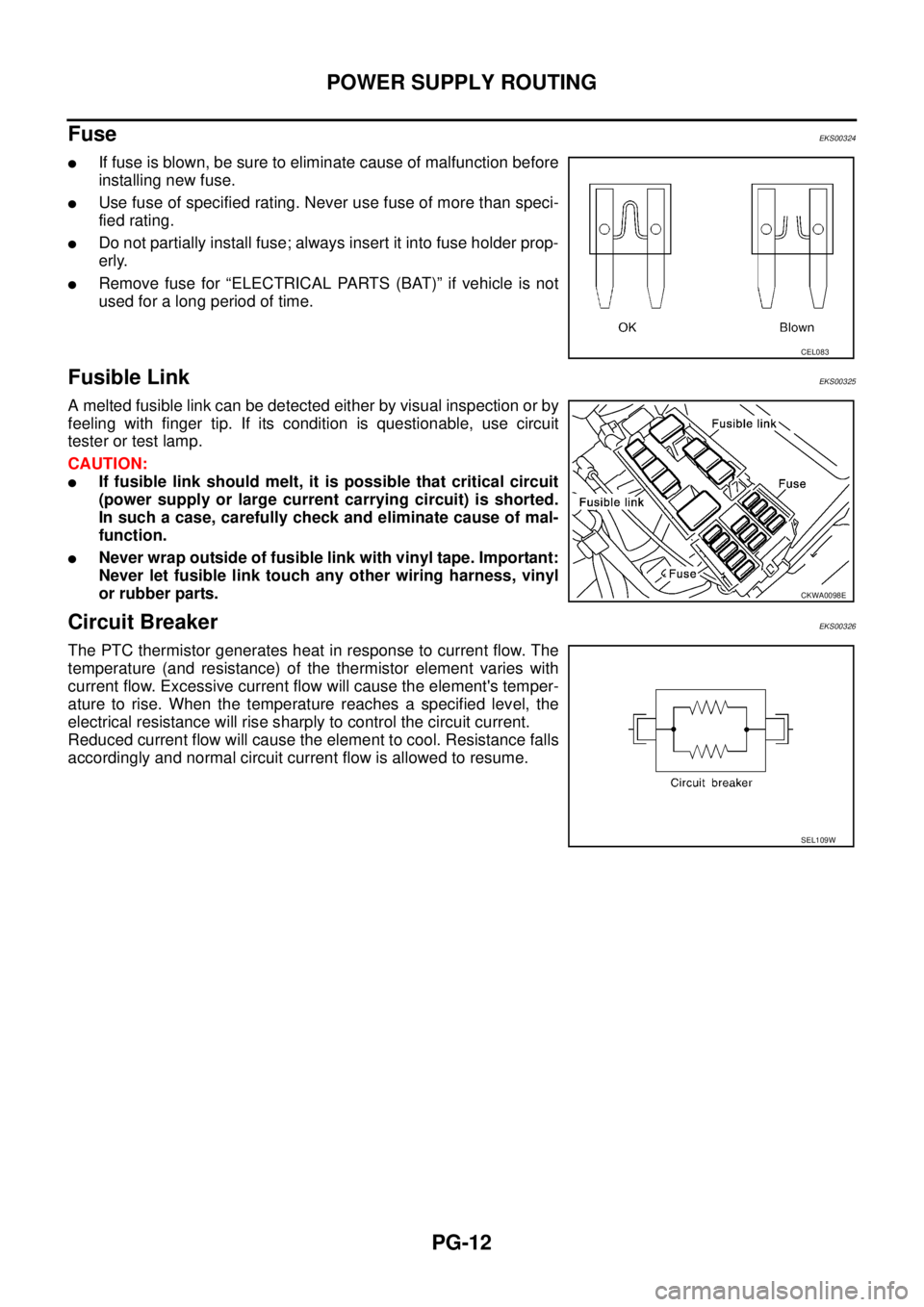

NISSAN X-TRAIL 2003 Service Repair Manual PG-12 POWER SUPPLY ROUTING Fuse EKS00324 If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Use fuse of specified rating. Never use fuse of more than speci- fi

Page 4015 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual GROUND PG-13 C D E F G H I J L MA B PG GROUND PFP:00011 Ground Distribution EKS0032H MAIN HARNESS/LHD MODELS CKIA0361E

Page 4016 of 4179

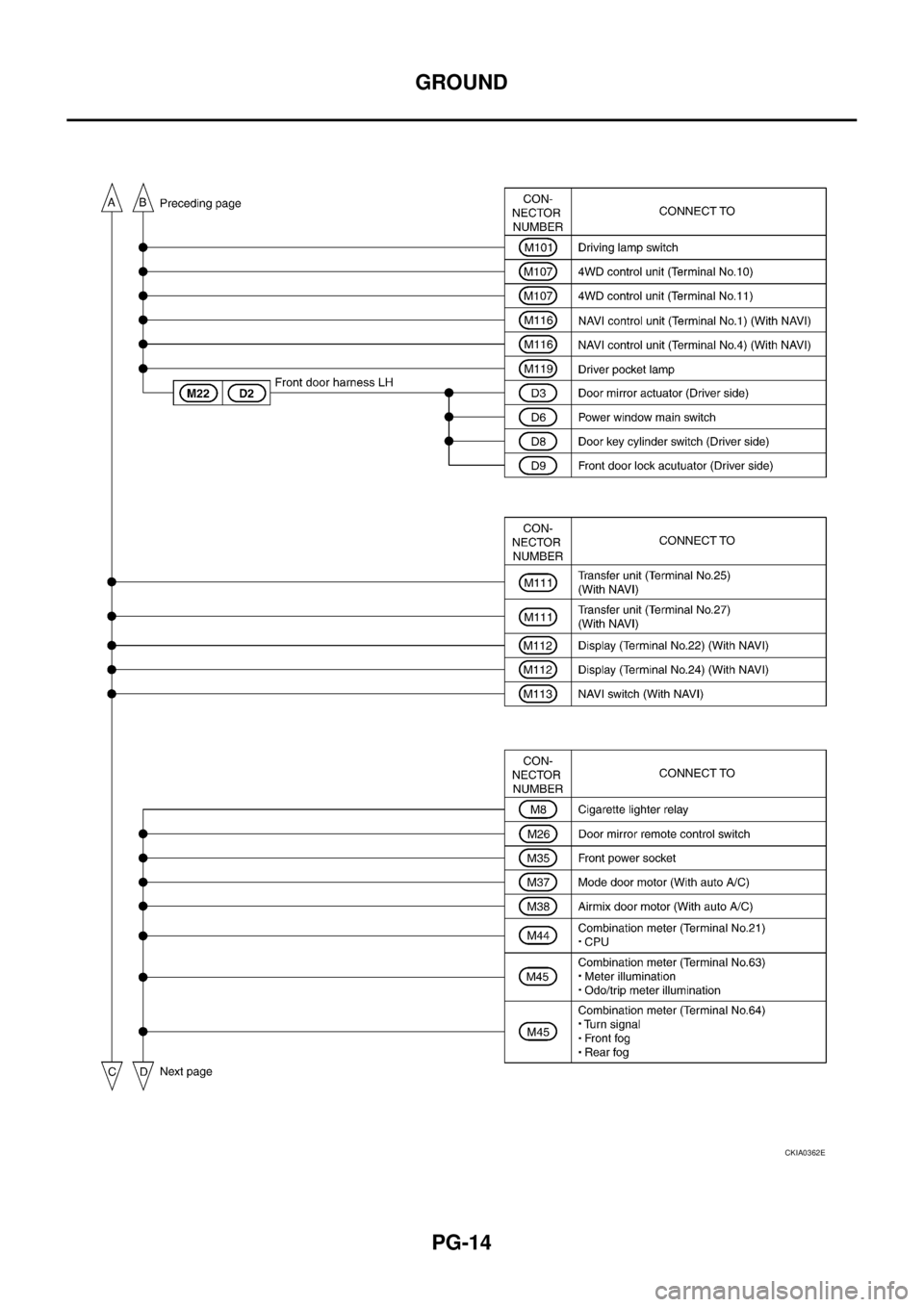

NISSAN X-TRAIL 2003 Service Repair Manual PG-14 GROUND CKIA0362E
