Page 3065 of 4179

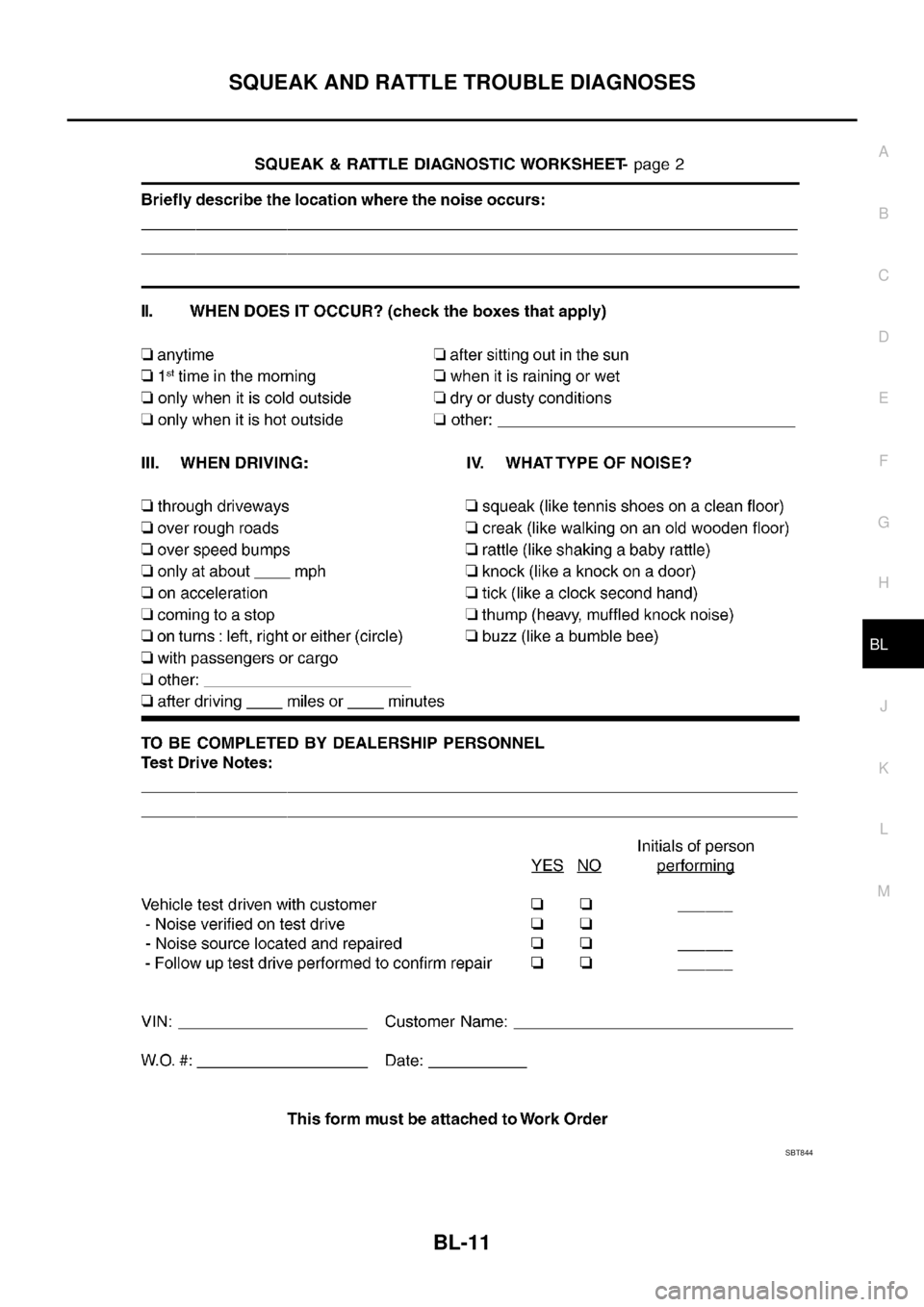

NISSAN X-TRAIL 2003 Service Repair Manual SQUEAK AND RATTLE TROUBLE DIAGNOSES BL-11 C D E F G H J K L MA B BL SBT844

Page 3066 of 4179

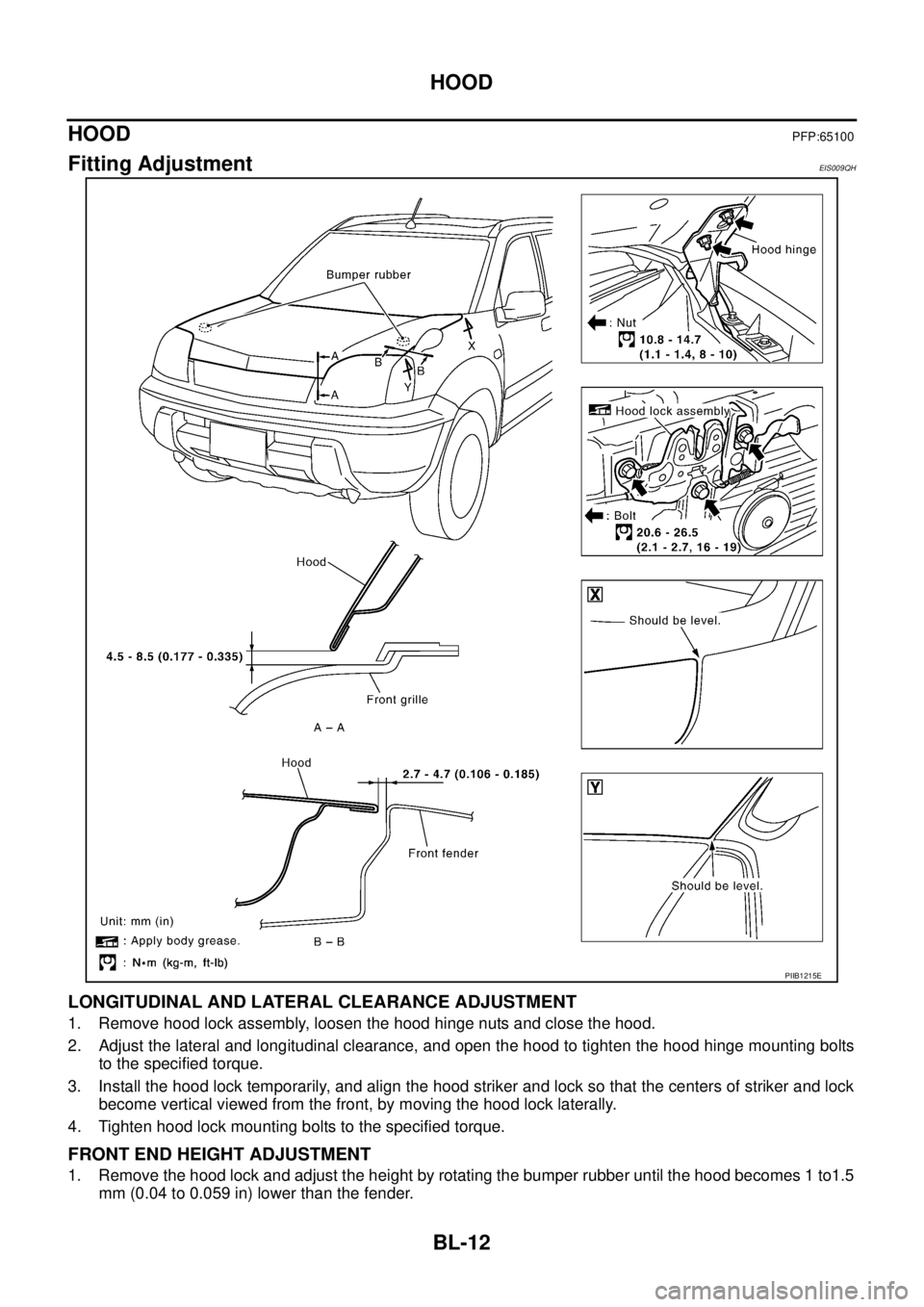

NISSAN X-TRAIL 2003 Service Repair Manual BL-12 HOOD HOODPFP:65100 Fitting AdjustmentEIS009QH LONGITUDINAL AND LATERAL CLEARANCE ADJUSTMENT 1. Remove hood lock assembly, loosen the hood hinge nuts and close the hood. 2. Adjust the lateral a

Page 3067 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual HOOD BL-13 C D E F G H J K L MA B BL 2. Temporarily tighten the hood lock, and position it by engaging it with the hood striker. Check the lock and striker for looseness, and tighten the hood lock m

Page 3068 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual BL-14 HOOD SURFACE HEIGHT ADJUSTMENT 1. Remove hood lock, and adjust the surface height difference of hood, fender and headlamp according to the fitting standard dimension, by rotating RH and LH bum

Page 3069 of 4179

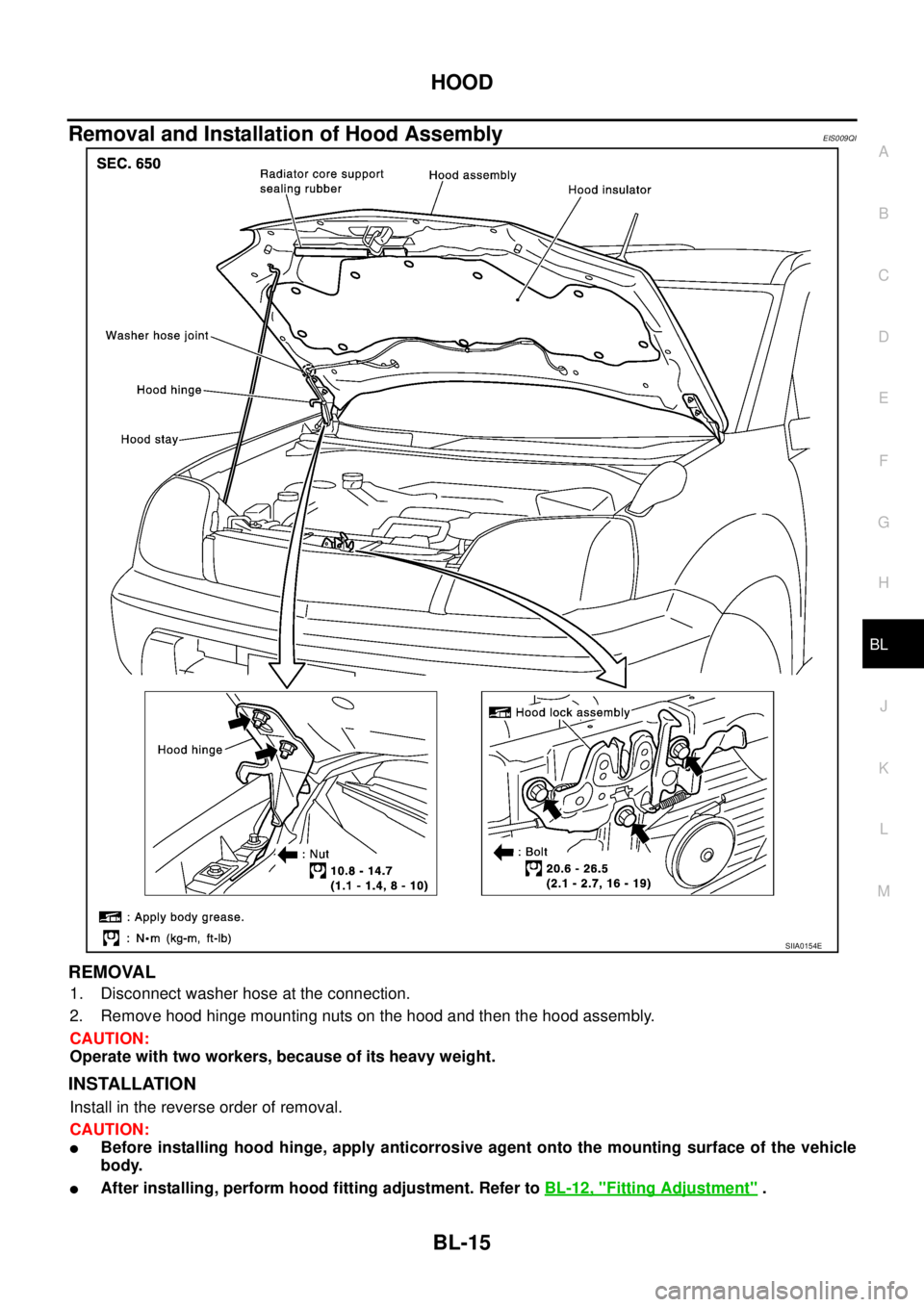

NISSAN X-TRAIL 2003 Service Repair Manual HOOD BL-15 C D E F G H J K L MA B BL Removal and Installation of Hood AssemblyEIS009QI REMOVAL 1. Disconnect washer hose at the connection. 2. Remove hood hinge mounting nuts on the hood and then th

Page 3070 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual BL-16 HOOD Removal and Installation of Hood Lock ControlEIS009QJ REMOVAL 1. Remove hood lock cable from hood lock and clip of upper por- tion of radiator core support and hood ledge. 2. Remove dash

Page 3071 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual HOOD BL-17 C D E F G H J K L MA B BL 4. Connect cable securely to the lock. 5. After connection, confirm proper adjustment and operation for both hood lock and hood opener. Hood Lock Control Inspect

Page 3072 of 4179

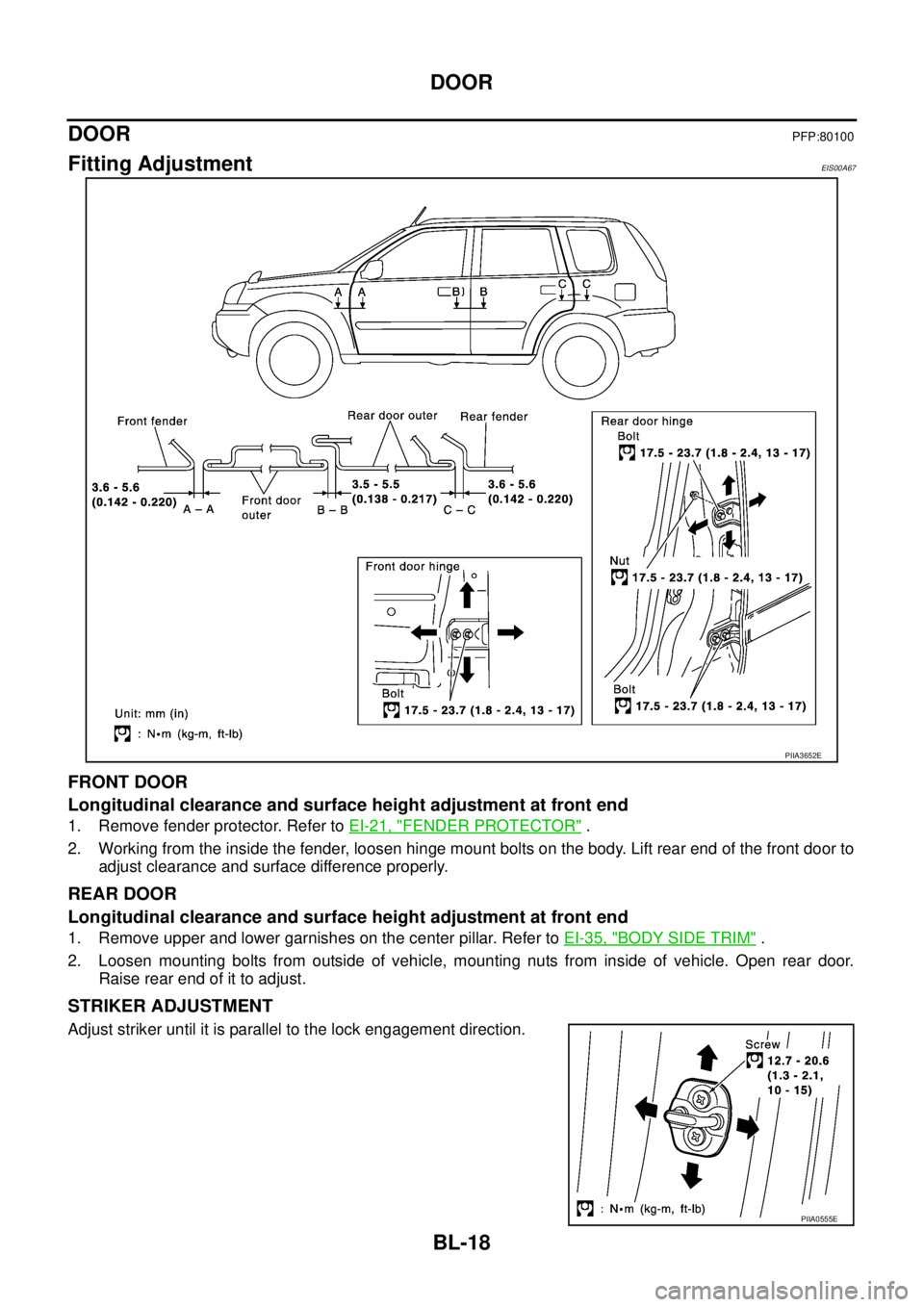

NISSAN X-TRAIL 2003 Service Repair Manual BL-18 DOOR DOORPFP:80100 Fitting AdjustmentEIS00A67 FRONT DOOR Longitudinal clearance and surface height adjustment at front end 1. Remove fender protector. Refer to EI-21, "FENDER PROTECTOR" . 2. W
