Component InspectionEBS01146
EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
With CONSULT-II
Check air passage continuity of EVAP canister purge volume control
solenoid valve under the following conditions.
Without CONSULT-II
Check air passage continuity of EVAP canister purge volume control
solenoid valve under the following conditions.
Removal and InstallationEBS01147
EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
Refer to EM-17, "INTAKE MANIFOLD" .
Condition
(PURG VOL CONT/V)Air passage continuity
between A and B
100% Yes
0% No
PBIB0149E
ConditionAir passage continuity
between A and B
12V direct current supply between termi-
nals 1 and 2Ye s
No supply No
PBIB0150E
Page 1194 of 4179
EC-816
[QR (WITHOUT EURO-OBD)]
PNP SWITCH
PNP SWITCHPFP:32006
Component DescriptionEBS01AGR
When the shift lever position is P or N, park/neutral position (PNP) switch is ON.
ECM detects the position because the continuity of the line (the ON signal) exists.
CONSULT-II Reference Value in Data Monitor ModeEBS01AGS
Specification data are reference values.
MONITOR ITEM CONDITION SPECIFICATION
P/N POSI SW
Ignition switch: ONShift lever: P or N ON
Shift lever: Except above OFF
Page 1195 of 4179
PNP SWITCH
EC-817
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

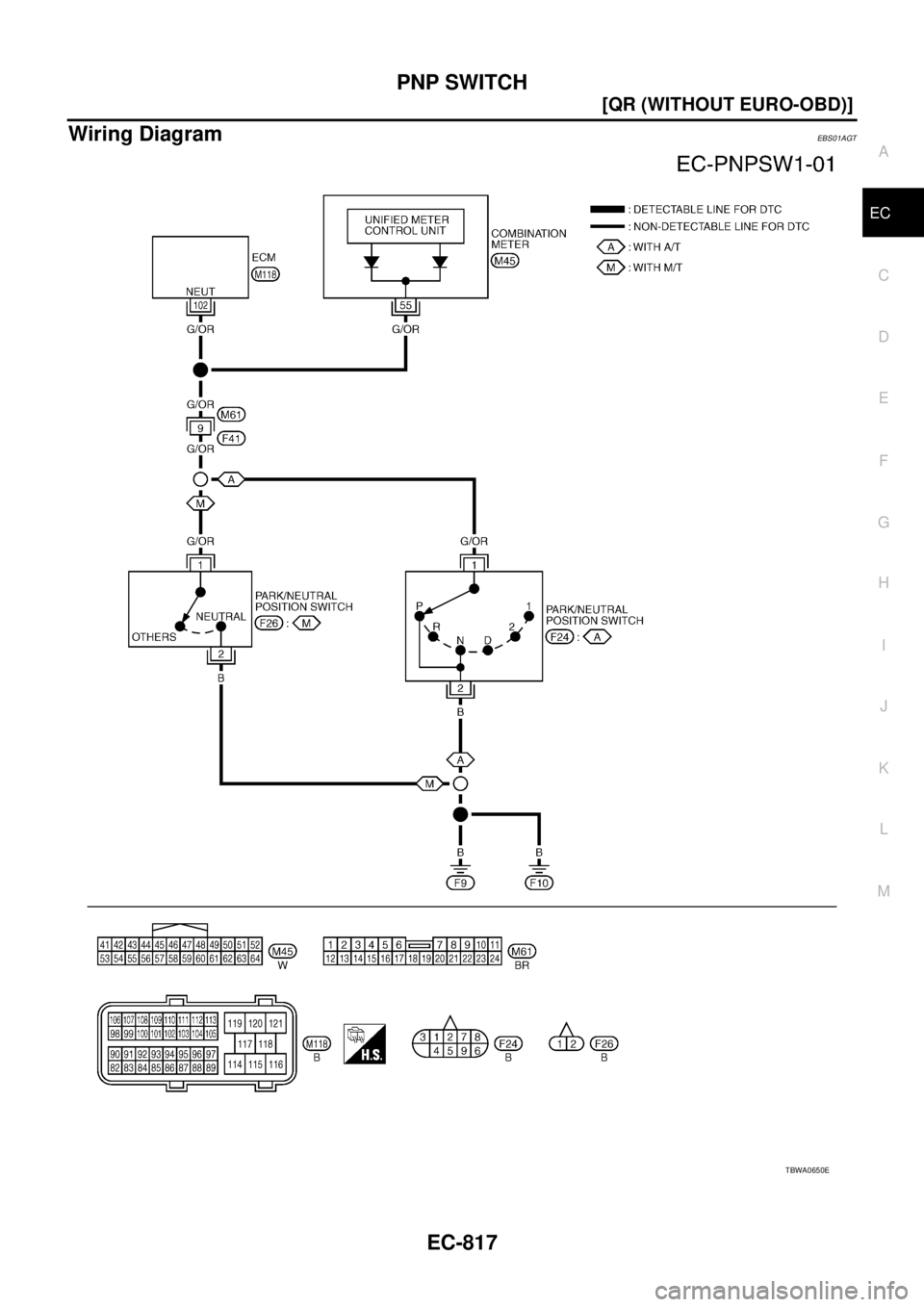

Wiring DiagramEBS01AGT
TBWA0650E
Page 1196 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual EC-818
[QR (WITHOUT EURO-OBD)]
PNP SWITCH
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/out NISSAN X-TRAIL 2003 Service Repair Manual EC-818
[QR (WITHOUT EURO-OBD)]
PNP SWITCH
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/out](/manual-img/5/57404/w960_57404-1195.png)
EC-818
[QR (WITHOUT EURO-OBD)]
PNP SWITCH
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureEBS01AGU
1. CHECK OVERALL FUNCTION
With CONSULT-II
1. Turn ignition switch ON.
2. Select “P/N POSI SW” in “DATA MONITOR” mode with CON-
SULT-II.
3. Check the “P/N POSI SW” signal under the following conditions.
Without CONSULT-II
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 102 and ground under the
following conditions.
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
102 G/OR PNP switch[Ignition switch: ON]
Shift lever position: P or N Approximately 0V
[Ignition switch: ON]
Except above positionBATTERY VOLTAGE
(11 - 14V)
Selector lever position P/N POSI SW signal
P or N position ON
Except above position OFF
PBIB0102E
Selector lever position Voltage
P or N position Approximately 0V
Except above position Battery voltage
MBIB0043E
Page 1197 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual PNP SWITCH
EC-819
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
2. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect PNP switch harness connector.
3. Check harness continuity betwe NISSAN X-TRAIL 2003 Service Repair Manual PNP SWITCH
EC-819
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
2. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect PNP switch harness connector.
3. Check harness continuity betwe](/manual-img/5/57404/w960_57404-1196.png)
PNP SWITCH
EC-819
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
2. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect PNP switch harness connector.
3. Check harness continuity between PNP switch terminal 2 and ground.
Refer to Wiring Diagram.
4. Also check harness for short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to power in harness or connectors.
3. CHECK INPUT SIGNAL CIRCUIT
1. Disconnect ECM harness connector.
2. Check harness continuity between PNP switch terminal 1 and ECM terminal 102, combination meter ter-
minal 55. Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors M61, F41
Harness for open or short between PNP switch and ECM
Harness for open or short between PNP switch and combination meter
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK PNP SWITCH
Refer to AT- 4 0 8 , "
Park/Neutral Position (PNP) Switch" .
OK or NG
OK >> GO TO 6.
NG >> Replace PNP switch.
6. CHECK INTERMITTENT INCIDENT
Refer to EC-570, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.
Continuity should exist.
Page 1198 of 4179
EC-820
[QR (WITHOUT EURO-OBD)]
INJECTOR CIRCUIT
INJECTOR CIRCUITPFP:16600
Component DescriptionEBS0114I
The fuel injector is a small, precise solenoid valve. When the ECM
supplies a ground to the injector circuit, the coil in the injector is
energized. The energized coil pulls the needle valve back and allows
fuel to flow through the injector into the intake manifold. The amount
of fuel injected depends upon the injection pulse duration. Pulse
duration is the length of time the injector remains open. The ECM
controls the injection pulse duration based on engine fuel needs.
CONSULT-II Reference Value in Data Monitor ModeEBS0114J
Specification data are reference values.
SEF375Z
MONITOR ITEM CONDITION SPECIFICATION
B/FUEL SCHDL See EC-566, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
INJ PULSE-B1
Engine: After warming up
Shift lever: N (A/T), Neutral (M/T)
Air conditioner switch: OFF
No loadIdle 2.0 - 3.0 msec
2,000 rpm 1.9 - 2.9 msec
Page 1199 of 4179
INJECTOR CIRCUIT
EC-821
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

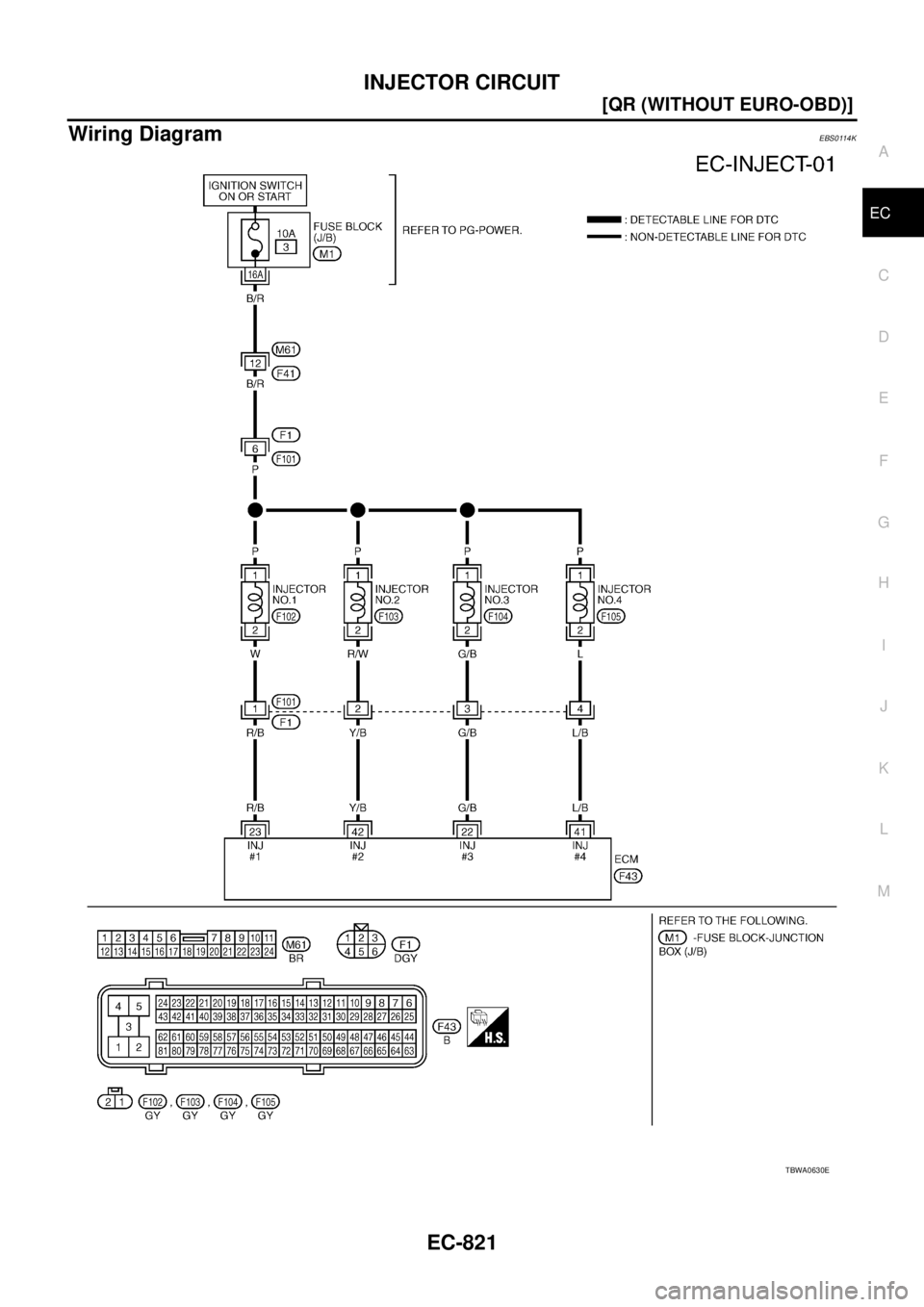

Wiring DiagramEBS0114K
TBWA0630E
Page 1200 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual EC-822
[QR (WITHOUT EURO-OBD)]
INJECTOR CIRCUIT
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use NISSAN X-TRAIL 2003 Service Repair Manual EC-822
[QR (WITHOUT EURO-OBD)]
INJECTOR CIRCUIT
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use](/manual-img/5/57404/w960_57404-1199.png)
EC-822
[QR (WITHOUT EURO-OBD)]
INJECTOR CIRCUIT
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnostic ProcedureEBS0114L
1. INSPECTION START
Turn ignition switch to START.
Is any cylinder ignited?
Ye s o r N o
Yes >> GO TO 2.
No >> GO TO 3.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
22
23
41
42G/B
R/B
L/B
Y/BInjector No. 3
Injector No. 1
Injector No. 4
Injector No. 2[Engine is running]
Warm-up condition
Idle speed
NOTE:
The pulse cycle changes depending on rpm at
idleBATTERY VOLTAGE
(11 - 14V)
[Engine is running]
Warm-up condition
Engine speed is 2,000 rpmBATTERY VOLTAGE
(11 - 14V)
PBIB0529E
PBIB0530E
