Page 4001 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual NAVIGATION SYSTEM
AV-111
C
D
E
F
G
H
I
J
L
MA
B
AV

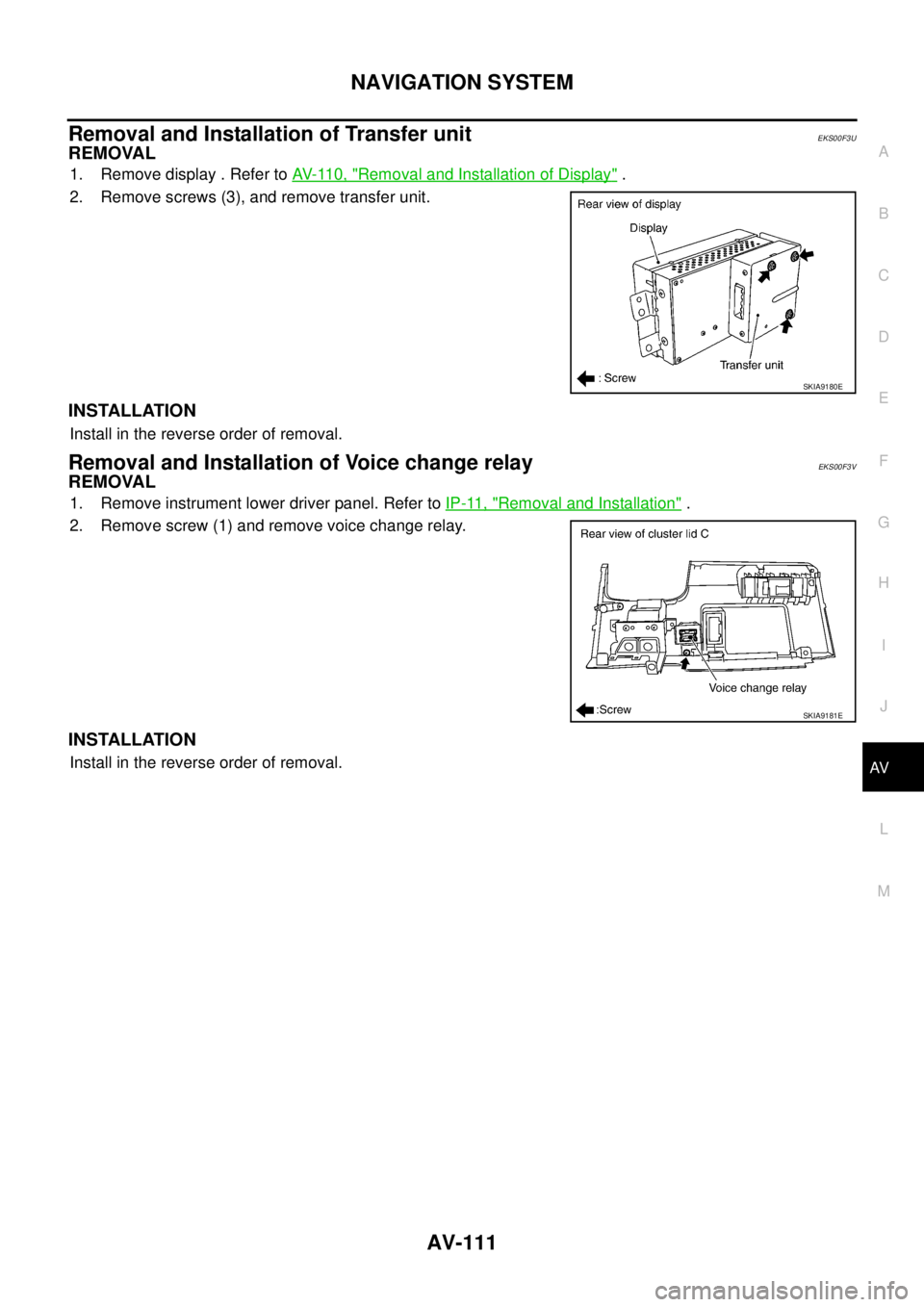

Removal and Installation of Transfer unitEKS00F3U
REMOVAL
1. Remove display . Refer to AV- 11 0 , "Removal and Installation of Display" .
2. Remov

Page 4002 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual AV-112
TELEPHONE (PRE WIRE)

TELEPHONE (PRE WIRE)PFP:28342

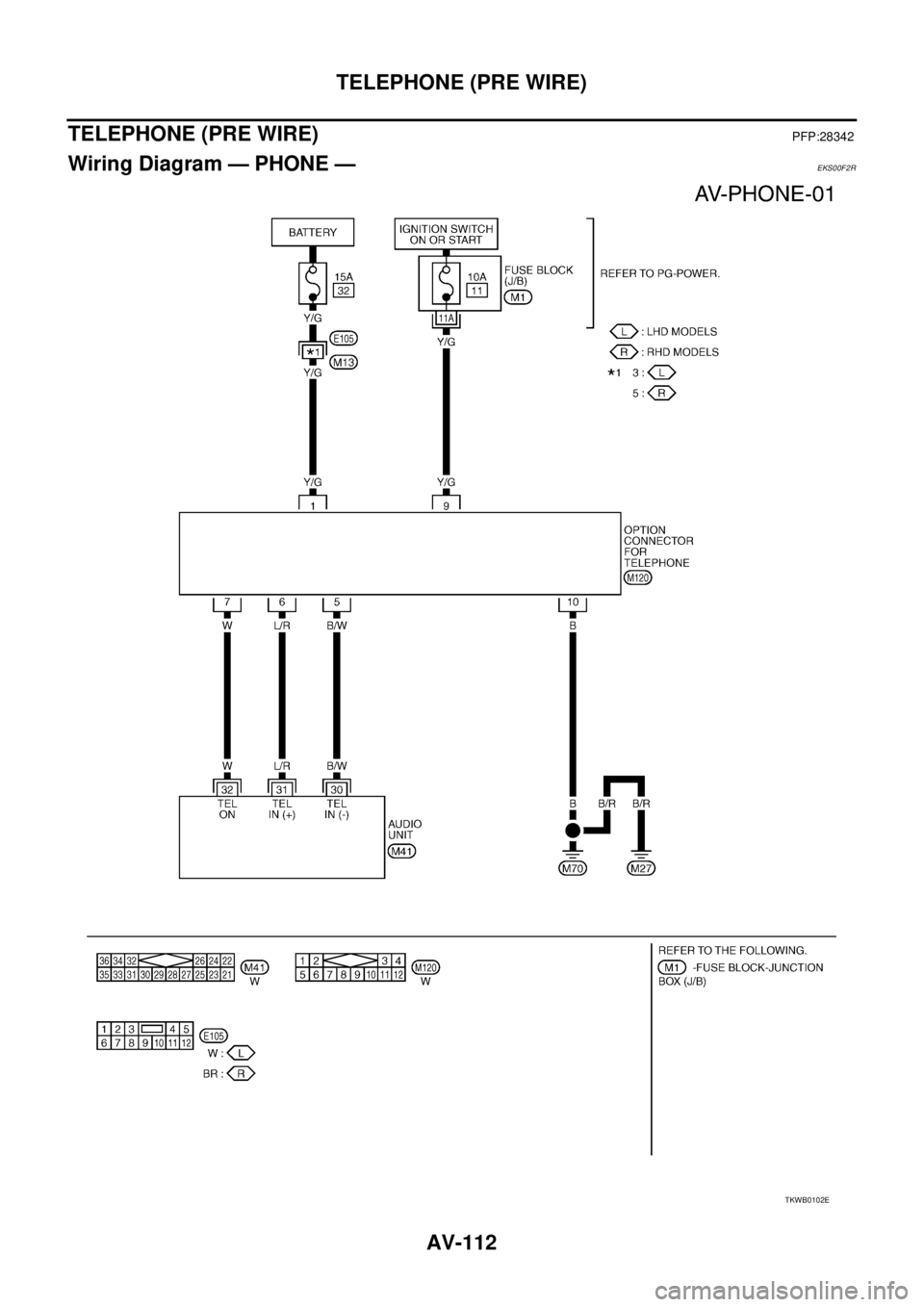

Wiring Diagram — PHONE —EKS00F2R
TKWB0102E

Page 4003 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual PG-1
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION
A
B
PG

POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
POWER SUPPLY ROUTING ................................

PG-1
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION
A
B
PG

POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
POWER SUPPLY ROUTING ...................................... 2
Schematic ................................................................ 2
Wiring Diagram - POWER - ..................................... 3
BATTERY POWER SUPPLY - IGNITION SW. IN
ANY POSITION ..................................................... 3
ACCESSORY POWER SUPPLY - IGNITION SW.
IN “ACC” OR “ON” ................................................ 7
IGNITION POWER SUPPLY - IGNITION SW. IN
“ON” AND/OR “START” ......................................... 8
Fuse ....................................................................... 12
Fusible Link ............................................................ 12
Circuit Breaker ....................................................... 12
GROUND .................................................................. 13
Ground Distribution ................................................ 13
MAIN HARNESS/LHD MODELS ........................ 13
MAIN HARNESS/RHD MODELS ........................ 16
ENGINE ROOM HARNESS/LHD MODELS ....... 19
ENGINE ROOM HARNESS/RHD MODELS ....... 20
ENGINE ROOM HARNESS ................................ 21
ENGINE CONTROL HARNESS/GASOLINE
ENGINE MODELS .............................................. 22
ENGINE CONTROL HARNESS/DIESEL
ENGINE MODELS .............................................. 23
BODY HARNESS/LHD MODELS ....................... 24
BODY HARNESS/RHD MODELS ....................... 25
BODY NO. 2 HARNESS/LHD MODELS ............. 26
BODY NO. 2 HARNESS/RHD MODELS ............ 27
ROOM LAMP HARNESS .................................... 28
BACK DOOR SUB HARNESS/REAR WINDOW
DEFOGGER HARNESS ..................................... 29
HARNESS ................................................................. 30
Harness Layout ...................................................... 30
HOW TO READ HARNESS LAYOUTS ............... 30
OUTLINE/LHD MODELS .................................... 31
OUTLINE/RHD MODELS .................................... 32
MAIN HARNESS/LHD MODELS ........................ 33MAIN HARNESS/RHD MODELS ........................ 35
ENGINE ROOM HARNESS/LHD MODELS ........ 37
ENGINE ROOM HARNESS/RHD MODELS ....... 42
ENGINE CONTROL HARNESS .......................... 47
BODY HARNESS/LHD MODELS ....................... 52
BODY HARNESS/RHD MODELS ....................... 53
BODY NO. 2 HARNESS/LHD MODELS ............. 54
BODY NO. 2 HARNESS/RHD MODELS ............. 55
ROOM LAMP HARNESS .................................... 56
FRONT DOOR HARNESS/LHD MODELS .......... 57
FRONT DOOR HARNESS/RHD MODELS ......... 58
REAR DOOR HARNESS .................................... 59
BACK DOOR HARNESS .................................... 60
Wiring Diagram Codes (Cell Codes) ...................... 61
ELECTRICAL UNITS LOCATION ............................ 65
Electrical Units Location ......................................... 65
ENGINE COMPARTMENT .................................. 65
PASSENGER COMPARTMENT/LHD MODELS ... 66
PASSENGER COMPARTMENT/RHD MODELS ... 68
HARNESS CONNECTOR ......................................... 70
Description .............................................................. 70
HARNESS CONNECTOR (TAB-LOCKING
TYPE) .................................................................. 70
HARNESS CONNECTOR (SLIDE-LOCKING
TYPE) .................................................................. 71
ELECTRICAL UNITS ................................................ 72
Terminal Arrangement ............................................ 72
STANDARDIZED RELAY .......................................... 73
Description .............................................................. 73
NORMAL OPEN, NORMAL CLOSED AND
MIXED TYPE RELAYS ........................................ 73
TYPE OF STANDARDIZED RELAYS ................. 73
FUSE BLOCK - JUNCTION BOX (J/B) .................... 75
Terminal Arrangement ............................................ 75
FUSE AND FUSIBLE LINK BOX .............................. 76
Terminal Arrangement ............................................ 76

Page 4004 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual PG-2
POWER SUPPLY ROUTING

POWER SUPPLY ROUTING PFP:00011

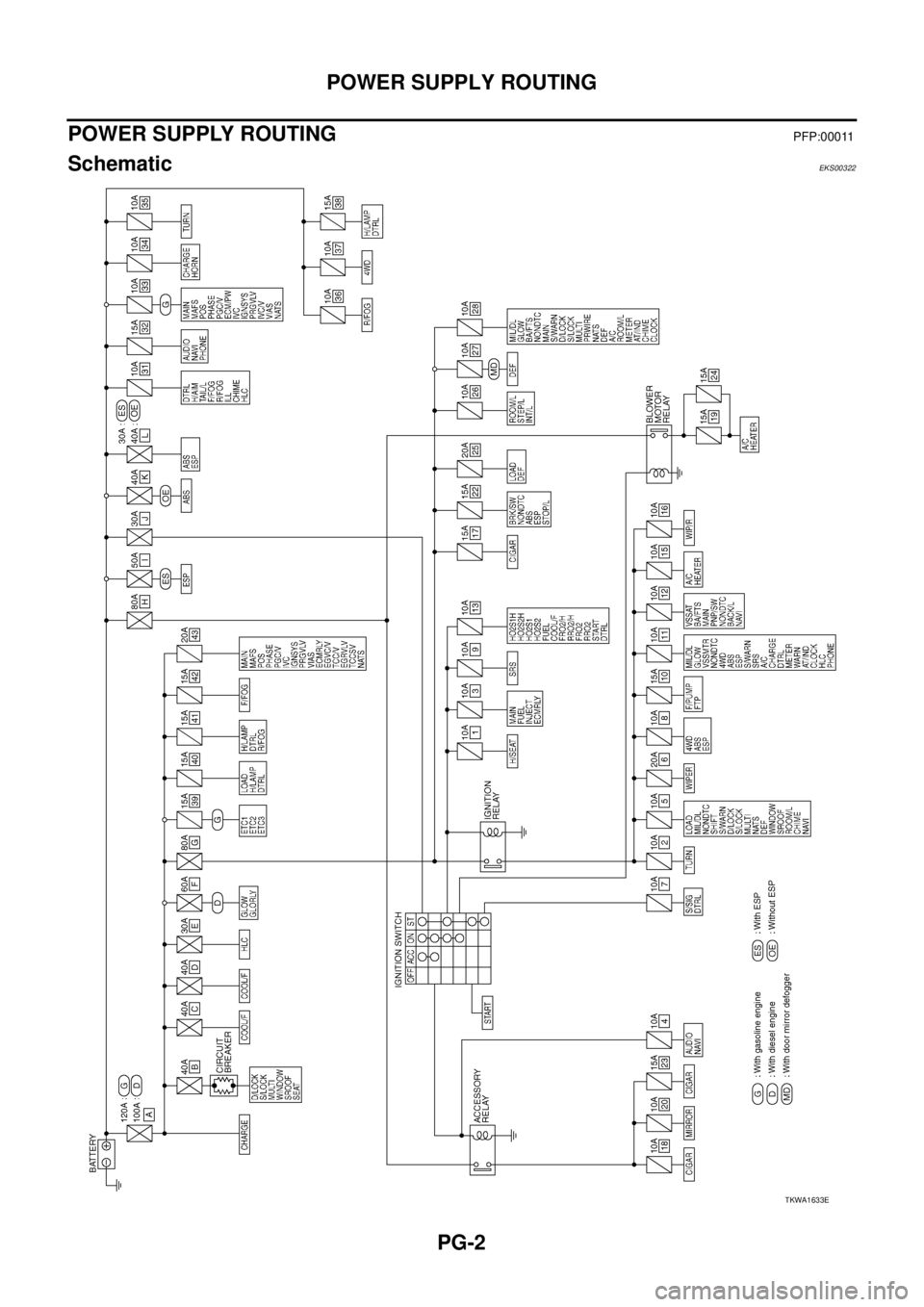

Schematic EKS00322
TKWA1633E

Page 4005 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual POWER SUPPLY ROUTING
PG-3
C
D
E
F
G
H
I
J
L
MA
B
PG

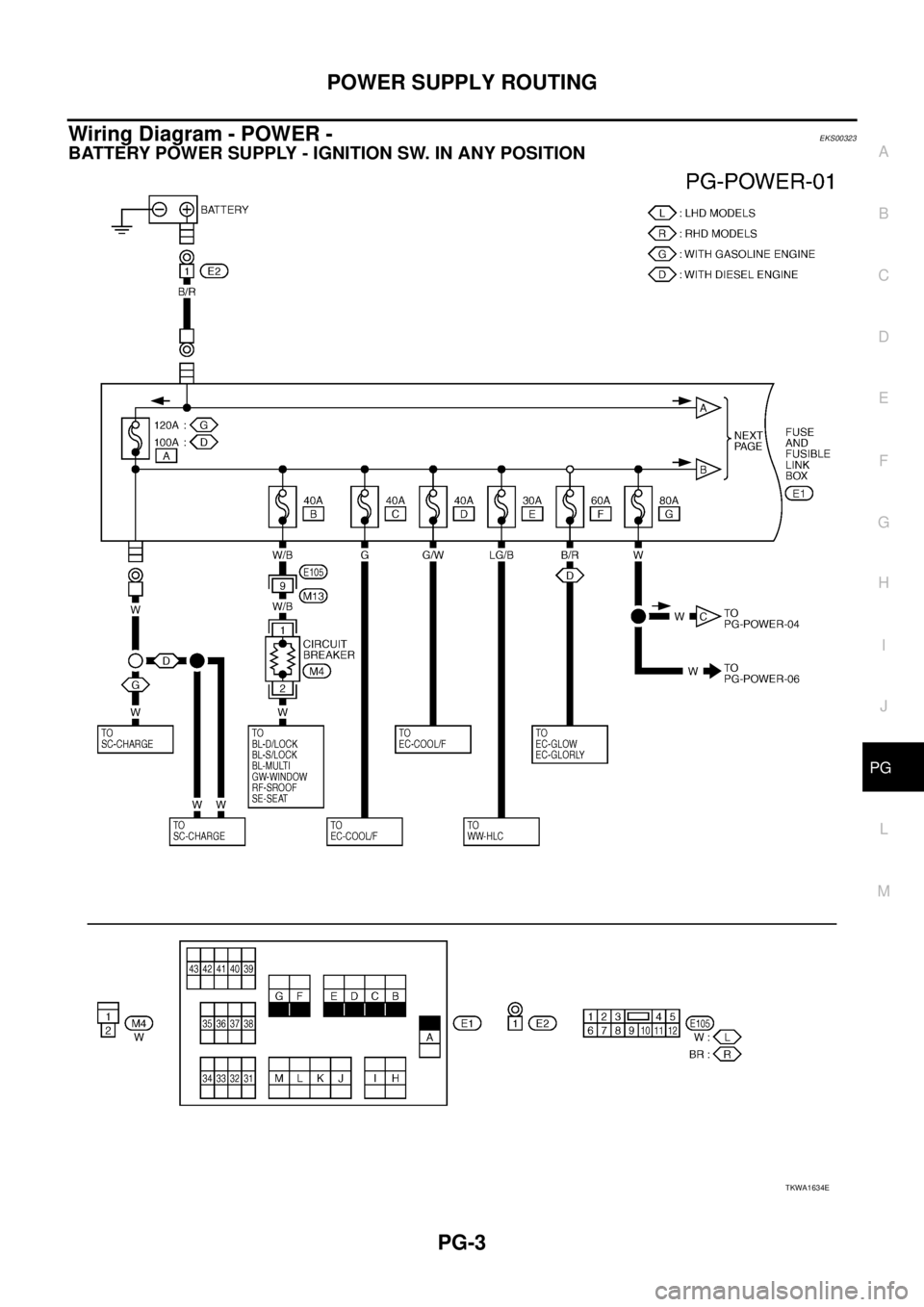

Wiring Diagram - POWER - EKS00323
BATTERY POWER SUPPLY - IGNITION SW. IN ANY POSITION
TKWA1634E

Page 4006 of 4179

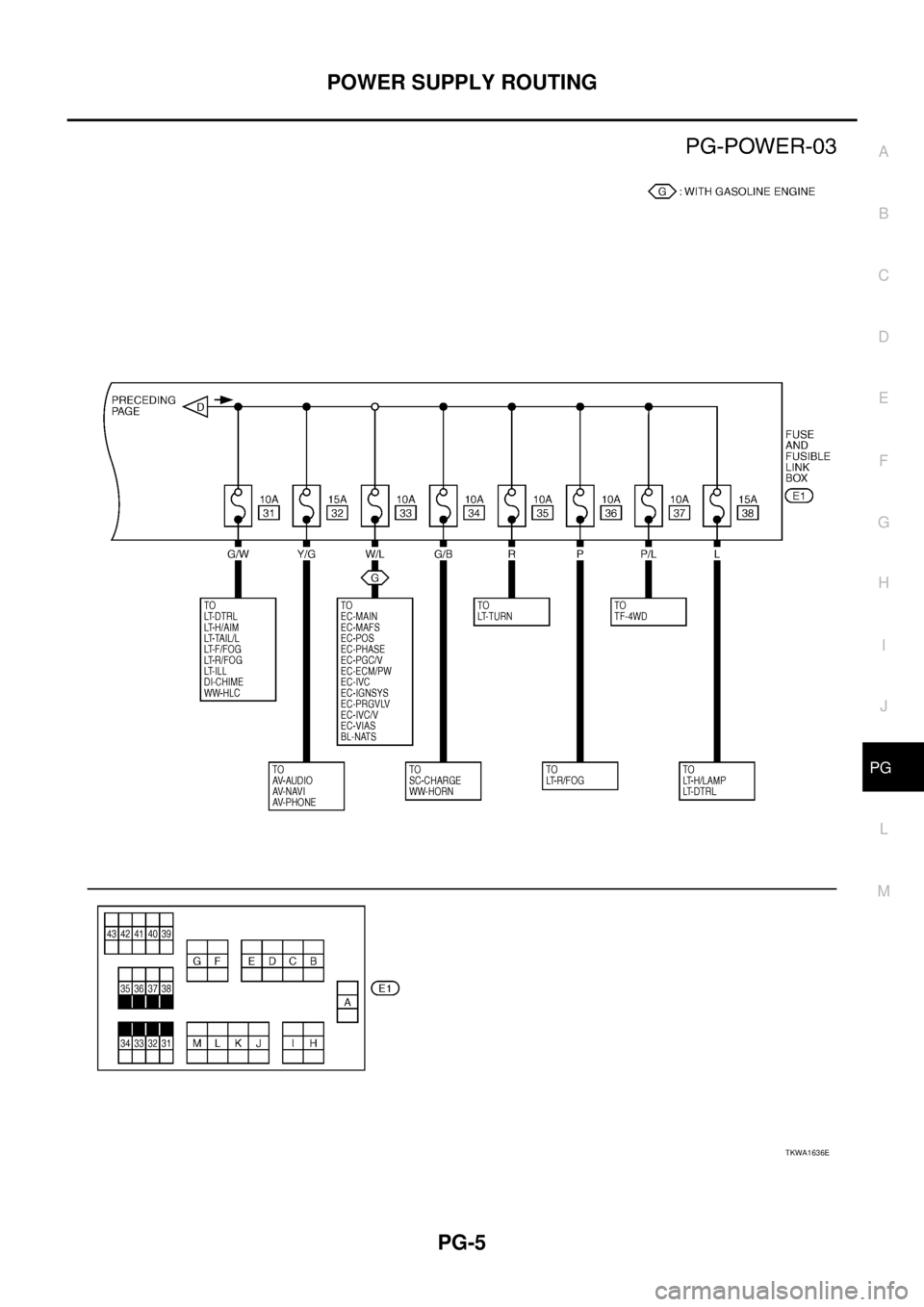

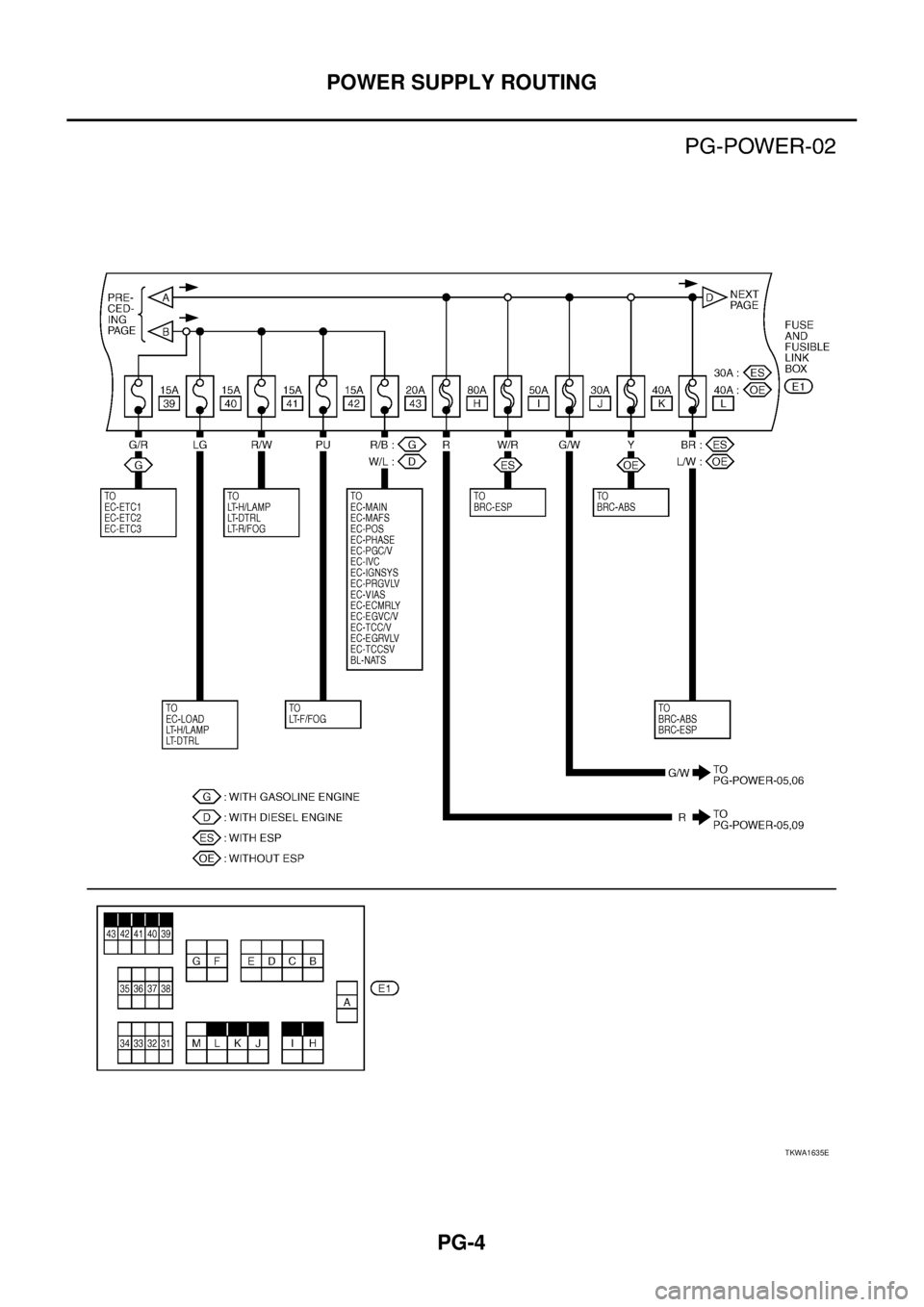

NISSAN X-TRAIL 2003 Service Repair Manual PG-4
POWER SUPPLY ROUTING

TKWA1635E

Page 4007 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual POWER SUPPLY ROUTING
PG-5
C
D
E
F
G
H
I
J
L
MA
B
PG

TKWA1636E

Page 4008 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual PG-6
POWER SUPPLY ROUTING

TKWB0326E
