Page 4153 of 4179

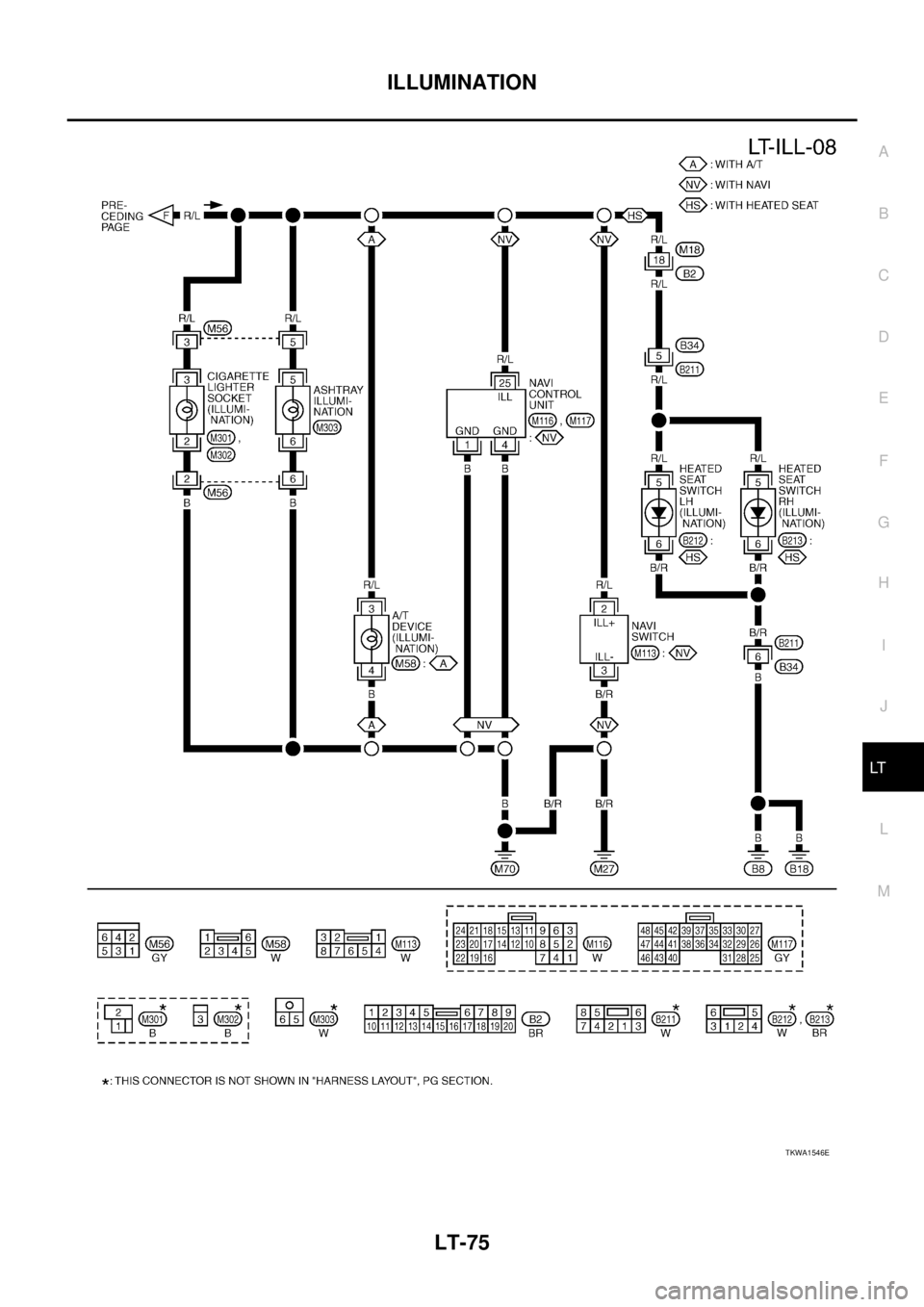

NISSAN X-TRAIL 2003 Service Repair Manual ILLUMINATION
LT-75
C
D
E
F
G
H
I
J
L
MA
B
LT

TKWA1546E

Page 4154 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual LT-76
INTERIOR ROOM LAMP

INTERIOR ROOM LAMPPFP:26410
System DescriptionEKS003BQ
POWER SUPPLY AND GROUND
Power is supplied at all times:
through 10A fuse [No. 28, located in the fuse block (J/B)]
t

LT-76
INTERIOR ROOM LAMP

INTERIOR ROOM LAMPPFP:26410
System DescriptionEKS003BQ
POWER SUPPLY AND GROUND
Power is supplied at all times:
through 10A fuse [No. 28, located in the fuse block (J/B)]
to key switch terminal 1 and
to time control unit terminal 1
through 10A fuse [No. 26, located in the fuse block (J/B)]
to interior room lamp terminal 1
to luggage room lamp terminal 1
to map lamp terminal 1 (with sunroof models)
When the key is removed from ignition key cylinder, power is interrupted
through key switch terminal 2
to time control unit terminal 18.
With the ignition key switch in the ON or START position, power is supplied
through 10A fuse [No. 5, located in the fuse block (J/B)]
to time control unit terminal 17.
Ground is supplied
through grounds terminals M27 and M70
to time control unit terminal 16.
When the driver side front door is opened, ground is supplied
through grounds B8 and B18
to front door switch driver side terminal 3
from front door switch driver side terminal 2
to time control unit terminal 30.
When any door (except back door) is opened, ground is supplied
through case ground of each door switch
to each door switch terminal 1
to time control unit terminal 31.
When back door is opened, ground is supplied:
through ground D53
to back door switch terminal 3
from back door switch terminal 1
to time control unit terminal 31.
When the driver side door is unlocked, the time control unit receives a ground signal
through grounds terminals M27 and M70
to front door lock actuator terminal 1
from front door lock actuator terminal 5
to time control unit terminal 28.
When a signal, or combination of signals is received by the time control unit, ground is supplied
through time control unit terminal 26
to interior room lamp terminal 2.
to map lamp terminal 3 (with sunroof models)
With power and ground supplied, the interior room lamp illuminates.
SWITCH OPERATION
When interior room lamp switch is ON, ground is supplied
through case grounds of interior room lamp
to interior room lamp.

Page 4155 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual INTERIOR ROOM LAMP
LT-77
C
D
E
F
G
H
I
J
L
MA
B
LT

When map lamp switch is ON, ground is supplied (with sunroof models)
through ground M27 and M70
to map lamp terminal 2.
INTERIOR ROOM LAMP TIMER

Page 4156 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual LT-78
INTERIOR ROOM LAMP

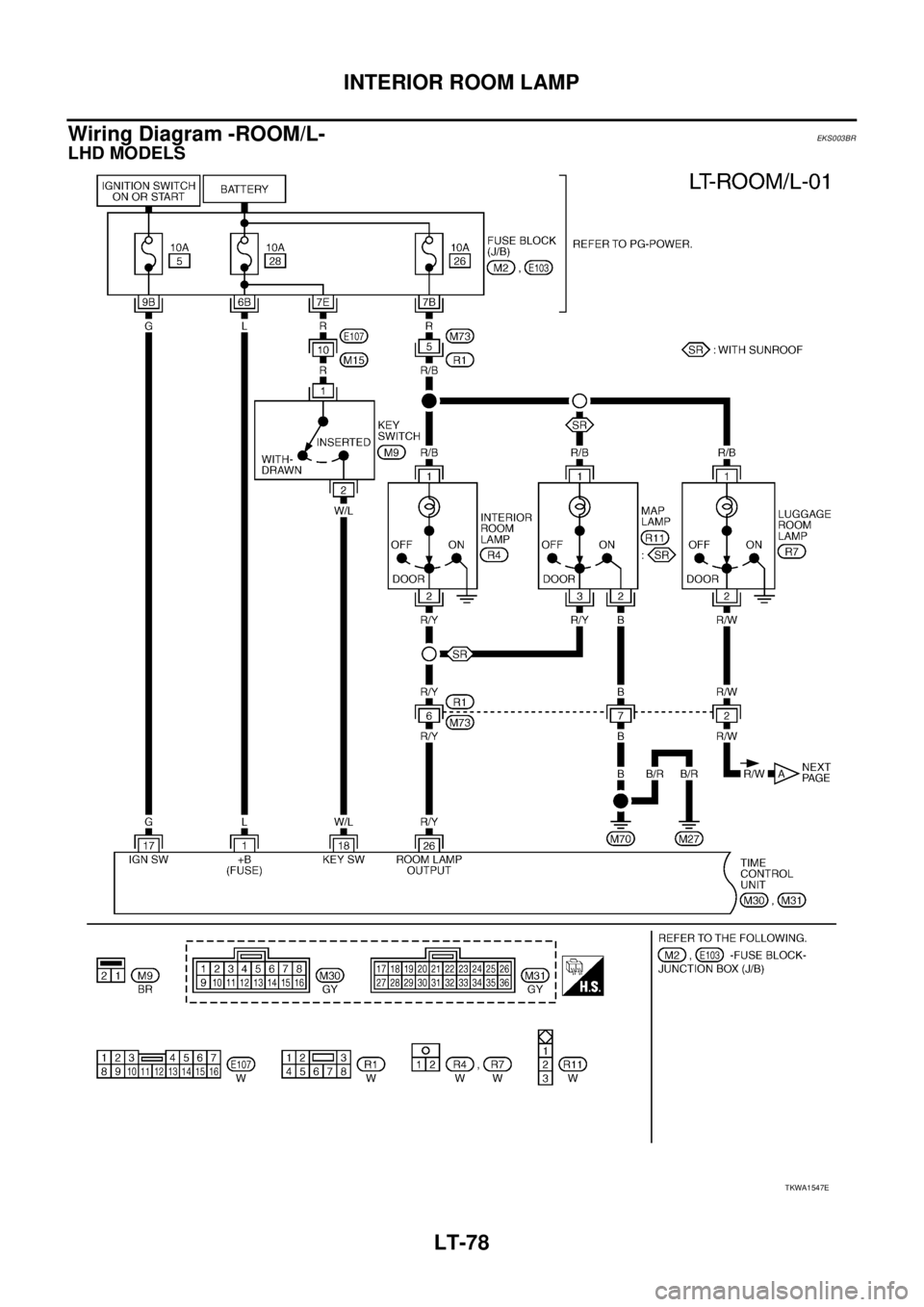

Wiring Diagram -ROOM/L-EKS003BR
LHD MODELS
TKWA1547E

Page 4157 of 4179

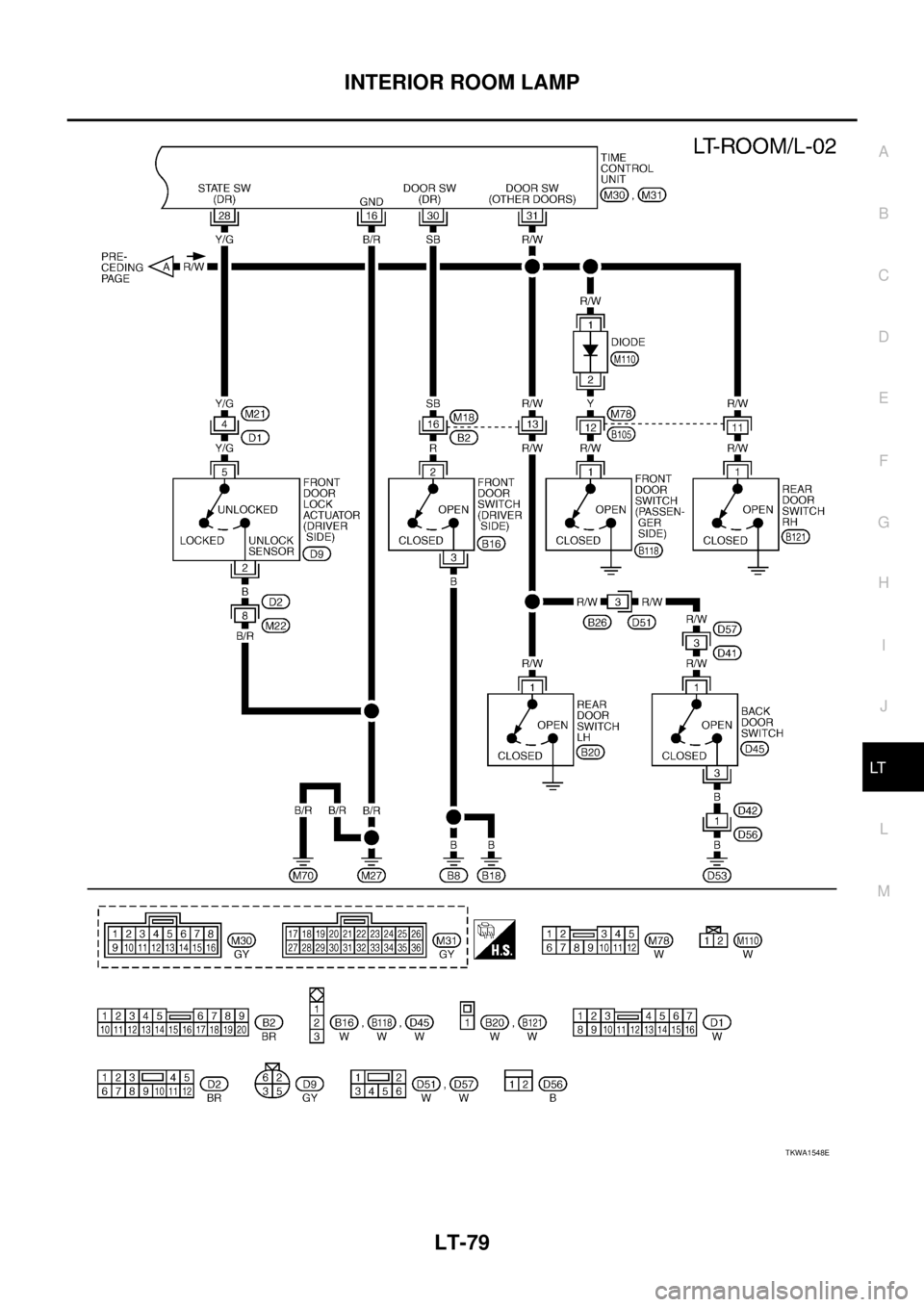

NISSAN X-TRAIL 2003 Service Repair Manual INTERIOR ROOM LAMP
LT-79
C
D
E
F
G
H
I
J
L
MA
B
LT

TKWA1548E

Page 4158 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual LT-80
INTERIOR ROOM LAMP

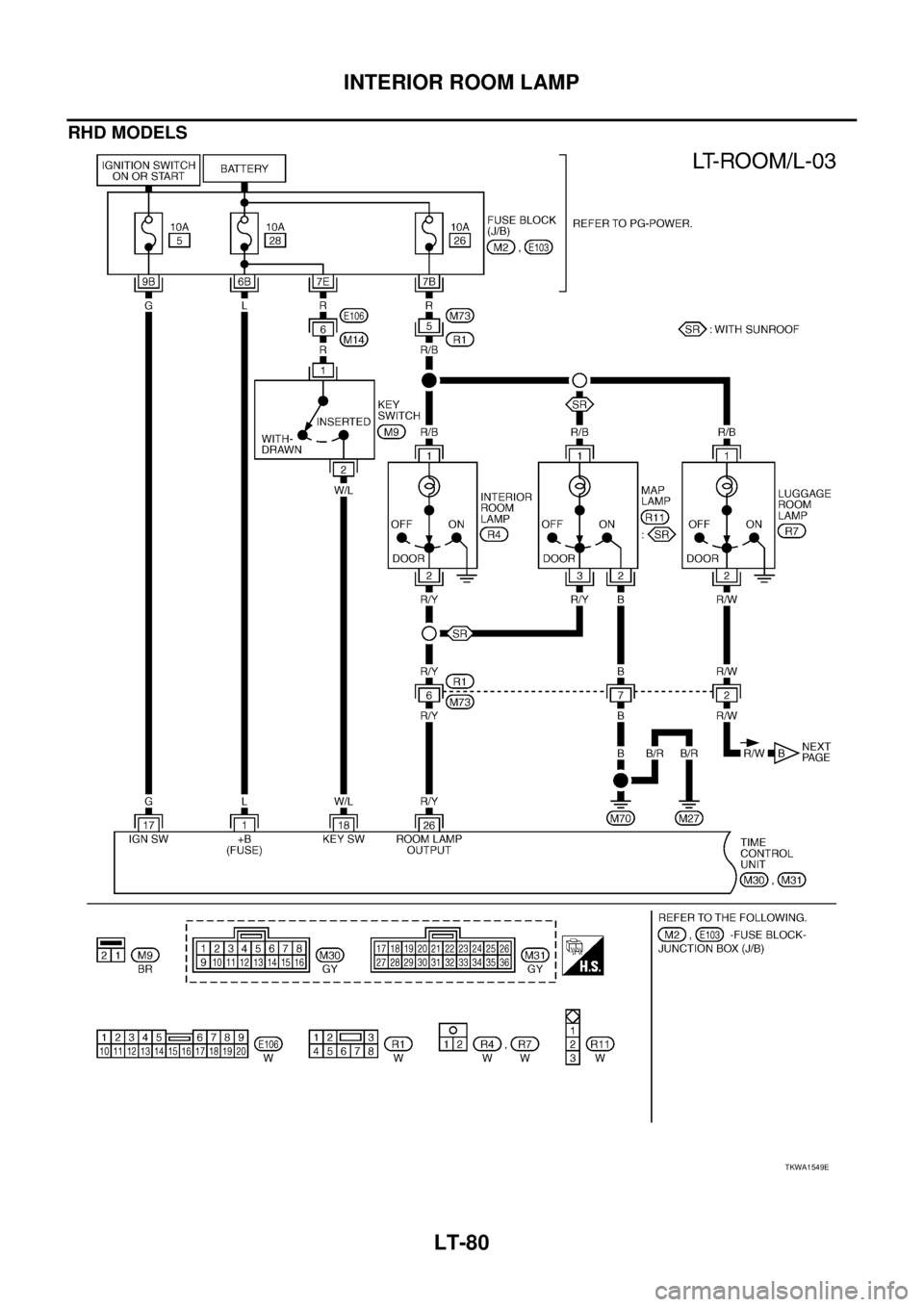

RHD MODELS
TKWA1549E

Page 4159 of 4179

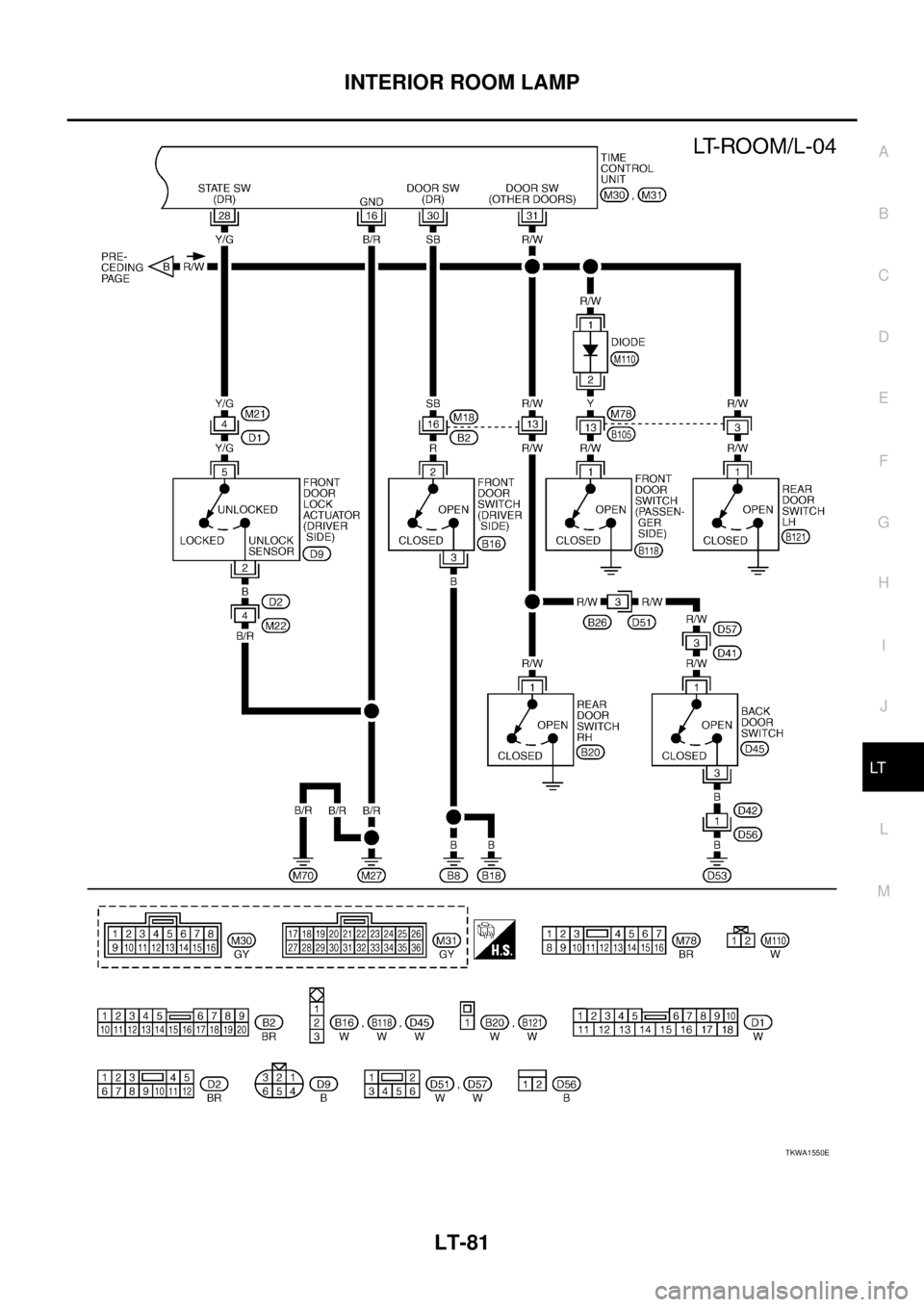

NISSAN X-TRAIL 2003 Service Repair Manual INTERIOR ROOM LAMP
LT-81
C
D
E
F
G
H
I
J
L
MA
B
LT

TKWA1550E

Page 4160 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual LT-82
INTERIOR ROOM LAMP

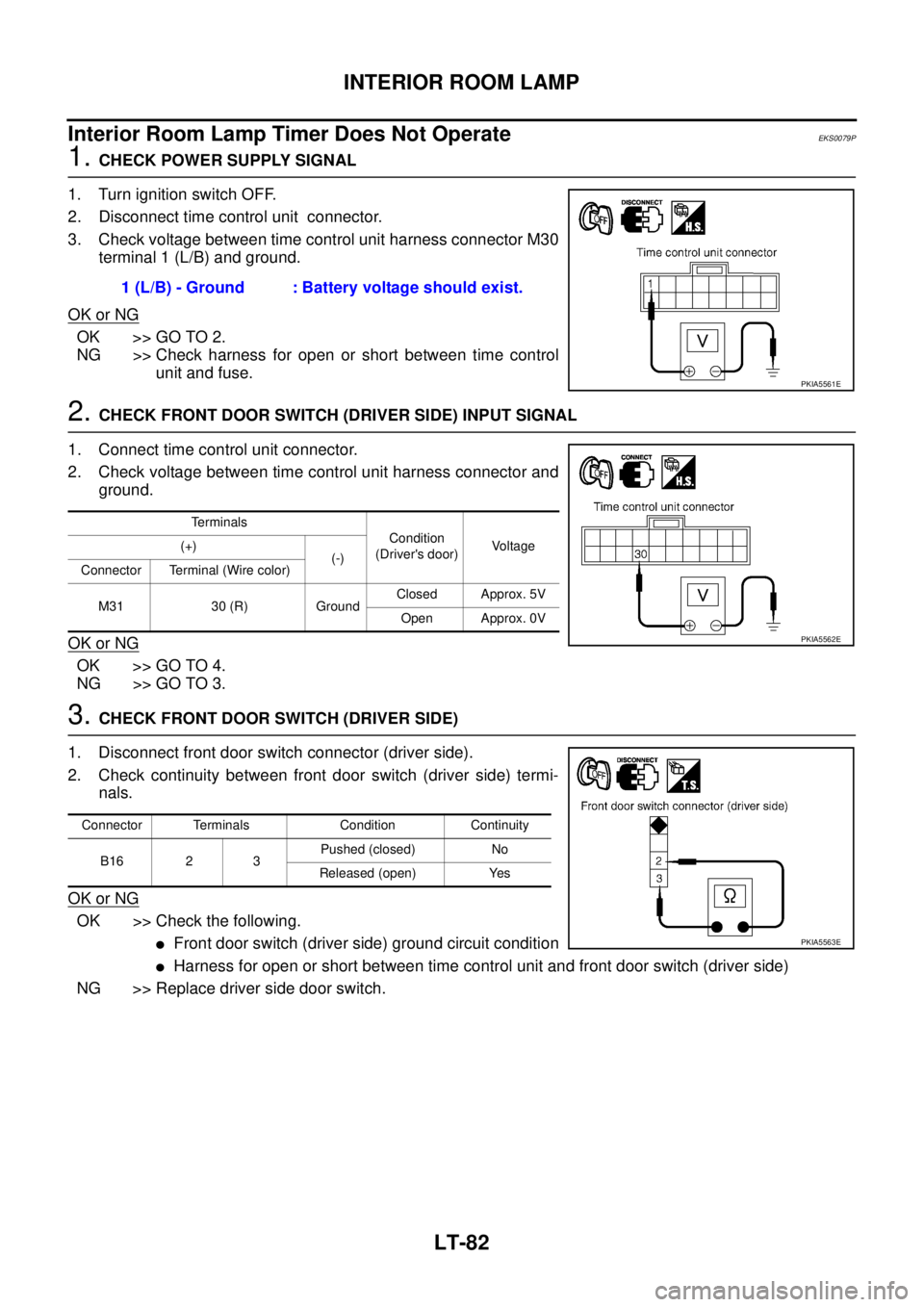

Interior Room Lamp Timer Does Not OperateEKS0079P
1. CHECK POWER SUPPLY SIGNAL
1. Turn ignition switch OFF.
2. Disconnect time control unit connector.
3. Check voltage betw
