FUEL PUMP
EM-165
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
INSPECTION AFTER REMOVAL
Timing Chain

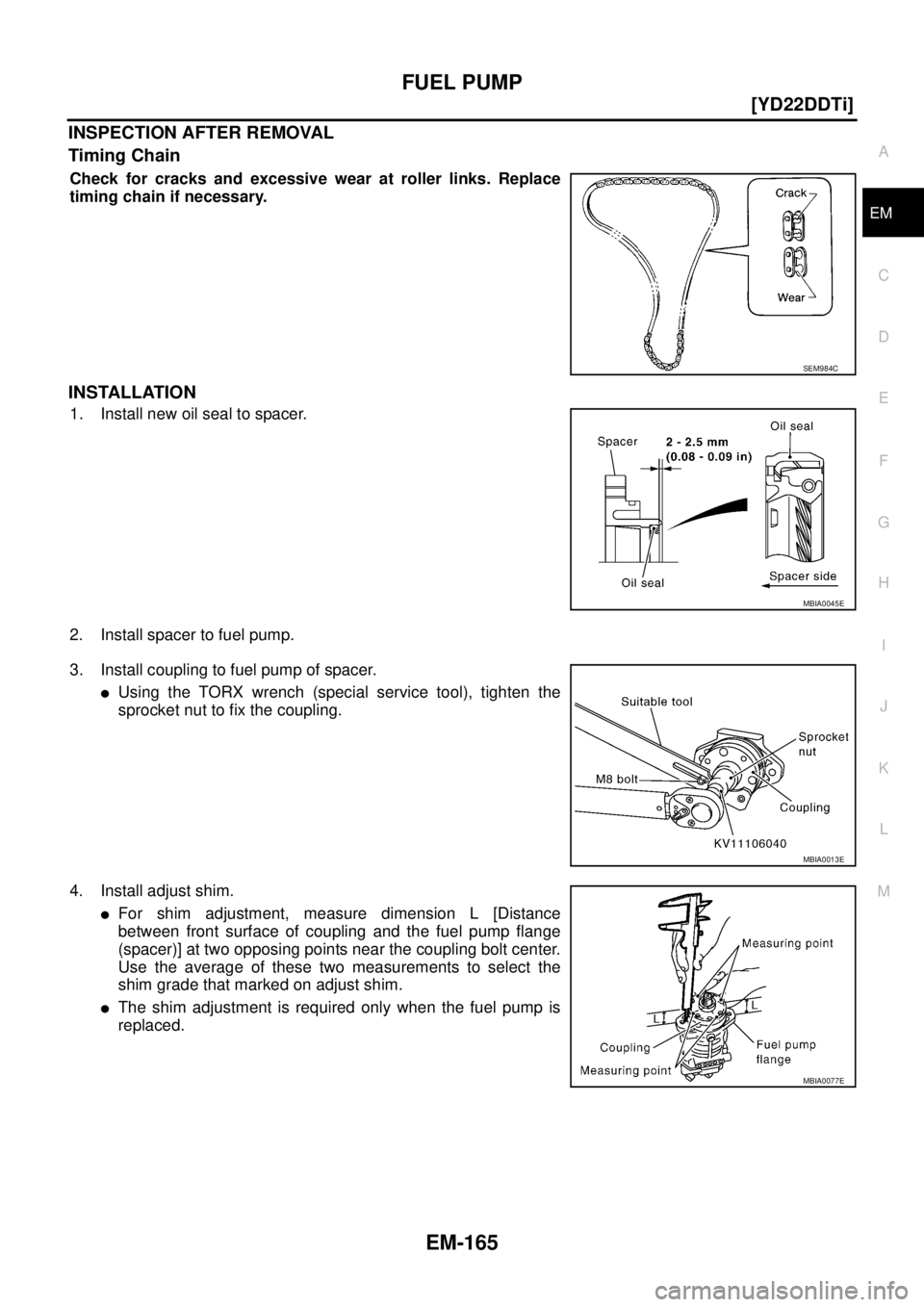

Check for cracks and excessive wear at roller links. Replace
timing chain if necessary.
INSTALLATION
1. Install new oil seal to spacer.
2. Install spacer to fuel pump.
3. Install coupling to fuel pump of spacer.
Using the TORX wrench (special service tool), tighten the
sprocket nut to fix the coupling.
4. Install adjust shim.
For shim adjustment, measure dimension L [Distance
between front surface of coupling and the fuel pump flange
(spacer)] at two opposing points near the coupling bolt center.
Use the average of these two measurements to select the
shim grade that marked on adjust shim.
The shim adjustment is required only when the fuel pump is
replaced.
SEM984C
MBIA0045E
MBIA0013E
MBIA0077E
Page 218 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual EM-166
[YD22DDTi]
FUEL PUMP

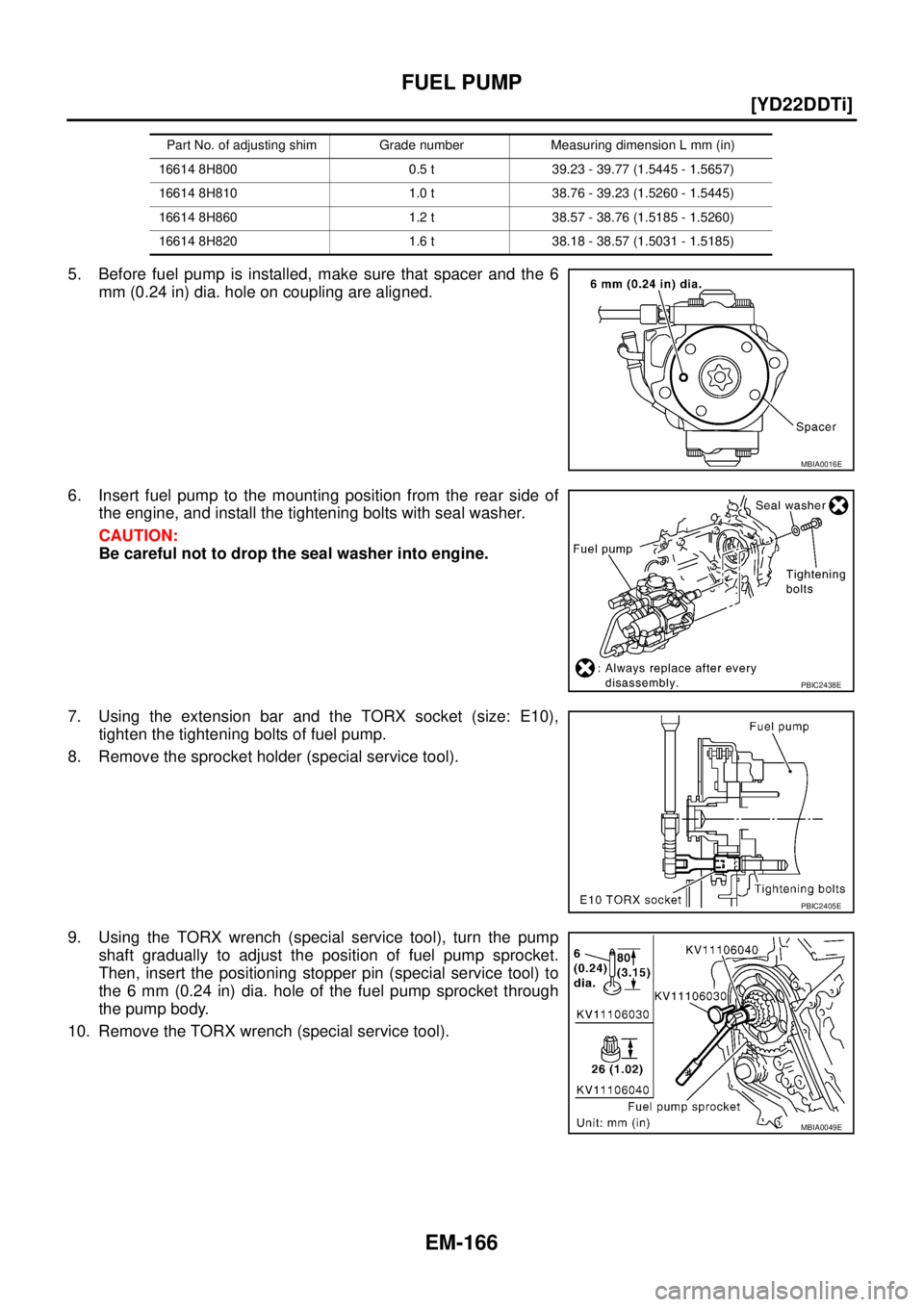

5. Before fuel pump is installed, make sure that spacer and the 6
mm (0.24 in) dia. hole on coupling are aligned.
6. Insert fuel pump to the mounting position from the re NISSAN X-TRAIL 2003 Service Repair Manual EM-166
[YD22DDTi]
FUEL PUMP
5. Before fuel pump is installed, make sure that spacer and the 6
mm (0.24 in) dia. hole on coupling are aligned.
6. Insert fuel pump to the mounting position from the re](/manual-img/5/57404/w960_57404-217.png)
EM-166
[YD22DDTi]
FUEL PUMP
5. Before fuel pump is installed, make sure that spacer and the 6
mm (0.24 in) dia. hole on coupling are aligned.
6. Insert fuel pump to the mounting position from the rear side of
the engine, and install the tightening bolts with seal washer.
CAUTION:
Be careful not to drop the seal washer into engine.
7. Using the extension bar and the TORX socket (size: E10),
tighten the tightening bolts of fuel pump.
8. Remove the sprocket holder (special service tool).
9. Using the TORX wrench (special service tool), turn the pump
shaft gradually to adjust the position of fuel pump sprocket.
Then, insert the positioning stopper pin (special service tool) to
the 6 mm (0.24 in) dia. hole of the fuel pump sprocket through
the pump body.
10. Remove the TORX wrench (special service tool).
Part No. of adjusting shim Grade number Measuring dimension L mm (in)
16614 8H800 0.5 t 39.23 - 39.77 (1.5445 - 1.5657)
16614 8H810 1.0 t 38.76 - 39.23 (1.5260 - 1.5445)
16614 8H860 1.2 t 38.57 - 38.76 (1.5185 - 1.5260)
16614 8H820 1.6 t 38.18 - 38.57 (1.5031 - 1.5185)
MBIA0016E
PBIC2438E
PBIC2405E
MBIA0049E
Page 219 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual FUEL PUMP
EM-167
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

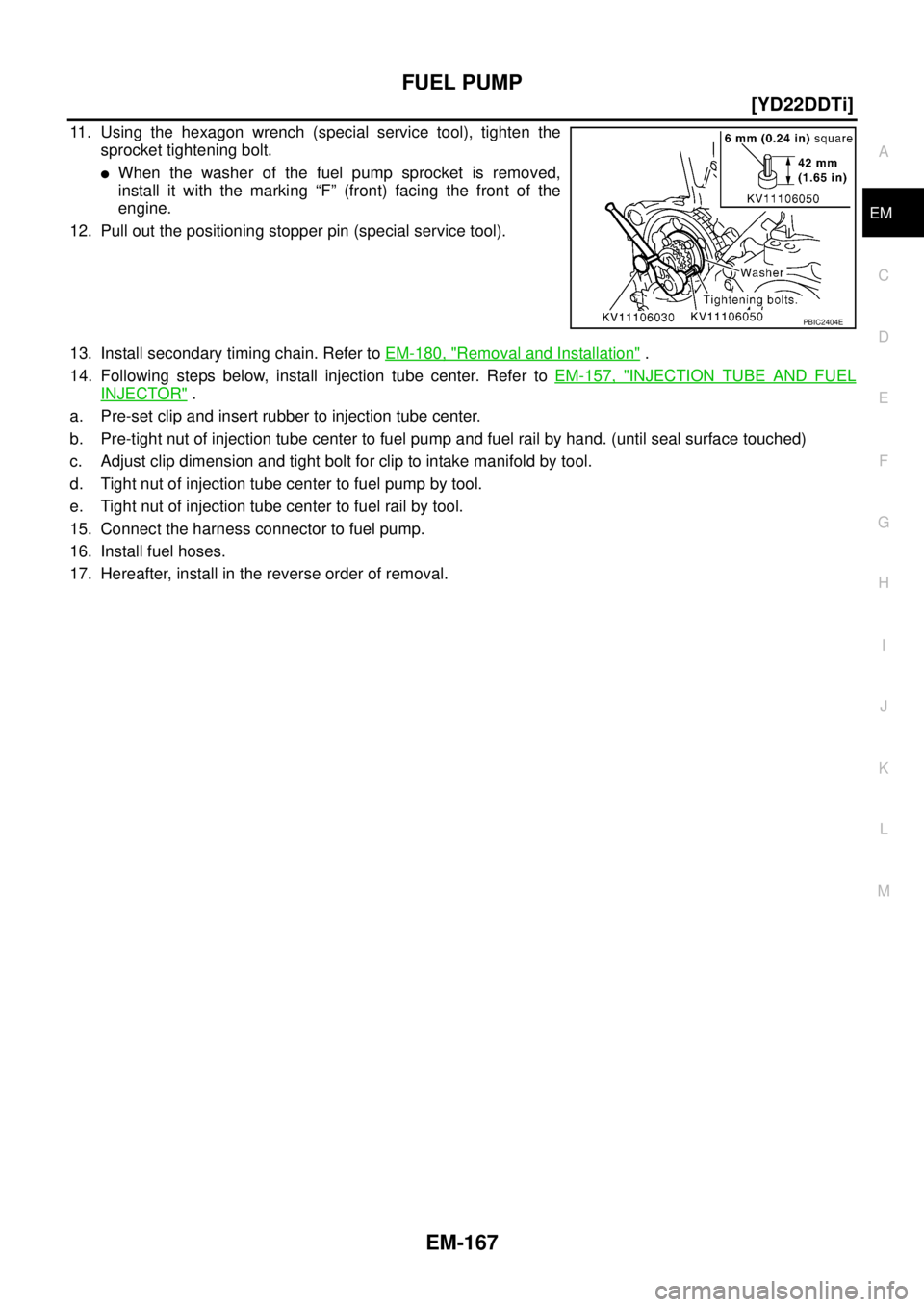

11. Using the hexagon wrench (special service tool), tighten the
sprocket tightening bolt.
When the washer of the fuel pump sprocket is removed NISSAN X-TRAIL 2003 Service Repair Manual FUEL PUMP
EM-167
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
11. Using the hexagon wrench (special service tool), tighten the
sprocket tightening bolt.
When the washer of the fuel pump sprocket is removed](/manual-img/5/57404/w960_57404-218.png)
FUEL PUMP
EM-167
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
11. Using the hexagon wrench (special service tool), tighten the
sprocket tightening bolt.
When the washer of the fuel pump sprocket is removed,
install it with the marking “F” (front) facing the front of the
engine.
12. Pull out the positioning stopper pin (special service tool).
13. Install secondary timing chain. Refer to EM-180, "
Removal and Installation" .
14. Following steps below, install injection tube center. Refer to EM-157, "
INJECTION TUBE AND FUEL
INJECTOR" .
a. Pre-set clip and insert rubber to injection tube center.
b. Pre-tight nut of injection tube center to fuel pump and fuel rail by hand. (until seal surface touched)
c. Adjust clip dimension and tight bolt for clip to intake manifold by tool.
d. Tight nut of injection tube center to fuel pump by tool.
e. Tight nut of injection tube center to fuel rail by tool.
15. Connect the harness connector to fuel pump.
16. Install fuel hoses.
17. Hereafter, install in the reverse order of removal.
PBIC2404E
Page 220 of 4179
EM-168
[YD22DDTi]
ROCKER COVER
ROCKER COVERPFP:13264
Removal and InstallationEBS00LRQ
REMOVAL
1. Remove charge air cooler. Refer to EM-135, "Removal and Installation" .
2. Disconnect harness connector from fuel injector. Refer to EM-157, "
INJECTION TUBE AND FUEL INJEC-
TOR" .
3. Following steps below, remove injection tube. Refer to EM-157, "
INJECTION TUBE AND FUEL INJEC-
TOR" .
a. Put a paint mark or tag on injection tubes to identify each cylinder.
Use a fuel-resistant method.
b. Remove injection tubes in order of 2-1-4-3 individually.
CAUTION:
Be careful not to allow leaked fuel to contaminate engine room. Especially, ensure to keep engine
mounting insulator clear of fuel.
4. Remove injection nozzle oil seal.
Using the flat-bladed screwdriver, pry flange to remove nozzle
oil seal.

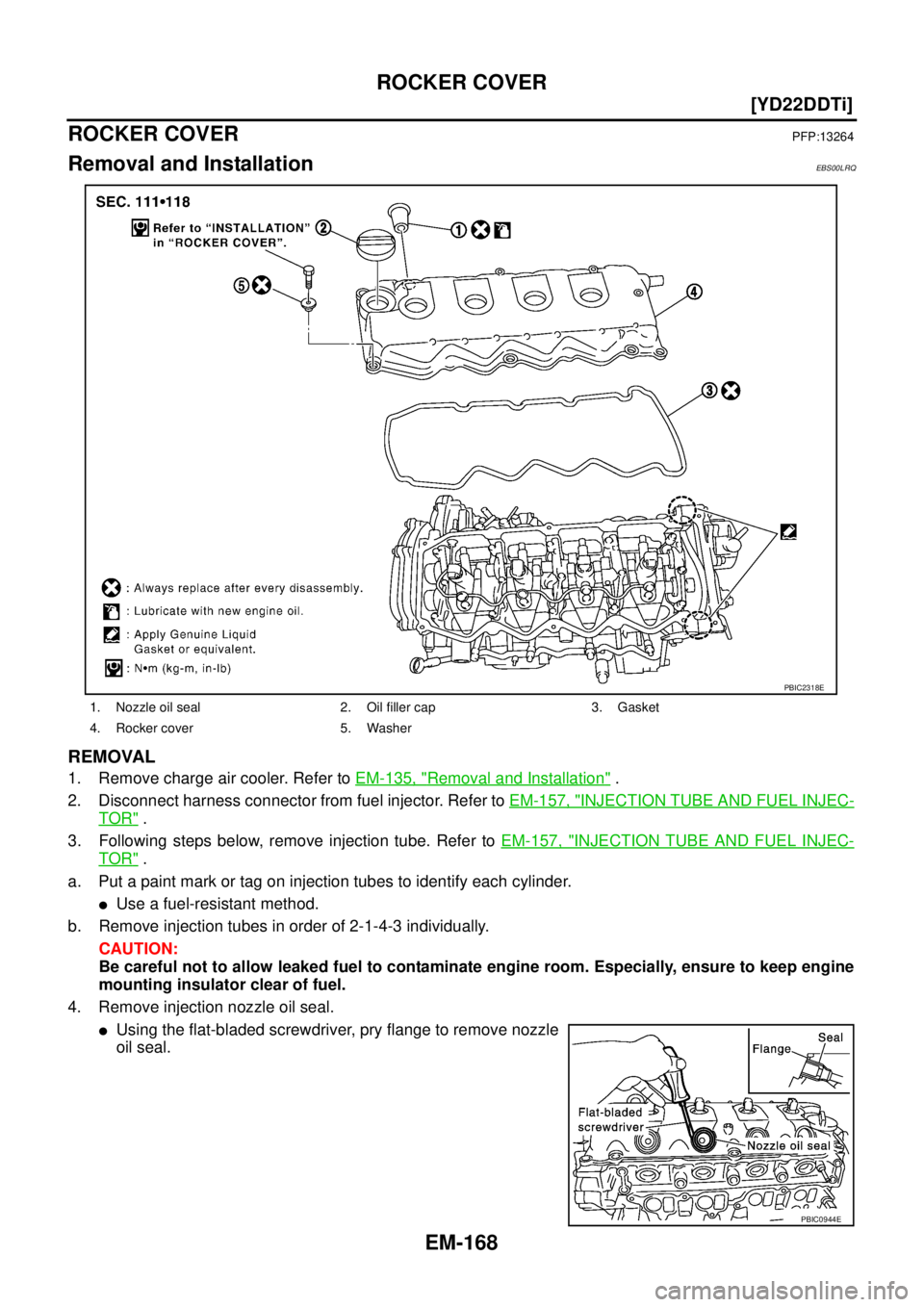

1. Nozzle oil seal 2. Oil filler cap 3. Gasket
4. Rocker cover 5. Washer
PBIC2318E
PBIC0944E
Page 221 of 4179
ROCKER COVER
EM-169
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
5. Remove rocker cover.
Loosen holding bolts in reverse order of that shown in the fig-
ure and remove.
INSTALLATION

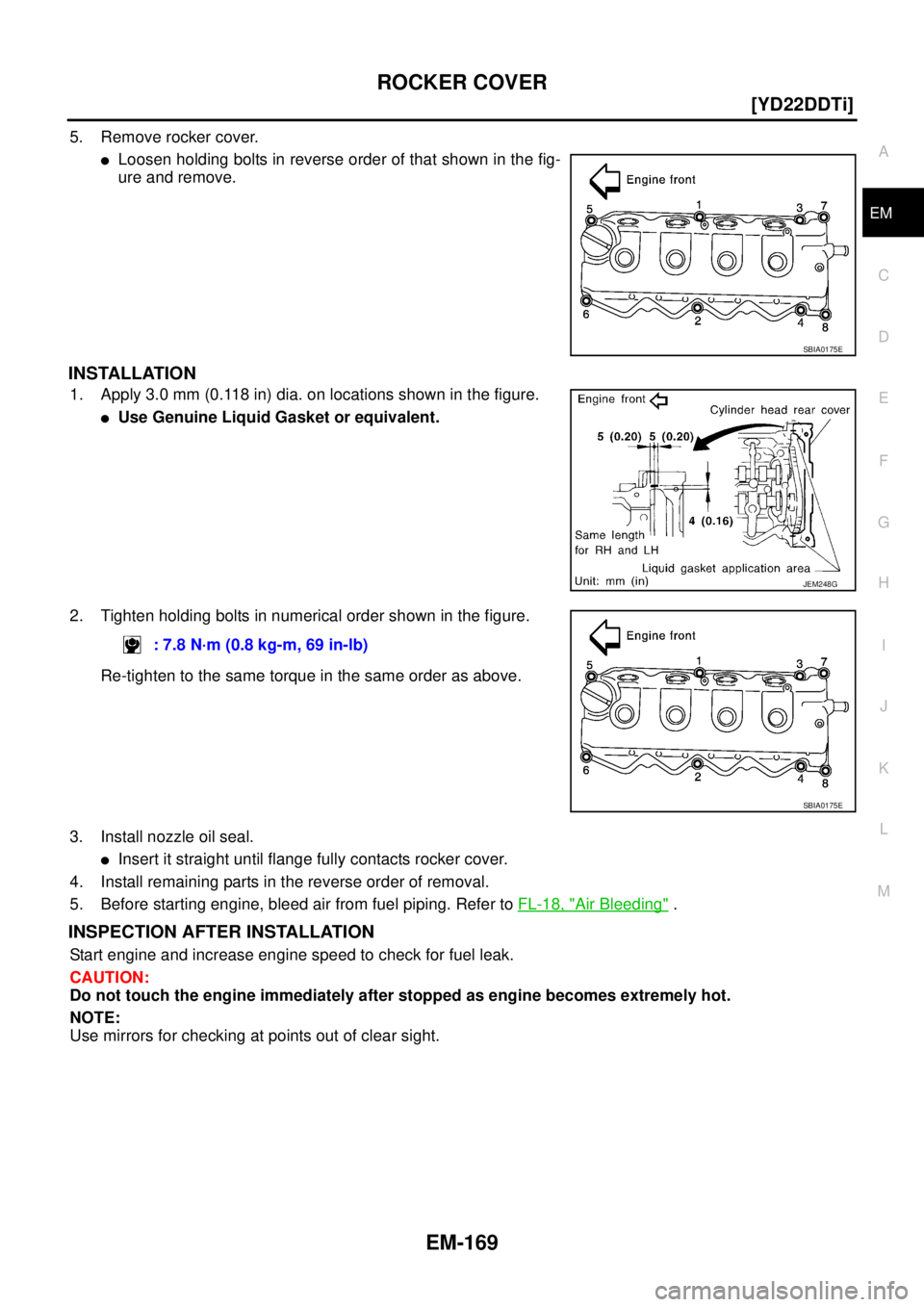

1. Apply 3.0 mm (0.118 in) dia. on locations shown in the figure.
Use Genuine Liquid Gasket or equivalent.
2. Tighten holding bolts in numerical order shown in the figure.
Re-tighten to the same torque in the same order as above.
3. Install nozzle oil seal.
Insert it straight until flange fully contacts rocker cover.
4. Install remaining parts in the reverse order of removal.
5. Before starting engine, bleed air from fuel piping. Refer to FL-18, "
Air Bleeding" .
INSPECTION AFTER INSTALLATION
Start engine and increase engine speed to check for fuel leak.
CAUTION:
Do not touch the engine immediately after stopped as engine becomes extremely hot.
NOTE:
Use mirrors for checking at points out of clear sight.
SBIA0175E
JEM248G
: 7.8 N·m (0.8 kg-m, 69 in-lb)
SBIA0175E
Page 222 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual EM-170
[YD22DDTi]
CAMSHAFT
CAMSHAFTPFP:13001
Removal and InstallationEBS00LRR
CAUTION:

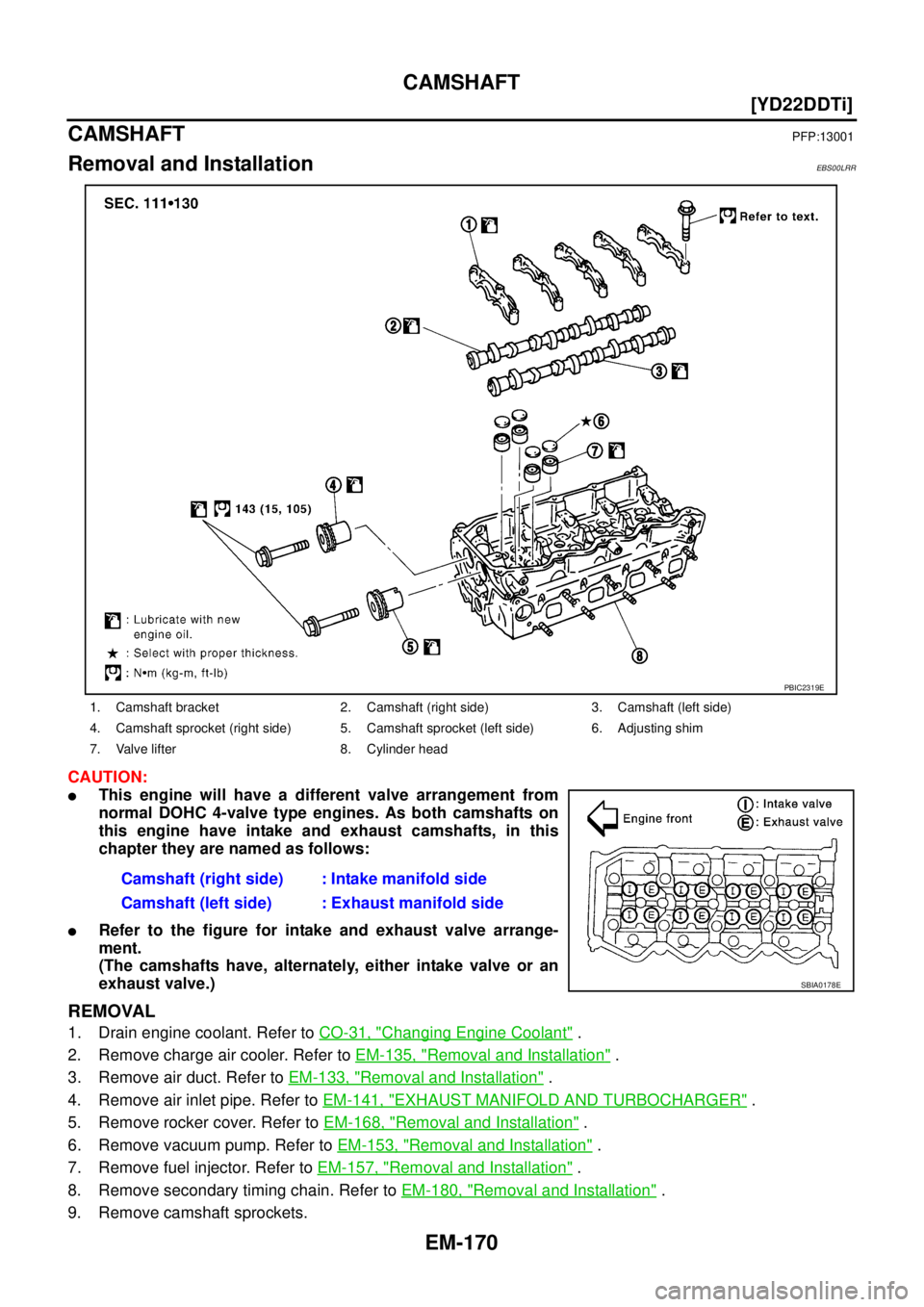

This engine will have a different valve arrangement from
normal DOHC 4-valve type engines. As both camshafts o NISSAN X-TRAIL 2003 Service Repair Manual EM-170
[YD22DDTi]
CAMSHAFT
CAMSHAFTPFP:13001
Removal and InstallationEBS00LRR
CAUTION:
This engine will have a different valve arrangement from
normal DOHC 4-valve type engines. As both camshafts o](/manual-img/5/57404/w960_57404-221.png)
EM-170
[YD22DDTi]
CAMSHAFT
CAMSHAFTPFP:13001
Removal and InstallationEBS00LRR
CAUTION:
This engine will have a different valve arrangement from
normal DOHC 4-valve type engines. As both camshafts on
this engine have intake and exhaust camshafts, in this
chapter they are named as follows:
Refer to the figure for intake and exhaust valve arrange-
ment.
(The camshafts have, alternately, either intake valve or an
exhaust valve.)
REMOVAL
1. Drain engine coolant. Refer to CO-31, "Changing Engine Coolant" .
2. Remove charge air cooler. Refer to EM-135, "
Removal and Installation" .
3. Remove air duct. Refer to EM-133, "
Removal and Installation" .
4. Remove air inlet pipe. Refer to EM-141, "
EXHAUST MANIFOLD AND TURBOCHARGER" .
5. Remove rocker cover. Refer to EM-168, "
Removal and Installation" .
6. Remove vacuum pump. Refer to EM-153, "
Removal and Installation" .
7. Remove fuel injector. Refer to EM-157, "
Removal and Installation" .
8. Remove secondary timing chain. Refer to EM-180, "
Removal and Installation" .
9. Remove camshaft sprockets.
1. Camshaft bracket 2. Camshaft (right side) 3. Camshaft (left side)
4. Camshaft sprocket (right side) 5. Camshaft sprocket (left side) 6. Adjusting shim
7. Valve lifter 8. Cylinder head
Camshaft (right side) : Intake manifold side
Camshaft (left side) : Exhaust manifold side
PBIC2319E
SBIA0178E
Page 223 of 4179
CAMSHAFT
EM-171
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

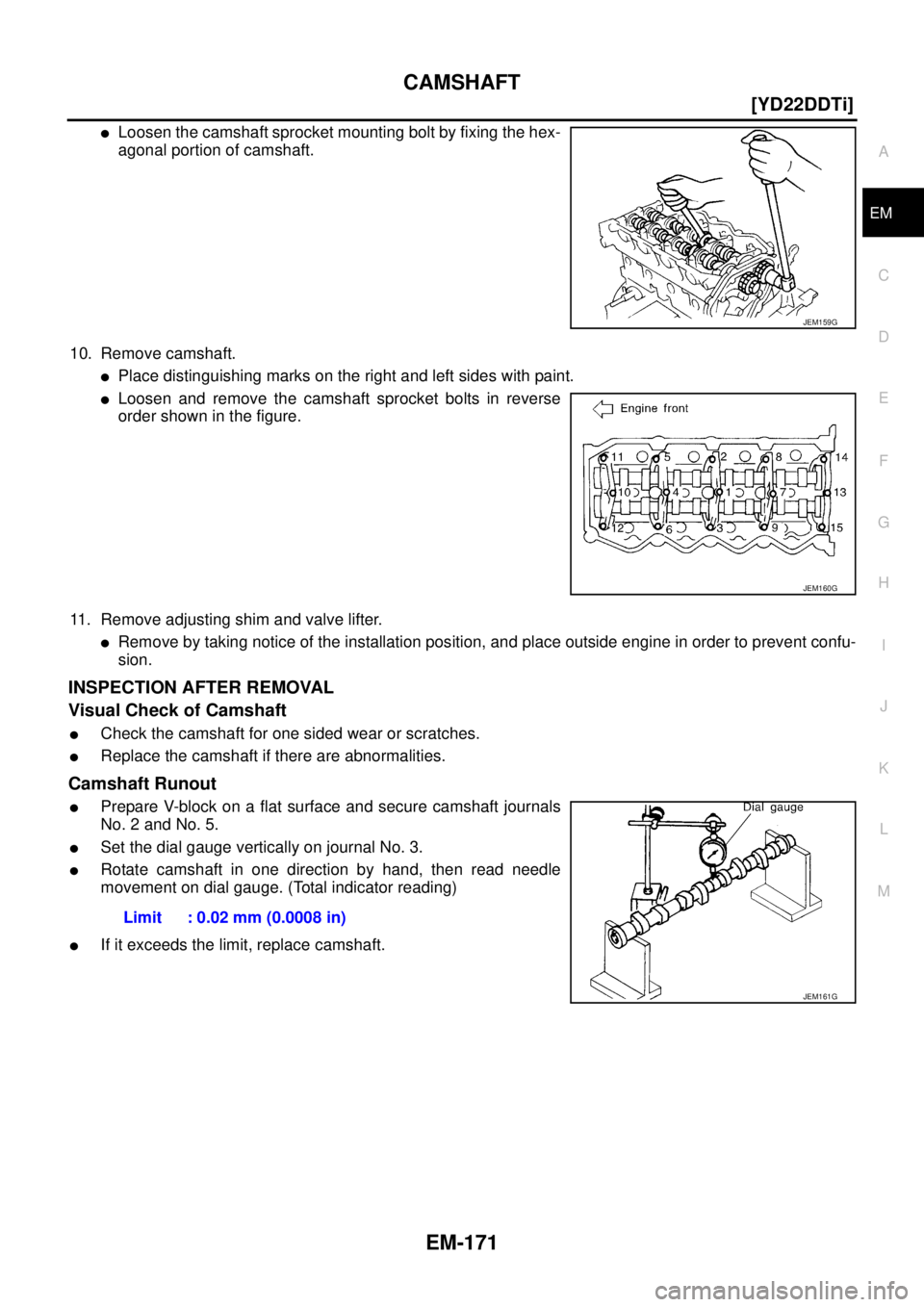

Loosen the camshaft sprocket mounting bolt by fixing the hex-
agonal portion of camshaft.
10. Remove camshaft.
Place distinguishing marks on the right and left sides with paint.
Loosen and remove the camshaft sprocket bolts in reverse
order shown in the figure.
11. Remove adjusting shim and valve lifter.
Remove by taking notice of the installation position, and place outside engine in order to prevent confu-
sion.
INSPECTION AFTER REMOVAL
Visual Check of Camshaft
Check the camshaft for one sided wear or scratches.
Replace the camshaft if there are abnormalities.
Camshaft Runout
Prepare V-block on a flat surface and secure camshaft journals
No. 2 and No. 5.
Set the dial gauge vertically on journal No. 3.
Rotate camshaft in one direction by hand, then read needle
movement on dial gauge. (Total indicator reading)
If it exceeds the limit, replace camshaft.
JEM159G
JEM160G
Limit : 0.02 mm (0.0008 in)
JEM161G
Page 224 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual EM-172
[YD22DDTi]
CAMSHAFT
Height of Cam Nose
Measure the height of cam nose using the micrometer.
