Page 4105 of 4179

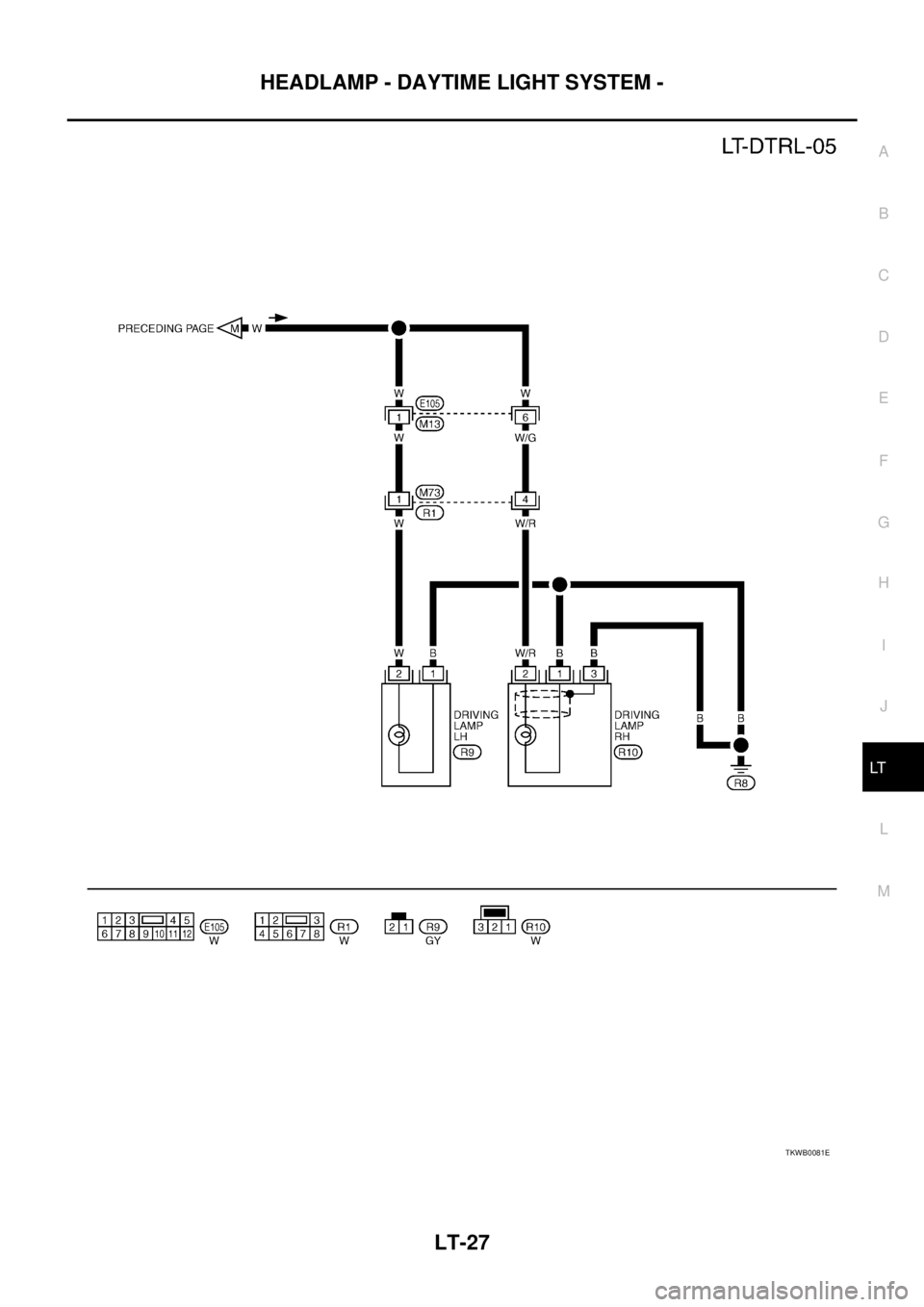

NISSAN X-TRAIL 2003 Service Repair Manual HEADLAMP - DAYTIME LIGHT SYSTEM -
LT-27
C
D
E
F
G
H
I
J
L
MA
B
LT

TKWB0081E

Page 4106 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual LT-28
HEADLAMP - DAYTIME LIGHT SYSTEM -

Trouble DiagnosesEKS003CO
DAYTIME LIGHT CONTROL UNIT INSPECTION TABLE
*: Daytime light operating: Lighting switch in “OFF” position with engine running.
B

Page 4107 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual HEADLAMP AIMING CONTROL
LT-29
C
D
E
F
G
H
I
J
L
MA
B
LT

HEADLAMP AIMING CONTROLPFP:26010

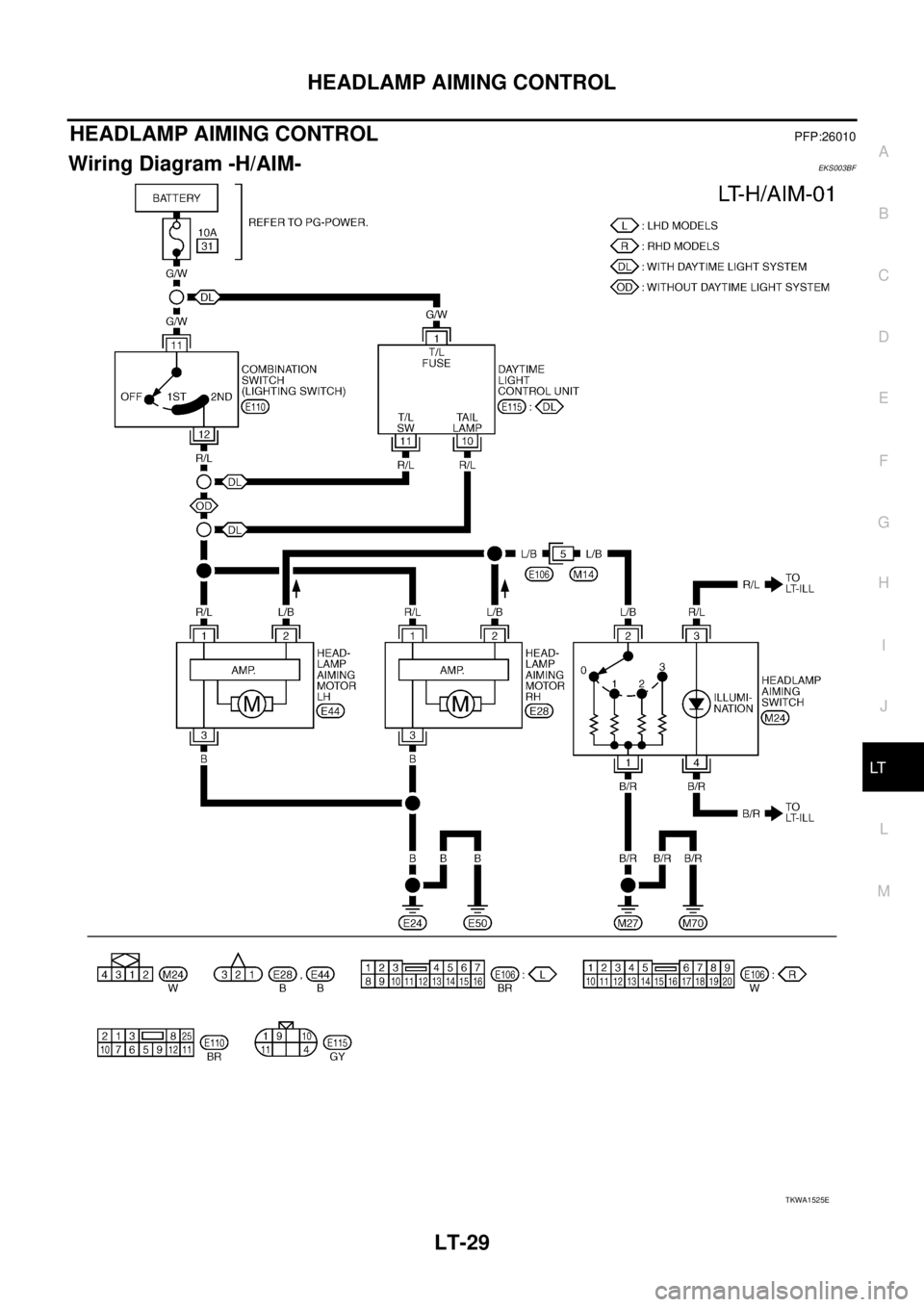

Wiring Diagram -H/AIM-EKS003BF
TKWA1525E

Page 4108 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual LT-30
HEADLAMP AIMING CONTROL

Removal and InstallationEKS003CA
1. Remove the Instrument lower driver panel. Refer to IP-11,
"Removal and Installation" in “INSTRUMENT PANEL ASSEM-
BLY (IP)” sect

Page 4109 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual TURN SIGNAL AND HAZARD WARNING LAMPS
LT-31
C
D
E
F
G
H
I
J
L
MA
B
LT

TURN SIGNAL AND HAZARD WARNING LAMPSPFP:26120
System Description EKS003BX
TURN SIGNAL OPERATION
With the hazard switch in the OF

TURN SIGNAL AND HAZARD WARNING LAMPS
LT-31
C
D
E
F
G
H
I
J
L
MA
B
LT

TURN SIGNAL AND HAZARD WARNING LAMPSPFP:26120
System Description EKS003BX
TURN SIGNAL OPERATION
With the hazard switch in the OFF position and the ignition switch in the ON or START position, power is sup-
plied
through 10A fuse [No. 2, located in the fuse block (J/B)]
to hazard switch terminal 2
through hazard switch terminal 1
to combination flasher unit terminal 1
through combination flasher unit terminal 3
to turn signal switch terminal 1.
Ground is supplied
to combination flasher unit terminal 2 through grounds M27 and M70.
LH Turn
When the turn signal switch is moved to the LH position, power is supplied from turn signal switch terminal 3
to front turn signal lamp LH terminal 1
to side turn signal lamp LH terminal 1
to combination meter terminal 52
to rear combination lamp LH terminal 2.
Ground is supplied
to the front turn signal lamp LH terminal 2 through grounds E24 and E50
to the side turn signal lamp LH terminal 2 through grounds E24 and E50
to the rear combination lamp LH terminal 4 through grounds B8 and B18
to combination meter terminal 64 through grounds M27 and M70.
With power and ground supplied, the combination flasher unit controls the flashing of the LH turn signal lamps.
RH Turn
When the turn signal switch is moved to the RH position, power is supplied from turn signal switch terminal 2
to front turn signal lamp RH terminal 1
to side turn signal lamp RH terminal 1
to combination meter terminal 18
to rear combination lamp RH terminal 2.
Ground is supplied
to the front turn signal lamp RH terminal 2 through grounds E24 and E50
to the side turn signal lamp RH terminal 2 through grounds E24 and E50
to the rear combination lamp RH terminal 4 through grounds B8 and B18
to combination meter terminal 64 through grounds M27 and M70.
With power and ground supplied, the combination flasher unit controls the flashing of the RH turn signal
lamps.
HAZARD LAMP OPERATION
Power is supplied at all times to hazard switch terminal 3
through 10A fuse (No. 35, located in the fuse and fusible link box).
With the hazard switch in the ON position, power is supplied
through hazard switch terminal 1
to combination flasher unit terminal 1
through combination flasher unit terminal 3
to hazard switch terminal 4.
Ground is supplied
to combination flasher unit terminal 2 through grounds M27 and M70.

Page 4110 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual LT-32
TURN SIGNAL AND HAZARD WARNING LAMPS

Power is supplied
through hazard switch terminal 5
to front turn signal lamp LH terminal 1
to side turn signal lamp LH terminal 1
to combination meter

Page 4111 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual TURN SIGNAL AND HAZARD WARNING LAMPS
LT-33
C
D
E
F
G
H
I
J
L
MA
B
LT

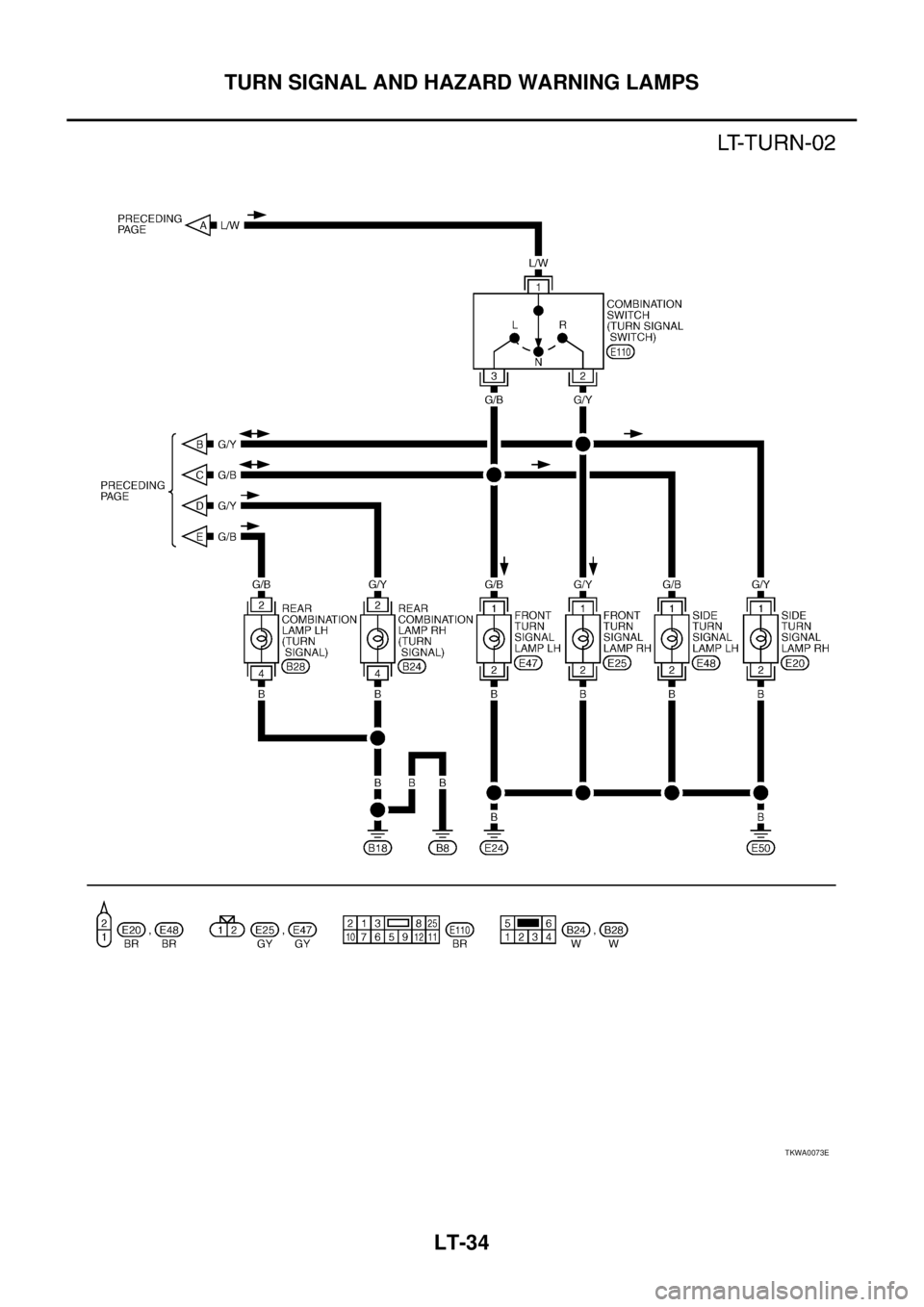

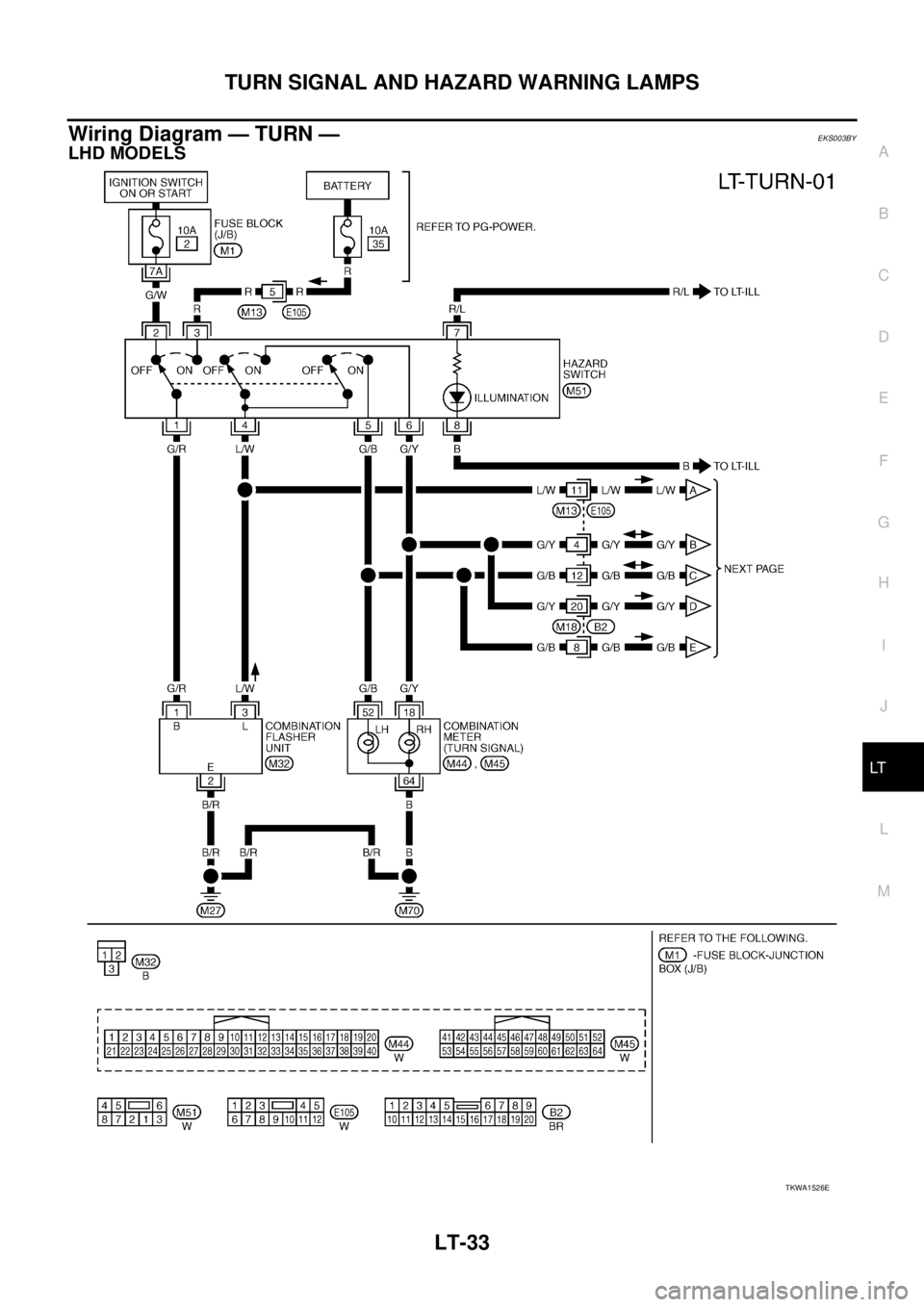

Wiring Diagram — TURN — EKS003BY
LHD MODELS
TKWA1526E

Page 4112 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual LT-34
TURN SIGNAL AND HAZARD WARNING LAMPS

TKWA0073E
