Page 3913 of 4179

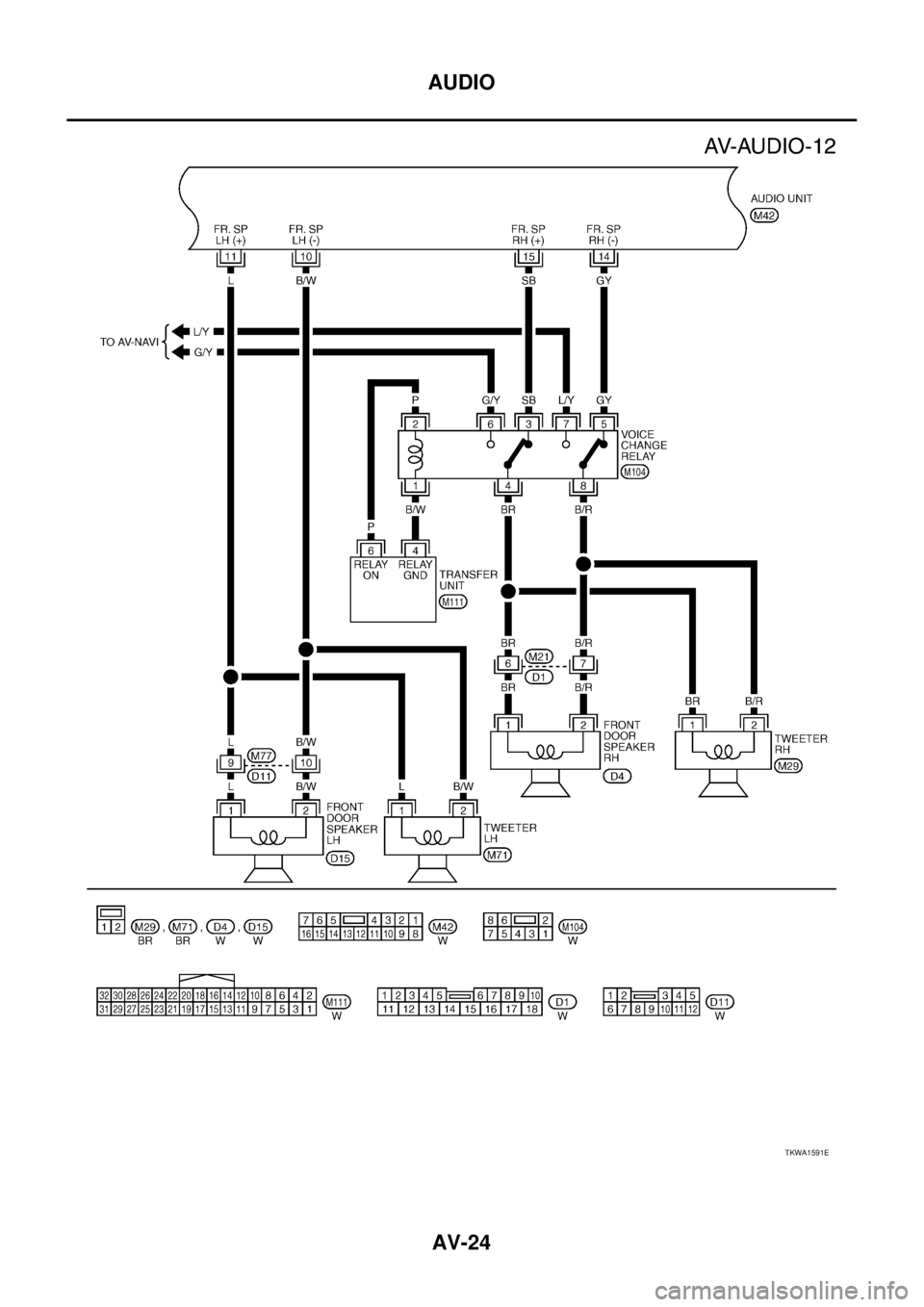

NISSAN X-TRAIL 2003 Service Repair Manual AUDIO AV-23 C D E F G H I J L MA B AV RHD MODELS WITH NAVIGATION TKWA1590E

Page 3914 of 4179

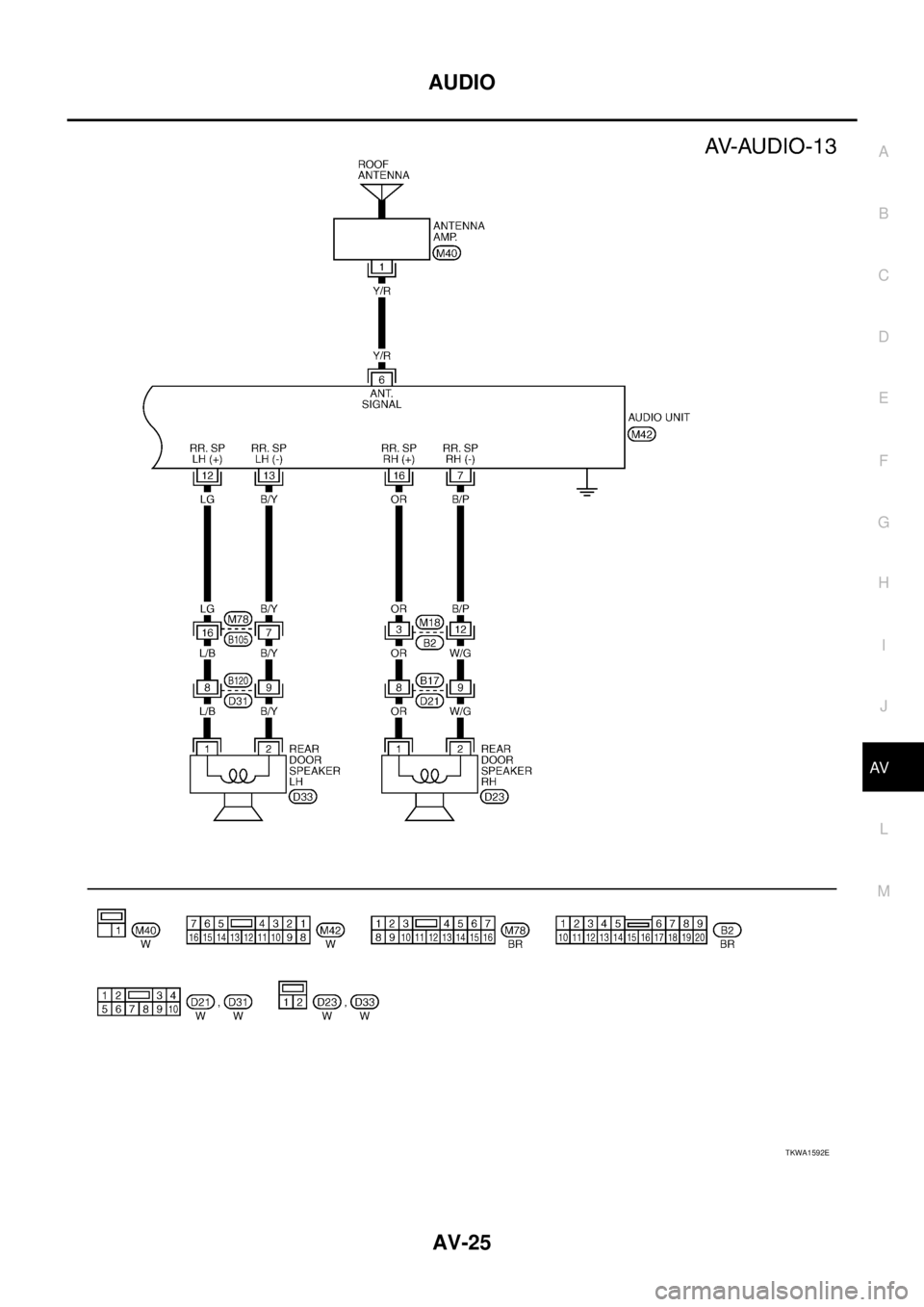

NISSAN X-TRAIL 2003 Service Repair Manual AV-24 AUDIO TKWA1591E

Page 3915 of 4179

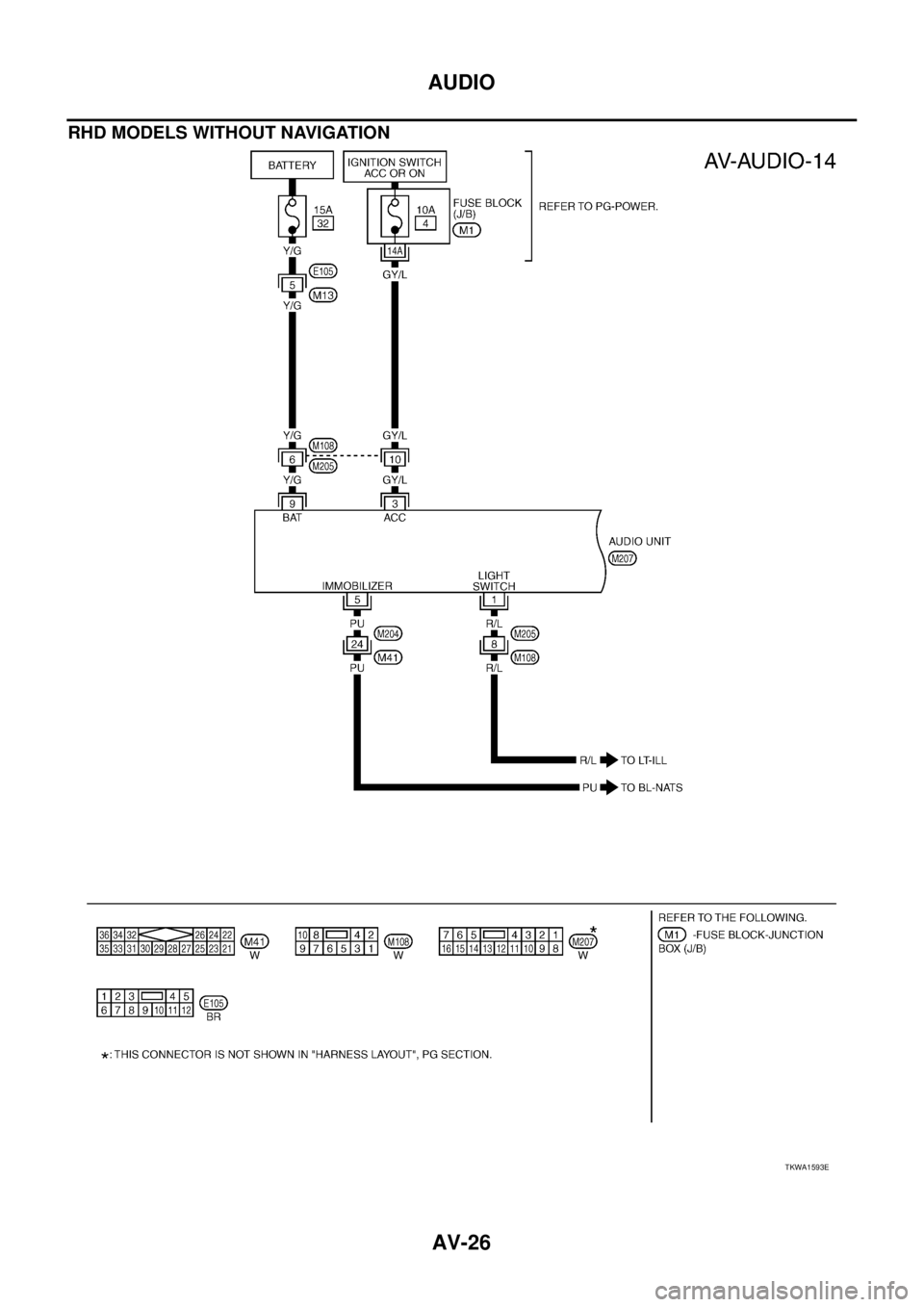

NISSAN X-TRAIL 2003 Service Repair Manual AUDIO AV-25 C D E F G H I J L MA B AV TKWA1592E

Page 3916 of 4179

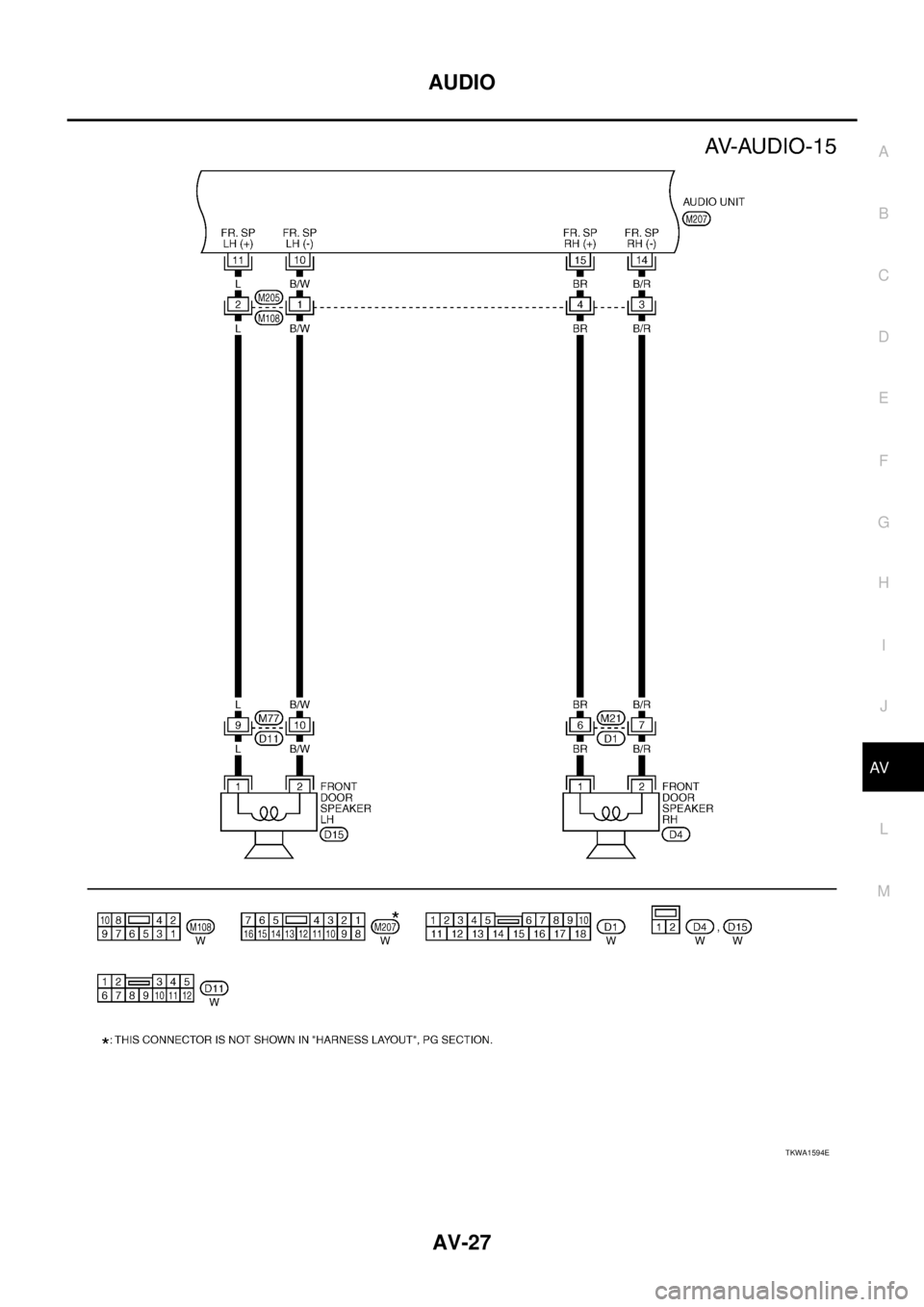

NISSAN X-TRAIL 2003 Service Repair Manual AV-26 AUDIO RHD MODELS WITHOUT NAVIGATION TKWA1593E

Page 3917 of 4179

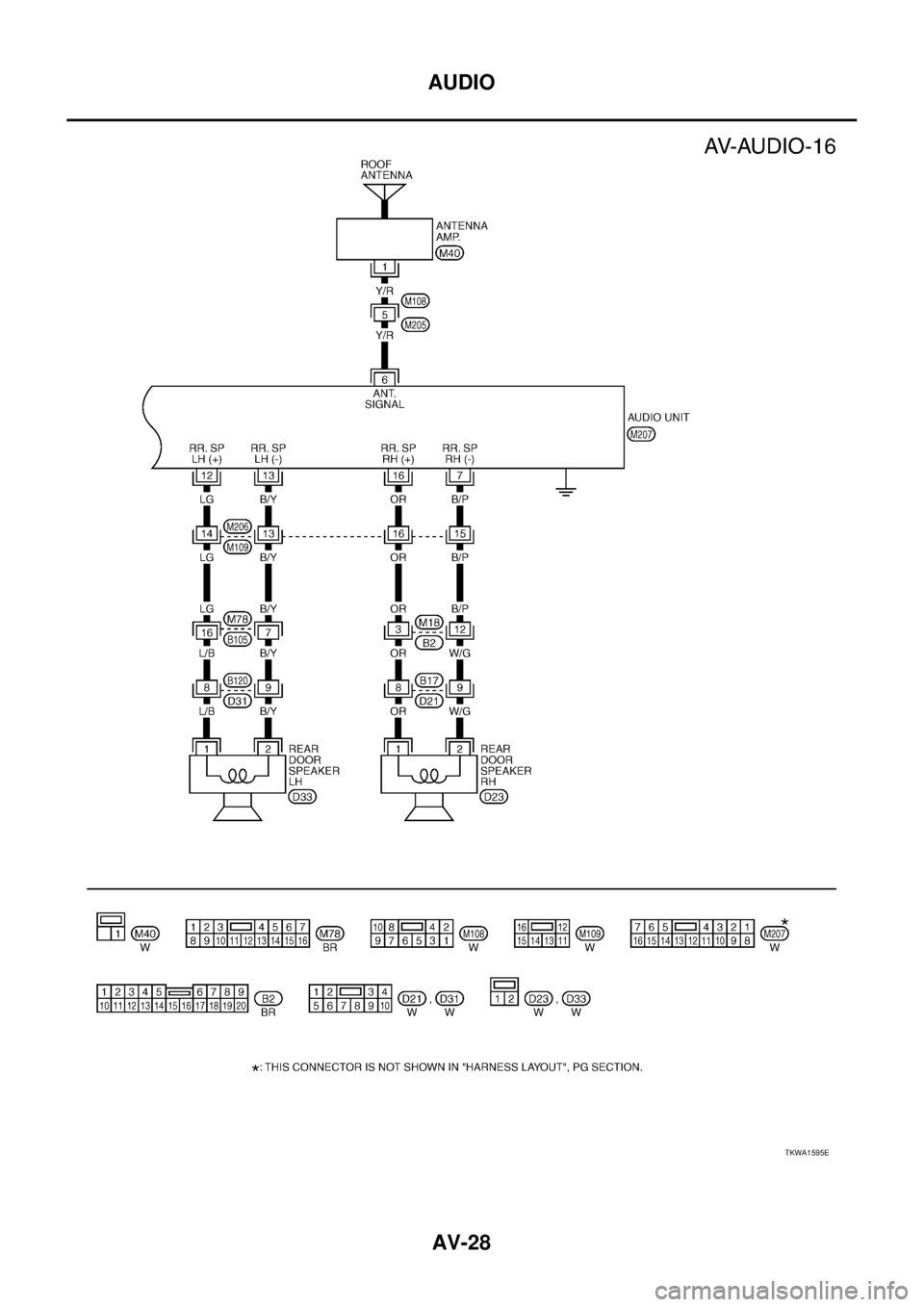

NISSAN X-TRAIL 2003 Service Repair Manual AUDIO AV-27 C D E F G H I J L MA B AV TKWA1594E

Page 3918 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual AV-28 AUDIO TKWA1595E

Page 3919 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual AUDIO AV-29 C D E F G H I J L MA B AV Terminals and Reference Value for Audio Unit With Casette Deck EKS00EHS Terminal (Wire color) ItemSignal input/ outputCondition Reference valueExample of symp-

Page 3920 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual AV-30 AUDIO 26 (L/B)GroundRemote con- trol AInput ONPress SOURCE switchApprox.0V Steering wheel audio controls donot function Press SEEK UP switchApprox.1.7V Press VOL UP switchApprox.3.3V Exce
