Page 2849 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual TROUBLE DIAGNOSIS
BRC-35
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC

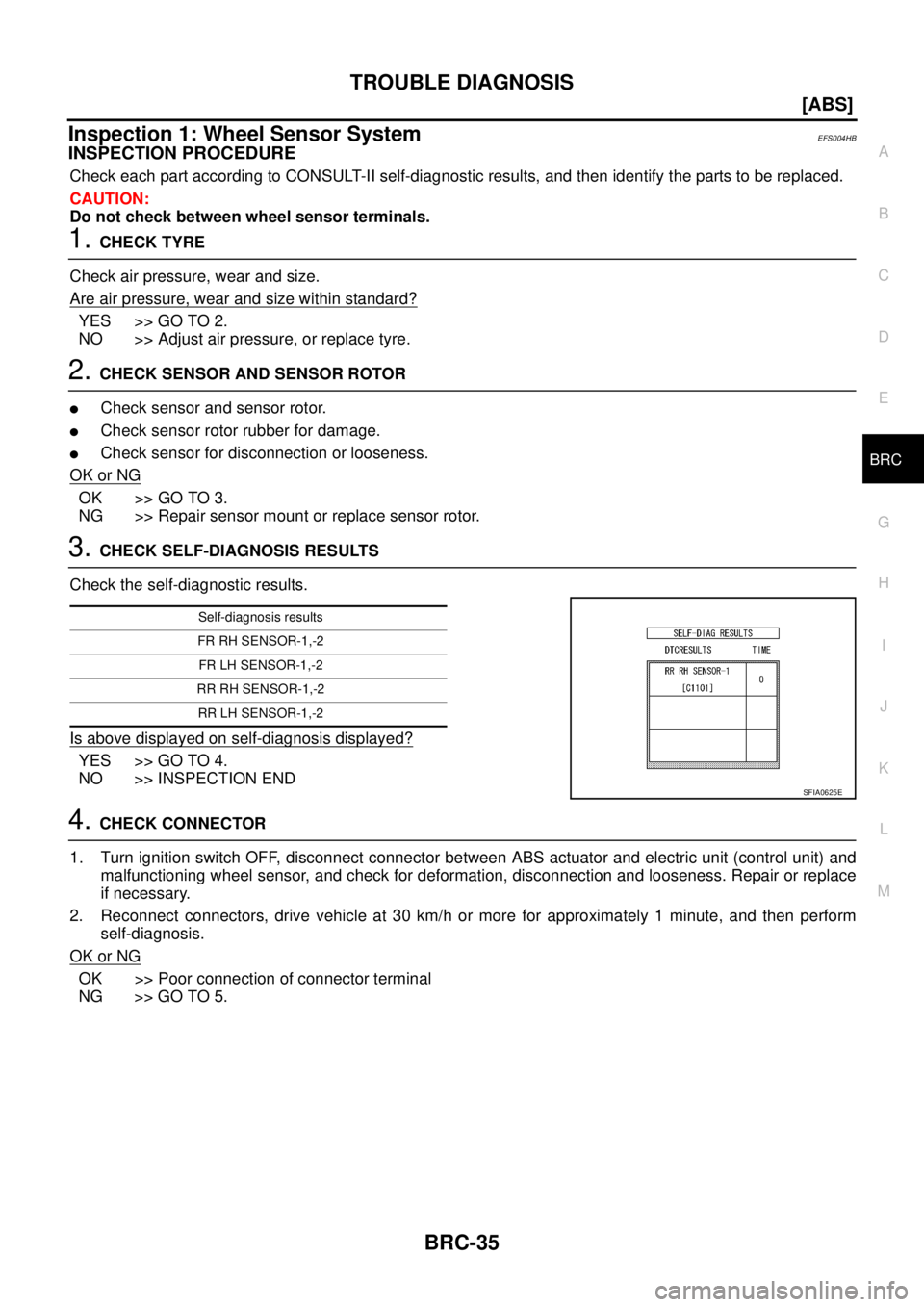

Inspection 1: Wheel Sensor SystemEFS004HB
INSPECTION PROCEDURE
Check each part according to CONSULT-II self-diagnostic results, and then ide NISSAN X-TRAIL 2003 Service Repair Manual TROUBLE DIAGNOSIS
BRC-35
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Inspection 1: Wheel Sensor SystemEFS004HB
INSPECTION PROCEDURE
Check each part according to CONSULT-II self-diagnostic results, and then ide](/manual-img/5/57404/w960_57404-2848.png)
TROUBLE DIAGNOSIS
BRC-35
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Inspection 1: Wheel Sensor SystemEFS004HB
INSPECTION PROCEDURE
Check each part according to CONSULT-II self-diagnostic results, and then identify the parts to be replaced.
CAUTION:
Do not check between wheel sensor terminals.
1. CHECK TYRE
Check air pressure, wear and size.
Are air pressure, wear and size within standard?
YES >> GO TO 2.
NO >> Adjust air pressure, or replace tyre.
2. CHECK SENSOR AND SENSOR ROTOR
Check sensor and sensor rotor.
Check sensor rotor rubber for damage.
Check sensor for disconnection or looseness.
OK or NG
OK >> GO TO 3.
NG >> Repair sensor mount or replace sensor rotor.
3. CHECK SELF-DIAGNOSIS RESULTS
Check the self-diagnostic results.
Is above displayed on self-diagnosis displayed?
YES >> GO TO 4.
NO >> INSPECTION END
4. CHECK CONNECTOR
1. Turn ignition switch OFF, disconnect connector between ABS actuator and electric unit (control unit) and
malfunctioning wheel sensor, and check for deformation, disconnection and looseness. Repair or replace
if necessary.
2. Reconnect connectors, drive vehicle at 30 km/h or more for approximately 1 minute, and then perform
self-diagnosis.
OK or NG
OK >> Poor connection of connector terminal
NG >> GO TO 5.
Self-diagnosis results
FR RH SENSOR-1,-2
FR LH SENSOR-1,-2
RR RH SENSOR-1,-2
RR LH SENSOR-1,-2
SFIA0625E
Page 2850 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual BRC-36
[ABS]
TROUBLE DIAGNOSIS

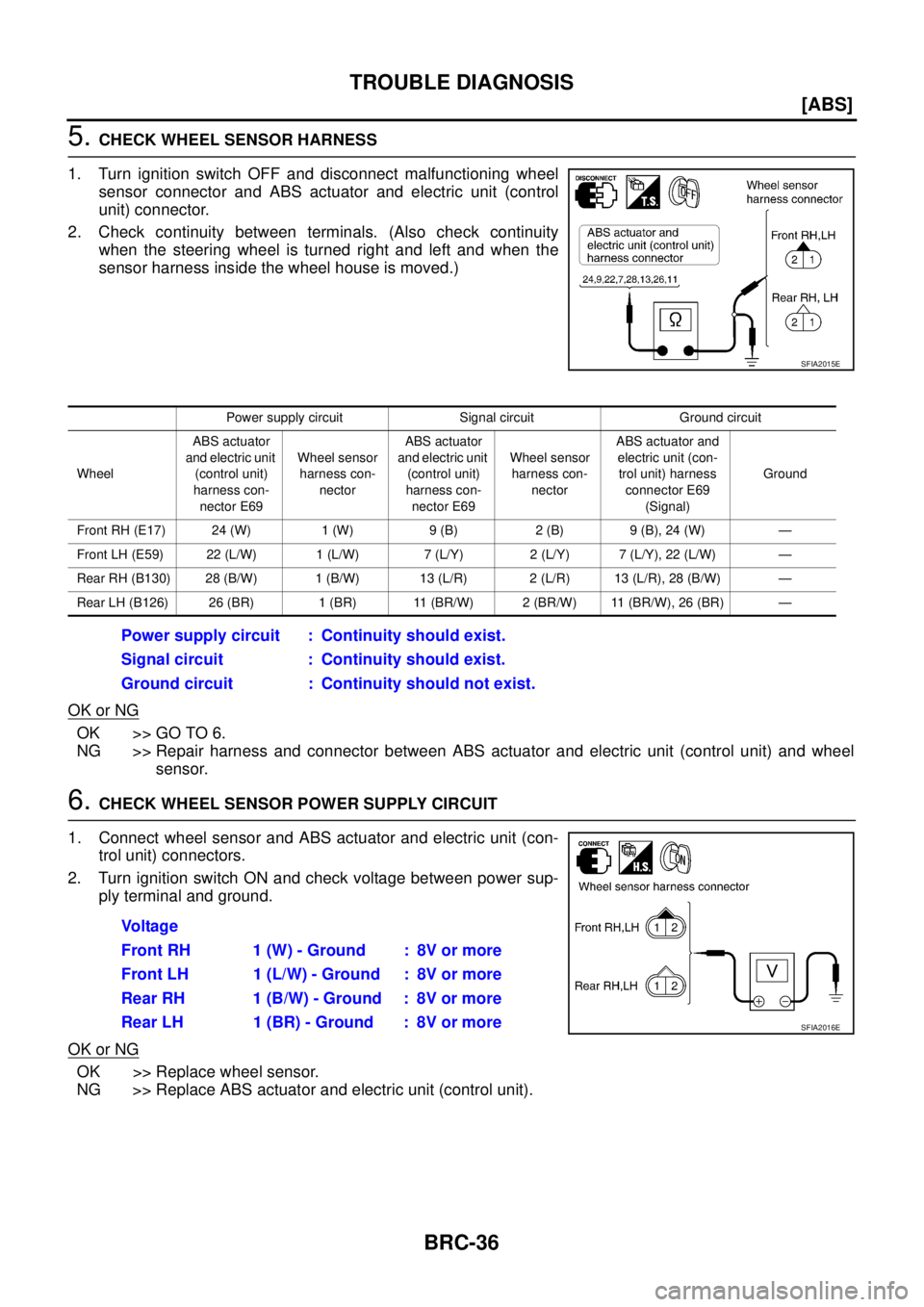

5. CHECK WHEEL SENSOR HARNESS
1. Turn ignition switch OFF and disconnect malfunctioning wheel
sensor connector and ABS actuator and electric unit (control
unit) connec NISSAN X-TRAIL 2003 Service Repair Manual BRC-36
[ABS]
TROUBLE DIAGNOSIS
5. CHECK WHEEL SENSOR HARNESS
1. Turn ignition switch OFF and disconnect malfunctioning wheel
sensor connector and ABS actuator and electric unit (control
unit) connec](/manual-img/5/57404/w960_57404-2849.png)
BRC-36
[ABS]
TROUBLE DIAGNOSIS
5. CHECK WHEEL SENSOR HARNESS
1. Turn ignition switch OFF and disconnect malfunctioning wheel
sensor connector and ABS actuator and electric unit (control
unit) connector.
2. Check continuity between terminals. (Also check continuity
when the steering wheel is turned right and left and when the
sensor harness inside the wheel house is moved.)
OK or NG
OK >> GO TO 6.
NG >> Repair harness and connector between ABS actuator and electric unit (control unit) and wheel
sensor.
6. CHECK WHEEL SENSOR POWER SUPPLY CIRCUIT
1. Connect wheel sensor and ABS actuator and electric unit (con-
trol unit) connectors.
2. Turn ignition switch ON and check voltage between power sup-
ply terminal and ground.
OK or NG
OK >> Replace wheel sensor.
NG >> Replace ABS actuator and electric unit (control unit).
SFIA2015E
Power supply circuit Signal circuit Ground circuit
WheelABS actuator
and electric unit
(control unit)
harness con-
nector E69Wheel sensor
harness con-
nectorABS actuator
and electric unit
(control unit)
harness con-
nector E69Wheel sensor
harness con-
nectorABS actuator and
electric unit (con-
trol unit) harness
connector E69
(Signal)Ground
Front RH (E17) 24 (W) 1 (W) 9 (B) 2 (B) 9 (B), 24 (W) —
Front LH (E59) 22 (L/W) 1 (L/W) 7 (L/Y) 2 (L/Y) 7 (L/Y), 22 (L/W) —
Rear RH (B130) 28 (B/W) 1 (B/W) 13 (L/R) 2 (L/R) 13 (L/R), 28 (B/W) —
Rear LH (B126) 26 (BR) 1 (BR) 11 (BR/W) 2 (BR/W) 11 (BR/W), 26 (BR) —
Power supply circuit : Continuity should exist.
Signal circuit : Continuity should exist.
Ground circuit : Continuity should not exist.
Vo l ta g e
Front RH 1 (W) - Ground : 8V or more
Front LH 1 (L/W) - Ground : 8V or more
Rear RH 1 (B/W) - Ground : 8V or more
Rear LH 1 (BR) - Ground : 8V or more
SFIA2016E
Page 2851 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual TROUBLE DIAGNOSIS
BRC-37
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Inspection 2: ABS Actuator and Electric Unit (Control Unit) 1EFS004HC
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
Check self-diagn NISSAN X-TRAIL 2003 Service Repair Manual TROUBLE DIAGNOSIS
BRC-37
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Inspection 2: ABS Actuator and Electric Unit (Control Unit) 1EFS004HC
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
Check self-diagn](/manual-img/5/57404/w960_57404-2850.png)
TROUBLE DIAGNOSIS
BRC-37
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Inspection 2: ABS Actuator and Electric Unit (Control Unit) 1EFS004HC
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
Check self-diagnostic results.
Is above displayed on self-diagnosis display?
YES >> Replace ABS actuator and electric unit (control unit). Perform self-diagnosis again.
NO >> Inspection End
Inspection 3: ABS Actuator and Electric Unit (Control Unit) Power Supply and
Ground Circuit
EFS004HD
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
Check self-diagnostic results.
Is above displayed on self-diagnosis display?
YES >> GO TO 2.
NO >> Inspection End
2. CHECK CONNECTOR
1. Turn ignition switch OFF, disconnect the ABS actuator and electric unit (control unit) connector, and
check the terminal for deformation, disconnection, looseness, and so on. If there is a malfunction, repair
or replace the terminal.
2. Connect the connector securely and perform self-diagnosis again.
OK or NG
OK >> Poor connection of connector terminal
NG >> GO TO 3.
Self-diagnostic results
ABS CONTROLLER
Self-diagnostic results
LOW POWER VOLTAGE
Page 2852 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual BRC-38
[ABS]
TROUBLE DIAGNOSIS

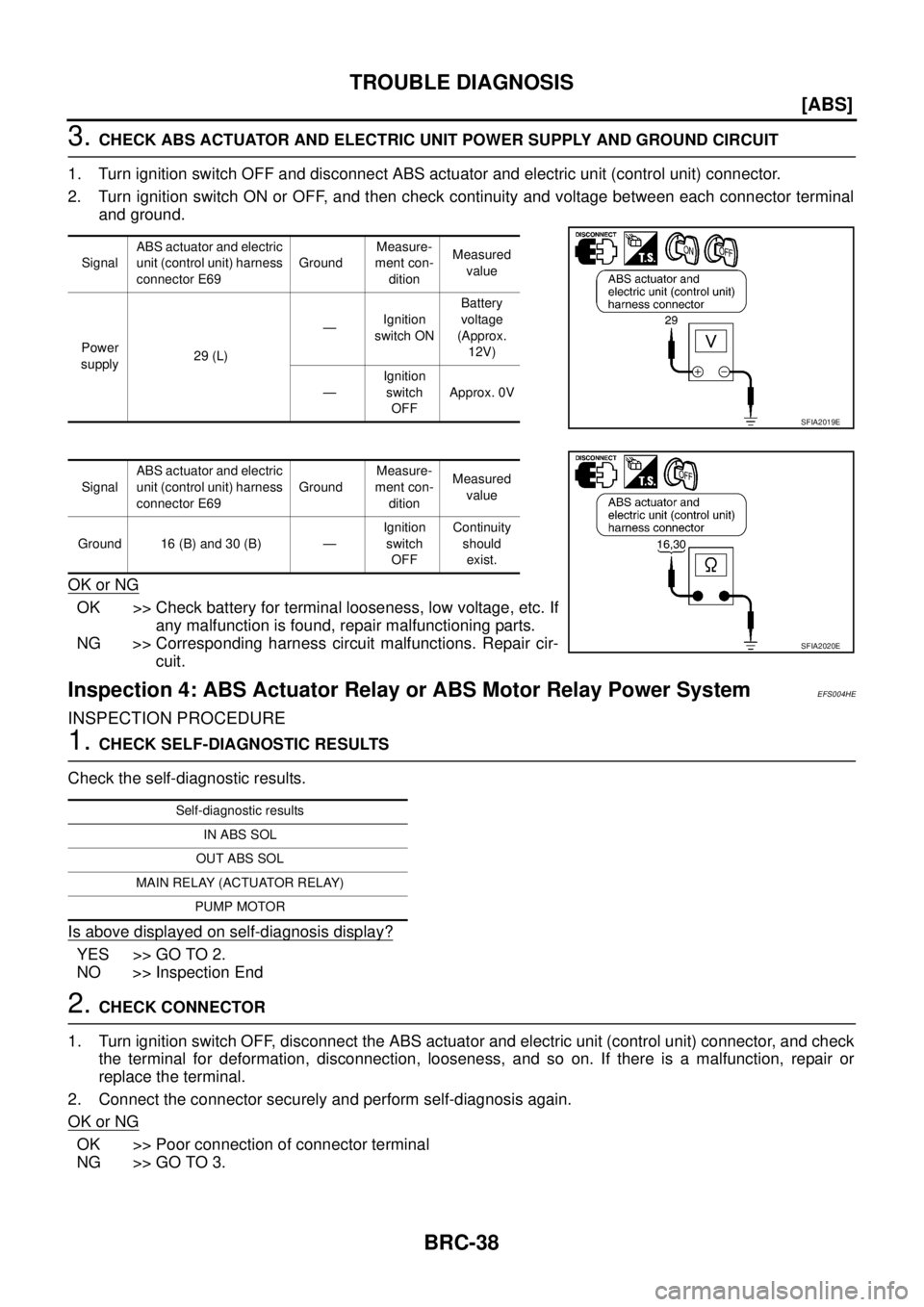

3. CHECK ABS ACTUATOR AND ELECTRIC UNIT POWER SUPPLY AND GROUND CIRCUIT
1. Turn ignition switch OFF and disconnect ABS actuator and electric unit (control unit) connec NISSAN X-TRAIL 2003 Service Repair Manual BRC-38
[ABS]
TROUBLE DIAGNOSIS
3. CHECK ABS ACTUATOR AND ELECTRIC UNIT POWER SUPPLY AND GROUND CIRCUIT
1. Turn ignition switch OFF and disconnect ABS actuator and electric unit (control unit) connec](/manual-img/5/57404/w960_57404-2851.png)
BRC-38
[ABS]
TROUBLE DIAGNOSIS
3. CHECK ABS ACTUATOR AND ELECTRIC UNIT POWER SUPPLY AND GROUND CIRCUIT
1. Turn ignition switch OFF and disconnect ABS actuator and electric unit (control unit) connector.
2. Turn ignition switch ON or OFF, and then check continuity and voltage between each connector terminal
and ground.
OK or NG
OK >> Check battery for terminal looseness, low voltage, etc. If
any malfunction is found, repair malfunctioning parts.
NG >> Corresponding harness circuit malfunctions. Repair cir-
cuit.
Inspection 4: ABS Actuator Relay or ABS Motor Relay Power SystemEFS004HE
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
Check the self-diagnostic results.
Is above displayed on self-diagnosis display?
YES >> GO TO 2.
NO >> Inspection End
2. CHECK CONNECTOR
1. Turn ignition switch OFF, disconnect the ABS actuator and electric unit (control unit) connector, and check
the terminal for deformation, disconnection, looseness, and so on. If there is a malfunction, repair or
replace the terminal.
2. Connect the connector securely and perform self-diagnosis again.
OK or NG
OK >> Poor connection of connector terminal
NG >> GO TO 3.
SignalABS actuator and electric
unit (control unit) harness
connector E69GroundMeasure-
ment con-
ditionMeasured
value
Power
supply29 (L)—Ignition
switch ONBattery
voltage
(Approx.
12V)
—Ignition
switch
OFFApprox. 0V
SFIA2019E
SignalABS actuator and electric
unit (control unit) harness
connector E69GroundMeasure-
ment con-
ditionMeasured
value
Ground 16 (B) and 30 (B) —Ignition
switch
OFFContinuity
should
exist.
SFIA2020E
Self-diagnostic results
IN ABS SOL
OUT ABS SOL
MAIN RELAY (ACTUATOR RELAY)
PUMP MOTOR
Page 2853 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual TROUBLE DIAGNOSIS
BRC-39
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
3. CHECK ABS ACTUATOR RELAY OR ABS MOTOR RELAY POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF and disconnect ABS actuator and electric uni NISSAN X-TRAIL 2003 Service Repair Manual TROUBLE DIAGNOSIS
BRC-39
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
3. CHECK ABS ACTUATOR RELAY OR ABS MOTOR RELAY POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF and disconnect ABS actuator and electric uni](/manual-img/5/57404/w960_57404-2852.png)
TROUBLE DIAGNOSIS
BRC-39
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
3. CHECK ABS ACTUATOR RELAY OR ABS MOTOR RELAY POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF and disconnect ABS actuator and electric unit (control unit) connectors.
2. For the ABS actuator relay, measure voltage between harness
connector E69 terminal 15 (L/W) and ground. For the ABS motor
relay, measure voltage between harness connector E69 terminal
1 (Y) and the ground.
OK or NG
OK >> GO TO 4.
NG >> Circuit malfunction between the battery and ABS actuator and electric unit (control unit). Repair
circuit.
4. CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) GROUND CIRCUIT
Check continuity between ABS actuator and electric unit (control
unit) harness connector E69 terminals 16 (B), 30 (B) and ground.
OK or NG
OK >> Replace ABS actuator and electric unit (control unit).
NG >> Open or short in harness. Repair or replace the harness.
Inspection 5: ABS Actuator and Electric Unit (Control Unit) 2EFS004HG
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
Check the self-diagnostic results.
Even when “EMERGENCY BRAKE” and any other items are indicated in self-diagnosis display (Note),
replace control unit.
Note: Emergency brake is indicated when the control unit itself detects an internal malfunction.
Is above displayed on self-diagnosis display?
YES >> Replace ABS actuator and electric unit (control unit). Perform self-diagnosis again.
NO >> Inspection EndABS actuator and elec-
tric unit (control unit)
harness connector E69Ground Voltage
1 (Y) — Battery voltage
(Approx. 12V)
15 (L/W) — Battery voltage
(Approx. 12V)
SFIA2021E
ABS actuator and elec-
tric unit (control unit)
harness connector E69Ground Continuity
16 (B) and 30 (B) — Yes
SFIA2022E
Self-diagnostic results
EMERGENCY BRAKE
Page 2854 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual BRC-40
[ABS]
TROUBLE DIAGNOSIS

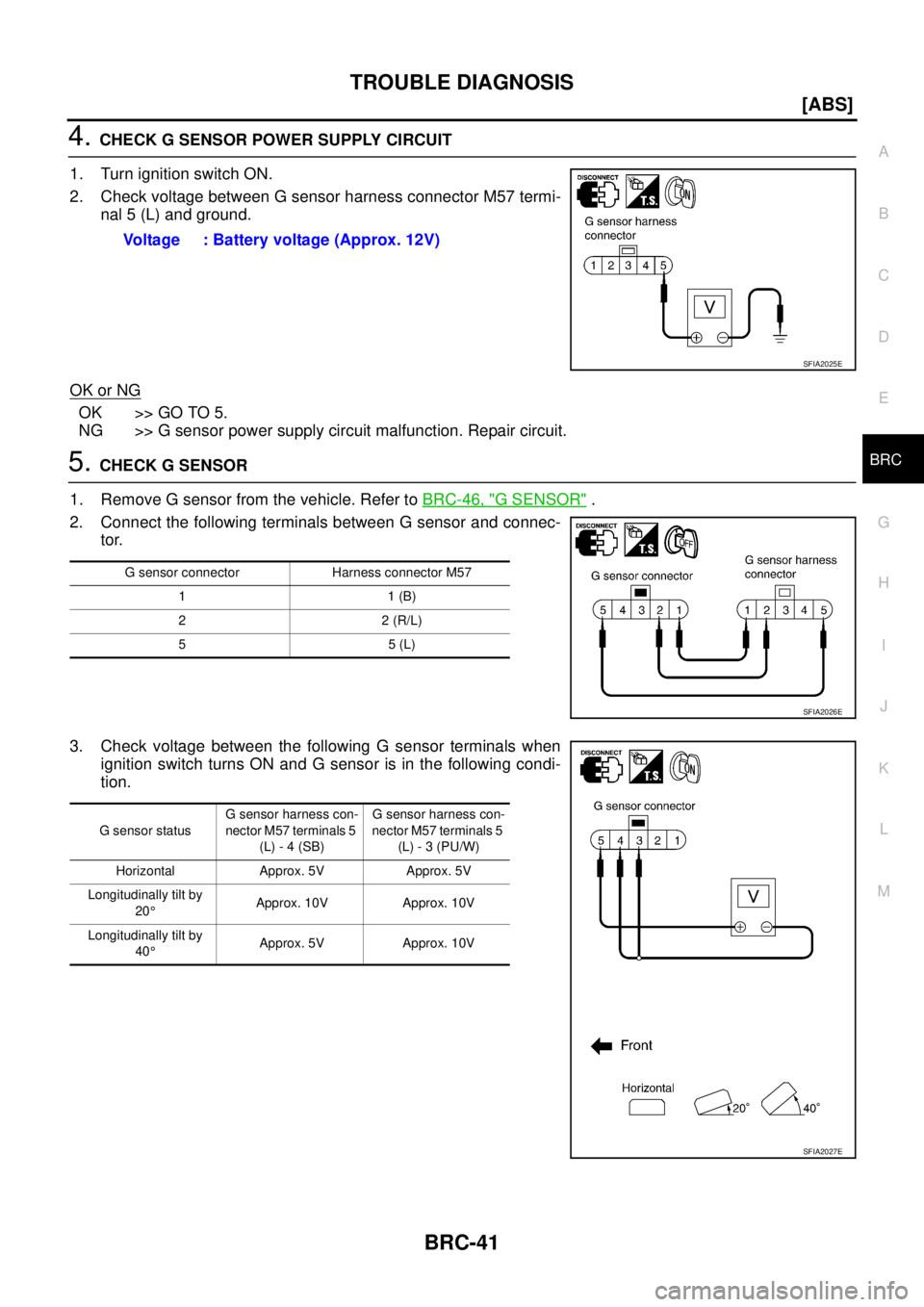

Inspection 6: G Sensor SystemEFS004HH
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSIS RESULTS
Check the self-diagnostic results.
Is above displayed on self-diagnosis disp NISSAN X-TRAIL 2003 Service Repair Manual BRC-40
[ABS]
TROUBLE DIAGNOSIS
Inspection 6: G Sensor SystemEFS004HH
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSIS RESULTS
Check the self-diagnostic results.
Is above displayed on self-diagnosis disp](/manual-img/5/57404/w960_57404-2853.png)
BRC-40
[ABS]
TROUBLE DIAGNOSIS
Inspection 6: G Sensor SystemEFS004HH
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSIS RESULTS
Check the self-diagnostic results.
Is above displayed on self-diagnosis display?
YES >> GO TO 2.
NO >> Inspection End
2. CHECK CONNECTOR
1. Turn ignition switch OFF, disconnect the ABS actuator and electric unit (control unit) and G sensor con-
nector, and check the terminal for deformation, disconnection, looseness, and so on. If there is a malfunc-
tion, repair or replace the terminal.
2. Reconnect connector securely, and perform self-diagnosis.
OK or NG
OK >> Poor connection of connector terminal
NG >> GO TO 3.
3. CHECK CIRCUIT BETWEEN G SENSOR AND ABS ACTUATOR AND ELECTRIC UNIT
1. Turn ignition switch OFF and disconnect G sensor and ABS actuator and electric unit (control unit) con-
nectors.
2. Check continuity between G sensor harness connector M57 and ABS actuator and electric unit (control
unit) harness connector E69.
OK or NG
OK >> GO TO 4.
NG >> Circuit malfunction of G sensor. Repair harness.
Self-diagnostic results
G - SENSOR
G sensor harness
connector M57ABS actuator and electric
unit (control unit) harness
connector E69Measured value
1 (B) 21 (B)
Continuity
should exist. 2 (R/L) 12 (R/L)
3 (PU/W) 10 (PU/W)
4 (SB) 25 (SB)
SFIA2024E
Page 2855 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual TROUBLE DIAGNOSIS
BRC-41
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
4. CHECK G SENSOR POWER SUPPLY CIRCUIT
1. Turn ignition switch ON.
2. Check voltage between G sensor harness connector M57 termi-
nal 5 (L) NISSAN X-TRAIL 2003 Service Repair Manual TROUBLE DIAGNOSIS
BRC-41
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
4. CHECK G SENSOR POWER SUPPLY CIRCUIT
1. Turn ignition switch ON.
2. Check voltage between G sensor harness connector M57 termi-
nal 5 (L)](/manual-img/5/57404/w960_57404-2854.png)
TROUBLE DIAGNOSIS
BRC-41
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
4. CHECK G SENSOR POWER SUPPLY CIRCUIT
1. Turn ignition switch ON.
2. Check voltage between G sensor harness connector M57 termi-
nal 5 (L) and ground.
OK or NG
OK >> GO TO 5.
NG >> G sensor power supply circuit malfunction. Repair circuit.
5. CHECK G SENSOR
1. Remove G sensor from the vehicle. Refer to BRC-46, "
G SENSOR" .
2. Connect the following terminals between G sensor and connec-
tor.
3. Check voltage between the following G sensor terminals when
ignition switch turns ON and G sensor is in the following condi-
tion.Voltage : Battery voltage (Approx. 12V)
SFIA2025E
G sensor connector Harness connector M57
11 (B)
2 2 (R/L)
5 5 (L)
SFIA2026E
G sensor statusG sensor harness con-
nector M57 terminals 5
(L) - 4 (SB)G sensor harness con-
nector M57 terminals 5
(L) - 3 (PU/W)
Horizontal Approx. 5V Approx. 5V
Longitudinally tilt by
20°Approx. 10V Approx. 10V
Longitudinally tilt by
40°Approx. 5V Approx. 10V
SFIA2027E
Page 2856 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual BRC-42
[ABS]
TROUBLE DIAGNOSIS
OK or NG
OK >> ABS actuator and electric unit (control unit) malfunction. Replace ABS actuator and electric unit
(control unit).
NG >> G sensor malfunction. Replace G NISSAN X-TRAIL 2003 Service Repair Manual BRC-42
[ABS]
TROUBLE DIAGNOSIS
OK or NG
OK >> ABS actuator and electric unit (control unit) malfunction. Replace ABS actuator and electric unit
(control unit).
NG >> G sensor malfunction. Replace G](/manual-img/5/57404/w960_57404-2855.png)
BRC-42
[ABS]
TROUBLE DIAGNOSIS
OK or NG
OK >> ABS actuator and electric unit (control unit) malfunction. Replace ABS actuator and electric unit
(control unit).
NG >> G sensor malfunction. Replace G sensor.
Inspection 7: CAN Communication SystemEFS004HI
INSPECTION PROCEDURE
1. CHECK CONNECTOR
1. Turn ignition switch OFF, disconnect the ABS actuator and electric unit (control unit) connector, and check
the terminal for deformation, disconnection, looseness, and so on. If there is a malfunction, repair or
replace the terminal.
2. Reconnect connector to perform self-diagnosis.
Is
“CAN COMM CIRCUIT” displayed in the self-diagnosis display items?
YES >> Print out the self-diagnostic results, and refer to LAN-4, "CAN Communication Unit" .
NO >> Connector terminal connector is loose, damaged, open, or shorted.
Symptom 1: ABS Works FrequentlyEFS004HJ
1. CHECK START
Check longitudinal brake force distribution using a brake tester.
OK or NG
OK >> GO TO 2.
NG >> Check brake system.
2. CHECK FRONT AND REAR AXLE
Check to make sure that there is no excessive play in the front and rear axles. Refer to Front: FAX-7, "
On-
Vehicle Inspection" , Rear: RAX-6, "On-Vehicle Inspection" .
OK or NG
OK >> GO TO 3.
NG >> Repair.
3. CHECK WHEEL SENSOR AND SENSOR ROTOR
Check wheel sensor and sensor rotor for the following.
Sensor installation for damage
Sensor rotor installation for damage
Sensor connector engagement
Sensor harness
OK or NG
OK >> GO TO 4.
NG >>
Replace wheel sensor or sensor rotor.
Repair harness.
4. CHECK ABS WARNING LAMP DISPLAY
Make sure that the warning lamp turns off approximately 1 second after the key switch is turned on or when
driving.
OK or NG
OK >> Normal
NG >> Perform self-diagnosis. Refer to BRC-27, "
SELF-DIAGNOSIS" .
