Page 3217 of 4179

REAR WINDOW DEFOGGER
GW-31
C
D
E
F
G
H
J
K
L
MA
B
GW

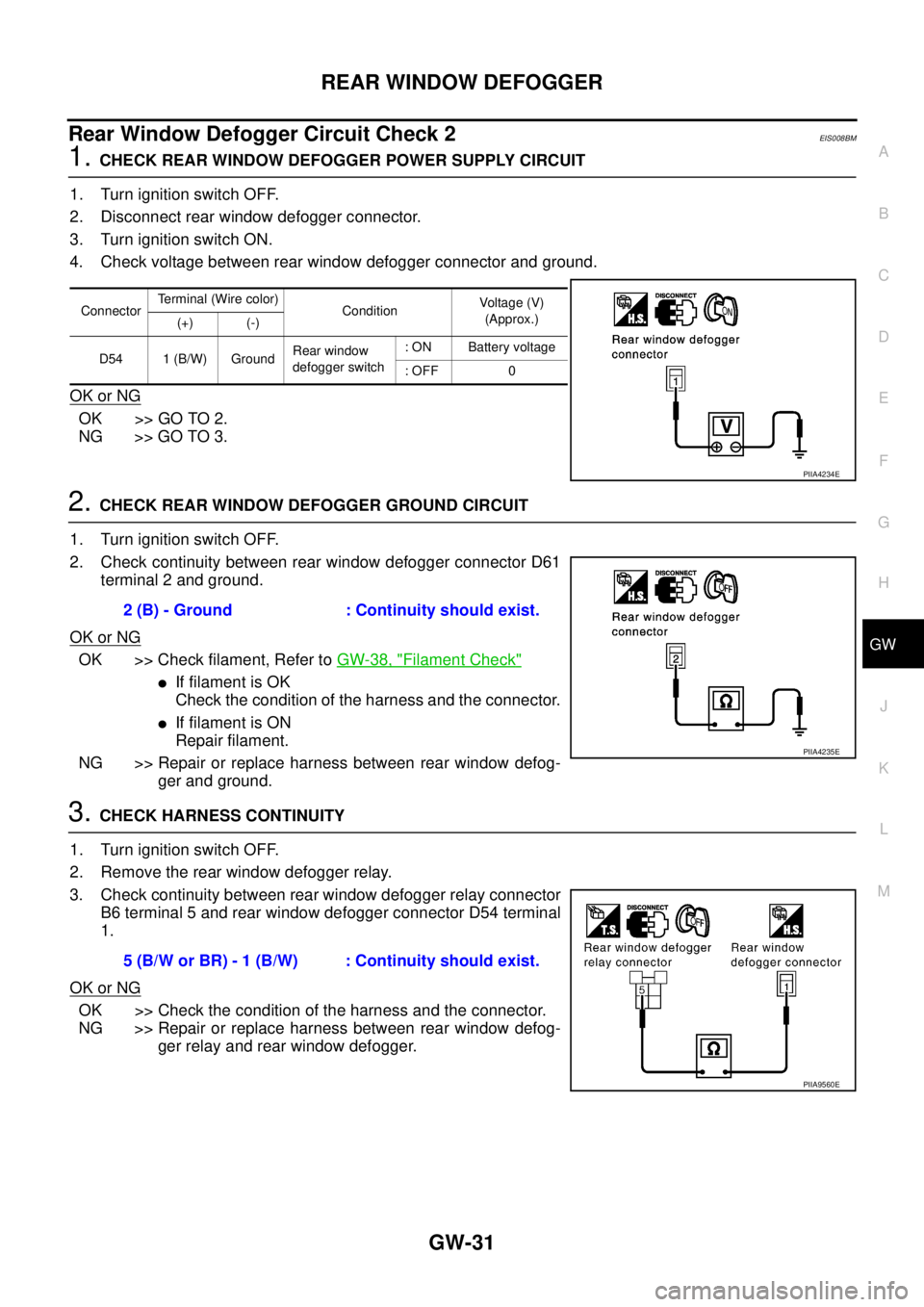

Rear Window Defogger Circuit Check 2EIS008BM
1. CHECK REAR WINDOW DEFOGGER POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect rear window defogger connector.
3. Turn ignition switch ON.
4. Check voltage between rear window defogger connector and ground.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
2. CHECK REAR WINDOW DEFOGGER GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between rear window defogger connector D61
terminal 2 and ground.
OK or NG
OK >> Check filament, Refer to GW-38, "Filament Check"
If filament is OK
Check the condition of the harness and the connector.
If filament is ON
Repair filament.
NG >> Repair or replace harness between rear window defog-
ger and ground.
3. CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Remove the rear window defogger relay.
3. Check continuity between rear window defogger relay connector
B6 terminal 5 and rear window defogger connector D54 terminal
1.
OK or NG
OK >> Check the condition of the harness and the connector.
NG >> Repair or replace harness between rear window defog-
ger relay and rear window defogger.
ConnectorTerminal (Wire color)
ConditionVoltage (V)
(Approx.)
(+) (-)
D54 1 (B/W) GroundRear window
defogger switch: ON Battery voltage
: OFF 0
PIIA4234E
2 (B) - Ground : Continuity should exist.
PIIA4235E
5 (B/W or BR) - 1 (B/W) : Continuity should exist.
PIIA9560E
Page 3218 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual GW-32
REAR WINDOW DEFOGGER

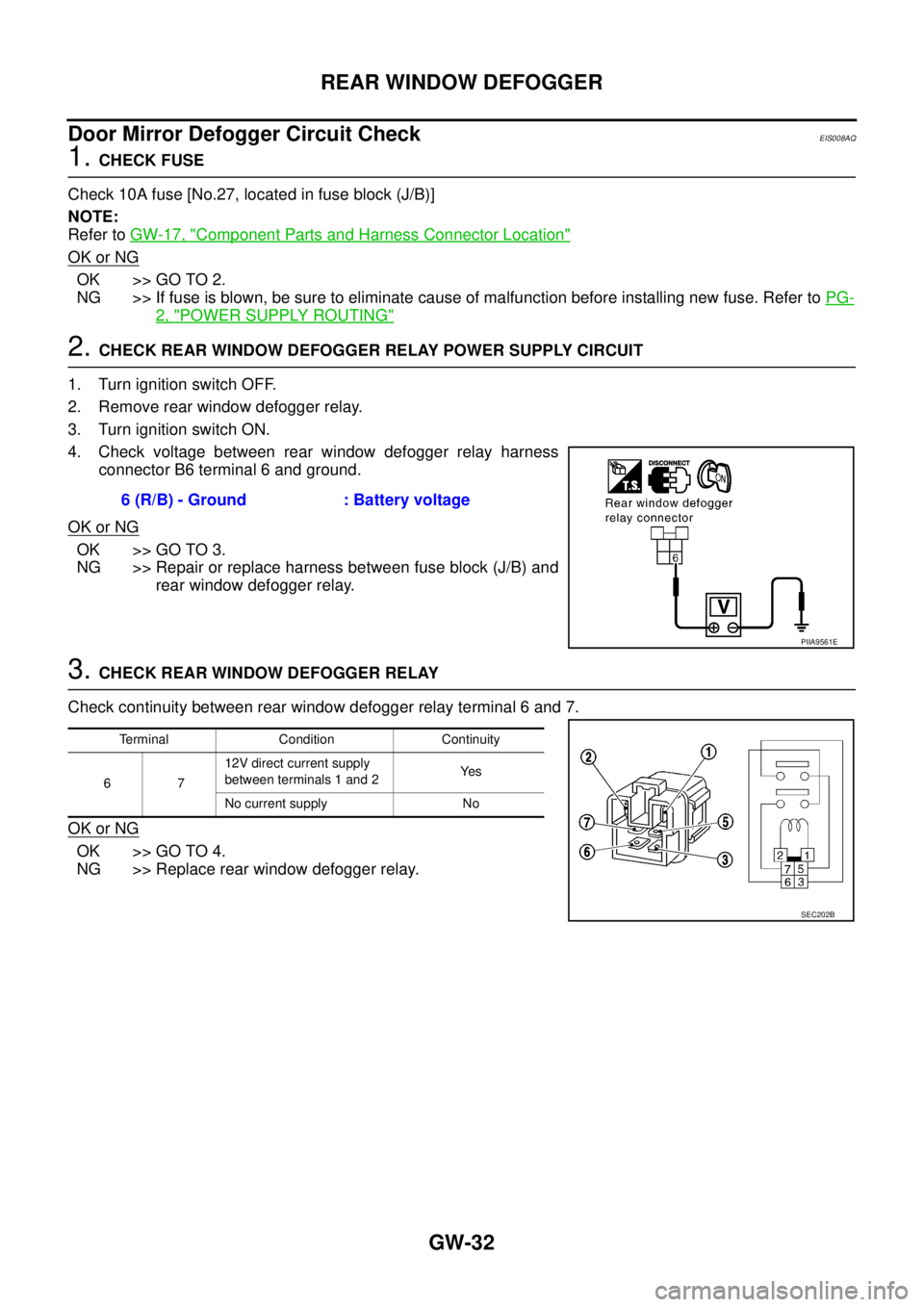

Door Mirror Defogger Circuit CheckEIS008AQ
1. CHECK FUSE
Check 10A fuse [No.27, located in fuse block (J/B)]
NOTE:
Refer to GW-17, "
Component Parts and Harness Connector NISSAN X-TRAIL 2003 Service Repair Manual GW-32
REAR WINDOW DEFOGGER
Door Mirror Defogger Circuit CheckEIS008AQ
1. CHECK FUSE
Check 10A fuse [No.27, located in fuse block (J/B)]
NOTE:
Refer to GW-17, "
Component Parts and Harness Connector](/manual-img/5/57404/w960_57404-3217.png)
GW-32
REAR WINDOW DEFOGGER
Door Mirror Defogger Circuit CheckEIS008AQ
1. CHECK FUSE
Check 10A fuse [No.27, located in fuse block (J/B)]
NOTE:
Refer to GW-17, "
Component Parts and Harness Connector Location"
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-
2, "POWER SUPPLY ROUTING"
2. CHECK REAR WINDOW DEFOGGER RELAY POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Remove rear window defogger relay.
3. Turn ignition switch ON.
4. Check voltage between rear window defogger relay harness
connector B6 terminal 6 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness between fuse block (J/B) and
rear window defogger relay.
3. CHECK REAR WINDOW DEFOGGER RELAY
Check continuity between rear window defogger relay terminal 6 and 7.
OK or NG
OK >> GO TO 4.
NG >> Replace rear window defogger relay.6 (R/B) - Ground : Battery voltage
PIIA9561E
Terminal Condition Continuity
6712V direct current supply
between terminals 1 and 2Ye s
No current supply No
SEC202B
Page 3219 of 4179

REAR WINDOW DEFOGGER
GW-33
C
D
E
F
G
H
J
K
L
MA
B
GW

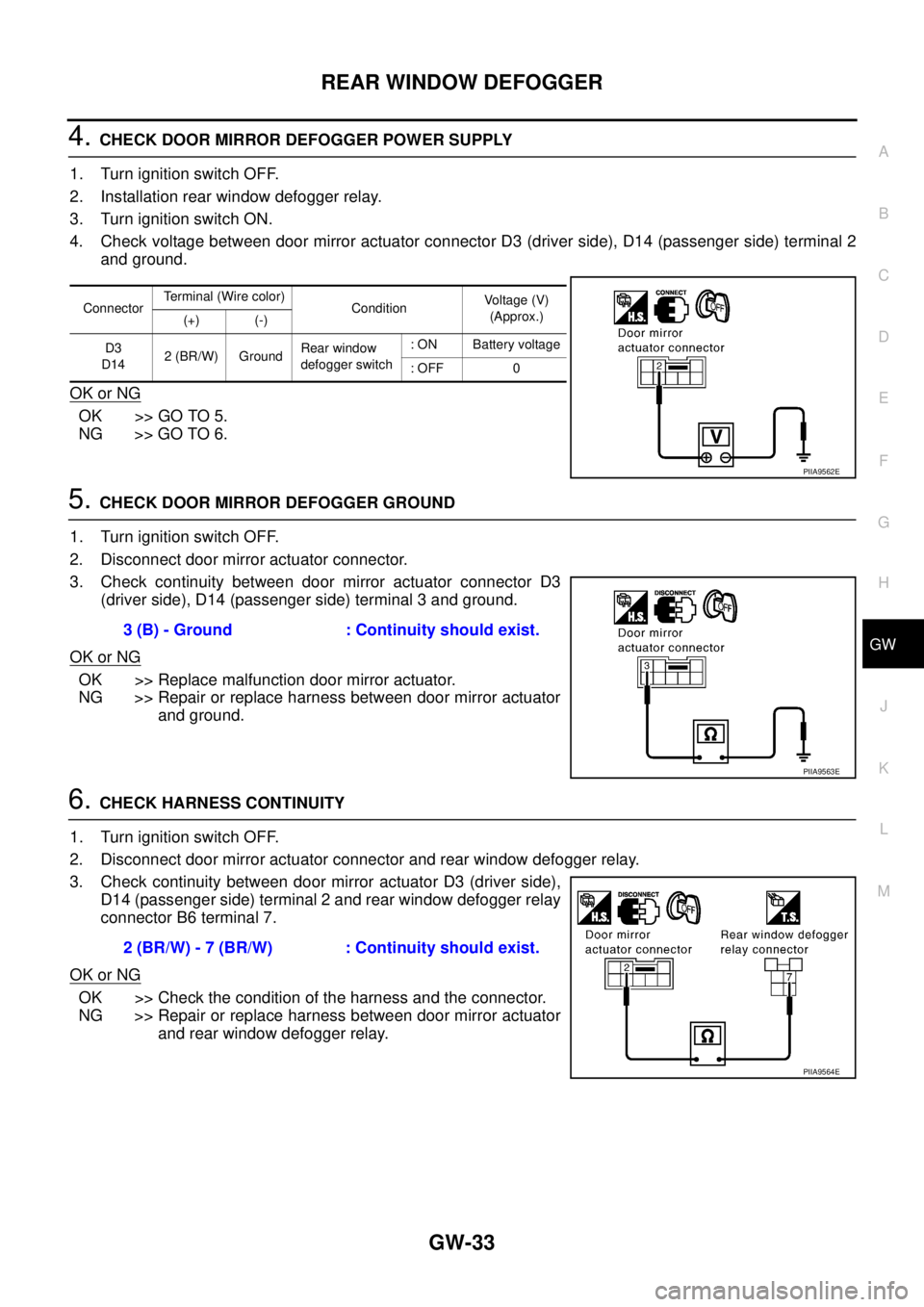

4. CHECK DOOR MIRROR DEFOGGER POWER SUPPLY
1. Turn ignition switch OFF.
2. Installation rear window defogger relay.
3. Turn ignition switch ON.
4. Check voltage between door mirror actuator connector D3 (driver side), D14 (passenger side) terminal 2
and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 6.
5. CHECK DOOR MIRROR DEFOGGER GROUND
1. Turn ignition switch OFF.
2. Disconnect door mirror actuator connector.
3. Check continuity between door mirror actuator connector D3
(driver side), D14 (passenger side) terminal 3 and ground.
OK or NG
OK >> Replace malfunction door mirror actuator.
NG >> Repair or replace harness between door mirror actuator
and ground.
6. CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect door mirror actuator connector and rear window defogger relay.
3. Check continuity between door mirror actuator D3 (driver side),
D14 (passenger side) terminal 2 and rear window defogger relay
connector B6 terminal 7.
OK or NG
OK >> Check the condition of the harness and the connector.
NG >> Repair or replace harness between door mirror actuator
and rear window defogger relay.
ConnectorTerminal (Wire color)
ConditionVoltage (V)
(Approx.)
(+) (-)
D3
D142 (BR/W) GroundRear window
defogger switch: ON Battery voltage
: OFF 0
PIIA9562E
3 (B) - Ground : Continuity should exist.
PIIA9563E
2 (BR/W) - 7 (BR/W) : Continuity should exist.
PIIA9564E
Page 3220 of 4179
GW-34
REAR WINDOW DEFOGGER
Rear Window Defogger Indicator Lamp Check 1EIS008AR
1. CHECK REAR WINDOW DEFOGGER SIGNAL
1. Turn both ignition switch and rear window defogger switch ON.
2.(Without auto A/C)
Check voltage between rear window defogger switch connector
M50 terminal 3 and ground.
(With auto A/C)
Check voltage between A/C auto amp, connector M53 terminal
23 and ground.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.3 (B/W) - Ground : Battery voltage
PIIA9565E
23 (B/W) - Ground : Battery voltage
PIIA9566E
Page 3221 of 4179

REAR WINDOW DEFOGGER
GW-35
C
D
E
F
G
H
J
K
L
MA
B
GW

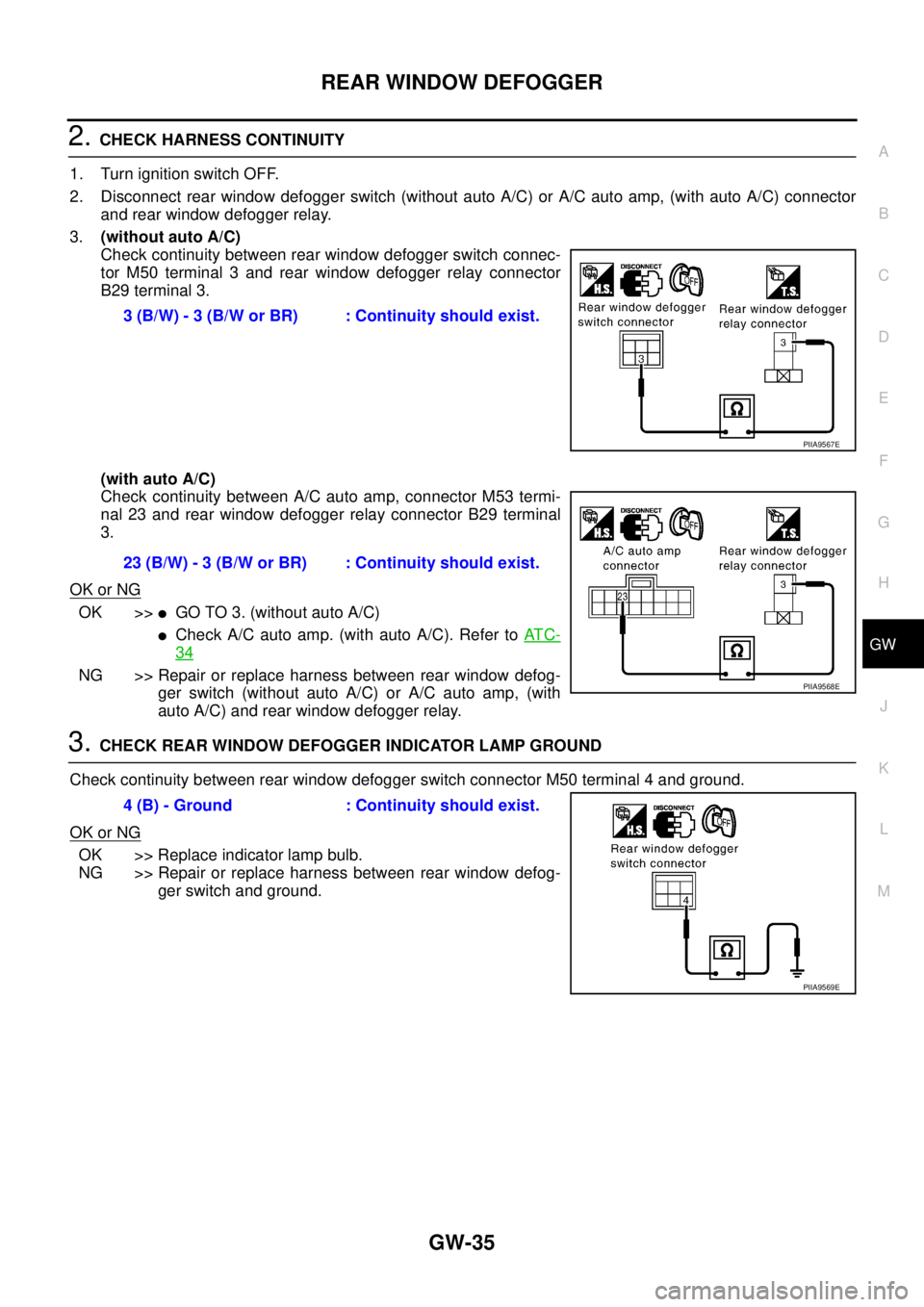

2. CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect rear window defogger switch (without auto A/C) or A/C auto amp, (with auto A/C) connector
and rear window defogger relay.
3.(without auto A/C)
Check continuity between rear window defogger switch connec-
tor M50 terminal 3 and rear window defogger relay connector
B29 terminal 3.
(with auto A/C)
Check continuity between A/C auto amp, connector M53 termi-
nal 23 and rear window defogger relay connector B29 terminal
3.
OK or NG
OK >>GO TO 3. (without auto A/C)
Check A/C auto amp. (with auto A/C). Refer to AT C -
34
NG >> Repair or replace harness between rear window defog-
ger switch (without auto A/C) or A/C auto amp, (with
auto A/C) and rear window defogger relay.
3. CHECK REAR WINDOW DEFOGGER INDICATOR LAMP GROUND
Check continuity between rear window defogger switch connector M50 terminal 4 and ground.
OK or NG
OK >> Replace indicator lamp bulb.
NG >> Repair or replace harness between rear window defog-
ger switch and ground. 3 (B/W) - 3 (B/W or BR) : Continuity should exist.
PIIA9567E
23 (B/W) - 3 (B/W or BR) : Continuity should exist.
PIIA9568E
4 (B) - Ground : Continuity should exist.
PIIA9569E
Page 3222 of 4179
GW-36
REAR WINDOW DEFOGGER
Rear Window Defogger Indicator Lamp Check 2EIS008AS
1. CHECK REAR WINDOW DEFOGGER SIGNAL
1. Turn both ignition switch and rear window defogger switch ON.
2.(Without auto A/C)
Check voltage between rear window defogger switch connector
M50 terminal 3 and ground.
(With auto A/C)
Check voltage between A/C auto amp, connector M53 terminal
23 and ground.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.3 (B/W) - Ground : Battery voltage
PIIA9565E
23 (B/W) - Ground : Battery voltage
PIIA9566E
Page 3223 of 4179

REAR WINDOW DEFOGGER
GW-37
C
D
E
F
G
H
J
K
L
MA
B
GW
2. CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect rear window defogger switch (without auto A/C) or A/C auto amp, (with auto A/C) connector
and rear window defogger relay.
3.(Without auto A/C)
Check continuity between rear window defogger switch connec-
tor M50 terminal 3 and rear window defogger relay connector B6
terminal 5.
(With auto A/C)
Check continuity between A/C auto amp, connector M53 termi-
nal 23 and rear window defogger relay connector B6 terminal 5.
OK or NG
OK >>GO TO 3. (without auto A/C)
Check A/C auto amp. (with auto A/C). Refer to AT C -
34
NG >> Repair or replace harness between rear window defog-
ger switch (without auto A/C) or A/C auto amp, (with
auto A/C) and rear window defogger relay.
3. CHECK REAR WINDOW DEFOGGER INDICATOR LAMP GROUND
Check continuity between rear window defogger switch connector
M50 terminal 4 and ground.
OK or NG
OK >> Replace indicator lamp bulb.
NG >> Repair or replace harness between rear window defog-
ger switch and ground. 3 (B/W) - 5 (B/W or BR) : Continuity should exist.
PIIA9570E
23 (B/W) - 5 (B/W or BR) : Continuity should exist.
PIIA9573E
4 (B) - Ground : Continuity should exist.
PIIA9569E
Page 3224 of 4179
GW-38
REAR WINDOW DEFOGGER

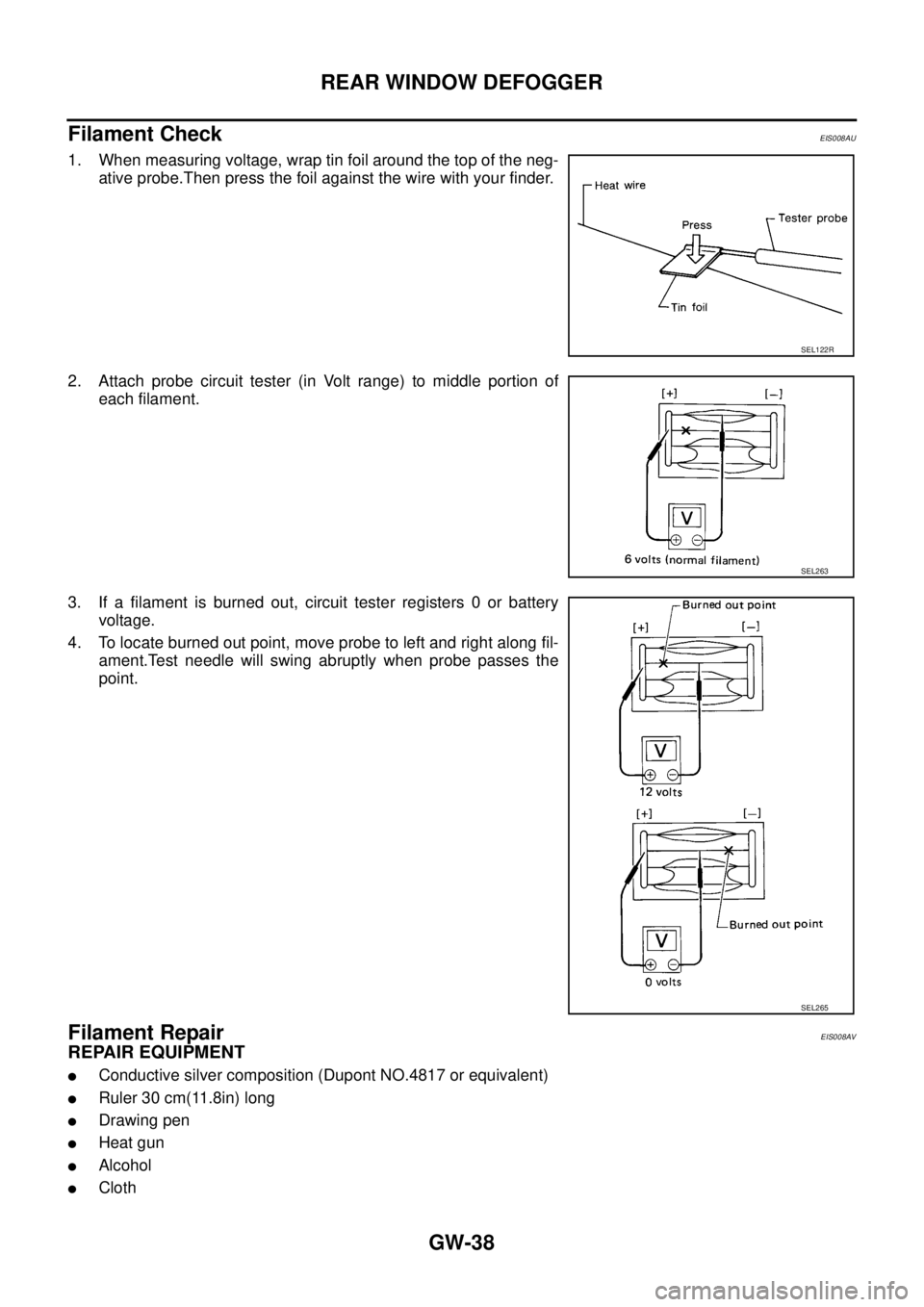

Filament CheckEIS008AU
1. When measuring voltage, wrap tin foil around the top of the neg-
ative probe.Then press the foil against the wire with your finder.
2. Attach probe circuit tester (in Volt range) to middle portion of
each filament.
3. If a filament is burned out, circuit tester registers 0 or battery
voltage.
4. To locate burned out point, move probe to left and right along fil-
ament.Test needle will swing abruptly when probe passes the
point.
Filament RepairEIS008AV
REPAIR EQUIPMENT
Conductive silver composition (Dupont NO.4817 or equivalent)
Ruler 30 cm(11.8in) long
Drawing pen
Heat gun
Alcohol
Cloth
SEL122R
SEL263
SEL265
