Page 2057 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual OVERALL SYSTEM AT-21 D E F G H I J K L MA B AT Circuit DiagramECS004QA TCWA0228E

Page 2058 of 4179

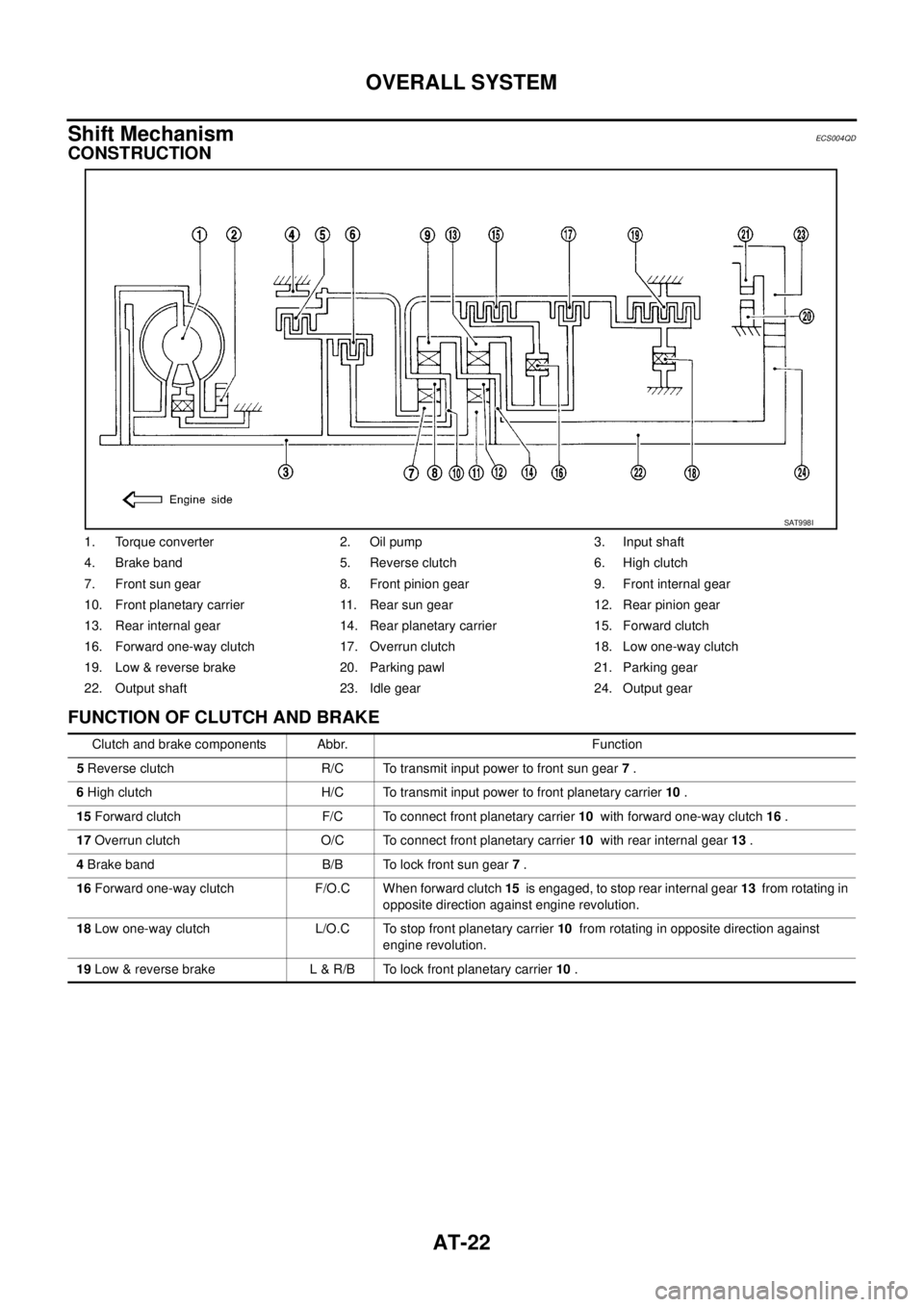

NISSAN X-TRAIL 2003 Service Repair Manual AT-22 OVERALL SYSTEM Shift MechanismECS004QD CONSTRUCTION FUNCTION OF CLUTCH AND BRAKE 1. Torque converter 2. Oil pump 3. Input shaft 4. Brake band 5. Reverse clutch 6. High clutch 7. Front sun gear

Page 2059 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual OVERALL SYSTEM AT-23 D E F G H I J K L MA B AT CLUTCH AND BAND CHART *1: Operates when overdrive control switch is set in “OFF” position. *2: Oil pressure is applied to both 2nd “apply” si

Page 2060 of 4179

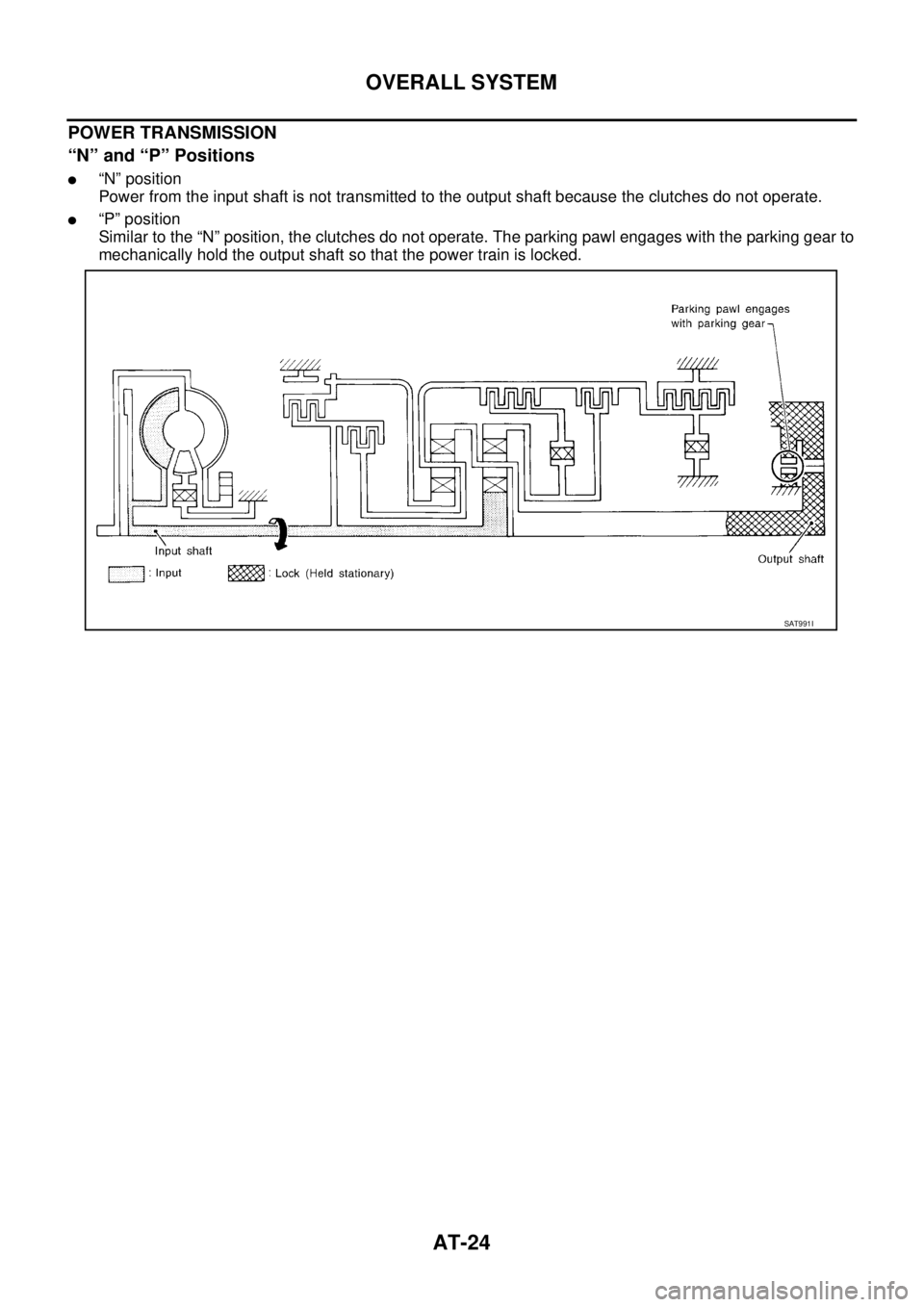

NISSAN X-TRAIL 2003 Service Repair Manual AT-24 OVERALL SYSTEM POWER TRANSMISSION “N” and “P” Positions “N” position Power from the input shaft is not transmitted to the output shaft because the clutches do not operate. “P

Page 2061 of 4179

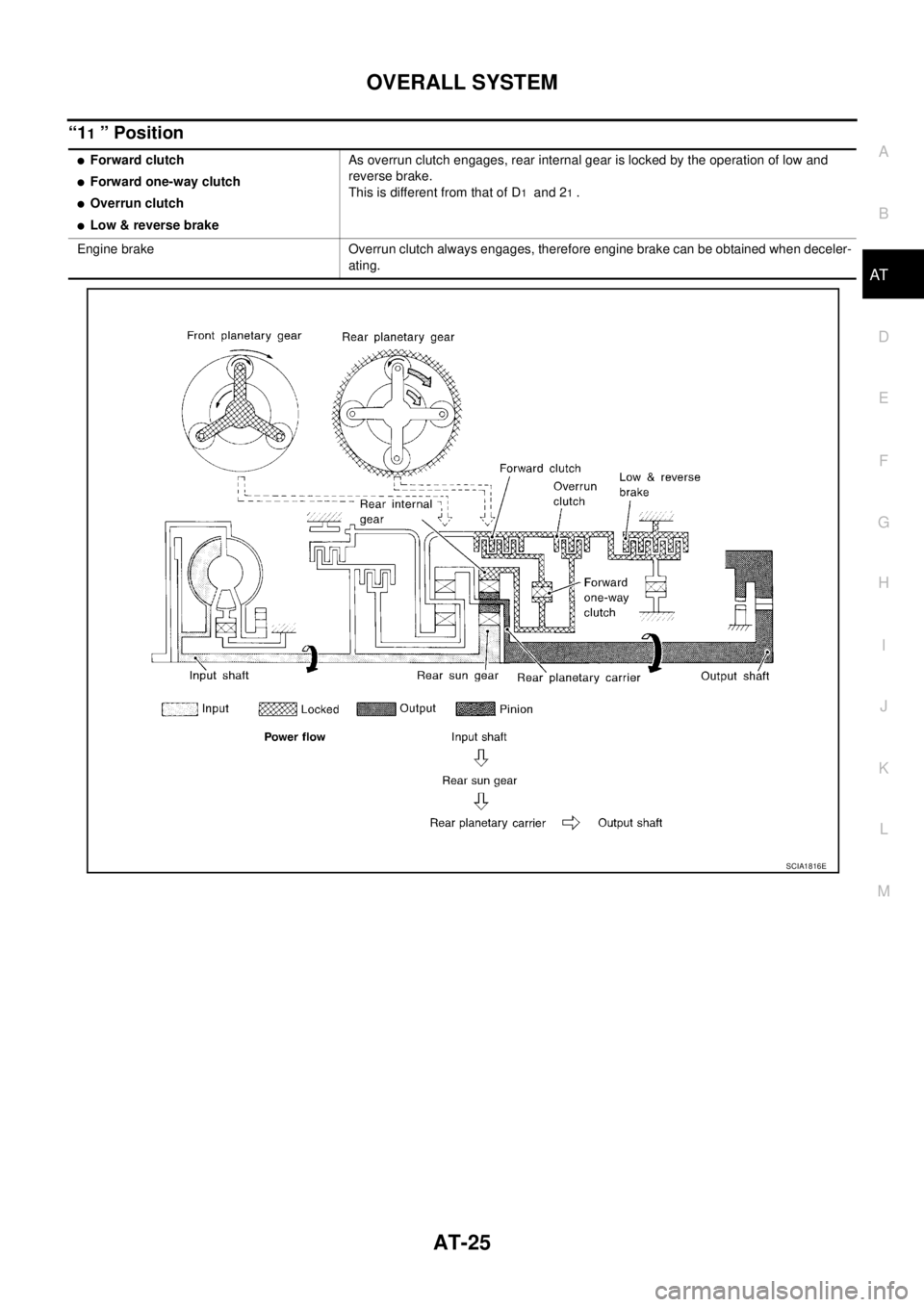

NISSAN X-TRAIL 2003 Service Repair Manual OVERALL SYSTEM AT-25 D E F G H I J K L MA B AT “11 ” Position Forward clutch Forward one-way clutch Overrun clutch Low & reverse brakeAs overrun clutch engages, rear internal gear is locked

Page 2062 of 4179

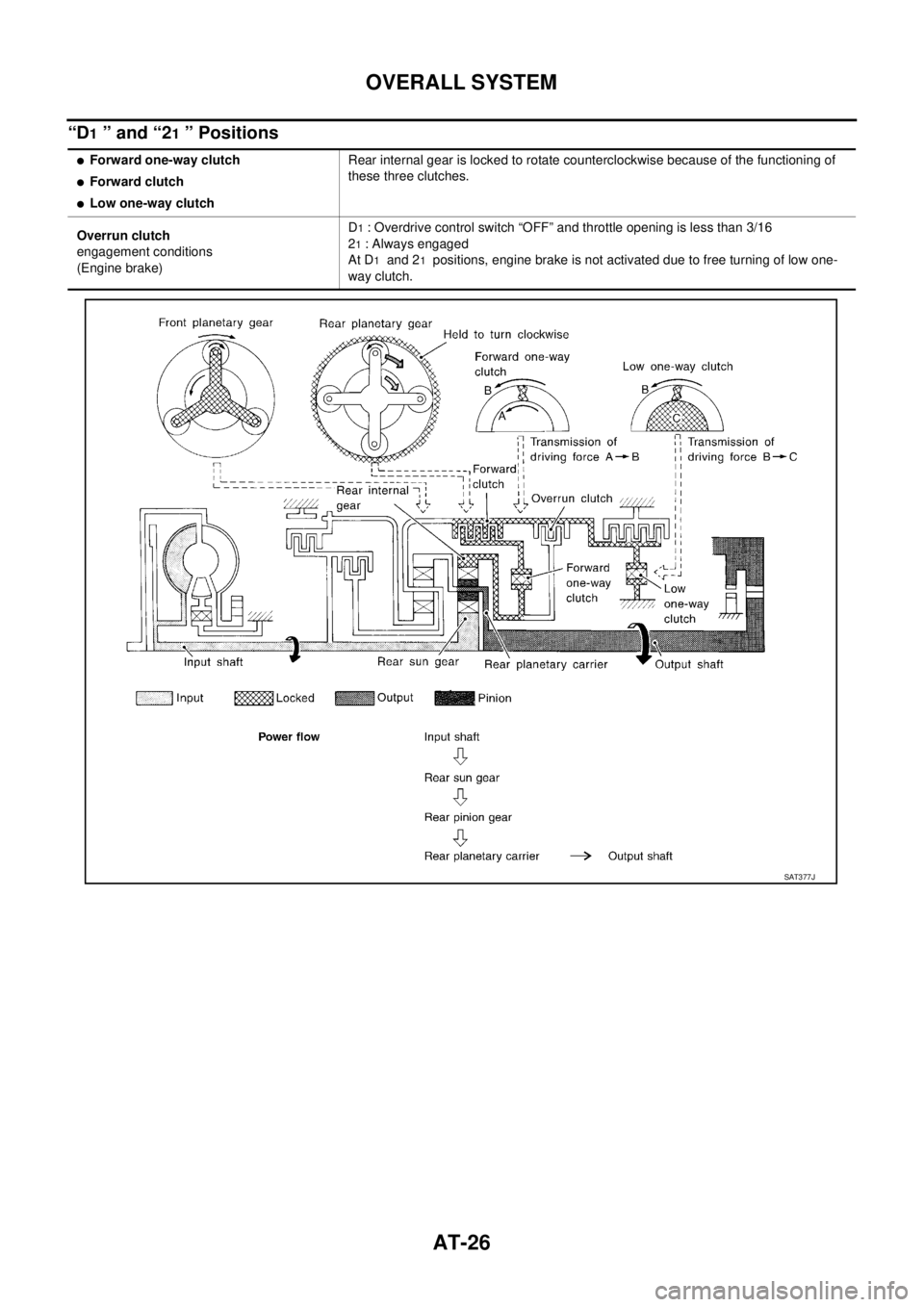

NISSAN X-TRAIL 2003 Service Repair Manual AT-26 OVERALL SYSTEM “D1 ” and “21 ” Positions Forward one-way clutch Forward clutch Low one-way clutchRear internal gear is locked to rotate counterclockwise because of the functioning o

Page 2063 of 4179

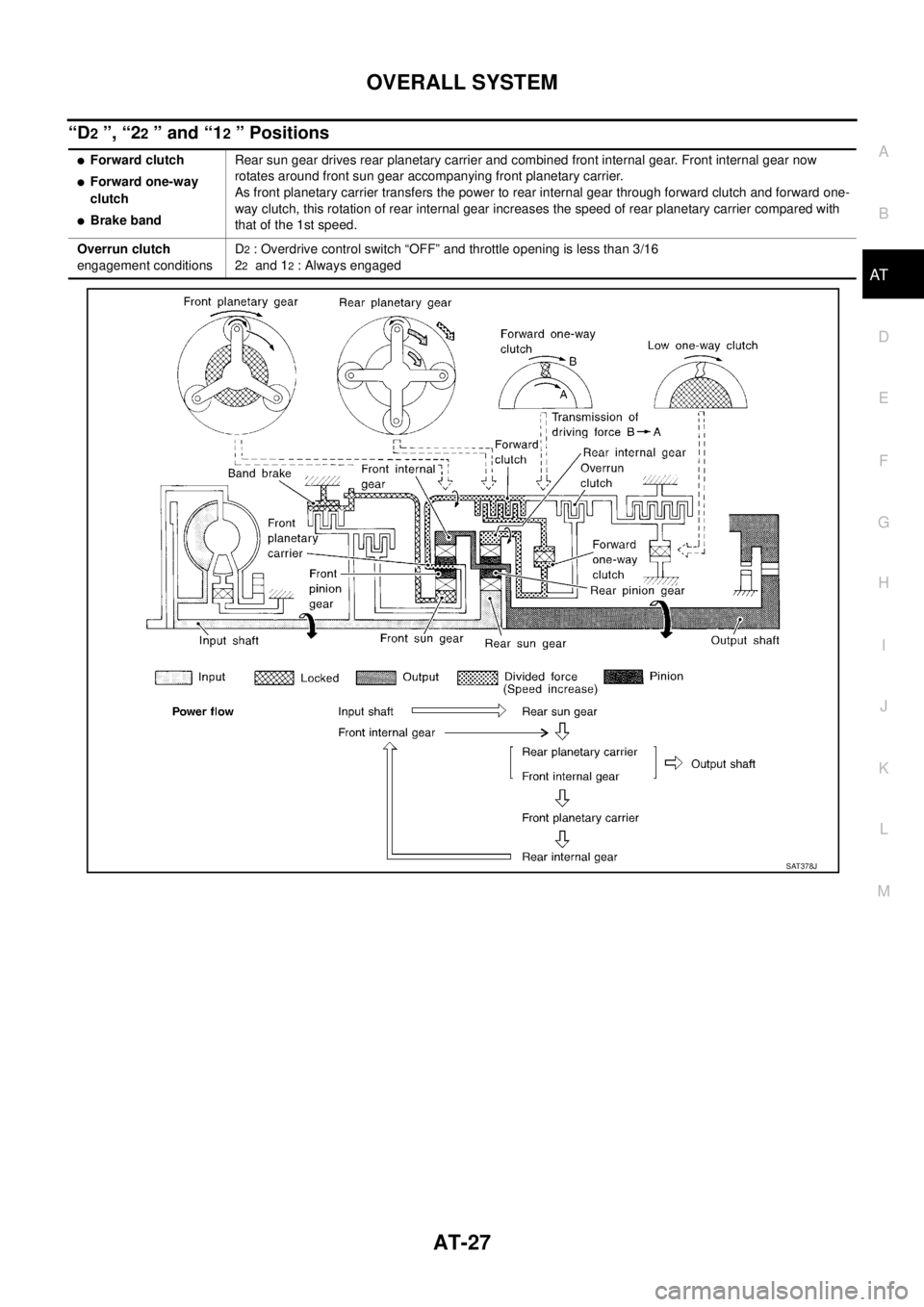

NISSAN X-TRAIL 2003 Service Repair Manual OVERALL SYSTEM AT-27 D E F G H I J K L MA B AT “D2 ”, “22 ” and “12 ” Positions Forward clutch Forward one-way clutch Brake bandRear sun gear drives rear planetary carrier and combin

Page 2064 of 4179

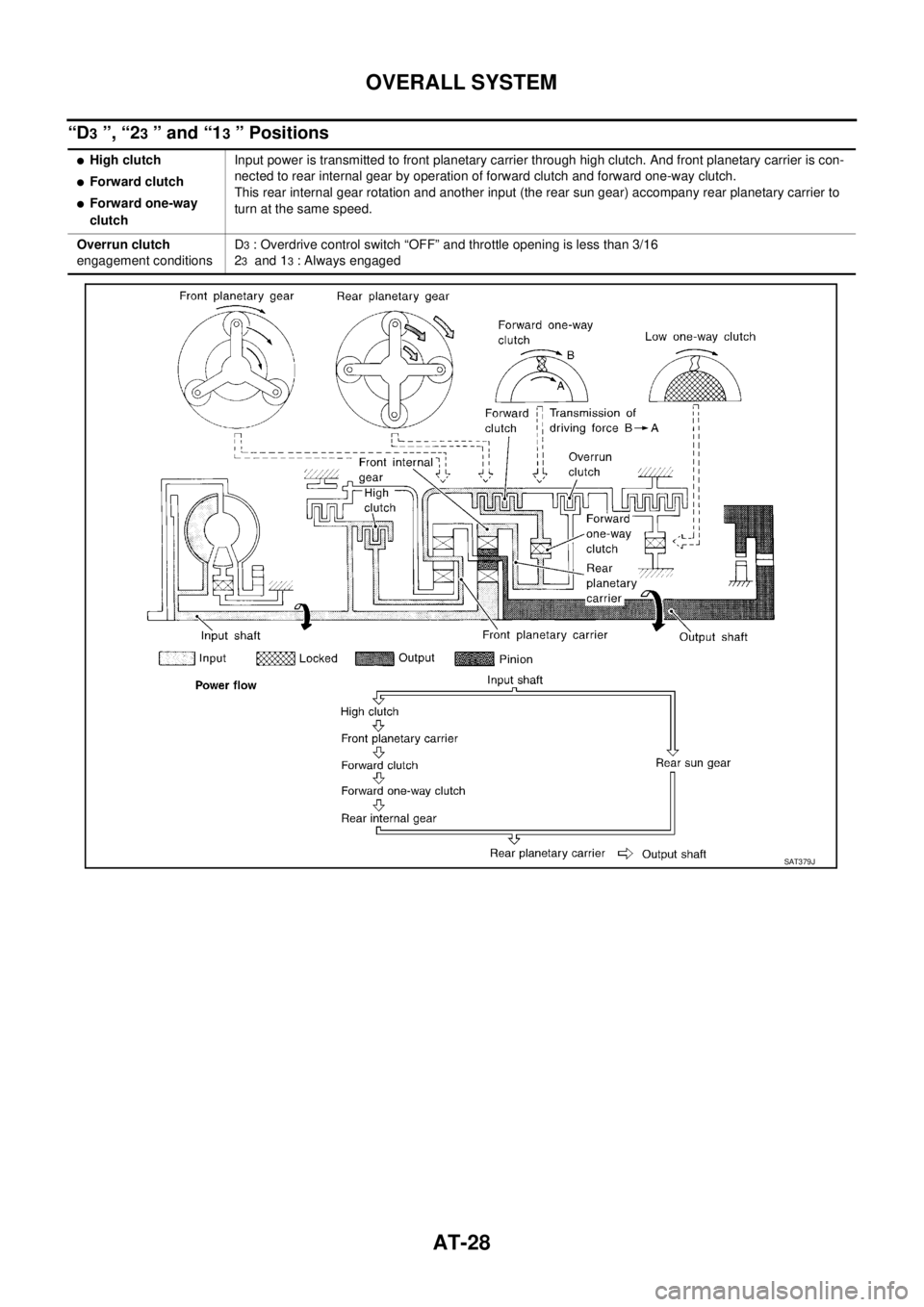

NISSAN X-TRAIL 2003 Service Repair Manual AT-28 OVERALL SYSTEM “D3 ”, “23 ” and “13 ” Positions High clutch Forward clutch Forward one-way clutchInput power is transmitted to front planetary carrier through high clutch. And
