Page 2409 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual TORQUE CONVERTER CLUTCH SOLENOID VALVE AT-373 [ALL] D E F G H I J K L MA B AT 6. CHECK TCM 1. Check TCM input/output signal. Refer to AT- 9 4 , " TCM Terminals and Reference Value" . 2. If NG, rech

Page 2410 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual AT-374 [ALL] BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POW- ER SOURCE) BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POWER SOURCE) PFP:31940 DescriptionECS004U8 The A/T

Page 2411 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POW- ER SOURCE) AT-375 [ALL] D E F G H I J K L MA B AT DTC Confirmation ProcedureECS00CT1 CAUTION: Always drive vehicle at a safe speed.

Page 2412 of 4179

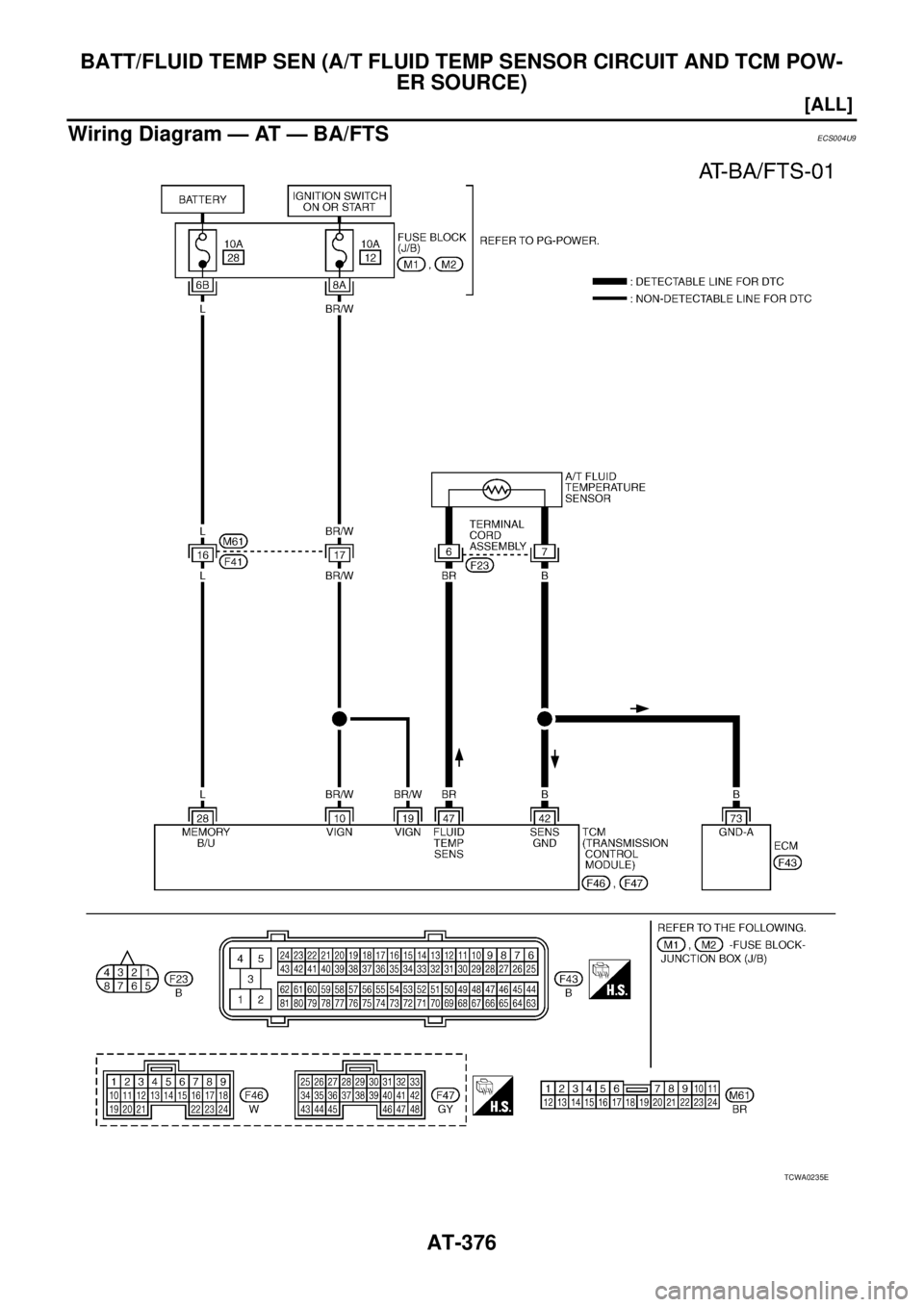

NISSAN X-TRAIL 2003 Service Repair Manual AT-376 [ALL] BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POW- ER SOURCE) Wiring Diagram — AT — BA/FTSECS004U9 TCWA0235E

Page 2413 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POW- ER SOURCE) AT-377 [ALL] D E F G H I J K L MA B AT TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL Diagnostic ProcedureEC

Page 2414 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual AT-378 [ALL] BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POW- ER SOURCE) 2. DETECT MALFUNCTIONING ITEM Check the following items: Harness for short or open between ignition switch an

Page 2415 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POW- ER SOURCE) AT-379 [ALL] D E F G H I J K L MA B AT 5. CHECK FLUID TEMPERATURE SENSOR CIRCUIT 1. Turn ignition switch OFF. 2. Disconn

Page 2416 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual AT-380 [ALL] BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POW- ER SOURCE) 7. CHECK A/T FLUID TEMPERATURE SENSOR WITH TERMINAL CORD ASSEMBLY 1. Turn ignition switch OFF. 2. Disconnect t
