DTC P0192, P0193 FRP SENSOR
EC-999
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

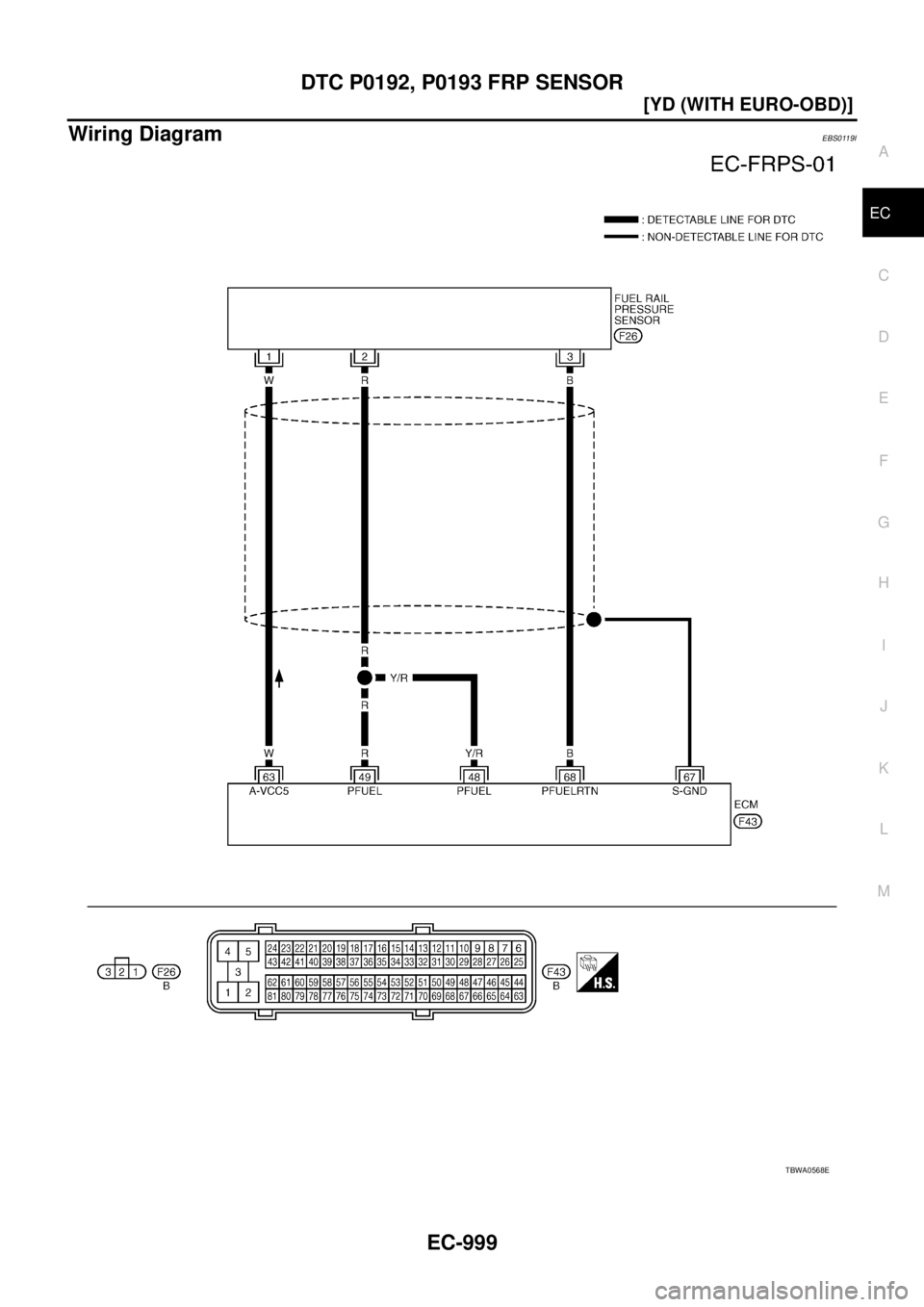

Wiring DiagramEBS0119I
TBWA0568E
