Page 1489 of 4179
DTC P0686 ECM RELAY
EC-1111
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

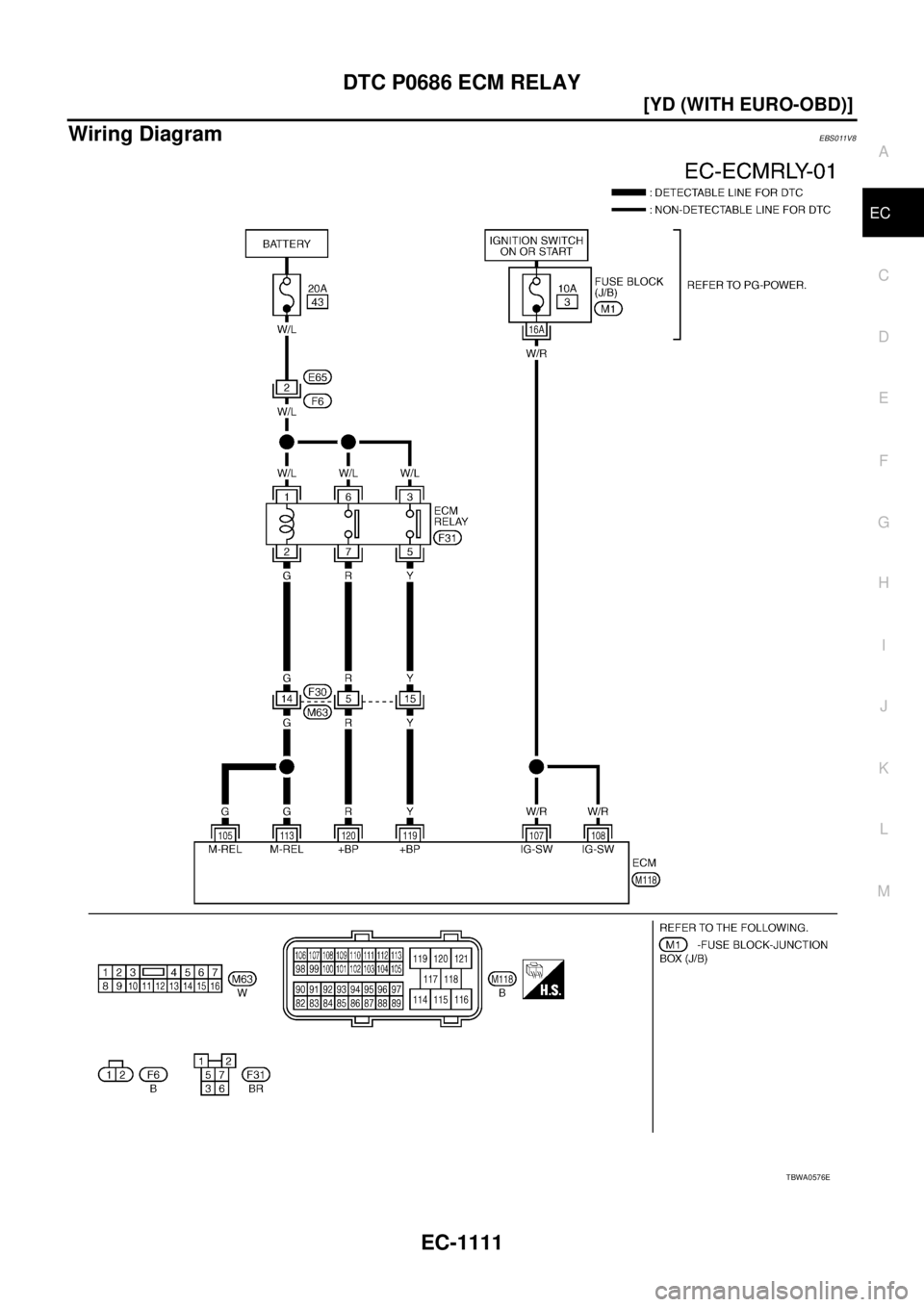

Wiring DiagramEBS011V8
TBWA0576E
Page 1490 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual EC-1112
[YD (WITH EURO-OBD)]
DTC P0686 ECM RELAY
Diagnostic ProcedureEBS011CY
1. CHECK ECM OUTPUT SIGNAL CIRCUIT FOR SHORT TO GROUND
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector. NISSAN X-TRAIL 2003 Service Repair Manual EC-1112
[YD (WITH EURO-OBD)]
DTC P0686 ECM RELAY
Diagnostic ProcedureEBS011CY
1. CHECK ECM OUTPUT SIGNAL CIRCUIT FOR SHORT TO GROUND
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.](/manual-img/5/57404/w960_57404-1489.png)
EC-1112
[YD (WITH EURO-OBD)]
DTC P0686 ECM RELAY
Diagnostic ProcedureEBS011CY
1. CHECK ECM OUTPUT SIGNAL CIRCUIT FOR SHORT TO GROUND
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminals 105, 113 and ground.
Refer to Wiring Diagram.
OK or NG
OK >> GO TO 2.
NG >> Repair short to ground in harness or connectors.
2. CHECK ECM INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM relay.
2. Check harness continuity between ECM terminal 119 and ECM
relay terminal 5, ECM terminals 120 and ECM relay terminal 7.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
3. CHECK ECM RELAY
Refer to E C - 111 2 , "
Component Inspection" .
OK or NG
OK >> GO TO 4.
NG >> Replace ECM relay.
4. CHECK INTERMITTENT INCIDENT
Refer to EC-936, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS011CZ
ECM RELAY
1. Apply 12V direct current between ECM relay terminals 1 and 2.
2. Check continuity between relay terminals 3 and 5, 6 and 7.
3. If NG, replace ECM relay.Continuity should not exist.
Continuity should exist.
PBIB1899E
Condition Continuity
12V direct current supply between ter-
minals 1 and 2Ye s
OFF No
PBIB0077E
Page 1491 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual DTC P1211 TCS CONTROL UNIT
EC-1113
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1211 TCS CONTROL UNITPFP:47850
DescriptionEBS011D0
The malfunction information related to TCS is transferred th NISSAN X-TRAIL 2003 Service Repair Manual DTC P1211 TCS CONTROL UNIT
EC-1113
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1211 TCS CONTROL UNITPFP:47850
DescriptionEBS011D0
The malfunction information related to TCS is transferred th](/manual-img/5/57404/w960_57404-1490.png)
DTC P1211 TCS CONTROL UNIT
EC-1113
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1211 TCS CONTROL UNITPFP:47850
DescriptionEBS011D0
The malfunction information related to TCS is transferred through the CAN communication line from ESP/
TCS/ABS control unit to ECM.
Be sure to erase the malfunction information such as DTC not only for ESP/TCS/ABS control unit but
also for ECM after TCS related repair.
On Board Diagnosis LogicEBS011D1
This self-diagnosis has the one trip detection logic.
The MI will not light up for this self-diagnosis.
DTC Confirmation ProcedureEBS011D2
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 5 seconds.
4. If DTC is detected, go to E C - 111 3 , "
Diagnostic Procedure" .
WITH GST
Folow the procedure “WITH CONSLT-II” above.
Diagnostic ProcedureEBS011D3
Go to BRC-58, "TROUBLE DIAGNOSIS" (models with ESP system) or BRC-11, "TROUBLE DIAGNOSIS"
(model without ESP system).
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1211 TCS control unitECM receives a malfunction information from
ESP/TCS/ABS control unit.
ESP/TCS/ABS control unit
TCS related parts
SEF817Y
Page 1492 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual EC-1114
[YD (WITH EURO-OBD)]
DTC P1212 TCS COMMUNICATION LINE
DTC P1212 TCS COMMUNICATION LINEPFP:47850
DescriptionEBS011D4
NOTE:
If DTC P1212 is displayed with DTC U1000, first perform the trouble NISSAN X-TRAIL 2003 Service Repair Manual EC-1114
[YD (WITH EURO-OBD)]
DTC P1212 TCS COMMUNICATION LINE
DTC P1212 TCS COMMUNICATION LINEPFP:47850
DescriptionEBS011D4
NOTE:
If DTC P1212 is displayed with DTC U1000, first perform the trouble](/manual-img/5/57404/w960_57404-1491.png)
EC-1114
[YD (WITH EURO-OBD)]
DTC P1212 TCS COMMUNICATION LINE
DTC P1212 TCS COMMUNICATION LINEPFP:47850
DescriptionEBS011D4
NOTE:
If DTC P1212 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to
EC-944, "
DTC U1000 CAN COMMUNICATION LINE" .
This CAN communication line is used to control the smooth engine operation during the TCS operation. Pulse
signals are exchanged between ECM and ESP/TCS/ABS control unit.
Be sure to erase the malfunction information such as DTC not only for ESP/TCS/ABS control unit but
also for ECM after TCS related repair.
On Board Diagnosis LogicEBS011D5
This self-diagnosis has the one trip detection logic.
The MI will not light up for this self-diagnosis.
DTC Confirmation ProcedureEBS011D6
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 5 seconds.
4. If DTC is detected, go to E C - 111 4 , "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
Diagnostic ProcedureEBS011D7
1. CHECK ESP/TCS/ABS CONTROL UNIT FUNCTION
Refer to BRC-58, "
TROUBLE DIAGNOSIS" (models with ESP system) or BRC-11, "TROUBLE DIAGNOSIS"
(models without ESP system).
>>INSPECTION END
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1212 TCS communication lineECM can not receive the information from ESP/
TCS/ABS control unit continuously.
Harness or connectors
(The CAN communication line is
open or shorted.)
ESP/TCS/ABS control unit
Dead (Weak) battery
SEF817Y
Page 1493 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual DTC P1260 - P1267 FUEL INJECTOR ADJUSTMENT RESISTOR
EC-1115
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1260 - P1267 FUEL INJECTOR ADJUSTMENT RESISTORPFP:16600
DescriptionEBS011D8
The fuel i NISSAN X-TRAIL 2003 Service Repair Manual DTC P1260 - P1267 FUEL INJECTOR ADJUSTMENT RESISTOR
EC-1115
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1260 - P1267 FUEL INJECTOR ADJUSTMENT RESISTORPFP:16600
DescriptionEBS011D8
The fuel i](/manual-img/5/57404/w960_57404-1492.png)
DTC P1260 - P1267 FUEL INJECTOR ADJUSTMENT RESISTOR
EC-1115
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1260 - P1267 FUEL INJECTOR ADJUSTMENT RESISTORPFP:16600
DescriptionEBS011D8
The fuel injector adjustment resistor is built into the fuel injector. The resistance is constant and individual.
ECM uses the individual resistance to determine the fuel injection pulse.
ECM Terminals and Reference ValueEBS011D9
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
On Board Diagnosis LogicEBS011DA
TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage)
59
60
61
62W/B
Y/B
G/B
R/BFuel injector adjustment
resistor No. 1
Fuel injector adjustment
resistor No. 3
Fuel injector adjustment
resistor No. 4
Fuel injector adjustment
resistor No. 2[Ignition switch ON]0.5 - 5.1V
(There are individual differences
between fuel injector adjustment
resistors.)
78 RFuel injector adjustment
resistor ground[Ignition switch ON]Approximately 0.3V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1260No. 1 cylinder fuel injector
adjustment resistor low
inputAn excessively low voltage from the No. 1 cylin-
der fuel injector adjustment resistor is sent to
ECM.
Harness or connectors
(The fuel injector adjustment resistor
circuit is open or shorted.)
Fuel injector adjustment resistor P1261No. 1 cylinder fuel injector
adjustment resistor high
inputAn excessively high voltage from the No. 1 cylin-
der fuel injector adjustment resistor is sent to
ECM.
P1262No. 2 cylinder fuel injector
adjustment resistor low
inputAn excessively low voltage from the No. 2 cylin-
der fuel injector adjustment resistor is sent to
ECM.
P1263No. 2 cylinder fuel injector
adjustment resistor high
inputAn excessively high voltage from the No. 2 cylin-
der fuel injector adjustment resistor is sent to
ECM.
P1264No. 3 cylinder fuel injector
adjustment resistor low
inputAn excessively low voltage from the No. 3 cylin-
der fuel injector adjustment resistor is sent to
ECM.
P1265No. 3 cylinder fuel injector
adjustment resistor high
inputAn excessively high voltage from the No. 3 cylin-
der fuel injector adjustment resistor is sent to
ECM.
P1266No. 4 cylinder fuel injector
adjustment resistor low
inputAn excessively low voltage from the No. 4 cylin-
der fuel injector adjustment resistor is sent to
ECM.
P1267No. 4 cylinder fuel injector
adjustment resistor high
inputAn excessively high voltage from the No. 4 cylin-
der fuel injector adjustment resistor is sent to
ECM.
Page 1494 of 4179
EC-1116
[YD (WITH EURO-OBD)]
DTC P1260 - P1267 FUEL INJECTOR ADJUSTMENT RESISTOR
DTC Confirmation ProcedureEBS011DB
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 5 seconds.
4. If 1st trip DTC is detected, go to E C - 111 8 , "
Diagnostic Proce-
dure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
SEF817Y
Page 1495 of 4179
DTC P1260 - P1267 FUEL INJECTOR ADJUSTMENT RESISTOR
EC-1117
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

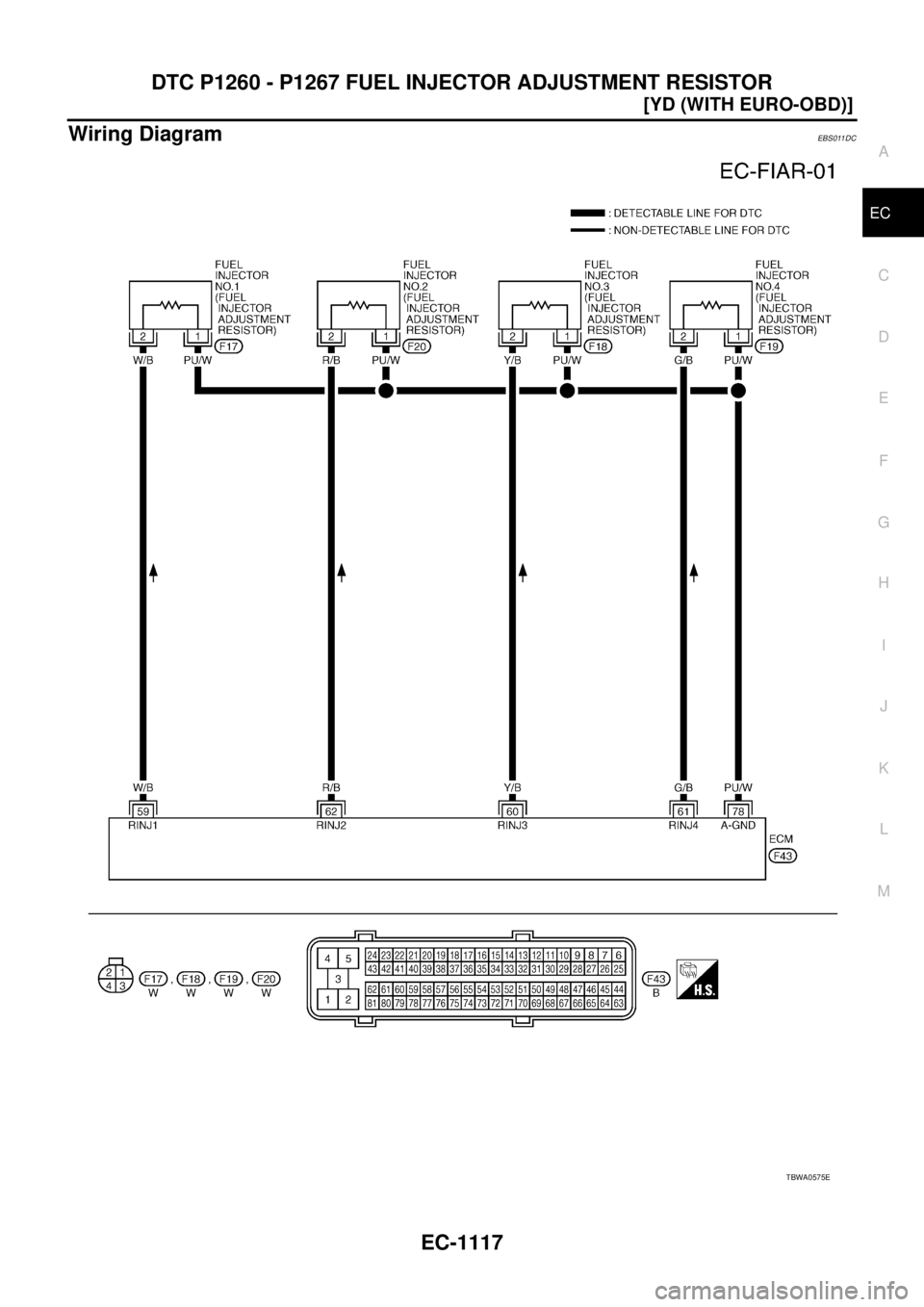

Wiring DiagramEBS011DC
TBWA0575E
Page 1496 of 4179
EC-1118
[YD (WITH EURO-OBD)]
DTC P1260 - P1267 FUEL INJECTOR ADJUSTMENT RESISTOR
Diagnostic ProcedureEBS011DD
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten engine ground screws. Refer to EC-943, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
PBIB2020E
