Page 1809 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P1274 FUEL PUMP EC-1431 [YD (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC Component InspectionEBS0124D FUEL PUMP 1. Check continuity between fuel pump terminals 1 and 2. 2. If NG, replace fuel p

Page 1810 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-1432 [YD (WITHOUT EURO-OBD)] DTC P1275 FUEL PUMP DTC P1275 FUEL PUMPPFP:16700 DescriptionEBS0124F To control the amount of the fuel inhalation of the fuel pump, a plunger is built into the fuel p

Page 1811 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P1275 FUEL PUMP EC-1433 [YD (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC : Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.) On Board Diagnosis LogicEBS01

Page 1812 of 4179

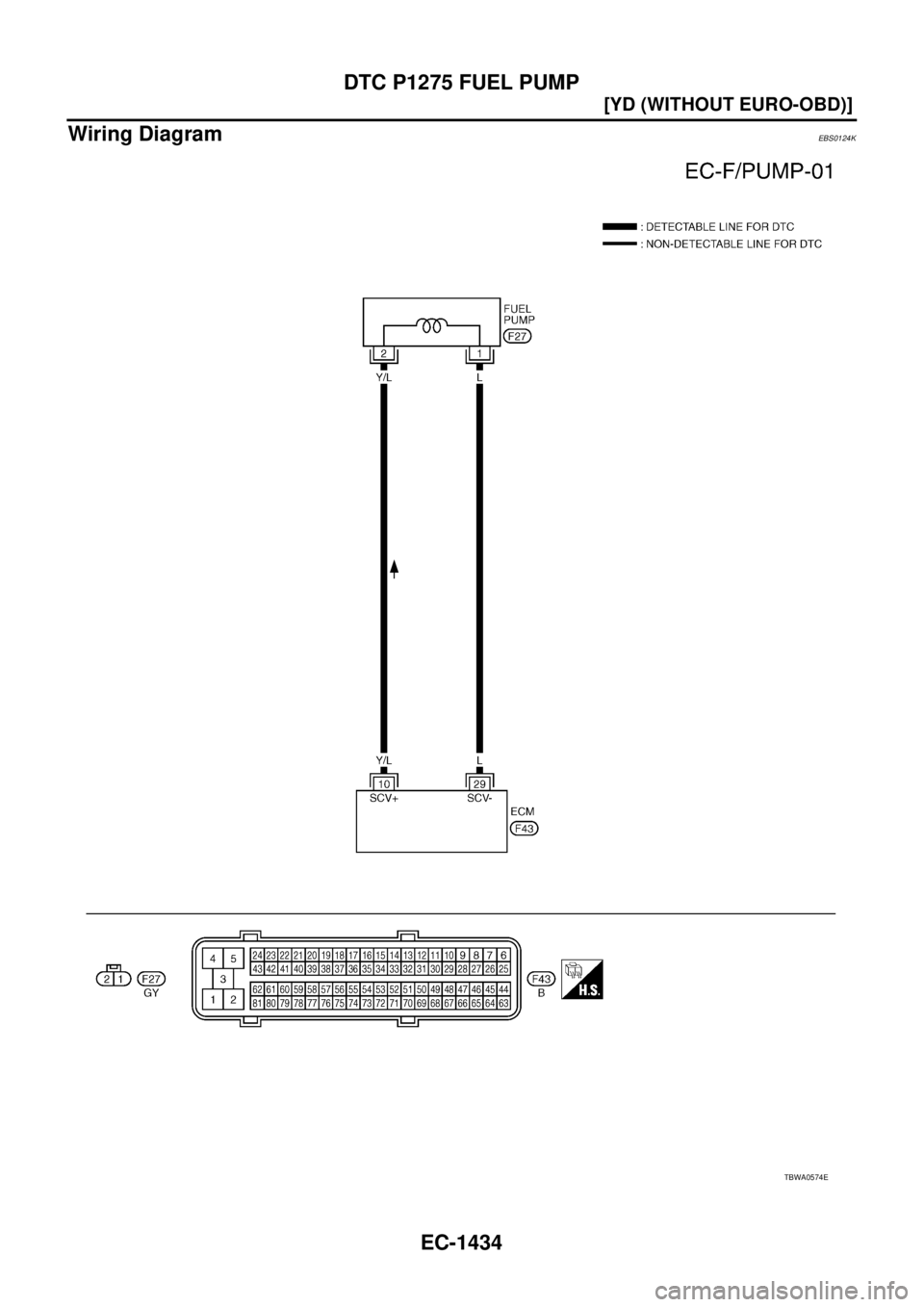

NISSAN X-TRAIL 2003 Service Repair Manual EC-1434 [YD (WITHOUT EURO-OBD)] DTC P1275 FUEL PUMP Wiring DiagramEBS0124K TBWA0574E

Page 1813 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P1275 FUEL PUMP EC-1435 [YD (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC Diagnostic ProcedureEBS0124L 1. CHECK ECM OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT 1. Turn ignition switch OFF. 2. Disco

Page 1814 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-1436 [YD (WITHOUT EURO-OBD)] DTC P1275 FUEL PUMP Component InspectionEBS0124M FUEL PUMP 1. Check continuity between fuel pump terminals 1 and 2. 2. If NG, replace fuel pump. Removal and Installat

Page 1815 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P2135 APP SENSOR EC-1437 [YD (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC DTC P2135 APP SENSORPFP:18002 DescriptionEBS0124O The accelerator pedal position sensor is installed on the upper end o

Page 1816 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-1438 [YD (WITHOUT EURO-OBD)] DTC P2135 APP SENSOR On Board Diagnosis LogicEBS0124R The MI will not light up for this self-diagnosis. DTC Confirmation ProcedureEBS0124S NOTE: If DTC Confirmation P
