POWER DOOR LOCK — SUPER LOCK —
BL-43
C
D
E
F
G
H
J
K
L
MA
B
BL
Key reminder system
If the ignition key is in the ignition key cylinder and driver door is open, setting lock/unlock switch, lock
knob, key or multi-remote controller to “LOCK” locks the door once but then immediately unlocks all doors.
(signal from door unlock sensor driver side)
System initialization
System initialization is required when battery cables are reconnected. Conduct the following to release
super lock once;
– insert the key into the ignition key cylinder and turn it to ON.
– LOCK/UNLOCK operation using door key cylinder or multi-remote controller.
Page 3098 of 4179
BL-44
POWER DOOR LOCK — SUPER LOCK —

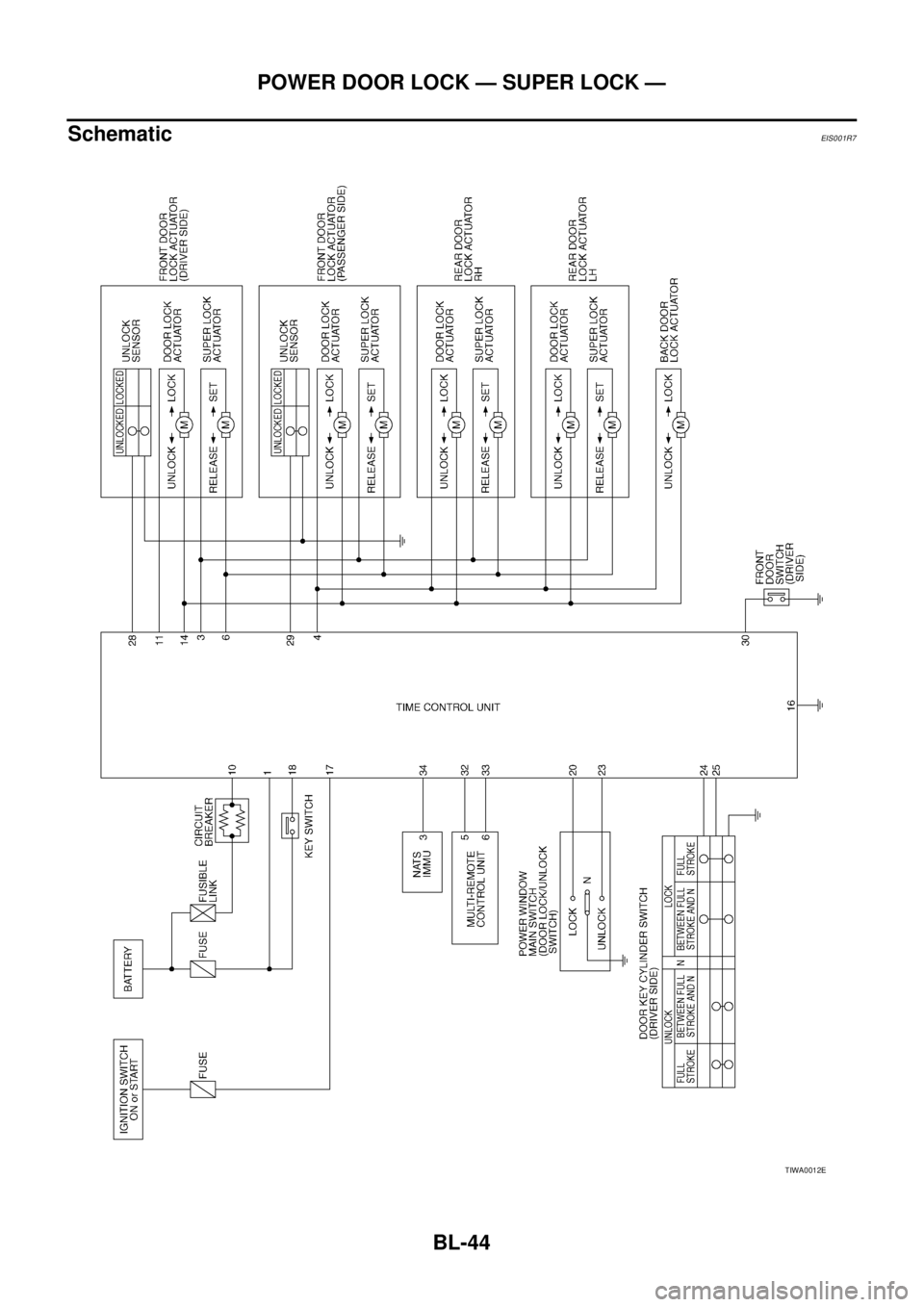

SchematicEIS001R7
TIWA0012E
Page 3099 of 4179
POWER DOOR LOCK — SUPER LOCK —
BL-45
C
D
E
F
G
H
J
K
L
MA
B
BL

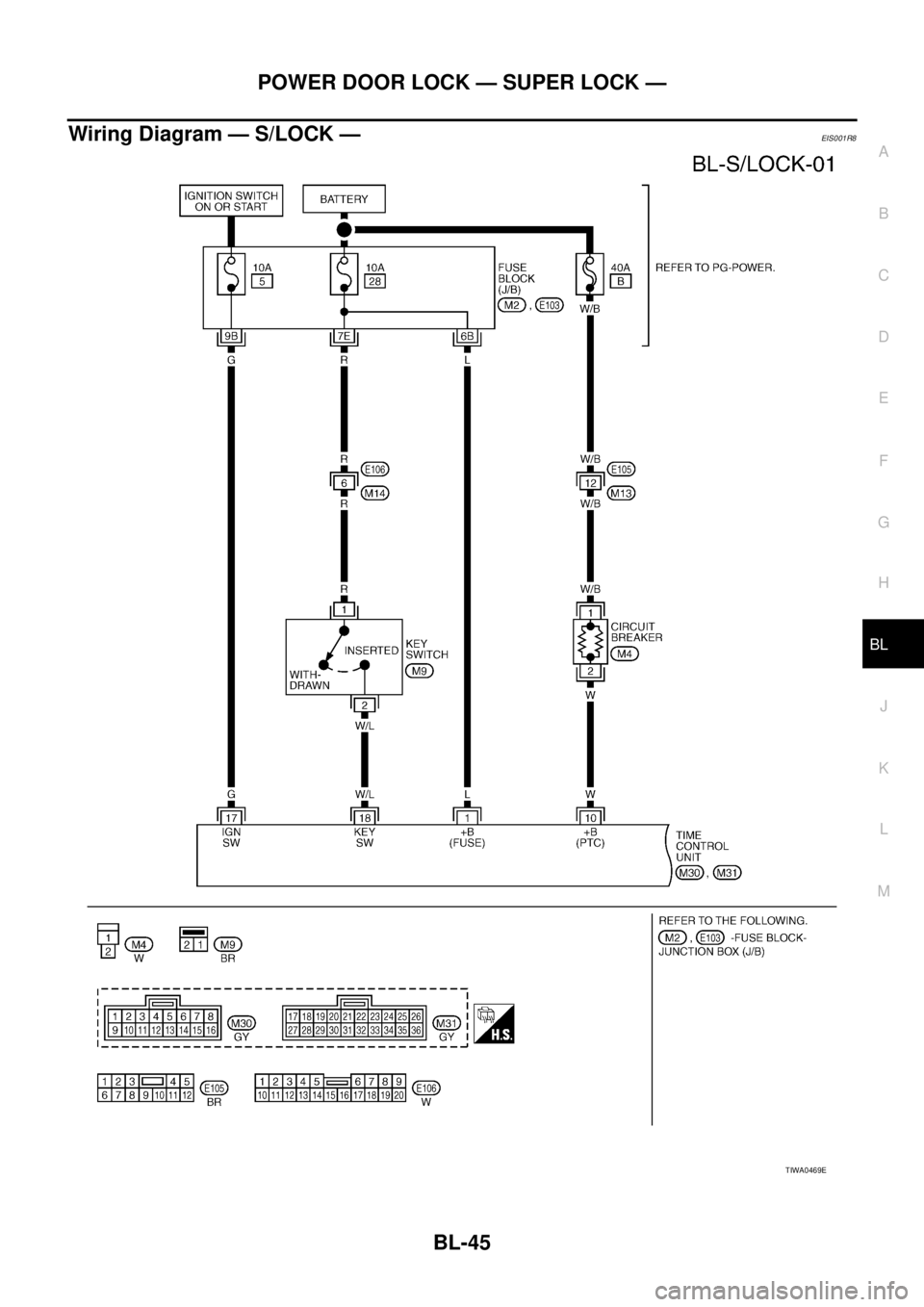

Wiring Diagram — S/LOCK —EIS001R8

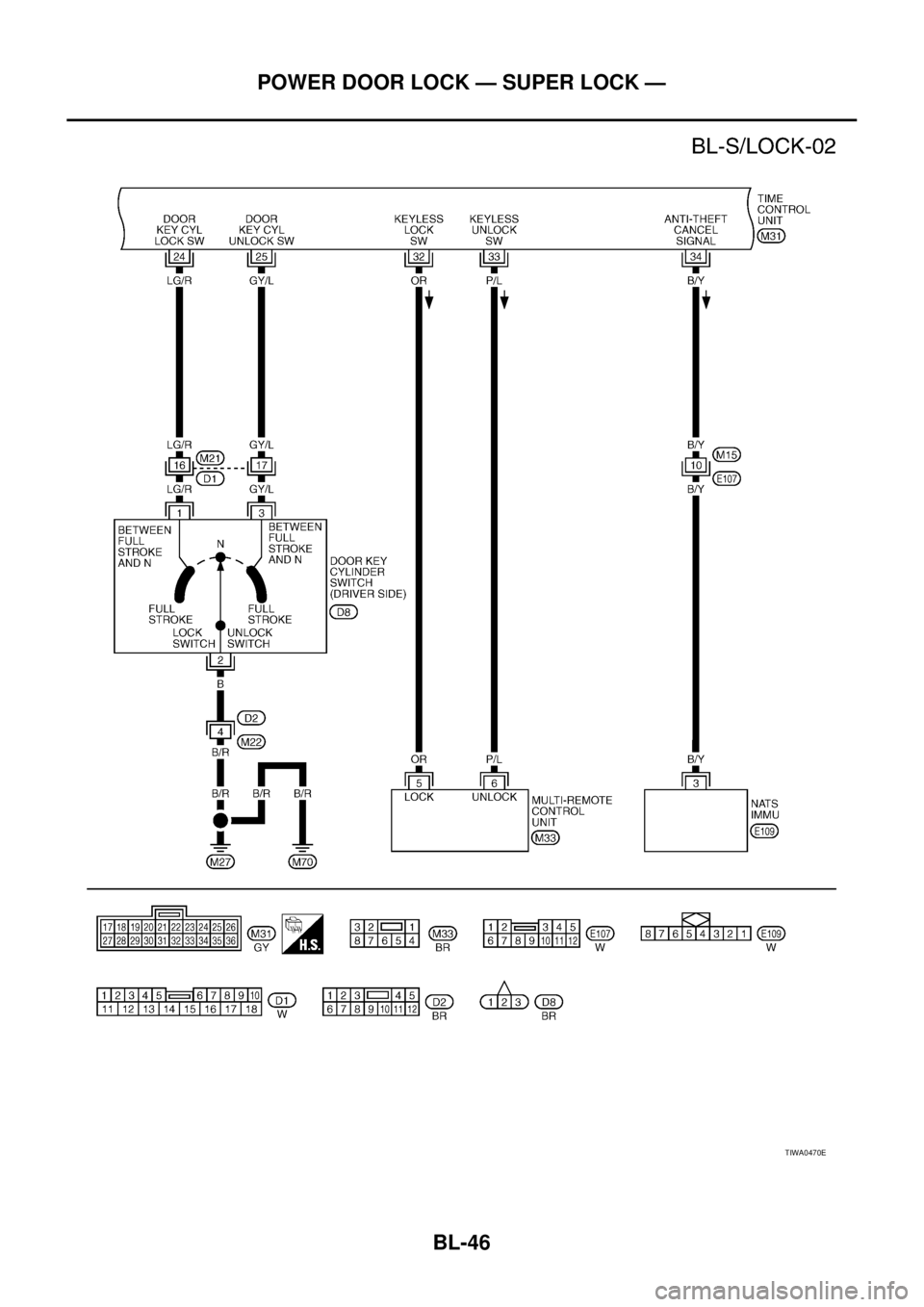

TIWA0469E
Page 3100 of 4179
BL-46
POWER DOOR LOCK — SUPER LOCK —
TIWA0470E
Page 3101 of 4179
POWER DOOR LOCK — SUPER LOCK —
BL-47
C
D
E
F
G
H
J
K
L
MA
B
BL

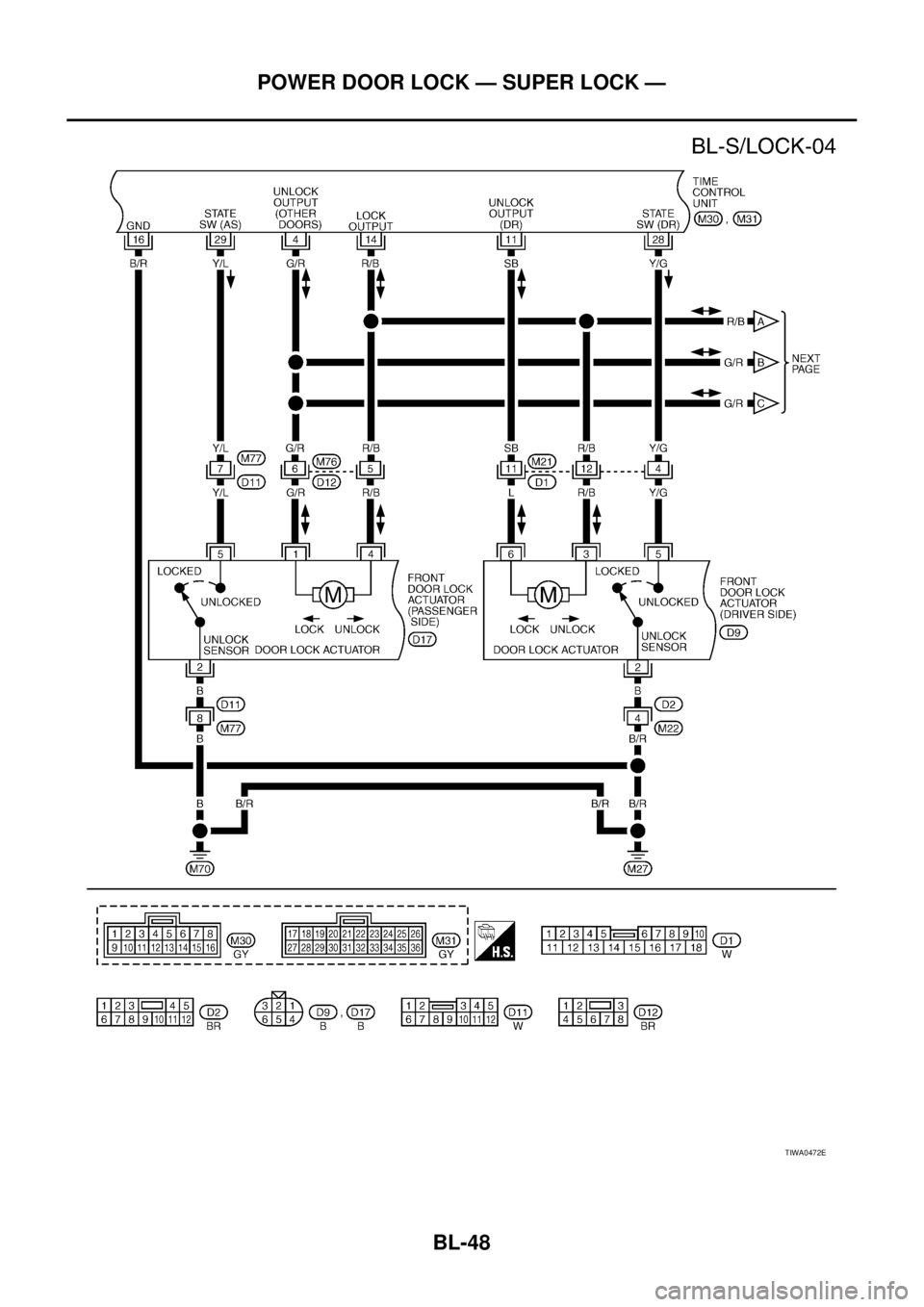

TIWA0471E
Page 3102 of 4179
BL-48
POWER DOOR LOCK — SUPER LOCK —

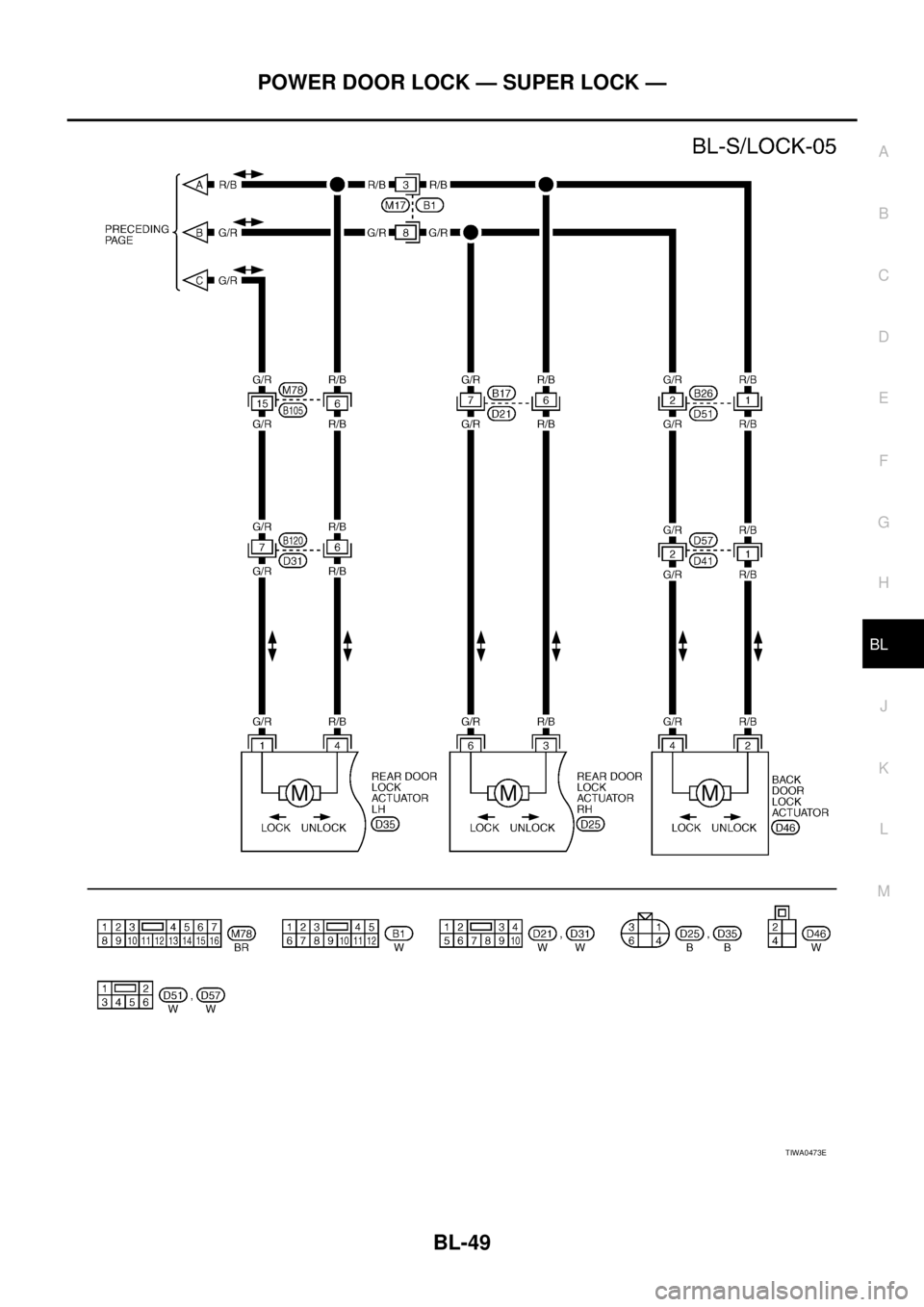

TIWA0472E
Page 3103 of 4179
POWER DOOR LOCK — SUPER LOCK —
BL-49
C
D
E
F
G
H
J
K
L
MA
B
BL

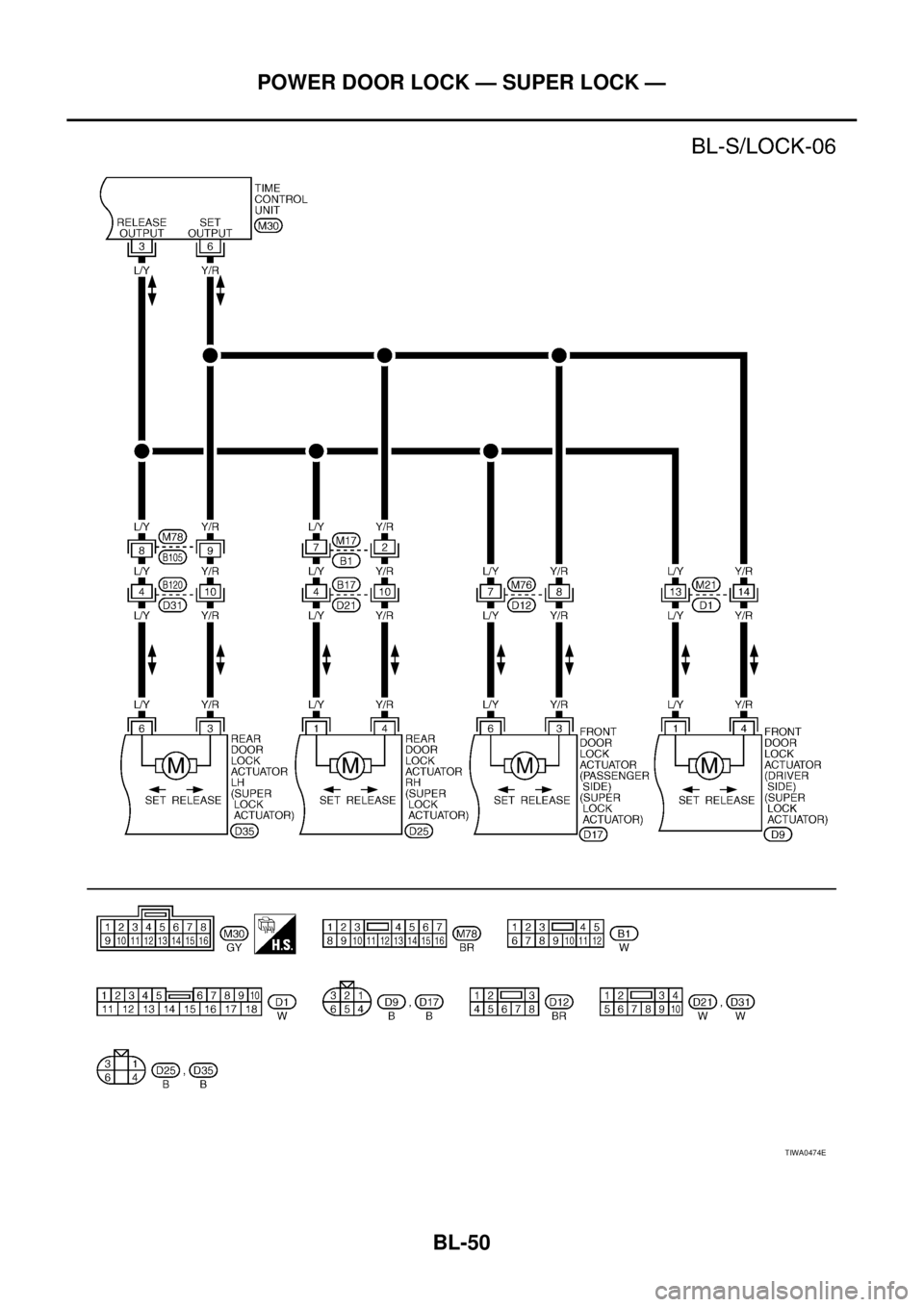

TIWA0473E
Page 3104 of 4179
BL-50
POWER DOOR LOCK — SUPER LOCK —
TIWA0474E
