Page 3809 of 4179

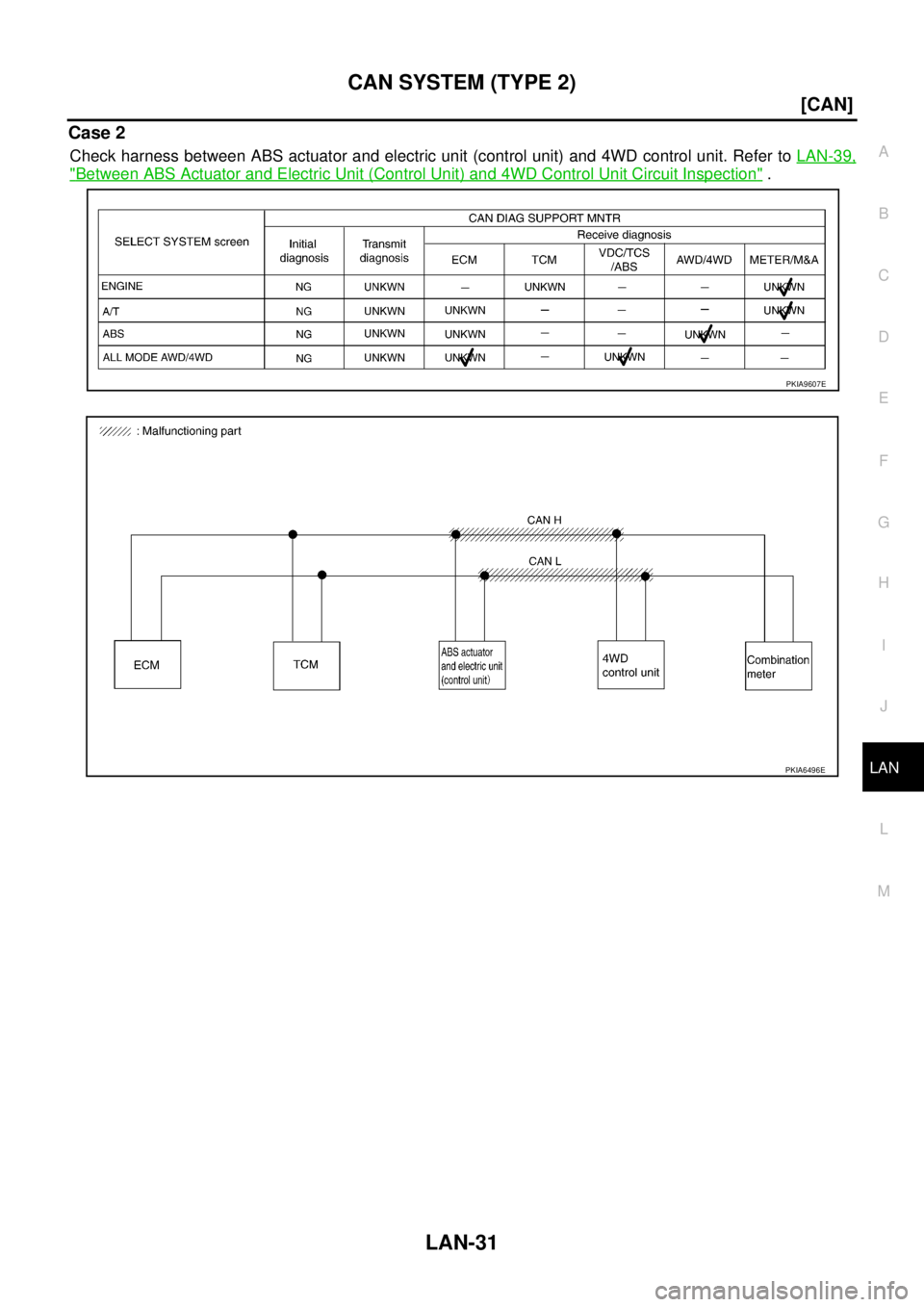

NISSAN X-TRAIL 2003 Service Repair Manual CAN SYSTEM (TYPE 2) LAN-31 [CAN] C D E F G H I J L MA B LAN Case 2 Check harness between ABS actuator and electric unit (control unit) and 4WD control unit. Refer to LAN-39, "Between ABS Actuator an

Page 3810 of 4179

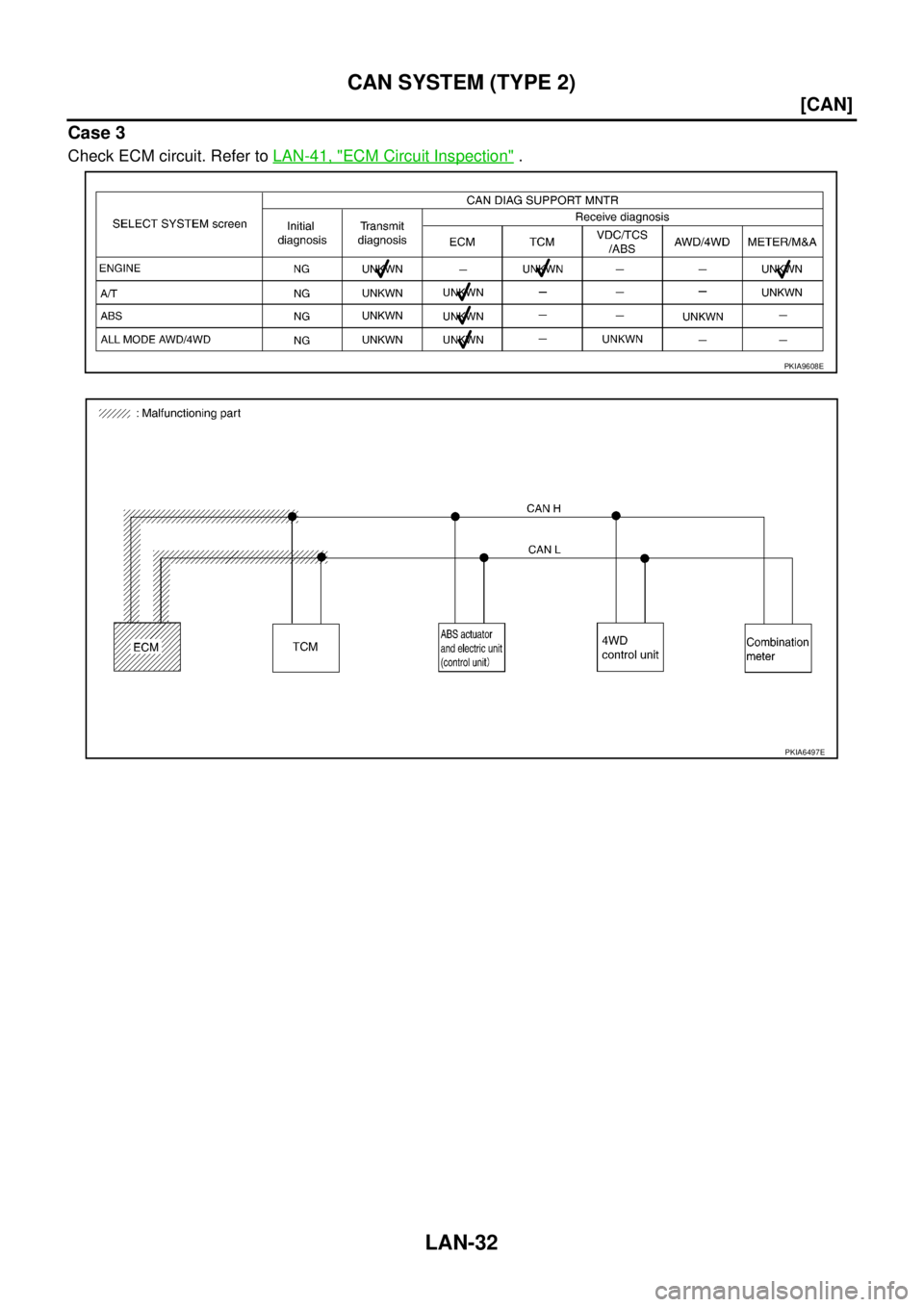

NISSAN X-TRAIL 2003 Service Repair Manual LAN-32 [CAN] CAN SYSTEM (TYPE 2) Case 3 Check ECM circuit. Refer to LAN-41, "ECM Circuit Inspection" . PKIA9608E PKIA6497E

Page 3811 of 4179

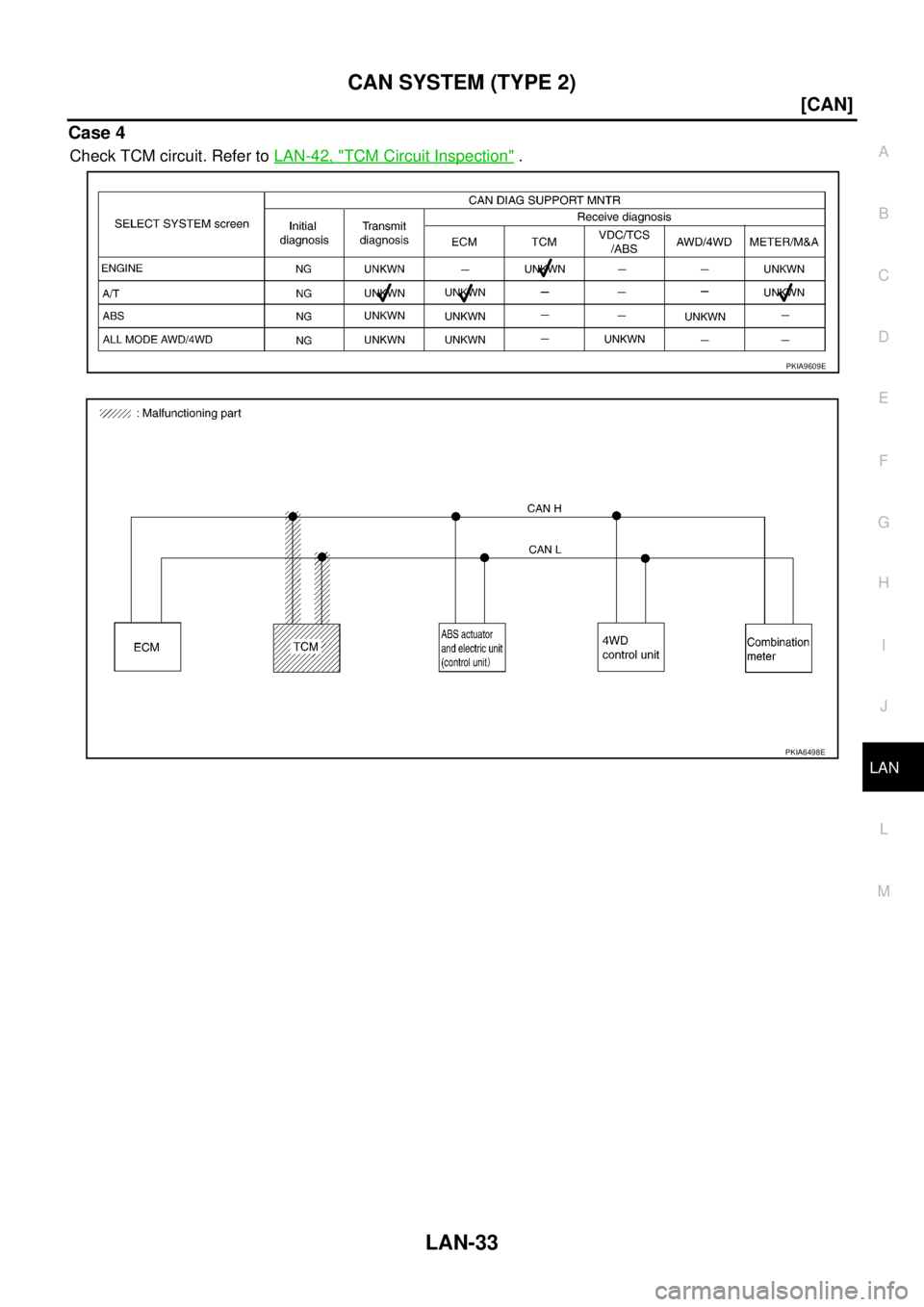

NISSAN X-TRAIL 2003 Service Repair Manual CAN SYSTEM (TYPE 2) LAN-33 [CAN] C D E F G H I J L MA B LAN Case 4 Check TCM circuit. Refer to LAN-42, "TCM Circuit Inspection" . PKIA9609E PKIA6498E

Page 3812 of 4179

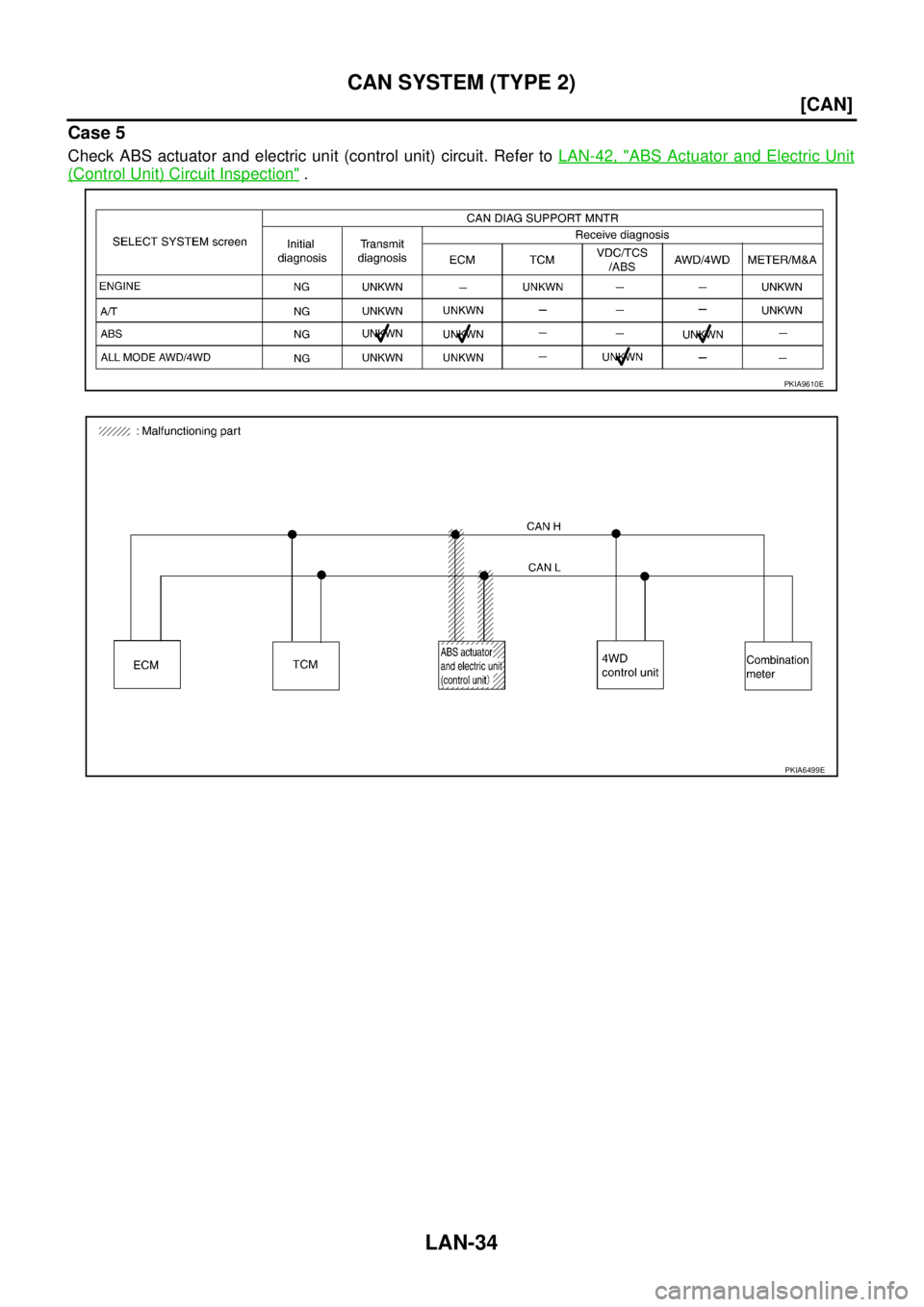

NISSAN X-TRAIL 2003 Service Repair Manual LAN-34 [CAN] CAN SYSTEM (TYPE 2) Case 5 Check ABS actuator and electric unit (control unit) circuit. Refer to LAN-42, "ABS Actuator and Electric Unit (Control Unit) Circuit Inspection" . PKIA9610E P

Page 3813 of 4179

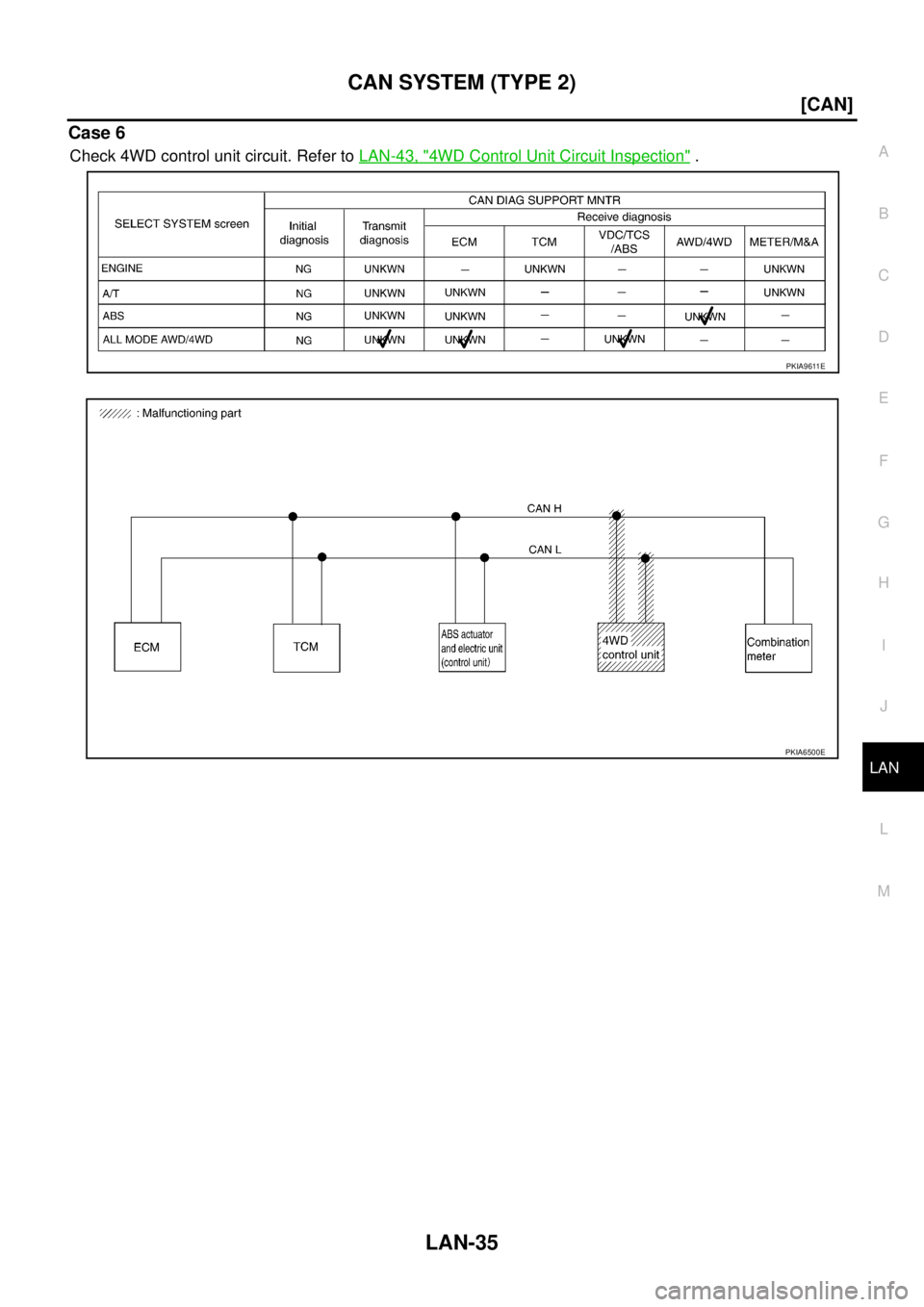

NISSAN X-TRAIL 2003 Service Repair Manual CAN SYSTEM (TYPE 2) LAN-35 [CAN] C D E F G H I J L MA B LAN Case 6 Check 4WD control unit circuit. Refer to LAN-43, "4WD Control Unit Circuit Inspection" . PKIA9611E PKIA6500E

Page 3814 of 4179

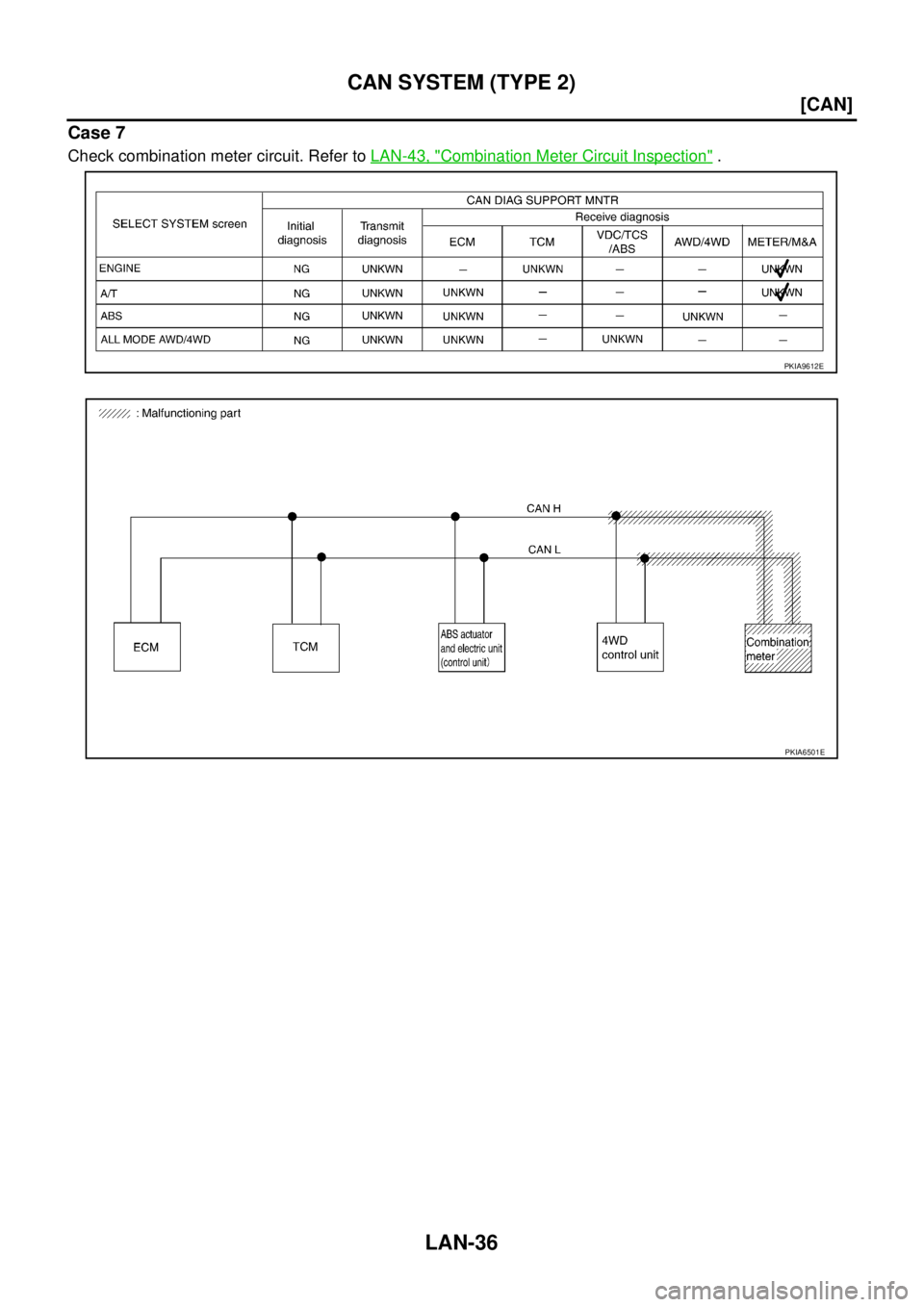

NISSAN X-TRAIL 2003 Service Repair Manual LAN-36 [CAN] CAN SYSTEM (TYPE 2) Case 7 Check combination meter circuit. Refer to LAN-43, "Combination Meter Circuit Inspection" . PKIA9612E PKIA6501E

Page 3815 of 4179

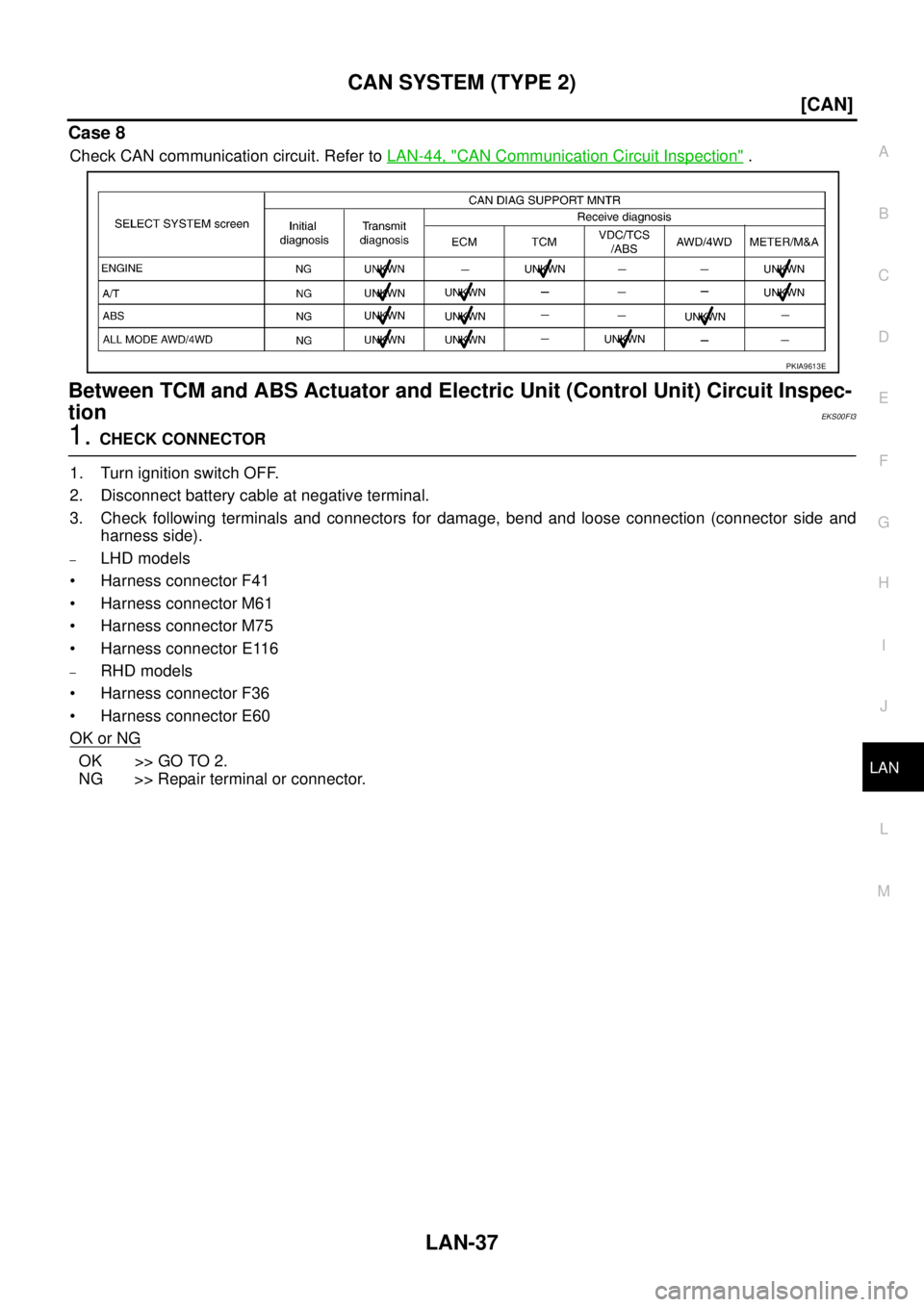

NISSAN X-TRAIL 2003 Service Repair Manual CAN SYSTEM (TYPE 2) LAN-37 [CAN] C D E F G H I J L MA B LAN Case 8 Check CAN communication circuit. Refer to LAN-44, "CAN Communication Circuit Inspection" . Between TCM and ABS Actuator and Electri

Page 3816 of 4179

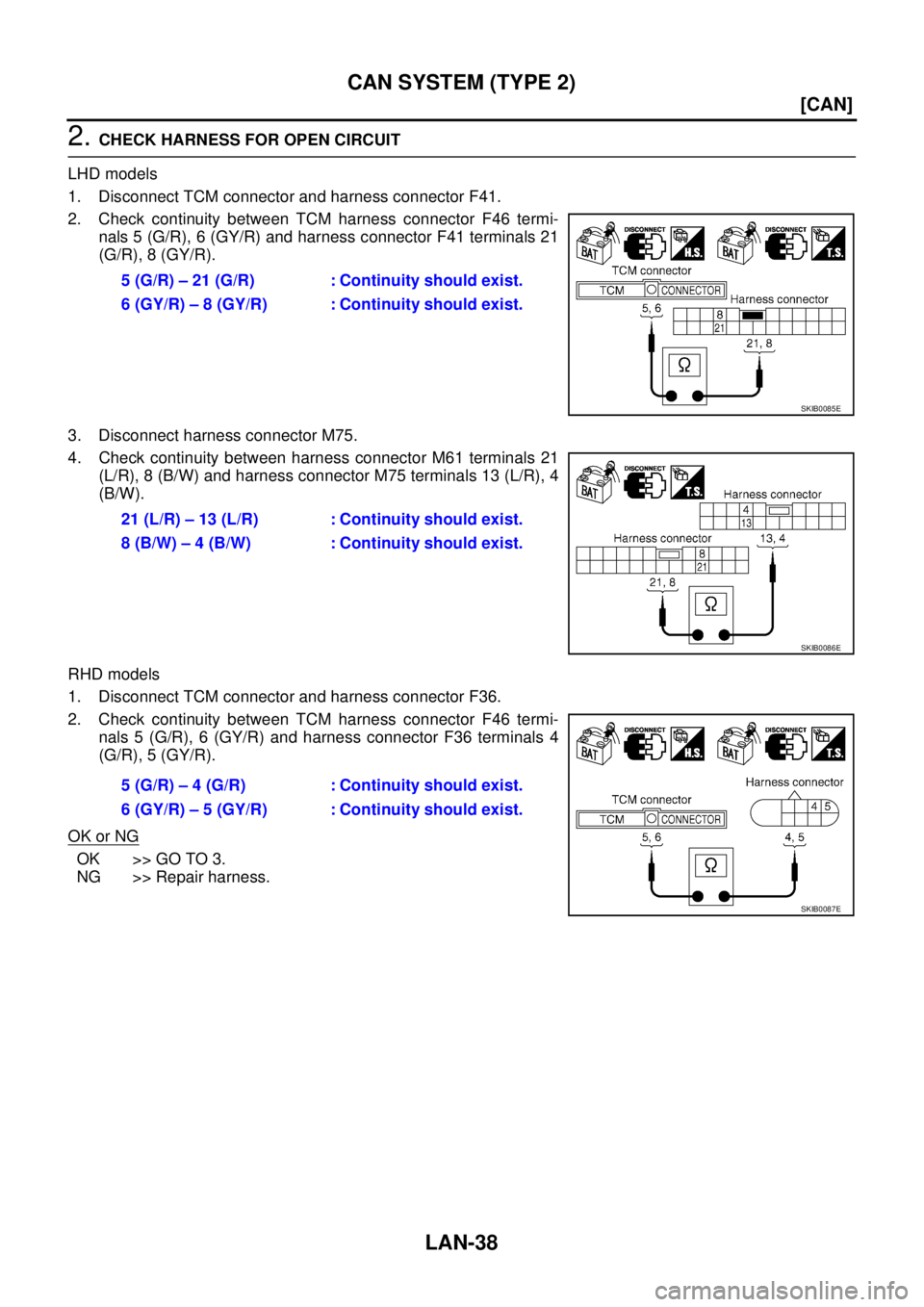

NISSAN X-TRAIL 2003 Service Repair Manual LAN-38 [CAN] CAN SYSTEM (TYPE 2) 2. CHECK HARNESS FOR OPEN CIRCUIT LHD models 1. Disconnect TCM connector and harness connector F41. 2. Check continuity between TCM harness connector F46 termi- nals
