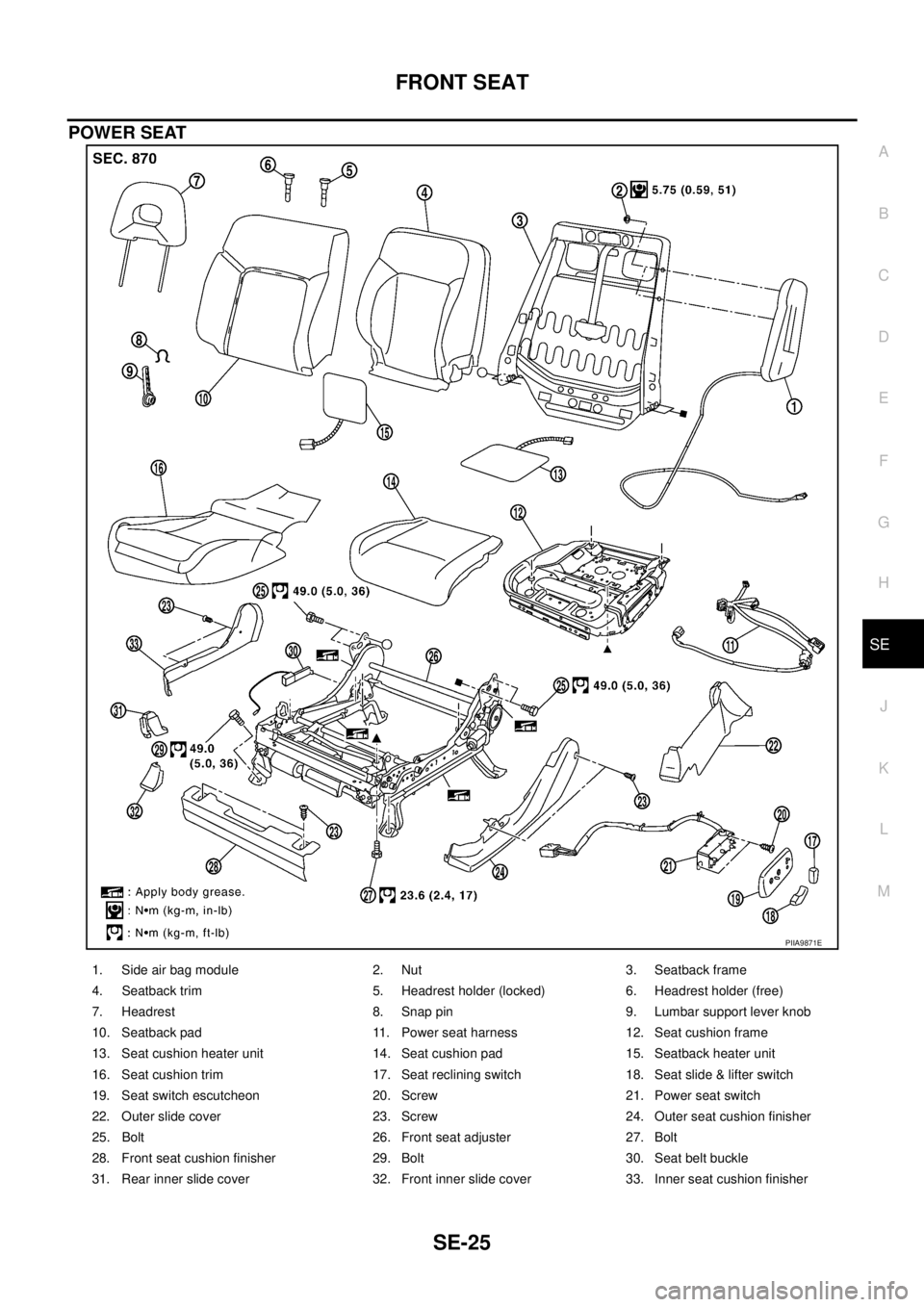

NISSAN X-TRAIL 2003 Service Repair Manual FRONT SEAT SE-25 C D E F G H J K L MA B SE POWER SEAT PIIA9871E 1. Side air bag module 2. Nut 3. Seatback frame 4. Seatback trim 5. Headrest holder (locked) 6. Headrest holder (free) 7. Headrest 8.

Page 3386 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual SE-26 FRONT SEAT Removal and InstallationEIS000NO REMOVAL 1. Remove slide cover. NOTE: 1. Slide the seat forward. 2. Undo the outer slide cover front fitting and then undo the rear fitting. 3. Pull

Page 3387 of 4179

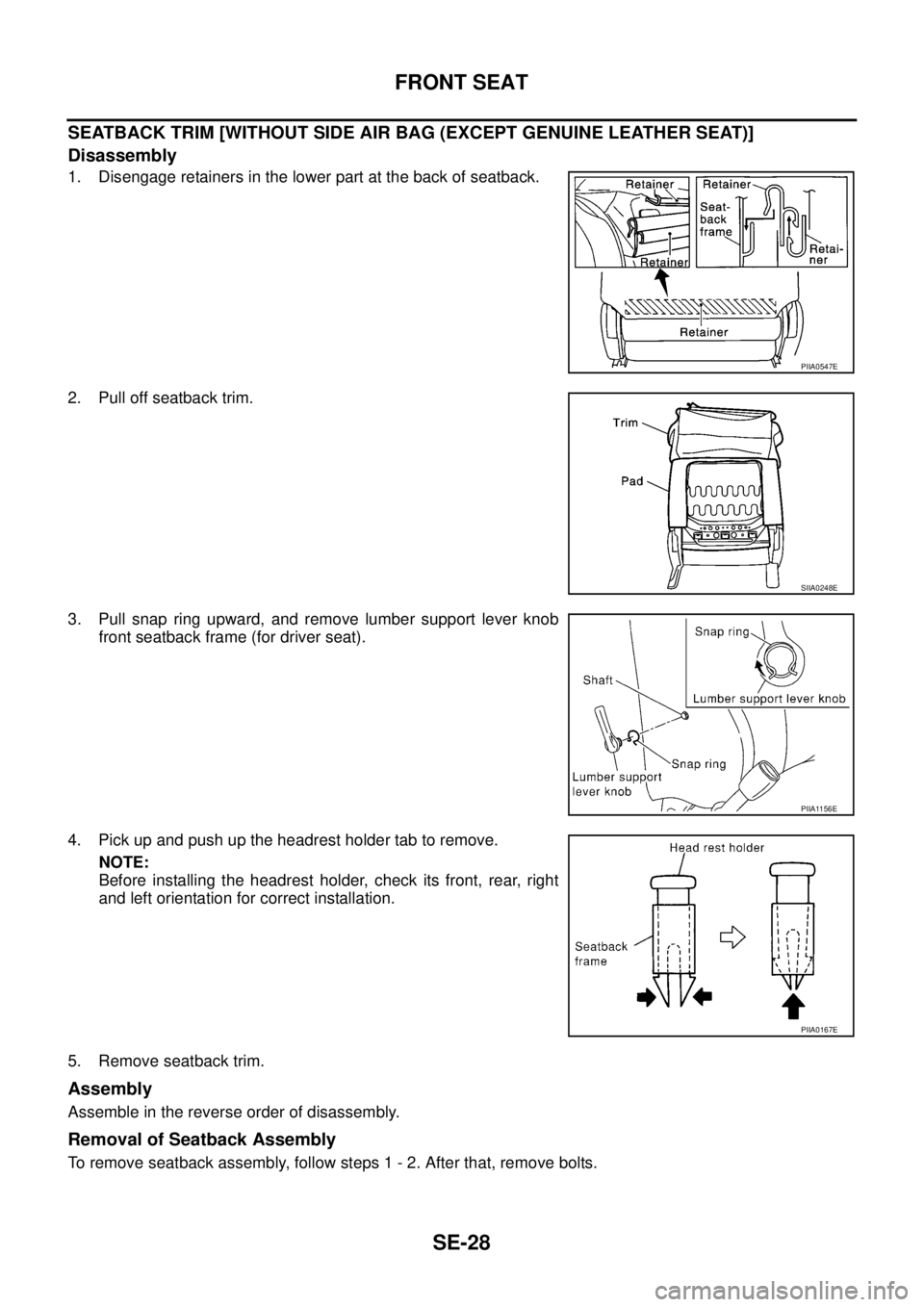

NISSAN X-TRAIL 2003 Service Repair Manual FRONT SEAT SE-27 C D E F G H J K L MA B SE 3. Remove nuts, and remove inner cross fixed stay. 4. Pull snap ring upward, and remove lumber support lever knob front seatback frame (for driver seat).

Page 3388 of 4179

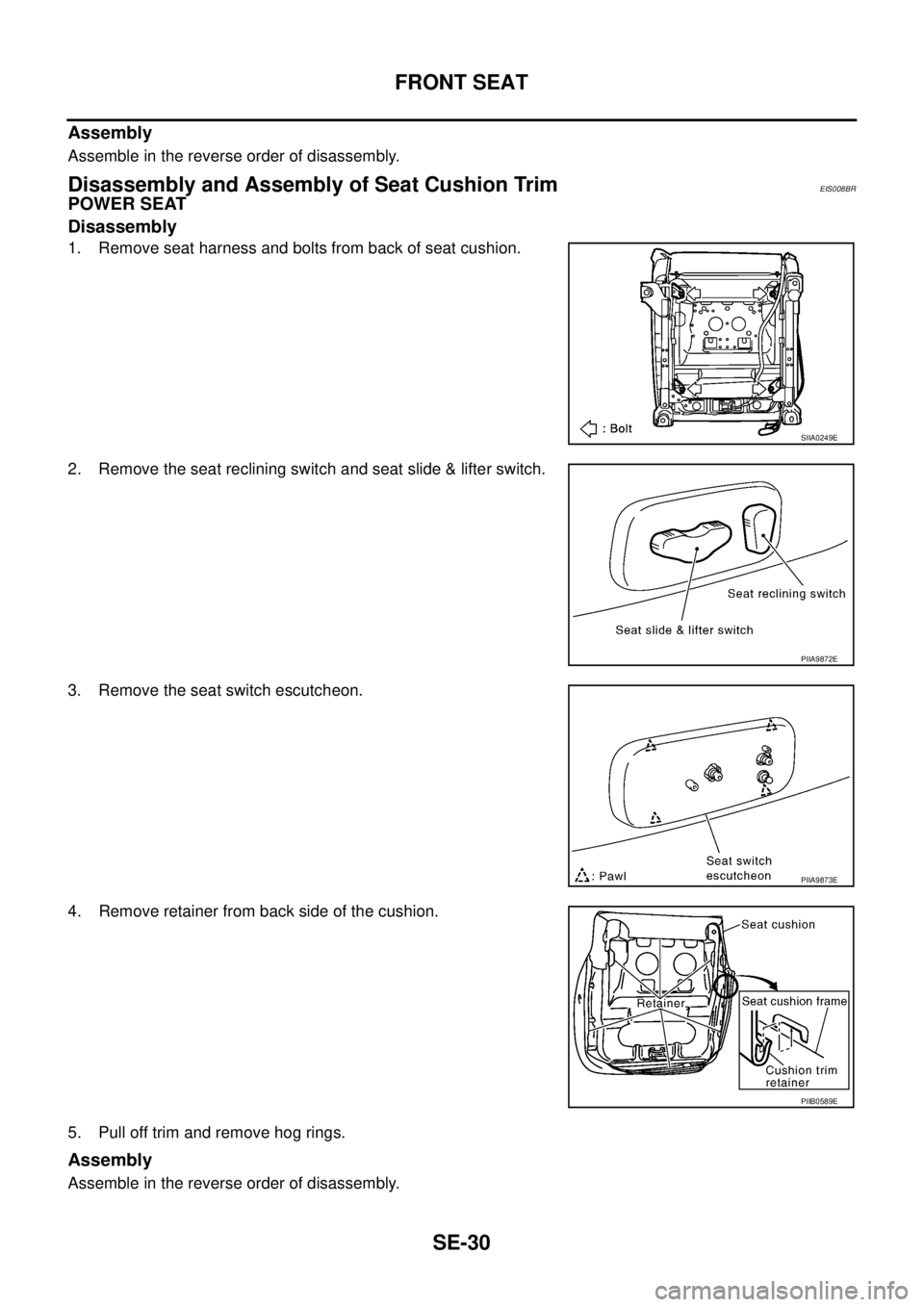

NISSAN X-TRAIL 2003 Service Repair Manual SE-28 FRONT SEAT SEATBACK TRIM [WITHOUT SIDE AIR BAG (EXCEPT GENUINE LEATHER SEAT)] Disassembly 1. Disengage retainers in the lower part at the back of seatback. 2. Pull off seatback trim. 3. Pull s

Page 3389 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual FRONT SEAT SE-29 C D E F G H J K L MA B SE NOTE: When assembling the seatback frame, make sure that the reclining device are locked on both sides, and be sure to temporarily tighten the bolts and ma

Page 3390 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual SE-30 FRONT SEAT Assembly Assemble in the reverse order of disassembly. Disassembly and Assembly of Seat Cushion TrimEIS008BR POWER SEAT Disassembly 1. Remove seat harness and bolts from back of sea

Page 3391 of 4179

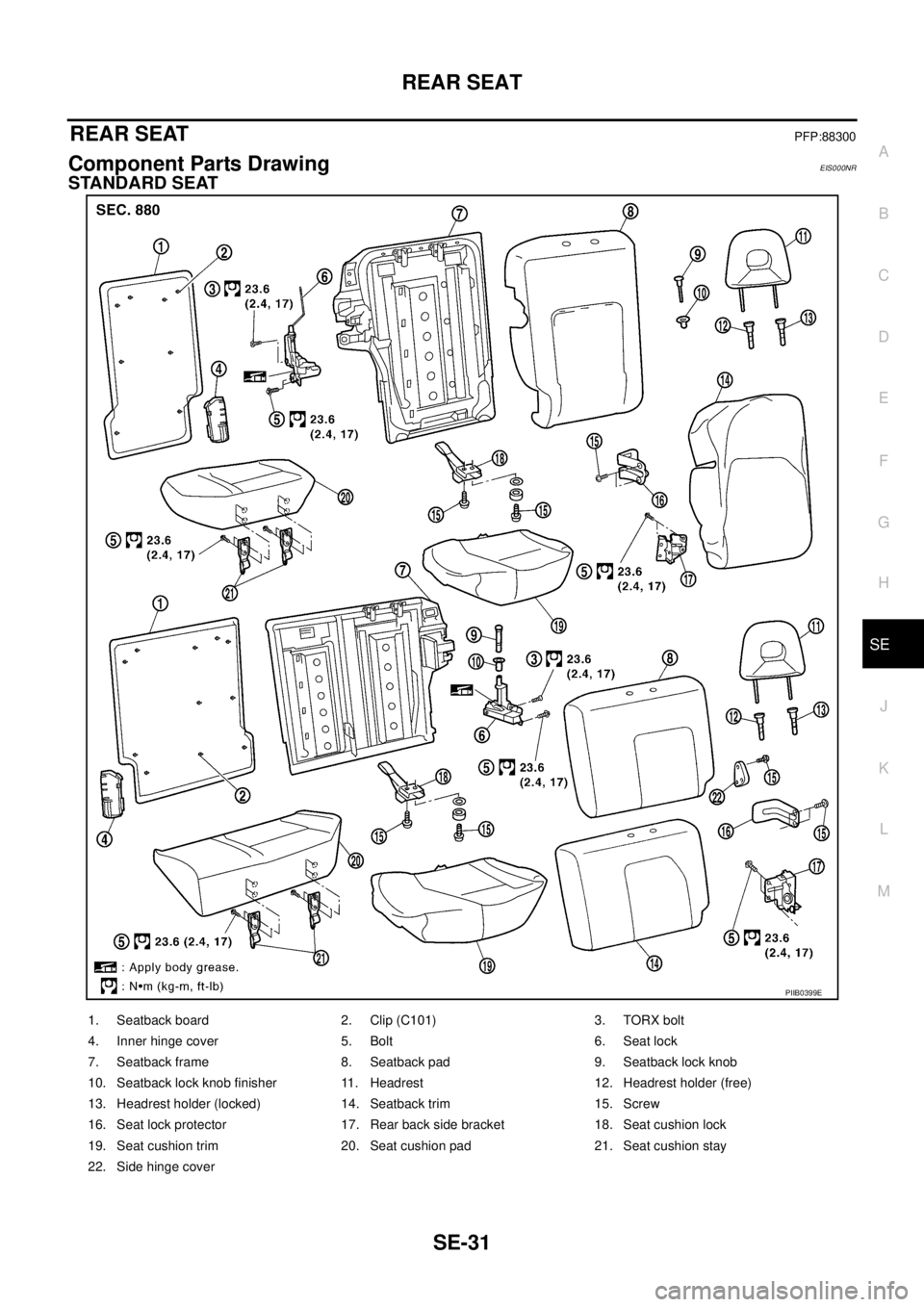

NISSAN X-TRAIL 2003 Service Repair Manual REAR SEAT SE-31 C D E F G H J K L MA B SE REAR SEATPFP:88300 Component Parts DrawingEIS000NR STANDARD SEAT PIIB0399E 1. Seatback board 2. Clip (C101) 3. TORX bolt 4. Inner hinge cover 5. Bolt 6. Sea

Page 3392 of 4179

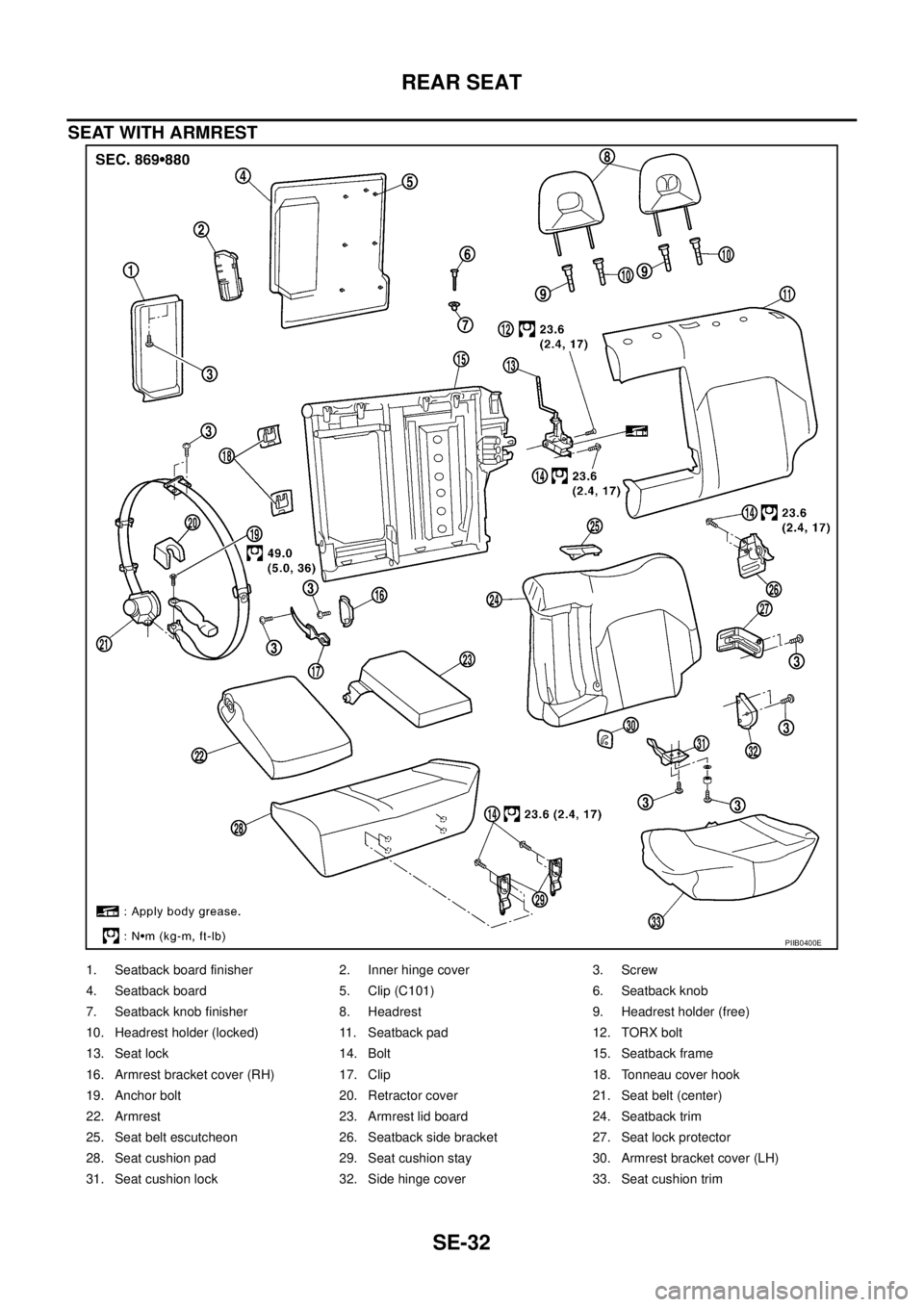

NISSAN X-TRAIL 2003 Service Repair Manual SE-32 REAR SEAT SEAT WITH ARMREST PIIB0400E 1. Seatback board finisher 2. Inner hinge cover 3. Screw 4. Seatback board 5. Clip (C101) 6. Seatback knob 7. Seatback knob finisher 8. Headrest 9. Headre
