VIAS
EC-439
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
2. CHECK VACUUM EXISTENCE
With CONSULT-II
1. Stop engine and disconnect vacuum hose connected to power valve actuator.
2. Start engine and let it idle.

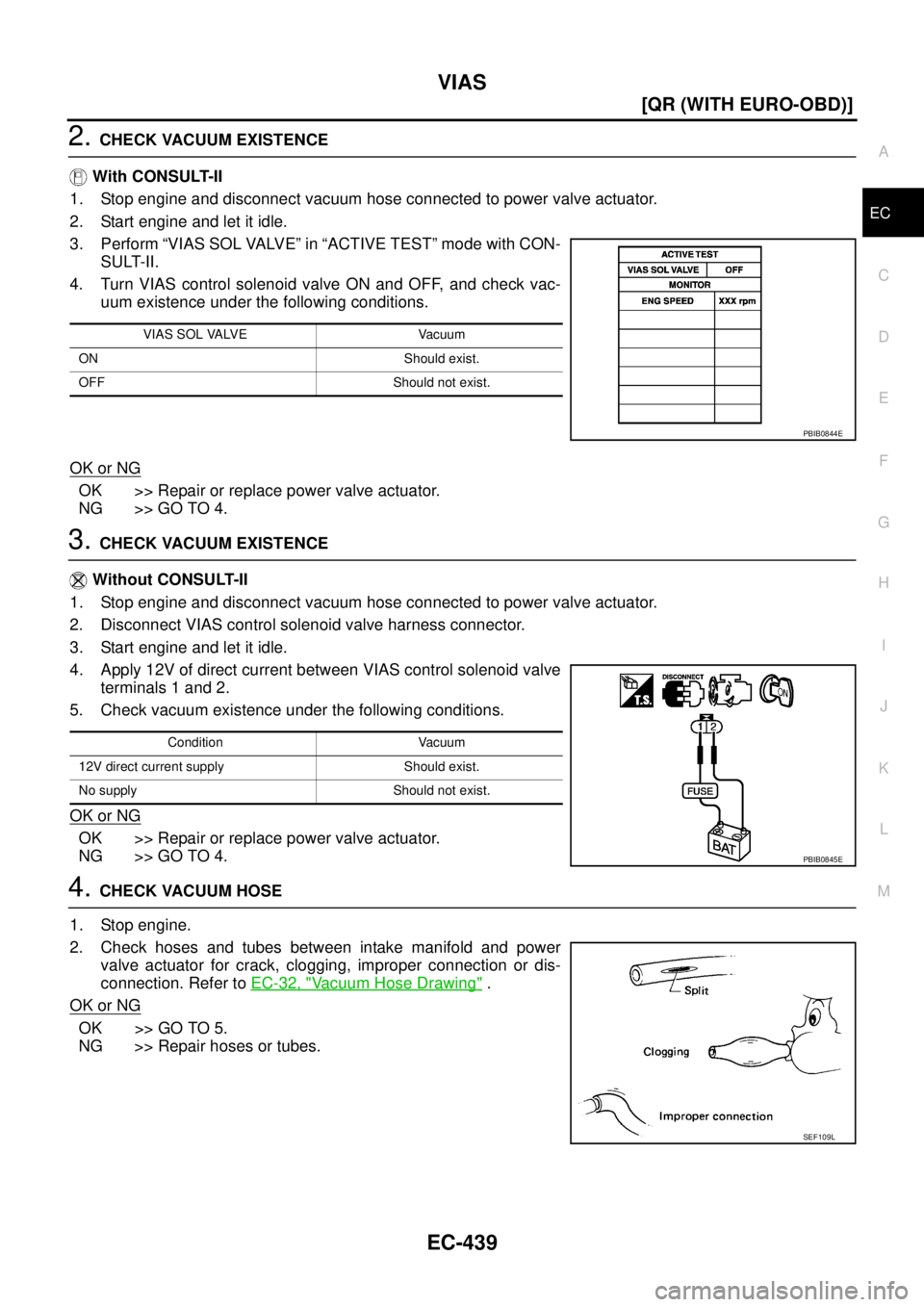

3. Perform “VIAS SOL VALVE” in “ACTIVE TEST” mode with CON-
SULT-II.
4. Turn VIAS control solenoid valve ON and OFF, and check vac-
uum existence under the following conditions.
OK or NG
OK >> Repair or replace power valve actuator.
NG >> GO TO 4.
3. CHECK VACUUM EXISTENCE
Without CONSULT-II
1. Stop engine and disconnect vacuum hose connected to power valve actuator.
2. Disconnect VIAS control solenoid valve harness connector.
3. Start engine and let it idle.
4. Apply 12V of direct current between VIAS control solenoid valve
terminals 1 and 2.
5. Check vacuum existence under the following conditions.
OK or NG
OK >> Repair or replace power valve actuator.
NG >> GO TO 4.
4. CHECK VACUUM HOSE
1. Stop engine.
2. Check hoses and tubes between intake manifold and power
valve actuator for crack, clogging, improper connection or dis-
connection. Refer to EC-32, "
Vacuum Hose Drawing" .
OK or NG
OK >> GO TO 5.
NG >> Repair hoses or tubes.
VIAS SOL VALVE Vacuum
ON Should exist.
OFF Should not exist.
PBIB0844E
Condition Vacuum
12V direct current supply Should exist.
No supply Should not exist.
PBIB0845E
SEF109L
Page 818 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual EC-440
[QR (WITH EURO-OBD)]
VIAS
5. CHECK VACUUM TANK
Refer to EC-441, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace vacuum tank.
6. CHECK VIAS CONTROL SOLENOID VALVE POWER SUPPLY NISSAN X-TRAIL 2003 Service Repair Manual EC-440
[QR (WITH EURO-OBD)]
VIAS
5. CHECK VACUUM TANK
Refer to EC-441, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace vacuum tank.
6. CHECK VIAS CONTROL SOLENOID VALVE POWER SUPPLY](/manual-img/5/57404/w960_57404-817.png)
EC-440
[QR (WITH EURO-OBD)]
VIAS
5. CHECK VACUUM TANK
Refer to EC-441, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace vacuum tank.
6. CHECK VIAS CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT
1. Disconnect VIAS control solenoid valve harness connector.
2. Turn ignition switch ON.

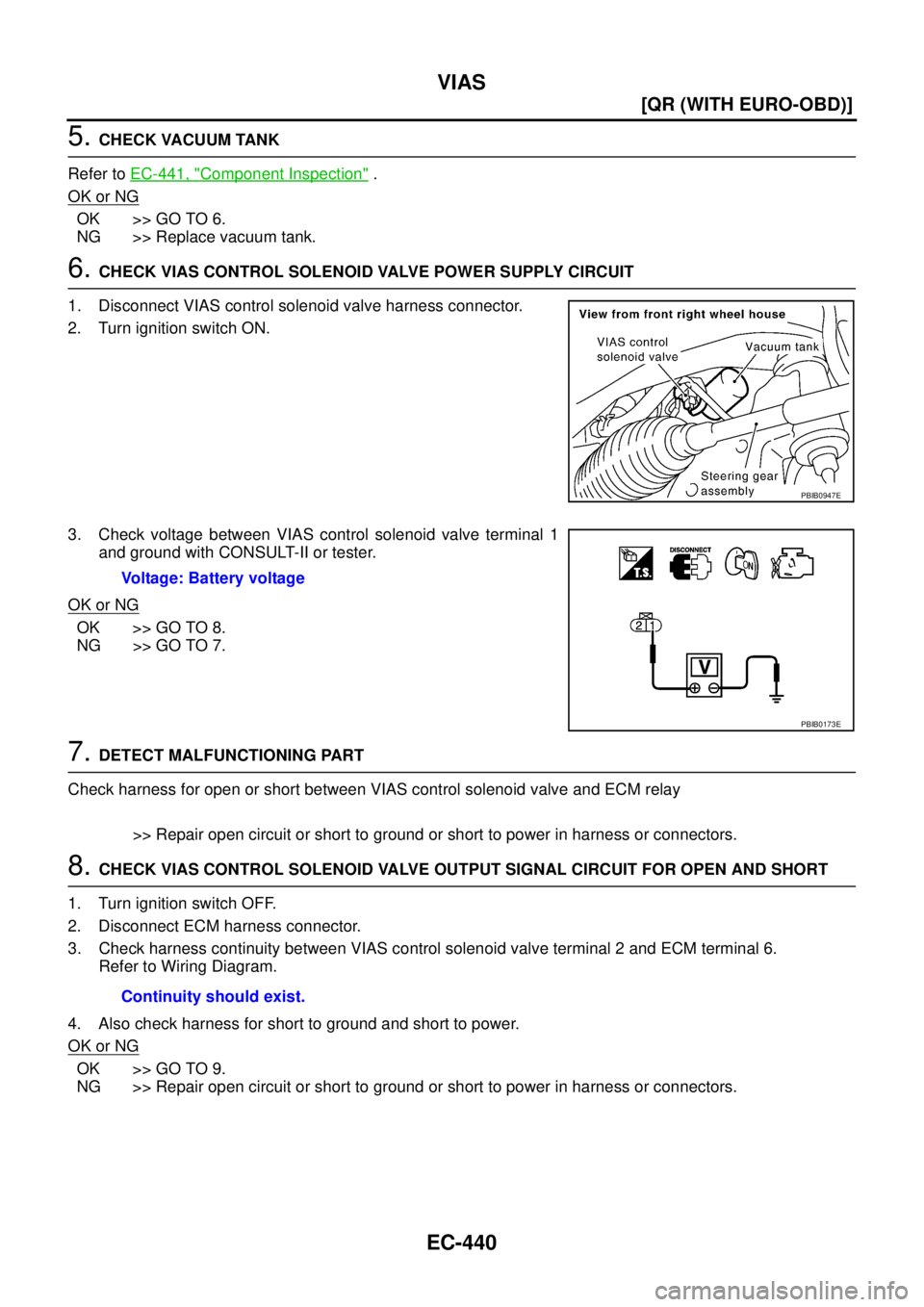

3. Check voltage between VIAS control solenoid valve terminal 1
and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7. DETECT MALFUNCTIONING PART
Check harness for open or short between VIAS control solenoid valve and ECM relay
>> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK VIAS CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between VIAS control solenoid valve terminal 2 and ECM terminal 6.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB0947E
Voltage: Battery voltage
PBIB0173E
Continuity should exist.
Page 819 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual VIAS
EC-441
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
9. CHECK VIAS CONTROL SOLENOID VALVE
Refer to EC-441, "
Component Inspection" .
OK or NG
OK >> GO TO 10.
NG >> Replace VIAS control solenoi NISSAN X-TRAIL 2003 Service Repair Manual VIAS
EC-441
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
9. CHECK VIAS CONTROL SOLENOID VALVE
Refer to EC-441, "
Component Inspection" .
OK or NG
OK >> GO TO 10.
NG >> Replace VIAS control solenoi](/manual-img/5/57404/w960_57404-818.png)
VIAS
EC-441
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
9. CHECK VIAS CONTROL SOLENOID VALVE
Refer to EC-441, "
Component Inspection" .
OK or NG
OK >> GO TO 10.
NG >> Replace VIAS control solenoid valve.
10. CHECK INTERMITTENT INCIDENT
Refer to EC-123, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS011HY
VIAS CONTROL SOLENOID VALVE
With CONSULT-II
1. Reconnect harness connectors disconnected.
2. Turn ignition switch ON.
3. Perform “VIAS SOL VALVE” in “ACTIVE TEST” mode.

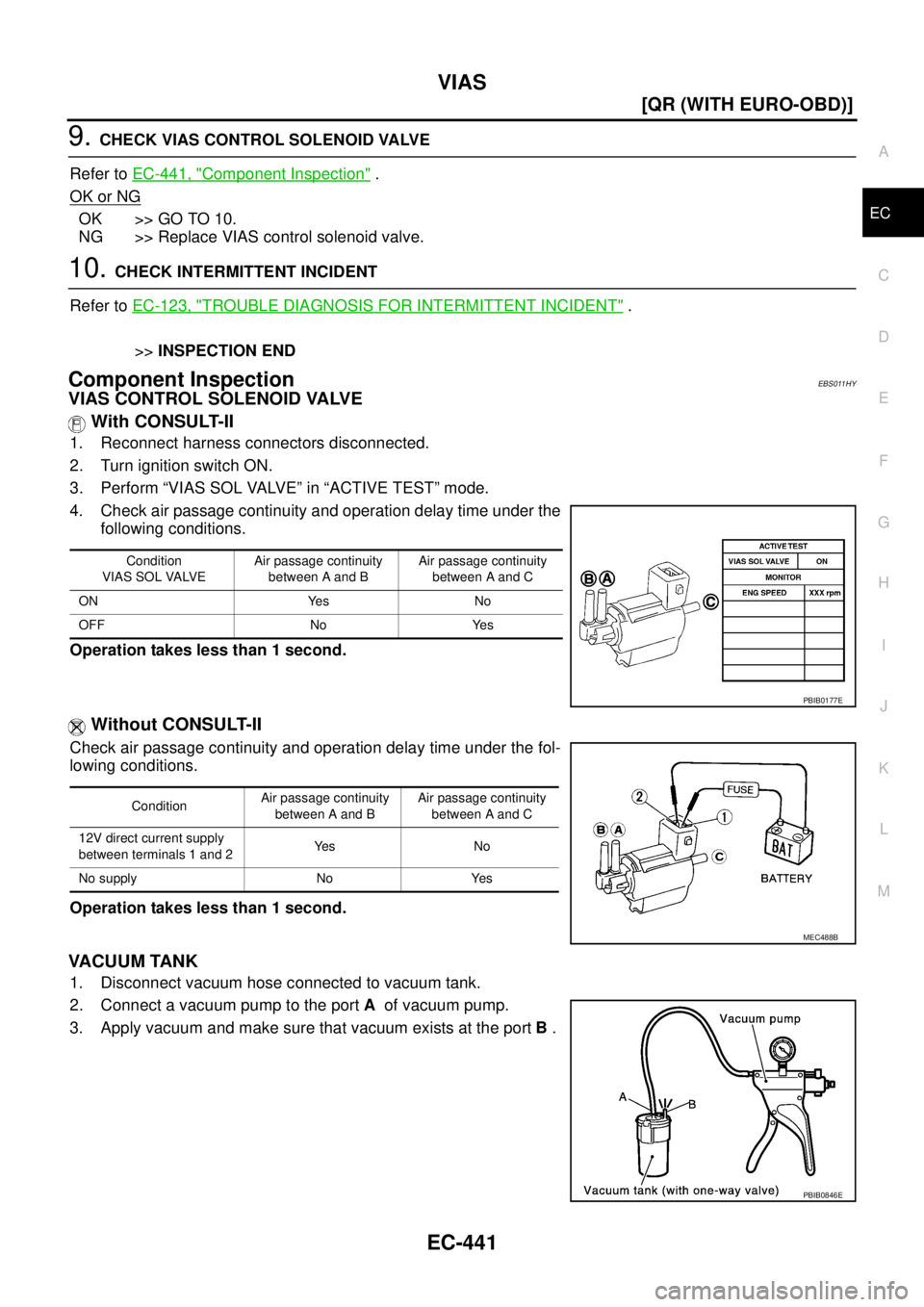

4. Check air passage continuity and operation delay time under the
following conditions.
Operation takes less than 1 second.
Without CONSULT-II
Check air passage continuity and operation delay time under the fol-
lowing conditions.
Operation takes less than 1 second.
VACUUM TANK
1. Disconnect vacuum hose connected to vacuum tank.
2. Connect a vacuum pump to the port A of vacuum pump.
3. Apply vacuum and make sure that vacuum exists at the port B .
Condition
VIAS SOL VALVEAir passage continuity
between A and BAir passage continuity
between A and C
ON Yes No
OFF No Yes
PBIB0177E
ConditionAir passage continuity
between A and BAir passage continuity
between A and C
12V direct current supply
between terminals 1 and 2Ye s N o
No supply No Yes
MEC488B
PBIB0846E
Page 820 of 4179
EC-442
[QR (WITH EURO-OBD)]
VIAS
Removal and InstallationEBS011HZ
VIAS CONTROL SOLENOID VALVE
Refer to EM-17, "INTAKE MANIFOLD" .
Page 821 of 4179
