Page 4137 of 4179
REAR FOG LAMP
LT-59
C
D
E
F
G
H
I
J
L
MA
B
LT
Bulb ReplacementEKS0015L
1. Remove rear fog lamp. Refer to LT- 5 9 , "Removal and Installa-
tion" .
2. Turn bulb socket counterclockwise and unlock it.
3. Remove bulb.
Removal and InstallationEKS0015M
REMOVAL
1. Remove rear fog lamp mounting screws (2).
2. Take out rear fog lamp from bumper, then disconnect connector.
INSTALLATION
Install in the reverse order of removal, paying attention to the following.Rear fog lamp : 12V 21W
SKIA0052E
SKIA0090E
Rear fog lamp mounting screws
Tightening torque : 1.4 N·m (0.14 kg-m, 12 in-lb)
Page 4138 of 4179
LT-60
CLEARANCE LAMP/TAIL LAMP
CLEARANCE LAMP/TAIL LAMPPFP:26010
Bulb Replacement (Clearance Lamp)EKS001UR
Refer to LT- 1 6 , "Bulb Replacement for Headlamp and Clearance lamp" .
Bulb Replacement (Tail lamp)EKS001US
Refer to LT- 6 3 , "Bulb Replacement" .
Removal and Installation of Clearance LampEKS001UT
Refer to LT- 1 7 , "Removal and Installation for Headlamp" .
Removal and Installation of Tail lampEKS001UU
Refer to LT- 6 3 , "Removal and Installation" .
Page 4139 of 4179
HIGH-MOUNTED STOP LAMP
LT-61
C
D
E
F
G
H
I
J
L
MA
B
LT
HIGH-MOUNTED STOP LAMPPFP:26590
Bulb ReplacementEKS0034W
Refer to LT- 4 3 , "Bulb Replacement" .
Removal and InstallationEKS0034X
Refer to LT- 4 3 , "Removal and Installation" .
Page 4140 of 4179
LT-62
REAR COMBINATION LAMP
REAR COMBINATION LAMP PFP:26554

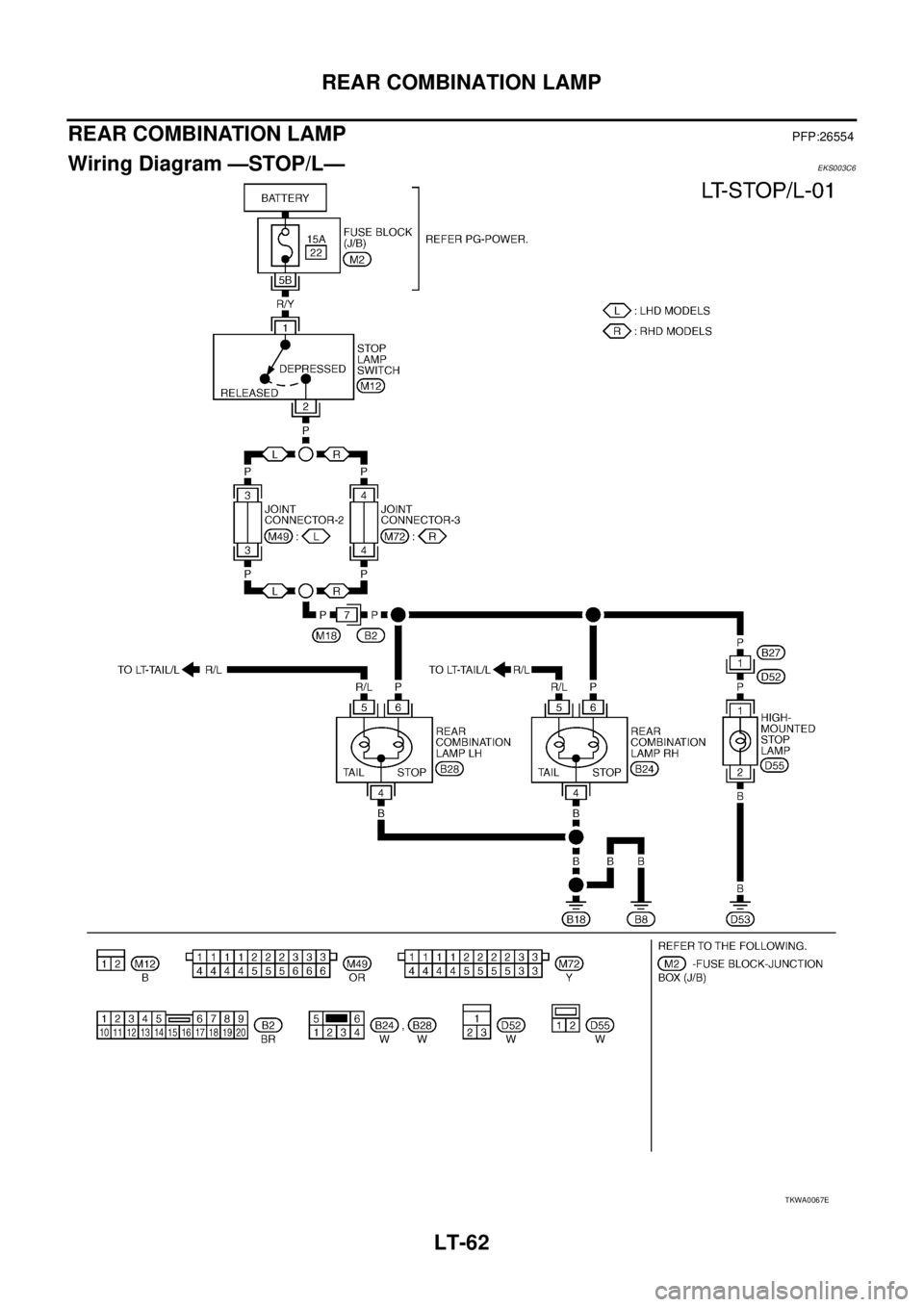

Wiring Diagram —STOP/L— EKS003C6
TKWA0067E
Page 4141 of 4179
REAR COMBINATION LAMP
LT-63
C
D
E
F
G
H
I
J
L
MA
B
LT
Bulb ReplacementEKS00164
1. Remove rear combination lamp mounting bolts (2).
2. Pull rear combination lamp toward rear of vehicle. Disengage
locating pins (3).
3. Turn bulb socket counterclockwise and unlock it.
4. Remove bulb.
Removal and InstallationEKS00165
REMOVAL
1. Remove luggage-side lower finisher. Refer to EI-35, "BODY
SIDE TRIM" in "EI EXTERIOR & INTERIOR" section.
2. Disconnect rear combination lamp connector.
3. Remove rear combination lamp mounting bolts (2).
4. Pull rear combination lamp toward rear of vehicle. Disengage
locating pins (3).
5. From outside the vehicle, pull harness grommet rearward, and
remove harness.
INSTALLATION
Install in the reverse order of removal, paying attention to the following.Stop/taillight : 12V 21/5W
Rear turn signal lamp : 12V 21W
Backup lamp : 12V 21W
SKIA0057E
PKIA8620E
Rear combination lamp mounting bolts
Tightening torque
: 5.4 N·m (0.55 kg-m, 48 in-lb)
Page 4142 of 4179
LT-64
COMBINATION SWITCH
COMBINATION SWITCHPFP:25567
Removal and InstallationEKS001V6
Refer to SRS-33, "SPIRAL CABLE" in "SUPPLEMENTAL RESTRAINT SYSTEM (SRS)" section for details.
Switch Circuit InspectionEKS001V7
Refer to LT- 4 0 , "Switch Circuit Inspection" in "LIGHTING AND TURN SIGNAL SWITCH" section, and WW-8,
"Terminal and Reference Values for Combination Switch" , WW-16, "Terminal and Reference Values for Com-
bination Switch" in “WW Wiper/Washer Horn” section for details.
Page 4143 of 4179
ASHTRAY ILLUMINATION
LT-65
C
D
E
F
G
H
I
J
L
MA
B
LT
ASHTRAY ILLUMINATIONPFP:25860
Bulb Replacement, Removal and InstallationEKS00F86
1. Remove the instrument center lower panel. Refer to IP-10,
"INSTRUMENT PANEL ASSEMBLY" in “IP” section.
2. Turn bulb socket counterclockwise and unlock it.
3. Pull the bulb from socket.
4. Install in the reverse order of removal.Ashtray illumination lamp : 12V - 1.4W
PKIA6440E
Page 4144 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual LT-66
ILLUMINATION
ILLUMINATIONPFP:27545
System Description EKS003C7
Power is supplied at all times
through 10A fuse [No. 31, located in the fuse and fusible link box]
to lighting switch terminal NISSAN X-TRAIL 2003 Service Repair Manual LT-66
ILLUMINATION
ILLUMINATIONPFP:27545
System Description EKS003C7
Power is supplied at all times
through 10A fuse [No. 31, located in the fuse and fusible link box]
to lighting switch terminal](/manual-img/5/57404/w960_57404-4143.png)
LT-66
ILLUMINATION
ILLUMINATIONPFP:27545
System Description EKS003C7
Power is supplied at all times
through 10A fuse [No. 31, located in the fuse and fusible link box]
to lighting switch terminal 11.
The lighting switch must be in the 1ST or 2ND position for illumination.
The following chart shows the power and ground connector terminals for the components included in the illu-
mination system.
Component Connector No. Power terminal Ground terminal
Headlamp washier switch M23 3 4
Headlamp aiming switch M24 3 4
Door mirror remote control switch M26 10 1
ESP off switch M25 3 4
Hazard switch M51 7 8
4WD mode switch M39 4 3
Rear window defogger switch M50 5 6
A/C auto amp. M52 12 11
Combination meter (LHD models) M46 56 66
Combination meter (RHD models) M46 45 56
Audio M42 2 1
CD auto changer M82 34 35
Heater control panel M55 2 6
A/T device M58 3 4
Cigarette lighter M56 3 2
Heated seat switch LH (LHD models) B131 5 6
Heated seat switch RH (LHD models) B132 5 6
Heated seat switch LH (RHD models) B35 5 6
Heated seat switch RH (RHD models) B34 5 6
