Page 1081 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P1217 ENGINE OVER TEMPERATURE EC-703 [QR (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC 13. Restart engine and make sure that cooling fan operates at higher speed than low speed. Be careful not t

Page 1082 of 4179

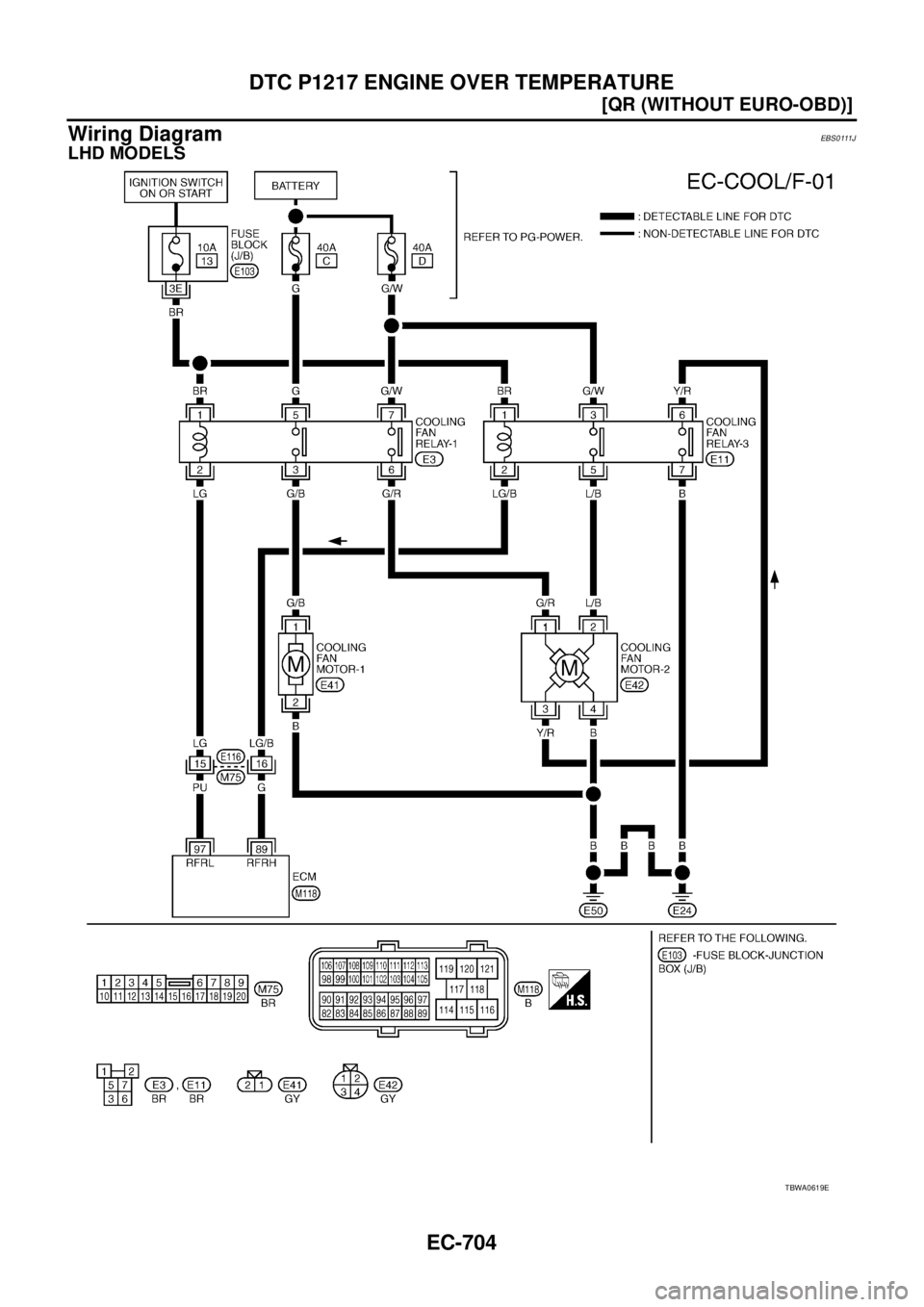

NISSAN X-TRAIL 2003 Service Repair Manual EC-704 [QR (WITHOUT EURO-OBD)] DTC P1217 ENGINE OVER TEMPERATURE Wiring DiagramEBS0111J LHD MODELS TBWA0619E

Page 1083 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P1217 ENGINE OVER TEMPERATURE EC-705 [QR (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not

Page 1084 of 4179

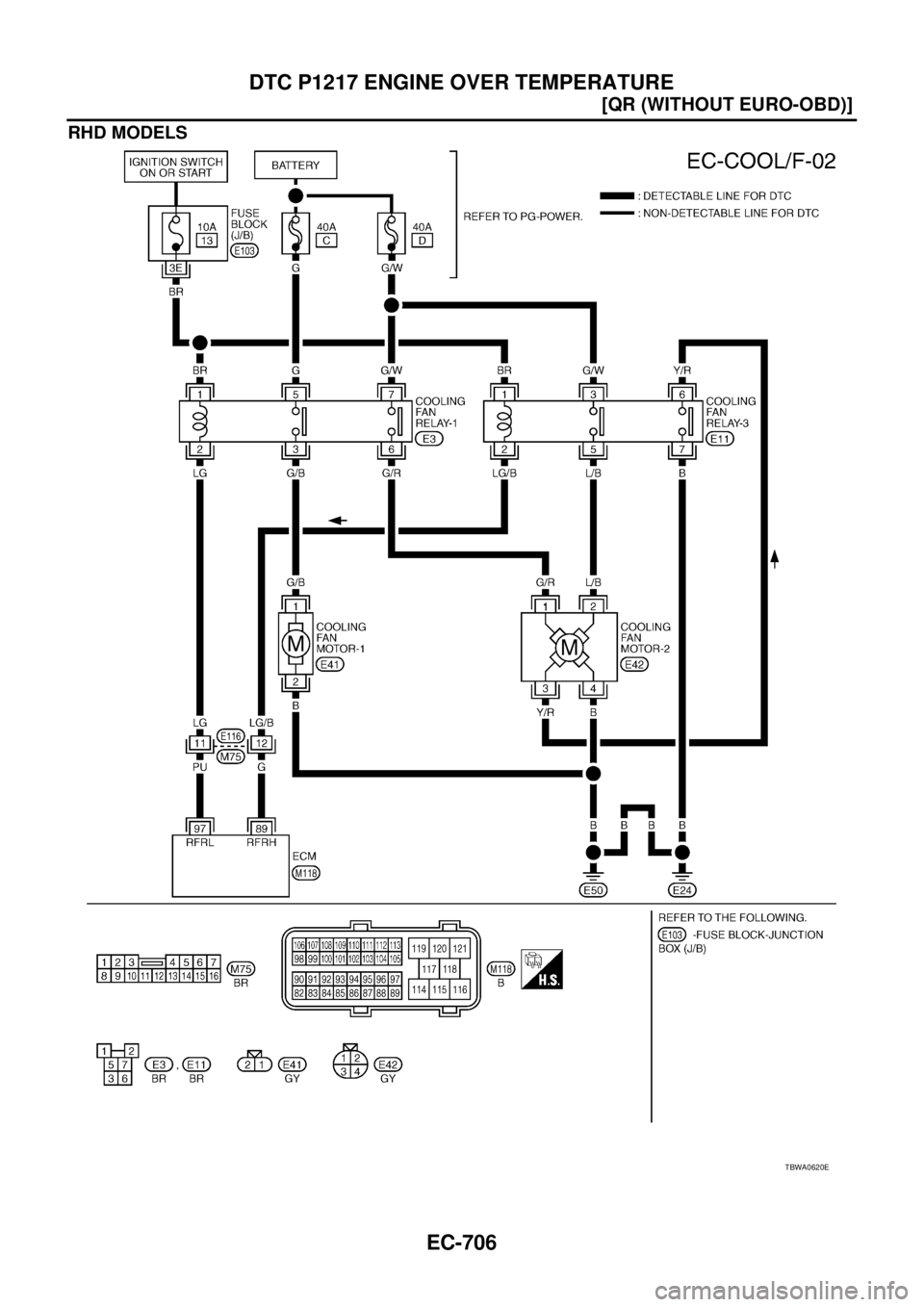

NISSAN X-TRAIL 2003 Service Repair Manual EC-706 [QR (WITHOUT EURO-OBD)] DTC P1217 ENGINE OVER TEMPERATURE RHD MODELS TBWA0620E

Page 1085 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P1217 ENGINE OVER TEMPERATURE EC-707 [QR (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not

Page 1086 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-708 [QR (WITHOUT EURO-OBD)] DTC P1217 ENGINE OVER TEMPERATURE 4. CHECK COOLING FAN LOW SPEED OPERATION Without CONSULT-II 1. Disconnect cooling fan relay-3. 2. Start engine and let it idle. 3. T

Page 1087 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P1217 ENGINE OVER TEMPERATURE EC-709 [QR (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC 6. CHECK COOLING SYSTEM FOR LEAK Apply pressure to the cooling system with a tester, and check if the press

Page 1088 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-710 [QR (WITHOUT EURO-OBD)] DTC P1217 ENGINE OVER TEMPERATURE 9. CHECK THERMOSTAT 1. Remove thermostat. 2. Check valve seating condition at normal room temperatures. It should seat tightly. 3. Ch
