DTC P1226 TP SENSOR
EC-367
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS010TP
1. CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY
1. Turn ignition switch OFF.
2. Remove the intake air duct.
3. Check if foreign matter is caught between the throttle valve and
the housing.
OK or NG
OK >> GO TO 2.
NG >> Remove the foreign matter and clean the electric throttle
control actuator inside.
2. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-46, "
Throttle Valve Closed Position Learning" .
3. Perform EC-46, "
Idle Air Volume Learning" .
>>INSPECTION END
Removal and InstallationEBS010TQ
ELECTRIC THROTTLE CONTROL ACTUATOR
Refer to EM-17, "INTAKE MANIFOLD" .
PBIB0518E
Page 746 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual EC-368
[QR (WITH EURO-OBD)]
DTC P1229 SENSOR POWER SUPPLY
DTC P1229 SENSOR POWER SUPPLYPFP:16119
On Board Diagnosis LogicEBS010TR
This self-diagnosis has the one trip detection logic.
FAIL-SAFE MODE NISSAN X-TRAIL 2003 Service Repair Manual EC-368
[QR (WITH EURO-OBD)]
DTC P1229 SENSOR POWER SUPPLY
DTC P1229 SENSOR POWER SUPPLYPFP:16119
On Board Diagnosis LogicEBS010TR
This self-diagnosis has the one trip detection logic.
FAIL-SAFE MODE](/manual-img/5/57404/w960_57404-745.png)
EC-368
[QR (WITH EURO-OBD)]
DTC P1229 SENSOR POWER SUPPLY
DTC P1229 SENSOR POWER SUPPLYPFP:16119
On Board Diagnosis LogicEBS010TR
This self-diagnosis has the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode and the MI lights up.
DTC Confirmation ProcedureEBS010TS
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 1 second.
4. If DTC is detected, go to EC-370, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1229
1229Sensor power supply circuit
shortECM detects a voltage of power source
for sensor is excessively low or high.
Harness or connectors
(APP sensor 1 circuit is shorted.)
(PSP sensor circuit is shorted.)
(Refrigerant pressure sensor circuit is
shorted.)
Accelerator pedal position sensor
Power steering pressure sensor
Refrigerant pressure sensor
Engine operation condition in fail-safe mode
ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) by the return
spring.
SEF058Y
Page 747 of 4179
DTC P1229 SENSOR POWER SUPPLY
EC-369
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

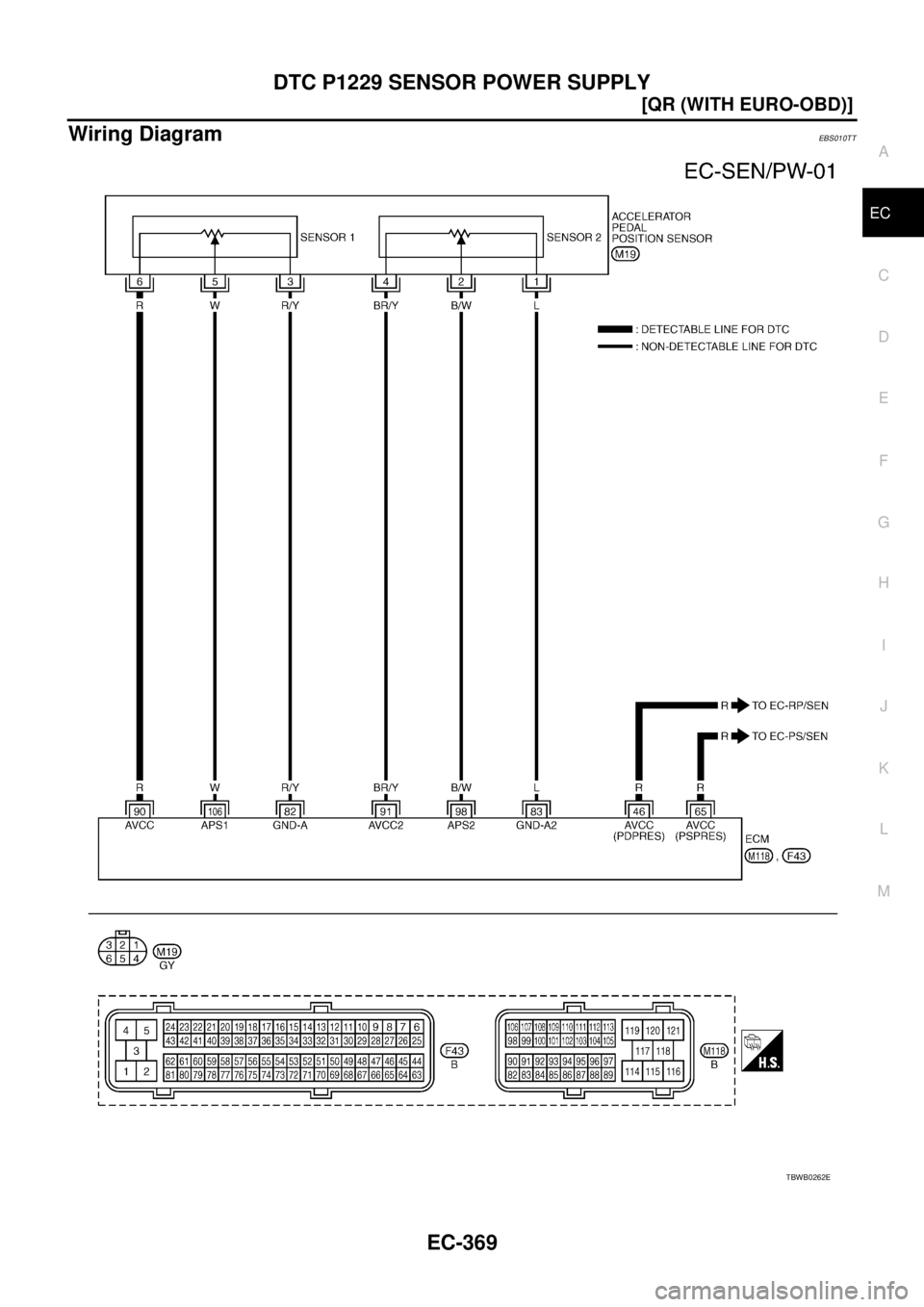

Wiring DiagramEBS010TT
TBWB0262E
Page 748 of 4179
EC-370
[QR (WITH EURO-OBD)]
DTC P1229 SENSOR POWER SUPPLY
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureEBS010TU
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body.
Refer to EC-131, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
46 RSensor power supply
(Refrigerant pressure sen-
sor)[Ignition switch: ON]Approximately 5V
65 RSensor power supply
(Power steering pressure
sensor)[Ignition switch: ON]Approximately 5V
90 RSensor power supply
(Accelerator pedal position
sensor 1)[Ignition switch: ON]Approximately 5V
PBIB2021E
Page 749 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual DTC P1229 SENSOR POWER SUPPLY
EC-371
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
2. CHECK ACCELERATOR PEDAL POSITION SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position sensor NISSAN X-TRAIL 2003 Service Repair Manual DTC P1229 SENSOR POWER SUPPLY
EC-371
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
2. CHECK ACCELERATOR PEDAL POSITION SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position sensor](/manual-img/5/57404/w960_57404-748.png)
DTC P1229 SENSOR POWER SUPPLY
EC-371
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
2. CHECK ACCELERATOR PEDAL POSITION SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position sensor (APP) sensor har-
ness connector.
2. Turn ignition switch ON.
3. Check voltage between APP sensor terminal 6 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 3.
3. CHECK SENSOR POWER SUPPLY CIRCUIT
Check harness for short to power and short to ground, between the following terminals
OK or NG
OK >> GO TO 4.
NG >> Repair short to ground or short to power in harness or connectors.
4. CHECK COMPONENTS
Check the following.
Refrigerant pressure sensor (Refer to AT C - 9 4 , "COMPONENT INSPECTION" .)
Power steering pressure sensor (Refer to EC-278, "Component Inspection" .)
OK or NG
OK >> GO TO 7.
NG >> Replace malfunctioning component.
5. CHECK APP SENSOR
Refer to EC-392, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
PBIB0498E
Voltage: Approximately 5V
PBIB0914E
ECM terminal Sensor terminal Reference Wiring Diagram
90 APP sensor terminal 6EC-369
46 Refrigerant pressure sensor terminal 3EC-452
65 PSP sensor terminal 3EC-274
Page 750 of 4179
EC-372
[QR (WITH EURO-OBD)]
DTC P1229 SENSOR POWER SUPPLY
6. REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform EC-45, "
Accelerator Pedal Released Position Learning" .
3. Perform EC-46, "
Throttle Valve Closed Position Learning" .
4. Perform EC-46, "
Idle Air Volume Learning" .
>>INSPECTION END
7. CHECK INTERMITTENT INCIDENT
Refer to EC-123, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Page 751 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual DTC P1706 PNP SWITCH
EC-373
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1706 PNP SWITCHPFP:32006
Component DescriptionEBS010TV
When the shift lever position is P or N (A/T), Neutral (M/T), p NISSAN X-TRAIL 2003 Service Repair Manual DTC P1706 PNP SWITCH
EC-373
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1706 PNP SWITCHPFP:32006
Component DescriptionEBS010TV
When the shift lever position is P or N (A/T), Neutral (M/T), p](/manual-img/5/57404/w960_57404-750.png)
DTC P1706 PNP SWITCH
EC-373
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1706 PNP SWITCHPFP:32006
Component DescriptionEBS010TV
When the shift lever position is P or N (A/T), Neutral (M/T), park/neutral position (PNP) switch is ON.
ECM detects the position because the continuity of the line (the ON signal) exists.
CONSULT-II Reference Value in Data Monitor ModeEBS010TW
Specification data are reference values.
On Board Diagnosis LogicEBS010TX
DTC Confirmation ProcedureEBS010TY
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “P/N POSI SW” in “DATA MONITOR” mode with CON-
SULT-II. Then check the “P/N POSI SW” signal under the follow-
ing conditions.
If NG, go to EC-376, "
Diagnostic Procedure" .
If OK, go to following step.
3. Select “DATA MONITOR” mode with CONSULT-II.
4. Start engine and warm it up to normal operating temperature.
5. Maintain the following conditions for at least 60 consecutive sec-
onds.
6. If 1st trip DTC is detected, go to EC-376, "
Diagnostic Procedure"
.
Overall Function CheckEBS010TZ
Use this procedure to check the overall function of the park/neutral position (PNP) switch circuit. During this
check, a DTC might not be confirmed.
MONITOR ITEM CONDITION SPECIFICATION
P/N POSI SW
Ignition switch: ONShift lever: P or N (A/T), Neutral (M/T) ON
Shift lever: Except above OFF
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1706
1706Park/neutral position switchThe signal of the park/neutral position (PNP)
switch is not changed in the process of
engine starting and driving.
Harness or connectors
(PNP switch circuit is open or shorted.)
Park/neutral position (PNP) switch
Position (Selector lever) Known-good signal
N or P position (A/T)
Neutral position (M/T)ON
Except above position OFF
ENG SPEED 1,500 - 6,375 rpm
COOLAN TEMP/S More than 70°C (158°F)
B/FUEL SCHDL 3.0 - 31.8 msec
VHCL SPEED SE More than 64 km/h (40 MPH)
Selector lever Suitable position
SEF212Y
SEF213Y
Page 752 of 4179
EC-374
[QR (WITH EURO-OBD)]
DTC P1706 PNP SWITCH
WITH GST
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 102 (PNP switch signal)
and body ground under the following conditions.
3. If NG, go to EC-376, "
Diagnostic Procedure" .
Condition (Gear position) Voltage V (Known good data)
P or N position (A/T)
Neutral position (M/T)Approx. 0
Except above positionA/T: Battery voltage
M/T: Approximately 5V
MBIB0029E
