Page 1329 of 4179

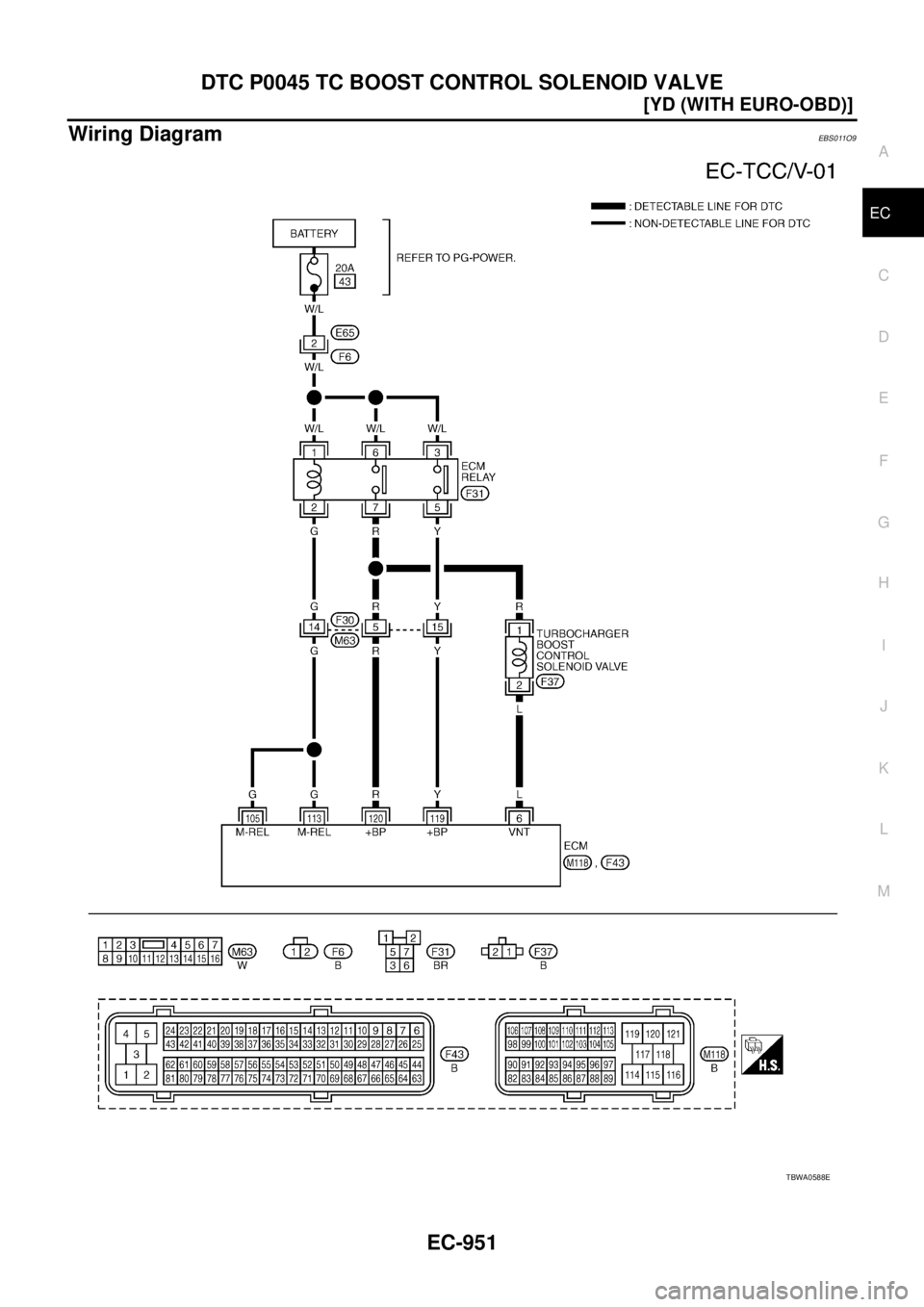

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0045 TC BOOST CONTROL SOLENOID VALVE EC-951 [YD (WITH EURO-OBD)] C D E F G H I J K L MA EC Wiring DiagramEBS011O9 TBWA0588E

Page 1330 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-952 [YD (WITH EURO-OBD)] DTC P0045 TC BOOST CONTROL SOLENOID VALVE Diagnostic ProcedureEBS011OA 1. CHECK TURBOCHARGER BOOST CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT 1. Disconnect turbocharger

Page 1331 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0045 TC BOOST CONTROL SOLENOID VALVE EC-953 [YD (WITH EURO-OBD)] C D E F G H I J K L MA EC 5. CHECK INTERMITTENT INCIDENT Refer to EC-936, " TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" . >>INS

Page 1332 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-954 [YD (WITH EURO-OBD)] DTC P0088 FUEL SYSTEM DTC P0088 FUEL SYSTEMPFP:17520 On Board Diagnosis LogicEBS0117X DTC Confirmation ProcedureEBS0117Y NOTE: If DTC Confirmation Procedure has been prev

Page 1333 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0088 FUEL SYSTEM EC-955 [YD (WITH EURO-OBD)] C D E F G H I J K L MA EC 4. REPLACE FUEL PUMP 1. Replace fuel pump. 2. Perform Fuel Pump Learning Value Clearing. Refer to EC-890, " Fuel Pump Lear

Page 1334 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-956 [YD (WITH EURO-OBD)] DTC P0089 FUEL PUMP DTC P0089 FUEL PUMPPFP:16700 On Board Diagnosis LogicEBS01181 DTC Confirmation ProcedureEBS01182 NOTE: If DTC Confirmation Procedure has been previous

Page 1335 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0089 FUEL PUMP EC-957 [YD (WITH EURO-OBD)] C D E F G H I J K L MA EC 2. PERFORM FUEL PUMP LEARNING VALUE CLEARING NOTE: If the DTC is detected because of air mixed with fuel (i.e.: caused by la

Page 1336 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-958 [YD (WITH EURO-OBD)] DTC P0089 FUEL PUMP Removal and InstallationEBS01184 FUEL PUMP Refer to EM-161, "FUEL PUMP" .
