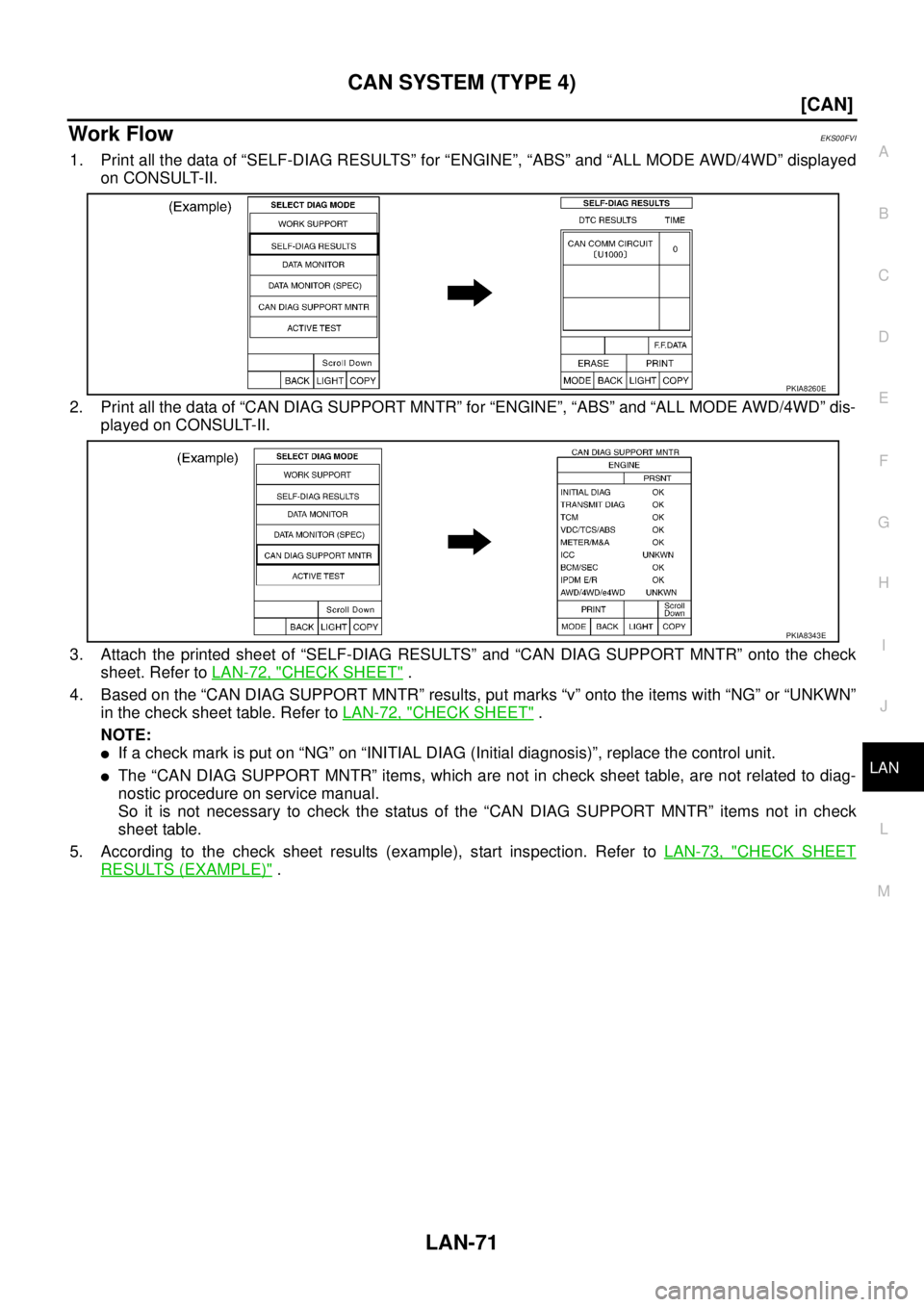

NISSAN X-TRAIL 2003 Service Repair Manual CAN SYSTEM (TYPE 4) LAN-71 [CAN] C D E F G H I J L MA B LAN Work FlowEKS00FVI 1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “ABS” and “ALL MODE AWD/4WD” displayed on CON

Page 3850 of 4179

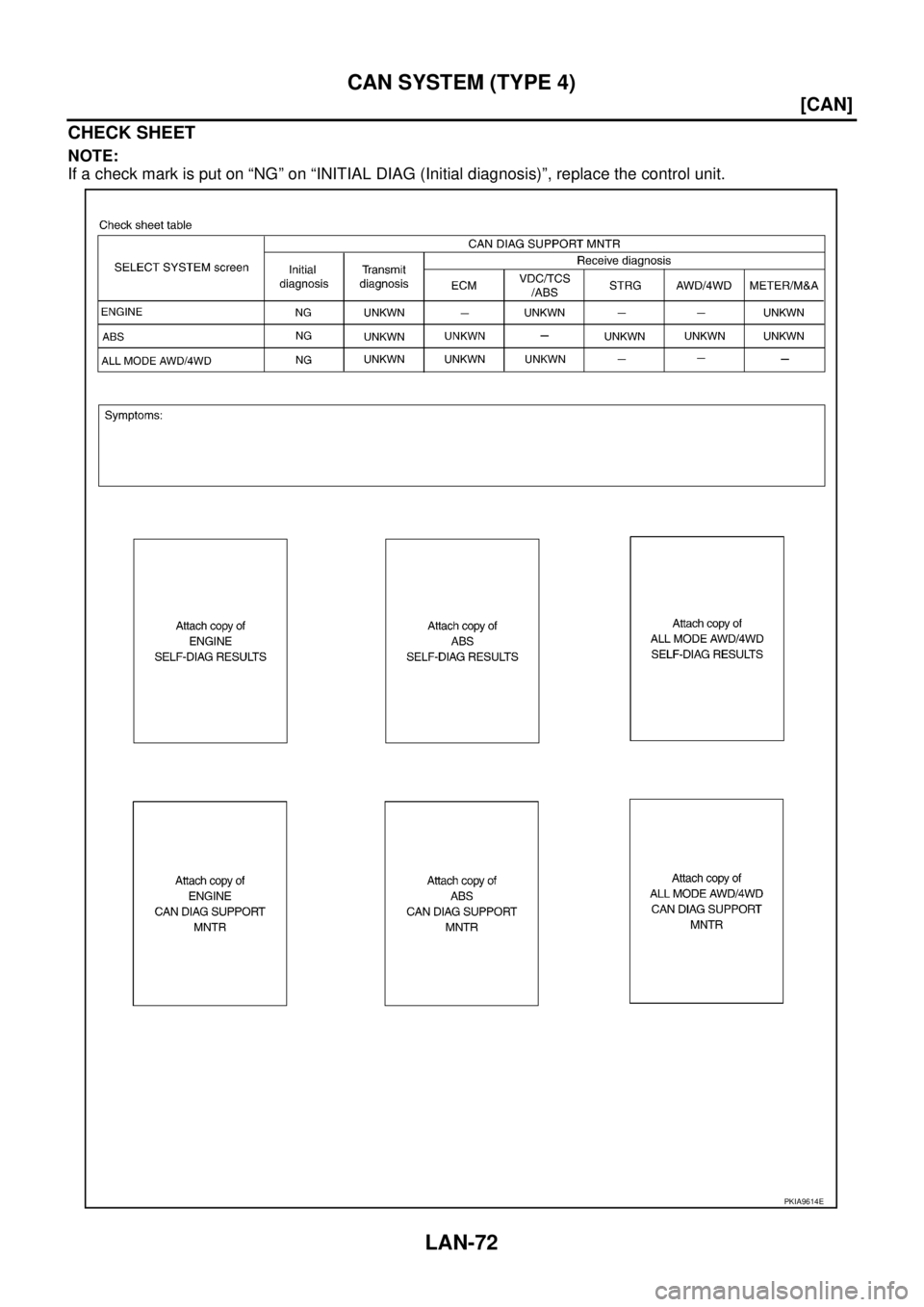

NISSAN X-TRAIL 2003 Service Repair Manual LAN-72 [CAN] CAN SYSTEM (TYPE 4) CHECK SHEET NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit. PKIA9614E

Page 3851 of 4179

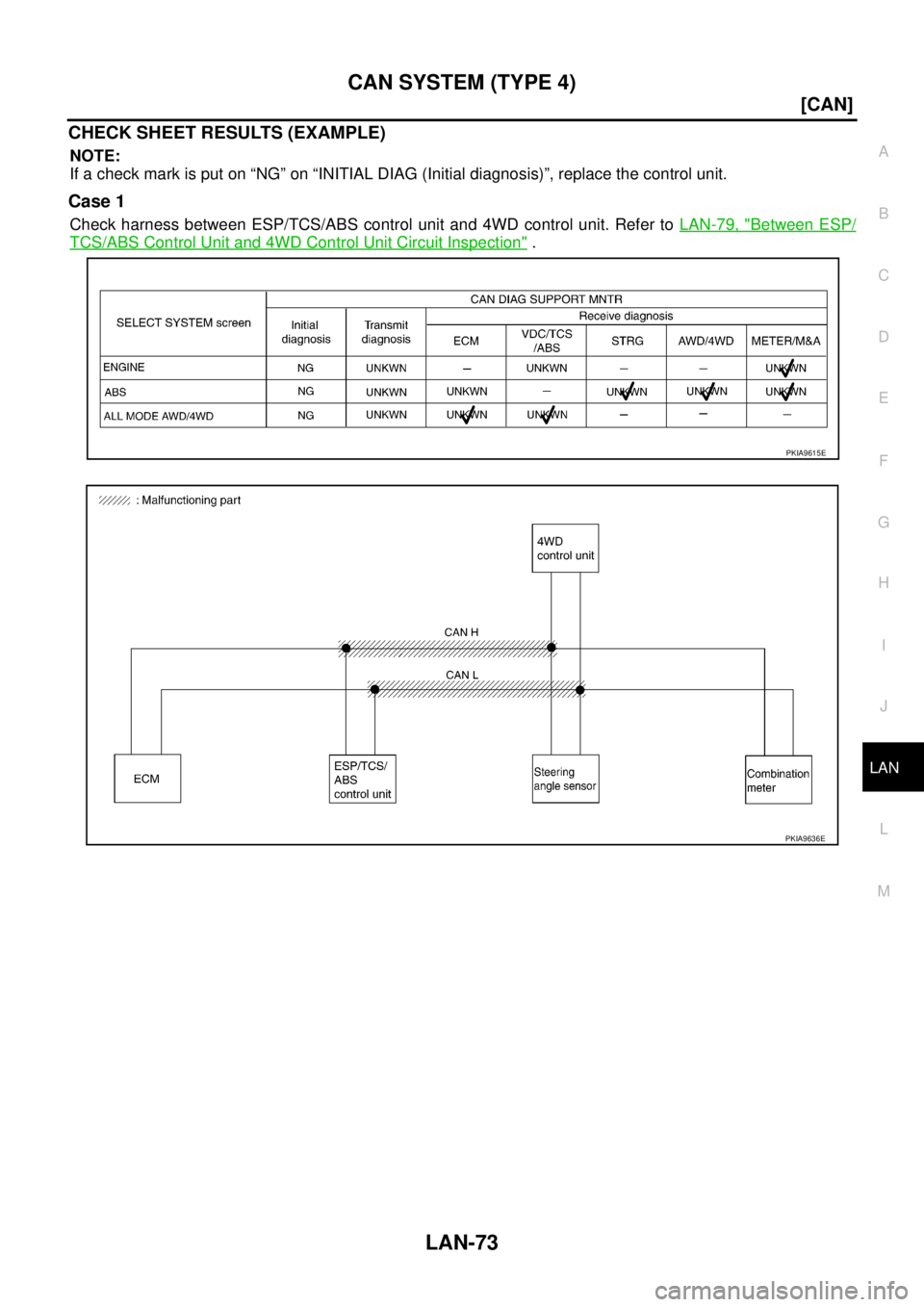

NISSAN X-TRAIL 2003 Service Repair Manual CAN SYSTEM (TYPE 4) LAN-73 [CAN] C D E F G H I J L MA B LAN CHECK SHEET RESULTS (EXAMPLE) NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit

Page 3852 of 4179

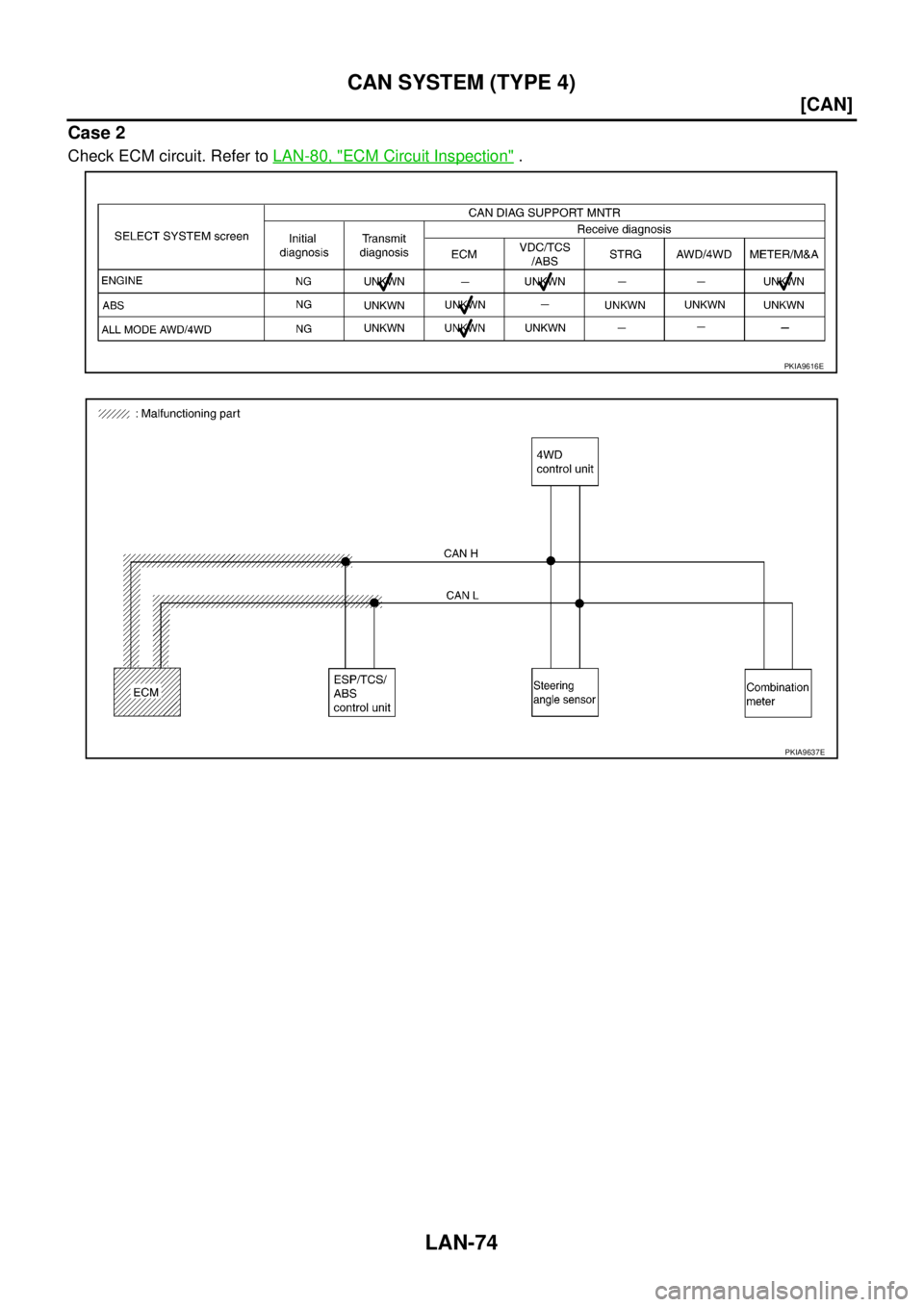

NISSAN X-TRAIL 2003 Service Repair Manual LAN-74 [CAN] CAN SYSTEM (TYPE 4) Case 2 Check ECM circuit. Refer to LAN-80, "ECM Circuit Inspection" . PKIA9616E PKIA9637E

Page 3853 of 4179

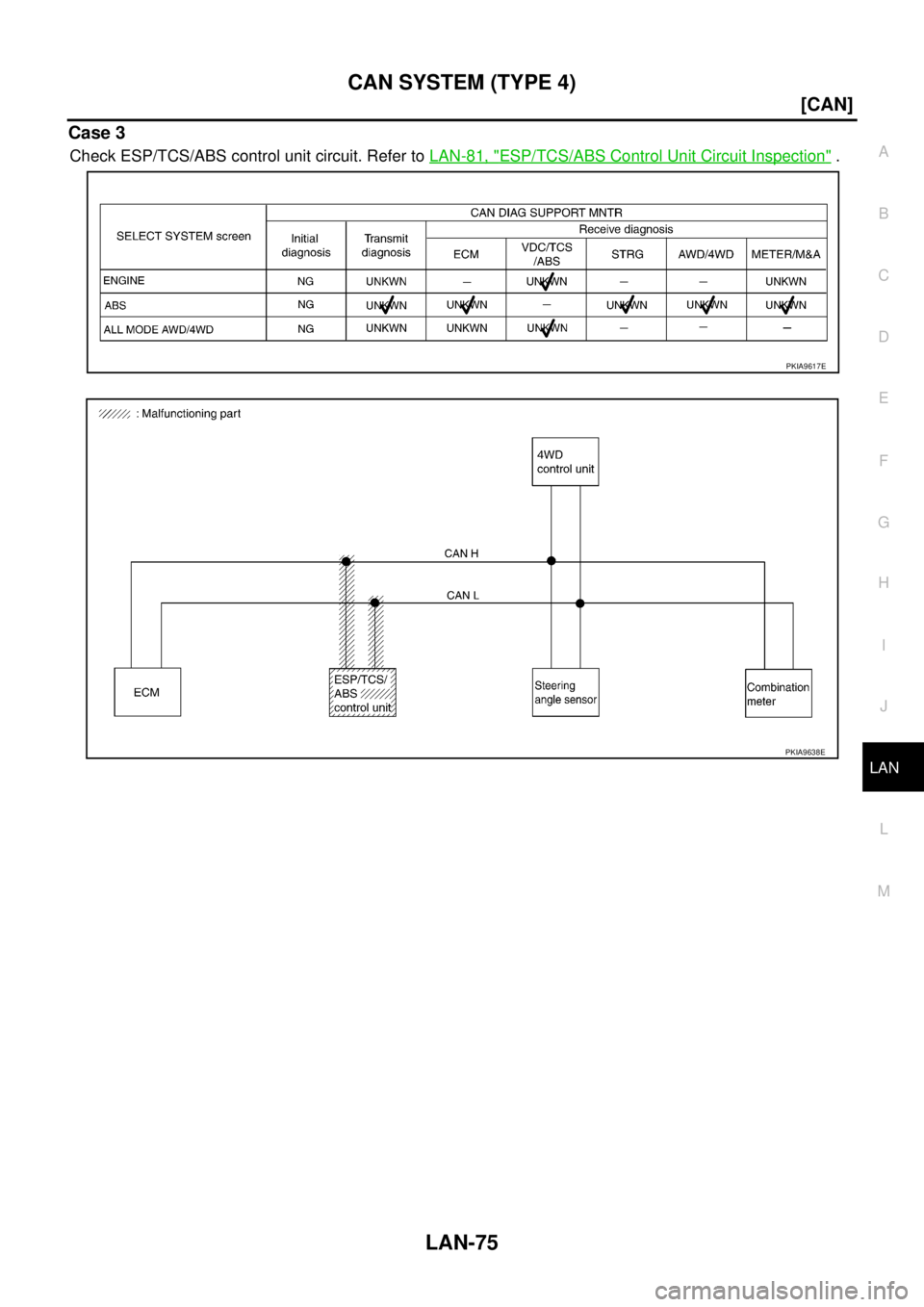

NISSAN X-TRAIL 2003 Service Repair Manual CAN SYSTEM (TYPE 4) LAN-75 [CAN] C D E F G H I J L MA B LAN Case 3 Check ESP/TCS/ABS control unit circuit. Refer to LAN-81, "ESP/TCS/ABS Control Unit Circuit Inspection" . PKIA9617E PKIA9638E

Page 3854 of 4179

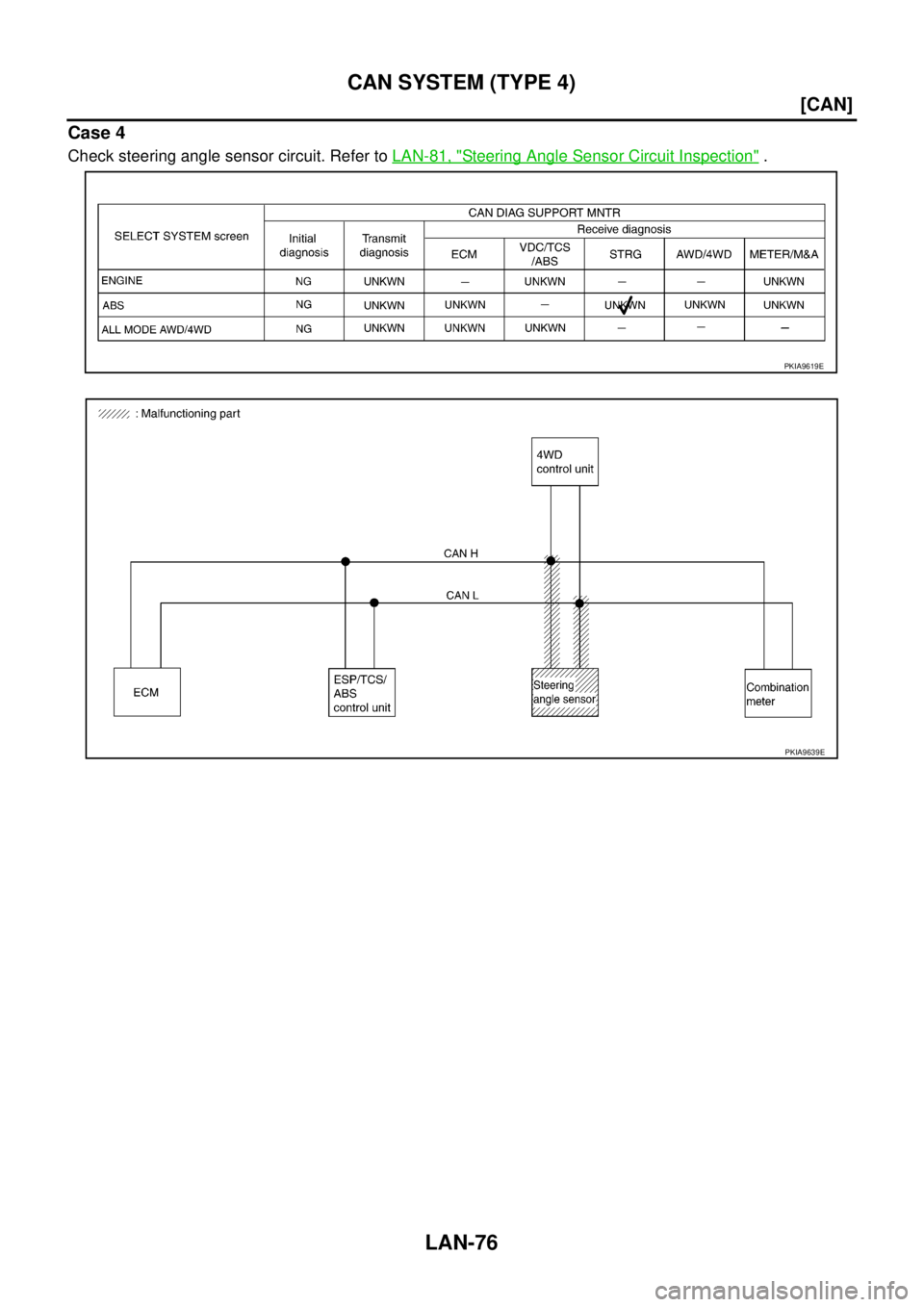

NISSAN X-TRAIL 2003 Service Repair Manual LAN-76 [CAN] CAN SYSTEM (TYPE 4) Case 4 Check steering angle sensor circuit. Refer to LAN-81, "Steering Angle Sensor Circuit Inspection" . PKIA9619E PKIA9639E

Page 3855 of 4179

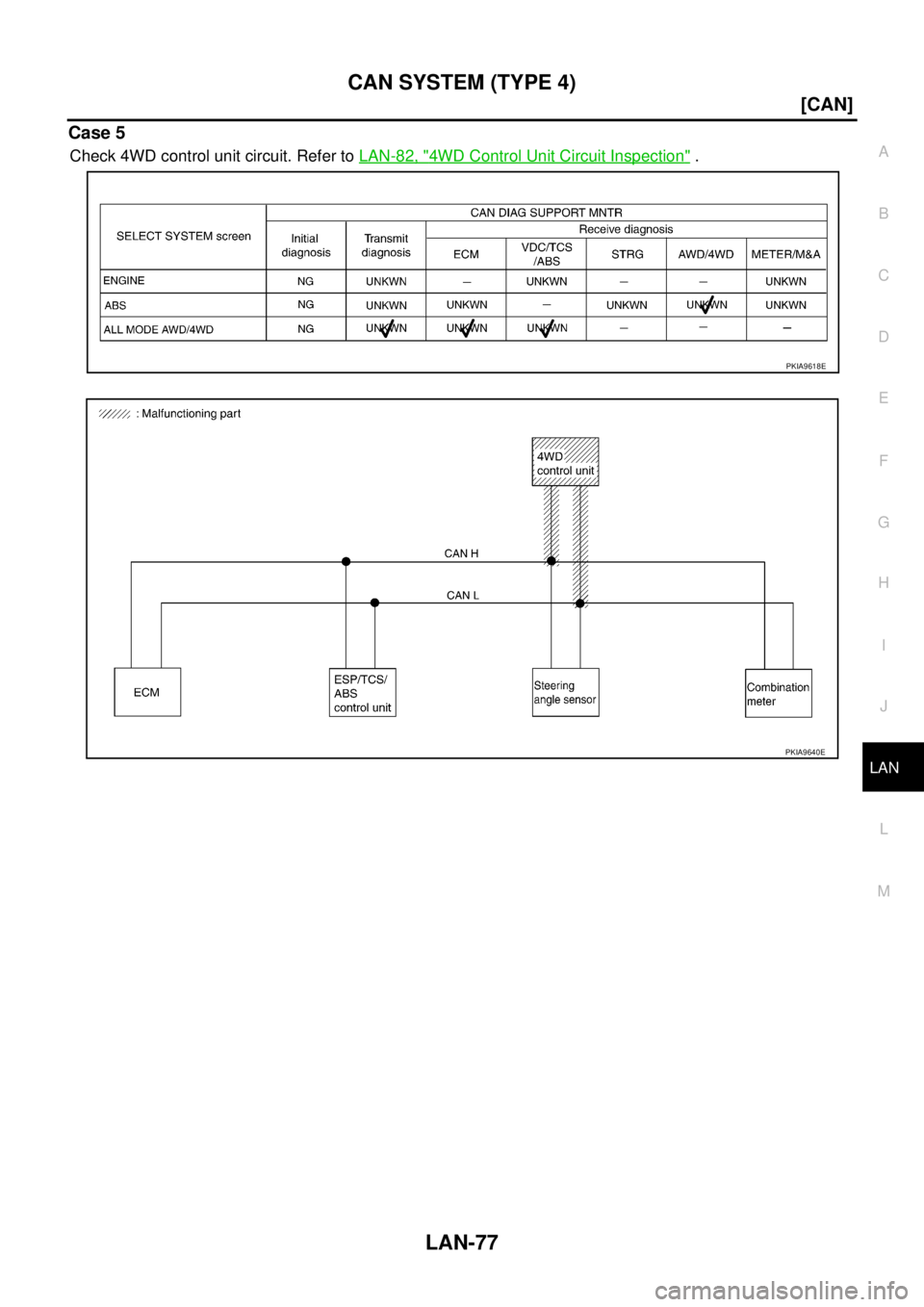

NISSAN X-TRAIL 2003 Service Repair Manual CAN SYSTEM (TYPE 4) LAN-77 [CAN] C D E F G H I J L MA B LAN Case 5 Check 4WD control unit circuit. Refer to LAN-82, "4WD Control Unit Circuit Inspection" . PKIA9618E PKIA9640E

Page 3856 of 4179

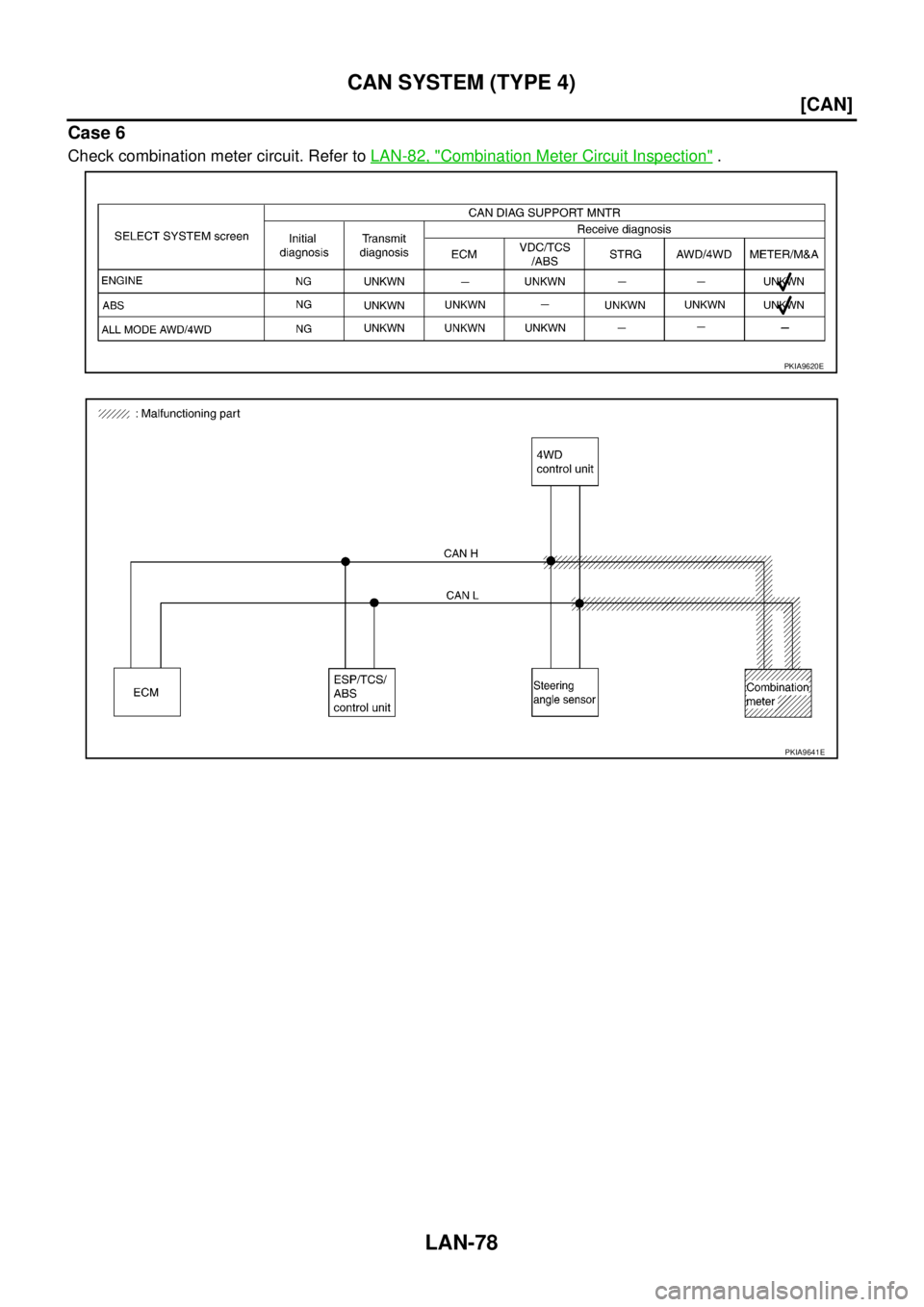

NISSAN X-TRAIL 2003 Service Repair Manual LAN-78 [CAN] CAN SYSTEM (TYPE 4) Case 6 Check combination meter circuit. Refer to LAN-82, "Combination Meter Circuit Inspection" . PKIA9620E PKIA9641E
