Page 1745 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0340 CMP SENSOR EC-1367 [YD (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC 3. CHECK CMP SENSOR POWER SUPPLY CIRCUIT 1. Disconnect camshaft position (CMP) sensor harness connector. 2. Turn igniti

Page 1746 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-1368 [YD (WITHOUT EURO-OBD)] DTC P0340 CMP SENSOR 7. CHECK INTERMITTENT INCIDENT Refer to EC-1260, " TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" . >>INSPECTION END Component InspectionEBS0121R C

Page 1747 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0341 CMP SENSOR EC-1369 [YD (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC DTC P0341 CMP SENSORPFP:23731 DescriptionEBS0121T The camshaft position sensor identifies a particular cylinder by mean

Page 1748 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-1370 [YD (WITHOUT EURO-OBD)] DTC P0341 CMP SENSOR DTC Confirmation ProcedureEBS0121W NOTE: If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at

Page 1749 of 4179

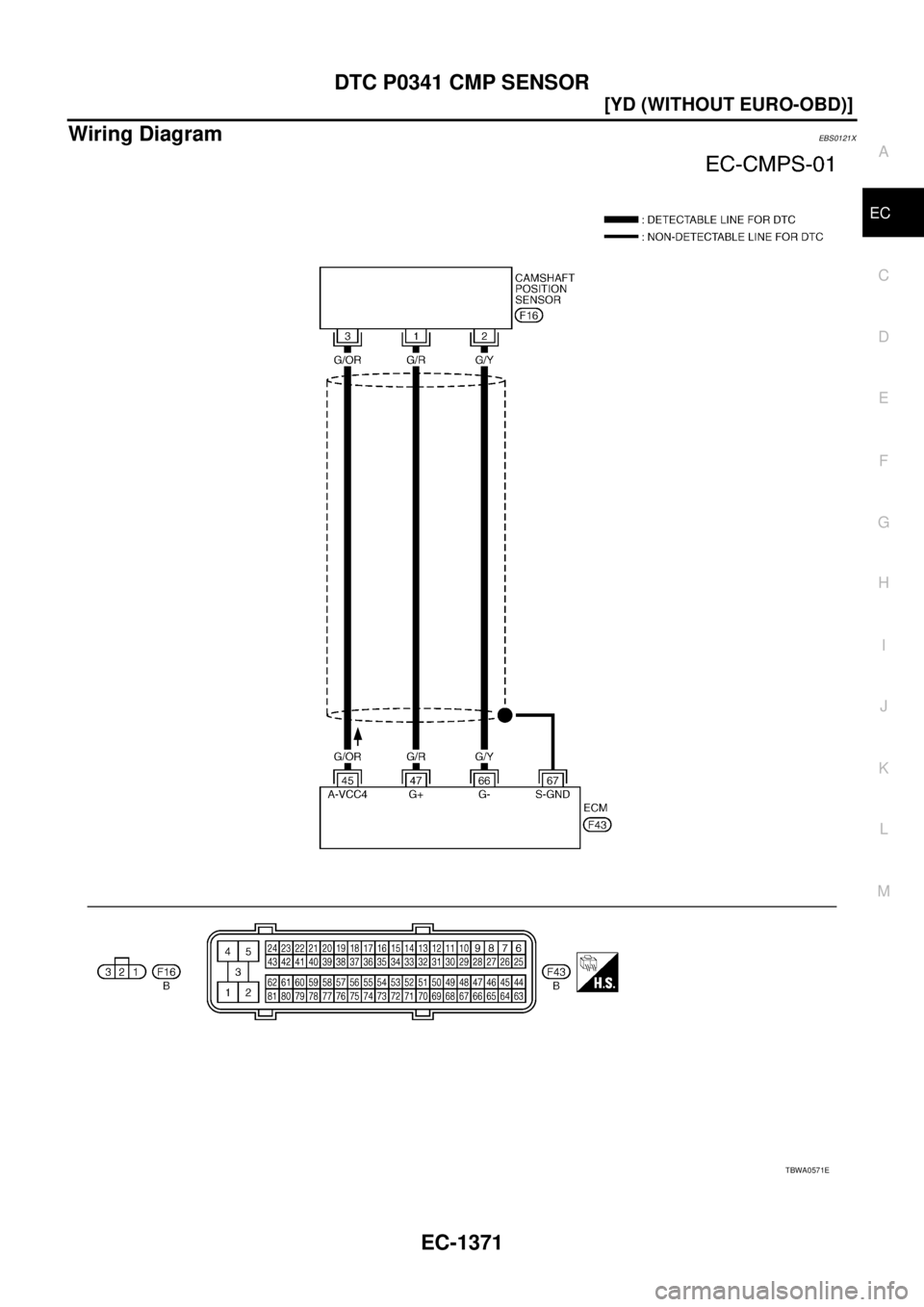

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0341 CMP SENSOR EC-1371 [YD (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC Wiring DiagramEBS0121X TBWA0571E

Page 1750 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-1372 [YD (WITHOUT EURO-OBD)] DTC P0341 CMP SENSOR Diagnostic ProcedureEBS0121Y 1. CHECK STARTING SYSTEM Turn ignition switch to START position. Ye s o r N o Yes >> GO TO 2. No >> Check starting

Page 1751 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0341 CMP SENSOR EC-1373 [YD (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC 3. CHECK CMP SENSOR POWER SUPPLY CIRCUIT 1. Disconnect camshaft position (CMP) sensor harness connector. 2. Turn igniti

Page 1752 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-1374 [YD (WITHOUT EURO-OBD)] DTC P0341 CMP SENSOR 7. CHECK CAMSHAFT (EXHAUST) Check the following. Accumulation of debris to the signal plate of camshaft rear end Chipping signal plate of camsh
