TC BOOST CONTROL SOLENOID VALVE
EC-1471
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

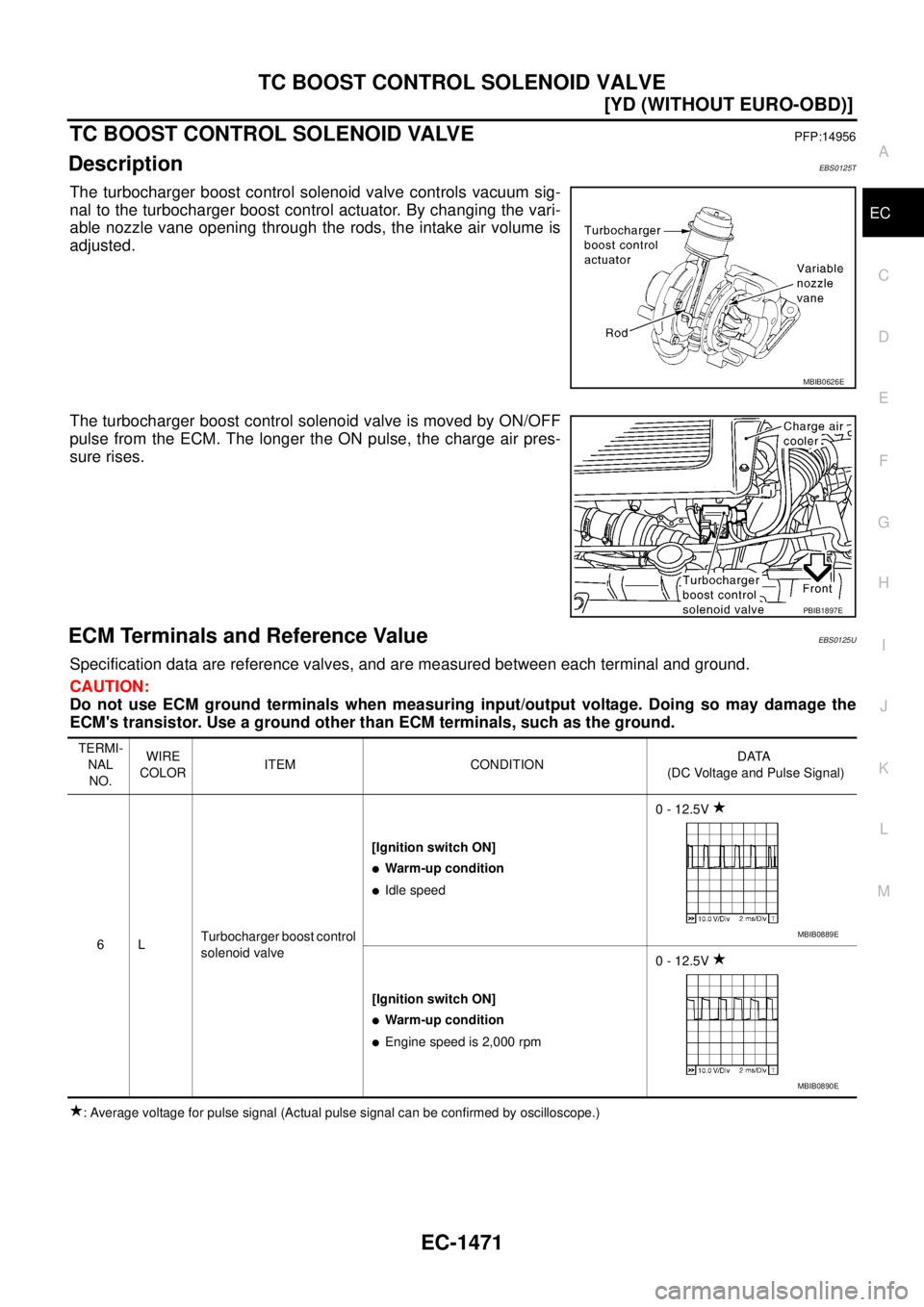

TC BOOST CONTROL SOLENOID VALVEPFP:14956
DescriptionEBS0125T
The turbocharger boost control solenoid valve controls vacuum sig-
nal to the turbocharger boost control actuator. By changing the vari-
able nozzle vane opening through the rods, the intake air volume is
adjusted.
The turbocharger boost control solenoid valve is moved by ON/OFF
pulse from the ECM. The longer the ON pulse, the charge air pres-
sure rises.
ECM Terminals and Reference ValueEBS0125U
Specification data are reference valves, and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may damage the
ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
MBIB0626E
PBIB1897E
TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
6LTurbocharger boost control
solenoid valve[Ignition switch ON]
Warm-up condition
Idle speed0 - 12.5V
[Ignition switch ON]
Warm-up condition
Engine speed is 2,000 rpm0 - 12.5V
MBIB0889E
MBIB0890E
Page 1850 of 4179
EC-1472
[YD (WITHOUT EURO-OBD)]
TC BOOST CONTROL SOLENOID VALVE

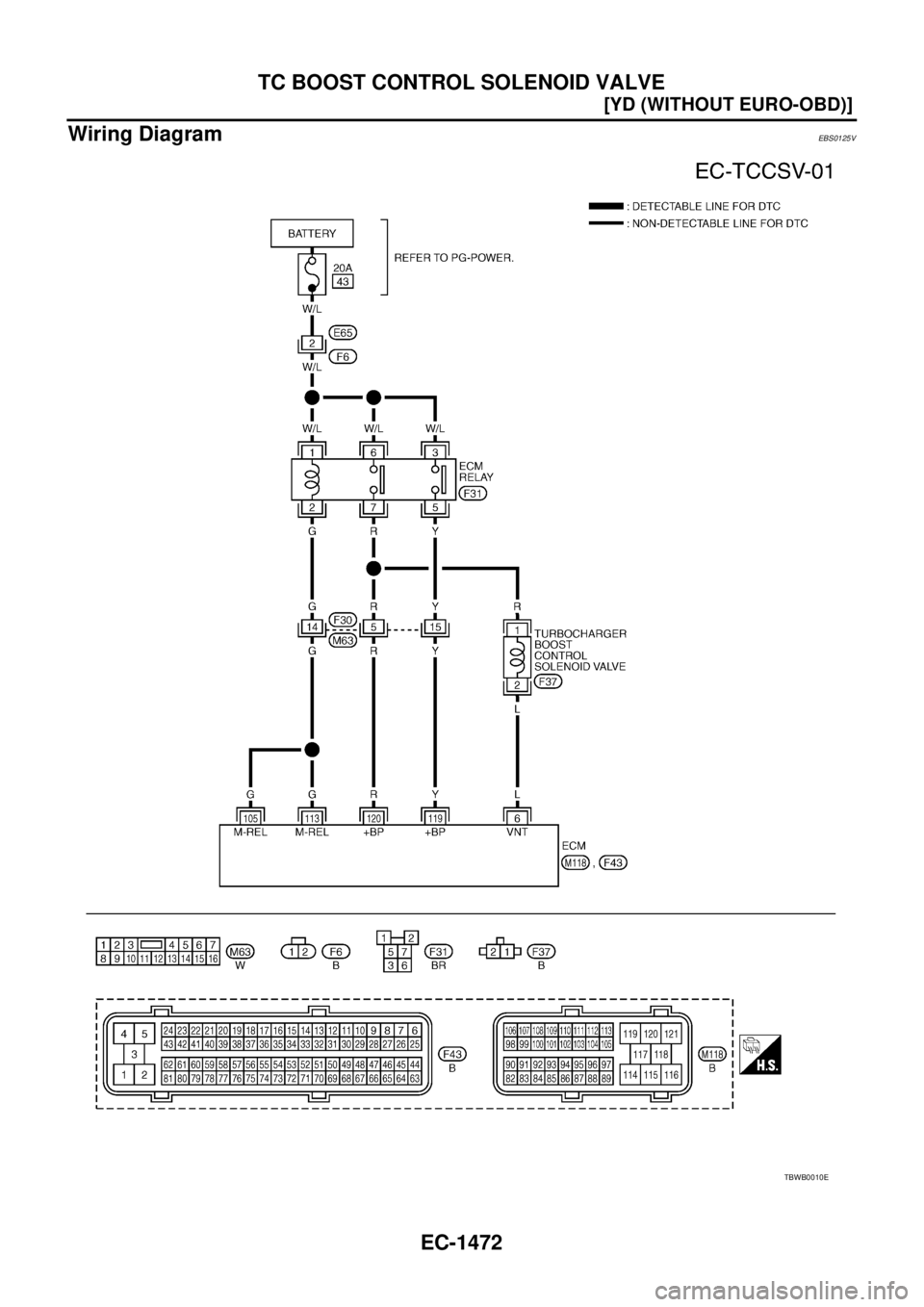

Wiring DiagramEBS0125V
TBWB0010E
Page 1851 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual TC BOOST CONTROL SOLENOID VALVE
EC-1473
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

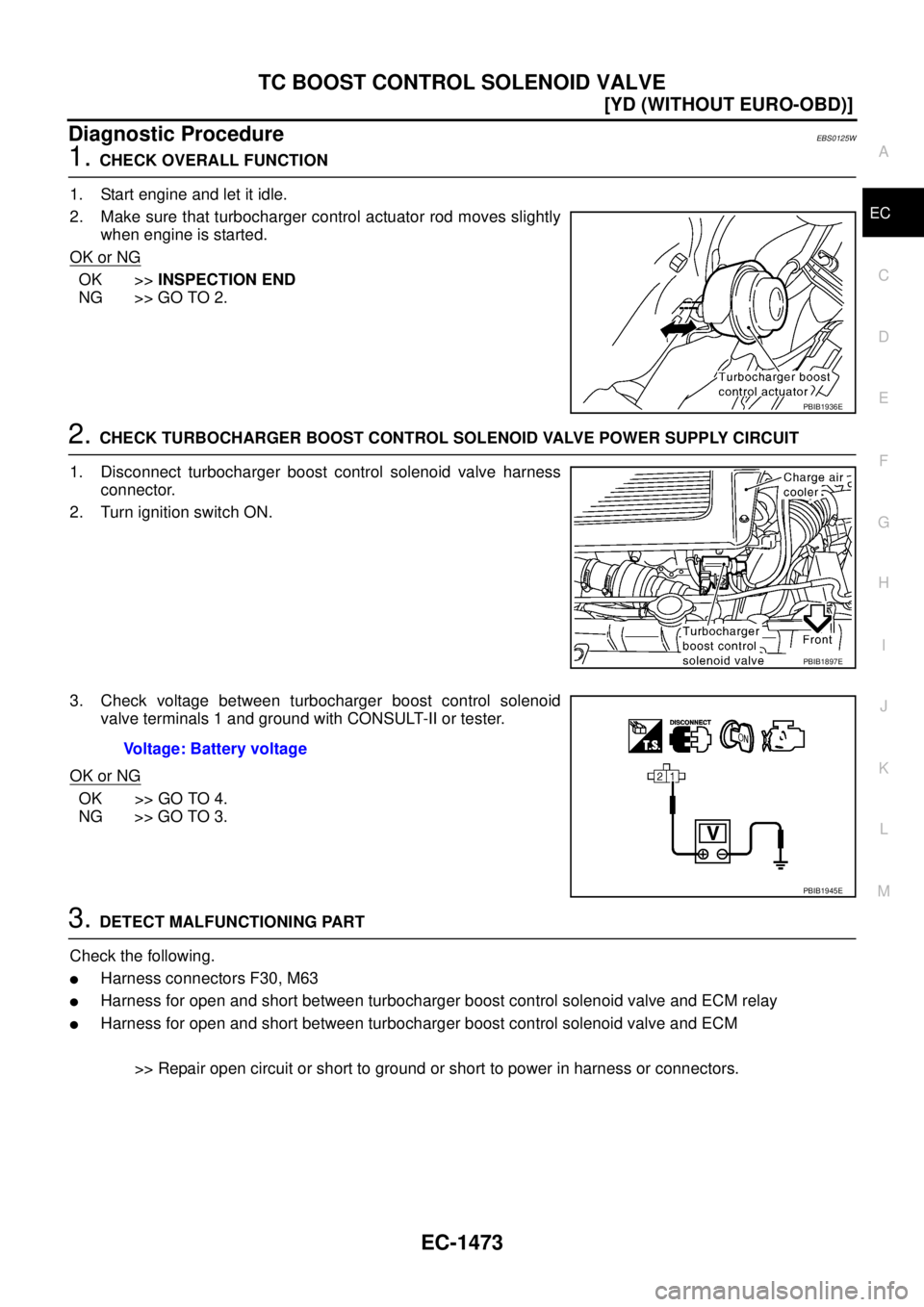

Diagnostic ProcedureEBS0125W
1. CHECK OVERALL FUNCTION
1. Start engine and let it idle.
2. Make sure that tu NISSAN X-TRAIL 2003 Service Repair Manual TC BOOST CONTROL SOLENOID VALVE
EC-1473
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS0125W
1. CHECK OVERALL FUNCTION
1. Start engine and let it idle.
2. Make sure that tu](/manual-img/5/57404/w960_57404-1850.png)
TC BOOST CONTROL SOLENOID VALVE
EC-1473
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS0125W
1. CHECK OVERALL FUNCTION
1. Start engine and let it idle.
2. Make sure that turbocharger control actuator rod moves slightly
when engine is started.
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
2. CHECK TURBOCHARGER BOOST CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT
1. Disconnect turbocharger boost control solenoid valve harness
connector.
2. Turn ignition switch ON.
3. Check voltage between turbocharger boost control solenoid
valve terminals 1 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors F30, M63
Harness for open and short between turbocharger boost control solenoid valve and ECM relay
Harness for open and short between turbocharger boost control solenoid valve and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB1936E
PBIB1897E
Voltage: Battery voltage
PBIB1945E
Page 1852 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual EC-1474
[YD (WITHOUT EURO-OBD)]
TC BOOST CONTROL SOLENOID VALVE
4. CHECK TURBOCHARGER BOOST CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT FOR
OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnec NISSAN X-TRAIL 2003 Service Repair Manual EC-1474
[YD (WITHOUT EURO-OBD)]
TC BOOST CONTROL SOLENOID VALVE
4. CHECK TURBOCHARGER BOOST CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT FOR
OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnec](/manual-img/5/57404/w960_57404-1851.png)
EC-1474
[YD (WITHOUT EURO-OBD)]
TC BOOST CONTROL SOLENOID VALVE
4. CHECK TURBOCHARGER BOOST CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT FOR
OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 6 and turbocharger boost control solenoid valve terminal
2. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK TURBOCHARGER BOOST CONTROL SOLENOID VALVE
Refer to EC-1474, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace turbocharger boost control solenoid valve.
6. CHECK INTERMITTENT INCIDENT
Refer to EC-1260, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END

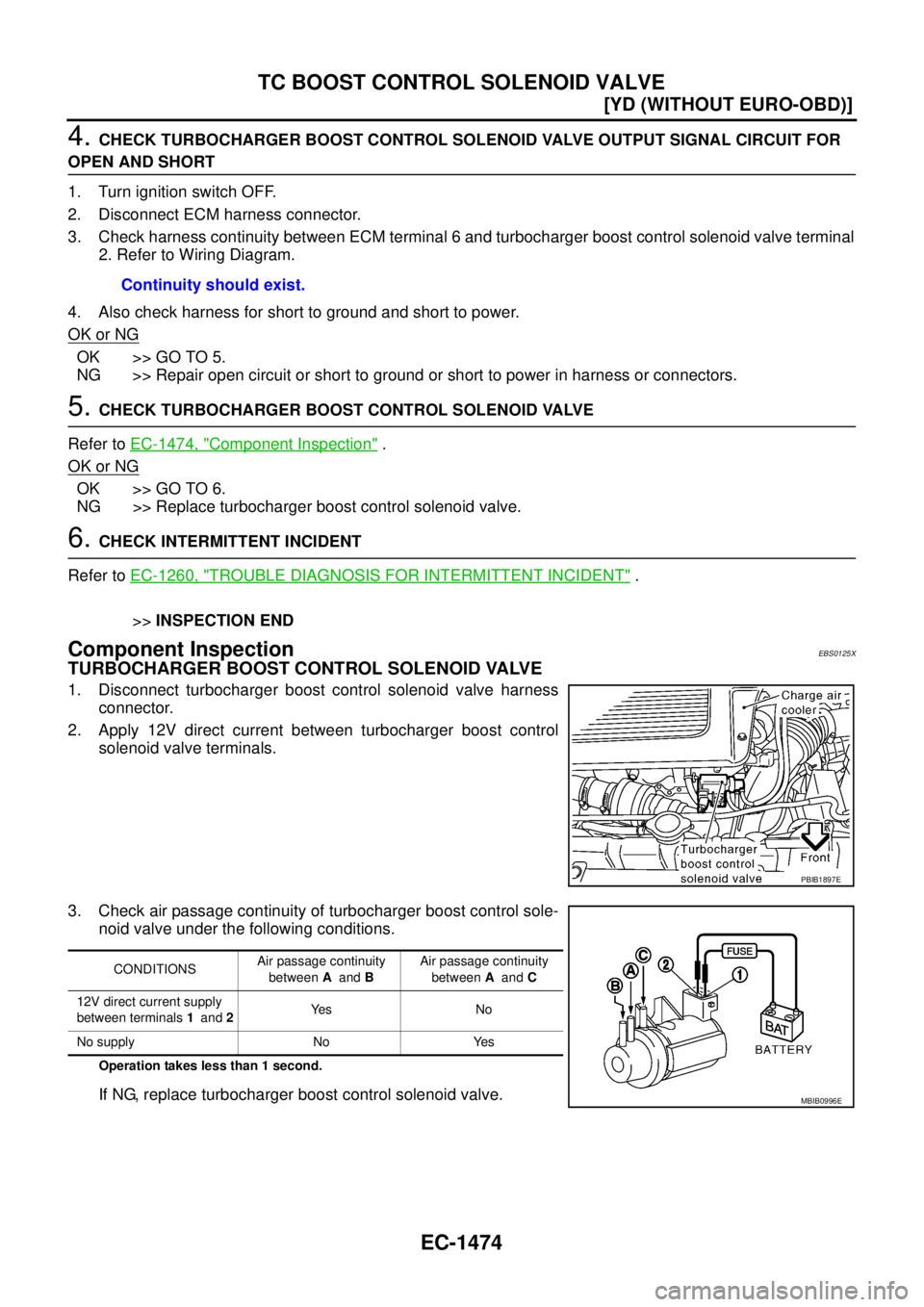

Component InspectionEBS0125X
TURBOCHARGER BOOST CONTROL SOLENOID VALVE
1. Disconnect turbocharger boost control solenoid valve harness
connector.
2. Apply 12V direct current between turbocharger boost control
solenoid valve terminals.
3. Check air passage continuity of turbocharger boost control sole-
noid valve under the following conditions.
Operation takes less than 1 second.
If NG, replace turbocharger boost control solenoid valve.Continuity should exist.
PBIB1897E
CONDITIONSAir passage continuity
between A and BAir passage continuity
between A and C
12V direct current supply
between terminals 1 and 2Ye s N o
No supply No Yes
MBIB0996E
Page 1853 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual BRAKE SWITCH
EC-1475
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
BRAKE SWITCHPFP:25230
DescriptionEBS0125Z
The stop lamp switch is installed to brake pedal bracket. The switch
senses brake ped NISSAN X-TRAIL 2003 Service Repair Manual BRAKE SWITCH
EC-1475
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
BRAKE SWITCHPFP:25230
DescriptionEBS0125Z
The stop lamp switch is installed to brake pedal bracket. The switch
senses brake ped](/manual-img/5/57404/w960_57404-1852.png)
BRAKE SWITCH
EC-1475
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
BRAKE SWITCHPFP:25230
DescriptionEBS0125Z
The stop lamp switch is installed to brake pedal bracket. The switch
senses brake pedal position and sends an ON-OFF signal to the
ECM. The ECM uses the signal to control the fuel injection control
system.
CONSULT-II Reference Value in Data Monitor ModeEBS01260
Specification data are reference values.
ECM Terminals and Reference ValueEBS01261
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
PBIB1902E
MONITOR ITEM CONDITION SPECIFICATION
BRAKE SW
Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage)
100 P Stop lamp switch[Ignition switch ON]
Brake pedal: Fully releasedApproximately 0V
[Ignition switch ON]
Brake pedal: DepressedBATTERY VOLTAGE
(11 - 14V)
Page 1854 of 4179
EC-1476
[YD (WITHOUT EURO-OBD)]
BRAKE SWITCH

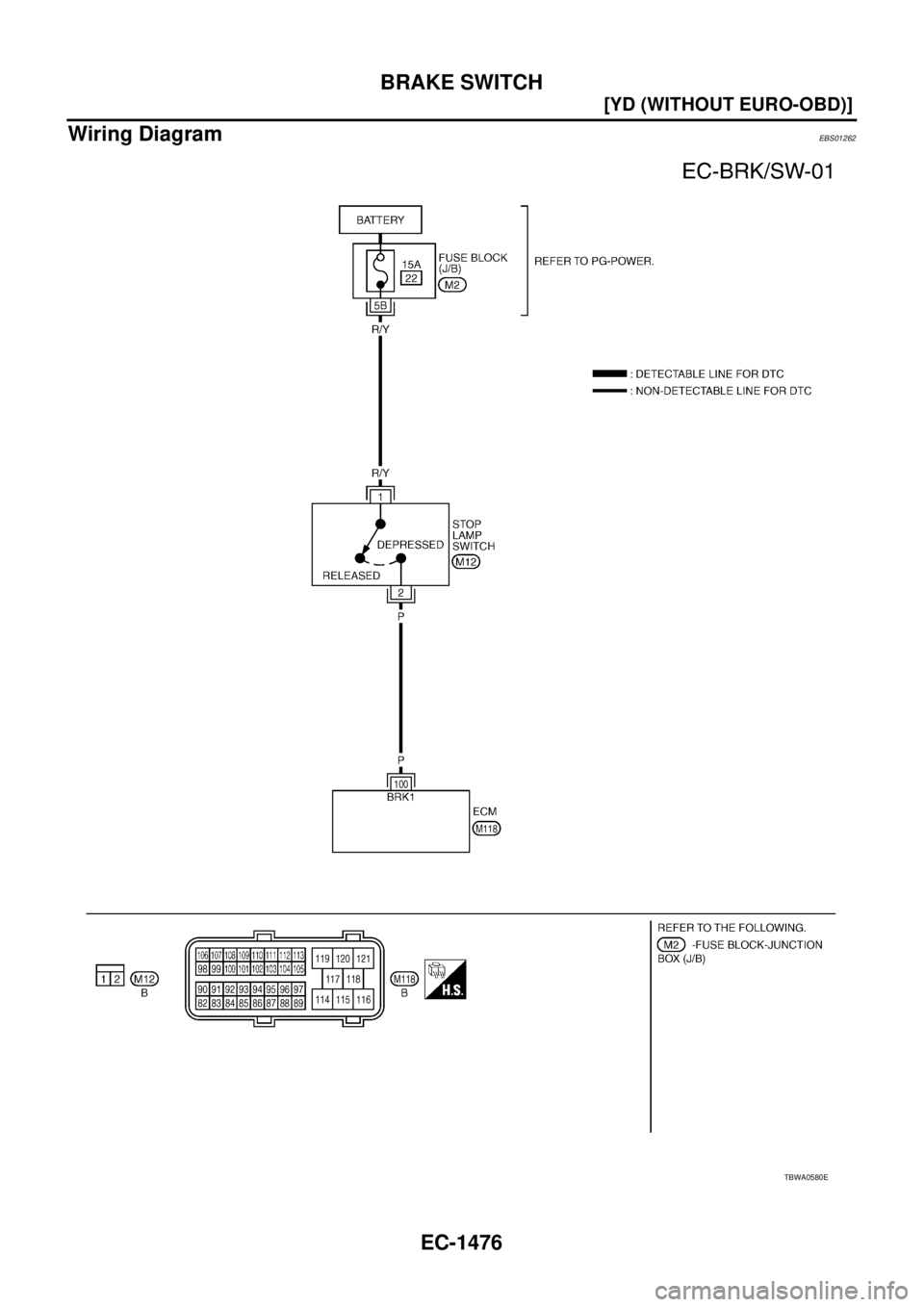

Wiring DiagramEBS01262
TBWA0580E
Page 1855 of 4179
BRAKE SWITCH
EC-1477
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

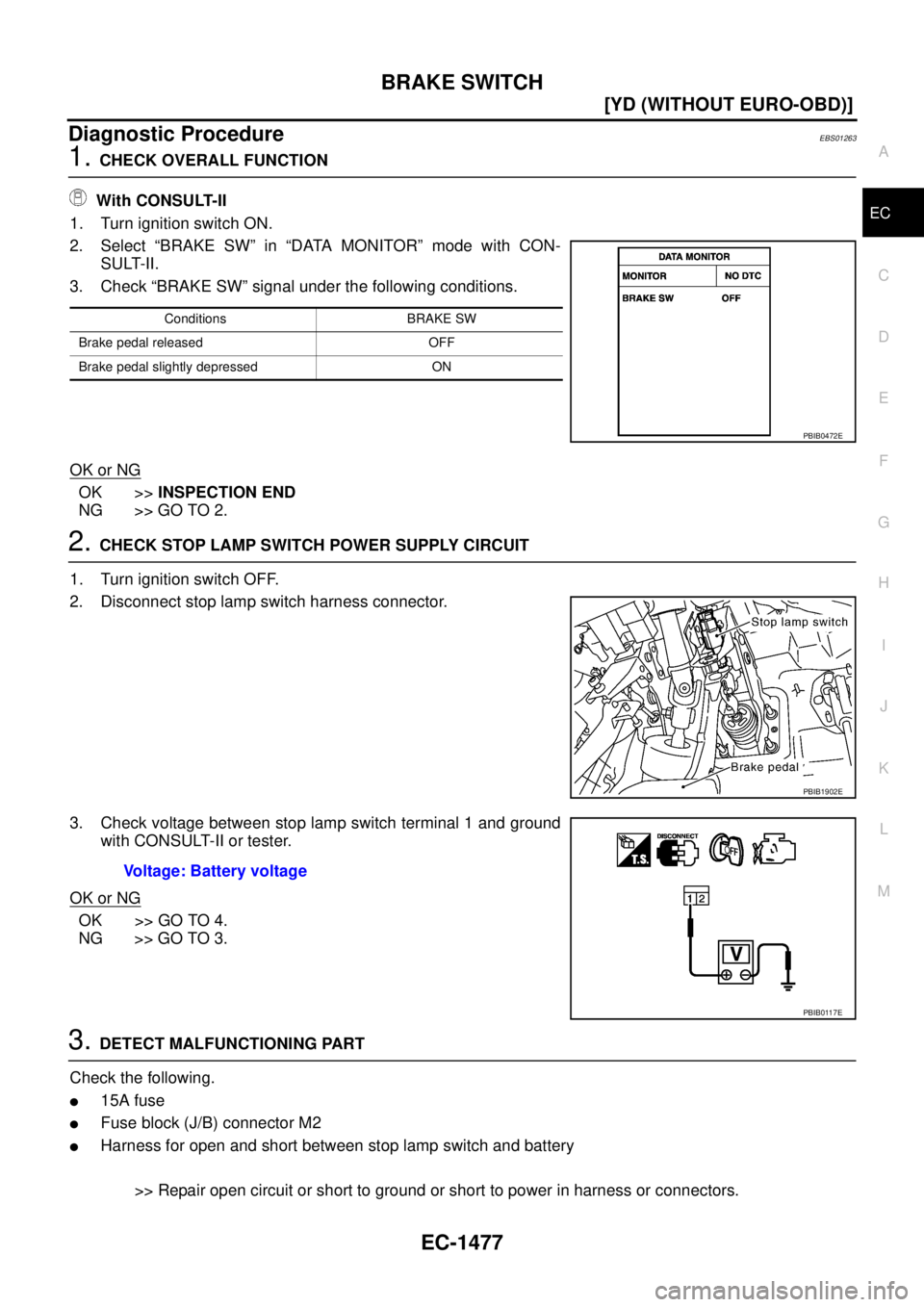

Diagnostic ProcedureEBS01263
1. CHECK OVERALL FUNCTION
With CONSULT-II
1. Turn ignition switch ON.
2. Select “BRAKE SW” in “DATA MONITOR” mode with CON-
SULT-II.
3. Check “BRAKE SW” signal under the following conditions.
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
2. CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector.
3. Check voltage between stop lamp switch terminal 1 and ground
with CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.
15A fuse
Fuse block (J/B) connector M2
Harness for open and short between stop lamp switch and battery
>> Repair open circuit or short to ground or short to power in harness or connectors.
Conditions BRAKE SW
Brake pedal released OFF
Brake pedal slightly depressed ON
PBIB0472E
PBIB1902E
Voltage: Battery voltage
PBIB0117E
Page 1856 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual EC-1478
[YD (WITHOUT EURO-OBD)]
BRAKE SWITCH
4. CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 1 NISSAN X-TRAIL 2003 Service Repair Manual EC-1478
[YD (WITHOUT EURO-OBD)]
BRAKE SWITCH
4. CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 1](/manual-img/5/57404/w960_57404-1855.png)
EC-1478
[YD (WITHOUT EURO-OBD)]
BRAKE SWITCH
4. CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 100 and stop lamp switch terminal 2. Refer to Wiring
Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK STOP LAMP SWITCH
Refer to EC-1478, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace stop lamp switch.
6. CHECK INTERMITTENT INCIDENT
Refer to EC-1260, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END

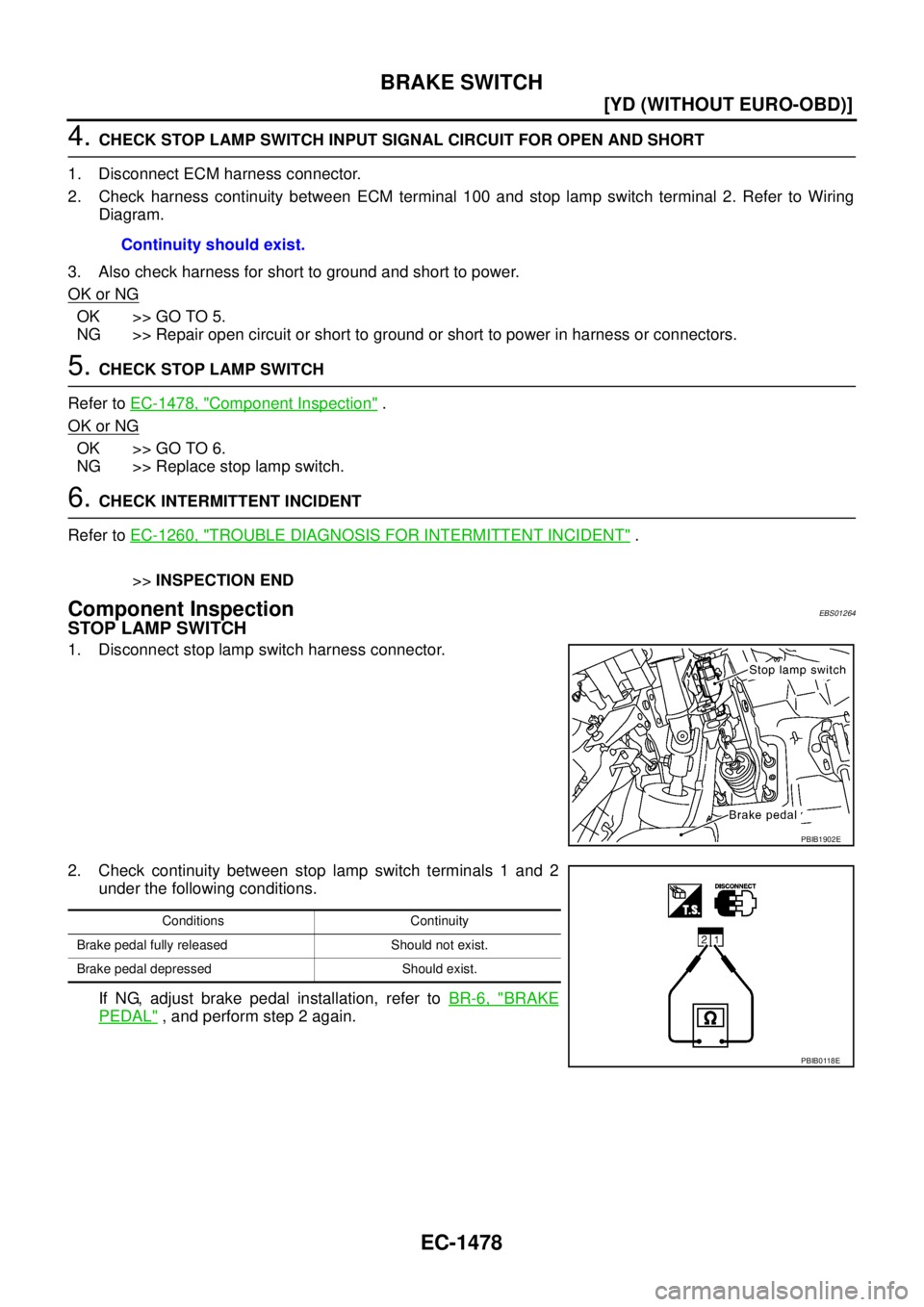

Component InspectionEBS01264
STOP LAMP SWITCH
1. Disconnect stop lamp switch harness connector.
2. Check continuity between stop lamp switch terminals 1 and 2
under the following conditions.
If NG, adjust brake pedal installation, refer to BR-6, "
BRAKE
PEDAL" , and perform step 2 again. Continuity should exist.
PBIB1902E
Conditions Continuity
Brake pedal fully released Should not exist.
Brake pedal depressed Should exist.
PBIB0118E
