NISSAN X-TRAIL 2003 Service Repair Manual PS-1
POWER STEERING SYSTEM
G STEERING
CONTENTS
C
D
E
F
H
I
J
K
L
M
SECTION
A
B
PS

POWER STEERING SYSTEM
PRECAUTIONS .......................................................... 3
Precautions for Sup

PS-1
POWER STEERING SYSTEM
G STEERING
CONTENTS
C
D
E
F
H
I
J
K
L
M
SECTION
A
B
PS

POWER STEERING SYSTEM
PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Caution ..................................................................... 3
FPREPARATION ........................................................ 4
Special Service Tools (SST) ..................................... 4
NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING ................................................ 5
NVH Trouble shooting Chart .................................... 5
POWER STEERING FLUID ........................................ 6
Checking Fluid Level ................................................ 6
Checking Fluid Leakage ........................................... 6
Bleeding Hydraulic System ...................................... 6
STEERING WHEEL .................................................... 7
On-Vehicle Inspection and Service .......................... 7
PLAY INSPECTION .............................................. 7
NEUTRAL POSITION INSPECTION .................... 7
STEERING TORQUE CHECK .............................. 7
STEERING ANGLE INSPECTION ........................ 7
Removal and Installation .......................................... 8
REMOVAL ............................................................. 8
INSTALLATION ..................................................... 8
STEERING COLUMN ............................................... 10
Removal and Installation ........................................ 10
REMOVAL OF LOWER JOINT AND HOLE
COVER ............................................................... 10
INSTALLATION OF LOWER JOINT AND HOLE
COVER ............................................................... 10
REMOVAL OF STEERING COLUMN ASSEM-
BLY ....................................................................... 11
INSTALLING STEERING COLUMN ASSEMBLY .... 11
Disassembly and Assembly ................................... 12
DISASSEMBLY ................................................... 12
INSPECTION AFTER DISASSEMBLY ............... 12
ASSEMBLY ......................................................... 12
POWER STEERING GEAR AND LINKAGE ............ 13
Removal and Installation ........................................ 13
REMOVAL ........................................................... 13
INSTALLATION ................................................... 13Components ........................................................... 15
MODEL PR24AD ................................................. 15
Disassembly and Assembly .................................... 16
DISASSEMBLY ................................................... 16
INSPECTION AFTER DISASSEMBLY ................ 17
ASSEMBLY ......................................................... 18
POWER STEERING OIL PUMP ............................... 24
On-Vehicle Inspection and Service ......................... 24
OIL PUMP PULLEY HYDRAULIC PRESSURE
INSPECTION ...................................................... 24
Removal and Installation (QR20DE and QR25DE
engine models) ....................................................... 24
REMOVAL ........................................................... 24
INSTALLATION ................................................... 24
Disassembly and Assembly(QR20DE and
QR25DE engine models) ........................................ 25
INSPECTION BEFORE DISASSEMBLY ............. 25
DISASSEMBLY ................................................... 25
INSPECTION AFTER DISASSEMBLY ................ 26
ASSEMBLY ......................................................... 26
Removal and Installation (YD22DDTi engine
model) ..................................................................... 28
Disassembly and Assembly (YD22DDTi engine
model) ..................................................................... 30
INSPECTION BEFORE DISASSEMBLY ............. 30
DISASSEMBLY ................................................... 31
INSPECTION AFTER DISASSEMBLY ................ 32
ASSEMBLY ......................................................... 32
HYDRAULIC LINE .................................................... 34
Components (QR20DE and QR25DE engine mod-
els) .......................................................................... 34
REMOVAL AND INSTALLATION ........................ 38
Components (YD22DDTi engine model) ................ 39
REMOVAL AND INSTALLATION ........................ 41
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 42
Wheel ..................................................................... 42
Steering Angle ........................................................ 42
Steering Column ..................................................... 42
Steering Linkage ..................................................... 42
Steering Gear ......................................................... 43

Page 2938 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual PS-2 Oil Pump ................................................................. 43
Steering Fluid .......................................................... 43

Page 2939 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual PRECAUTIONS
PS-3
C
D
E
F
H
I
J
K
L
MA
B
PS

PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EGS000IZ
The Supplemental Restrai

PRECAUTIONS
PS-3
C
D
E
F
H
I
J
K
L
MA
B
PS

PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EGS000IZ
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
CautionEGS00049
Always follow the warnings and the cautions below in disassembly procedures:
–Work in a clean, dust-free place. No dust proof device is necessary.
–Clean outside of unit before disassembly.
–Clean parts to be disassembled. Be careful not to allow any dirt or other foreign materials to enter or con-
tact with parts.
–Assemble disassembled parts properly, following order shown in manual. If work has been suspended in
the middle of assembly, place a clean cover over parts. This will prevent them from being contaminated.
–Use paper towels when removing dirt and other foreign materials. Cloth shop towels can leave lint on
cleaned parts that might affect operation of parts.
–Clean disassembled parts (except rubber parts) with kerosene. Drain oil by blowing with air or absorbing
with shop papers.
–Before assembling, apply DEXRONTM III or equivalent to O-rings and seals.
–Replace gaskets and O-rings with new ones. Be careful not to damage any O-rings, oil seals, and gaskets
during assembly.
If following part is scratched after disassembly of steering pump, replace applicable part: case, rear body,
side plate, pulley, rotor, vane, or flow control valve.
Mark source of fluid leak with a white marker for identification.
Seals and copper washers must not be reused.

Page 2940 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual PS-4

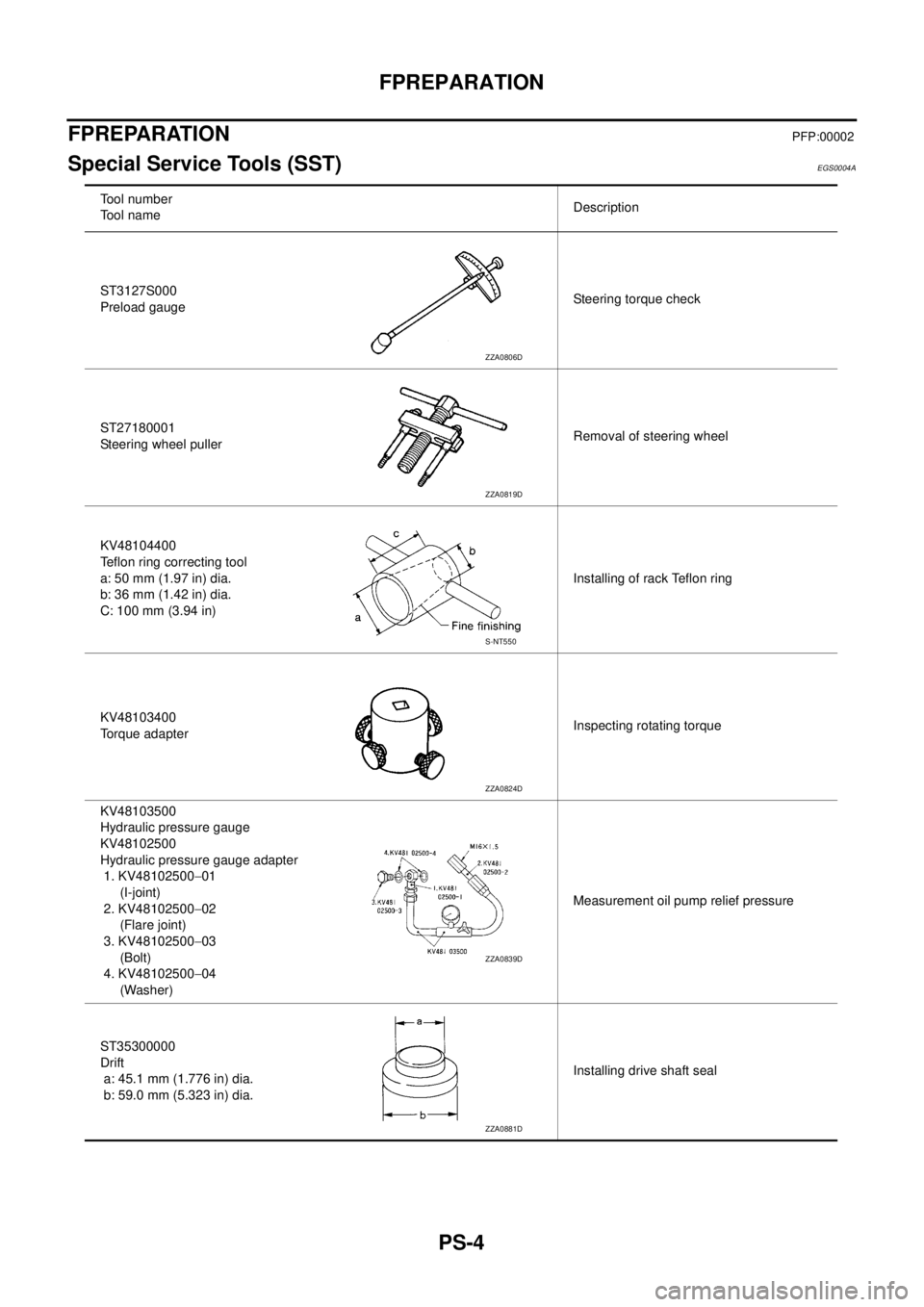

FPREPARATION

FPREPARATIONPFP:00002
Special Service Tools (SST)EGS0004A
Tool number
Tool nameDescription
ST3127S000
Preload gaugeSteering torque check
ST27180001
Steering wheel pullerRemoval of

Page 2941 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING
PS-5
C
D
E
F
H
I
J
K
L
MA
B
PS

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTINGPFP:00003
NVH Trouble shooting ChartEGS000A9
Use the chart bel

Page 2942 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual PS-6
POWER STEERING FLUID

POWER STEERING FLUIDPFP:KLF20
Checking Fluid LevelEGS0004B
Check the fluid level with the engine OFF.
Check that fluid level is between MAX and MIN marks on tank.
Fluid l

PS-6
POWER STEERING FLUID

POWER STEERING FLUIDPFP:KLF20
Checking Fluid LevelEGS0004B
Check the fluid level with the engine OFF.
Check that fluid level is between MAX and MIN marks on tank.
Fluid level should not exceed MAX mark. Excessive fluid will
cause fluid to leak from cap.
Note that fluid level can change depending on temperature of
fluid. HIGH and LOW marks are shown on tank to indicate the
proper level at high temperature and low temperature respec-
tively.
CAUTION:
Never reuse drained power steering fluid.
Use DEXRONTM III or equivalent. Never use Nissan Power Steering Fluid Special, Nissan Matic
Fluid C, or D.
Checking Fluid LeakageEGS0004C
Check hydraulic connections for any leakage, crack, damage, loose-
ness, or wear.
1. Run engine until fluid temperature reaches 50 to 80°C (122 to
176°F) in reservoir tank. Keep engine speed at idle.
2. Turn steering wheel several times from stop to stop.
3. Turn the steering wheel clockwise or counter clockwise until it
reaches the stop and hold it for five seconds. Check for fluid
leak.
CAUTION:
Do not hold steering wheel at stop for 15 seconds or longer.
Otherwise, pump may be damaged.
4. If any leak is found on joint, loosen and retighten flair nut. Excessive tightening may damage O-ring,
washer, or connector.
Bleeding Hydraulic SystemEGS0004D
1. Lift vehicle.
2. Fill tank up to MAX mark. Turn steering wheel several times from stop to stop. Add fluid if fluid level goes
down. Repeat this step until there is no fluid decrease and no bubble in tank.
3. Start engine and repeat step above with engine at idle. Continue step until no decrease in fluid happens.
If bleeding is not complete, following symptoms can be observed.
Bubbles are created in reservoir tank.
Rattling noise can be heard from oil pump.
Whining noise can be heard from oil pump.
Turn steering wheel slowly or stop vehicle. Sound of fluid movement may be heard from gear valve and
pump. This sound has nothing to do with steering performance or durability.HOT : Oil temperature 50 to 80°C (122 to 176°F)
COLD : Oil temperature 0 to 30°C (32 to 86°F)
STC0996D
SST836C

Page 2943 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual STEERING WHEEL
PS-7
C
D
E
F
H
I
J
K
L
MA
B
PS

STEERING WHEELPFP:48430
On-Vehicle Inspection and ServiceEGS0004E
PLAY INSPECTION
1. Turn steering wheel to straight-ahead position. Start engine and li

STEERING WHEEL
PS-7
C
D
E
F
H
I
J
K
L
MA
B
PS

STEERING WHEELPFP:48430
On-Vehicle Inspection and ServiceEGS0004E
PLAY INSPECTION
1. Turn steering wheel to straight-ahead position. Start engine and lightly turn steering wheel clockwise and
counter clockwise until front wheels start moving. Measure travel to starting point on circumference of
steering wheel.
2. If play is outside specifications, check following parts for proper installation: steering gear assembly, front
suspension, axles, and steering column.
Check steering wheel for vertical, horizontal, or axial play.
Lift vehicle and check steering gear mounting bolts and nuts for looseness.
NEUTRAL POSITION INSPECTION
After the wheel alignment inspection, carry out the neutral position inspection. Refer to FSU-6, "Wheel
Alignment" .
Before removing steering wheel, check steering gear neutral position.
1. Set vehicle to straight-ahead position, and check that steering wheel is in neutral position.
2. If it is not in neutral position, remove steering wheel, and install again in properly.
3. If it is not adjusted within two teeth from center of gear, loosen tie rod lock nut. Then turn it to opposite
direction to adjust until amount of left and right becomes equal.
STEERING TORQUE CHECK
1. Stop vehicle on a dry flat paved road and apply parking brake.
2. Start engine and wait until power steering fluid warms up. Using
a preload gauge (SST), check rotating torque of steering wheel.
3. If torque is outside specifications, check rack sliding torque and
oil pump relief pressure.
STEERING ANGLE INSPECTION
After toe-in inspection, check steering angle. Place front wheels
on turning radius gauges and rear wheels on stands. Level the
vehicle. Check maximum inner and outer wheel steering angles
for LH and RH road wheels.Steering wheel play inspection standard : 0 - 35 mm (0 - 1.38 in)
Steering wheel axial endplay : 0 mm (0 in)
Tightening torque : 140 - 160 N·m (15 - 16 kg-m, 104 - 118 ft-lb)
Steering torque:
706 N·cm (72 kg-cm, 62 in-lb) or less
Rack sliding torque:
153 - 240 N (15.5 - 24.5 kg, 34.3 - 54.2 lb)
Oil pump relief hydraulic pressure:
8,000 - 8,800 kPa (81.4 - 87.3 bar, 83 - 89 kg/cm
2 , 1,180 - 1,266 psi)
STA0005D
FAA0016D

Page 2944 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual PS-8
STEERING WHEEL

Start engine. With engine at idle, turn steering wheel from stop
to stop and measure steering angles.
If angles are outside specification, measure rack stroke.
If rack stroke

PS-8
STEERING WHEEL

Start engine. With engine at idle, turn steering wheel from stop
to stop and measure steering angles.
If angles are outside specification, measure rack stroke.
If rack stroke is outside of specification, disassemble steering
gear to check rack stroke.
Steering angles are not adjustable. If any of steering angles is different from specified value, check steer-
ing gear, the column and the front suspension components for wear or damage. If any abnormality exists,
replace the malfunctioning parts.
Removal and InstallationEGS0004F
REMOVAL
1. Remove air bag module. Refer to SRS-30, "DRIVER AIR BAG MODULE" .
2. Remove horn connector.
3. Remove steering wheel mounting nut and paint mating marks on steering wheel body and top of column
shaft.
4. Using a steering wheel puller (SST), remove steering wheel.
INSTALLATION
Paying attention to following items, install in the reverse order of removal.
NOTE:
When reconnecting spiral cable, fix cable with a tape so that fixing case and rotating part keep aligned.
This will omit neutral position alignment procedure during spiral cable installation.
Neutral position (refer to figure)... Gently turn spiral cable clock-
wise until it comes to the stop. Then turn it counter clockwise
(approximately 3.0 turns) until centering mark is aligned with
adjustment mark. (Service part is fixed in neutral position with
stopper. It can be installed onto steering wheel without align-
ment once stopper is removed.)
CAUTION:
Place steering wheel as follows: Front wheels in straight-
ahead position. R mark on the cancel claw faces down. 3
bosses align with 3 holes behind steering wheel assembly.
Check that spiral cable is placed in neutral position and that
locating pin on the left of the spiral cable is aligned with the
locating pinhole behind the steering wheel assembly.
Do not rotate spiral cable more than necessary. Do not tighten them excessively. (The cable may
be torn off.)
After installation, check system for proper operation by observing air bag warning lamp.
If air bag indicator indicates any abnormal condition, use self-diagnosis function or CONSULT to
reset or cancel memory.Inner wheel Minimum : 36°
Nominal : 39°
Maximum : 40°
Outer wheel : 31°
Rack stroke : 66.5 mm (2.618 in)
SGIA0055E
SGIA0080E
SGIA0096E

Load next 8 pages

Page: < prev 1-10 ... 2905-2912 2913-2920 2921-2928 2929-2936 2937-2944 2945-2952 2953-2960 2961-2968 2969-2976 ... 4184 next >

steering fuel type jacking tow ESP roof
