REAR WINDOW DEFOGGER
GW-39
C
D
E
F
G
H
J
K
L
MA
B
GW
REPAIRING PROCEDURE
1. Wipe broken heat wire and its surrounding area clean with a
cloth dampened alcohol.
2. Apply a small amount of conductive silver composition to tip of
drawing pen.
Shake silver composition container before use.
3. Place ruler on glass along broken line.Deposit conductive silver
composition on break with drawing pen.Slightly overlap existing
heat wire on both sides [preferably 5 mm(0.20in)] of the break.
4. After repair has been completed, check repaired wire for conti-
nuity.This check should be conducted 10 minutes after silver
composition is deposited.
Do not touch repaired area while test is being conducted.
5. Apply a constant stream of hot air directly to the repaired area
for approximately 20 minutes with a heat gun.A minimum dis-
tance of 3cm(1.2in) should be kept between repaired area and
hot air outlet.
If a heat gun is not available, let the repaired area dry for 24
hours.
PIIA0215E
SEL012D
SEL013D
Page 3226 of 4179

GW-40
POWER WINDOW SYSTEM
POWER WINDOW SYSTEMPFP:25401
Component Parts and Harness Connector LocationEIS0045V
System DescriptionEIS0045W

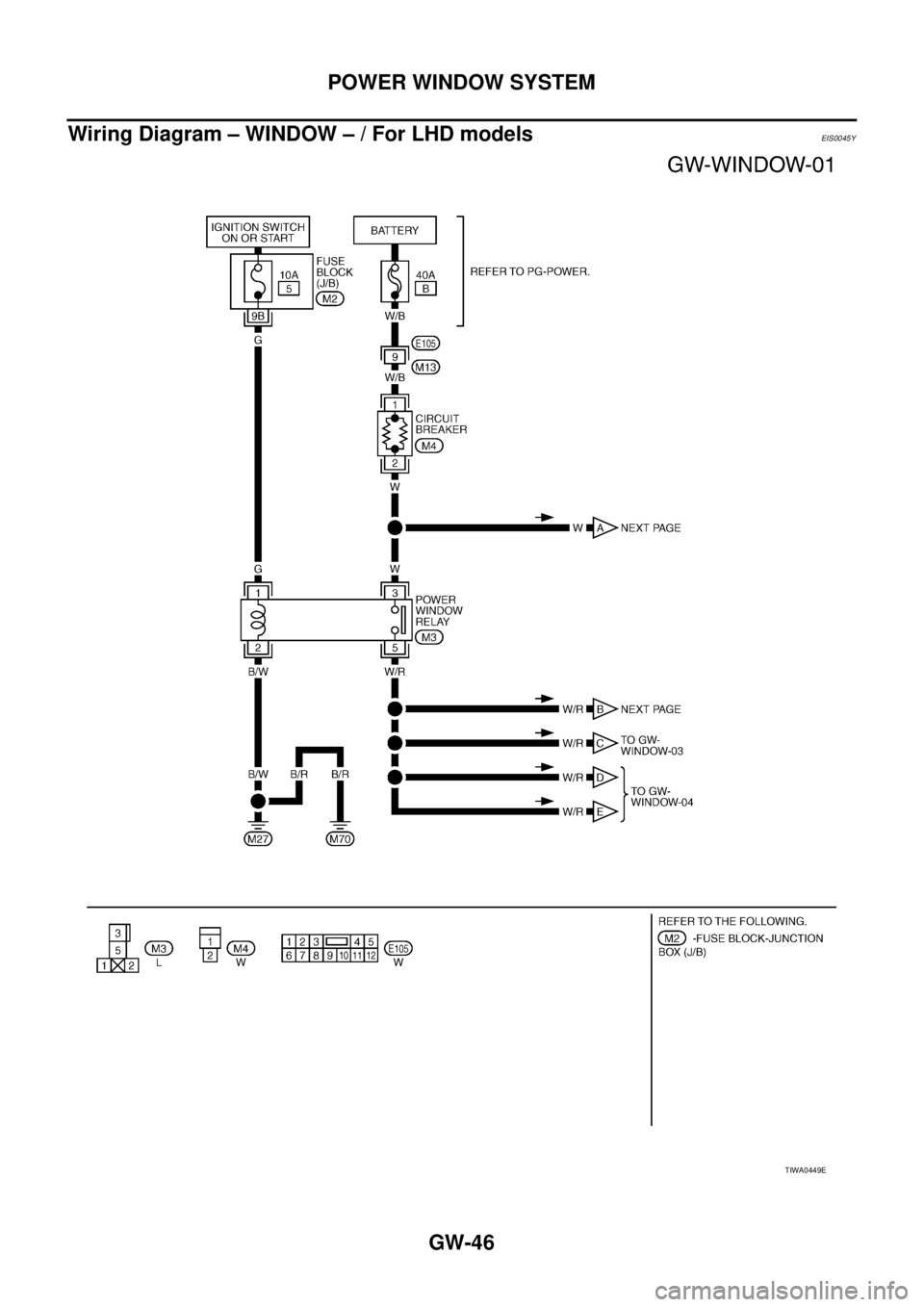

Power is supplied at all times
from 40A fusible link (letter B , located in the fuse and fusible link box)
through circuit breaker terminal 1
through circuit breaker terminal 2
to power window relay terminal 3 and
to power window main switch terminal 5 (LHD models) or 3 (RHD models).
With ignition switch in ON or START position, power is supplied
through 10A fuse [No. 5, located in the fuse block (J/B)]
to power window relay terminal 1
Ground is supplied
to power window relay terminal 2
through body grounds M27 and M70,
to power window main switch terminal 19
through body grounds M27 and M70.
When power and ground are supplied, the power window relay is energized and then power is supplied
through power window relay terminal 5
to power window main switch terminal 12,
to front power window switch (passenger side) terminal 5,
to rear power window switch LH and RH terminals 5.
PIIA9620E
Page 3227 of 4179

POWER WINDOW SYSTEM
GW-41
C
D
E
F
G
H
J
K
L
MA
B
GW
MANUAL OPERATION
Front door (Driver Side)
WINDOW UP
When the driver side switch in the power window main switch is pressed in the up position,
Power is supplied
through power window main switch terminal 2 (LHD models) or 6 (RHD models).
to driver side power window motor terminal 1
Ground is supplied
to driver side power window motor terminal 3
through power window main switch terminal 1 (LHD models) or 7 (RHD models).
Then, the motor raises the window until the switch is released.
WINDOW DOWN
When the driver's window switch in the power window main switch is pressed in the down position,
Power is supplied
through power window main switch terminal 1(LHD models) or 7 (RHD models)
to driver side power window motor terminal 3
Ground is supplied
to driver side power window motor terminal 1
through power window main switch terminal 2 (LHD models) or 6 (RHD models).
Then, the motor lowers the window until the switch is released.
Front door (Passenger Side)
POWER WINDOW MAIN SWITCH OPERATION
WINDOW UP
When the passenger side switch in the power window main switch is pressed in the up position,
Power is supplied
through power window main switch terminal 4 (LHD models) or 5 (RHD models)
to front power window switch (passenger side) terminal 3
to front power window switch (passenger side) terminal 1
to front power window motor (passenger side) terminal 1
Ground is supplied
to front power window motor (passenger side) terminal 2
to front power window switch (passenger side) terminal 2
to front power window switch (passenger side) terminal 4
through power window main switch terminal 3 (LHD models) or 4 (RHD models)
Then, the motor raises the window until the switch is released.
WINDOW DOWN
When the passenger side switch in the power window main switch is pressed in the down position,
Power is supplied
through power window main switch terminal 3 (LHD models) or 4 (RHD models)
to front power window switch (passenger side) terminal 4
to front power window switch (passenger side) terminal 2
to front power window motor (passenger side) terminal 2
Ground is supplied
to front power window motor (passenger side) terminal 1
to front power window switch (passenger side) terminal 1
to front power window switch (passenger side) terminal 3
through power window main switch terminal 4 (LHD models) or 5 (RHD models)
Then, the motor lowers the window until the switch is released.
Page 3228 of 4179

GW-42
POWER WINDOW SYSTEM
FRONT POWER WINDOW SWITCH (PASSENGER SIDE) OPERATION
WINDOW UP
When the front power window switch (passenger side) is pressed in the up position,
Power is supplied
through front power window switch (passenger side) terminal 1
to front power window motor (passenger side) terminal 1
Ground is supplied
to front power window motor (passenger side) terminal 2
to front power window switch (passenger side) terminal 2
to front power window switch (passenger side) terminal 4
through power window main switch terminal 3 (LHD models) or 4 (RHD models)
Then, the motor raises the window until the switch is released.
WINDOW DOWN
When the front power window switch (passenger side) is pressed in the down position,
Power is supplied
through front power window switch (passenger side) terminal 2
to front power window motor (passenger side) terminal 2
Ground is supplied
to front power window motor (passenger side) terminal 1
to front power window switch (passenger side) terminal 1
to front power window switch (passenger side) terminal 3
through power window main switch terminal 4 (LHD models) or 5 (RHD models)
Then, the motor lowers the window until the switch is released.
Rear door LH
POWER WINDOW MAIN SWITCH OPERATION
WINDOW UP
When the rear LH switch in the power window main switch is pressed in the up position,
Power is supplied
through power window main switch terminal 14 (LHD models) or 13 (RHD models)
to rear power window switch LH terminal 3
to rear power window switch LH terminal 1
to rear power window motor LH terminal 1
Ground is supplied
to rear power window motor LH terminal 2
to rear power window switch LH terminal 2
to rear power window switch LH terminal 4
through power window main switch terminal 15 (LHD models) or 14 (RHD models)
Then, the motor raises the window until the switch is released.
WINDOW DOWN
When the rear LH switch in the power window main switch is pressed in the down position,
Power is supplied
through power window main switch terminal 15 (LHD models) or 14 (RHD models)
to rear power window switch LH terminal 4
to rear power window switch LH terminal 2
to rear power window motor LH terminal 2
Ground is supplied
to rear power window motor LH terminal 1
to rear power window switch LH terminal 1
to rear power window switch LH terminal 3
through power window main switch terminal 14 (LHD models) or 13 (RHD models)
Then, the motor lowers the window until the switch is released.
Page 3229 of 4179

POWER WINDOW SYSTEM
GW-43
C
D
E
F
G
H
J
K
L
MA
B
GW
REAR POWER WINDOW SWITCH LH OPERATION
WINDOW UP
When the rear power window switch LH is pressed in the up position,
Power is supplied
through rear power window switch LH terminal 1
to rear power window motor LH terminal 1
Ground is supplied
to rear power window motor LH terminal 2
to rear power window switch LH terminal 2
to rear power window switch LH terminal 4
through power window main switch terminal 15 (LHD models) or 14 (RHD models)
Then, the motor raises the window until the switch is released.
WINDOW DOWN
When the rear power window switch LH is pressed in the down position,
Power is supplied
through rear power window switch LH terminal 2
to rear power window motor LH terminal 2
Ground is supplied
to rear power window motor LH terminal 1
to rear power window switch LH terminal 1
to rear power window switch LH terminal 3
through power window main switch terminal 14 (LHD models) or 13 (RHD models)
Then, the motor lowers the window until the switch is released.
Rear door RH
POWER WINDOW MAIN SWITCH OPERATION
WINDOW UP
When the rear RH switch in the power window main switch is pressed in the up position,
Power is supplied
through power window main switch terminal 10 (LHD models) or 9 (RHD models)
to rear power window switch RH terminal 3
to rear power window switch RH terminal 1
to rear power window motor RH terminal 1
Ground is supplied
to rear power window motor RH terminal 2
to rear power window switch RH terminal 2
to rear power window switch RH terminal 4
through power window main switch terminal 11 (LHD models) or 10 (RHD models)
Then, the motor raises the window until the switch is released.
WINDOW DOWN
When the rear RH switch in the power window main switch is pressed in the down position,
Power is supplied
through power window main switch terminal 11 (LHD models) or 10 (RHD models)
to rear power window switch RH terminal 4
to rear power window switch RH terminal 2
to rear power window motor RH terminal 2
Ground is supplied
to rear power window motor RH terminal 1
to rear power window switch RH terminal 1
to rear power window switch RH terminal 3
through power window main switch terminal 10 (LHD models) or 9 (RHD models)
Then, the motor lowers the window until the switch is released.
Page 3230 of 4179

GW-44
POWER WINDOW SYSTEM
REAR POWER WINDOW SWITCH LH OPERATION
WINDOW UP
When the rear power window switch RH is pressed in the up position,
Power is supplied
through rear power window switch RH terminal 1
to rear power window motor RH terminal 1
Ground is supplied
to rear power window motor RH terminal 2
to rear power window switch RH terminal 2
to rear power window switch RH terminal 4
through power window main switch terminal 11 (LHD models) or 10 (RHD models)
Then, the motor raises the window until the switch is released.
WINDOW DOWN
When the rear power window switch RH is pressed in the down position,
Power is supplied
through rear power window switch RH terminal 2
to rear power window motor RH terminal 2
Ground is supplied
to rear power window motor RH terminal 1
to rear power window switch RH terminal 1
to rear power window switch RH terminal 3
through power window main switch terminal 10 (LHD models) or 9 (RHD models)
Then, the motor lowers the window until the switch is released.
AUTO OPERATION
The power window AUTO feature enables the driver to open or close the driver's window without holding the
window switch in the down or up position.
The AUTO feature operates on the driver's window.
POWER WINDOW LOCK
The power window lock is designed to lock operation of all windows except for driver's window.
When the lock switch is pressed to lock position, ground of the sub–switches in the power window main switch
is disconnected.This prevents the power window motors from operating.
TIMER FUNCTION
With the timer function, driver power window can be operated for approximately 15 minutes after ignition
switch is turned OFF (positions other than ON). However, the timer will be cancel when a specific signal, such
as driver door close (door switch OFF) → open (door switch ON), or ignition switch OFF → ON, is input.
DRIVER WINDOW ANTI–PINCH FUNCTION
During raising operation of driver power window, if power window main switch detects that foreign object is
pinched, power window lowers approximately 150 mm (5.91 in).
NOTE:
Depending on environment and driving conditions, if a similar impact or load is applied to power window, it
may lower.
Operation conditions
Driver door window is between fully-open and just before fully-closed position (when the limit switch is
ON).
During automatic operation when ignition switch is turned ON.
During automatic or manual operation when ignition switch is other than ON position (when the timer
operates).
Page 3231 of 4179
POWER WINDOW SYSTEM
GW-45
C
D
E
F
G
H
J
K
L
MA
B
GW
Schematic / For LHD modelsEIS0045X
TIWA0448E
Page 3232 of 4179
GW-46
POWER WINDOW SYSTEM
Wiring Diagram – WINDOW – / For LHD modelsEIS0045Y
TIWA0449E
