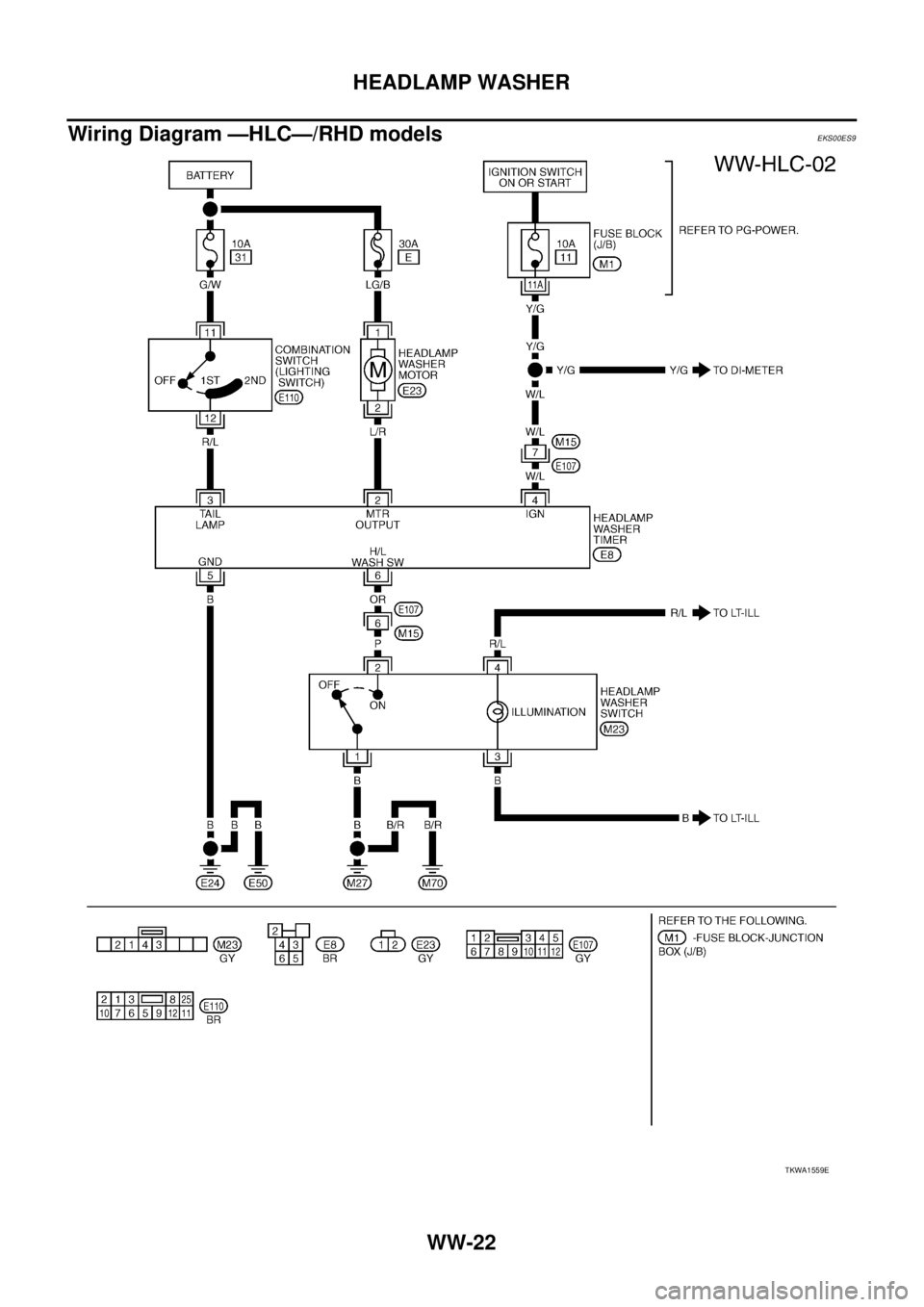

NISSAN X-TRAIL 2003 Service Repair Manual HEADLAMP WASHER WW-21 C D E F G H I J L MA B WW Wiring Diagram —HLC—EKS0036I TKWA1558E

Page 3762 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual WW-22 HEADLAMP WASHER Wiring Diagram —HLC—/RHD modelsEKS00ES9 TKWA1559E

Page 3763 of 4179

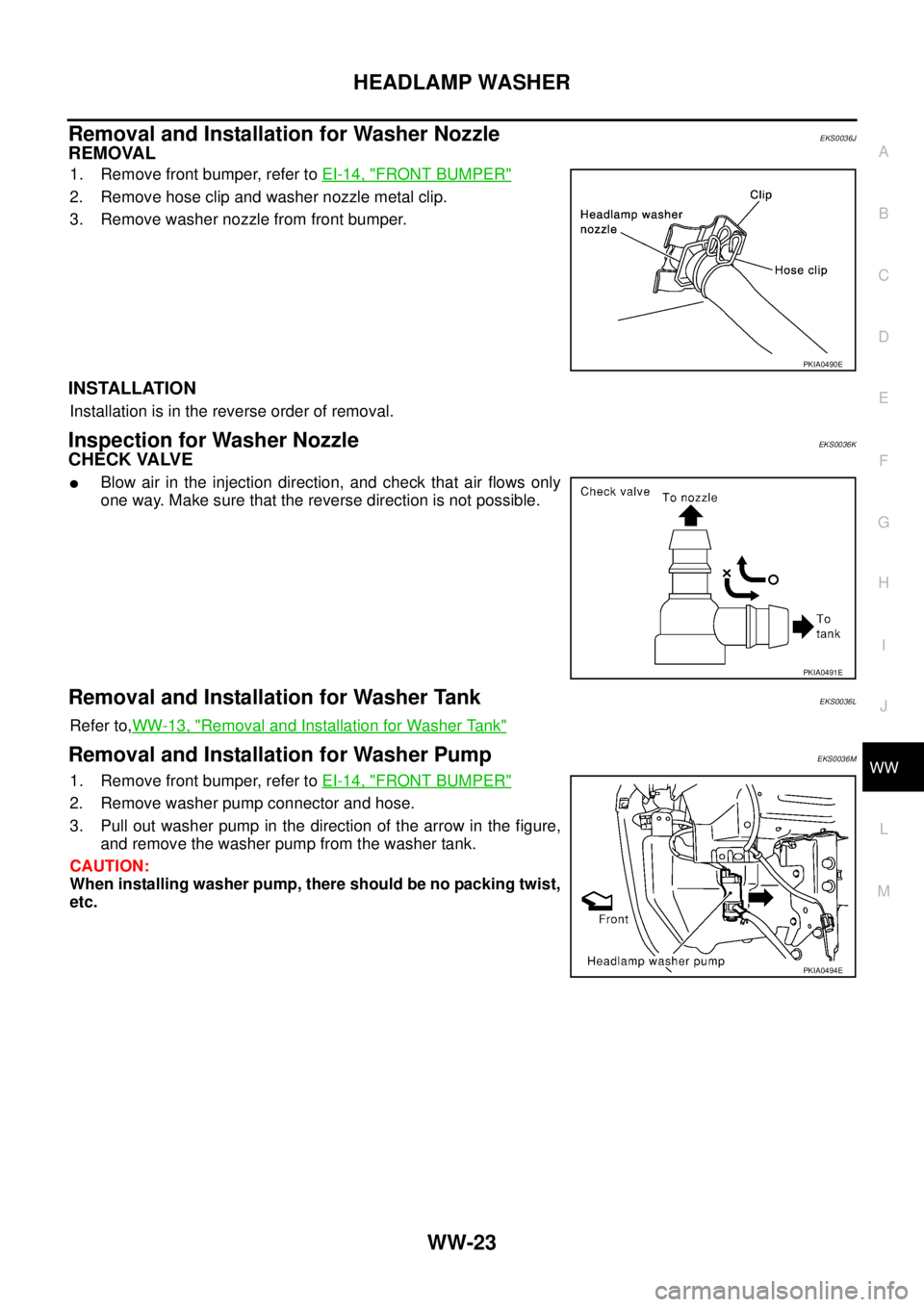

NISSAN X-TRAIL 2003 Service Repair Manual HEADLAMP WASHER WW-23 C D E F G H I J L MA B WW Removal and Installation for Washer NozzleEKS0036J REMOVAL 1. Remove front bumper, refer to EI-14, "FRONT BUMPER" 2. Remove hose clip and washer nozzl

Page 3764 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual WW-24 HEADLAMP WASHER Washer Tube LayoutEKS0036N PKIA0539E

Page 3765 of 4179

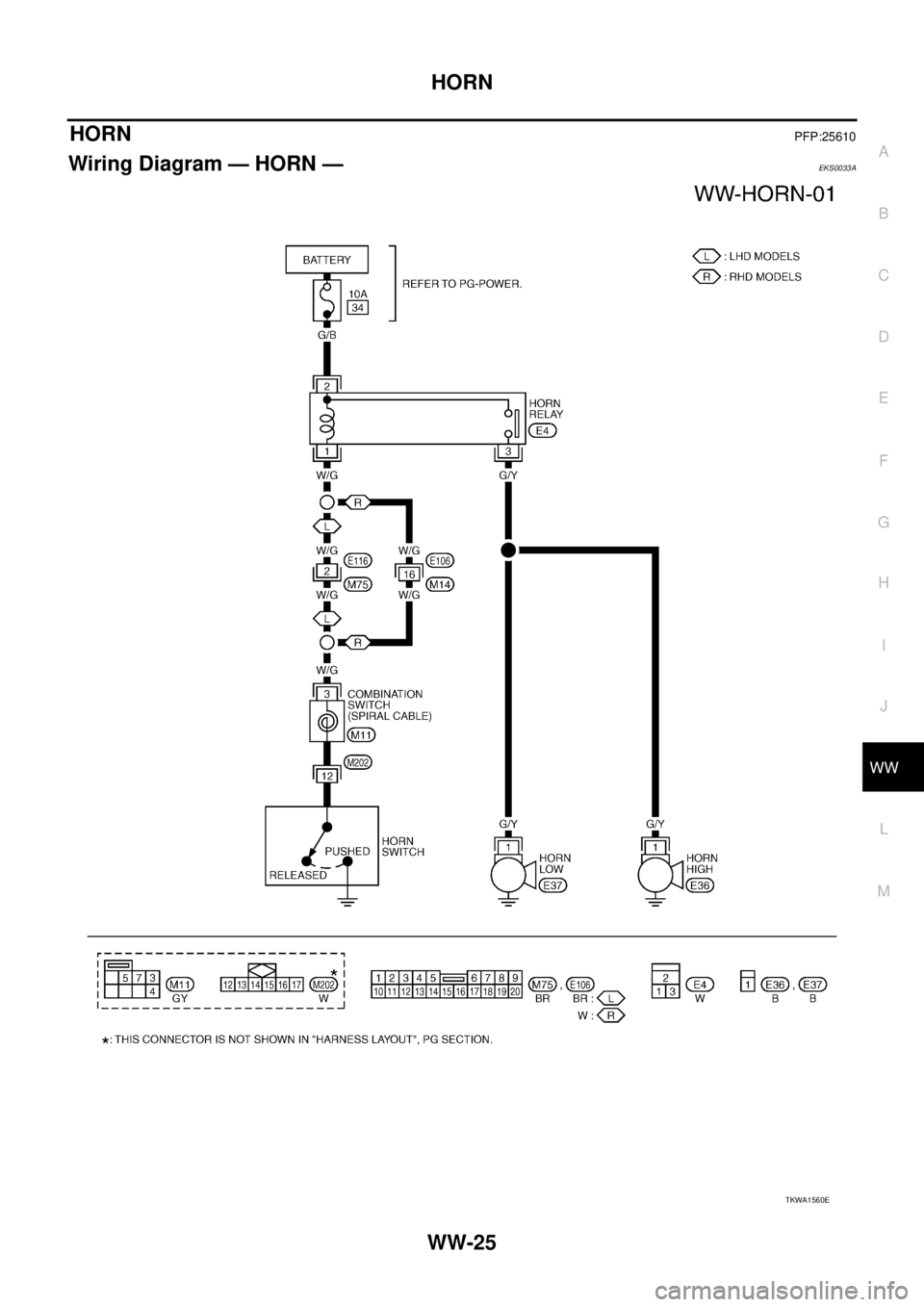

NISSAN X-TRAIL 2003 Service Repair Manual HORN WW-25 C D E F G H I J L MA B WW HORNPFP:25610 Wiring Diagram — HORN —EKS0033A TKWA1560E

Page 3766 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual WW-26 HORN Removal and InstallationEKS0033B REMOVAL 1. Remove the front grille.refer to EI-19, "FRONT GRILLE" 2. Disconnect horn connector. 3. Remove horn. INSTALLATION Tighten horn bolt to specifie

Page 3767 of 4179

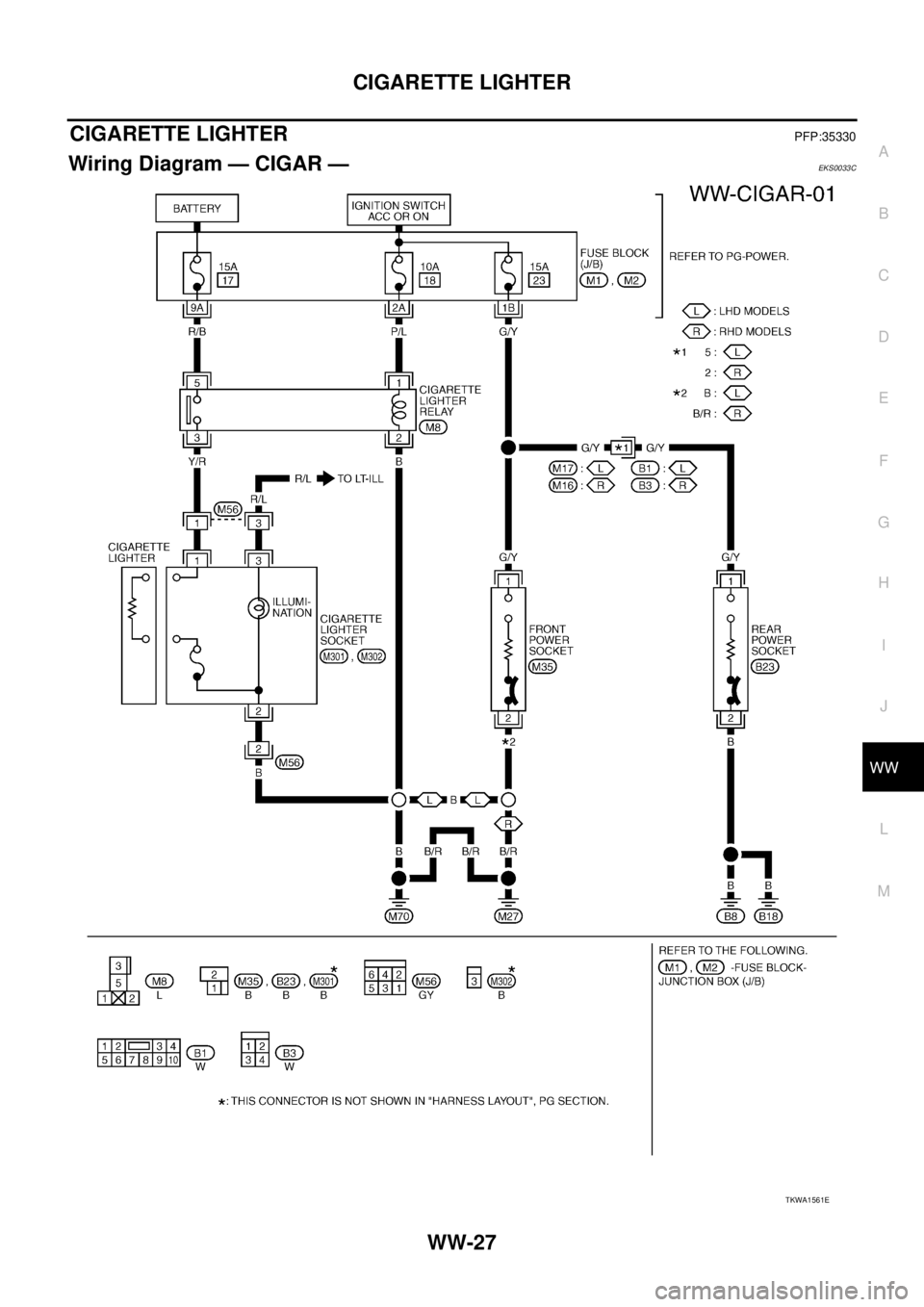

NISSAN X-TRAIL 2003 Service Repair Manual CIGARETTE LIGHTER WW-27 C D E F G H I J L MA B WW CIGARETTE LIGHTERPFP:35330 Wiring Diagram — CIGAR —EKS0033C TKWA1561E

Page 3768 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual WW-28 CIGARETTE LIGHTER Removal and InstallationEKS0033D REMOVAL 1. Remove instrument center lower panel, refer to IP-10, "INSTRU- MENT PANEL ASSEMBLY" . 2. Disconnect cigarette lighter and illumina
