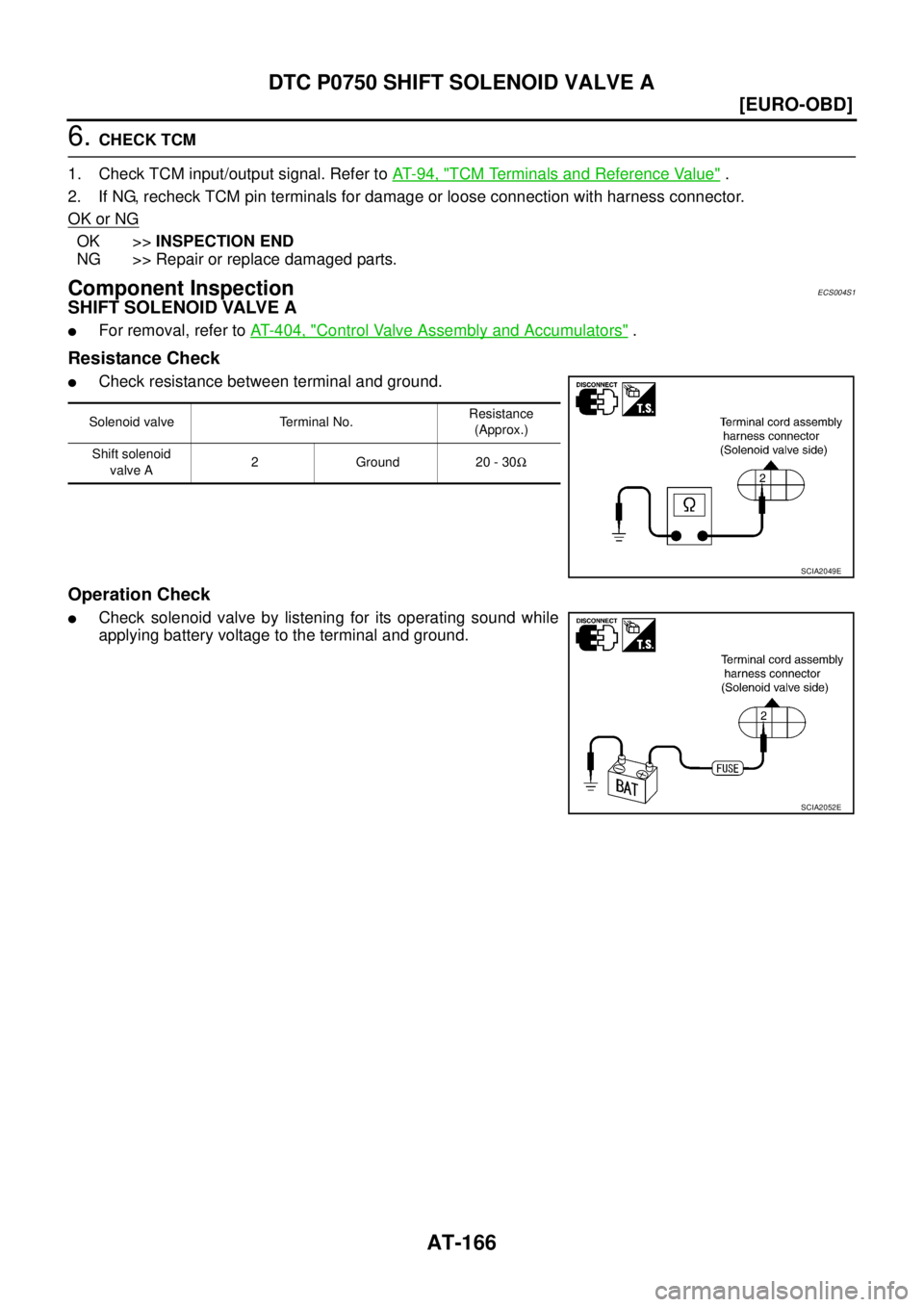

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0750 SHIFT SOLENOID VALVE A AT-165 [EURO-OBD] D E F G H I J K L MA B AT 2. CHECK SHIFT SOLENOID VALVE A CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect TCM connector. 3. Check resistance bet

Page 2202 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual AT-166 [EURO-OBD] DTC P0750 SHIFT SOLENOID VALVE A 6. CHECK TCM 1. Check TCM input/output signal. Refer to AT- 9 4 , " TCM Terminals and Reference Value" . 2. If NG, recheck TCM pin terminals for d

Page 2203 of 4179

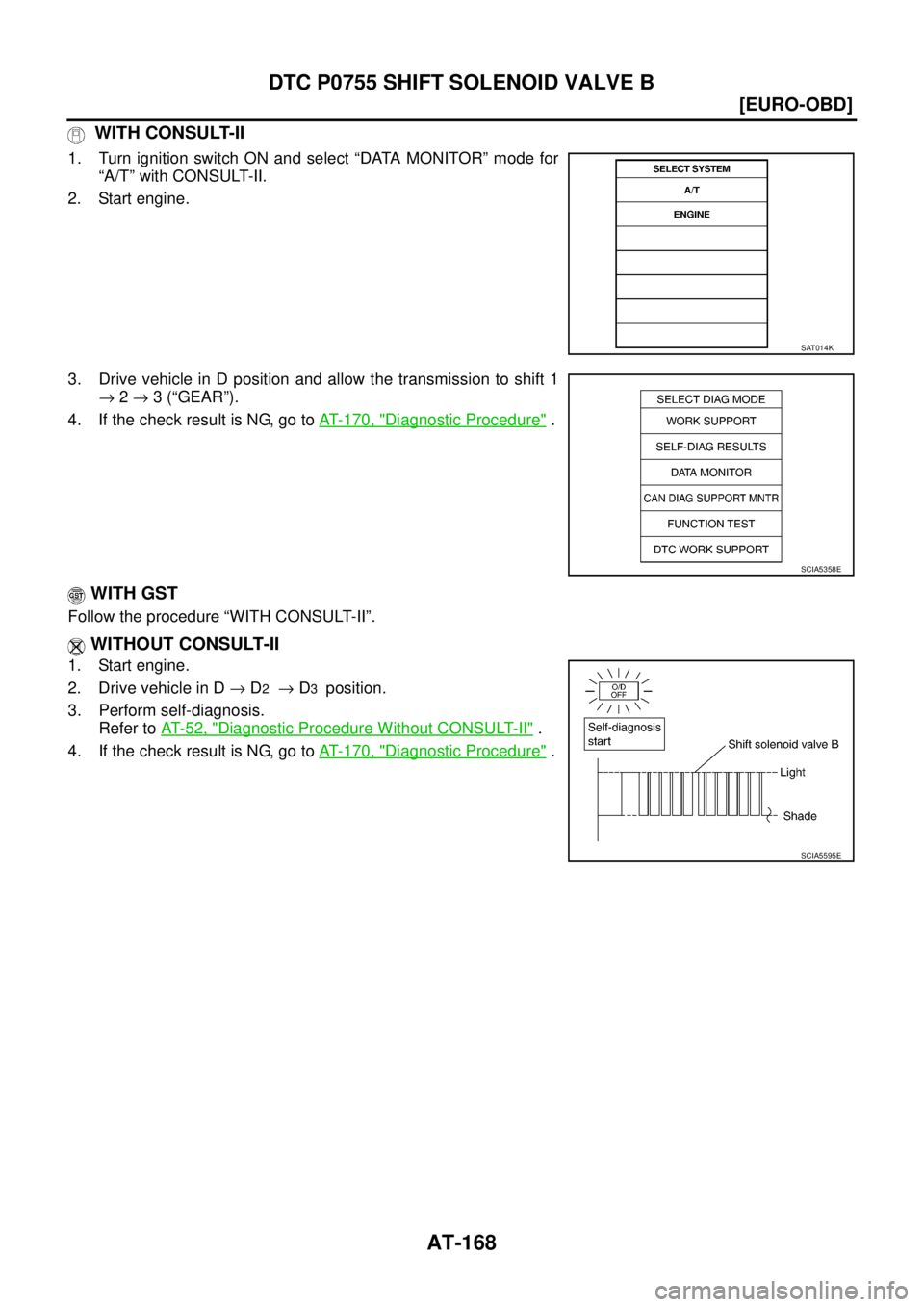

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0755 SHIFT SOLENOID VALVE B AT-167 [EURO-OBD] D E F G H I J K L MA B AT DTC P0755 SHIFT SOLENOID VALVE BPFP:31940 DescriptionECS004S2 Shift solenoid valves A and B are turned ON or OFF by the T

Page 2204 of 4179

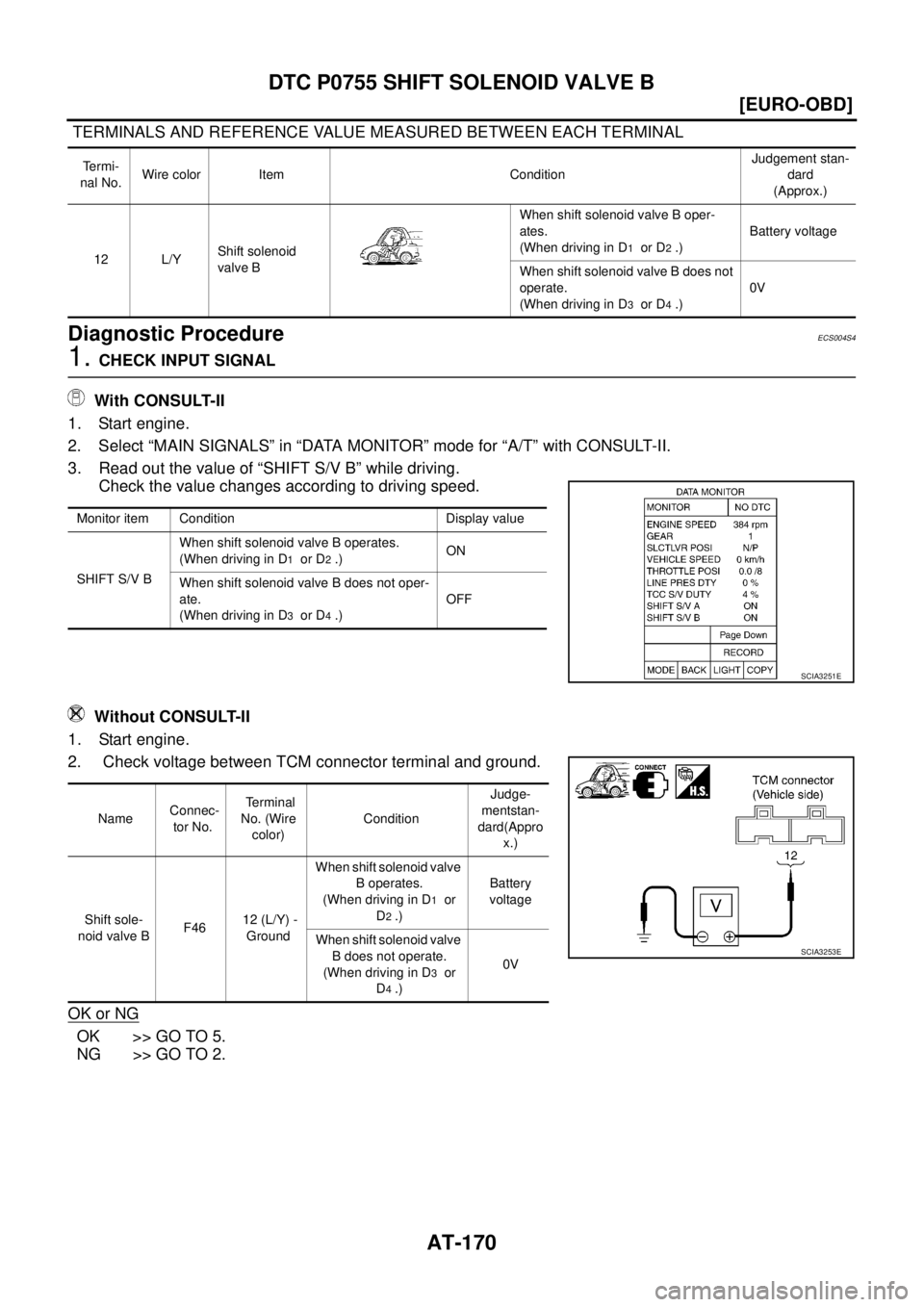

NISSAN X-TRAIL 2003 Service Repair Manual AT-168 [EURO-OBD] DTC P0755 SHIFT SOLENOID VALVE B WITH CONSULT-II 1. Turn ignition switch ON and select “DATA MONITOR” mode for “A/T” with CONSULT-II. 2. Start engine. 3. Drive vehicle in

Page 2205 of 4179

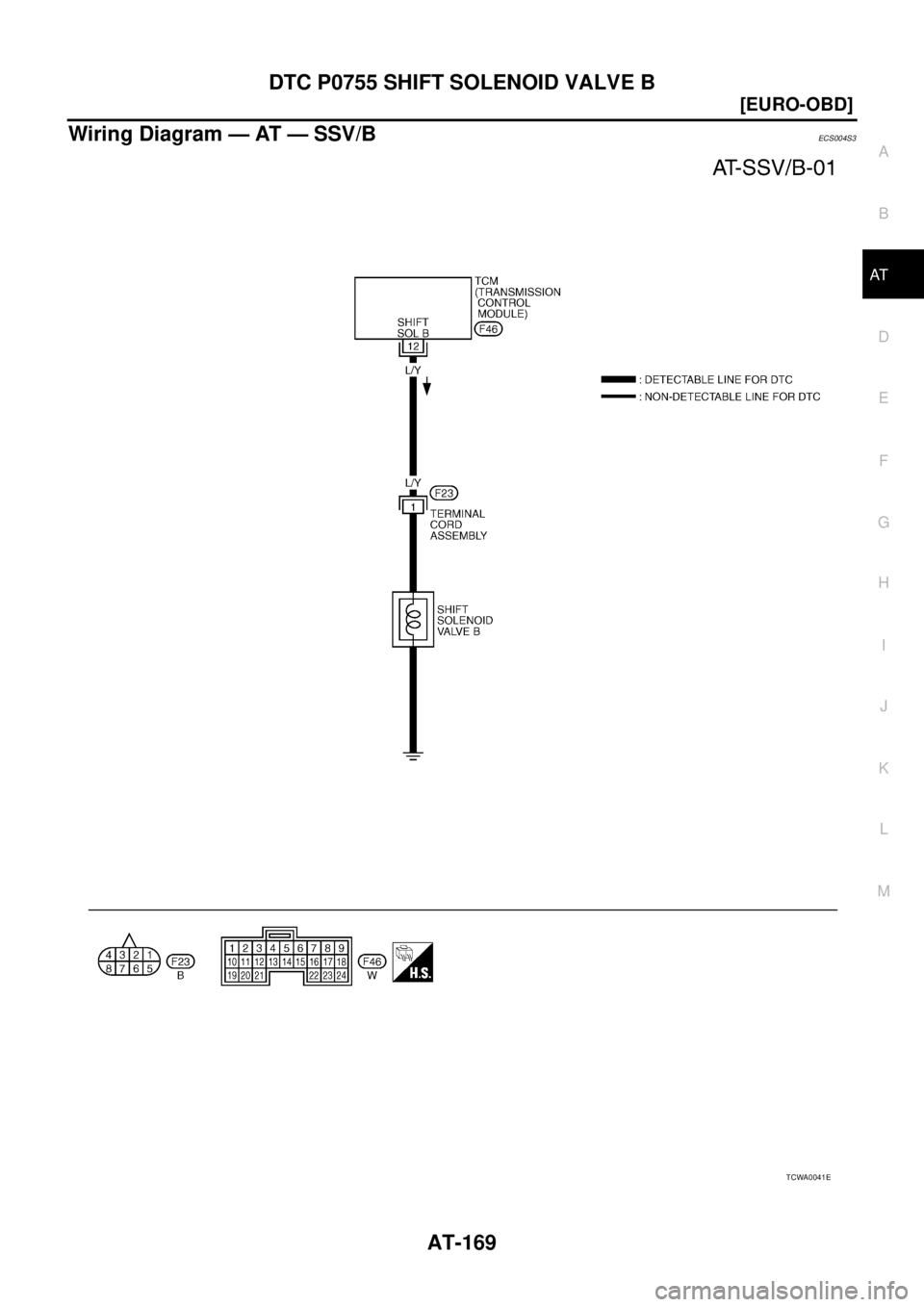

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0755 SHIFT SOLENOID VALVE B AT-169 [EURO-OBD] D E F G H I J K L MA B AT Wiring Diagram — AT — SSV/BECS004S3 TCWA0041E

Page 2206 of 4179

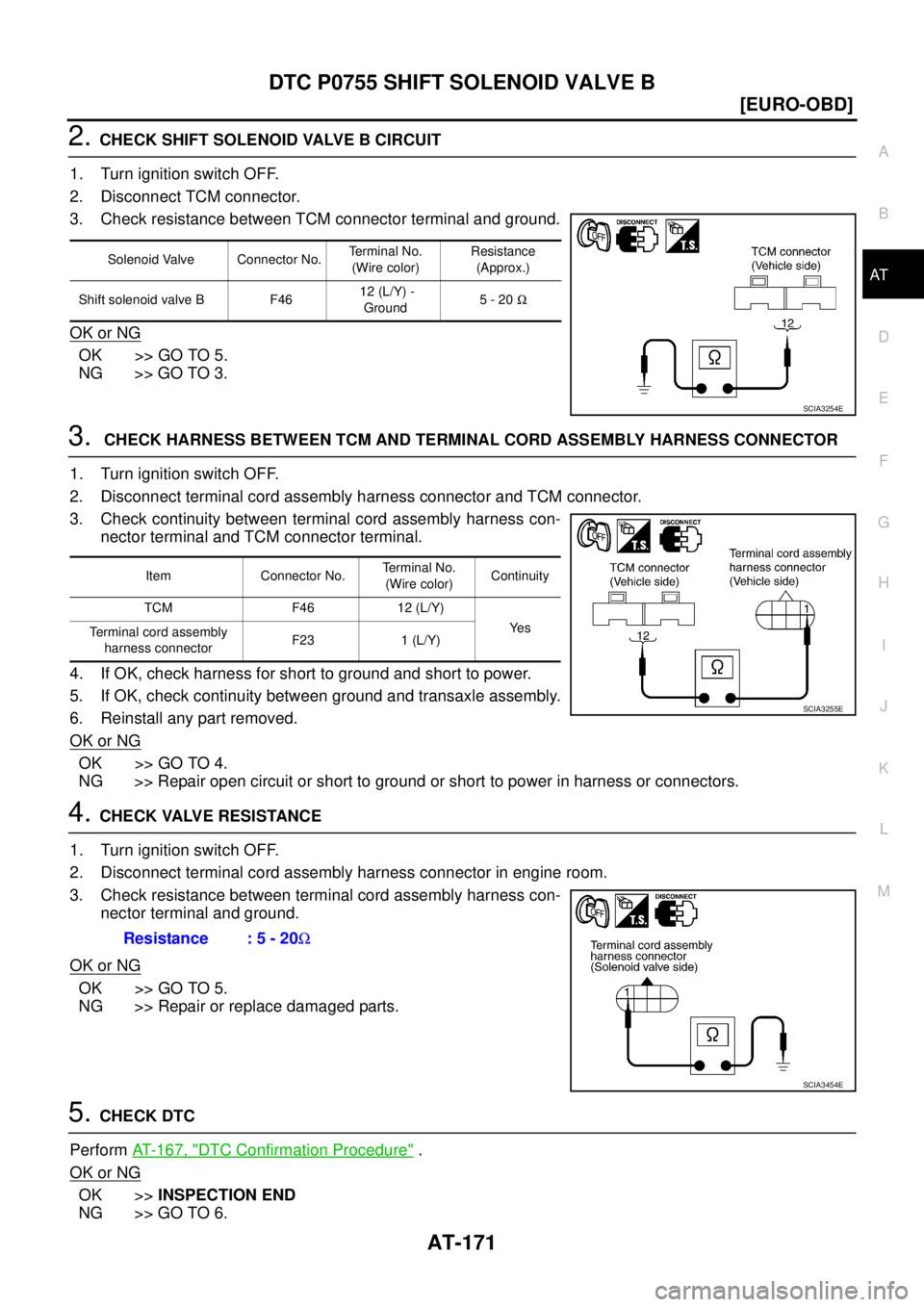

NISSAN X-TRAIL 2003 Service Repair Manual AT-170 [EURO-OBD] DTC P0755 SHIFT SOLENOID VALVE B TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL Diagnostic ProcedureECS004S4 1. CHECK INPUT SIGNAL With CONSULT-II 1. Start engine.

Page 2207 of 4179

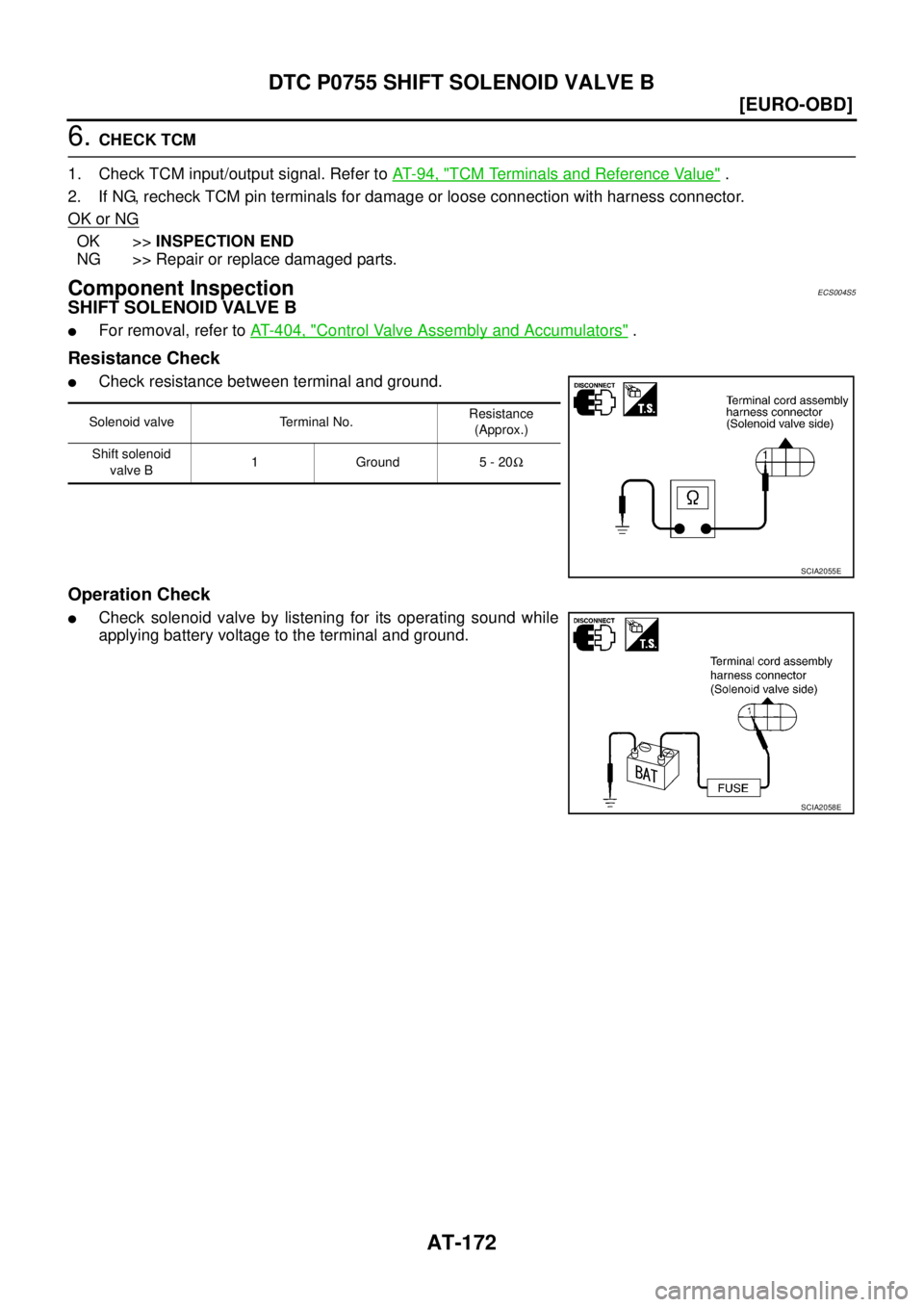

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0755 SHIFT SOLENOID VALVE B AT-171 [EURO-OBD] D E F G H I J K L MA B AT 2. CHECK SHIFT SOLENOID VALVE B CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect TCM connector. 3. Check resistance bet

Page 2208 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual AT-172 [EURO-OBD] DTC P0755 SHIFT SOLENOID VALVE B 6. CHECK TCM 1. Check TCM input/output signal. Refer to AT- 9 4 , " TCM Terminals and Reference Value" . 2. If NG, recheck TCM pin terminals for d
