RADIATOR
CO-13
[QR]
C
D
E
F
G
H
I
J
K
L
MA
CO
INSTALLATION
Install in the reverse order of removal.
INSPECTION AFTER INSTALLATION
Check for leaks of engine coolant using a radiator cap tester adapter (special service tool: EG17650301)
and a radiator cap tester (commercial service tool). Refer to CO-9, "
LEAK CHECK" .
Start and warm up engine. Visually check if there is no leaks of engine coolant and A/T fluid (A/T models).
Checking Radiator CapEBS00KOK
1. Pull negative-pressure valve to open it and make sure that it
closes completely when released.
Make sure that there is no dirt or damage on the valve seat of
radiator cap negative-pressure valve.
Make sure that there are no unusualness in the opening and
closing conditions of negative-pressure valve.
2. Check radiator cap relief pressure.
When connecting radiator cap to radiator cap tester (commer-
cial service tool) and radiator cap tester adapter (special ser-
vice tool), apply engine coolant to radiator cap seal surface.
Replace radiator cap if there is an unusualness in negative-
pressure valve, or if the relief pressure falls below the limit.
Checking RadiatorEBS00KOL
Check radiator for mud or clogging. If necessary, clean radiator as follows.
Be careful not to bend or damage radiator fins.
When radiator is cleaned without removal, remove all surrounding parts such as cooling fan, radiator
shroud and horns. Then tape harness and connectors to prevent water from entering.
1. Apply water by hose to the back side of the radiator core vertically downward.
2. Apply water again to all radiator core surface once per minute.
3. Stop washing if any stains no longer flow out from the radiator.
4. Blow air into the back side of radiator core vertically downward.
Use compressed air lower than 490 kPa (4.9 bar, 5 kg/cm2 , 71 psi) and keep distance more than 30 cm
(11.8 in).
5. Blow air again into all the radiator core surfaces once per minute until no water sprays out.
SMA967B
Standard:
78 - 98 kPa (0.78 - 0.98 bar, 0.8 - 1.0 kg/cm
2 , 11 - 14 psi)
Limit:
59 kPa (0.59 bar, 0.6 kg/cm
2 , 9 psi)
SLC135B
Page 346 of 4179
CO-14
[QR]
RADIATOR (ALUMINUM TYPE)
RADIATOR (ALUMINUM TYPE)PFP:21460
Disassembly and AssemblyEBS00KOM
PREPARATION
1. Attach the spacer to the tip of radiator plate pliers A (special ser-
vice tool).
Spacer specification: 1.5 mm (0.059 in) thick × 18 mm (0.71 in)
wide × 8.5 mm (0.335 in) long.
2. Make sure that when radiator plate pliers A (special service tool) are closed dimension H′′ is approx. 7.6
mm (0.299 in).
3. Adjust dimension H′′ with the spacer thickness, if necessary.
DISASSEMBLY
1. Remove upper and lower tanks with a radiator plate pliers B
(special service tool).
CAUTION:
Do not disassemble lower tank and A/T fluid cooler. (A/T
models)
NOTE:
Lower tank and A/T fluid cooler from a single part are handled
as an assembly. (A/T models)

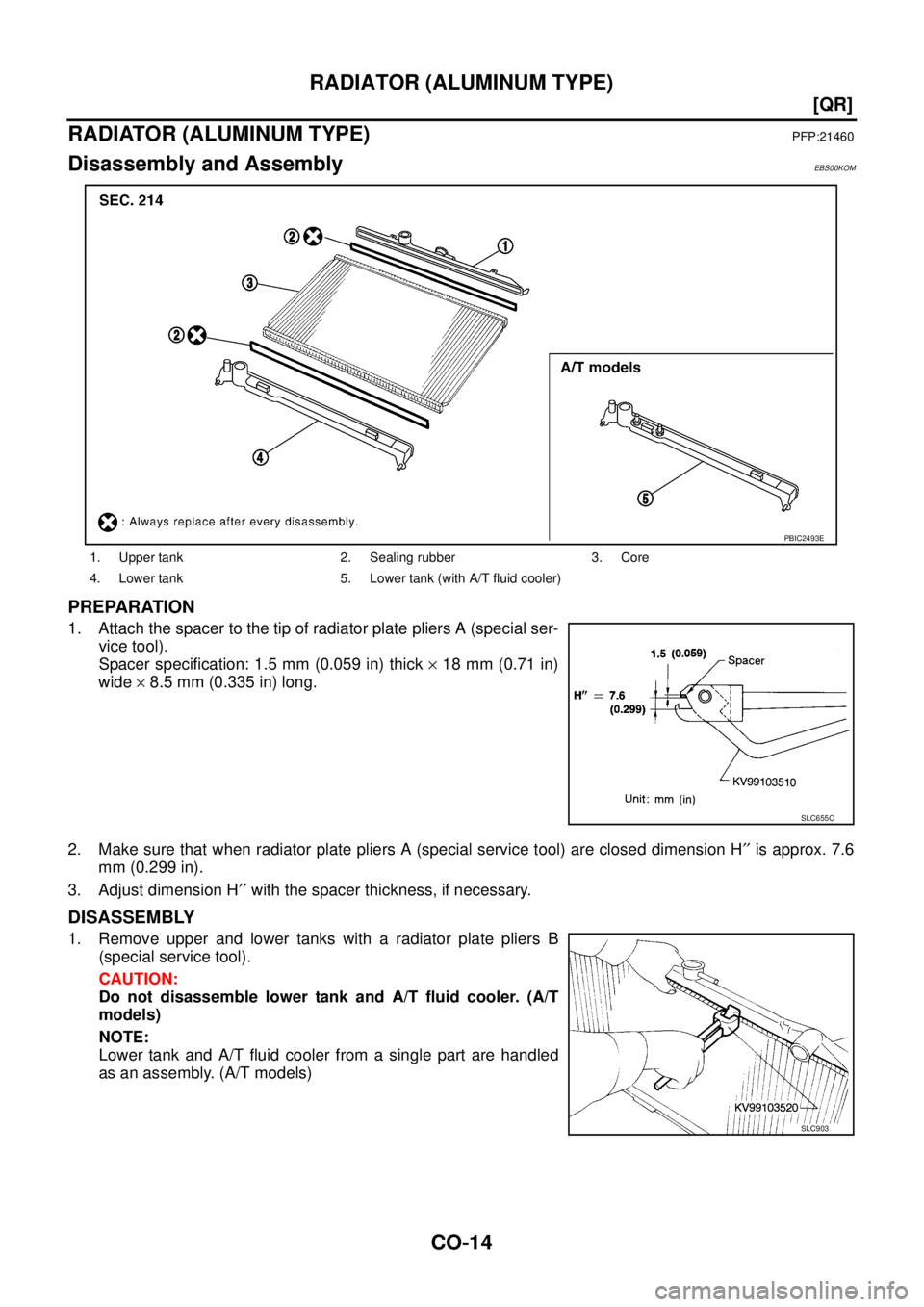

1. Upper tank 2. Sealing rubber 3. Core
4. Lower tank 5. Lower tank (with A/T fluid cooler)
PBIC2493E
SLC655C
SLC903
Page 347 of 4179
RADIATOR (ALUMINUM TYPE)
CO-15
[QR]
C
D
E
F
G
H
I
J
K
L
MA
CO

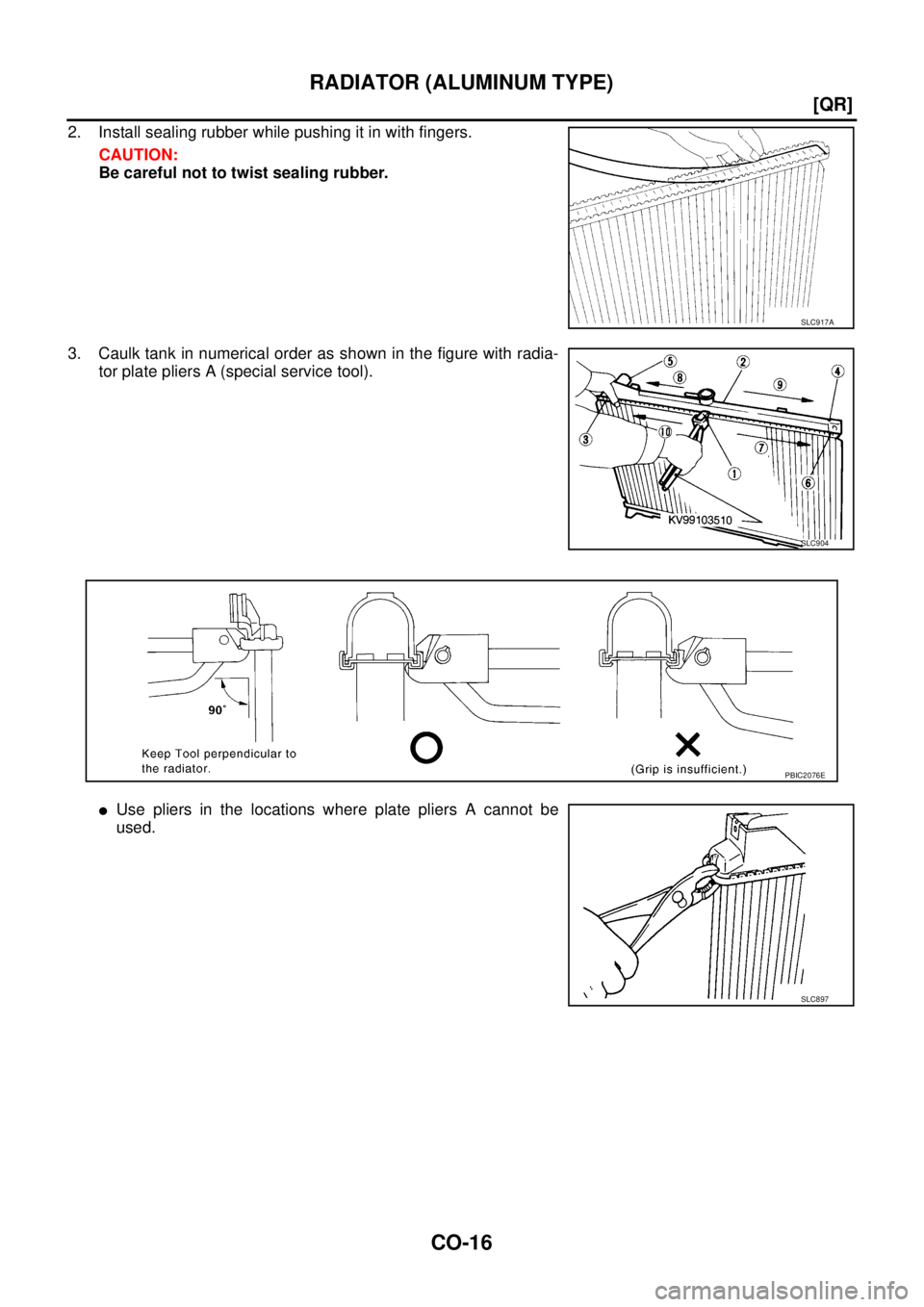

Grip the crimped edge and bend it upwards so that radiator
plate pliers B slips off.
CAUTION:
Do not bend excessively.
In areas where radiator plate pliers B cannot be used, use
screwdriver to bend the edge up.
CAUTION:
Be careful not to damage tank.
2. Remove sealing rubber.
3. Make sure the edge stands straight up.
ASSEMBLY
1. Clean contact portion of tank.
SLC893
SLC930
SLC931
SLC932
Page 348 of 4179
CO-16
[QR]
RADIATOR (ALUMINUM TYPE)
2. Install sealing rubber while pushing it in with fingers.
CAUTION:
Be careful not to twist sealing rubber.
3. Caulk tank in numerical order as shown in the figure with radia-
tor plate pliers A (special service tool).
Use pliers in the locations where plate pliers A cannot be
used.
SLC917A
SLC904
PBIC2076E
SLC897
Page 349 of 4179
RADIATOR (ALUMINUM TYPE)
CO-17
[QR]
C
D
E
F
G
H
I
J
K
L
MA
CO
4. Make sure that the rim is completely crimped down.
5. Make sure that there is no leakage.
Refer to CO-17, "
INSPECTION" .
INSPECTION
1. Apply pressure with radiator cap tester adapter (special service
tool) and radiator cap tester (commercial service tool).
WARNING:
To prevent the risk of hose coming undone while under
pressure, securely fasten it down with hose clamp.
CAUTION:
Attach hose to A/T fluid cooler to seal its inlet and outlet.
(A/T models)
2. Check for leakage by soaking radiator in water container with
the testing pressure applied.Standard height “H” : 8.0 - 8.4 mm (0.315 - 0.331 in)
SLC554A
Testing pressure
: 157 kPa (1.57 bar, 1.6 kg/cm
2 , 23 psi)
SLC933
SLC934
Page 350 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual CO-18
[QR]
COOLING FAN
COOLING FANPFP:21140
Removal and InstallationEBS011TD
REMOVAL
1. Drain engine coolant from radiator. Refer to CO-9, "Changing Engine Coolant" .
CAUTION:
Perform this step wh NISSAN X-TRAIL 2003 Service Repair Manual CO-18
[QR]
COOLING FAN
COOLING FANPFP:21140
Removal and InstallationEBS011TD
REMOVAL
1. Drain engine coolant from radiator. Refer to CO-9, "Changing Engine Coolant" .
CAUTION:
Perform this step wh](/manual-img/5/57404/w960_57404-349.png)
CO-18
[QR]
COOLING FAN
COOLING FANPFP:21140
Removal and InstallationEBS011TD
REMOVAL
1. Drain engine coolant from radiator. Refer to CO-9, "Changing Engine Coolant" .
CAUTION:
Perform this step when engine is cold.
Do not spill engine coolant on drive belt.
2. Remove air duct (inlet) and air duct assembly. Refer to EM-15, "
AIR CLEANER AND AIR DUCT" .
3. Disconnect radiator hose (upper) at radiator side. Refer to CO-12, "
RADIATOR" .
CAUTION:
Do not spill engine coolant on drive belt.
4. Disconnect harness connectors from fan motors, and move them to aside.
5. Remove radiator cooling fan assembly.
CAUTION:
Be careful not to damage or scratch on radiator core.
INSTALLATION
Install in the reverse order of removal.
Cooling fans are controlled by ECM. For details, refer to EC-348, "DTC P1217 ENGINE OVER TEMPER-
ATURE" (WITH EURO-OBD) or EC-700, "DTC P1217 ENGINE OVER TEMPERATURE" (WITHOUT
EURO-OBD).
DISASSEMBLY AND ASSEMBLY
Disassembly
1. Remove cooling fans (RH and LH) from fan motors.
2. Remove fan motors from fan shroud.

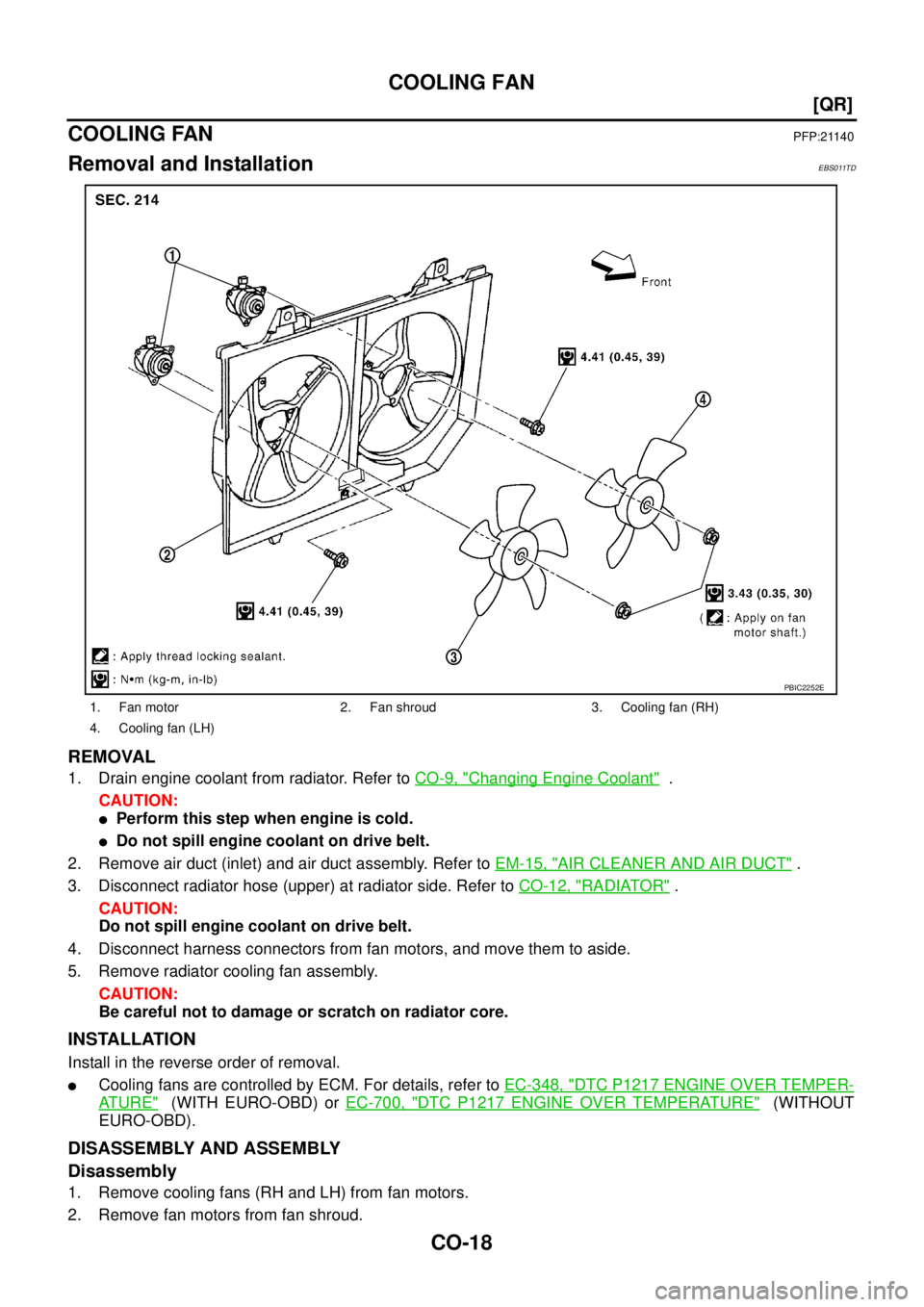

1. Fan motor 2. Fan shroud 3. Cooling fan (RH)
4. Cooling fan (LH)
PBIC2252E
Page 351 of 4179
COOLING FAN
CO-19
[QR]
C
D
E
F
G
H
I
J
K
L
MA
CO
Assembly
Assemble in the reverse order of disassembly.
Page 352 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual CO-20
[QR]
WATER PUMP
WATE R P U M PPFP:21020
Removal and InstallationEBS00KON
REMOVAL
1. Drain engine coolant. Refer to CO-9, "Changing Engine Coolant" .
CAUTION:
Perform this step when engine is NISSAN X-TRAIL 2003 Service Repair Manual CO-20
[QR]
WATER PUMP
WATE R P U M PPFP:21020
Removal and InstallationEBS00KON
REMOVAL
1. Drain engine coolant. Refer to CO-9, "Changing Engine Coolant" .
CAUTION:
Perform this step when engine is](/manual-img/5/57404/w960_57404-351.png)
CO-20
[QR]
WATER PUMP
WATE R P U M PPFP:21020
Removal and InstallationEBS00KON
REMOVAL
1. Drain engine coolant. Refer to CO-9, "Changing Engine Coolant" .
CAUTION:
Perform this step when engine is cold.
Do not spill engine coolant on drive belt.
2. Remove the following parts.
RH undercover
Drive belt; Refer to EM-13, "DRIVE BELTS" .
Drive belt auto-tensioner; Refer to EM-14, "Removal and Installation of Drive Belt Auto-Tensioner" .
3. Remove water pump.
Engine coolant will leak from cylinder block, so have a receptacle ready below.
CAUTION:
Handle water pump vane so that it does not contact any other parts.
Water pump cannot be disassembled and should be replaced as a unit.
4. Remove water pump housing with the following procedure;
a. Remove alternator. Refer to SC-12, "
CHARGING SYSTEM" .
b. Remove oil level gauge and oil level gauge guide. Refer to EM-25, "
OIL PAN AND OIL STRAINER" .
CAUTION:
Plug the oil level gauge guide opening to prevent oil pan from entering foreign materials.
c. Remove mounting bolts for water pipe.
d. Remove water pump housing.
5. Remove exhaust manifold and three way catalyst assembly. Refer to EM-23, "
EXHAUST MANIFOLD
AND THREE WAY CATALYST" .
6. Remove water pipe.

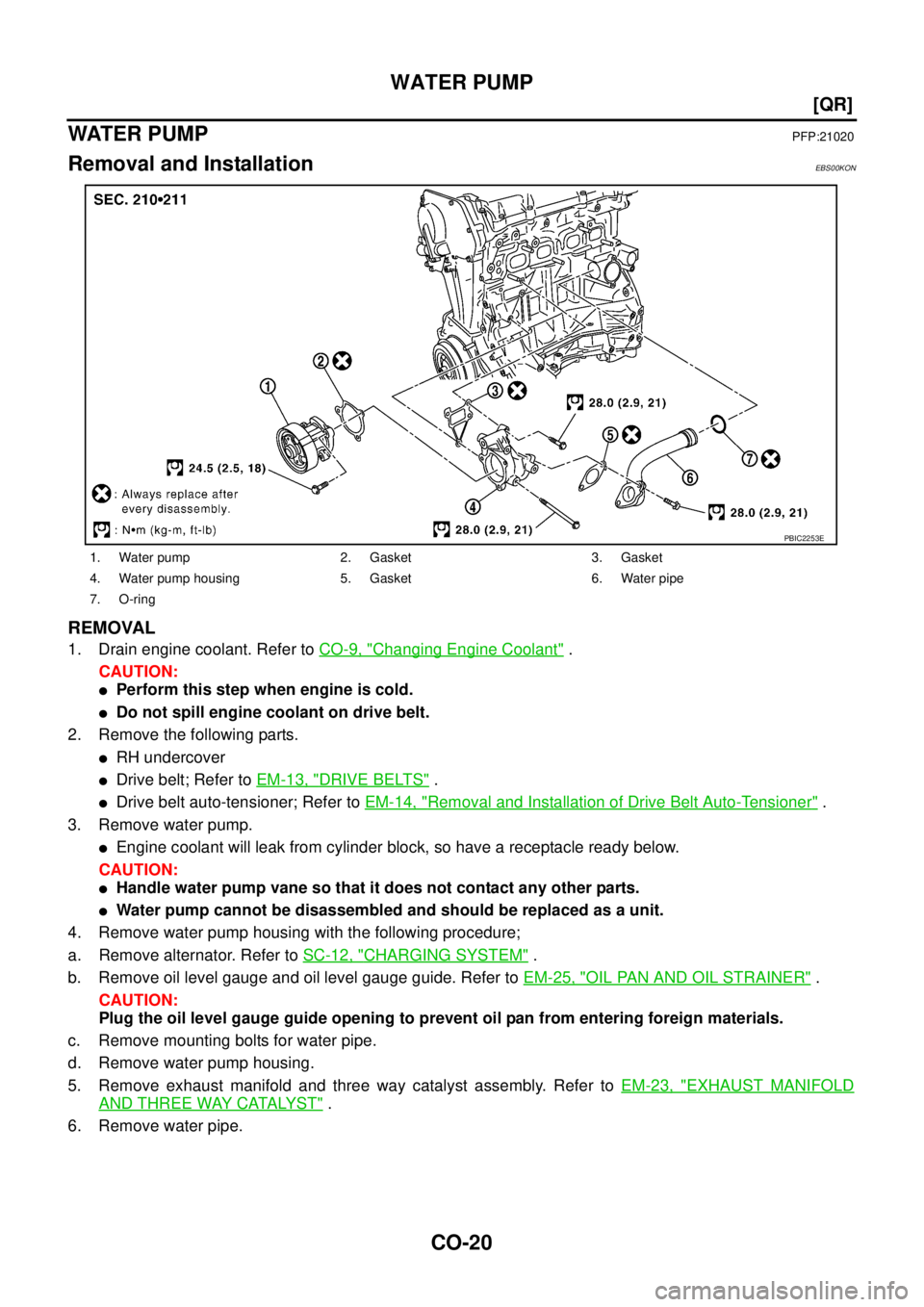

1. Water pump 2. Gasket 3. Gasket
