NISSAN X-TRAIL 2003 Service Repair Manual DTC P1146 HO2S2
EC-335
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

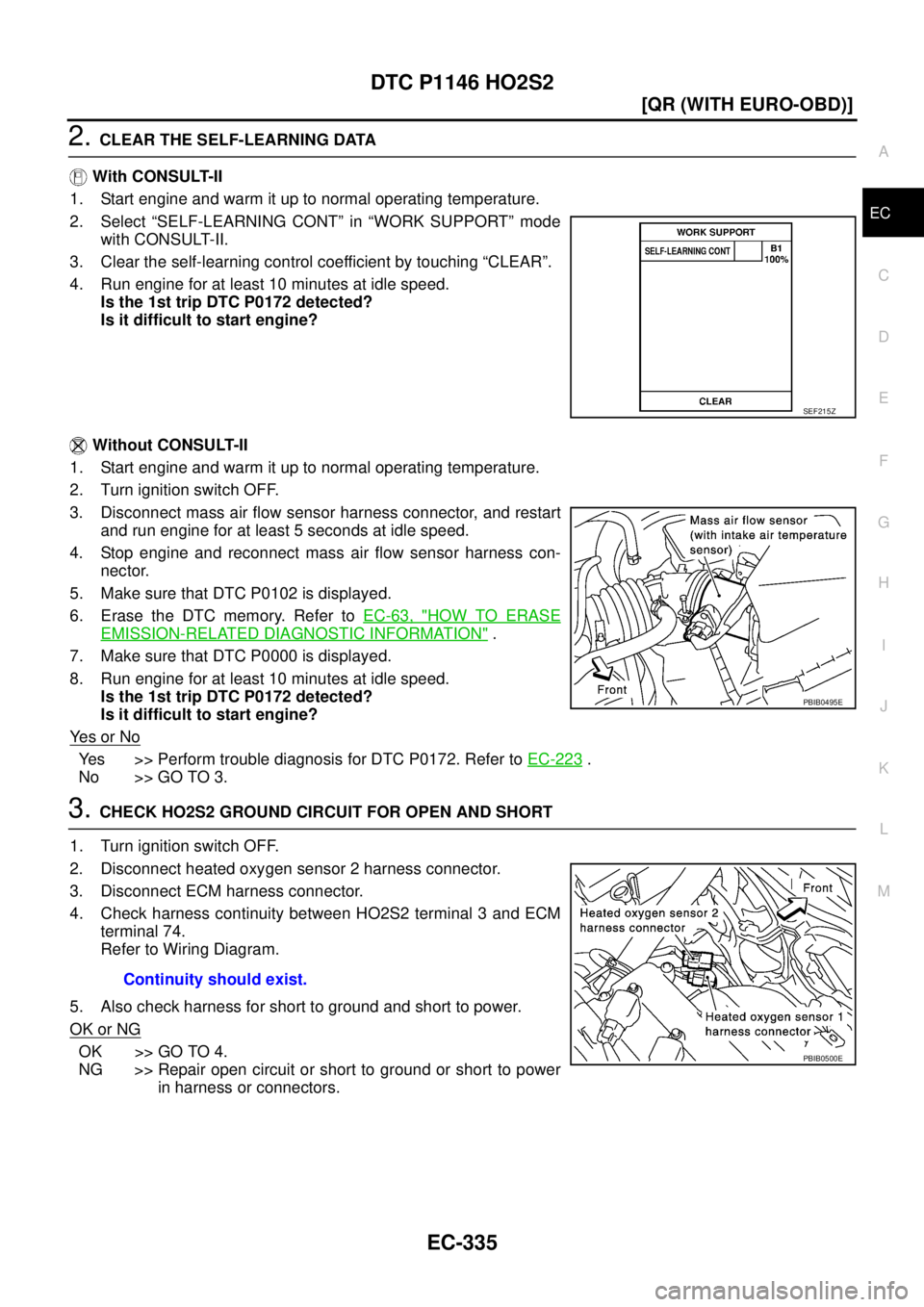

2. CLEAR THE SELF-LEARNING DATA
With CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Select “SE

Page 714 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-336
[QR (WITH EURO-OBD)]
DTC P1146 HO2S2

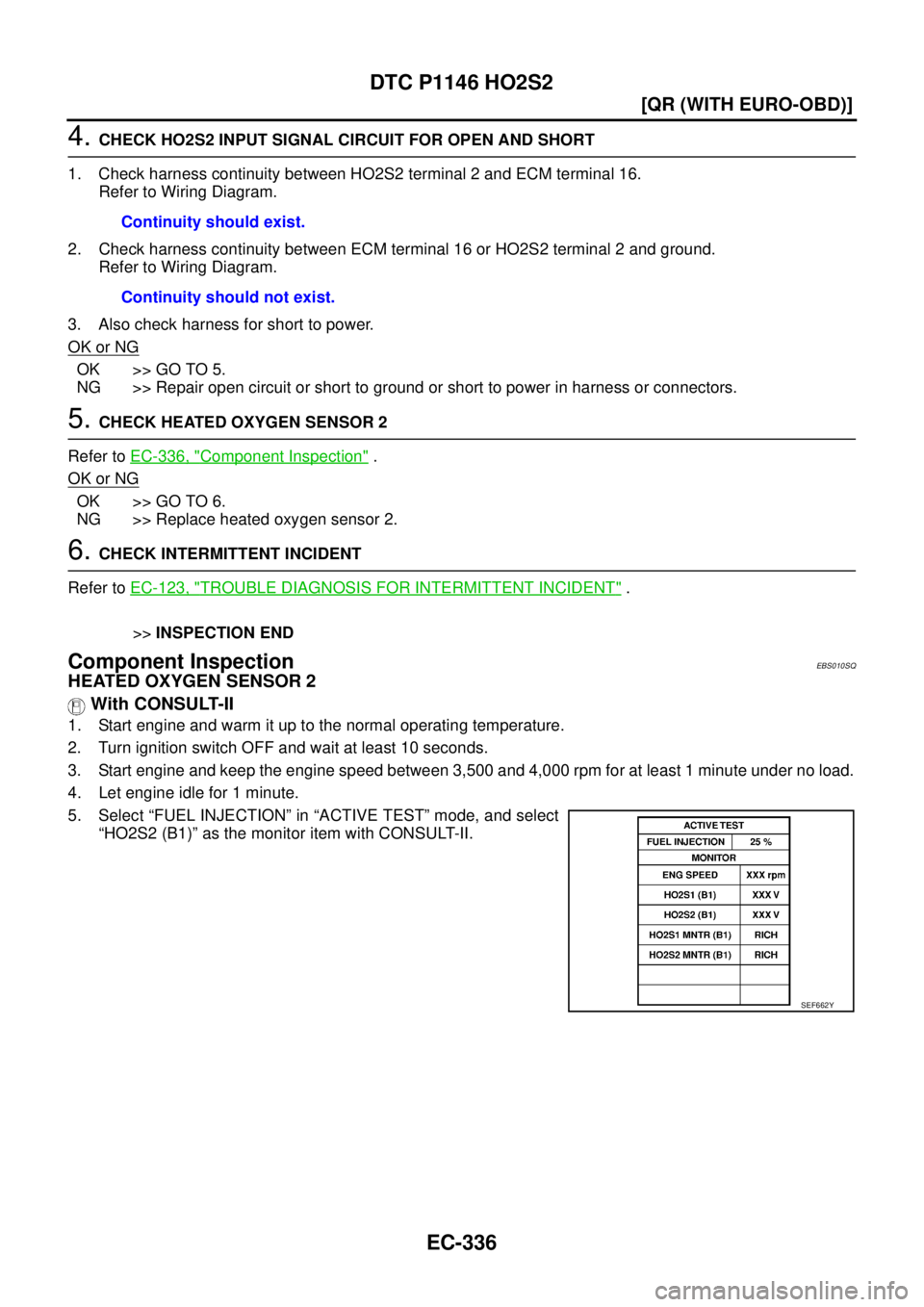

4. CHECK HO2S2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between HO2S2 terminal 2 and ECM terminal 16.
Refer to Wiring Diagram.

Page 715 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P1146 HO2S2
EC-337
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

6. Check “HO2S2 (B1)” at idle speed when adjusting “FUEL INJECTION” to ±25%.
“HO2S2 (B1)” should be above 0.68V at

DTC P1146 HO2S2
EC-337
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

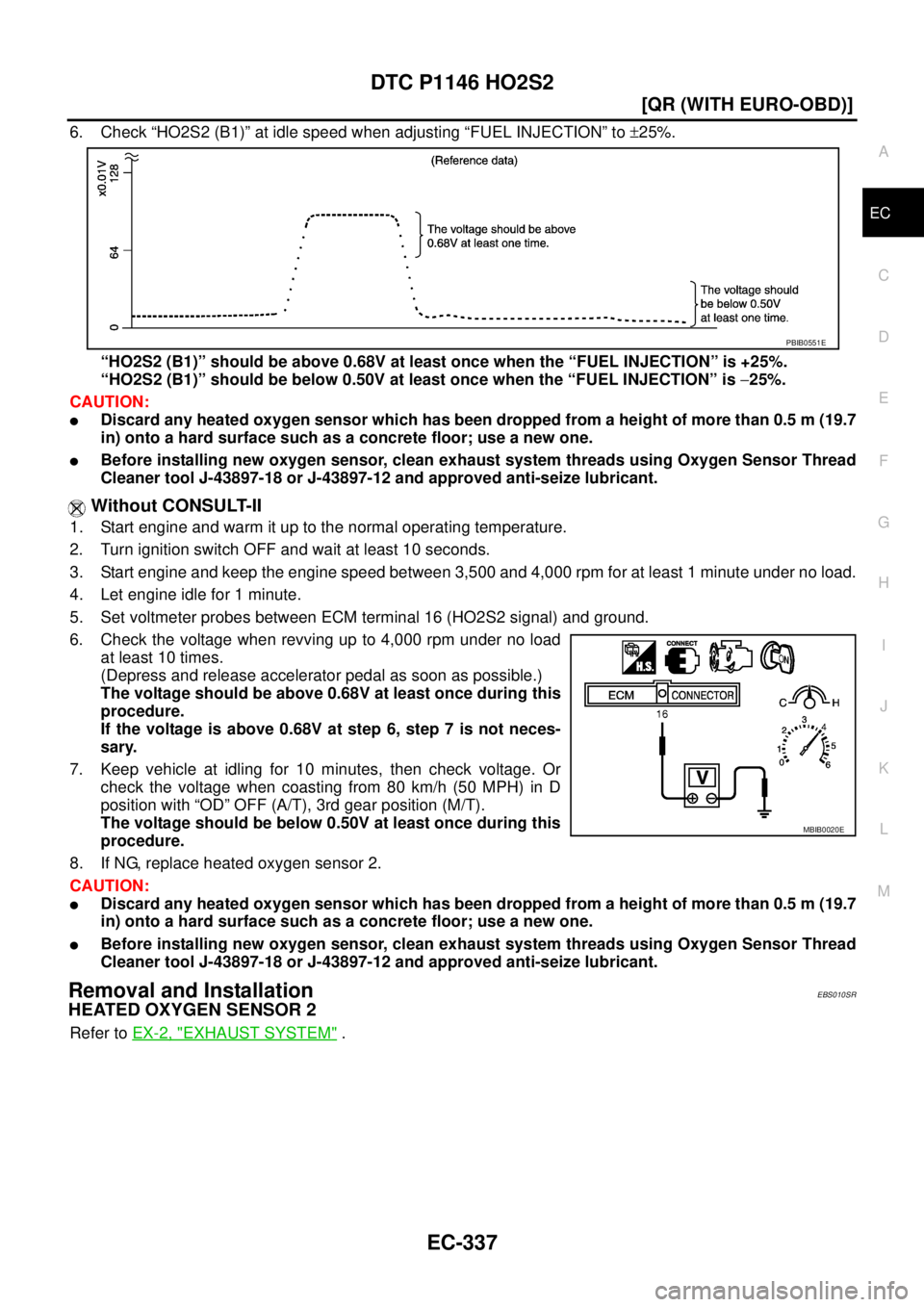

6. Check “HO2S2 (B1)” at idle speed when adjusting “FUEL INJECTION” to ±25%.
“HO2S2 (B1)” should be above 0.68V at least once when the “FUEL INJECTION” is +25%.
“HO2S2 (B1)” should be below 0.50V at least once when the “FUEL INJECTION” is −25%.
CAUTION:
Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7
in) onto a hard surface such as a concrete floor; use a new one.
Before installing new oxygen sensor, clean exhaust system threads using Oxygen Sensor Thread
Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.
Without CONSULT-II
1. Start engine and warm it up to the normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.
4. Let engine idle for 1 minute.
5. Set voltmeter probes between ECM terminal 16 (HO2S2 signal) and ground.
6. Check the voltage when revving up to 4,000 rpm under no load
at least 10 times.
(Depress and release accelerator pedal as soon as possible.)
The voltage should be above 0.68V at least once during this
procedure.
If the voltage is above 0.68V at step 6, step 7 is not neces-
sary.
7. Keep vehicle at idling for 10 minutes, then check voltage. Or
check the voltage when coasting from 80 km/h (50 MPH) in D
position with “OD” OFF (A/T), 3rd gear position (M/T).
The voltage should be below 0.50V at least once during this
procedure.
8. If NG, replace heated oxygen sensor 2.
CAUTION:
Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7
in) onto a hard surface such as a concrete floor; use a new one.
Before installing new oxygen sensor, clean exhaust system threads using Oxygen Sensor Thread
Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.
Removal and InstallationEBS010SR
HEATED OXYGEN SENSOR 2
Refer to EX-2, "EXHAUST SYSTEM" .
PBIB0551E
MBIB0020E

Page 716 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-338
[QR (WITH EURO-OBD)]
DTC P1147 HO2S2

DTC P1147 HO2S2PFP:226A0
Component DescriptionEBS010SS
The heated oxygen sensor 2, after three way catalyst (manifold),
monitors the oxygen level in the e

Page 717 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P1147 HO2S2
EC-339
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC Confirmation ProcedureEBS010SV
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
“COMPLETED” will appear on CONSULT-

DTC P1147 HO2S2
EC-339
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC Confirmation ProcedureEBS010SV
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
“COMPLETED” will appear on CONSULT-II screen when all tests “COND1”, “COND2” and
“COND3” are completed.
If DTC confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait
at least 10 seconds before conducting the next test.
TESTING CONDITION:
Never stop engine during this procedure. If the engine is stopped, retry procedure from step 2 in “Pro-
cedure for COND1”
WITH CONSULT-II
Procedure for COND1
For the best results, perform “DTC WORK SUPPORT” at a temperature of 0 to 30°C(32 to 86°F).
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.
4. Let engine idle 1 minute.
5. Select “HO2S2 (B1) P1147” of “HO2S2” in “DTC WORK SUPPORT” mode with CONSULT-II.
6. Touch “START”.
7. Start engine and let it idle for at least 30 seconds.
8. Rev engine up to 2,000 rpm 2 or 3 times quickly under no load.
If “COMPLETED” appears on CONSULT-II screen, go to step 2 in “Procedure for COND3”.
If “COMPLETED” does not appear on CONSULT-II screen, go to the following step.

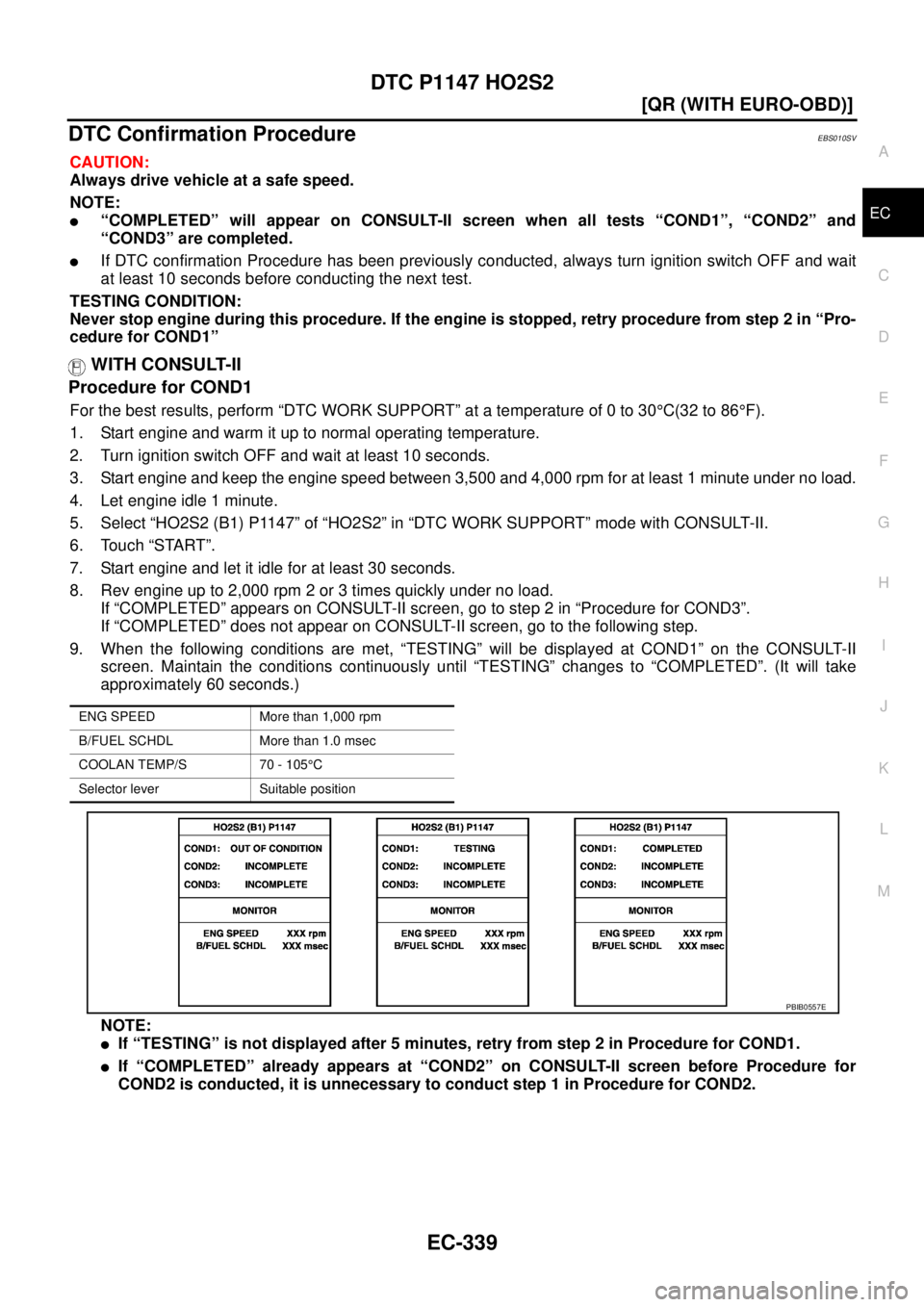

9. When the following conditions are met, “TESTING” will be displayed at COND1” on the CONSULT-II
screen. Maintain the conditions continuously until “TESTING” changes to “COMPLETED”. (It will take
approximately 60 seconds.)
NOTE:
If “TESTING” is not displayed after 5 minutes, retry from step 2 in Procedure for COND1.
If “COMPLETED” already appears at “COND2” on CONSULT-II screen before Procedure for
COND2 is conducted, it is unnecessary to conduct step 1 in Procedure for COND2.
ENG SPEED More than 1,000 rpm
B/FUEL SCHDL More than 1.0 msec
COOLAN TEMP/S 70 - 105°C
Selector lever Suitable position
PBIB0557E

Page 718 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-340
[QR (WITH EURO-OBD)]
DTC P1147 HO2S2

Procedure for COND2
1. While driving, release accelerator pedal completed with “OD”
OFF (A/T) from the above condition [step 9] until “INCOM-
PLETE�

EC-340
[QR (WITH EURO-OBD)]
DTC P1147 HO2S2

Procedure for COND2
1. While driving, release accelerator pedal completed with “OD”
OFF (A/T) from the above condition [step 9] until “INCOM-
PLETE” at “COND2” on CONSULT-II screen has turned to
“COMPLETED” (It will take approximately 4 seconds.)
NOTE:
If “COMPLETE” already appears at “COND3” on CONSULT-
II screen before Procedure for COND3 is conducted, it is
unnecessary to conduct step 1 in “Procedure for COND3”.
Procedure for COND3
1. Stop vehicle and let it idle until “INCOMPLETE” of “COND3” on
CONSULT-II screen has turned to “COMPLETED”. (It will take a
maximum of approximately 6 minutes.)
2. Make sure that “OK” is displayed after touching “SELF-DIAG
RESULTS”.
If “NG” is displayed, refer to EC-342, "
Diagnostic Procedure" .
If “CAN NOT BE DIAGNOSED” is displayed, perform the follow-
ing.
a. Turn ignition switch OFF and leave the vehicle in a cool place
(soak the vehicle).
b. Turn ignition switch ON and select “COOLAN TEMP/S” in “DATA
MONITOR” mode with CONSULT-II.
c. Start engine and warm it up while monitoring “COOLAN TEMP/S” indication on CONSULT-II.
d. When “COOLAN TEMP/S” indication reaches to 70°C(158°F), go to Procedure for COND1 step 3.
Overall Function CheckEBS010SW
Use this procedure to check the overall function of the heated oxygen sensor 2 circuit. During this check, a
DTC might not be confirmed.
WITH GST
1. Start engine and warm it up to the normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.
4. Let engine idle for 1 minute.
5. Set voltmeter probes between ECM terminal 16 (HO2S2 signal) and ground.
6. Check the voltage when revving up to 4,000 rpm under no load
at least 10 times.
(Depress and release accelerator pedal as soon as possible.)
The voltage should be above 0.68V at least once during this
procedure.
If the voltage can be confirmed in step 6, step 7 is not nec-
essary.
7. Keep vehicle idling for 10 minutes, then check the voltage. Or
check the voltage when coasting from 80 km/h (50 MPH) in D
position with “OD” OFF (A/T), 3rd gear position (M/T).
The voltage should be above 0.68V at least once during this
procedure.
8. If NG, go to EC-342, "
Diagnostic Procedure" .
PBIB0558E
SEC778C
MBIB0020E

Page 719 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P1147 HO2S2
EC-341
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Wiring DiagramEBS010SX
TBWA0603E

Page 720 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-342
[QR (WITH EURO-OBD)]
DTC P1147 HO2S2

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/o
