Page 1457 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0401 EGR FUNCTION EC-1079 [YD (WITH EURO-OBD)] C D E F G H I J K L MA EC 6. Perform “EGR VOL CONT/V” in “ACTIVE TEST” mode with CONSULT-II. Check that EGR volume control valve shaft mov

Page 1458 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-1080 [YD (WITH EURO-OBD)] DTC P0404 EGR VOLUME CONTROL VALVE DTC P0404 EGR VOLUME CONTROL VALVEPFP:14710 DescriptionEBS011P6 SYSTEM DESCRIPTION *: These signals are sent to the ECM through CAN co

Page 1459 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0404 EGR VOLUME CONTROL VALVE EC-1081 [YD (WITH EURO-OBD)] C D E F G H I J K L MA EC CONSULT-II Reference Value in Data Monitor ModeEBS011P7 Specification data are reference values. ECM Termina

Page 1460 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-1082 [YD (WITH EURO-OBD)] DTC P0404 EGR VOLUME CONTROL VALVE 4. If 1st trip DTC is detected, go to EC-1084, "Diagnostic Proce- dure" . WITH GST Follow the procedure “WITH CONSULT-II” above.

Page 1461 of 4179

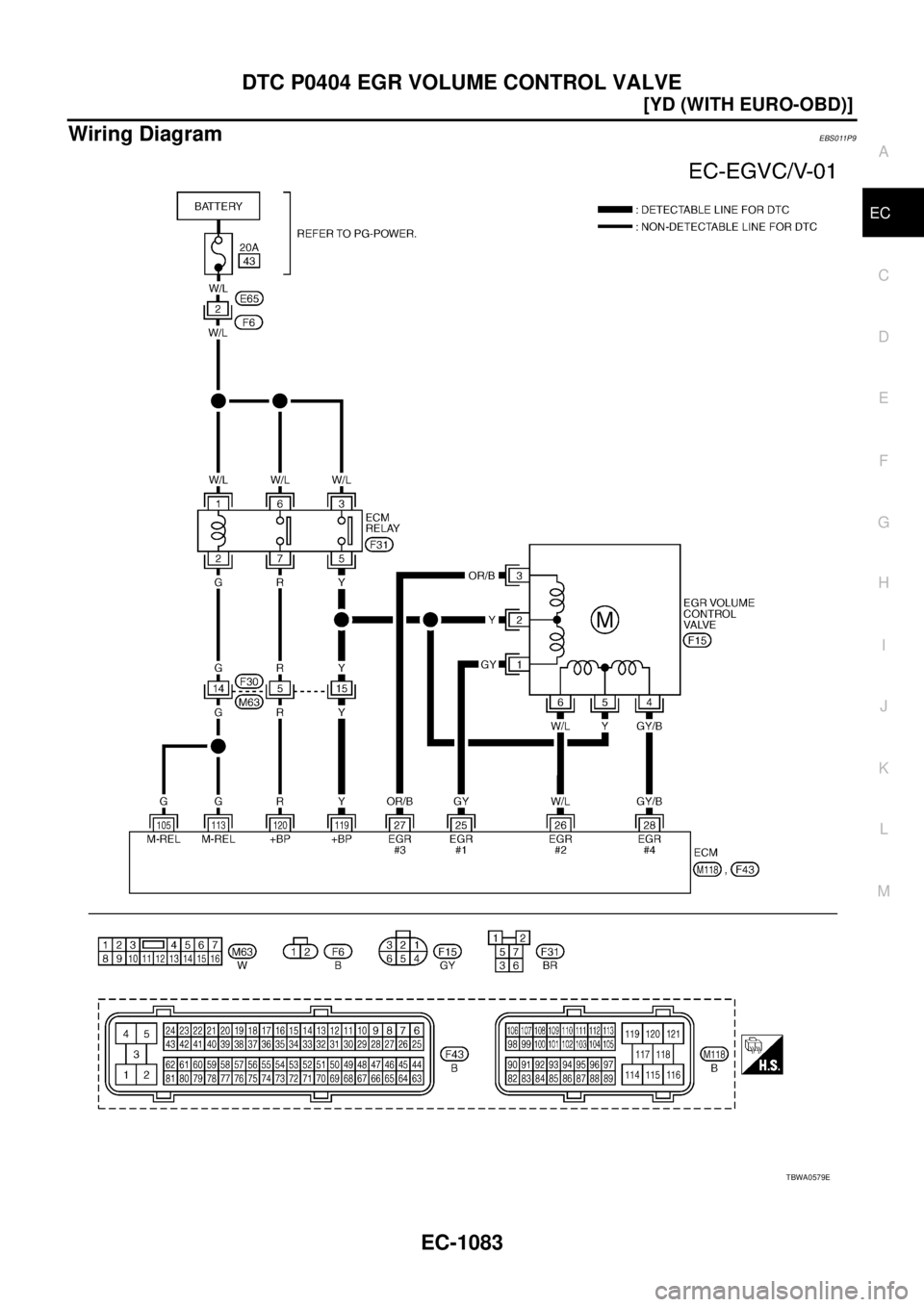

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0404 EGR VOLUME CONTROL VALVE EC-1083 [YD (WITH EURO-OBD)] C D E F G H I J K L MA EC Wiring DiagramEBS011P9 TBWA0579E

Page 1462 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-1084 [YD (WITH EURO-OBD)] DTC P0404 EGR VOLUME CONTROL VALVE Diagnostic ProcedureEBS011PA 1. CHECK EGR VOLUME CONTROL VALVE POWER SUPPLY CIRCUIT-I 1. Turn ignition switch OFF. 2. Disconnect EGR v

Page 1463 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0404 EGR VOLUME CONTROL VALVE EC-1085 [YD (WITH EURO-OBD)] C D E F G H I J K L MA EC 4. CHECK EGR VOLUME CONTROL VALVE Refer to EC-1085, " Component Inspection" . OK or NG OK >> GO TO 5. NG >>

Page 1464 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-1086 [YD (WITH EURO-OBD)] DTC P0404 EGR VOLUME CONTROL VALVE Without CONSULT-II 1. Disconnect EGR volume control valve harness connector. 2. Check resistance between the following terminals. t
