Page 1729 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0335 CKP SENSOR EC-1351 [YD (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC DTC P0335 CKP SENSORPFP:23731 DescriptionEBS01213 The crankshaft position sensor monitors engine speed by means of sign

Page 1730 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-1352 [YD (WITHOUT EURO-OBD)] DTC P0335 CKP SENSOR On Board Diagnosis LogicEBS01216 DTC Confirmation ProcedureEBS01217 NOTE: If DTC Confirmation Procedure has been previously conducted, always tur

Page 1731 of 4179

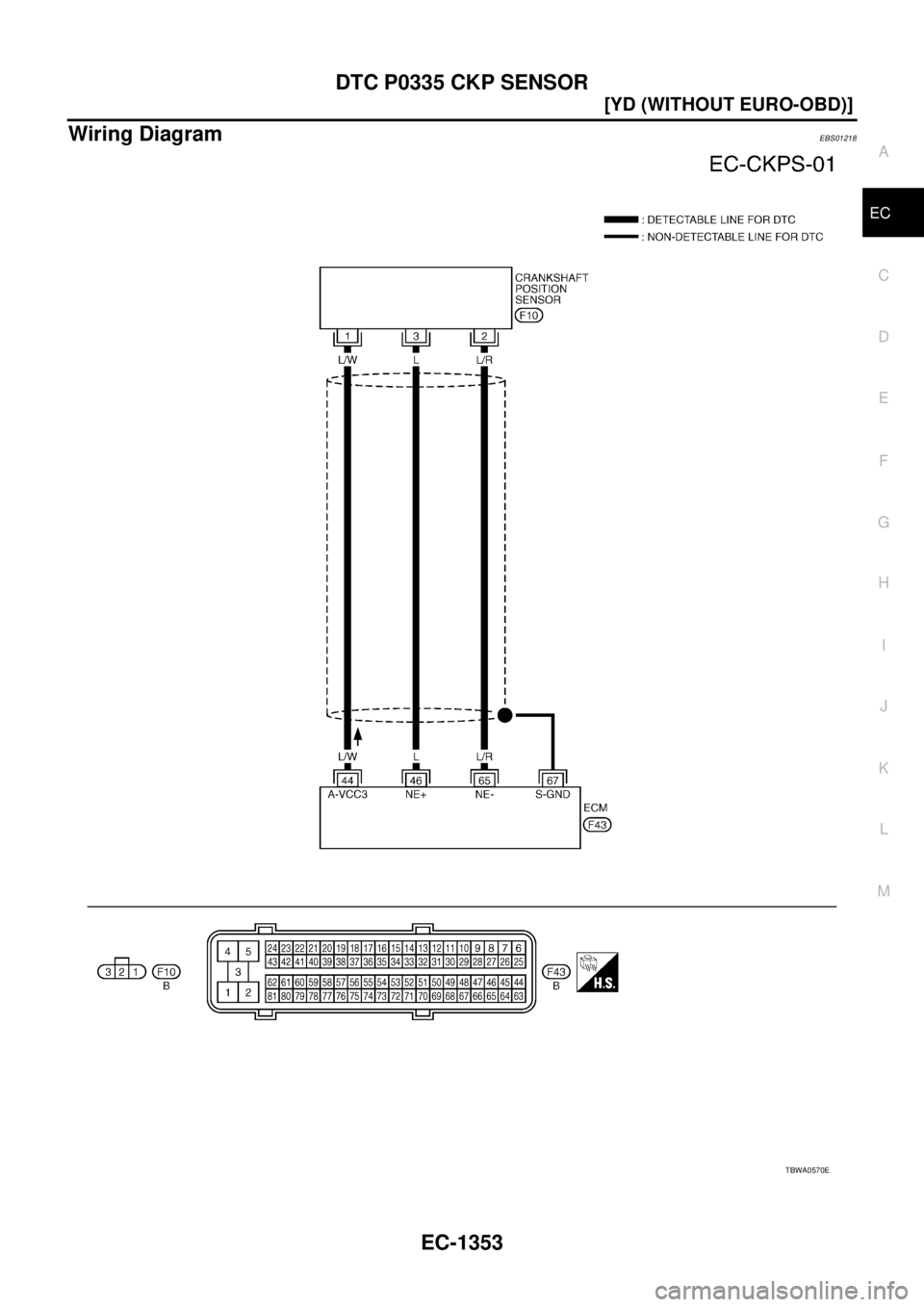

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0335 CKP SENSOR EC-1353 [YD (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC Wiring DiagramEBS01218 TBWA0570E

Page 1732 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-1354 [YD (WITHOUT EURO-OBD)] DTC P0335 CKP SENSOR Diagnostic ProcedureEBS01219 1. CHECK GROUND CONNECTIONS 1. Turn ignition switch OFF. 2. Loosen and retighten engine ground screws. Refer to EC-1

Page 1733 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0335 CKP SENSOR EC-1355 [YD (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC 2. CHECK CKP SENSOR POWER SUPPLY CIRCUIT 1. Disconnect crankshaft position sensor harness connector. 2. Turn ignition s

Page 1734 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-1356 [YD (WITHOUT EURO-OBD)] DTC P0335 CKP SENSOR 6. CHECK INTERMITTENT INCIDENT Refer to EC-1260, " TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" . >>INSPECTION END Component InspectionEBS0121A C

Page 1735 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0336 CKP SENSOR EC-1357 [YD (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC DTC P0336 CKP SENSORPFP:23731 DescriptionEBS0121C The crankshaft position sensor monitors engine speed by means of sign

Page 1736 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-1358 [YD (WITHOUT EURO-OBD)] DTC P0336 CKP SENSOR On Board Diagnosis LogicEBS0121F DTC Confirmation ProcedureEBS0121G NOTE: If DTC Confirmation Procedure has been previously conducted, always tur
