Page 1073 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P1128 THROTTLE CONTROL MOTOR
EC-695
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

Diagnostic ProcedureEBS01114

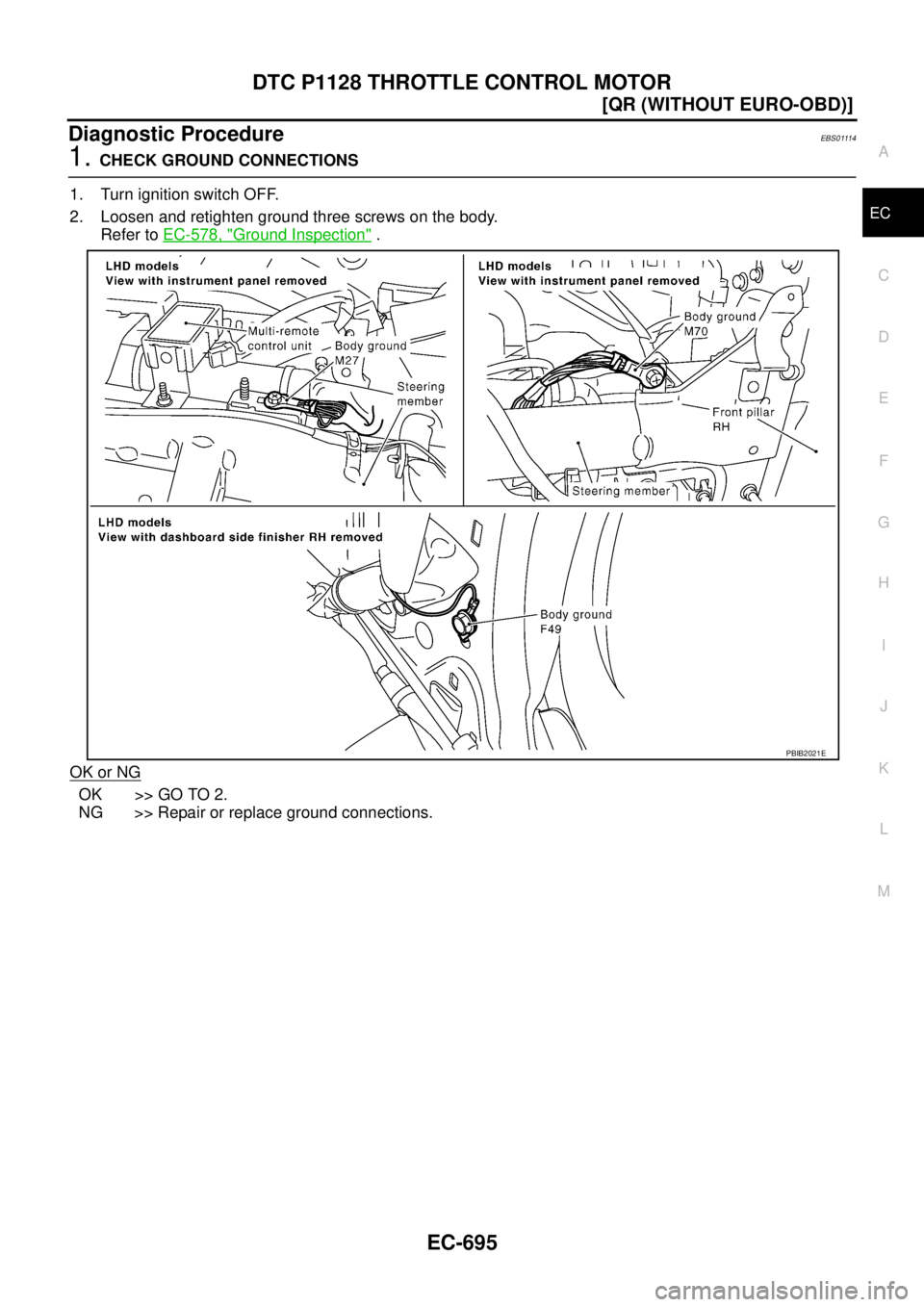

1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighte

Page 1074 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-696
[QR (WITHOUT EURO-OBD)]
DTC P1128 THROTTLE CONTROL MOTOR

2. CHECK THROTTLE CONTROL MOTOR OUTPUT SIGNAL CIRCUIT FOR OPEN OR SHORT

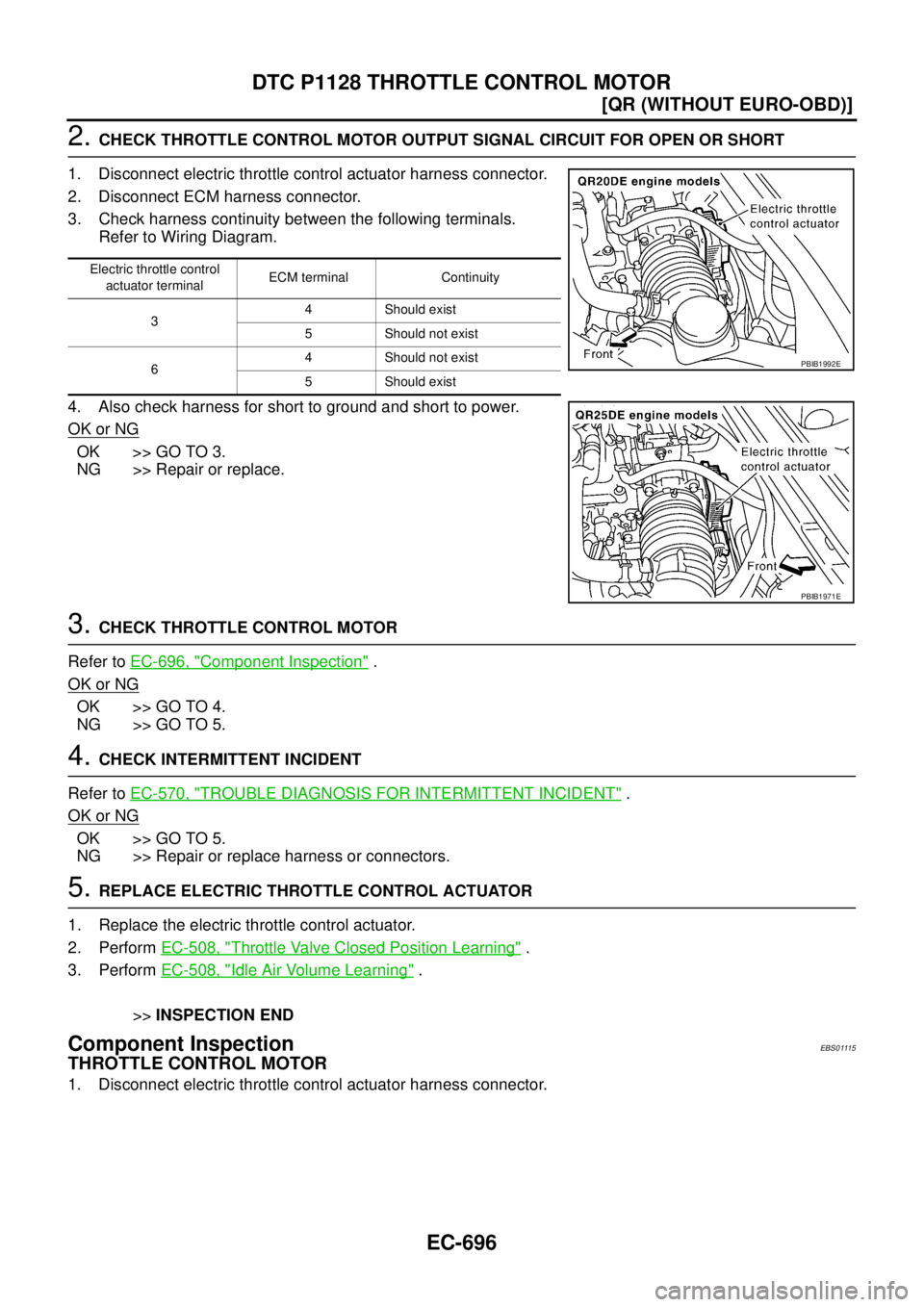

1. Disconnect electric throttle control actuator harness conne

Page 1075 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P1128 THROTTLE CONTROL MOTOR
EC-697
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

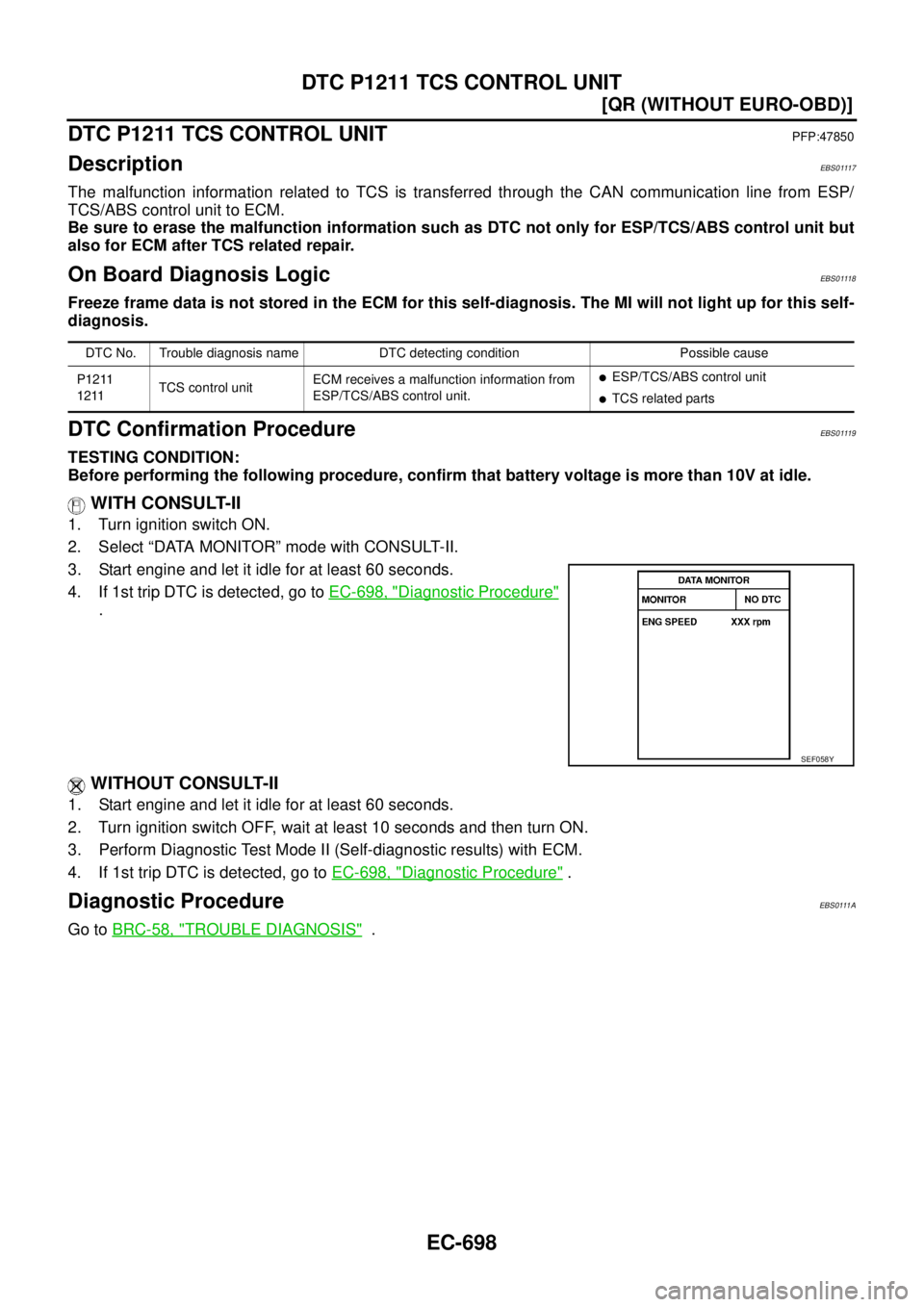

2. Check resistance between terminals 3 and 6.
3. If NG, replace electric throttle control actuator and go t

Page 1076 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-698
[QR (WITHOUT EURO-OBD)]
DTC P1211 TCS CONTROL UNIT

DTC P1211 TCS CONTROL UNITPFP:47850
DescriptionEBS01117

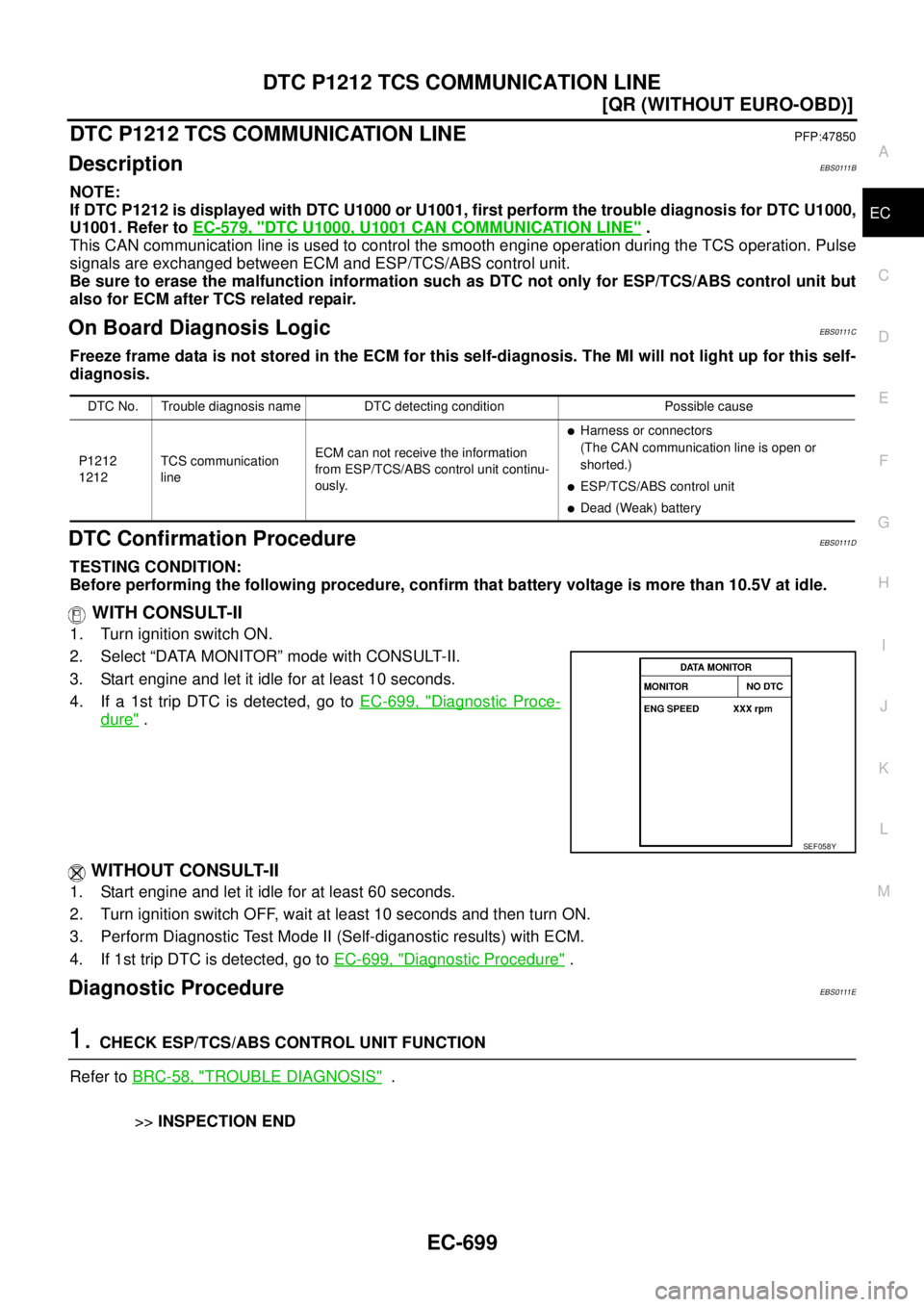

The malfunction information related to TCS is transferred through the CAN communicat

Page 1077 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P1212 TCS COMMUNICATION LINE
EC-699
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

DTC P1212 TCS COMMUNICATION LINEPFP:47850
DescriptionEBS0111B
NOTE:
If DTC P1212 is displayed with DTC U1000

Page 1078 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-700
[QR (WITHOUT EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE

DTC P1217 ENGINE OVER TEMPERATUREPFP:00000
System DescriptionEBS0111F
NOTE:

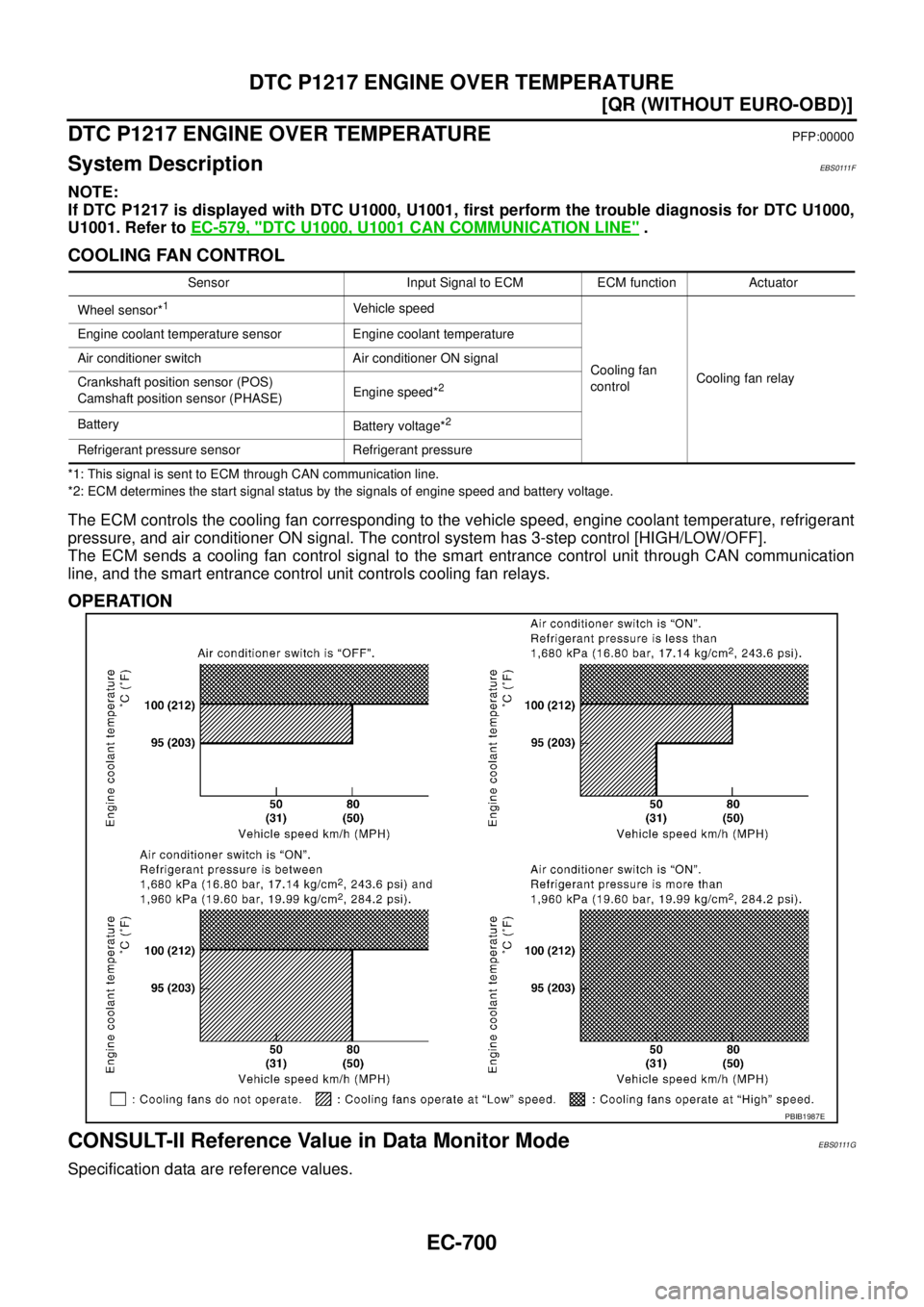

If DTC P1217 is displayed with DTC U1000, U1001, first pe

Page 1079 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-701
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

On Board Diagnosis LogicEBS0111H
If the cooling fan or another component in the cooling system malfunctions

DTC P1217 ENGINE OVER TEMPERATURE
EC-701
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

On Board Diagnosis LogicEBS0111H
If the cooling fan or another component in the cooling system malfunctions, engine coolant temperature will
rise. When the engine coolant temperature reaches an abnormally high temperature condition, a malfunction
is indicated.
This self-diagnosis has the one trip detection logic.
CAUTION:
When a malfunction is indicated, be sure to replace the coolant. Refer to CO-9, "
Changing Engine
Coolant" . Also, replace the engine oil. Refer to LU-8, "Changing Engine Oil" .
1. Fill radiator with coolant up to specified level with a filling speed of 2 liters per minute. Be sure to
use coolant with the proper mixture ratio. Refer to MA-19, "
Engine Coolant Mixture Ratio" .
2. After refilling coolant, run engine to ensure that no water-flow noise is emitted.
Overall Function CheckEBS0111I
Use this procedure to check the overall function of the cooling fan. During this check, a DTC might not be con-
firmed.
WARNING:
Never remove the radiator cap when the engine is hot. Serious burns could be caused by high pres-
sure fluid escaping from the radiator.
Wrap a thick cloth around cap. Carefully remove the cap by turning it a quarter turn to allow built-up
pressure to escape. Then turn the cap all the way off.
MONITOR ITEM CONDITION SPECIFICATION
AIR COND SIG
Engine: After warming up, idle
the engineAir conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates.)ON
COOLING FAN
Engine: After warming up, idle
the engine
Air conditioner switch: OFFEngine coolant temperature is 94°C
(201°F) or lessOFF
Engine coolant temperature is
between 95°C (203°F) and 99°C
(210°F) or moreLOW
Engine coolant temperature is 100°C
(212°F) or moreHIGH
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1217
1217Engine over tempera-
ture (Overheat)
Cooling fan does not operate properly (Over-
heat).
Cooling fan system does not operate prop-
erly (Overheat).
Engine coolant was not added to the system
using the proper filling method.
Engine coolant is not within the specified
range.
Harness or connectors
(The cooling fan circuit is open or
shorted.)
Cooling fan
Radiator hose
Radiator
Radiator cap
Water pump
Thermostat
For more information, refer to EC-714,
"Main 12 Causes of Overheating" .

Page 1080 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-702
[QR (WITHOUT EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE

WITH CONSULT-II

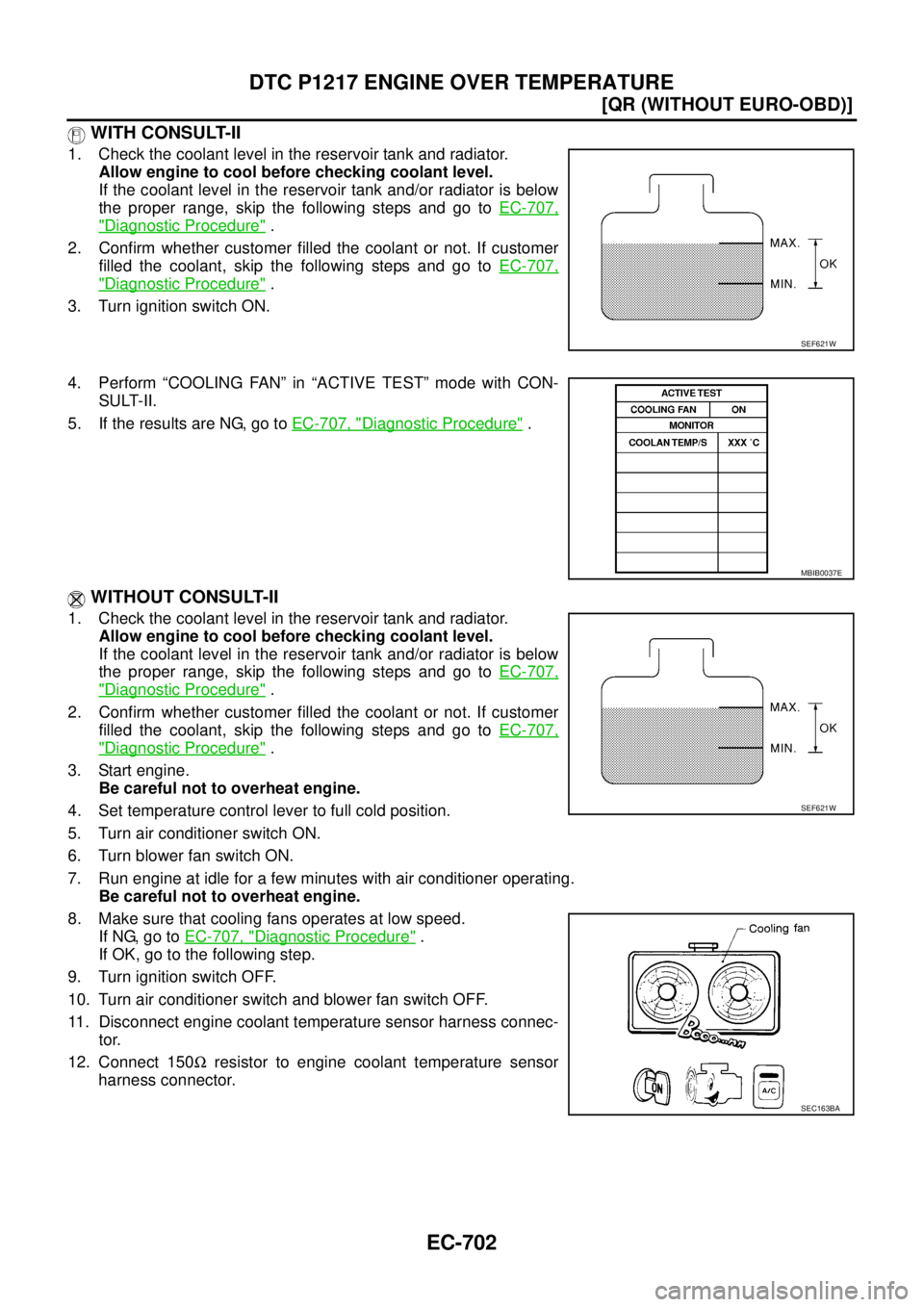

1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
I
