ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-895
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
With GST
CONSULT-II or GST (Generic Scan Tool): Examples: P0117, P0335, P1260, etc.
These numbers are prescribed by ISO 15031-6.
(CONSULT-II also displays the malfunctioning parts and systems.)
A sample of CONSULT-II display for DTC and 1st/2nd trip DTC is
shown in the figure. DTC and 1st/2nd trip DTC are displayed in the
“SELF-DIAG RESULTS” mode of CONSULT-II.
“TIME” data shows how many times the vehicle was driven after the
last detection of DTC or 1st/2nd trip DTC. When DTC or 1st/2nd trip
DTC has been detected currently, “TIME” becomes “0”.
CONSULT-II displays for DTC and 1st/2nd trip DTC become the
same.
The output of a DTC indicates a malfunction. However, GST
does not indicate whether the malfunction is still occurring or
has occurred in the past and has returned to normal. CONSULT-
II can identify the malfunction status. Therefore the use of CON-
SULT-II (If available) is recommended.
FREEZE FRAME DATA
ECM records driving conditions such as calculated load value, engine coolant temperature, engine speed,
vehicle speed, and intake manifold pressure at the moment a malfunction is detected.
The data stored together with DTC is called Freeze Frame Data, and is displayed on CONSULT-II or GST.
When 1st/2nd trip DTC is detected, Freeze Frame Data is not recorded.
Only a set of Freeze Frame Data can be stored in the ECM memory. When ECM records Freeze Frame Data,
and another Freeze Frame Data is generated after that, the first (original) Freeze Frame Data is not updated in
ECM and it remains.
When the DTC is erased from ECM memory, Freeze Frame Data is erased with DTC. The procedure for eras-
ing DTC is described in EC-895, "
How to Erase DTC" .
HOW TO ERASE EMISSION-RELATED DIAGNOSTIC INFORMATION
How to Erase DTC
With CONSULT-II
The emission related diagnostic information in the ECM can be erased by selecting “ERASE” in the “SELF-
DIAG RESULTS” mode with CONSULT-II.
1. If the ignition switch stays ON after repair work, be sure to turn ignition switch OFF once. Wait at least 5
seconds and then turn it ON (engine stopped) again.
2. Touch “ENGINE”.
3. Touch “SELF-DIAG RESULTS”.
4. Touch “ERASE”. (The DTC in the ECM will be erased.)
PBIB2022E
PBIB2452E
Page 1274 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual EC-896
[YD (WITH EURO-OBD)]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
With GST
The emission related diagnostic information in the ECM can be erased by selecting MODE 4 with GST.
1. If the ignition switch st NISSAN X-TRAIL 2003 Service Repair Manual EC-896
[YD (WITH EURO-OBD)]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
With GST
The emission related diagnostic information in the ECM can be erased by selecting MODE 4 with GST.
1. If the ignition switch st](/manual-img/5/57404/w960_57404-1273.png)
EC-896
[YD (WITH EURO-OBD)]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
With GST
The emission related diagnostic information in the ECM can be erased by selecting MODE 4 with GST.
1. If the ignition switch stays ON after repair work, be sure to turn ignition switch OFF once. Wait at least 5
seconds and then turn it ON (engine stopped) again.
2. Select MODE 4 with GST (Generic Scan Tool).
If the battery is disconnected, the emission-related diagnostic information will be lost within 24
hours.
The following data are cleared when the ECM memory is erased.
–Diagnostic trouble codes
–1st trip diagnostic trouble codes
–2nd trip diagnostic trouble codes
–Freeze frame data
Actual work procedures are explained using a DTC as an example. Be careful so that not only the DTC, but all
of the data listed above, are cleared from the ECM memory during work procedures.
NATS (Nissan Anti-theft System)EBS01177
If the security indicator lights up with the ignition switch in
the ON position or "NATS MALFUNCTION" is displayed on
"SELF-DIAG RESULTS" screen, perform self-diagnostic
results mode with CONSULT-II using NATS program card.
Refer to NATS (Nissan Anti-Theft System) in BL section.
Confirm no self-diagnostic results of NATS is displayed
before touching "ERASE" in "SELF-DAIG RESULTS" mode
with CONSULT-II.
When replacing ECM, initialization of NATS system and reg-
istration of all NATS ignition key IDs must be carried out
with CONSULT-II using NATS program card.
Therefore, be sure to receive all keys from vehicle owner.
Regarding the procedure of NATS initialization and NATS ignition key ID registration, refer to CON-
SULT-II operation manual, NATS.
Malfunction Indicator (MI)EBS01178
DESCRIPTION
The MI is located on the instrument panel.
1. The MI will light up when the ignition switch is turned ON without
the engine running. This is a bulb check.
If the MI does not light up, refer to DI-33, "WARNING LAMPS"
or see EC-1202 .
2. When the engine is started, the MI should go off.
If the MI remains on, the on board diagnostic system has
detected an engine system malfunction.
On Board Diagnostic System Function
The on board diagnostic system has the following two functions.
SEF543X
SAT652J
Page 1275 of 4179
ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-897
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic Test Mode I - Bulb Check
In this mode, the MI on the instrument panel should stay ON. If it remains OFF, check the bulb. Refer to DI-33,
"WARNING LAMPS" or see EC-1202 .
Diagnostic Test Mode I - Malfunction Warning
Diagnostic Test
ModeKEY and ENG.
Statu sFunction Explanation of Function
Mode I Ignition switch in
ON position
Engine stoppedBULB CHECK This function checks the MI bulb for damage (blown, open
circuit, etc.).
If the MI does not come on, check MI circuit. (See EC-
1202, "MI & DATA LINK CONNECTORS" .)
Engine running MALFUNCTION
WARNINGThis is a usual driving condition. When ECM detects a mal-
function, the MI will light up to inform the driver that a mal-
function has been detected.
MI Condition
ON When the malfunction is detected or the ECM's CPU is malfunctioning.
OFF No malfunction.
Page 1276 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual EC-898
[YD (WITH EURO-OBD)]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
OBD System Operation ChartEBS011UM
RELATIONSHIP BETWEEN MI, 1ST/2ND TRIP DTC, DTC, AND DETECTABLE ITEMS
When the malfunction is detected NISSAN X-TRAIL 2003 Service Repair Manual EC-898
[YD (WITH EURO-OBD)]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
OBD System Operation ChartEBS011UM
RELATIONSHIP BETWEEN MI, 1ST/2ND TRIP DTC, DTC, AND DETECTABLE ITEMS
When the malfunction is detected](/manual-img/5/57404/w960_57404-1275.png)
EC-898
[YD (WITH EURO-OBD)]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
OBD System Operation ChartEBS011UM
RELATIONSHIP BETWEEN MI, 1ST/2ND TRIP DTC, DTC, AND DETECTABLE ITEMS
When the malfunction is detected for the first time, 1st trip DTC is stored in the ECM memory.
When the same malfunction is detected during 2nd consecutive trip, 2nd trip DTC is stored and 1st trip
DTC is cleared.
When the same malfunction is detected during 3rd consecutive trip, DTC and Freeze Frame Data are
stored and MI illuminates. Refer to EC-892, "
Three Trip Detection Logic and One Trip Detection Logic" for
details.1st/2nd trip DTC are cleared from the ECM memory.
MI will go off after the vehicle is driven 3 consecutive times with no malfunction (driving pattern A).
1st/2nd trip DTC, DTC, and Freeze Frame Data will be stored until the vehicle is driven 41 times (driving
pattern B) without the same malfunction recurring. “TIME” data displayed in the “SELF-DIAG RESULTS”
mode of CONSULT-II shows the number of times the vehicle is driven without the same malfunction recur-
ring.
SUMMARY CHART
Refer to EC-900 for details of pattern A and B.Items Trip Counter Driving Pattern
MI (goes off) 3 2 A
DTC, Freeze Frame Data (clear) 41 40 B
1st/2nd Trip DTC (clear) 41 40 B
Page 1277 of 4179
ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-899
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

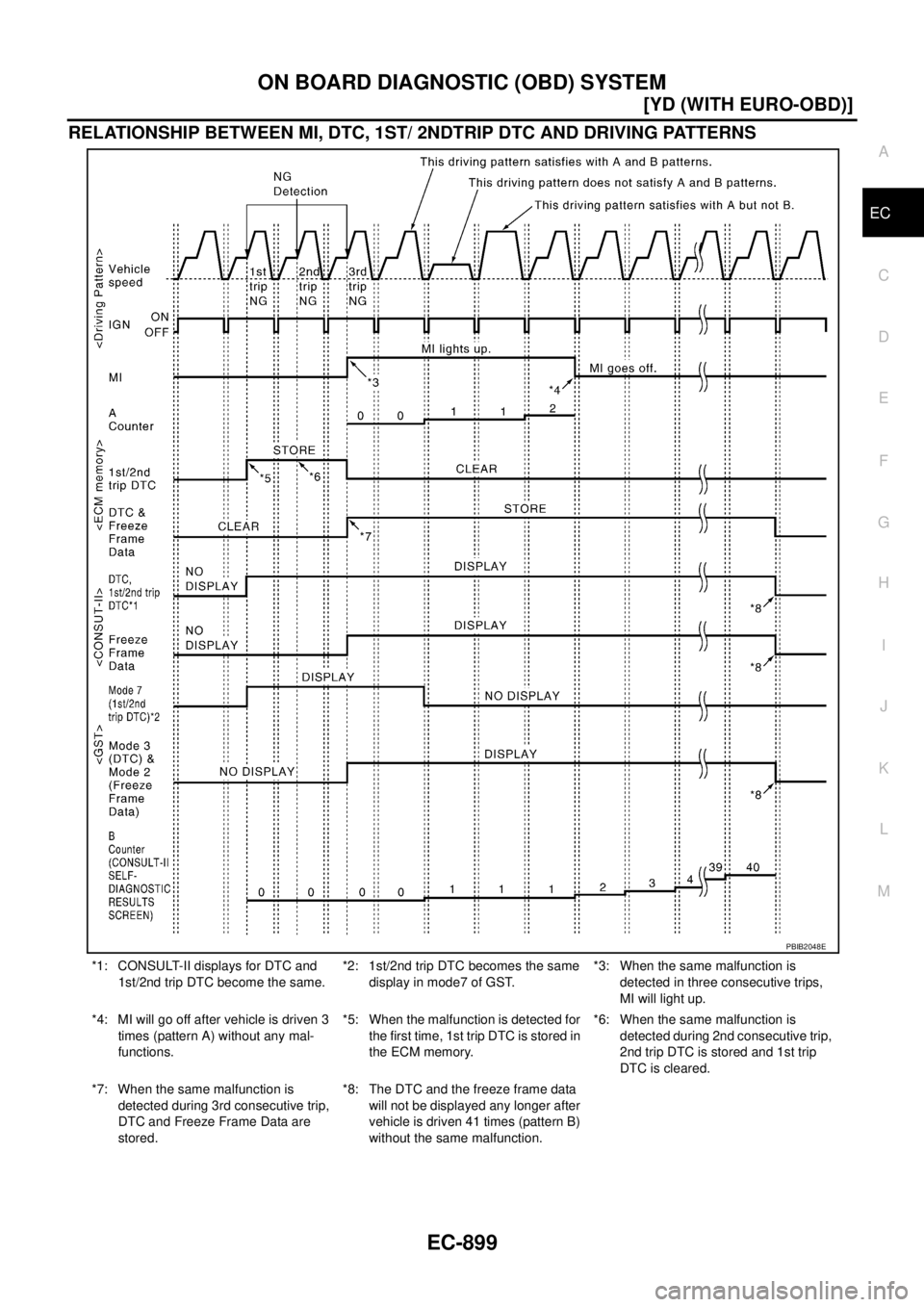

RELATIONSHIP BETWEEN MI, DTC, 1ST/ 2NDTRIP DTC AND DRIVING PATTERNS
*1: CONSULT-II displays for DTC and
1st/2nd trip DTC become the same.*2: 1st/2nd trip DTC becomes the same
display in mode7 of GST.*3: When the same malfunction is
detected in three consecutive trips,
MI will light up.
*4: MI will go off after vehicle is driven 3
times (pattern A) without any mal-
functions.*5: When the malfunction is detected for
the first time, 1st trip DTC is stored in
the ECM memory.*6: When the same malfunction is
detected during 2nd consecutive trip,
2nd trip DTC is stored and 1st trip
DTC is cleared.
*7: When the same malfunction is
detected during 3rd consecutive trip,
DTC and Freeze Frame Data are
stored.*8: The DTC and the freeze frame data
will not be displayed any longer after
vehicle is driven 41 times (pattern B)
without the same malfunction.
PBIB2048E
Page 1278 of 4179
EC-900
[YD (WITH EURO-OBD)]
ON BOARD DIAGNOSTIC (OBD) SYSTEM

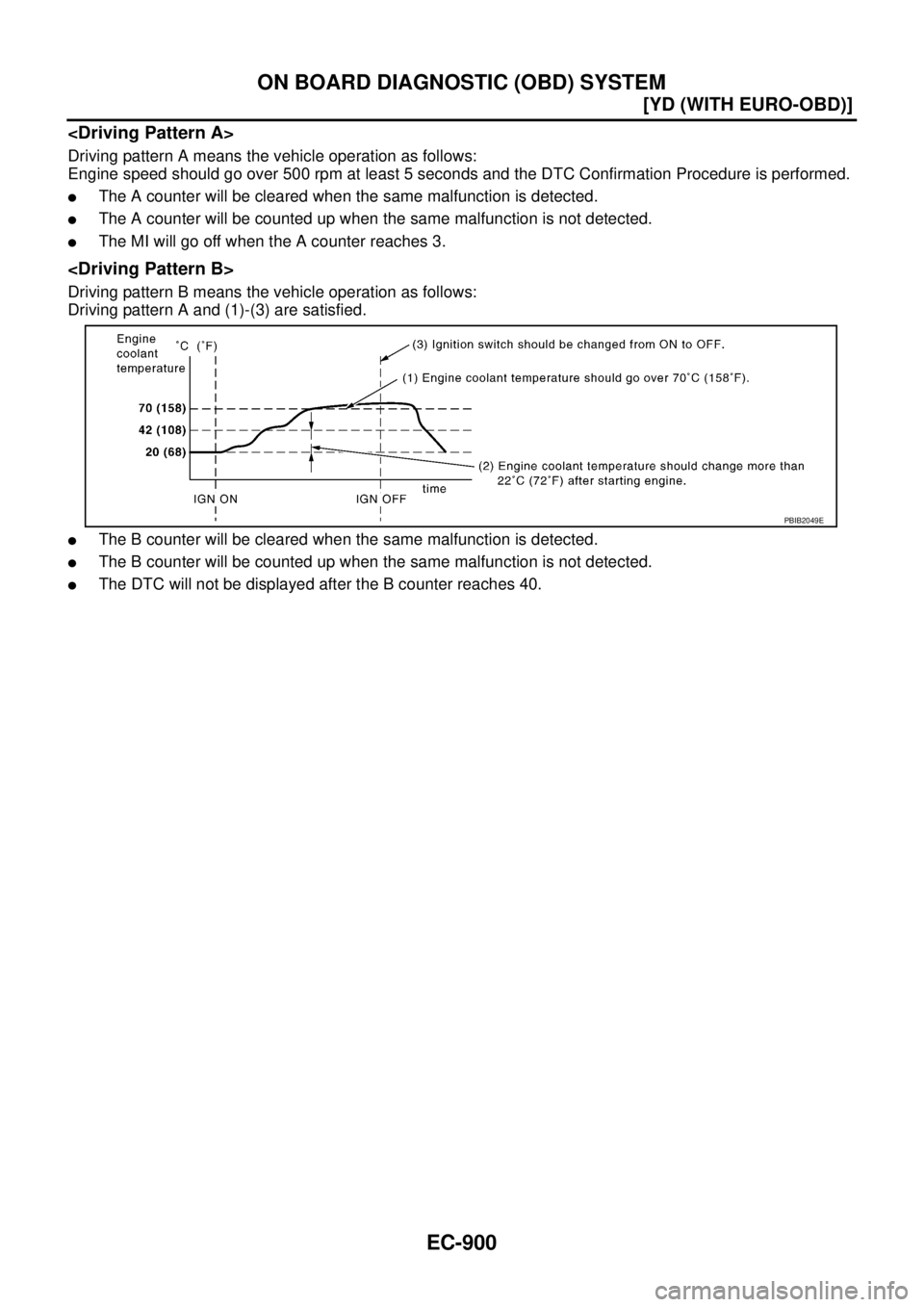

Driving pattern A means the vehicle operation as follows:
Engine speed should go over 500 rpm at least 5 seconds and the DTC Confirmation Procedure is performed.
The A counter will be cleared when the same malfunction is detected.
The A counter will be counted up when the same malfunction is not detected.
The MI will go off when the A counter reaches 3.
Driving pattern B means the vehicle operation as follows:
Driving pattern A and (1)-(3) are satisfied.
The B counter will be cleared when the same malfunction is detected.
The B counter will be counted up when the same malfunction is not detected.
The DTC will not be displayed after the B counter reaches 40.
PBIB2049E
Page 1279 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual TROUBLE DIAGNOSIS
EC-901
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
TROUBLE DIAGNOSISPFP:00004
Trouble Diagnosis IntroductionEBS01179
INTRODUCTION
The engine has an ECM to control major systems NISSAN X-TRAIL 2003 Service Repair Manual TROUBLE DIAGNOSIS
EC-901
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
TROUBLE DIAGNOSISPFP:00004
Trouble Diagnosis IntroductionEBS01179
INTRODUCTION
The engine has an ECM to control major systems](/manual-img/5/57404/w960_57404-1278.png)
TROUBLE DIAGNOSIS
EC-901
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
TROUBLE DIAGNOSISPFP:00004
Trouble Diagnosis IntroductionEBS01179
INTRODUCTION
The engine has an ECM to control major systems such as fuel injec-
tion control, fuel injection timing control, glow control system, etc.
The ECM accepts input signals from sensors and instantly actuators.
It is essential that both input and output signals are proper and sta-
ble. At the same time, it is important that there are no malfunctions
such as vacuum leaks, or other malfunctions with the engine.
It is much more difficult to diagnose a malfunction that occurs inter-
mittently rather than continuously. Most intermittent malfunctions are
caused by poor electric connections or improper wiring. In this case,
careful checking of suspected circuits may help prevent the replace-
ment of good parts.
A visual check only may not find the cause of the incidents. A road
test with CONSULT-II or a circuit tester connected should be per-
formed. Follow the EC-902, "

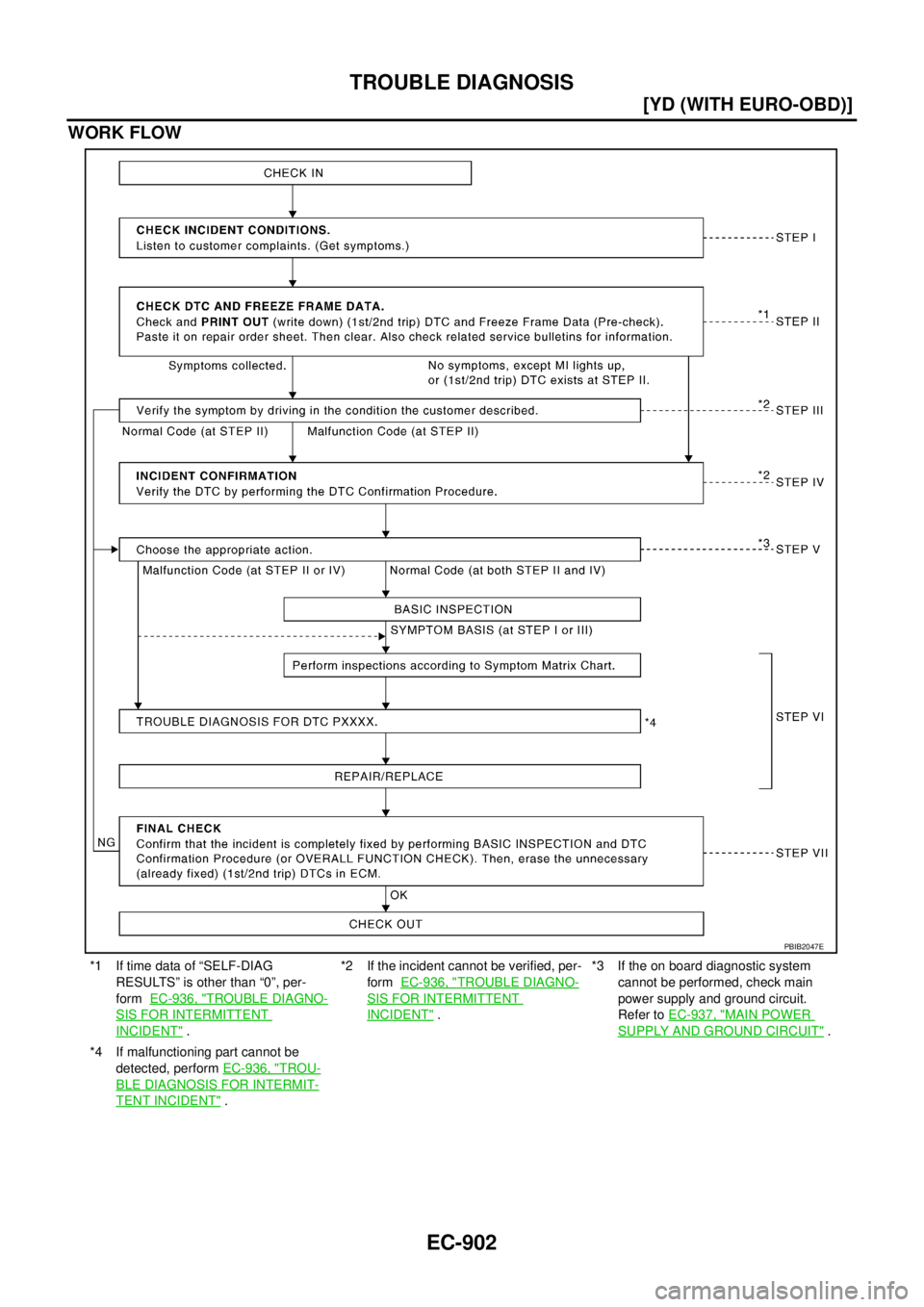

WORK FLOW" .
Before undertaking actual checks, take a few minutes to talk with a
customer who approaches with a driveability complaint. The cus-
tomer can supply good information about such incidents, especially
intermittent ones. Find out what symptoms are present and under
what conditions they occur. A Diagnostic Worksheet like the example
on next page should be used.
Start your diagnosis by looking for conventional incidents first. This
will help troubleshoot driveability incidents on an electronically con-
trolled engine vehicle.
MEF036D
SEF233G
SEF234G
Page 1280 of 4179
EC-902
[YD (WITH EURO-OBD)]
TROUBLE DIAGNOSIS
WORK FLOW
*1 If time data of “SELF-DIAG
RESULTS” is other than “0”, per-
form EC-936, "
TROUBLE DIAGNO-
SIS FOR INTERMITTENT
INCIDENT" .*2 If the incident cannot be verified, per-
form EC-936, "
TROUBLE DIAGNO-
SIS FOR INTERMITTENT
INCIDENT" .*3 If the on board diagnostic system
cannot be performed, check main
power supply and ground circuit.
Refer to EC-937, "MAIN POWER
SUPPLY AND GROUND CIRCUIT" .
*4 If malfunctioning part cannot be
detected, perform EC-936, "
TROU-
BLE DIAGNOSIS FOR INTERMIT-
TENT INCIDENT" .
PBIB2047E
