Page 2673 of 4179

ELECTRIC CONTROLLED COUPLING
RFD-13
C
E
F
G
H
I
J
K
L
MA
B
RFD
INSTALLATION
1. Install electric controlled coupling to spline of drive pinion inside
gear carrier.
CAUTION:
Align the pin on electric controlled coupling with the
groove of gear carrier.
Be careful not to damage center oil seal.
2. Set electric controlled coupling harness guide to gear carrier.
3. Apply liquid gasket to mating surface of coupling cover. Overlap
both ends of the bead for at least 3 mm (0.12 in).
Use sealant (Three bound 1217 or equivalent).
CAUTION:
Remove old sealant adhering to the mounting surfaces.
Also remove any moisture, oil, or foreign material adhering
to the mounting surfaces.
4. Install coupling cover to gear carrier with arrow facing upward,
temporarily tighten reamer bolts to the positions shown in the
figure.
5. Tighten reamer bolts and coupling cover mounting bolts to the
specified torque. Refer to RFD-16, "
Components" .
6. Install electric controlled coupling breather hose to coupling
cover.
7. Install connector bracket and connect electric controlled cou-
pling connector.
8. Install companion flange.
NOTE:
When reusing electric controlled coupling, align the matching
mark of electric controlled coupling with the matching mark of
companion flange, then install companion flange.
9. Install companion flange lock nut with flange wrench, tighten to
the specified torque. Refer to RFD-16, "
Components" .
CAUTION:
Do not reuse companion flange lock nut.
10. Install propeller shaft. Refer to PR-4, "
Removal and Installation"
.
PDIA0463E
PDIA0451E
SDIA0587E
PDIA0455E
Page 2674 of 4179
RFD-14
REAR FINAL DRIVE ASSEMBLY
REAR FINAL DRIVE ASSEMBLYPFP:38300
Removal and InstallationEDS001ZA
REMOVAL
1. Remove propeller shaft. Refer to PR-4, "Removal and Installation" .
2. Remove drive shaft with power tool. Refer to RAX-10, "
Removal and Installation" .
3. Disconnect electric controlled coupling connector.
4. Remove rear final drive breather hose and electric controlled coupling breather hose.
5. Support rear final drive assembly with a suitable jack.
6. Remove rear final drive mounting nut at rear suspension mem-
ber.
7. Remove rear final drive mounting bolts at final drive mounting
bracket, and then remove rear final drive assembly.
If necessary, remove final drive mounting bracket.
CAUTION:
Secure rear final drive assembly to a suitable jack while
removing it.
1. Rear suspension member 2. Final drive mounting bracket 3. Harness bracket
4. Drive shaft 5. Propeller shaft 6. Rear final drive assembly
PDIA0433E
PDIA0434E
PDIA0435E
Page 2675 of 4179

REAR FINAL DRIVE ASSEMBLY
RFD-15
C
E
F
G
H
I
J
K
L
MA
B
RFD
INSTALLATION
Note the following, and install in the reverse order of removal.
Refer to RFD-16, "Components" about each tightening torque.
When installing breather hoses, refer to the figure and following.
CAUTION:
Make sure there are no pinched or restricted areas on the
breather hose caused by bending or winding when install-
ing it.
–For installation of rear final drive breather hose, the vehicle side
end shall be inserted to cross member. Install metal connector
side of this hose to rear cover by inserting it with aiming painted
marking to the front of vehicle.
–For installation of electric controlled coupling breather hose, the
vehicle side end shall be inserted to cross member. Install its
metal tube to rear final drive assembly and direct the metal tube
hose side end to the front of vehicle.
When oil leaks while removing final drive assembly, check oil
level after the installation. Refer to RFD-8, "
Checking Differential
Gear Oil" .
PDIA0436E
PDIA0437E
Page 2676 of 4179
RFD-16
REAR FINAL DRIVE ASSEMBLY

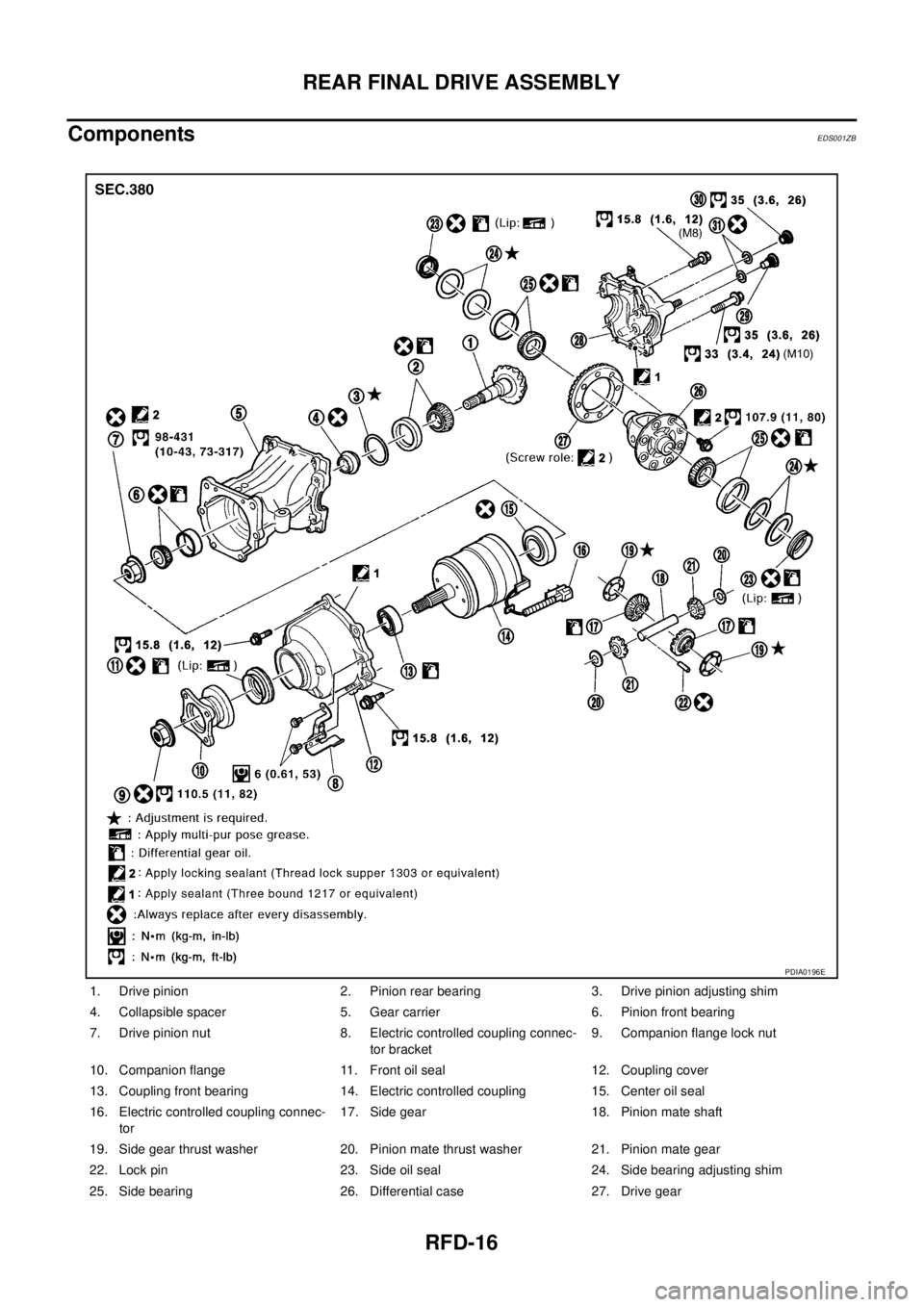

ComponentsEDS001ZB
PDIA0196E
1. Drive pinion 2. Pinion rear bearing 3. Drive pinion adjusting shim
4. Collapsible spacer 5. Gear carrier 6. Pinion front bearing
7. Drive pinion nut 8. Electric controlled coupling connec-
tor bracket9. Companion flange lock nut
10. Companion flange 11. Front oil seal 12. Coupling cover
13. Coupling front bearing 14. Electric controlled coupling 15. Center oil seal
16. Electric controlled coupling connec-
tor17. Side gear 18. Pinion mate shaft
19. Side gear thrust washer 20. Pinion mate thrust washer 21. Pinion mate gear
22. Lock pin 23. Side oil seal 24. Side bearing adjusting shim
25. Side bearing 26. Differential case 27. Drive gear
Page 2677 of 4179

REAR FINAL DRIVE ASSEMBLY
RFD-17
C
E
F
G
H
I
J
K
L
MA
B
RFD
Pre-inspectionEDS001ZC
TOTAL PRELOAD
1. Drain the oil.
2. Remove electric controlled coupling assembly. Refer to RFD-22, "
Removal of Electric Controlled Coupling
Assembly" .
3. Rotate the drive pinion back and forth in 2 to 3 times to check for unusual noise and rotation malfunction.
4. Rotate the drive pinion at least 20 times to check for smooth
operation of the bearing.
5. Fit the drive pinion socket onto the drive pinion spline. Using the
preload gauge below, measure the total preload.
If outside the standard, disassemble, check, and adjust each
part. Adjust the pinion bearing and side bearing preload.
Adjust the pinion bearing preload first, then adjust the side bearing preload.
Side bearing adjusting shims
28. Rear cover 29. Drain plug 30. Filler plug
31. Gasket
Tool number A: ST3127S000
B: KV38108500
Total preload
:1.33 - 2.15 N·m (0.14 - 0.21 kg-m, 12 - 19 in-lb)
Side bearing preload
: 0.64-0.98 N·m (0.07 - 0.09 kg-m, 6 - 8 in-lb)
When the preload torque is large
On pinion bearings : Replace the collapsible spacer.
On side bearings : Use thinner side bearing adjusting shims.
When the preload is small
On pinion bearings : Tighten the pinion nut.
On side bearings : Use thicker side bearing adjusting shims.
PDIA0048E
Thickness Part No. Thickness Part No. Thickness Part No.
1.85 mm (0.0728 in)
1.90 mm (0.0748 in)
1.95 mm (0.0768 in)
2.00 mm (0.0787 in)38453 4N200
38453 4N201
38453 4N202
38453 4N2032.05 mm (0.0807 in)
2.10 mm (0.0827 in)
2.15 mm (0.0854 in)
2.20 mm (0.0866 in)38453 4N204
38453 4N205
38453 4N206
38453 4N2072.25 mm (0.0886 in)
2.30 mm (0.0906 in)
2.35 mm (0.0925 in)38453 4N208
38453 4N209
38453 4N210
Page 2678 of 4179

RFD-18
REAR FINAL DRIVE ASSEMBLY
DRIVE GEAR TO DRIVE PINION BACKLASH
1. Drain the oil.
2. Remove the rear cover. Refer to RFD-22, "
Removal of Differential Assembly" .
3. Following the procedure below, install a dummy cover set to the
gear carrier.
a. Fit dummy cover shims to the right and left side bearing adjust-
ing shims.
b. Temporarily tighten a dummy cover to the gear carrier.
c. Position a dummy cover spacer to the dummy cover.
d. Tighten rear cover mounting bolts to the specified torque. Refer to RFD-16, "
Components" .
e. Tighten dummy cover spacer mounting bolts evenly to the specified torque.
4. Fit a dial gauge to the drive gear face to measure the backlash.
If outside the standard, change the thickness of the side bearing
adjusting shims.
Side bearing adjusting shimsTool Number : KV381086S1
PDIA0474E
: 5.9 N·m (0.6 kg-m, 52 in-lb)
Backlash : 0.10 - 0.15 mm (0.0039 - 0.0059 in)
Tool number : KV381086S1
PDIA0049E
When the backlash is large:
Make the drive gear back adjusting shims thicker, and the drive gear front adjusting
shims thinner.
When the backlash is small:
Make the drive gear back adjusting shims thinner, and the drive gear front adjusting
shims thicker.
Thickness Part No. Thickness Part No. Thickness Part No.
1.85 mm (0.0728 in)
1.90 mm (0.0748 in)
1.95 mm (0.0768 in)
2.00 mm (0.0787 in)38453 4N200
38453 4N201
38453 4N202
38453 4N2032.05 mm (0.0807 in)
2.10 mm (0.0827 in)
2.15 mm (0.0854 in)
2.20 mm (0.0866 in)38453 4N204
38453 4N205
38453 4N206
38453 4N2072.25 mm (0.0886 in)
2.30 mm (0.0906 in)
2.35 mm (0.0925 in)38453 4N208
38453 4N209
38453 4N210
Page 2679 of 4179

REAR FINAL DRIVE ASSEMBLY
RFD-19
C
E
F
G
H
I
J
K
L
MA
B
RFD
DRIVE GEAR RUNOUT
1. Drain the oil.
2. Remove the rear cover.Refer to RFD-22, "
Removal of Differential Assembly" .
3. Attach dummy cover set. Refer to RFD-18, "
DRIVE GEAR TO
DRIVE PINION BACKLASH" .
4. Fit a dial gauge to the drive gear back face.
5. Rotate the drive gear to measure runout.
If outside the repair limit, check drive gear assembly condition;
foreign material may be caught between drive gear and differen-
tial case, or differential case or drive gear may be deformed, etc.
CAUTION:
Replace the drive gear and drive pinion gear as a set.
COMPANION FLANGE RUNOUT
1. Fit a dial gauge onto the companion flange face (inner side of
the propeller shaft mounting bolt holes).
2. Rotate the companion flange to check for runout.
3. Fit a test indicator to the inner side of the companion flange
(socket diameter).
4. Rotate the companion flange to check for runout.
5. If the runout value is outside the repair limit, follow the procedure
below to adjust.
a. Check for runout while changing the phase between companion flange and drive pinion gear by 90° step,
and search for the point where the runout is the minimum.
b. If the runout value is still outside of the limit after the phase has been changed, replace the companion
flange.
c. If the runout value is still outside of the limit after the companion flange has been replaced, possible cause
will be an assembly malfunction of the drive pinion gear and the electronically controlled coupling, mal-
functioning coupling bearing, or malfunctioning of electronically controlled coupling.
TOOTH CONTACT
1. Drain the oil.
2. Remove the rear cover. Refer to RFD-22, "
Removal of Differential Assembly" .
3. Attach dummy cover set. Refer to RFD-18, "
DRIVE GEAR TO
DRIVE PINION BACKLASH" .
4. Thoroughly clean drive gear and drive pinion teeth.
5. Lightly apply a mixture of powdered ferric oxide and oil or the
equivalent. Apply it to 3 to 4 teeth of drive gear drive side.Tool Number : KV381086S1
Runout limit : 0.05 mm (0.0020 in)
PDIA0050E
Runout limit : 0.13 mm (0.0051 in)
Runout limit : 0.19 mm (0.0075 in)
PDIA0439E
Tool Number : KV381086S1
PDIA0051E
Page 2680 of 4179
RFD-20
REAR FINAL DRIVE ASSEMBLY

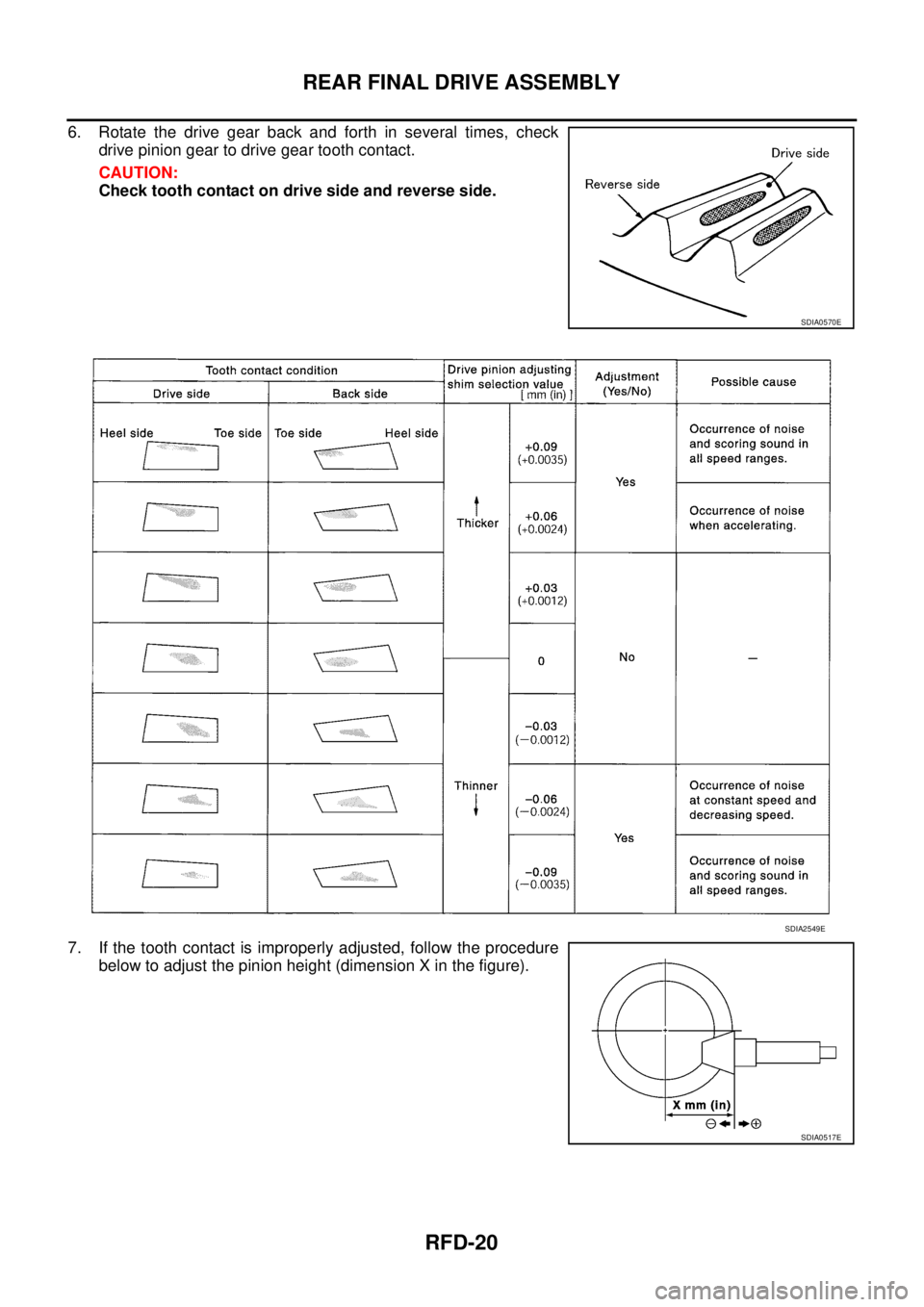

6. Rotate the drive gear back and forth in several times, check
drive pinion gear to drive gear tooth contact.
CAUTION:
Check tooth contact on drive side and reverse side.
7. If the tooth contact is improperly adjusted, follow the procedure
below to adjust the pinion height (dimension X in the figure).
SDIA0570E
SDIA2549E
SDIA0517E
