Page 1617 of 4179
TROUBLE DIAGNOSIS
EC-1239
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

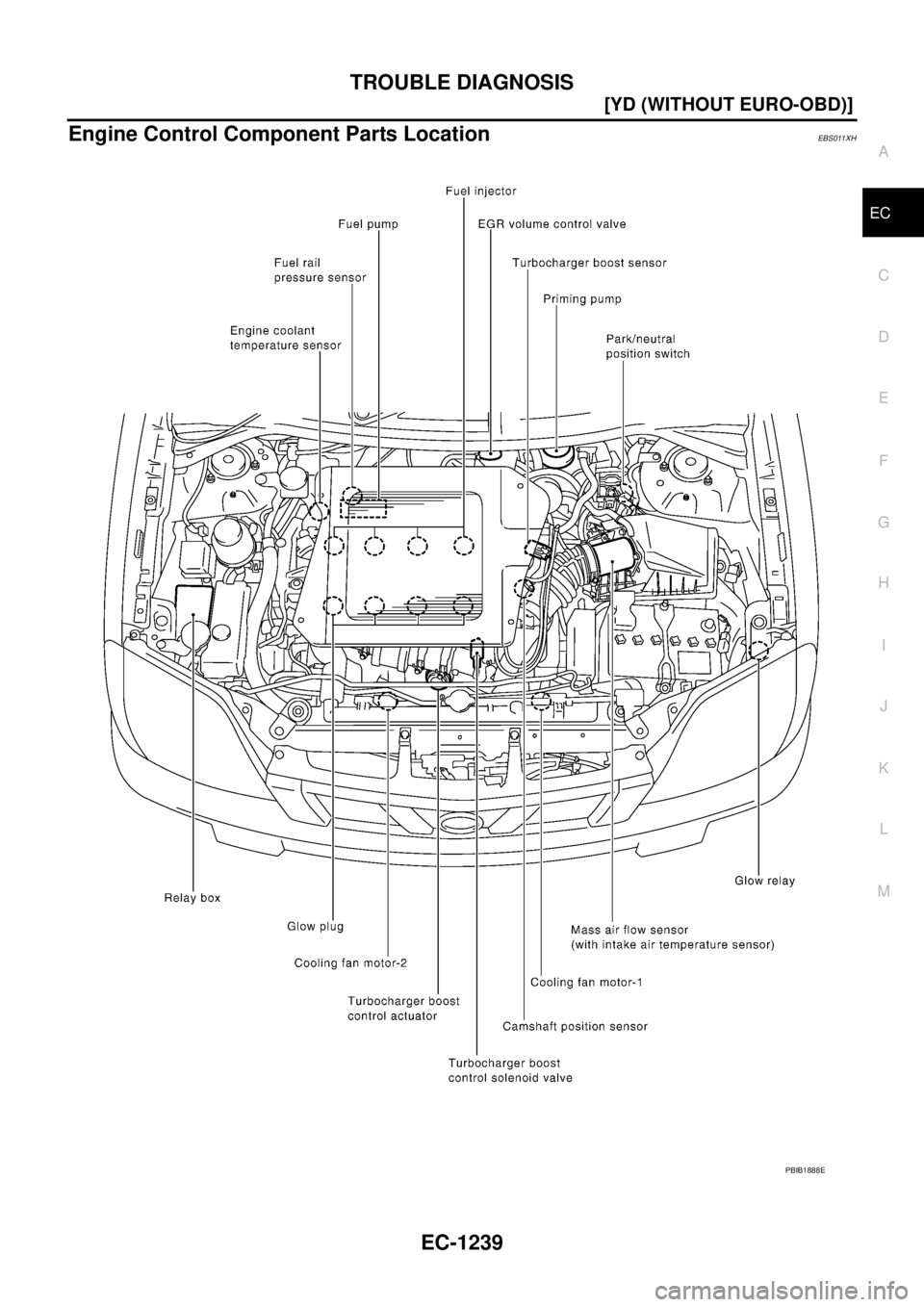

Engine Control Component Parts LocationEBS011XH
PBIB1888E

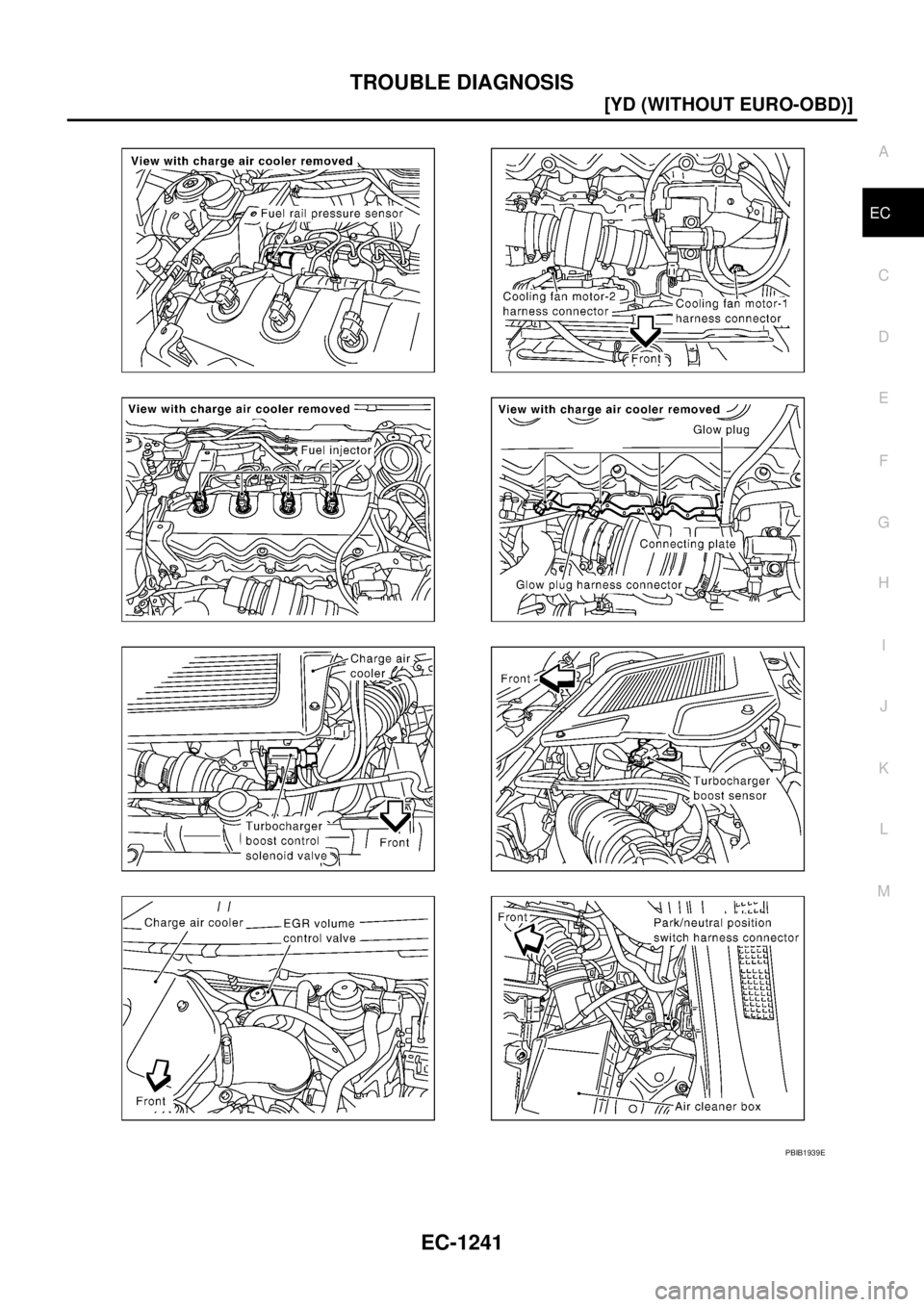

Page 1618 of 4179
EC-1240
[YD (WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS
PBIB1938E

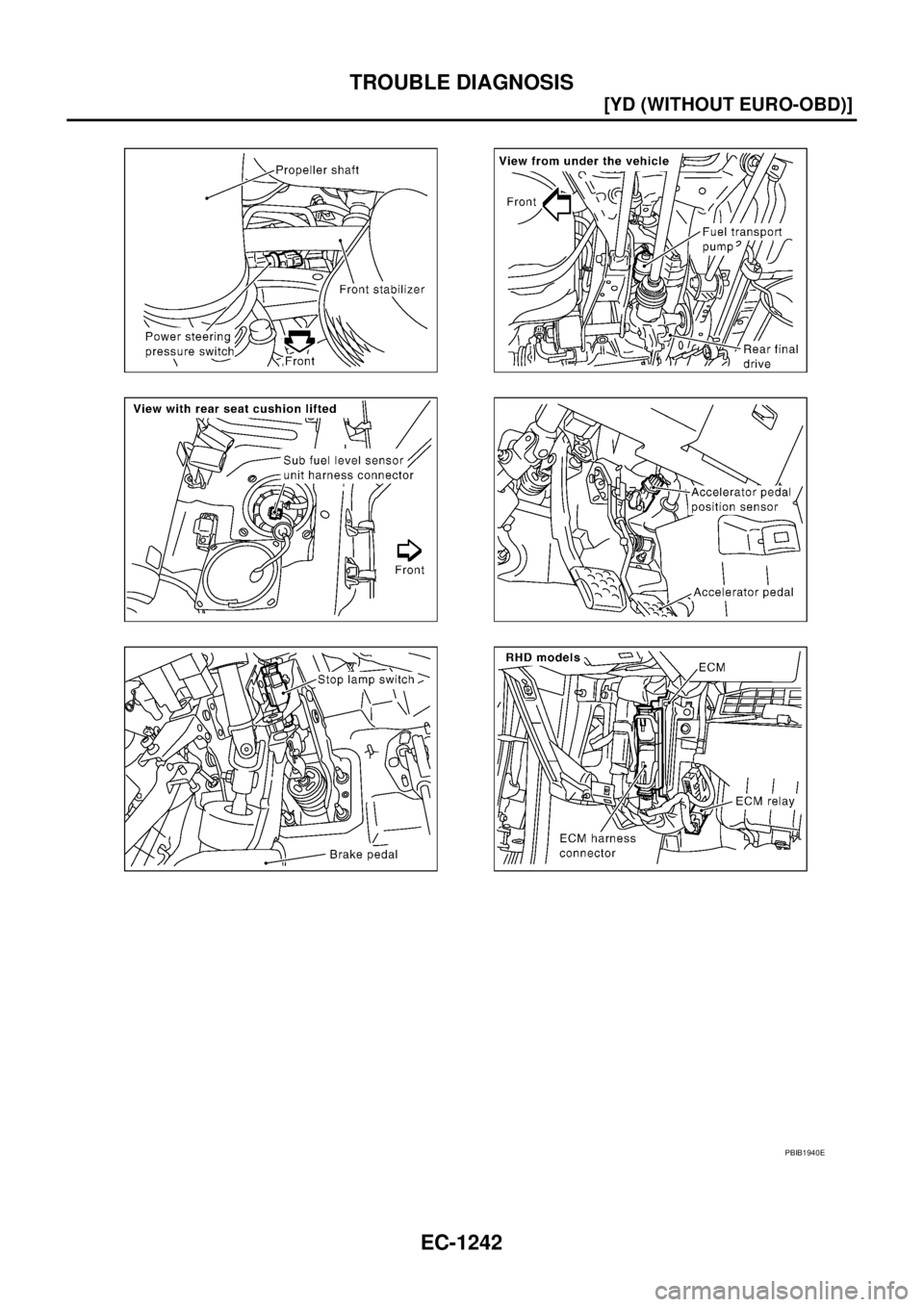

Page 1619 of 4179
TROUBLE DIAGNOSIS
EC-1241
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
PBIB1939E
Page 1620 of 4179
EC-1242
[YD (WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS
PBIB1940E
Page 1621 of 4179
TROUBLE DIAGNOSIS
EC-1243
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

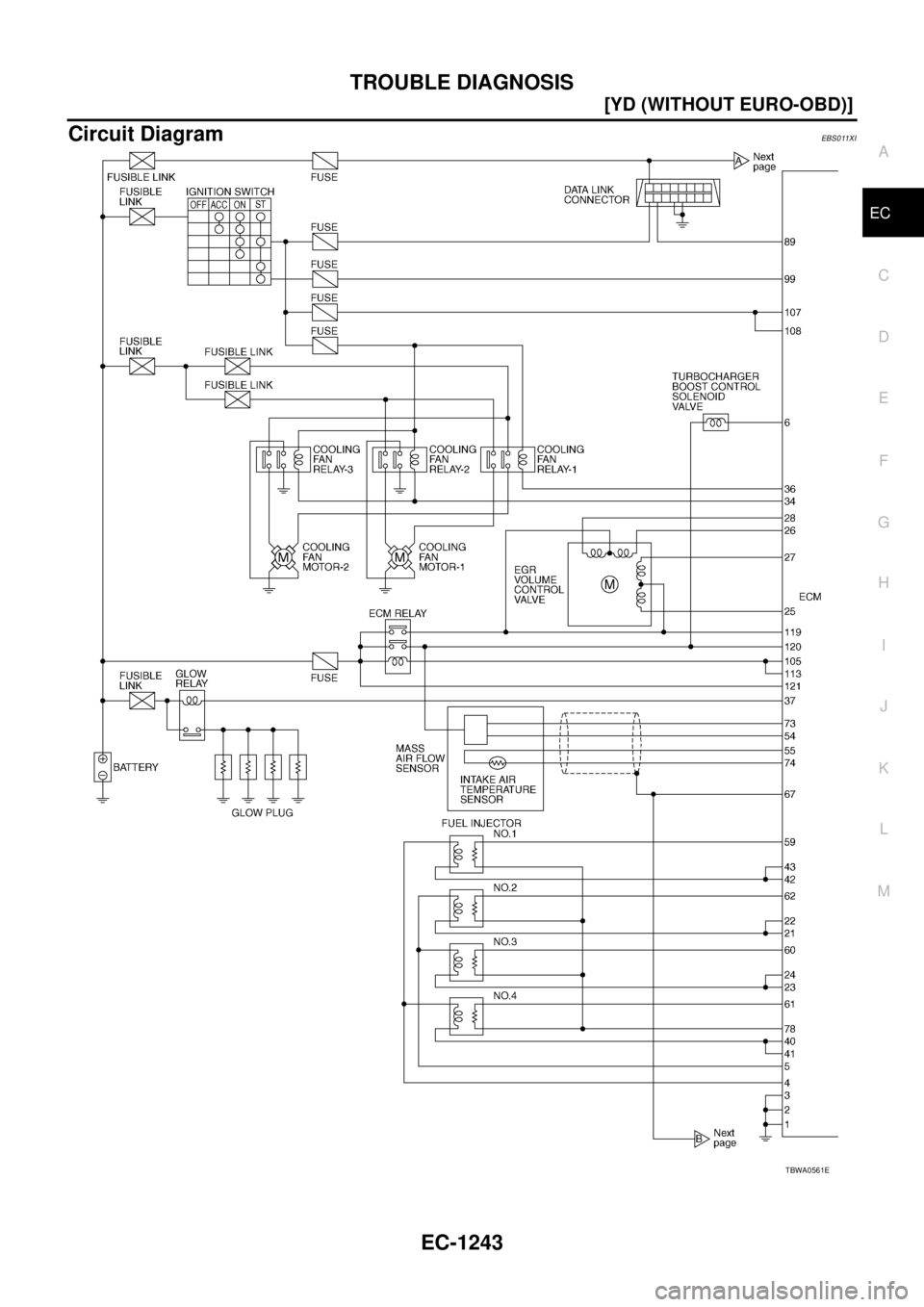

Circuit DiagramEBS011XI
TBWA0561E

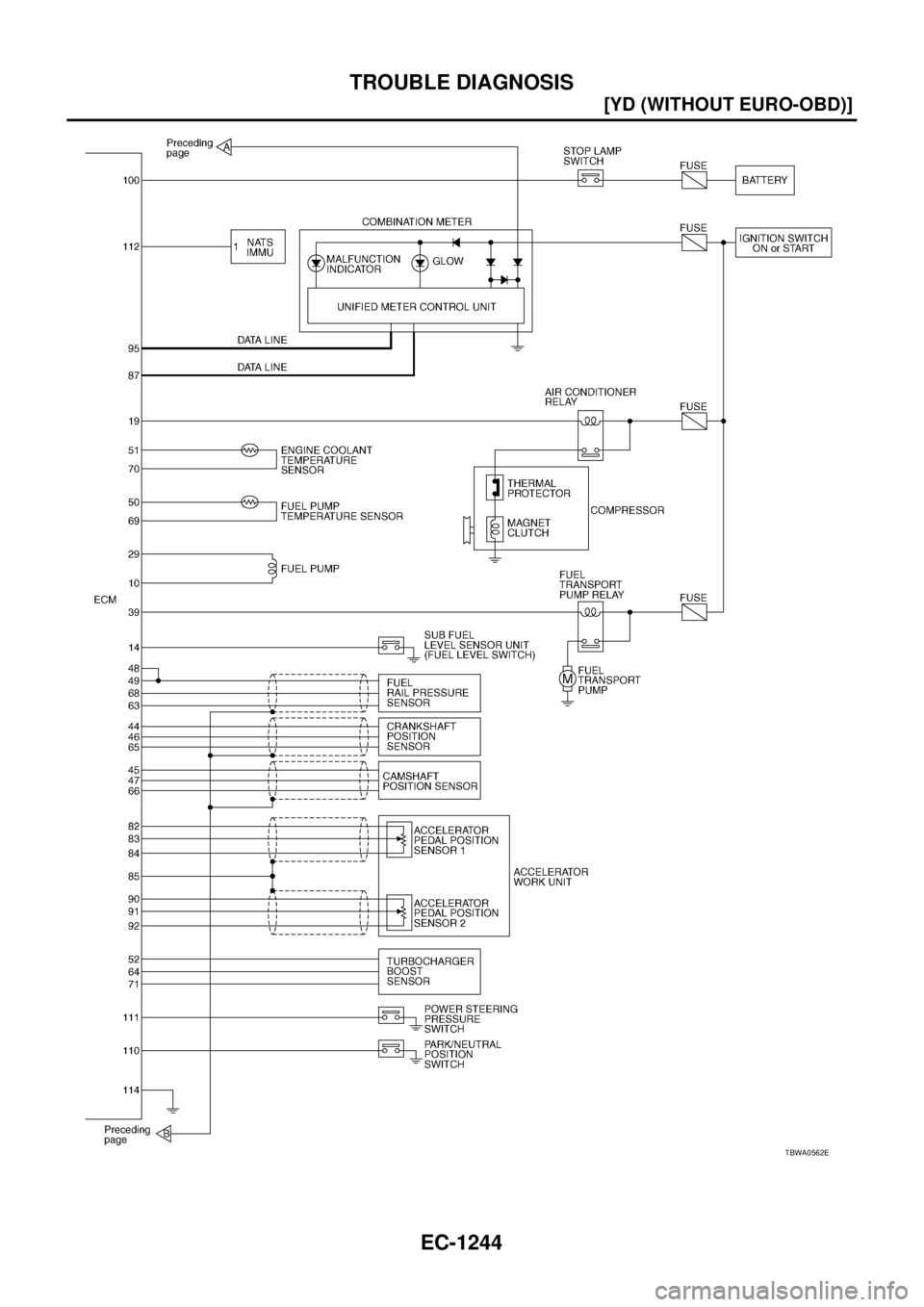

Page 1622 of 4179
EC-1244
[YD (WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS
TBWA0562E
Page 1623 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual TROUBLE DIAGNOSIS
EC-1245
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

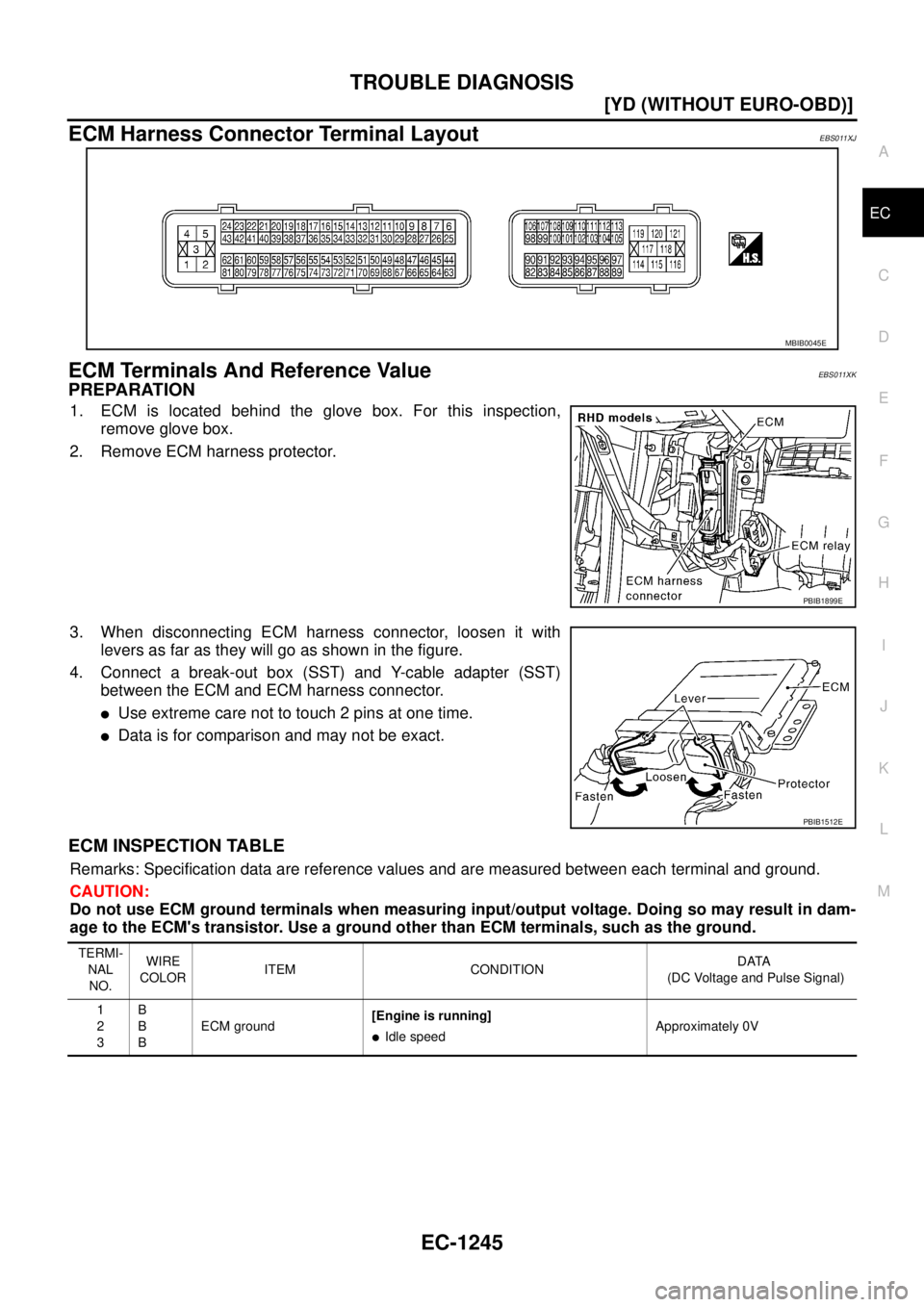

ECM Harness Connector Terminal LayoutEBS011XJ
ECM Terminals And Reference ValueEBS011XK
PREPARATION
1. ECM is located behi NISSAN X-TRAIL 2003 Service Repair Manual TROUBLE DIAGNOSIS
EC-1245
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
ECM Harness Connector Terminal LayoutEBS011XJ
ECM Terminals And Reference ValueEBS011XK
PREPARATION
1. ECM is located behi](/manual-img/5/57404/w960_57404-1622.png)
TROUBLE DIAGNOSIS
EC-1245
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
ECM Harness Connector Terminal LayoutEBS011XJ
ECM Terminals And Reference ValueEBS011XK
PREPARATION
1. ECM is located behind the glove box. For this inspection,
remove glove box.
2. Remove ECM harness protector.
3. When disconnecting ECM harness connector, loosen it with
levers as far as they will go as shown in the figure.
4. Connect a break-out box (SST) and Y-cable adapter (SST)
between the ECM and ECM harness connector.
Use extreme care not to touch 2 pins at one time.
Data is for comparison and may not be exact.
ECM INSPECTION TABLE
Remarks: Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
MBIB0045E
PBIB1899E
PBIB1512E
TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
1
2
3B
B
BECM ground[Engine is running]
Idle speedApproximately 0V
Page 1624 of 4179
EC-1246
[YD (WITHOUT EURO-OBD)]
TROUBLE DIAGNOSIS
4
5W/B
G/BFuel injector power supply
(For cylinder No. 1 and 4)
Fuel injector power supply
(For cylinder No. 2 and 3)[Engine is running]
Warm-up condition
Idle speed5 - 10V
[Engine is running]
Warm-up condition
Engine speed is 2,000 rpm5 - 10V
6LTurbocharger boost control
solenoid valve[Ignition switch ON]
Warm-up condition
Idle speed0 - 12.5V
[Ignition switch ON]
Warm-up condition
Engine speed is 2,000 rpm0 - 12.5V
10 Y/L Fuel pump power supply[Engine is running]
Warm-up condition
Idle speed0 - 12.5V
[Engine is running]
Warm-up condition
Engine speed is 2,000 rpm0 - 12.5V
14 W/PU Fuel level switch[Ignition switch ON]
Some fuel is in the fuel tankApproximately 0V
[Ignition switch ON]
No fuel is in the fuel tankBATTERY VOLTAGE
(11 - 14V) TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage and Pulse Signal)
MBIB0883E
MBIB0884E
MBIB0889E
MBIB0890E
MBIB0885E
MBIB0886E
