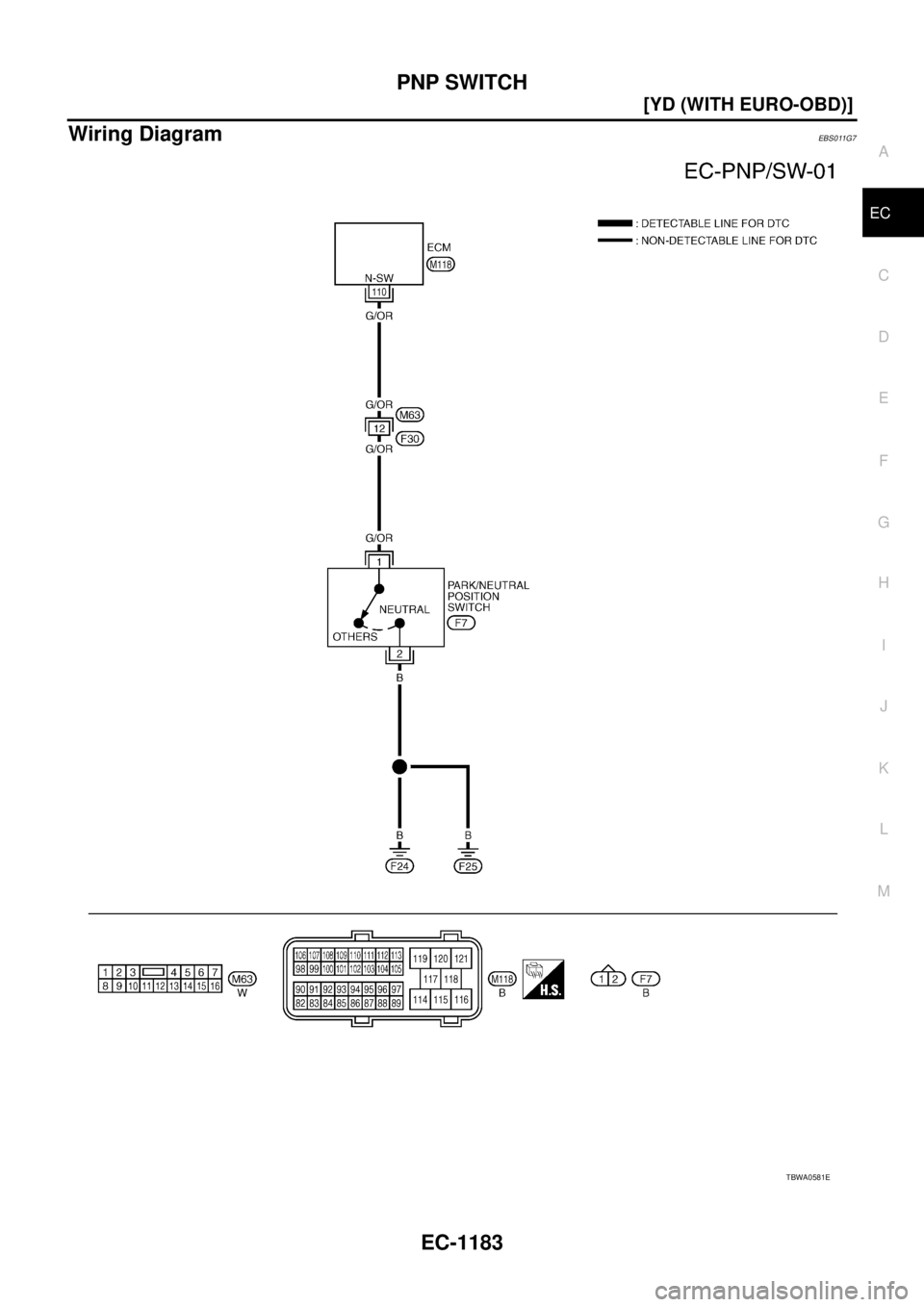

NISSAN X-TRAIL 2003 Service Repair Manual PNP SWITCH EC-1183 [YD (WITH EURO-OBD)] C D E F G H I J K L MA EC Wiring DiagramEBS011G7 TBWA0581E

Page 1562 of 4179

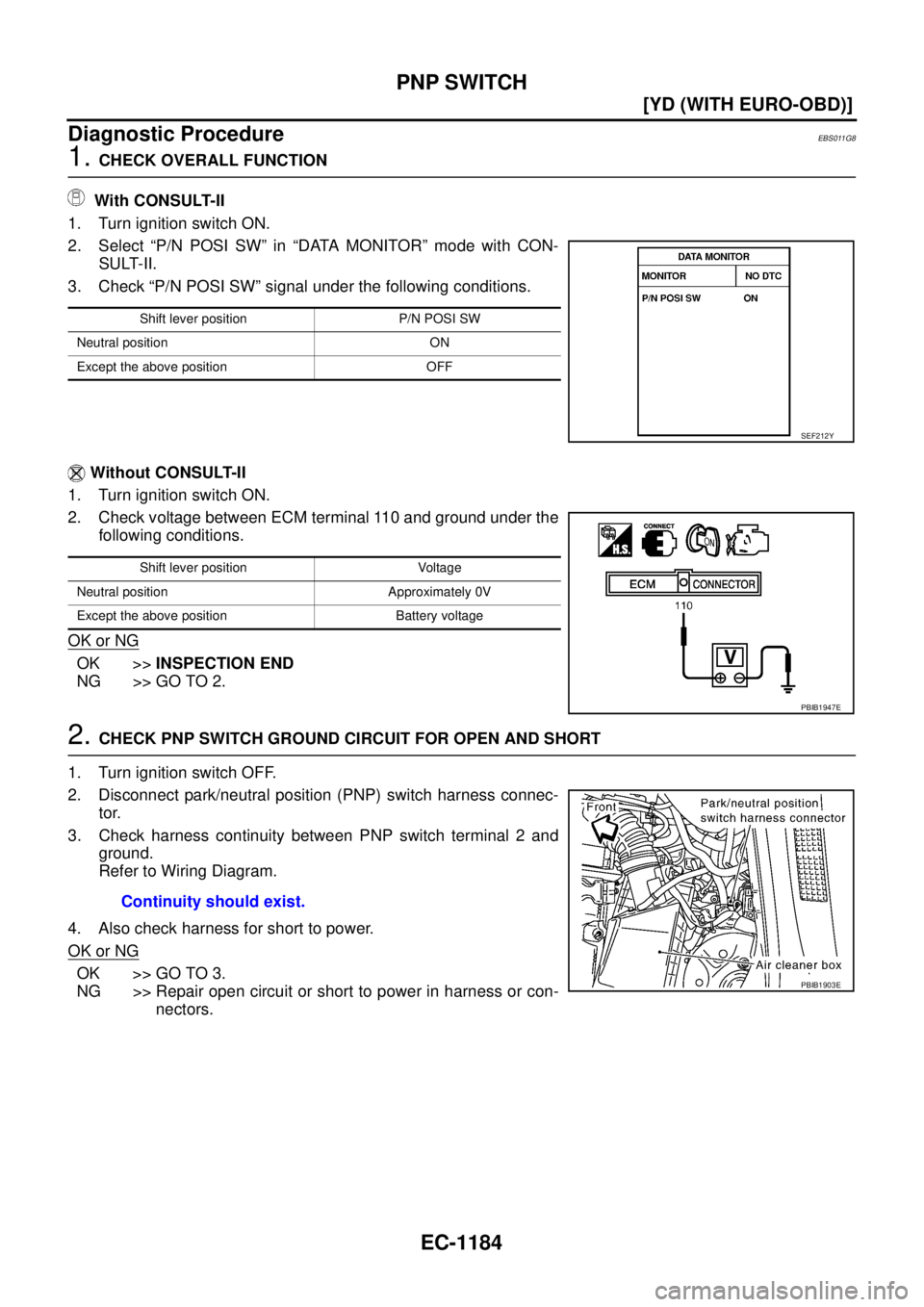

NISSAN X-TRAIL 2003 Service Repair Manual EC-1184 [YD (WITH EURO-OBD)] PNP SWITCH Diagnostic ProcedureEBS011G8 1. CHECK OVERALL FUNCTION With CONSULT-II 1. Turn ignition switch ON. 2. Select “P/N POSI SW” in “DATA MONITOR” mode wit

Page 1563 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual PNP SWITCH EC-1185 [YD (WITH EURO-OBD)] C D E F G H I J K L MA EC 3. CHECK PNP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT 1. Disconnect ECM harness connector. 2. Check harness continuity between

Page 1564 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-1186 [YD (WITH EURO-OBD)] PSP SWITCH PSP SWITCHPFP:49761 Component DescriptionEBS011G9 The power steering pressure switch is attached to the power steer- ing high-pressure tube and detects a powe

Page 1565 of 4179

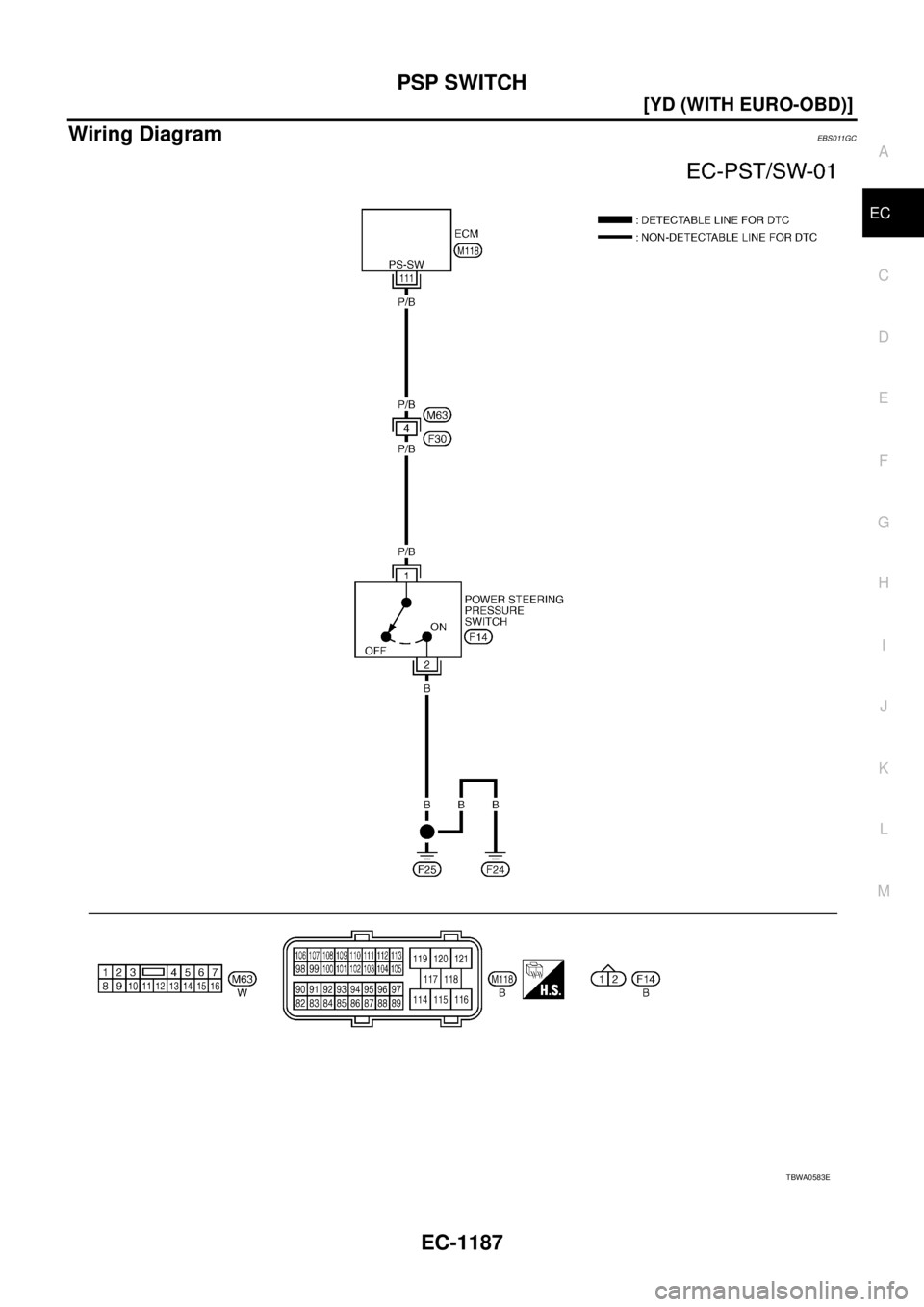

NISSAN X-TRAIL 2003 Service Repair Manual PSP SWITCH EC-1187 [YD (WITH EURO-OBD)] C D E F G H I J K L MA EC Wiring DiagramEBS011GC TBWA0583E

Page 1566 of 4179

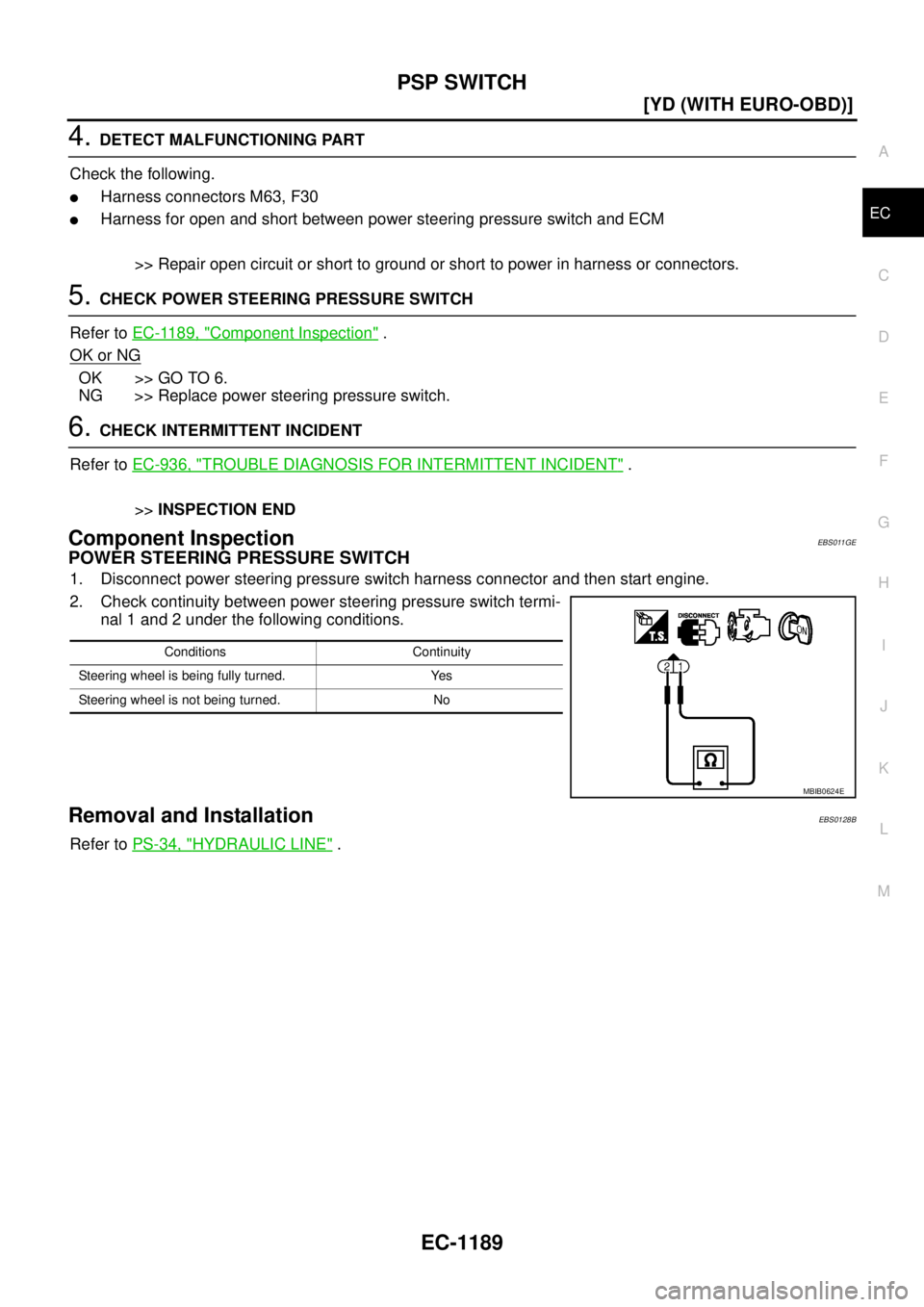

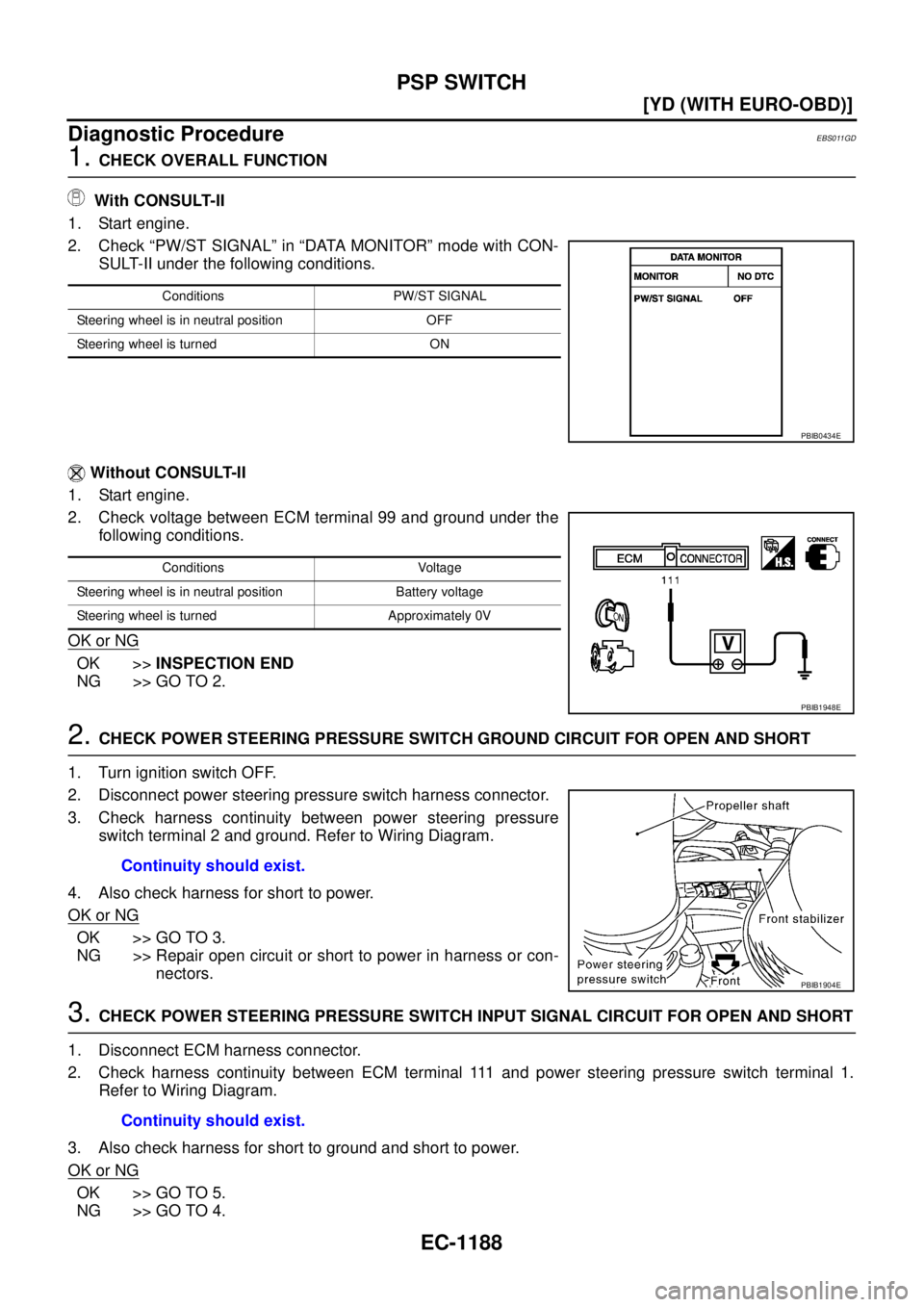

NISSAN X-TRAIL 2003 Service Repair Manual EC-1188 [YD (WITH EURO-OBD)] PSP SWITCH Diagnostic ProcedureEBS011GD 1. CHECK OVERALL FUNCTION With CONSULT-II 1. Start engine. 2. Check “PW/ST SIGNAL” in “DATA MONITOR” mode with CON- SULT

Page 1567 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual PSP SWITCH EC-1189 [YD (WITH EURO-OBD)] C D E F G H I J K L MA EC 4. DETECT MALFUNCTIONING PART Check the following. Harness connectors M63, F30 Harness for open and short between power steering p

Page 1568 of 4179

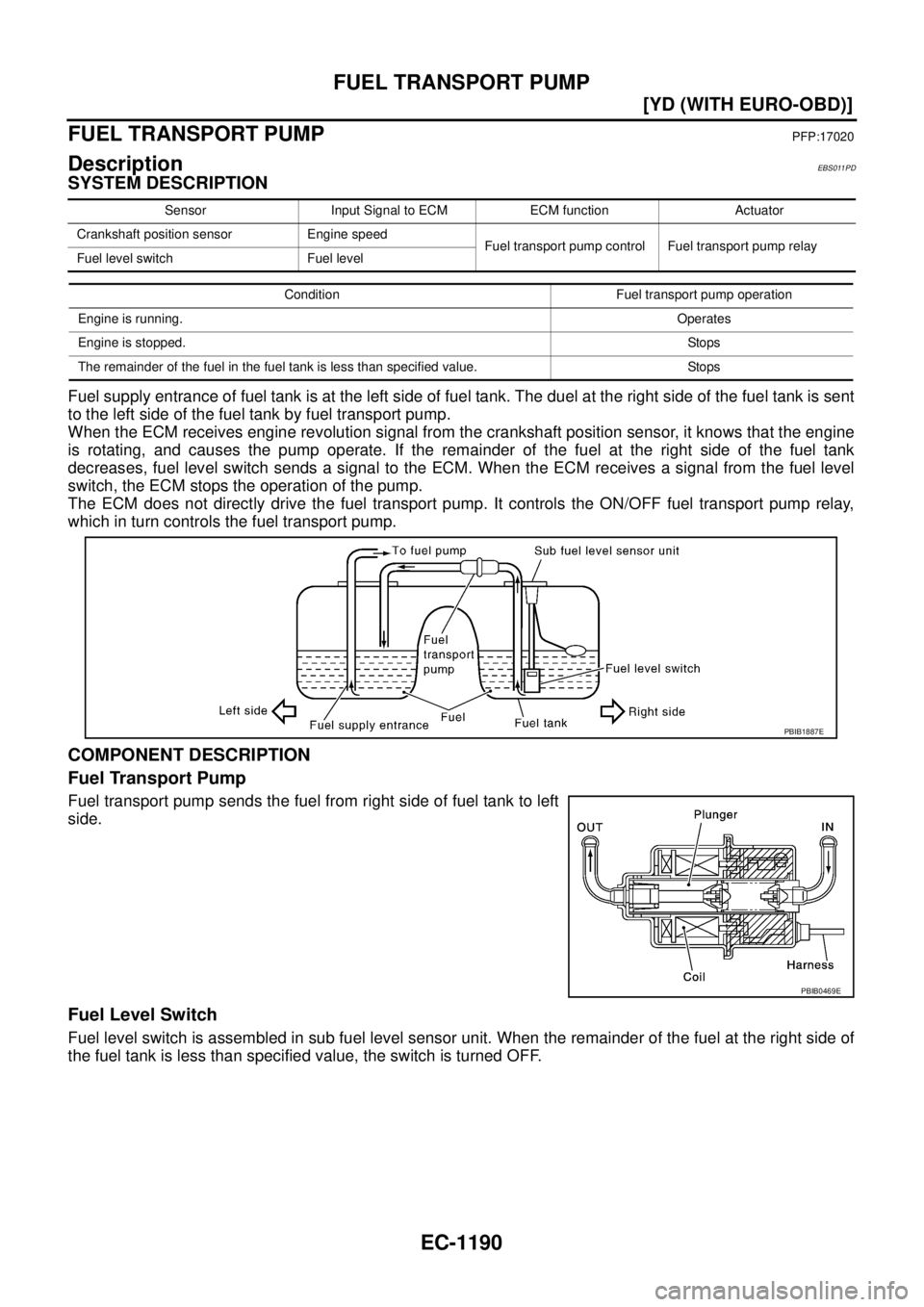

NISSAN X-TRAIL 2003 Service Repair Manual EC-1190 [YD (WITH EURO-OBD)] FUEL TRANSPORT PUMP FUEL TRANSPORT PUMPPFP:17020 DescriptionEBS011PD SYSTEM DESCRIPTION Fuel supply entrance of fuel tank is at the left side of fuel tank. The duel at t
