Page 785 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual DTC P2135 TP SENSOR
EC-407
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
4. CHECK THROTTLE POSITION SENSOR POWER SUPPLY CIRCUIT-III
Check harness for short to power and short to ground, between the NISSAN X-TRAIL 2003 Service Repair Manual DTC P2135 TP SENSOR
EC-407
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
4. CHECK THROTTLE POSITION SENSOR POWER SUPPLY CIRCUIT-III
Check harness for short to power and short to ground, between the](/manual-img/5/57404/w960_57404-784.png)
DTC P2135 TP SENSOR
EC-407
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
4. CHECK THROTTLE POSITION SENSOR POWER SUPPLY CIRCUIT-III
Check harness for short to power and short to ground, between the following terminals.
OK or NG
OK >> GO TO 5.
NG >> Repair short to ground or short to power in harness or connectors.
5. CHECK APP SENSOR
Refer to EC-400, "
Component Inspection" .
OK or NG
OK >> GO TO 11
NG >> GO TO 6.
6. REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform EC-45, "
Accelerator Pedal Released Position Learning" .
3. Perform EC-46, "
Throttle Valve Closed Position Learning" .
4. Perform EC-46, "
Idle Air Volume Learning" .
>>INSPECTION END
7. CHECK THROTTLE POSITION SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between electric throttle control actuator terminal 5 and ECM terminal 66.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK THROTTLE POSITION SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between electric throttle control actuator terminal 4 and ECM terminal 49, elec-
tric throttle control actuator terminal 2 and ECM terminal 68.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
ECM terminal Sensor terminal Reference Wiring Diagram
47 Electric throttle control actuator terminal 1EC-403
91 APP sensor terminal 4EC-395
Continuity should exist.
Continuity should exist.
Page 786 of 4179

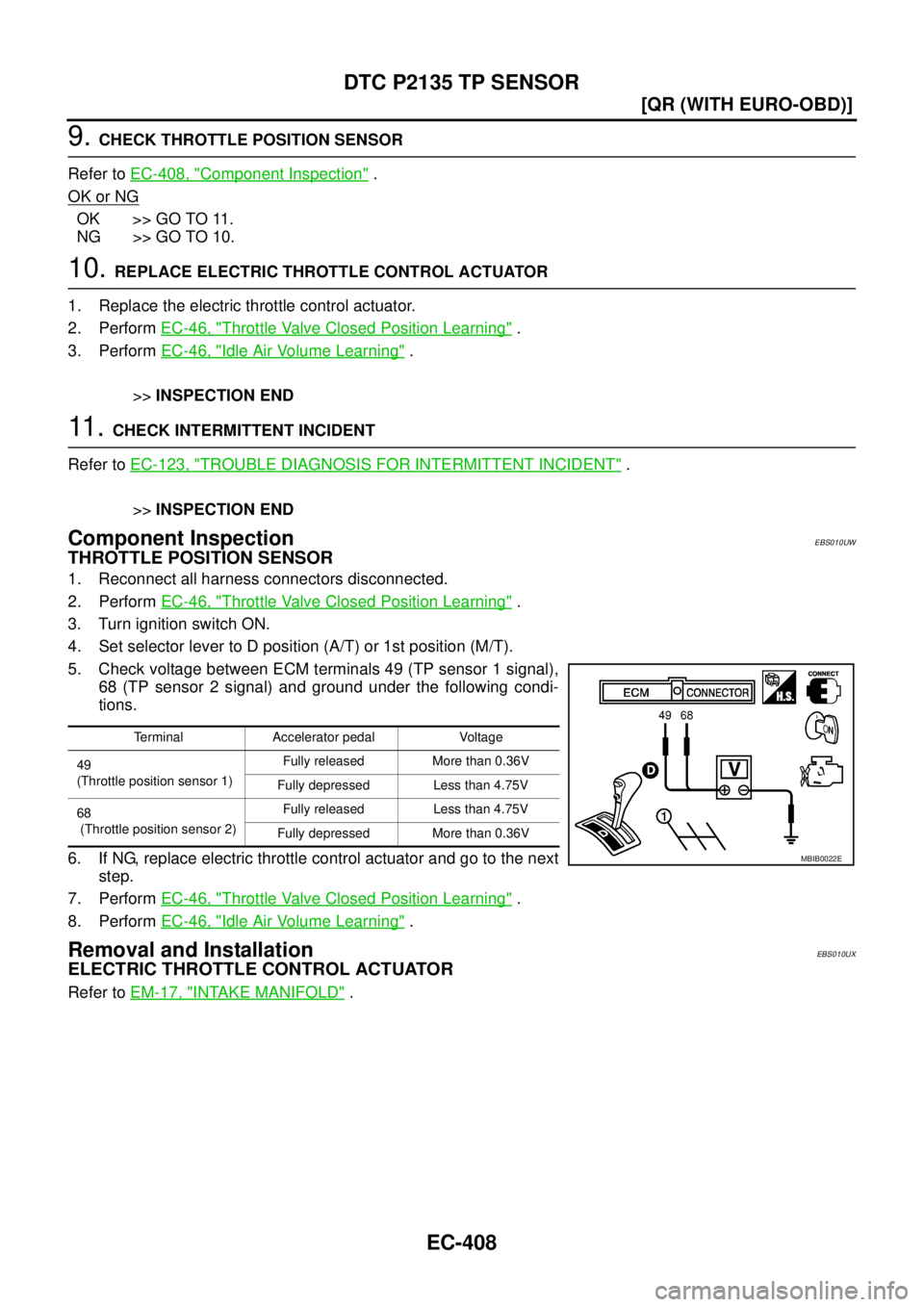

![NISSAN X-TRAIL 2003 Service Repair Manual EC-408
[QR (WITH EURO-OBD)]
DTC P2135 TP SENSOR
9. CHECK THROTTLE POSITION SENSOR
Refer to EC-408, "
Component Inspection" .
OK or NG
OK >> GO TO 11.
NG >> GO TO 10.
10. REPLACE ELECTRIC THROTTLE CO NISSAN X-TRAIL 2003 Service Repair Manual EC-408
[QR (WITH EURO-OBD)]
DTC P2135 TP SENSOR
9. CHECK THROTTLE POSITION SENSOR
Refer to EC-408, "
Component Inspection" .
OK or NG
OK >> GO TO 11.
NG >> GO TO 10.
10. REPLACE ELECTRIC THROTTLE CO](/manual-img/5/57404/w960_57404-785.png)
EC-408
[QR (WITH EURO-OBD)]
DTC P2135 TP SENSOR
9. CHECK THROTTLE POSITION SENSOR
Refer to EC-408, "
Component Inspection" .
OK or NG
OK >> GO TO 11.
NG >> GO TO 10.
10. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-46, "
Throttle Valve Closed Position Learning" .
3. Perform EC-46, "
Idle Air Volume Learning" .
>>INSPECTION END
11 . CHECK INTERMITTENT INCIDENT
Refer to EC-123, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS010UW
THROTTLE POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Perform EC-46, "
Throttle Valve Closed Position Learning" .
3. Turn ignition switch ON.
4. Set selector lever to D position (A/T) or 1st position (M/T).
5. Check voltage between ECM terminals 49 (TP sensor 1 signal),
68 (TP sensor 2 signal) and ground under the following condi-
tions.
6. If NG, replace electric throttle control actuator and go to the next
step.
7. Perform EC-46, "
Throttle Valve Closed Position Learning" .
8. Perform EC-46, "
Idle Air Volume Learning" .
Removal and InstallationEBS010UX
ELECTRIC THROTTLE CONTROL ACTUATOR
Refer to EM-17, "INTAKE MANIFOLD" .
Terminal Accelerator pedal Voltage
49
(Throttle position sensor 1)Fully released More than 0.36V
Fully depressed Less than 4.75V
68
(Throttle position sensor 2)Fully released Less than 4.75V
Fully depressed More than 0.36V
MBIB0022E
Page 787 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual DTC P2138 APP SENSOR
EC-409
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

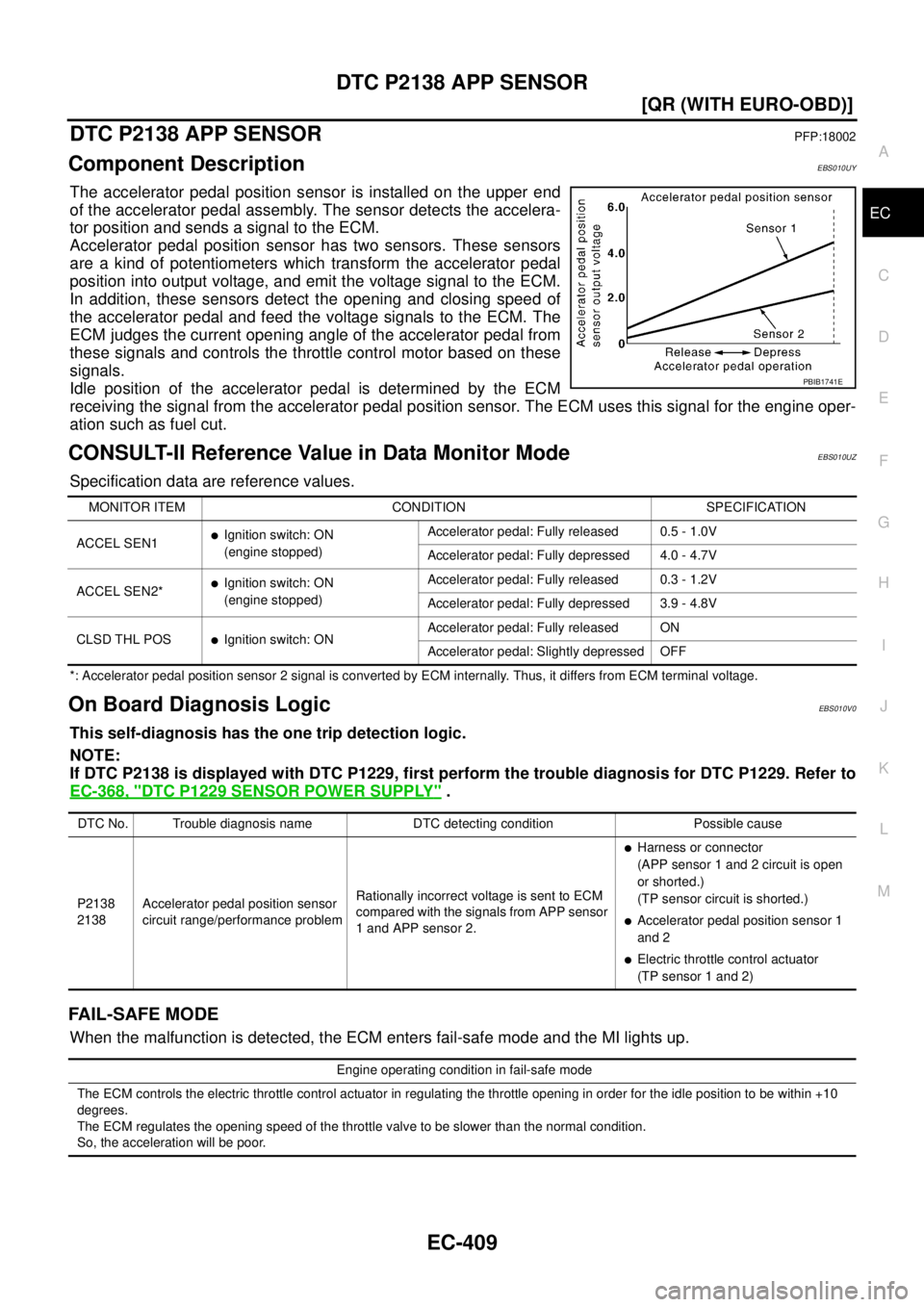

DTC P2138 APP SENSORPFP:18002
Component DescriptionEBS010UY
The accelerator pedal position sensor is installed on the upper NISSAN X-TRAIL 2003 Service Repair Manual DTC P2138 APP SENSOR
EC-409
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P2138 APP SENSORPFP:18002
Component DescriptionEBS010UY
The accelerator pedal position sensor is installed on the upper](/manual-img/5/57404/w960_57404-786.png)
DTC P2138 APP SENSOR
EC-409
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P2138 APP SENSORPFP:18002
Component DescriptionEBS010UY
The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensor detects the accelera-
tor position and sends a signal to the ECM.
Accelerator pedal position sensor has two sensors. These sensors
are a kind of potentiometers which transform the accelerator pedal
position into output voltage, and emit the voltage signal to the ECM.
In addition, these sensors detect the opening and closing speed of
the accelerator pedal and feed the voltage signals to the ECM. The
ECM judges the current opening angle of the accelerator pedal from
these signals and controls the throttle control motor based on these
signals.
Idle position of the accelerator pedal is determined by the ECM
receiving the signal from the accelerator pedal position sensor. The ECM uses this signal for the engine oper-
ation such as fuel cut.
CONSULT-II Reference Value in Data Monitor ModeEBS010UZ
Specification data are reference values.
*: Accelerator pedal position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage.
On Board Diagnosis LogicEBS010V0
This self-diagnosis has the one trip detection logic.
NOTE:
If DTC P2138 is displayed with DTC P1229, first perform the trouble diagnosis for DTC P1229. Refer to
EC-368, "
DTC P1229 SENSOR POWER SUPPLY" .
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode and the MI lights up.
PBIB1741E
MONITOR ITEM CONDITION SPECIFICATION
ACCEL SEN1
Ignition switch: ON
(engine stopped)Accelerator pedal: Fully released 0.5 - 1.0V
Accelerator pedal: Fully depressed 4.0 - 4.7V
ACCEL SEN2*
Ignition switch: ON
(engine stopped)Accelerator pedal: Fully released 0.3 - 1.2V
Accelerator pedal: Fully depressed 3.9 - 4.8V
CLSD THL POS
Ignition switch: ONAccelerator pedal: Fully released ON
Accelerator pedal: Slightly depressed OFF
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2138
2138Accelerator pedal position sensor
circuit range/performance problemRationally incorrect voltage is sent to ECM
compared with the signals from APP sensor
1 and APP sensor 2.
Harness or connector
(APP sensor 1 and 2 circuit is open
or shorted.)
(TP sensor circuit is shorted.)
Accelerator pedal position sensor 1
and 2
Electric throttle control actuator
(TP sensor 1 and 2)
Engine operating condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.
Page 788 of 4179
EC-410
[QR (WITH EURO-OBD)]
DTC P2138 APP SENSOR
DTC Confirmation ProcedureEBS010V1
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 1 second.
4. If DTC is detected, go to EC-413, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
SEF058Y
Page 789 of 4179
DTC P2138 APP SENSOR
EC-411
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

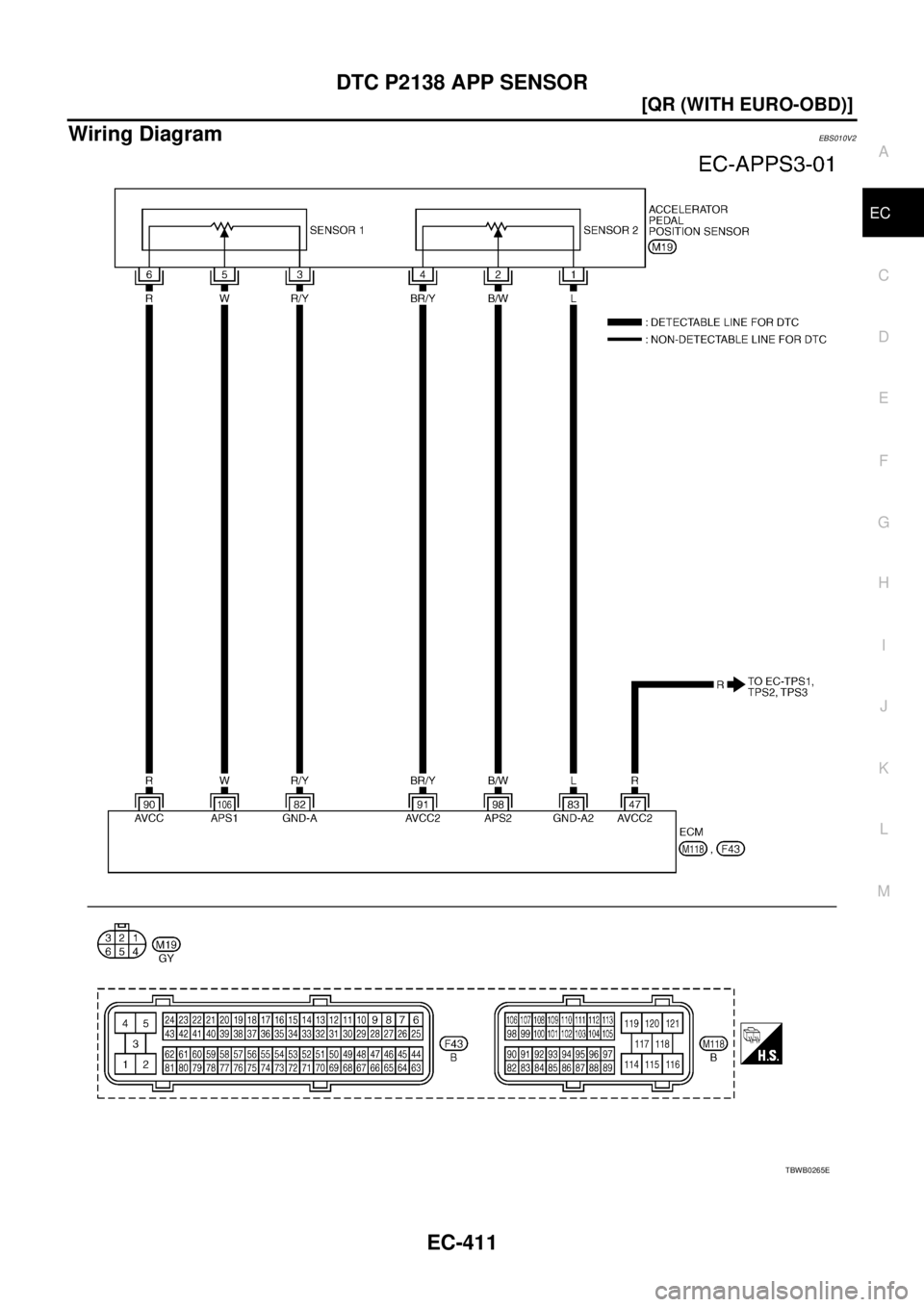

Wiring DiagramEBS010V2
TBWB0265E
Page 790 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual EC-412
[QR (WITH EURO-OBD)]
DTC P2138 APP SENSOR
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring in NISSAN X-TRAIL 2003 Service Repair Manual EC-412
[QR (WITH EURO-OBD)]
DTC P2138 APP SENSOR
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring in](/manual-img/5/57404/w960_57404-789.png)
EC-412
[QR (WITH EURO-OBD)]
DTC P2138 APP SENSOR
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
47 RSensor power supply
(Throttle position sensor)[Ignition switch: ON]Approximately 5V
82 R/YSensor ground
(Accelerator pedal position
sensor 1)[Engine is running]
Warm-up condition
Idle speedApproximately 0V
83 LSensor ground
(Accelerator pedal position
sensor 2)[Engine is running]
Warm-up condition
Idle speedApproximately 0V
90 RSensor power supply
(Accelerator pedal position
sensor 1)[Ignition switch: ON]Approximately 5V
91 BR/YSensor power supply
(Accelerator pedal position
sensor 2)[Ignition switch: ON]Approximately 5V
98 B/WAccelerator pedal position
sensor 2[Ignition switch: ON]
Engine stopped
Accelerator pedal: Fully released0.15 - 0.6V
[Ignition switch: ON]
Engine stopped
Accelerator pedal: Fully depressed1.95 - 2.4V
106 WAccelerator pedal position
sensor 1[Ignition switch: ON]
Engine stopped
Accelerator pedal: Fully released0.5 - 1.0V
[Ignition switch: ON]
Engine stopped
Accelerator pedal: Fully depressed3.9 - 4.7V
Page 791 of 4179
DTC P2138 APP SENSOR
EC-413
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

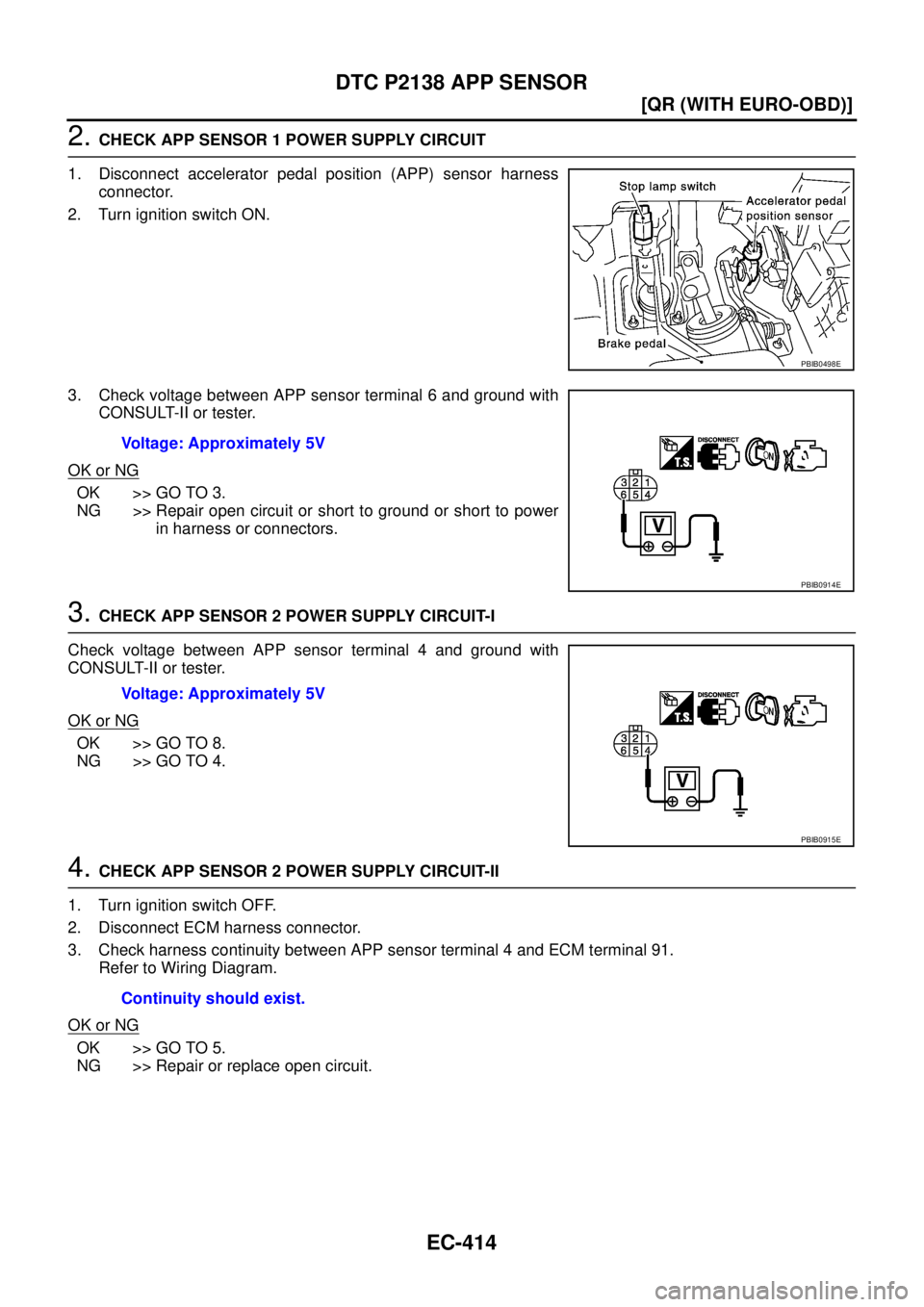

Diagnostic ProcedureEBS010V3
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body.
Refer to EC-131, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
PBIB2021E
Page 792 of 4179
EC-414
[QR (WITH EURO-OBD)]
DTC P2138 APP SENSOR
2. CHECK APP SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor harness
connector.
2. Turn ignition switch ON.
3. Check voltage between APP sensor terminal 6 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
3. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-I
Check voltage between APP sensor terminal 4 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 8.
NG >> GO TO 4.
4. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between APP sensor terminal 4 and ECM terminal 91.
Refer to Wiring Diagram.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace open circuit.
PBIB0498E
Voltage: Approximately 5V
PBIB0914E
Voltage: Approximately 5V
PBIB0915E
Continuity should exist.
