DTC VEHICLE SPEED SENSOR MTR
AT-341
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

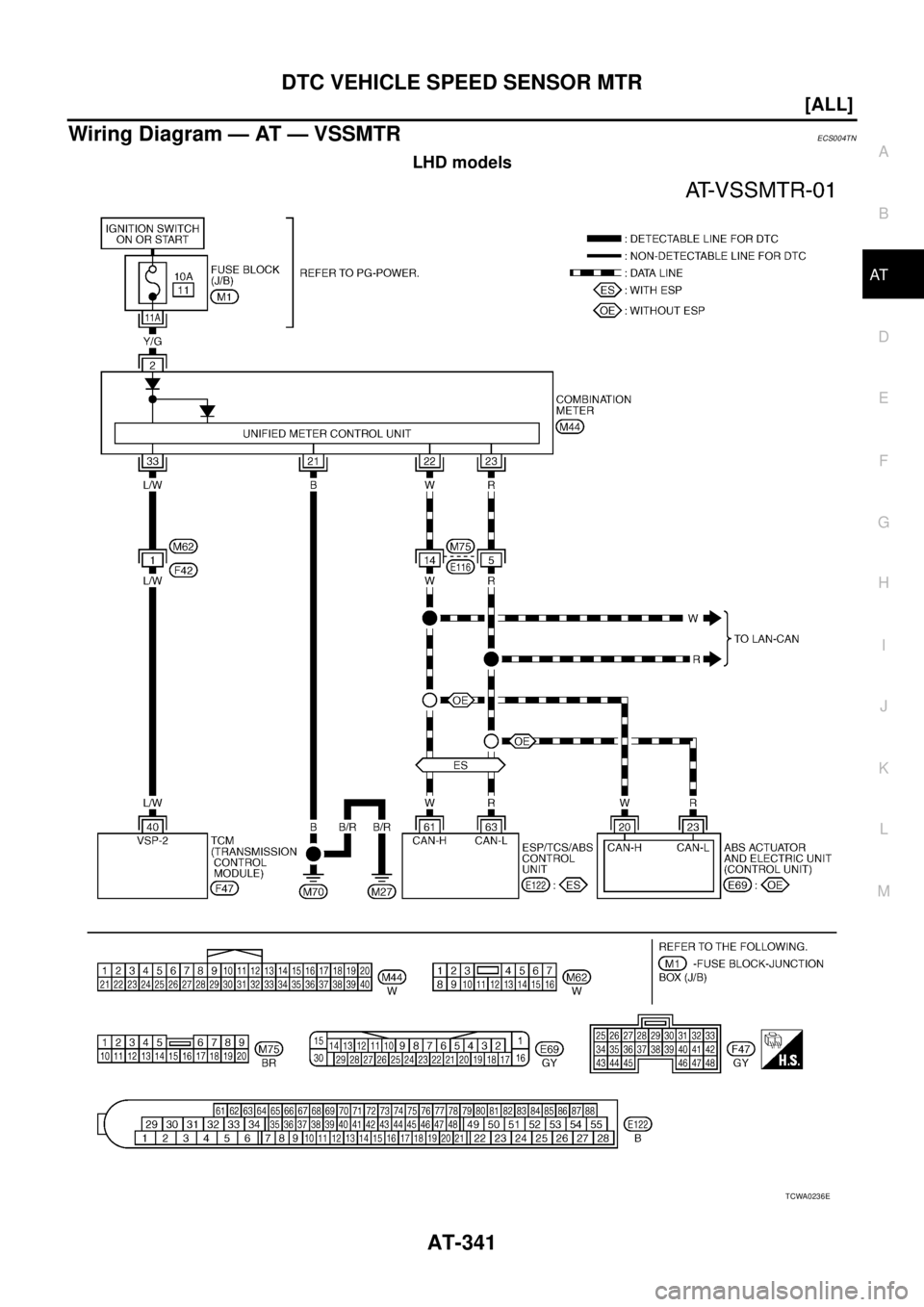

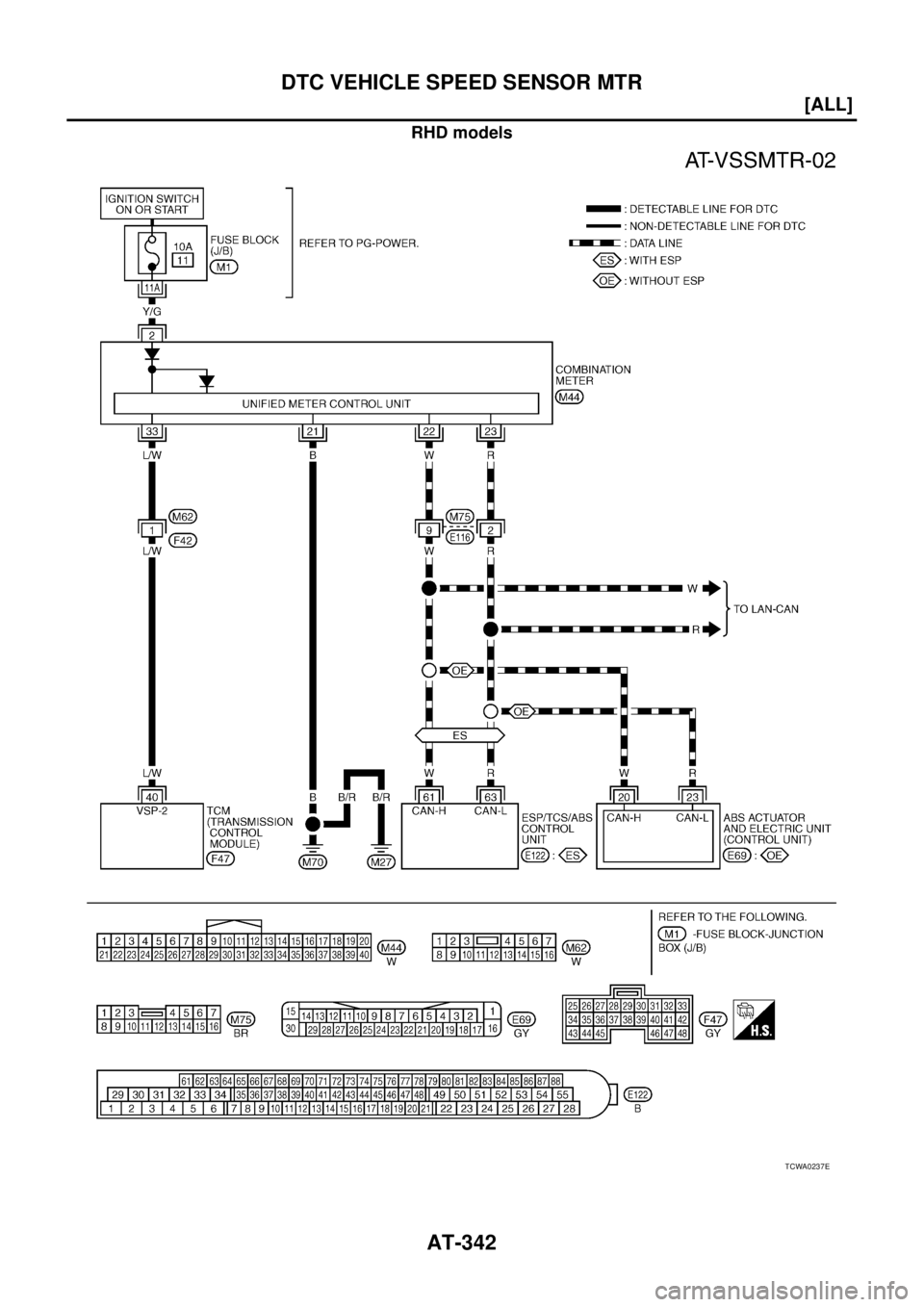

Wiring Diagram — AT — VSSMTRECS004TN
LHD models
TCWA0236E
Page 2378 of 4179
AT-342
[ALL]
DTC VEHICLE SPEED SENSOR MTR
RHD models
TCWA0237E
Page 2379 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual DTC VEHICLE SPEED SENSOR MTR
AT-343
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL
Diagnostic ProcedureECS004TO
1. CHECK INPUT SIGNAL
With CONSULT-II
1 NISSAN X-TRAIL 2003 Service Repair Manual DTC VEHICLE SPEED SENSOR MTR
AT-343
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL
Diagnostic ProcedureECS004TO
1. CHECK INPUT SIGNAL
With CONSULT-II
1](/manual-img/5/57404/w960_57404-2378.png)
DTC VEHICLE SPEED SENSOR MTR
AT-343
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL
Diagnostic ProcedureECS004TO
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out the value of “VHCL/S SE·MTR” while driving.
Check the value changes according to driving speed.
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM connector and ground.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. DETECT MALFUNCTIONING ITEM
Check the following items:
Combination meters. Refer to DI-4, "COMBINATION METERS" .
Harness for short or open between TCM and unified combination meter.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
Te r m i -
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
40 L/WVehicle speed
sensorWhen moving vehicle at 2 to 3 km/h
(1 to 2 MPH) for 1 m (3 ft) or more.Voltage varies
between less
than 0V and
more than 4.5V
LCIA0090E
Name Connec-
tor No. Terminal
No. (Wire
color) ConditionJudge-
mentstan-
dard(Appro
x.)
Vehicle
speed sen-
sor F47 40(L/W) -
GroundWhen moving vehicle at
2 to 3 km/h (1 to 2 MPH)
for 1 m (3 ft) or more.Voltage
varies
between
less than
0V and
more than
4.5V
SCIA3246E
Page 2380 of 4179
AT-344
[ALL]
DTC VEHICLE SPEED SENSOR MTR
3. CHECK DTC
Perform AT- 3 3 9 , "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 4.
4. CHECK TCM
1. Check TCM input/output signal. Refer to AT- 9 4 , "
TCM Terminals and Reference Value" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
Page 2381 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual ACCELE RATOR PEDAL POSITION (APP) SENSOR
AT-345
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
ACCELE RATOR PEDAL POSITION (APP) SENSORPFP:22620
DescriptionECS004TP
Accelerator pedal position (APP) sensor
Electri NISSAN X-TRAIL 2003 Service Repair Manual ACCELE RATOR PEDAL POSITION (APP) SENSOR
AT-345
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
ACCELE RATOR PEDAL POSITION (APP) SENSORPFP:22620
DescriptionECS004TP
Accelerator pedal position (APP) sensor
Electri](/manual-img/5/57404/w960_57404-2380.png)
ACCELE RATOR PEDAL POSITION (APP) SENSOR
AT-345
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
ACCELE RATOR PEDAL POSITION (APP) SENSORPFP:22620
DescriptionECS004TP
Accelerator pedal position (APP) sensor
Electric throttle control actuator consists of throttle control motor,
acceleration pedal position sensor, throttle position sensor, etc.
The actuator sends a signal to the ECM.
CONSULT-II REFERENCE VALUE
Remarks: Specification data are reference values.
On Board Diagnosis LogicECS00CSD
*:This code means Accelerator pedal position (APP) sensor in reality.
Possible CauseECS00CSE
Harness or connector
(The sensor circuit is open or shorted.)
DTC Confirmation ProcedureECS00CSF
After the repair, perform the following procedure to confirm the malfunction is eliminated.
CAUTION:
Always drive vehicle at a safe speed.
If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait
at least 10 seconds before continuing.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and wait at
least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode for “A/T” with CONSULT-II.
2. Touch “TCM INPUT SIGNALS”.
3. Touch “START”
If the check result is NG, go to AT- 3 4 8 , "
Diagnostic Procedure" .
If the check result is OK, go to following step.
PBIB0498E
Monitor item Condition Specification
Accelerator pedal position (APP) sensor
(THRTL POS SEN)Fully-closed throttle Approximately 0.5V
Fully-open throttle Approximately 4V
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: THROTTLE POSI SEN*
TCM receives an excessively low or high
voltage from the sensor.
Harness or connectors
(The sensor circuit is open or shorted.)
Accelerator pedal position (APP) sensor
: 3rd judgement flicker
Accelerator pedal condition THRTL POS SEN
Fully released Approx. 0.5V
Partially depressed 0.5 - 4V
Fully depressed Approx. 4V
SAT014K
Page 2382 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual AT-346
[ALL]
ACCELE RATOR PEDAL POSITION (APP) SENSOR
4. Turn ignition switch ON and select “DATA MONITOR” mode for
“A/T” with CONSULT-II.
5. Touch “SELECTION FROM MENU”
6. Touch “VHC NISSAN X-TRAIL 2003 Service Repair Manual AT-346
[ALL]
ACCELE RATOR PEDAL POSITION (APP) SENSOR
4. Turn ignition switch ON and select “DATA MONITOR” mode for
“A/T” with CONSULT-II.
5. Touch “SELECTION FROM MENU”
6. Touch “VHC](/manual-img/5/57404/w960_57404-2381.png)
AT-346
[ALL]
ACCELE RATOR PEDAL POSITION (APP) SENSOR
4. Turn ignition switch ON and select “DATA MONITOR” mode for
“A/T” with CONSULT-II.
5. Touch “SELECTION FROM MENU”
6. Touch “VHCL SPEED SE” and “THRTL POS SEN”.
Touch “START”.
7. Start engine and maintain the following conditions for at least 3
consecutive seconds. Then release accelerator pedal com-
pletely.
VHCL SPEED SE: 10 km/h (6 MPH) or more
THRTL POS SEN: Approximately 3V or less
SLCT LVR POSI: D position
If the check result is NG, go to AT- 3 4 8 , "
Diagnostic Procedure" .
If the check result is OK, go to following step.
8. Maintain the following conditions for at least 3 consecutive seconds. Then release accelerator pedal com-
pletely.
VHCL SPEED SE: 10 km/h (6 MPH) or more
THROTTLE POSI: 8.0/8
SLCT LVR POSI: D position
WITHOUT CONSULT-II
1. Start engine.
2. Drive vehicle under the following conditions for more than 3 seconds.
Selector lever position: D position
Vehicle speed: 10 km/h (6 MPH) or more
Throttle position: greater than 4.0/8 of the full throttle position
3. Perform self-diagnosis.
Refer to AT- 5 2 , "
Diagnostic Procedure Without CONSULT-II" .
4. If the check result is NG, go to AT- 3 4 8 , "
Diagnostic Procedure" .
SCIA5358E
SAT014K
SCIA5593E
Page 2383 of 4179
ACCELE RATOR PEDAL POSITION (APP) SENSOR
AT-347
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

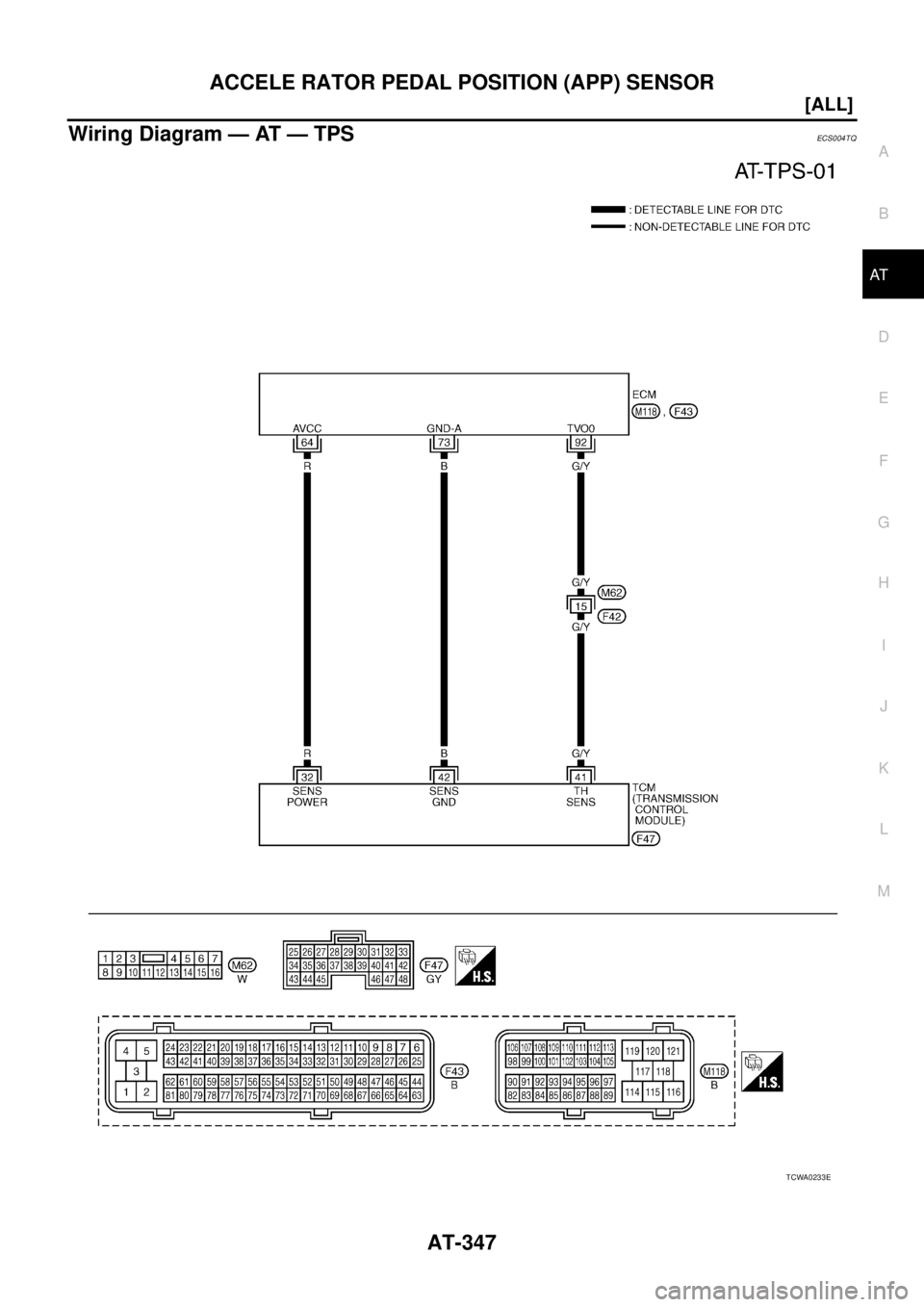

Wiring Diagram — AT — TPSECS004TQ
